Aosom 370-189V80 User manual

ASSEMBLY INSTRUCTION
INfac016_US_CA
370-189V80
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY
*Suitable for children of 18-36 Months.
*Max weight: 20 kg.
Children’s Toy Beach Car
BATTERY POWERED RIDE-ON
EN

Owner’s Manual
with Assembly Instructions
Styles and colo(u)rs may vary.
Made in China.
The owner’s manual contains important safety information as well as assembly, use and
maintenance instructions.
The Ride-on Car must be assembled by an adult who has read and understands the
instructions in this manual.
Keep the package away from children and dispose of properly before use.
Keep this manual for future reference.
-1-

Battery
Charger
6V4AH *1 or 6V4.5AH *1
6V500mA
Suitable age:
Load Capacity:
Speed:
Size of car:
Power way:
Charge time:
18-36 months
Under 20kg
2km/h
66 * 44 * 42 CM
Charging type
8-12 hours
About Your New Ride-On │ 1
VER: SMS-JS320-EN-20201106
SPECIFICATIONS:
On the purchase of your new Ride-On.
This ride-on will provide your child with many miles of riding of enjoyment.
To help assure you and your rider a safe ride we ask you to please read this
manual carefully, and keep it for future reference.
Follow the recommendations in this manual, they are designed to improve
the safety and operation of your ride-on car and it’s rider.
-2-

User Notice │ 2
•Never leave your child unattended. Direct adult supervision is required.
Always keep child in view when child is in vehicle.
•To reduce the risk of injury, adult supervision is required. Never use in
roadways, near motor vehicles, on or near steep inclines or steps, swimming
pools or other bodies of water, always wear shoes, and never allow more than
1 rider.
•Never use in unsafe conditions such as snow, rain, loose dirt, mud, sand, or
gravel, otherwise may result in an unexpected accident such as tipping over,
and could damage the electrical system or battery
•Not to be used in traffic.
•This toy should be used with caution since skill is required to avoid falls or
collisions causing injury to the user or third parties.
•This toy is unsuitable for children under 18 months due to its maximum
speed; Maximum user weight is 20kg.
•This toy has no brake.
WARNING!
Please adhere to the following safety hazards to prevent injuries:
●Non-rechargeable batteries are not to be recharged.
●Rechargeable batteries are to be removed from the toy before being charged.
●Rechargeable batteries are only to be charged under adult supervision.
●Different types of batteries or new and used batteries are not to be mixed.
●Batteries are to be inserted with the correct polarity.
●Exhausted batteries are to be removed from the toy.
●The supply terminals are not to be short-circuited.
BATTERY INFORMATION
•CHOKING HAZARD - Small parts. Not suitable for children under 18 months. The product
contains small parts, keep children away when assembling.
•ADULT ASSEMBLY REQUIRED.
• Always remove protective material and poly bags and dispose before
assembly.
• Protective equipment should be worn. Always wear shoes and sit in the seat when operating
the vehicle.
• Only drive on level ground. Never use on the lawn.
• Never leave a child unattended.
• Keep your hands, hair, and clothes away from moving parts.
SAFETY
-3-

1
56
4
8
5
22
2
4
2
2
3
3
7
9
10
HINT: Some parts shown are assembled on both sides of vehicle

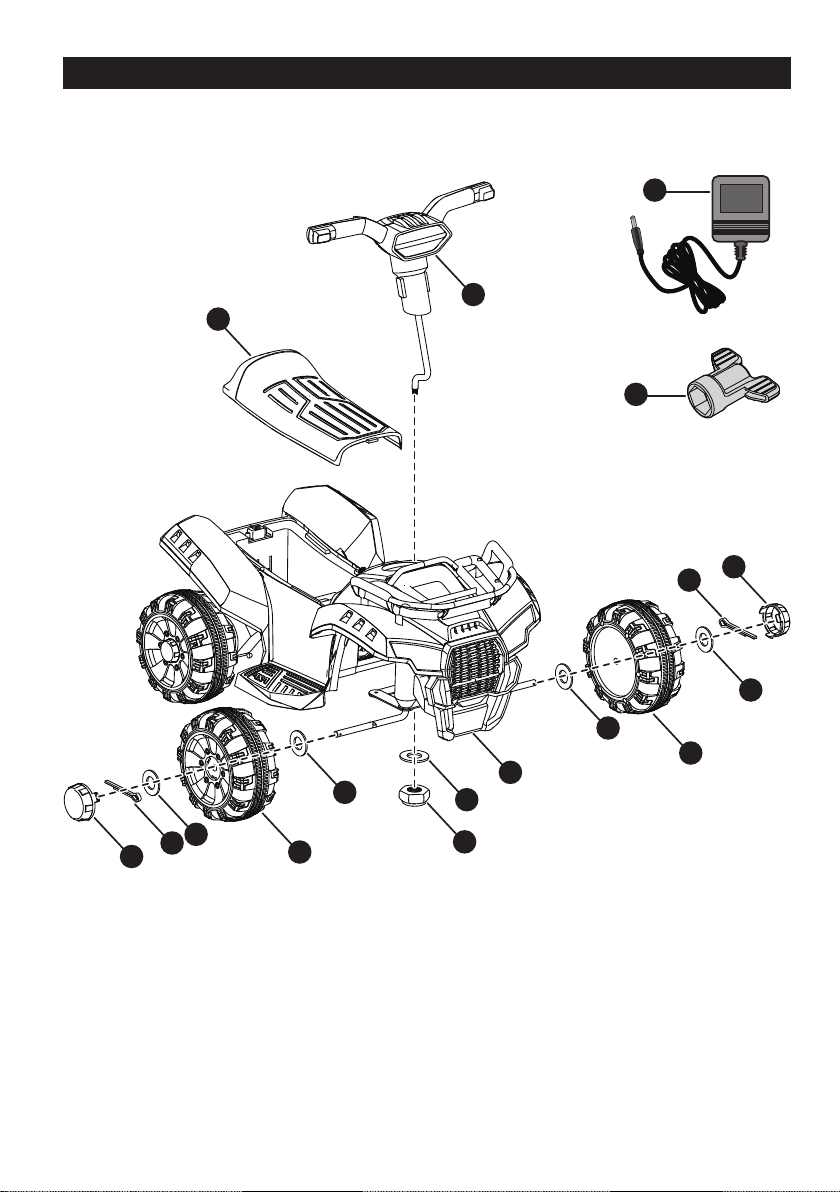

Parts Diagram │ 3
-4-

1
5
2
2
2
1
1
1
1
1
PART
NO. REMARKS
PART NAME Q’ty (pcs)
Vehicle body
Ø10 washer
Front wheel
Split pin
Hubcap
Lock nut
Handle bar
Seat
Charger
Spanner
Parts List │ 4

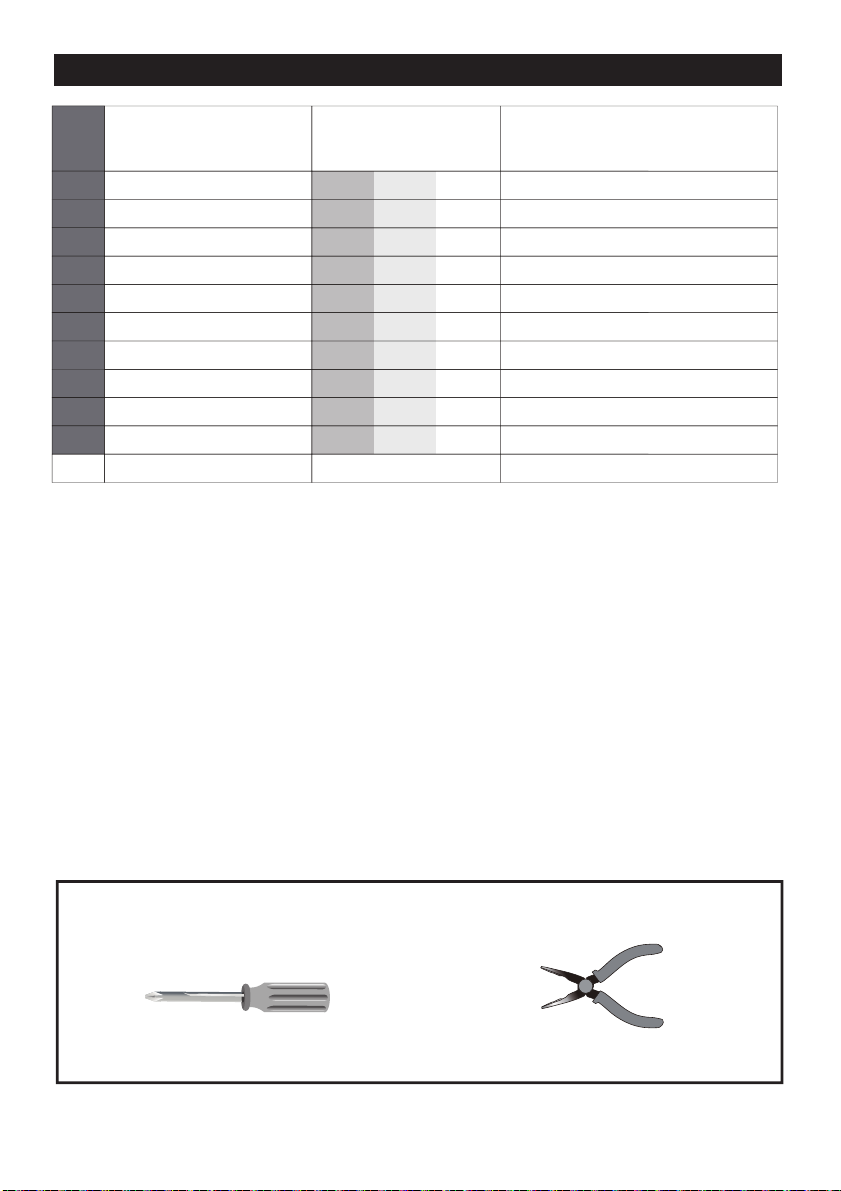

Assembly tools required (not included):
Screwdriver
1
2
3
4
5
6
7
8
9
10
Long nose pliers
-5-

1
2
34
5
Attach the handlebar │ 5
Rear Bottom View
Rear Bottom View
1. Insert the handlebar assembly together with wire into the large opening at the front of
the vehicle body.
2. Ensure that the steering column is placed through the hole in the steering linkage.
3-4. Turn the vehicle body on its side. Fit a Ø10 washer to the handlebar column, and
tighten a locknut wiht a spanner.
5. Insert the handllebar connector into the vehicle connector.
Front axle linkage
Front axle linkage
Handlebar
connector
Handlebar
connector
Vehicle
connector
Vehicle
connector
-6-

1
2
3
4
5
1
2
3
4
5
Attach the Front Wheels │ 6
Turn the vehicle body downside up. Remove all the parts from the front axle.
1. Slide a Ø10 washer onto the front axle.
2. Slide a front wheel onto the front alxe.
3. Slide a Ø10 washer onto the front axle.
4. Insert the split pin into the hole in the end of the front axle. Bend the ends of split pins
back using a long nose pliers (not included).
5. “Snap” a hubcap to the front wheel.
Repeat the above procedure to assemble the other front wheel.
Front Bottom View
-7-

Connect the Power Supply & Attach the Seat │ 7
Turn the vehicle body upright.

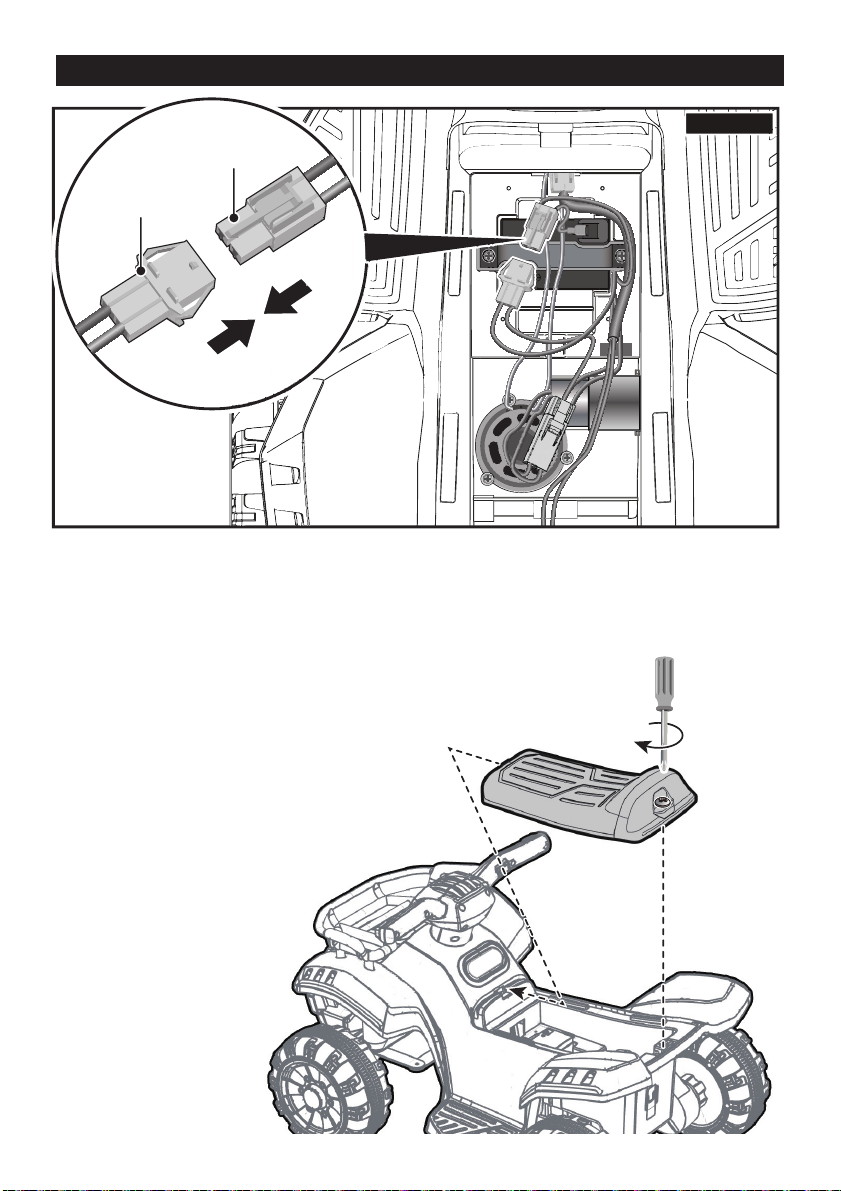

1. Plug the red vehicle connector into red battery connector on the battery.
2. Fit the tab on the seat into the grooves on vehicle body.
3. Use a screwdriver to tighten the screw on the seat into the holes on
the vehicle body.
Red battery
connector
Red vehicle
connector
Top View
-4-
-8-

42
5
76
1
Use Your Ride-on │ 8
Use the vehicle on generally level ground ONLY! DO NOT Use the vehicle on Lawn space!
●Always stop vehicle when changing the speed (if equipped) or direction to
avoid damage the gears and motor.
IMPORTANT
When not using, please turn
the audio player off, avoid to
reduce the battery life.
IMPORTANT
1. Forward button: Press down on the button to drive forward, release to slow and
stop.
1
-9-

Charging │ 9
Battery Disposal
The battery will eventually lose the ability to hold a charge. Depending on the amount of use, and
varying conditions, the battery should operate for one to three years.
Important! Recycle the dead battery responsibly. The battery contains lead acid (electrolyte) and
must be disposed of properly and legally. It is illegal in most areas to incinerate lead acid batteries
or dispose of them in landfills. Take it to a federal or state-approved lead acid battery recycler,
such as local automotive battery retailer.
Do not throw the battery away with your regular household waste!
•The POWER SWITCH must be in the OFF position when charging.
•Before the first use, you should charge the battery for 4-6 hours. Do not
recharge the battery for more than 10 hours to avoid overheating the charger.
•When the vehicle begins to run slowly, recharge the battery.
•After each use or once a month minimum recharge time as 8 to 12 hours, less
than 20 hours at most.
•Only use the rechargeable battery and charger supplied with your vehicle.
NEVER substitute the battery or the charger with another brand. Using another
battery or charger may cause a fire or explosion.
•Do not use the battery or charger for any other product.
•ONLY an adult is allowed to charge and recharge the battery!
• This product with Charging Protection: when charging, all functions will be
cut off.
WARNING!
2

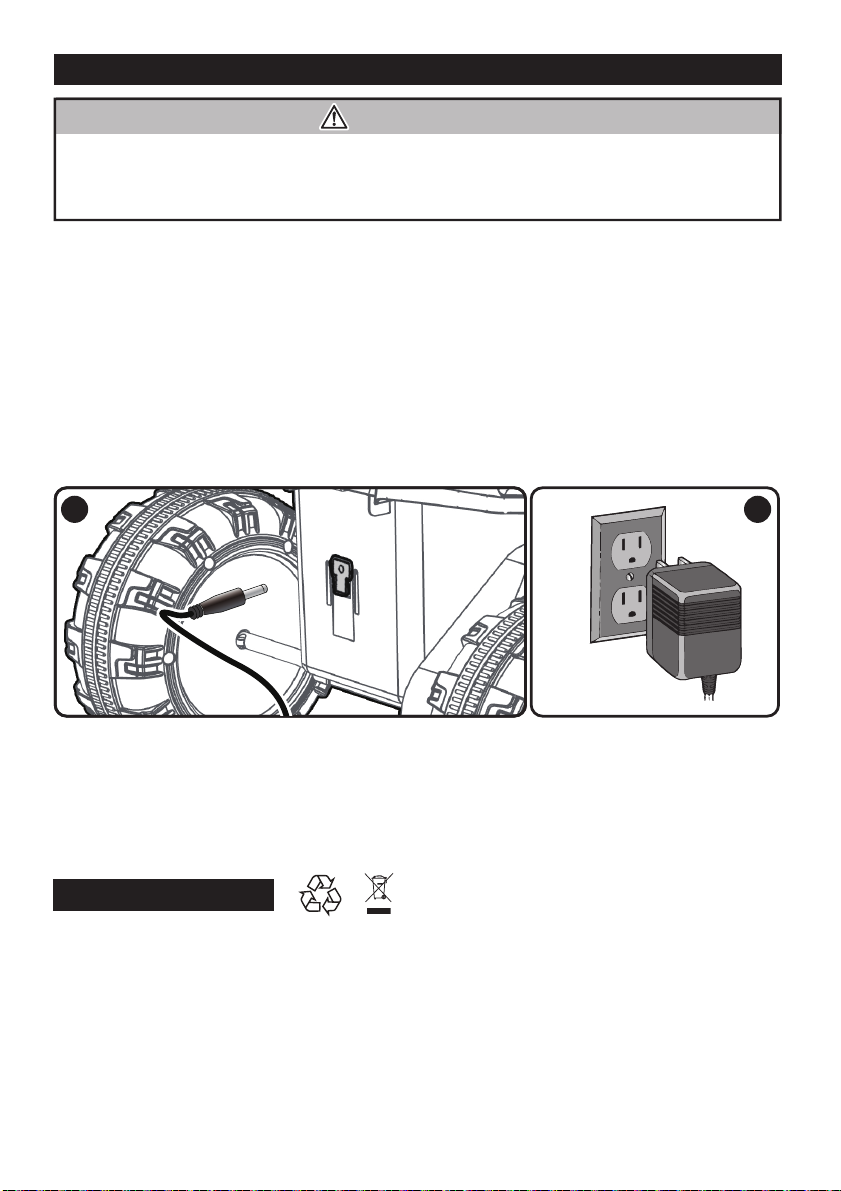

1. Plug the charger port into the input socket (the socket is on the back of vehicle body).
2. Plug the charger plug into a wall outlet. The battery will begin charging.
•1
-10-

.
Problem Possible Cause Solution
Vehicle does not run
Vehicle does not run
very long
Vehicle runs sluggishly
Vehicle needs a push
to go forward
Difficult shifting from
forward to reverse or
vice-versa
Loud grinding or clicking
noises coming from
motor or gear box
Battery low on power
Thermal fuse has tripped
Battery connector or wires
are loose
Battery is dead
Electrical system is damaged
Motor is damaged
Battery is under charged
Battery is old
Battery is old
Vehicle is overload
Vehicle is being used in harsh
conditions
Poor contact of wires or
connectors
“Dead Spot” on motor
Motor or gears are damaged
Battery low on power
Recharge battery.
Reset fuse, see <Fuse>
Check that the battery connectors are firmly plugged
into each other. If wires are loose around the motor
contact your distributor please.
Check that the battery connectors are firmly plugged
into each other. If wires are loose around the motor,
contact your distributor please.
A dead spot means the electric power is not being
delivered to the terminal connection and the vehicle
needs repair. Contact your distributor please.
Attempting to shift while the
vehicle is motion
Completely stop the vehicle and shift, see <Use Your
Ride-On>
Check that the battery connectors are firmly plugged
into each other when recharging
Replace battery, contact your distributor please.
Replace battery, contact your distributor please.
Replace battery, contact your distributor please.
Reduce weight on vehicle.
Avoid using vehicle in harsh conditions, see <Safety>.
Recharge battery, contact your distributor please.
Contact your distributor please.
Contact your distributor please.
Contact your distributor please.
Contact your distributor please.
Battery will not
recharge
Charger feels warm
when recharging
Battery connector or adapter
connector is loose
Charger not plugged in
Charger is not working
This is normal and not a
cause for concern
Check that the battery connectors are firmly plugged
into each other.
Check that the battery charger is plugged into a
working wall outlet.
Please read this manual thoroughly and the troubleshooting guide table before calling.
If you still need help resolving the problem Contact your distributor please.
Troubleshooting Guide │ 10
-11-

The battery features a thermal fuse with a rest fuse that will automatically trip and cut all
power to the vehicle if the motor, electric system or battery is overloaded. The fuse will
reset and power will be restored after the unit is turned OFF for 20 seconds and then
turned ON again. If the thermal fuse trips repeatedly during normal use, the vehicle may
need repair. Contact your distributor please.
To avoid losing power, follow these guidelines:
●Do not overload the vehicle.
●Do not tow anything behind the vehicle.
●Do not drive up steep slopes.
●Do not drive into fixed objects, which may cause the wheels to spin, causing the motor
to overheat.
●Do not drive in very hot weather, components may overheat.
●Do not allow water or other liquids to come in contact with the battery or other electric
components.
●Do not tamper with the electric system. Doing so may create a short, causing the fuse
to trip.
•It is the responsibility of the parent to check main parts of the toy before using.
You must regularly examine for potential hazard, such as the battery, charge,
cable or cord, plug, screws are fastened, enclosure of other parts and that in
the event of such damage, the toy must not be used until that damage had
been properly removed.
•Park the vehicle indoors or cover it with a tarp to protect it from wet weather.
•Recharge the battery after each use. Only an adult can handle the battery.
Recharge the battery at least once a month when the vehicle raider is not being
used.
•Do not wash the vehicle with a hose. Do not wash the vehicle with soap and
water. Do not drive the vehicle in rainy or snowy weather. Water will damage
the motor, electric system and battery.
•Clean the vehicle with a soft, dry cloth. To restore shine to plastic parts, use a
non-wax furniture polish. Do not use car wax. Do not use abrasive cleaners.
•When not using, all the electrical source should be turned off. Turn off the
power switch and disconnect the battery connection.
Our products are suitable for
ASTM F963; GB6675; EN71 and EN62115 standard.
Fuse
Maintaining │ 11
-12-

ASSEMBLY INSTRUCTION
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY
*Convient aux enfants de 18 à 36 mois.
*Poids maximum : 20 kg.
Voiture -Jouet de Plage pour Enfants
ALIMENTÉE PAR PILEALIMENTÉE PAR PILE
FR

Manuel d’Instructions
Avec instructions d’assemblage
Les styles et les couleurs peuvent varier.
Fabriqué en Chine.
Le manuel d’instructions contient des informations importantes sur la sécurité,
ainsi que des instructions d’assemblage, d'utilisation et de maintenance.
La voiture doit être assemblée par un adulte ayant lu et compris les instructions
de ce manuel.
Conservez l'emballage hors de portée des enfants et éliminez-le avant
l’utilisation.
Conservez ce manuel pour référence ultérieure.
-1-

Pile
Chargeur
6V4AH*1 or 6V4,5AH*1
6V500mA
Âge approprié:
Capacité de charge:
Vitesse:
Taille de la voiture:
Moyen de puissance:
Temps de charge:
18-36 mois
Moins de 20kg
2km/h
66 * 44 * 42 CM
Type de charge
8-12 heures
À propos de votre nouveau véhicule | 1
VER: SMS-JS320-EN-20201106
SPÉCIFICATIONS:
À l'achat de votre nouveau véhicule.
Ce véhicule procurera à votre enfant de nombreux kilomètres de
plaisir. Pour vous assurer une conduite sûre, ainsi qu’à votre enfant,
nous vous prions de lire attentivement ce manuel et de le conserver
pour référence ultérieure.
Suivez les recommandations de ce manuel, elles sont conçues pour
assurer la sécurité et le fonctionnement de votre voiture et de son
conducteur.
-2-

Avis aux utilisateurs │ 2
Les risques de sécurité suivants peuvent entraîner des blessures graves ou la
mort:
• Ne jamais laisser l'enfant sans surveillance. La surveillance directe d'un adulte
est nécessaire. Gardez toujours l'enfant en vue lorsqu'il est dans le véhicule.
• Pour réduire le risque de blessure, la surveillance d'un adulte est requise. Ne
l'utilisez jamais sur la route, à proximité de véhicules à moteur, sur ou près de
pentes ou de marches abruptes, de piscines ou d'autres plans d'eau.Portez
des chaussures, et n'autorisez jamais plus d’un conducteur.
• Ne jamais utiliser dans des conditions dangereuses telles que la neige, la
pluie, la terre meuble, la boue, le sable ou le gravier, car cela pourrait
provoquer un accident inattendu, comme le renversement, et endommager le
système électrique ou la batterie.
• Ne pas utiliser dans la circulation.
• Ce jouet doit être utilisé avec prudence, car il faut savoir éviter les chutes ou
les collisions qui pourraient causer des blessures à l'utilisateur ou à des tiers.
• Ce jouet ne convient pas aux enfants de moins de 18 mois en raison de sa
vitesse maximale ; le poids maximal de l'utilisateur est de 20 kg.
• Ce jouet n'a pas de frein.
AVERTISSEMENT!
SÉCURITÉ
• Les piles non rechargeables ne doivent pas être rechargées.
• Les piles rechargeables doivent être retirées du jouet avant d'être rechargées.
• Les piles rechargeables ne doivent être rechargées que sous la surveillance
d'un adulte.
• Les différents types de piles ou les piles neuves et usagées ne doivent pas
être mélangés.
• Les piles doivent être insérées avec la polarité correcte.
• Les piles épuisées doivent être retirées du jouet.
• Les bornes d'alimentation ne doivent pas être court-circuitées.
INFORMATIONS SUR LA BATTERIE
•DANGER ÉTROIT - Petites pièces. Ne convient pas aux enfants de moins de 18
mois.
Le produit contient de petites pièces, tenez les enfants à l'écart lors du montage.
•ASSEMBLAGE PAR UN ADULTE REQUIS.
•Toujours enlever le matériel de protection et les sacs en poly et les éliminer avant
l'assemblage.
•Il faut porter un équipement de protection. Portez toujours des chaussures et
asseyez-vous sur le siège lorsque vous utilisez le véhicule.
•Ne roulez que sur un terrain plat. Ne jamais utiliser sur la pelouse.
•Ne laissez jamais un enfant sans surveillance.
•Gardez vos mains, vos cheveux et vos vêtements loin des pièces en mouvement.
-3-

1
56
4
8
5
22
2
4
2
2
3
3
7
9
10
Schéma des pièces │ 3
CONSEIL: Certaines pièces illustrées sont assemblées des deux côtés du
véhicule.
-4-

1
5
2
2
2
1
1
1
1
1
N° DE
PIÈCE REMARQUES
NOM DE LA PIECE Qté (pcs)
Carrosserie
Rondelle Ø10
Roue avant
Goupille fendue
Enjoliveur
Contre-écrou
Poignée
Siège
Chargeur
Clé
Liste des Pièces | 4
Outils de montage requis:(non inclus)
Tournevis
1
2
3
4
5
6
7
8
9
10
Pince à long bec
-5-

1
2
34
5
Fixation du guidon │ 5
Vue de dessous arrière
Vue de dessous arrière
1. Insérez le guidon et le câble dans la grande ouverture située à l'avant
de la carrosserie.
2. Veillez à ce que la colonne de direction est placée dans le trou de la
tringlerie de direction.
3-4. Tournez la carrosserie sur le côté. Mettez une rondelle Ø10 sur la
colonne du guidon, et serrez un contre-écrou avec une clé.
5. Insérez le connecteur du guidon dans le connecteur du véhicule.
Liaison de l'essieu avant
Connecteur de guidon
Connecteur du véhicule
-6-
