aoyue Ritocco User manual

28
AOYUE INTERNATIONAL LIMITED
Jishui Industrial Zone, Nantou, Zhongshan City,
Guangdong Province, P.R.China
http://www.aoyue3d.com
Correct Disposal of this product
This marking indicates that this product should not be disposed with
other household wastes throughout the EU. To prevent possible harm
to the environment or human health from uncontrolled waste disposal,
recycle it responsibly to promote the sustainable reuse of material
resources. To return your used device, please use the return and
collection systems or contact the retailer where the product was
purchased. They can take this product for environmental safe
recycling.
This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
A fire may result if the appliance is not used with care, therefore:
◆ be careful when using the appliance in places where
there are combustible materials ;
◆ do not apply to the same place for a long time;
◆ do not use in presence of an explosive atmosphere;
◆ be aware that heat may be conducted to combustible
materials that are out of sight;
◆ place the appliance on its stand after use and allow it to
cool down before storage;
◆ do not leave the appliance unattended when it is
switched on. Instruction Manual
Thank you for purchasing Ritocco touch up tool
for 3d prints. Please read the manual before
using the unit.
Keep manual in accessible place for future
reference.
Touch up tool for 3d prints
Ritocco
AOYUE3D
®
This manual is designed to familiarize and instruct
the technician with the proper operation and
maintenance of the equipment. Please read
carefully and observe the guidelines in order to
maximize usage and minimize the risk of injury or
accidents .
28
AOYUE INTERNATIONAL LIMITED
Jishui Industrial Zone, Nantou, Zhongshan City,
Guangdong Province, P.R.China
http://www.aoyue3d.com
Correct Disposal of this product
This marking indicates that this product should not be disposed with
other household wastes throughout the EU. To prevent possible harm
to the environment or human health from uncontrolled waste disposal,
recycle it responsibly to promote the sustainable reuse of material
resources. To return your used device, please use the return and
collection systems or contact the retailer where the product was
purchased. They can take this product for environmental safe
recycling.
This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
A fire may result if the appliance is not used with care, therefore:
◆ be careful when using the appliance in places where
there are combustible materials ;
◆ do not apply to the same place for a long time;
◆ do not use in presence of an explosive atmosphere;
◆ be aware that heat may be conducted to combustible
materials that are out of sight;
◆ place the appliance on its stand after use and allow it to
cool down before storage;
◆ do not leave the appliance unattended when it is
switched on. Instruction Manual
Thank you for purchasing Ritocco touch up tool
for 3d prints. Please read the manual before
using the unit.
Keep manual in accessible place for future
reference.
Touch up tool for 3d prints
Ritocco
AOYUE3D
®
This manual is designed to familiarize and instruct
the technician with the proper operation and
maintenance of the equipment. Please read
carefully and observe the guidelines in order to
maximize usage and minimize the risk of injury or
accidents .

2
TABLE OF CONTENTS
Product Description .................................... 3
Package Inclusion ....................................... 3
Safety Precautions ...................................... 4
Specification ............................................... 5
Functions and Features............................... 5

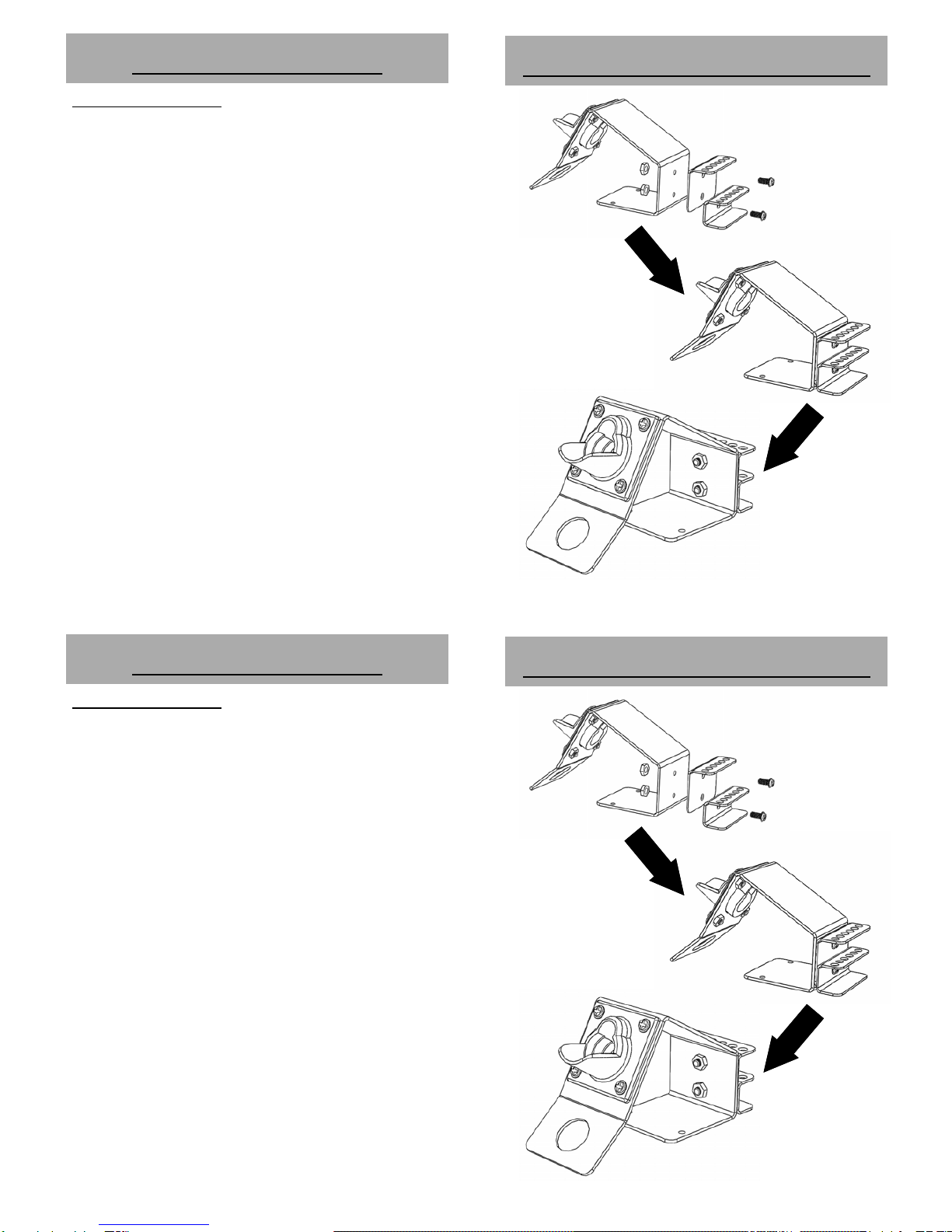

Holder Assembly Instruction......................... 6-8
Display Controls .......................................... 9
Quick Tip Change ....................................... 10
Operating Guidelines
Easy mode.................................. 11-14
Advanced mode ........................ 15-16
Digital offset ................................ 17-18
Sleep .......................................... 19-20
Temperature scale ...................... 21
Advanced options I..................... 22-24
Advanced options II .................... 25-26
2
TABLE OF CONTENTS
Product Description .................................... 3
Package Inclusion ....................................... 3
Safety Precautions ...................................... 4
Specification ............................................... 5
Functions and Features............................... 5
Holder Assembly Instruction......................... 6-8
Display Controls .......................................... 9
Quick Tip Change ....................................... 10
Operating Guidelines
Easy mode.................................. 11-14
Advanced mode ........................ 15-16
Digital offset ................................ 17-18
Sleep .......................................... 19-20
Temperature scale ...................... 21
Advanced options I..................... 22-24
Advanced options II .................... 25-26

26

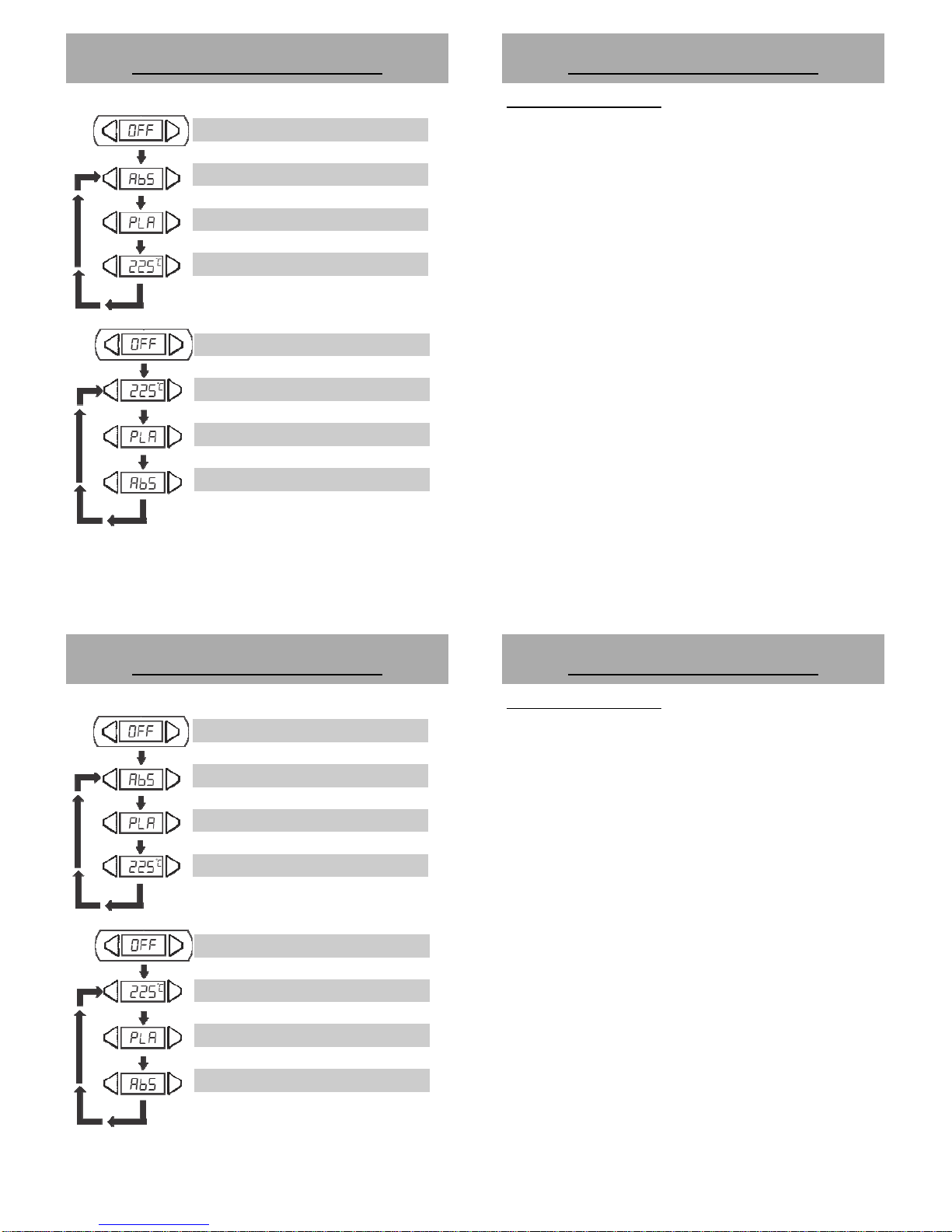

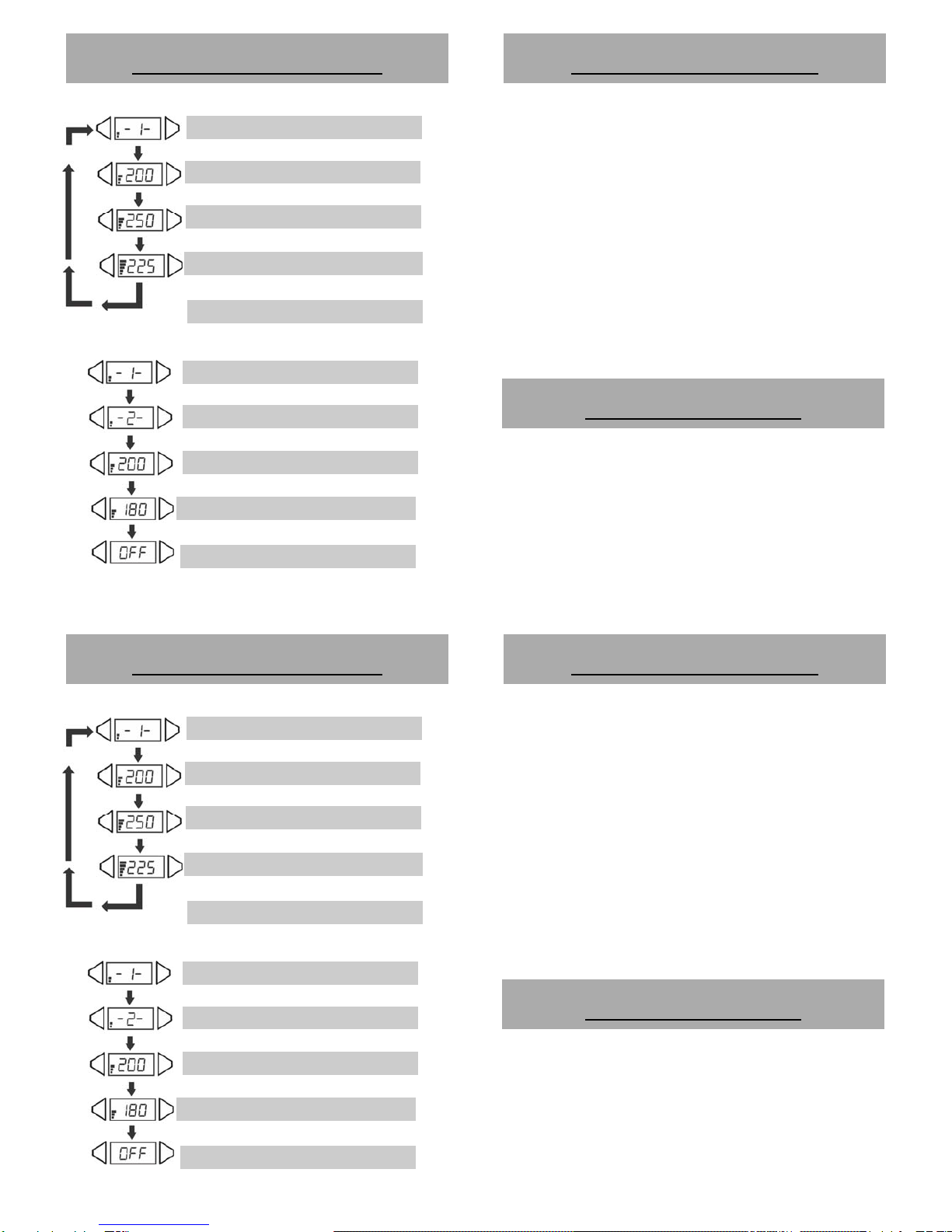

OPERATING GUIDELINES
Mode lock selection
(UP and DOWN button simultaneously pushed)
Set PLA temperature (up & down to adjust)
(UP and DOWN button simultaneously pushed)
Set ABS temperature (up & down to adjust)
(UP and DOWN button simultaneously pushed)
Set Single temperature (up & down to adjust)
From Mode Lock Selection
(UP and DOWN button simultaneously pushed)
Goes back to Mode lock selection
Mode lock selection
(UP button pushed)
Set PLA mode only
(UP and DOWN button simultaneously pushed)
Set PLA temperature (up & down to adjust)
(DOWN button pushed until value reaches 180)
Set PLA temperature to 180
Sample: Set tool to PLA only with temperature of 180
(Wait 3-6 seconds , selection saved )
Goes to standby mode
3
The Aoyue 3D Ritocco is the world’s most
advanced sculpting and retouching tool for 3D prints. Its
revolutionary compound heater and tip design allows
fast heat up and heat response to tackle any retouching
jobs.
The hot swapping compound tip design allows
changing of tips instantly within seconds. Its digital LCD
read out and tactile button allows easy monitoring and
adjustment of modes and temperature.
The slim and sleek design is easy to hold and is
packed with advanced functions and features unrivaled in
the industry.
• Ritocco pen
• 4 different sculpting and blending tip.
• Heat resistant Pad
• Pen stand
PACKAGE INCLUSION
PRODUCT DESCRIPTION
26
OPERATING GUIDELINES
Mode lock selection
(UP and DOWN button simultaneously pushed)
Set PLA temperature (up & down to adjust)
(UP and DOWN button simultaneously pushed)
Set ABS temperature (up & down to adjust)
(UP and DOWN button simultaneously pushed)
Set Single temperature (up & down to adjust)
From Mode Lock Selection
(UP and DOWN button simultaneously pushed)
Goes back to Mode lock selection
Mode lock selection
(UP button pushed)
Set PLA mode only
(UP and DOWN button simultaneously pushed)
Set PLA temperature (up & down to adjust)
(DOWN button pushed until value reaches 180)
Set PLA temperature to 180
Sample: Set tool to PLA only with temperature of 180
(Wait 3-6 seconds , selection saved )
Goes to standby mode
3
The Aoyue 3D Ritocco is the world’s most
advanced sculpting and retouching tool for 3D prints. Its
revolutionary compound heater and tip design allows
fast heat up and heat response to tackle any retouching
jobs.
The hot swapping compound tip design allows
changing of tips instantly within seconds. Its digital LCD
read out and tactile button allows easy monitoring and
adjustment of modes and temperature.
The slim and sleek design is easy to hold and is
packed with advanced functions and features unrivaled in
the industry.
• Ritocco pen
• 4 different sculpting and blending tip.
• Heat resistant Pad
• Pen stand
PACKAGE INCLUSION
PRODUCT DESCRIPTION

4
CAUTION: Improper usage can cause serious injury to personnel
and/or damage to equipment and work area. For your own safety
please observe the following precautions.
SAFETY PRECAUTIONS
● Check each component after opening the package to make sure
everything is in good condition. If there are any suspected
damage, do not use the item and report the issue to your vendor.
● Do not strike or subject the unit to physical shock. Use carefully
to avoid damage to any part.
- Never drop or sharply jolt the unit.
- Contains delicate parts that may break if the unit is dropped.
● Tip temperature may reach as high as 400°C when switched ON.
- Do not use the device near flammable materials.
- Do not touch heated parts, which can cause severe burns.
- Do not touch metallic parts near the tip.
● Disconnect the plug from the power after use.
● Melting or retouching plastics produces smoke, use on well
ventilated places.
● Do not alter the unit, specifically the internal circuitry, in any
The manufacturer declines all responsibility for any damage caused by
incorrect or unreasonable use, such as:
● Improper use by untrained persons;
● Technical modifications or operations not recommended by the
manufacturer;
● use of non-original or non-specific spare parts;
● failure to follow the instructions given in this manual.
25
OPERATING GUIDELINES

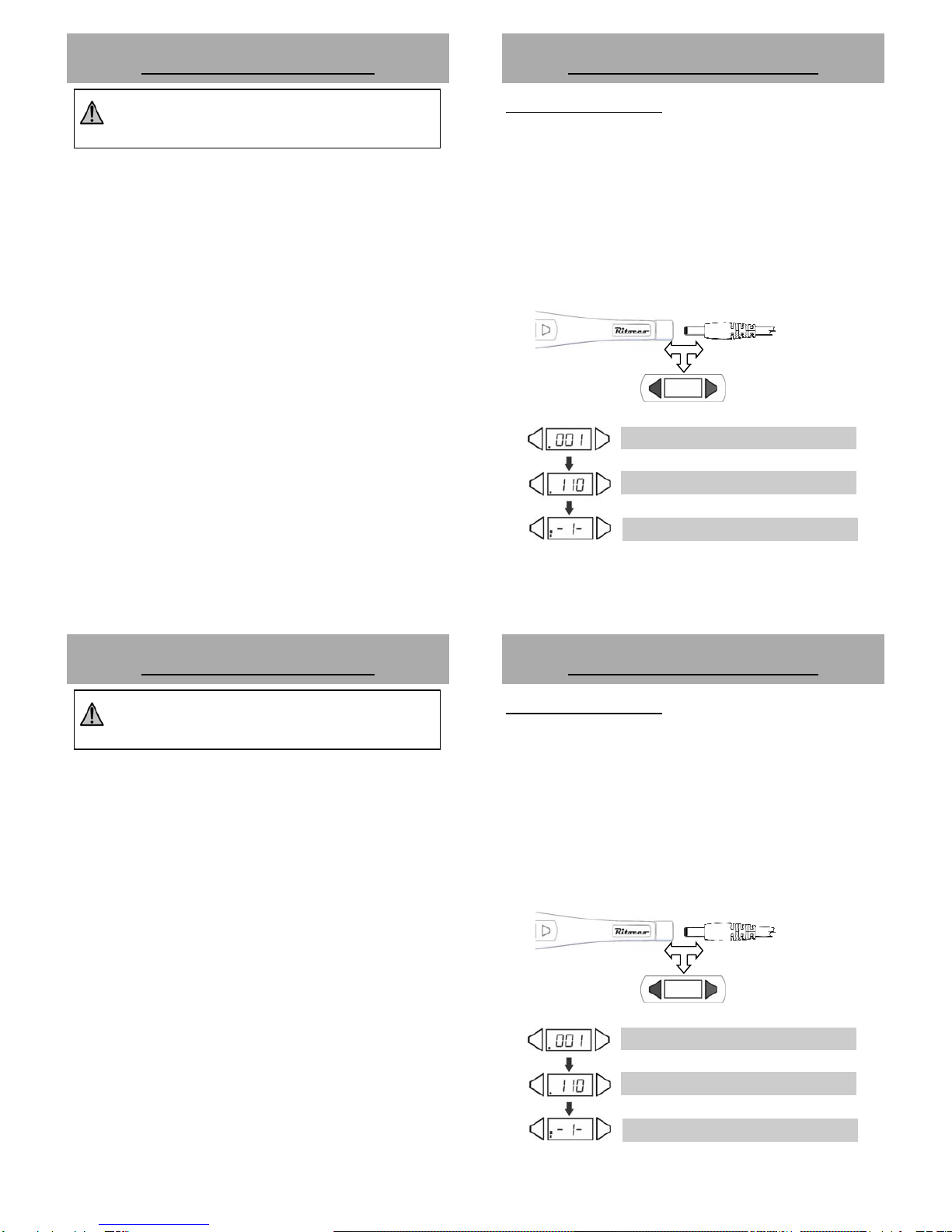

ADVANCED OPTIONS II
Within the advanced options selection we can also set
the PLA Mode temperature , ABS Mode temperature, and the
Single set temperature mode temperature.
PLA Mode temperature : default value is 200.
ABS Mode temperature : default value is 250.
Single Set temperature Mode : default value is 225.

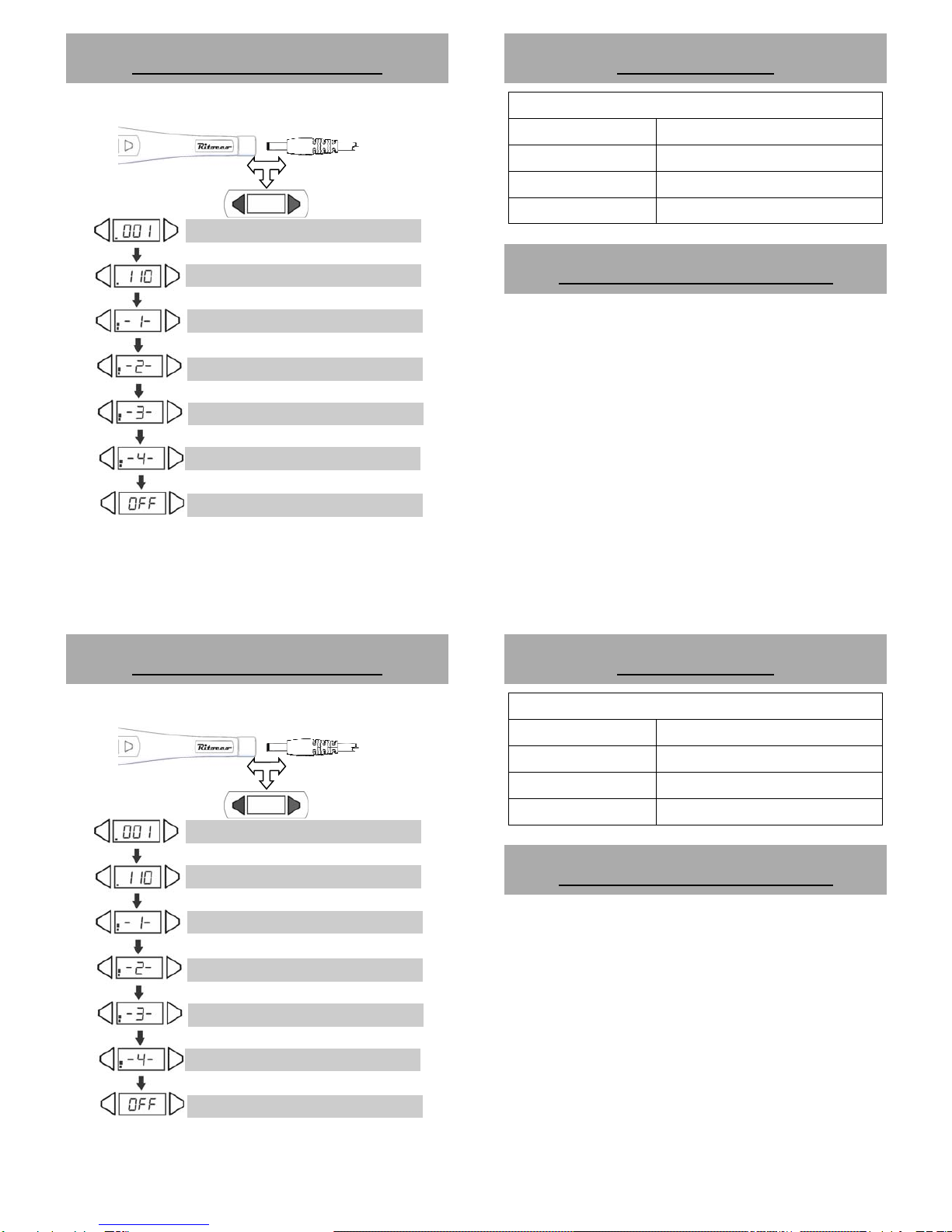

From off to Mode Lock Selection
Press and hold
UP & DOWN button
while plugging in the
tool
Pass code entry mode
Pass code is now at 110
(UP button pushed until it reaches code 110)
Pass code correct, now in selection 1
(UP and DOWN button simultaneously pushed)
4
CAUTION: Improper usage can cause serious injury to personnel
and/or damage to equipment and work area. For your own safety
please observe the following precautions.
SAFETY PRECAUTIONS
● Check each component after opening the package to make sure
everything is in good condition. If there are any suspected
damage, do not use the item and report the issue to your vendor.
● Do not strike or subject the unit to physical shock. Use carefully
to avoid damage to any part.
- Never drop or sharply jolt the unit.
- Contains delicate parts that may break if the unit is dropped.
● Tip temperature may reach as high as 400°C when switched ON.
- Do not use the device near flammable materials.
- Do not touch heated parts, which can cause severe burns.
- Do not touch metallic parts near the tip.
● Disconnect the plug from the power after use.
● Melting or retouching plastics produces smoke, use on well
ventilated places.
● Do not alter the unit, specifically the internal circuitry, in any
The manufacturer declines all responsibility for any damage caused by
incorrect or unreasonable use, such as:
● Improper use by untrained persons;
● Technical modifications or operations not recommended by the
manufacturer;
● use of non-original or non-specific spare parts;
● failure to follow the instructions given in this manual.
25
OPERATING GUIDELINES
ADVANCED OPTIONS II
Within the advanced options selection we can also set
the PLA Mode temperature , ABS Mode temperature, and the
Single set temperature mode temperature.
PLA Mode temperature : default value is 200.
ABS Mode temperature : default value is 250.
Single Set temperature Mode : default value is 225.
From off to Mode Lock Selection
Press and hold
UP & DOWN button
while plugging in the
tool
Pass code entry mode
Pass code is now at 110
(UP button pushed until it reaches code 110)
Pass code correct, now in selection 1
(UP and DOWN button simultaneously pushed)

24
OPERATING GUIDELINES
From off to Mode Lock Selection
Press and hold
UP & DOWN
button while
plugging in the tool
Pass code entry mode
Pass code is now at 110
(UP button pushed until it reaches code 110)
Pass code correct, now in selection 1
(UP and DOWN button simultaneously pushed)
(UP button pushed )
Mode lock selection 2 (PLA only)
(UP button pushed )
Mode lock selection 3 (ABS only)
(UP button pushed )
Mode lock selection 4 (Single temperature)
(Wait 3-6 seconds , selection saved )
Goes to standby mode heater “OFF”
5
SPECIFICATION
MAIN STATION
Voltage Input : 12V DC
Weight: 50 grams
Temperature: up to 150-400°C (302 to752°F )
Heating Element: Composite Ceramic heater
FUNCTIONS and FEATURES
• Composite tip with quick change design.
• Composite ceramic heating element.
• Portable and lightweight.
• LCD display for easy monitoring.
• Easy and Advanced Mode.
• Lock Out Feature.
• Auto sleep function.
• Digital Offset.
• Switch between Centigrade and Fahrenheit Scale.
24
OPERATING GUIDELINES
From off to Mode Lock Selection
Press and hold
UP & DOWN
button while
plugging in the tool
Pass code entry mode
Pass code is now at 110
(UP button pushed until it reaches code 110)
Pass code correct, now in selection 1
(UP and DOWN button simultaneously pushed)
(UP button pushed )
Mode lock selection 2 (PLA only)
(UP button pushed )
Mode lock selection 3 (ABS only)
(UP button pushed )
Mode lock selection 4 (Single temperature)
(Wait 3-6 seconds , selection saved )
Goes to standby mode heater “OFF”
5
SPECIFICATION
MAIN STATION
Voltage Input : 12V DC
Weight: 50 grams
Temperature: up to 150-400°C (302 to752°F )
Heating Element: Composite Ceramic heater
FUNCTIONS and FEATURES
• Composite tip with quick change design.
• Composite ceramic heating element.
• Portable and lightweight.
• LCD display for easy monitoring.
• Easy and Advanced Mode.
• Lock Out Feature.
• Auto sleep function.
• Digital Offset.
• Switch between Centigrade and Fahrenheit Scale.
