AP&T AP-DC2451-001 User manual

Self-cleaning Desktop Ionizing Air Blower
AP-DC2451-001
Self-cleaning Desktop
Ionizing Air Blower
AP&T
R
Shanghai Anping Static Technology Co.,Ltd
AP&T

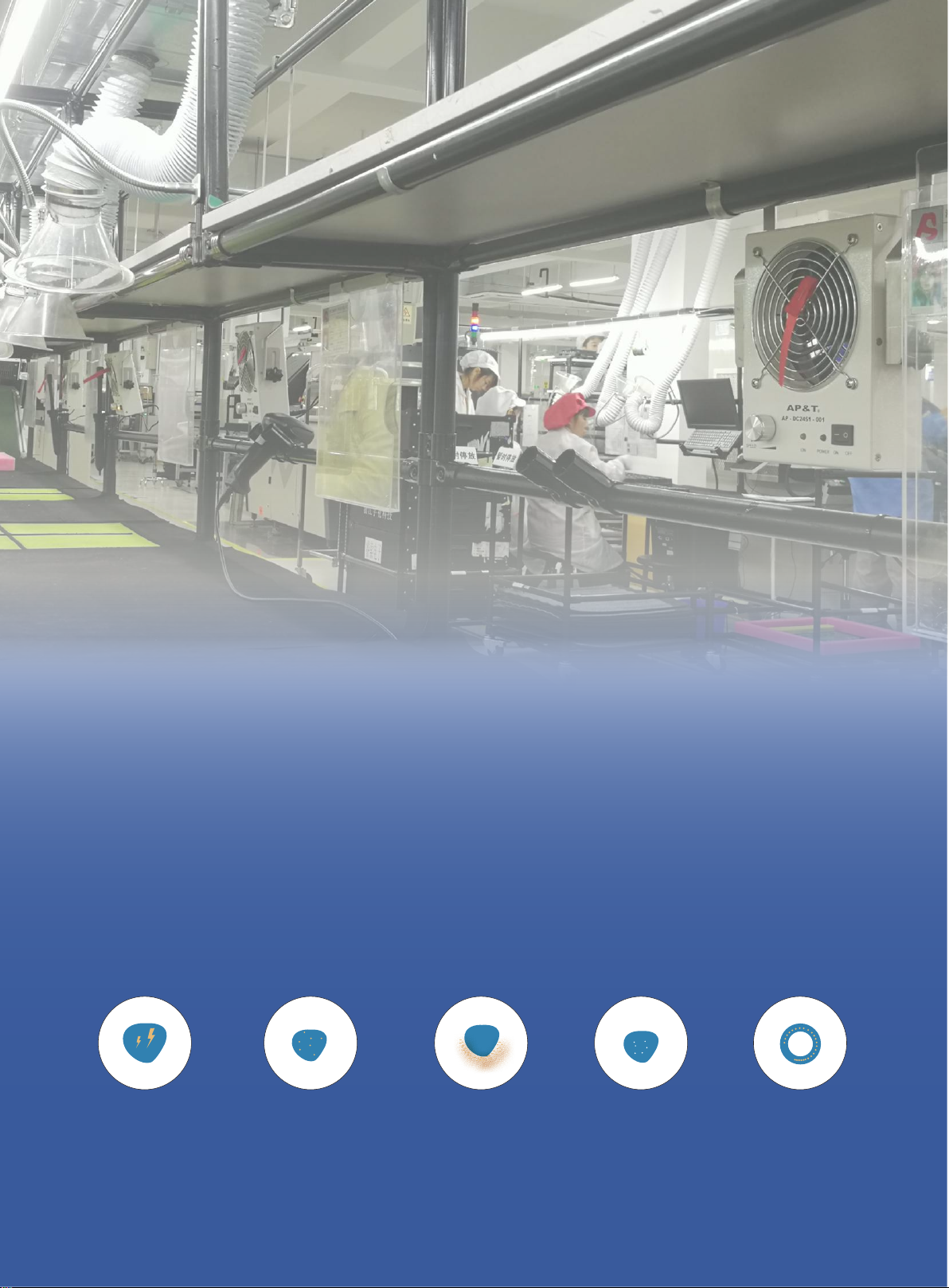

Effectively solve the problems
caused by static electricity
Suitable for electronics, optoelectronics,
semiconductor and other industries
Static removal Prevent blockage of feeder
Prevent static electricity
Prevent material splash
Prevent adhesion of objects

Speciality Creates Value

Test standard:ANSI/ESD.STM3.1,SJ/T 11446—2013
Test instrument: Trek 157 static tester
Test voltage:±1000V → ±100V attenuation
Test environment:humidity 50±5%;temperature 23±3℃
The test data as follows (test distance: 300mm in front, maximum air volume):

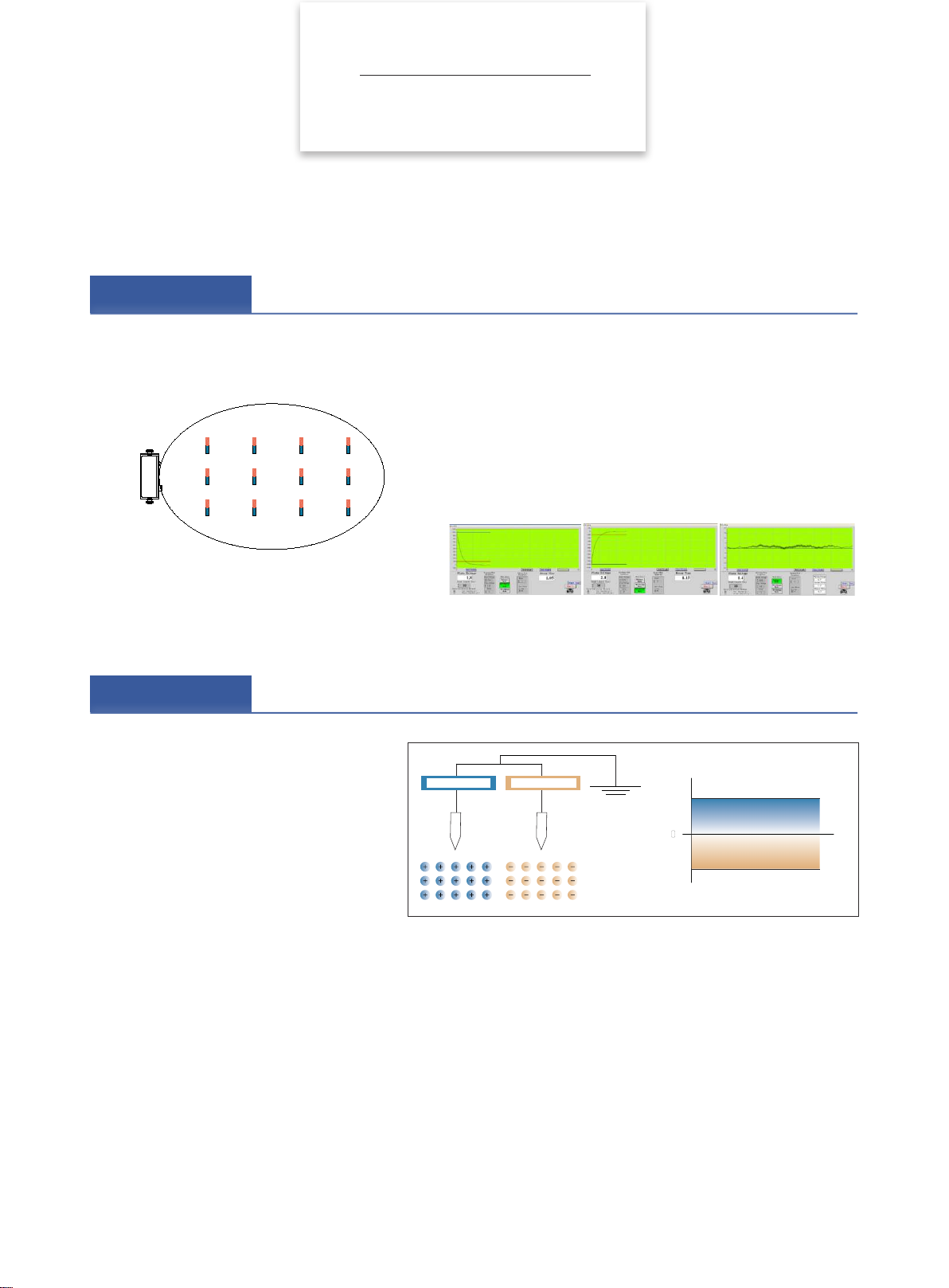

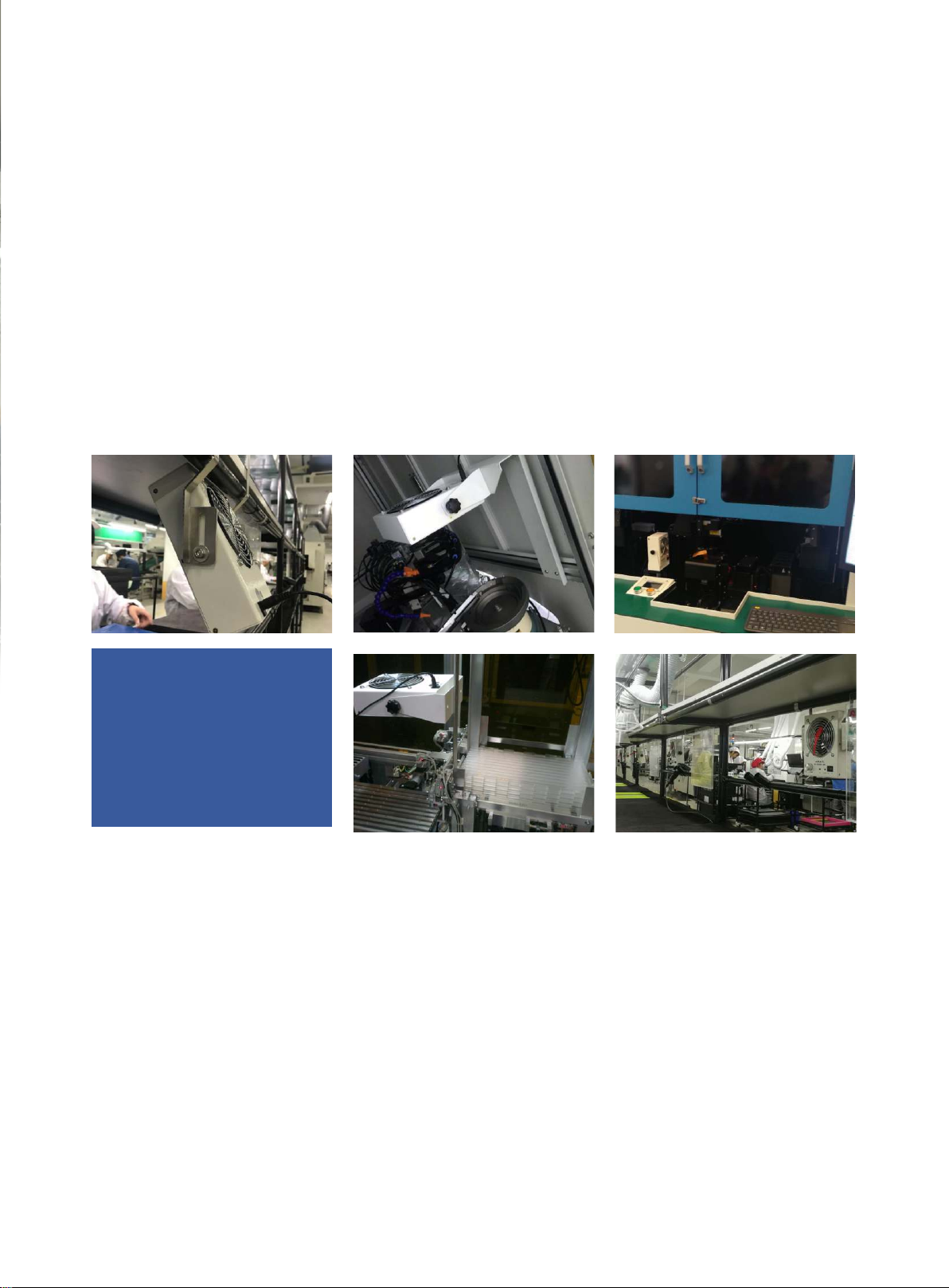

The ionizing air blower adopts the synchronous
emission technology of positive and negative ions,
which use two sets of independent emitter electrodes to
generate a direct current corona discharge to produce a
large number of positive and negative air ions, which
are blown by the axial fan to the surface of objects with
electrostatic to be eliminated. It is suitable for
electronics, optoelectronic, semiconductor, plastic,
film, printing and other industries.
5.5s
7.1s
+1V
+
-
3.0s
4.6s
-2V
+
-
1.7s
2.4s
-2V
+
-
1.1s
1.4s
-2V
+
-
20.8s
37.0s
-2V
+
-
300mm
6.5s
7.7s
-1V
+
-
600mm
6.8s
8.2s
-1V
+
-
900mm
+1V
1200mm
-2V
5.9s
6.9s
-2V
5.7s
7.3s
-1V
+
-
7.8s
10.7s
-1V
+
-
10.9s
11.2s
+
-
16.8s
23.6s
+
-
+
-
300mm
300mm
0mm
DC
DC
T
Steady-state DC
+HV
(Positive high voltage)
-HV
(Negative high voltage)
Discharge effect
Working way

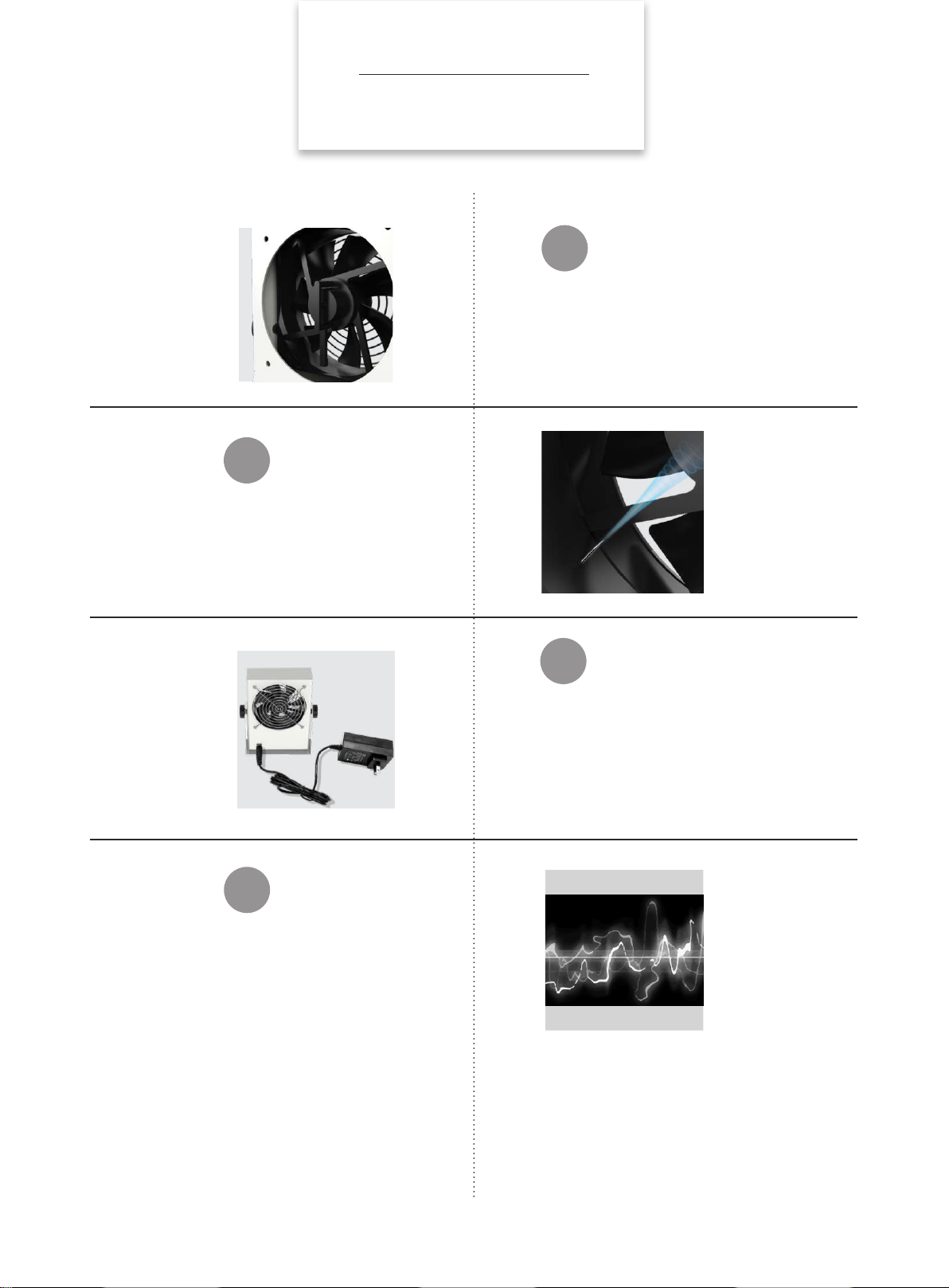

Keep a clean production environment and stay
away from static electricity
High Efficiency Static Removal
Positive high voltage Negative high voltage

No.1
No.2
No.4
Automatic needle brushing
Automatic needle brushing function when start up. By
default, the needle is automatically brushed every 8
hours for manual cleaning and maintenance free.
No.3
Dedicated external power adapter
INPUT: 100-240V 50/60Hz;
OUTPUT: DC15V 1000mA
CE certification
CE certified which is a high-security and
high-reliability static eliminator.
Features
Safe / Easy to use / Durable
Standard tungsten alloy needle
Longer life time compare to titanium and silicon
materials.

Unit:mm
Fixing bracket hole map
152
117
6.5×3
6.5×2
102
30
10°
5656
30
R6
20
1.5
60
20

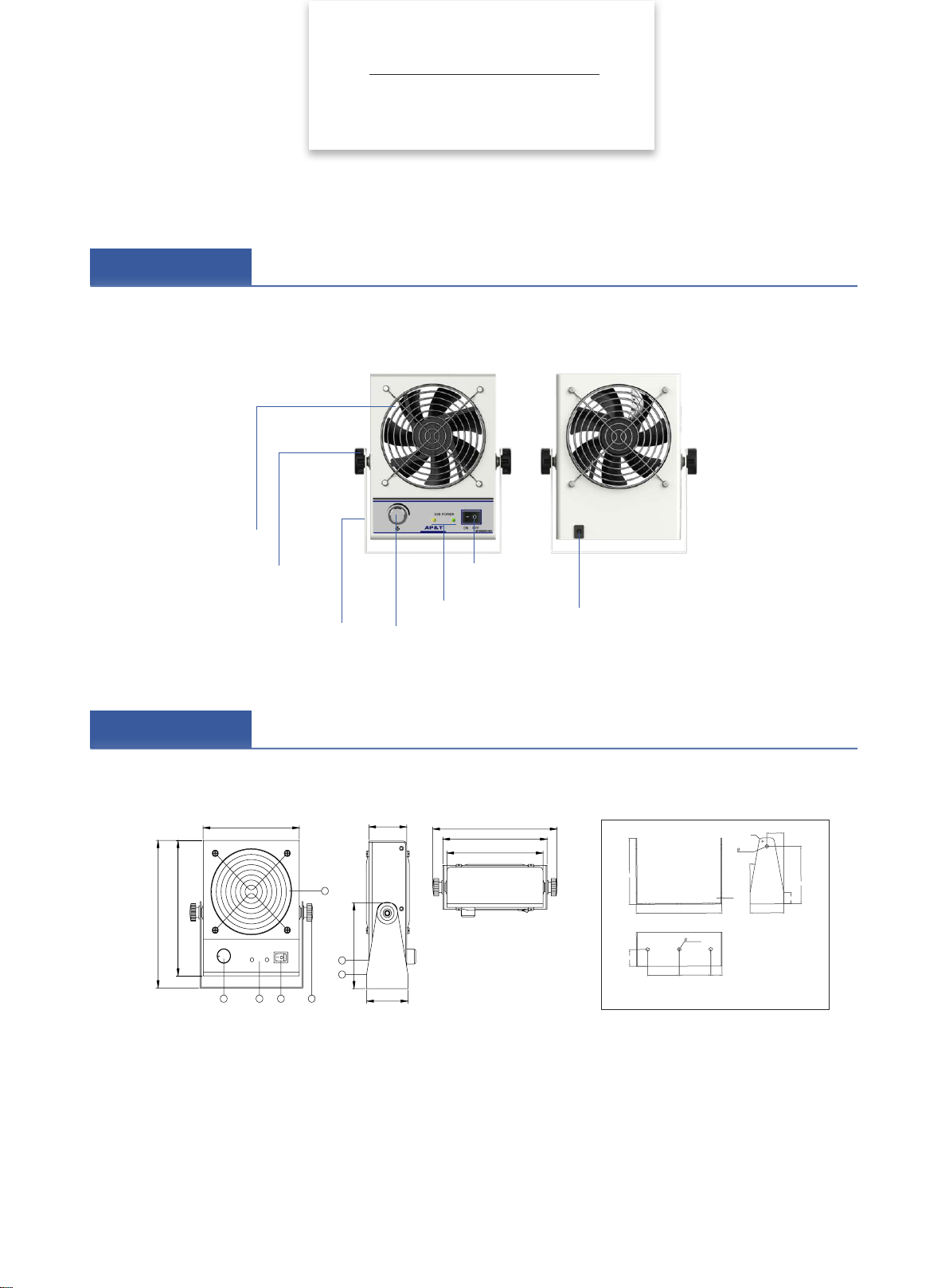

①Air volume adjustment knob
②Working status indicator
③Power switch
④Mounting bracket screw handle
⑤Power input socket
⑥Metal net cover
⑦Mounting brackets
6
5
4321
140
152
180
117
60
201.5
185
140 55
7
U-shaped bracket
Power switch
Working status indicator Power input socket
Front Back
Bakelite screw handle(M5×12)
Metal net cover
Product details
Product size
Product specifications
Product details / Product specifications / Product size
Air volume adjustment knob

Model AP-DC2451-001
Input voltage 15V
Power 9W
Working voltage ±DC4000-DC7000V
Ion emission Steady-state DC
Emitter electrode Tungsten Alloy
Discharge structure Uncoupled electrical contact (discharge cylinder)
Discharge range 750*300mm(L*W)
Discharge speed ≤ 2.0s(300mm away from the air outlet)
Ion balance ≤ |±10V|(300mm away from the air outlet)
Alarm indicator The power indicator light on indicates working normally
Air volume ≤ 89.1CFM
Noise ≤ 43db(1m away from the air outlet)
Ozone thickness ≤ 0.05ppm(150mm away from the air outlet)
Working temperature 0-50℃
Working humidity 30-70%RH
Dimensions 140*55*185mm(L*W*H)(Blower body size)
Shell material Aluminum powder spray
Power adapter INPUT: 100-240V 50/60Hz;
OUTPUT: DC15V 1000mA
Packaging accessories 1 pair of U-shaped aluminum spray powder mounting bracket,
1 pair of bakelite screw handles(M6×12)
Net weight 1500g(Including 1 external power adapter)
Gross weight 1980g
Warranty 1Year
Certification CE
Product specifications

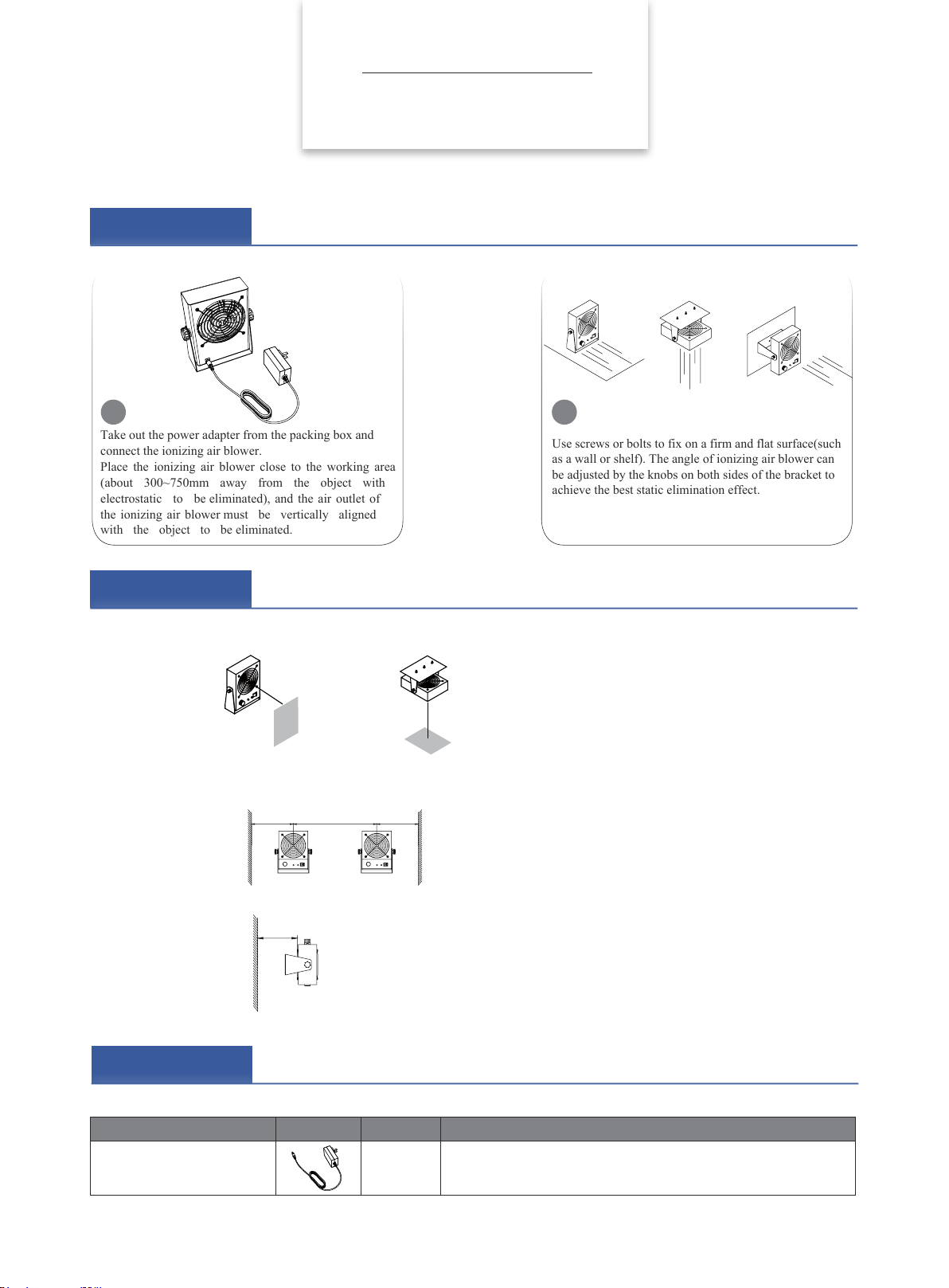

Take out the power adapter from the packing box and
connect the ionizing air blower.
Place the ionizing air blower close to the working area
(about 300~750mm away from the object with
electrostatic to be eliminated), and the air outlet of
the ionizing air blower must be vertically aligned
with the object to be eliminated.
Use screws or bolts to fix on a firm and flat surface(such
as a wall or shelf). The angle of ionizing air blower can
be adjusted by the knobs on both sides of the bracket to
achieve the best static elimination effect.
1 2
Step of use
1. Place the ionizing air blower in the working area where static electricity is to be eliminated. And the installation angle should be perpendicular to
the surface of the charged body and about 300 to 750 mm away from the static electricity object.
2. Ionizing air blower should be at least 30cm away from the metal conductor and metal grounding body.
3. Two ionizing air blowers should be installed side by side with an interval of more than 400mm and more than 200mm away from obstacles
such as walls.
4. The air inlet is at least 150mm away from the wall.
Installation position
Packing accessories
Wall
≥ 150mm
Wall Wall
≥ 200mm ≥ 200mm≥ 400mm
300~750mm
300~750mm
Switching power adapter
(national standard plug) AP4705000 DSS28-1502000-A 100-240V 1.0A 50/60HZ DC15V-2.0A wire length 2m
Products Use
Step of use/Installation position/Packing accessories
Part namePicturePart No.Specification

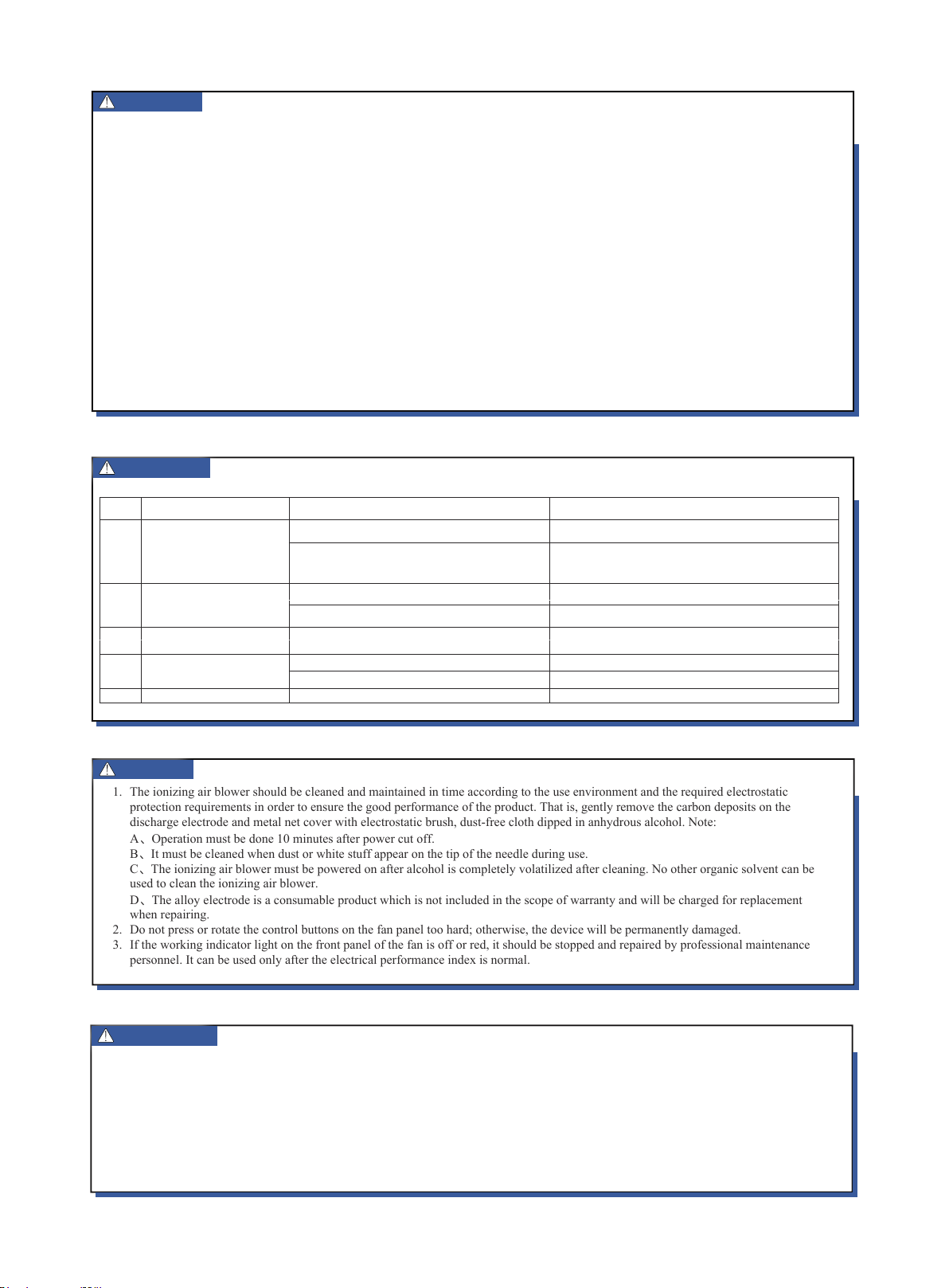

1. The ionizing air blower should be cleaned and maintained in time according to the use environment and the required electrostatic
protection requirements in order to ensure the good performance of the product. That is, gently remove the carbon deposits on the
discharge electrode and metal net cover with electrostatic brush, dust-free cloth dipped in anhydrous alcohol. Note:
A、Operation must be done 10 minutes after power cut off.
B、It must be cleaned when dust or white stuff appear on the tip of the needle during use.
C、The ionizing air blower must be powered on after alcohol is completely volatilized after cleaning. No other organic solvent can be
used to clean the ionizing air blower.
D、The alloy electrode is a consumable product which is not included in the scope of warranty and will be charged for replacement
when repairing.
2. Do not press or rotate the control buttons on the fan panel too hard; otherwise, the device will be permanently damaged.
3. If the working indicator light on the front panel of the fan is off or red, it should be stopped and repaired by professional maintenance
personnel. It can be used only after the electrical performance index is normal.
Safety warning
Trouble shooting
After-sales service
Maintenance
NO Problems Reasons Solutions
1The indicator on the fan
panel is off
Poor contact of the power cable Check whether the power cable is in good condition and
securely connected
Power supply mismatch Confirm the power supply specification(INPUT:100—
240VAC 50/60Hz;OUTPUT:15VDC 2000mA)
2
The electrostatic removal
performance is obviously
reduced
Discharge needle is polluted and damaged Clean or replace the discharge needle
Bearing set of ionizing air blower is improper Confirm the best bearing set
3The electrostatic removal
performance is reduced There are conductors or other ionizing air blowers around Remove (moving) conductors or other ionizing air blowers
4Unable to discharge High voltage module is damaged Return to factory for maintenance
Main-board chip is damaged Return to factory for maintenance
5The product is smoky or burnt The main control board components are burnt out Return to factory for maintenance
1. AP- DC2451-001 self-cleaning desktop ionizing air blower has undergone rigorous testing and aging treatment before ex-work. Its
performance has completely reached the relevant indicators marked in the usage instruction.
2. AP&T makes a commitment to the customer that any defective parts inspected by AP&T will be repaired or replaced free of charge
within one year from the date of purchase. However, this commitment does not apply to: The device is incorrectly used or installed;
Damage caused by negligence or accident during use; Modified, disassembled or repaired by other service departments not authorized by
Anping Company.
3. AP&T shall not be liable for any incorrect use of the products except for repair or replacement of parts as specified above.
1. Read the operating instruction carefully before installing and using the device.
2. Do not insert foreign objects into the inlet or outlet of the ionizing air blower.
3. Do not use the device when the humidity is higher than 70%.
4. Do not use the device in inflammable and explosive environment.
5. It is strictly forbidden to disassemble products without authorization. Internal maintenance and repair must be carried out by
professional personnel.
6. The product is strictly prohibited to touch liquid during use, otherwise there will be abnormal, resulting in electric shock or fire.
7. Power must be turned off during inspecting or replacing the product, otherwise it may cause electric shock or fire.
8. The product is specially designed for removing static electricity and is strictly prohibited for other purposes. Any abnormal use
may cause machine failure, electric shock, fire and other hidden dangers.
9. It is strictly forbidden to touch the electrode needles when power is on, otherwise it is easy to cause fault and electric shock
accident.
10.Discharge needle is a sharp metal object, please use it with care.
11.Please check the specifications of the power supply before powering on the product. Any power supply that does not meet the
specifications may cause damage or even failure to the product.
12.Check the power cord regularly. If it is damaged, replace it immediately; otherwise, leakage and abnormal operation may occur.
