HDMI-IP-E/R
User Manual v1.1

HDMI-IP-E and HDMI-IP-R
APANTAC LLC, 7470 SW BRIDGEPORT ROAD, PORTLAND, OR 97224
[e-mail], TEL: [phone], FAX: [phone]
1
COPYRIGHT and TRADEMARK
All rights reserved by APANTA LCC, Porland, Oregon, USA. No part of this document may be
reproduced in any form or by any means without written permission from the product
manufacturer. Changes are periodically made to the information in this document. They will be
incorporated in subsequent editions. The product manufacturer may make improvements and /or
changes in the product described in this document at any time.
All the registered trademarks referred to this manual are belonging to their respective companies.
WARRANTY STATEMENT
Apantac LLC (herein after referred to as “Apantac”) warrants to the original purchaser of the
products manufactured by Apantac (the “Product,”) will be free from defects in material and
workmanship for a period of three (3) year from the date of shipment of the Product to the
purchaser.
If the Product proves to be defective during the three (3) year warranty period, the purchaser’s
exclusive remedy and Apantac’s sole obligation under this warranty is expressly limited, at
Apantac’s sole option, to:
(a) repair the defective Product without charge for parts and labor or,
(b) provide a replacement in exchange for the defective Product or,
(c) if after a reasonable time, is unable to correct the defect or provide a replacement Product
in good working order, then the purchaser shall be entitled to recover damages subject to
the limitation of liability set forth below.
Limitation of Liability
Apantac’s liability under this warranty shall not exceed the purchase price paid for the defective
product. In no event shall Apantac be liable for any incidental, special or consequential damages,
including without limitation, loss of profits for any breach of this warranty.
If Apantac replaces the defective Product with a replacement Product as provided under the
terms of this Warranty, in no event will the term of the warranty on the replacement Product
exceed the number of months remaining on the warranty covering the defective Product.
Equipment manufactured by other suppliers and supplied by Apantac carries the respective
manufacturer’s warranty. Apantac assumes no warranty responsibility either expressed or implied
for equipment manufactured by others and supplied by Apantac.

HDMI-IP-E and HDMI-IP-R
APANTAC LLC, 7470 SW BRIDGEPORT ROAD, PORTLAND, OR 97224
[e-mail], TEL: [phone], FAX: [phone]
2
This hardware warranty shall not apply to any defect, failure or damage:
a) Caused by improper use of the Product or inadequate maintenance and care of the
Product;
b) Resulting from attempts by those other than Apantac representatives to install, repair, or
service the Product;
c) Caused by installation of the Product in a hostile operating environment or connection of
the Product to incompatible equipment;

HDMI-IP-E and HDMI-IP-R
APANTAC LLC, 7470 SW BRIDGEPORT ROAD, PORTLAND, OR 97224
[e-mail], TEL: [phone], FAX: [phone]
3
Table of Contents
1.0 WHAT’S IN THE BOX (When sold in pairs) .................................................... 4!
2.0 Key Features .............................................................................................. 5!
2.1 Specifications.......................................................................................................... 5!
2.2 Front/Rear Views.................................................................................................... 6!
3.0 DIP Switches .............................................................................................. 9!
3.1 Baud Rate DIP Switch Settings............................................................................ 9!
3.2 ID DIP Switch Settings.......................................................................................... 9!
4.0 IR Blaster/Receiver Cables .......................................................................... 10!
5.0 RS-232 Serial Pinout .................................................................................. 11!
6.0!
Installation and Quick Start Guide ........................................................11!
6.1!Point to point connection................................................................................... 11!
6.2!Point to multi-point connection ........................................................................ 12!
6.3 Multple transmitters to multiple receivers........................................................ 12!
6.4!Monitoring the the HDMI-IP-E via VLC and other Software......................... 13!
7.0 OSD (On Screen Display) ............................................................................ 14!
8.0 Configuring the HDMI-IP-E via the web page ............................................... 16!
8.1 Down Scaling the output .................................................................................... 18!
8.2 Setting the streaming bitrate ............................................................................. 18!
8.3 Setting the Multicast ID and IP address........................................................... 18!
8.4 Change User Name and Password .................................................................... 21!
8.5 Communication Firmware Upgrade on HDMI-IP-E ......................................... 21!
8.6 Set IP properties and DHCP ............................................................................... 21!
8.7 Set Baud Rate....................................................................................................... 22!
8.8 Codec Firmware Upgrade on HDMI-IP-E.......................................................... 22!
9.0 Configuring the HDMI-IP-R via the web page ............................................... 23!
9.1 Codec Firmware Upgrade on HDMI-IP-E.......................................................... 23!
9.2 Set IP properties and DHCP ............................................................................... 23!
9.3 Setting the Multicast ID and IP address........................................................... 24!
9.4 Set Baud Rate....................................................................................................... 24!
Appedix A – Using VLC to Decode the Stream from HDMI-IP-E

HDMI-IP-E and HDMI-IP-R
4

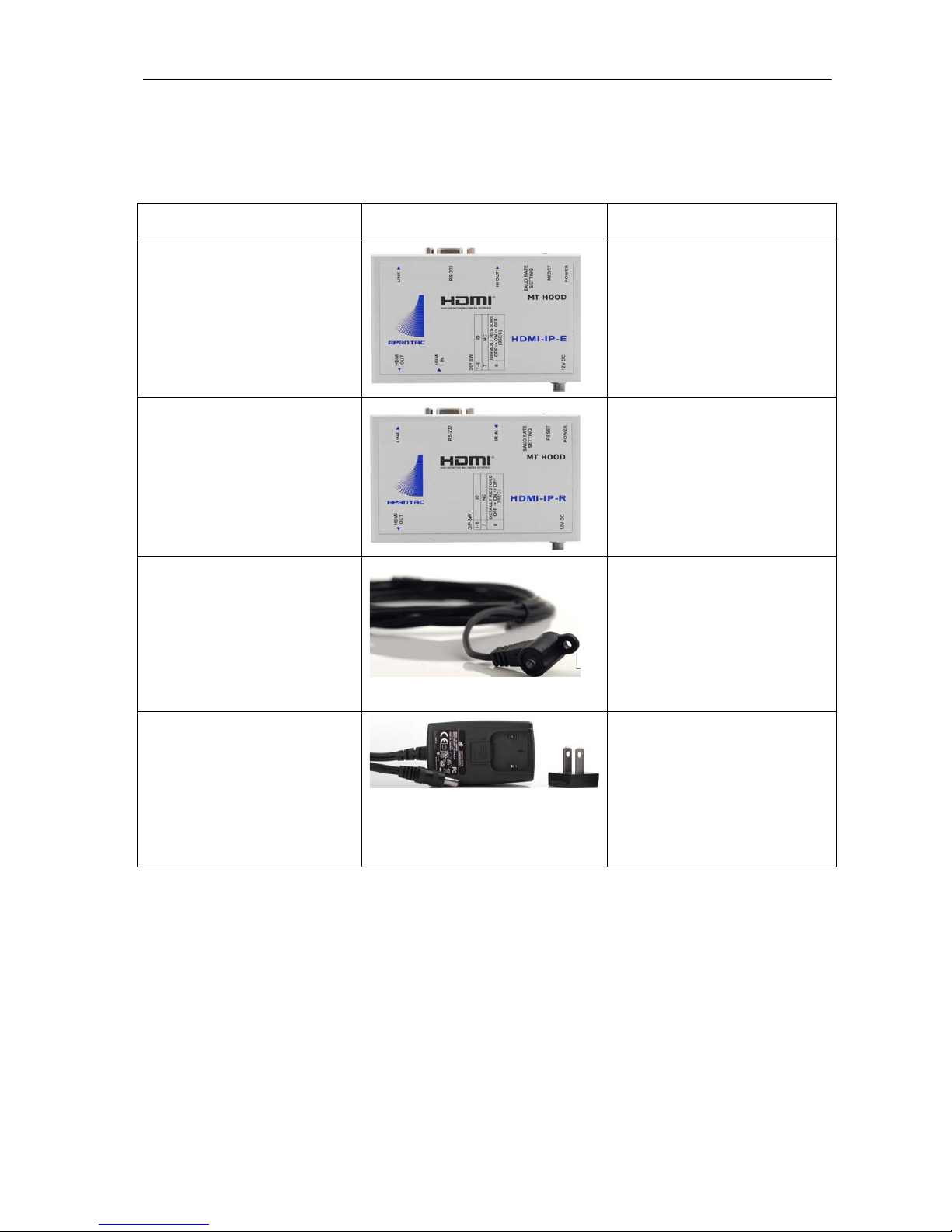

1.0 WHAT’S IN THE BOX (When sold in pairs)
Note: HDMI-IP-E and HDMI-IP-R can also be sold separately
QTY
Product
Description
1
HDMI-IP-E: HDMI to
H.264 encoder/transmitter
1
!
HDMI-IP-R: HDMI to
H.264 decoder/receiver
2
IR Emitter cables
2
!
12 V DC power supply with
universal adapter

HDMI-IP-E and HDMI-IP-R
APANTAC LLC, 7470 SW BRIDGEPORT ROAD, PORTLAND, OR 97224
[e-mail], TEL: [phone], FAX: [phone]
5
2.0 Key Features
– HDMI 1.4 (1080P) to H.264 encoder and decoder
– Supports one pair of HDMI embedded audio
– Supports both Unicast and Multicast
– Supports up to 1080P@60Hz at 18Mbps
– Supports point to point up to 100 meters
– Compatible with CAT 5/E/6 cables
– Supports RS-232
– HDMI and HDCP compliant
– Web interface for basic configuration
2.1 Specifications
Functions/Part#
HDMI-IP-E
HDMI-IP-R
HDMI Input Connector
1 (HDMI Type A)
None
HDMI Input Color Space
HDMI: RGB 8/10/12 bit, YCbCr 4:2:2/4:4:4 8/10/12 bit,
DVI:RGB/YCbCr 4:2:2/4:4:4 8 bit
HDMI Output Connector
1 (HDMI Type A)
HDMI Output Color Space
YCbCr 4:4:4
RGB
HDMI Output Max.
Resolution
1080P@60Hz (8 bit)
LED Indicators
Power
LINK
Rj-45
IR In
None
3.5 mm jack
IR Out
3.5 mm jack
None
IR Carrier Frequency
20KHz ~ 60KHz
Baud Rate Settings
3 PIN DIP Switch
ID DIP Switch
8 PIN DIP Switch
CAT 5E cable distance
100 meters maximum
RS-232 connector
DB9 Female
Baud Rate
2400 up to 115,200 bps; data bits, 1 stop bit, no
parity
Weight
338 g
Dimension (LxW-H)
120x75x33 mm

HDMI-IP-E and HDMI-IP-R
APANTAC LLC, 7470 SW BRIDGEPORT ROAD, PORTLAND, OR 97224
[e-mail], TEL: [phone], FAX: [phone]
6
Supported)Resolutions)
Resolution
Frequency(Hz)
640x480
60
800x600
60
1024x768
60
1280x768
60
1280x800
60
1280x960
60
1280x1024
60
1360x768
60
1366x768
60
1440x900
60
1400x1050
60
1440x1050
60
1600x900
60
1680x1050
60
480i
59.94/60
480p
59.94/60
576i
50
576p
50
1080i
50/59.94/60
1080p
23.98/24/25/29.98/30/50/59.94/60
720p
50/59.94/60
2.2 Front/Rear Views
HDMI-IP-E (Encoder)
Figure 4-1 HDMI-IP-E front view
1. HDMI Loop out. (YCbCr 4:4:4)

HDMI-IP-E and HDMI-IP-R
APANTAC LLC, 7470 SW BRIDGEPORT ROAD, PORTLAND, OR 97224
[e-mail], TEL: [phone], FAX: [phone]
7
2. HDMI Input
3. Multicast ID DIP Switch
4. Power (12 V DC 2A)
Figure 4-2 HDMI-IP-E rear view
1. LED power indicator
2. System reset
3. Baud rate setting DIP Switch
4. IR out
5. RS-232
6. LINK
HDMI-IP-R (Decoder)
Figure 4-3 HDMI-IP-R front view
1. HDMI Output
2. Multicast ID DIP Switch
3. Power (12 V DC 2A)
Figure 4-4 HDMI-IP-R rear view

HDMI-IP-E and HDMI-IP-R
APANTAC LLC, 7470 SW BRIDGEPORT ROAD, PORTLAND, OR 97224
[e-mail], TEL: [phone], FAX: [phone]
8
1. LED power indicator
2. System reset
3. Baud rate setting DIP Switch
4. IR out
5. RS-232
6. LINK

HDMI-IP-E and HDMI-IP-R
9
3.0 DIP Switches
3.1 Baud Rate DIP Switch Settings
Baud Rate
PIN 1
PIN 2
PIN3
2400
OFF
OFF
OFF
4800
ON
OFF
OFF
9600
OFF
ON
OFF
19200
ON
ON
OFF
28800
OFF
OFF
ON
38400
ON
OFF
ON
57600
OFF
ON
ON
115200
ON
ON
ON
3.2 ID DIP Switch Settings
ID
PIN 1
PIN 2
PIN 3
PIN 4
PIN 5
PIN 6
PIN 7
PIN 8
0
OFF
OFF
OFF
OFF
OFF
OFF
Not
Used
Reset
1
ON
OFF
OFF
OFF
OFF
OFF
OFF
:
:
:
:
:
:
Wait
7
ON
ON
ON
:
:
:
3 Sec.
:
:
:
:
:
:
:
ON
63
ON
ON
ON
ON
ON
ON

HDMI-IP-E and HDMI-IP-R
APANTAC LLC, 7470 SW BRIDGEPORT ROAD, PORTLAND, OR 97224
[e-mail], TEL: [phone], FAX: [phone]
10

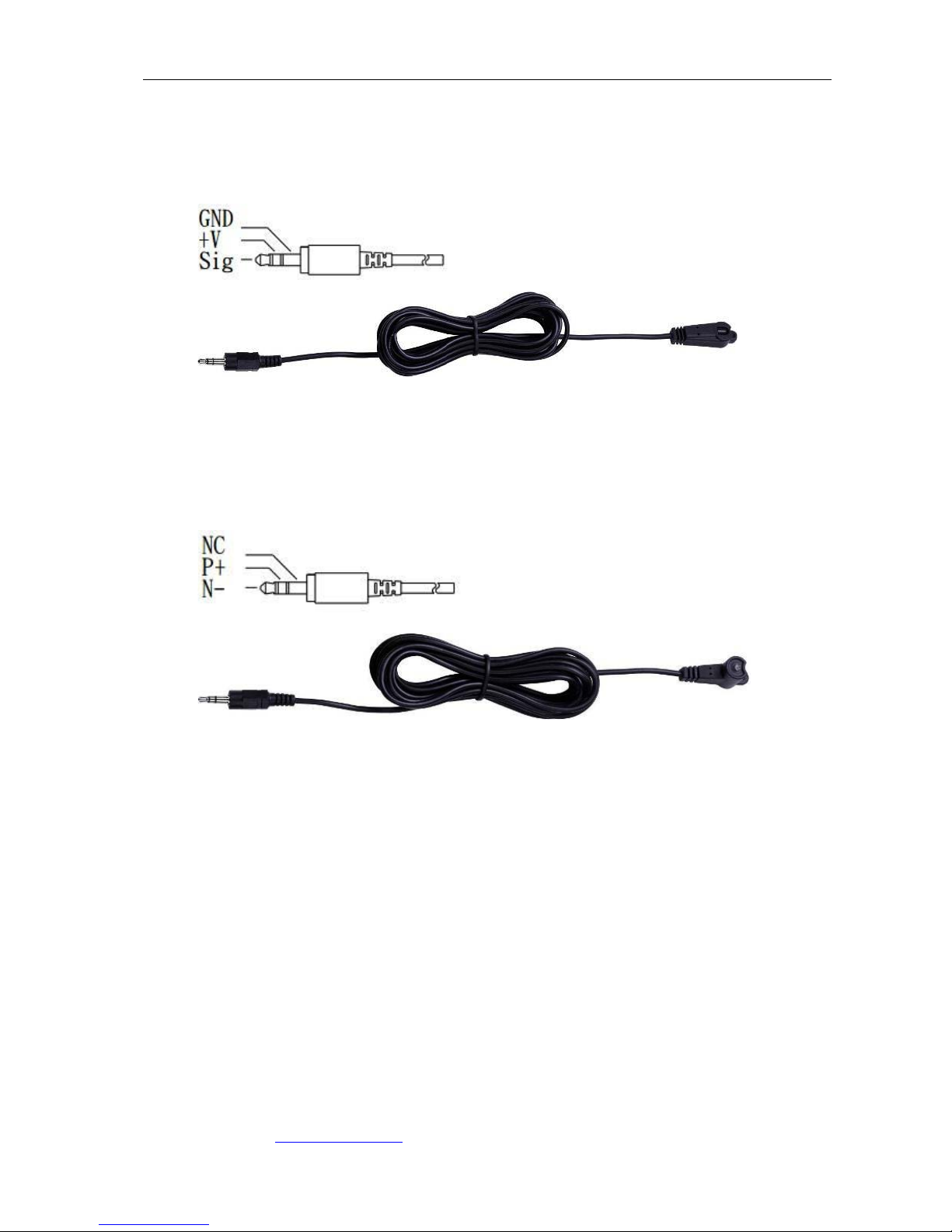

4.0 IR Blaster/Receiver Cables
IR Receiver Cable
Plug it into the HDMI-IP-R’s “IR IN” port and place the IR receiver in a
convenient location for the remote control
IR Blaster Cable
Plug it into the HDMI-IP-E’s “IR OUT” port and place the IR receiver in
a convenient location for the remote control

HDMI-IP-E and HDMI-IP-R
APANTAC LLC, 7470 SW BRIDGEPORT ROAD, PORTLAND, OR 97224
[e-mail], TEL: [phone], FAX: [phone]
11
5.0 RS-232 Serial Pinout
PIN1
N/C
PIN2
TxD (Data Out)
PIN3
RxD (Data In)
PIN4
N/C
PIN5
GND
PIN6
N/C
PIN7
N/C
PIN8
N/C
PIN9
N/C
6.0 Installation and Quick Start Guide
6.1 Point to point connection
1. Turn off the HDMI source and HDMI Display
2. Connect the cable between the source and the HDMI-IP-E via the HDMI in port
3. Connect the HDMI cables between the Displasy and the HDMi-IP-E and
HDMI-IP-R
4. Connect the CATx cable between the HDMI-IP-E and HDMI-IP-R
5. Make sure the ID DIP Switch is set the same
6. Connect the power to both HDMI-IP-E and HDMI-IP-R
7. Turn on the the power for the HDMI Displays

HDMI-IP-E and HDMI-IP-R
APANTAC LLC, 7470 SW BRIDGEPORT ROAD, PORTLAND, OR 97224
[e-mail], TEL: [phone], FAX: [phone]
12

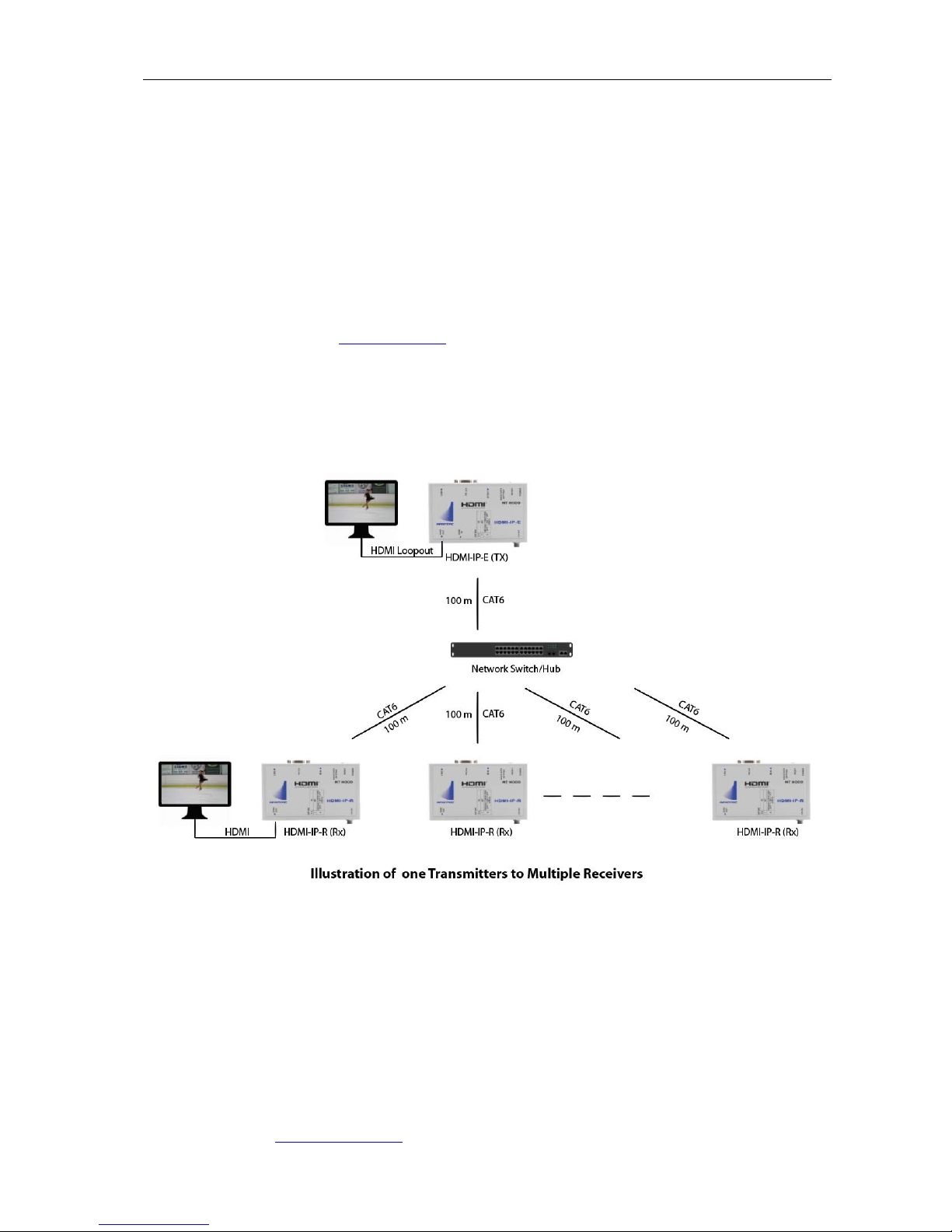

6.2 Point to multi-point connection
1. Turn off the HDMI source and HDMI Display
2. Connect the cable between the source and the HDMI-IP-E via the HDMI in port
3. Connect the HDMI cables between the Displasy and the HDMi-IP-E and
HDMI-IP-R
4. Connect the CATx cables between the HDMI-IP-E and the switch
5. Connect the CATx cables between the HDMI-IP-R and the switch
6. Make sure the ID DIP Switch is set the same
7. Connect the power to both HDMI-IP -E and all the HDMI-IP-R’s
8. Turn on the the power for the HDMI Displays

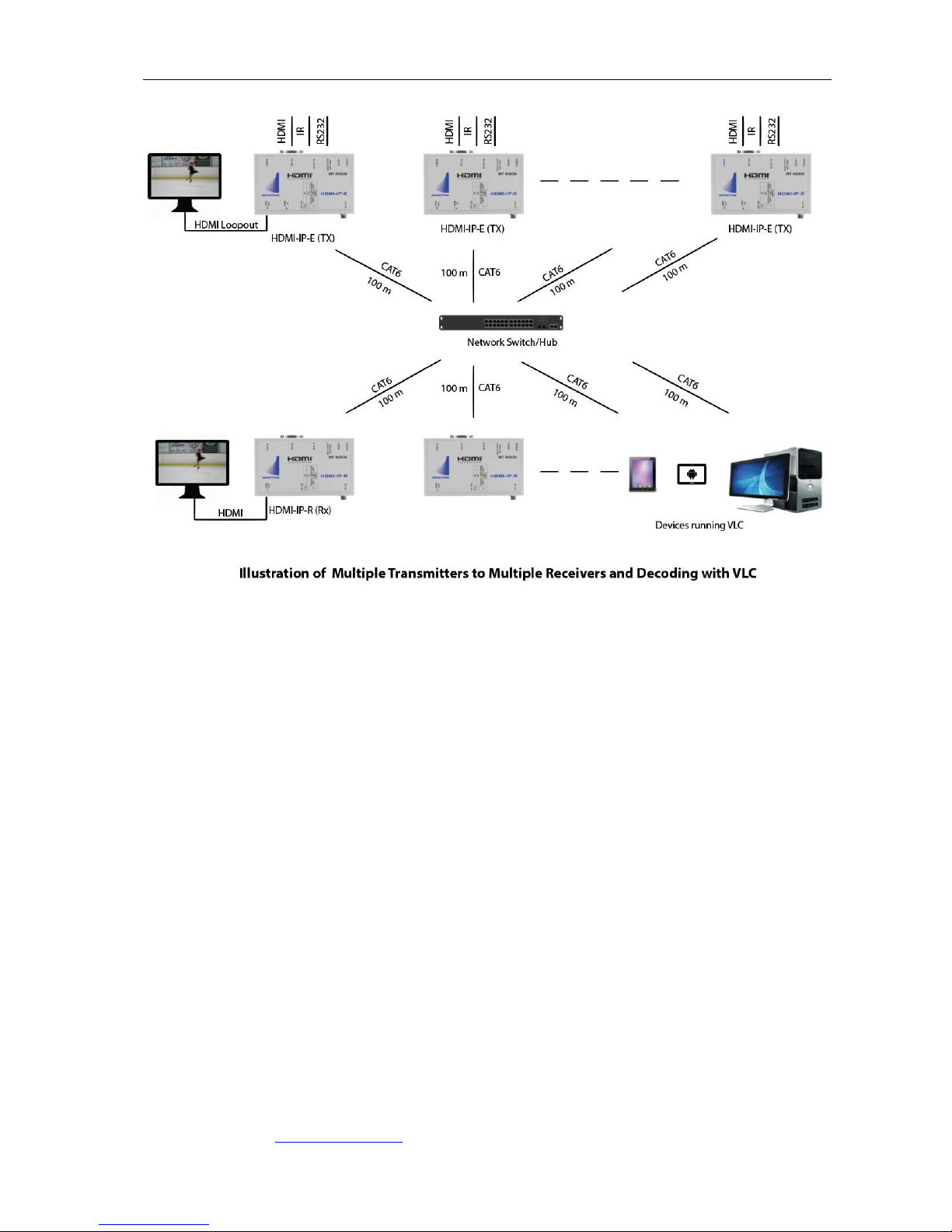

6.3 Multiple transmitters to multiple receivers
1. Turn off the HDMI sources and HDMI Display
2. Connect the cable between the sources and all the HDMI-IP-E via their HDMI in
ports
3. Connect the HDMI cables between the Display and all the HDMi-IP-E’s and
HDMI-IP-R’s
4. Connect the CATx cables between all the HDMI-IP-E’s and the switch

HDMI-IP-E and HDMI-IP-R
APANTAC LLC, 7470 SW BRIDGEPORT ROAD, PORTLAND, OR 97224
[e-mail], TEL: [phone], FAX: [phone]
13
5. Connect the CATx cables between all the HDMI-IP-R’s and the switch
6. Make sure the DIP Switch is set the same ID between the corresponding
transmitter and receivers
7. Connect the power to both HDMI-IP -E’s and all the HDMI-IP-R’s
8. Turn on the the power for the HDMI Displays
6.4 Monitoring the the HDMI-IP-E via VLC and other
Software
Instead of using a HDMI-IP-R as the decoder of the the H.264 stream, software such as
VLC can be used to decode the source and view it. Apantac does not gurantee the
performances the above mentioned software. Please see Appendix A for examples on
how to use VLC to the best of our knowledge.

HDMI-IP-E and HDMI-IP-R
APANTAC LLC, 7470 SW BRIDGEPORT ROAD, PORTLAND, OR 97224
[e-mail], TEL: [phone], FAX: [phone]
14
7.0 OSD (On Screen Display)
There are built-in OSDs in the HDMI-IP-R’s HDMI output that provides various important
information for the setup. The default IP addresses for both the HDMI-IP-E (Tx) and
HDMI-IP-R(Rx), can be obtained from the OSD by simply plugging the HDMI-IP(Rx) HDMI
output to the monitor.
Here is an OSD screen capture when the HDMI-IP-R is plugged into the monitor without
any network connection.
1. FW Version
2. RX IP address (HDMI-IP-R) is initially at 0.0.0.0
3. TX IP address (HDMI-IR-E) is initially at 0.0.0.0
4. Group ID: It reflects either the hardware Multicast ID DIP Switch (See Section 5)
or the SW Muticast ID Setting (See Section XX)
5. Decice ID: IPTV
6. Status: Waiting for Connection …

HDMI-IP-E and HDMI-IP-R
APANTAC LLC, 7470 SW BRIDGEPORT ROAD, PORTLAND, OR 97224
[e-mail], TEL: [phone], FAX: [phone]
15
Fig. 8-1: Initial OSD Screen shot after HDMI-IP-R’s HDMI output is connected to the
monitor without any network connection.
In order to get the default IP address of the HDMI-IP-R(Rx), the network (LINK) must be
connected either directly to a HDMI-IP-E or a network switch. As you can see the IP
address for the HDMI-IP-R (Rx) is now part of the OSD.
Fig. 8-2: OSD Screen capture after the HDMI-IP-R(Rx) is connected to a network switch
Connect the HDMI-IP-E(TX) either directly to the HDMI-IP-R(RX) or via a network switch,
the IP address of the HDMI-IP-E(TX) will display on the OSD

HDMI-IP-E and HDMI-IP-R
APANTAC LLC, 7470 SW BRIDGEPORT ROAD, PORTLAND, OR 97224
[e-mail], TEL: [phone], FAX: [phone]
16
Fig. 8-3: OSD Screen capture after the HDMI-IP-E(Tx) is connected to a network switch
8.0 Configuring the HDMI-IP-E via the web page
Connect to the HDMI-IP-E (TX) via the webpage by typing its IP address in a browser.

HDMI-IP-E and HDMI-IP-R
APANTAC LLC, 7470 SW BRIDGEPORT ROAD, PORTLAND, OR 97224
[e-mail], TEL: [phone], FAX: [phone]
17

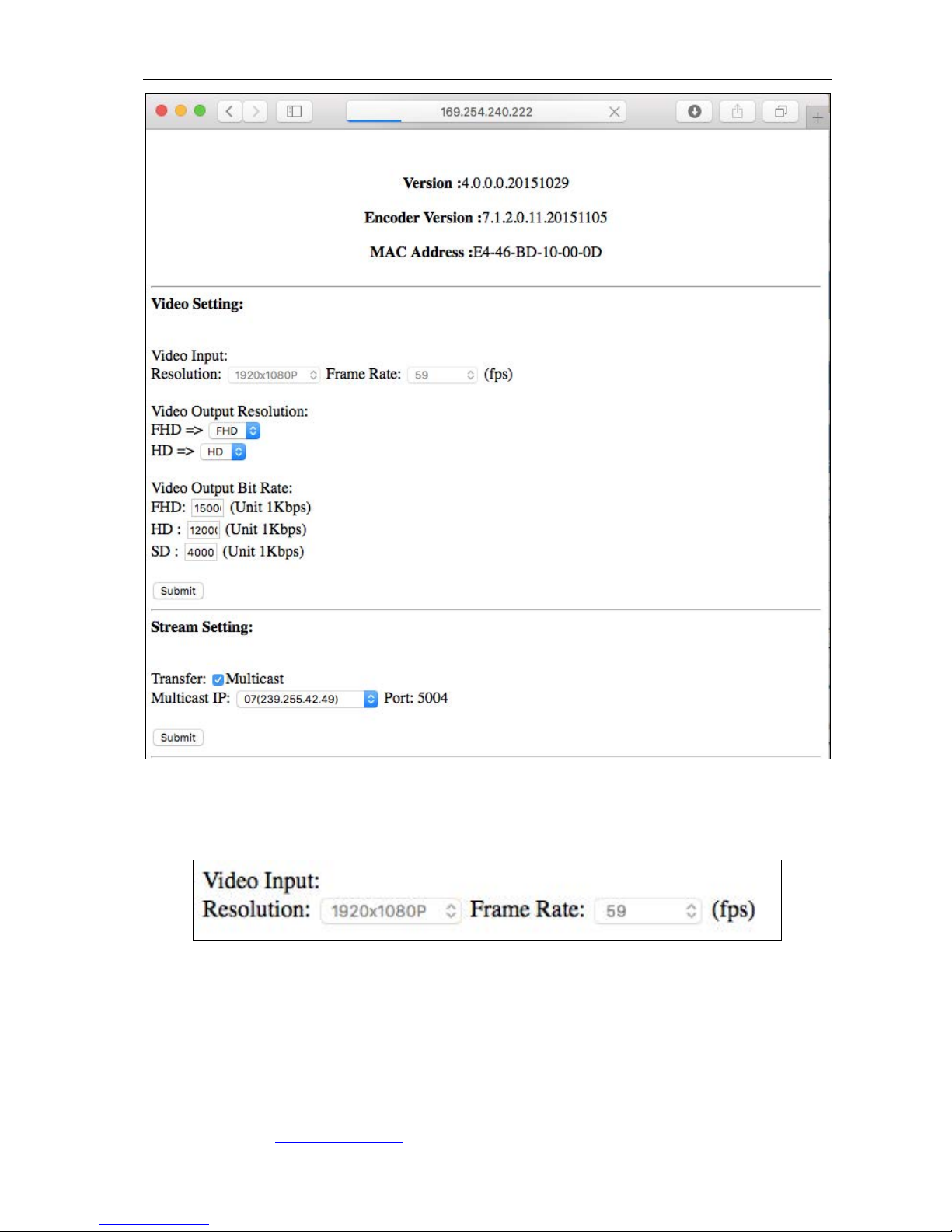

Fig 8-1: The first portion of the web interface
The video input information is not configurable, it is read directly from the HDMI-IP-E(Tx)
Fig 8-2: Video Input and resolution settings
The video Output Resolution can be configured.
FHD: 1080P/1080i
HD: 720P

HDMI-IP-E and HDMI-IP-R
APANTAC LLC, 7470 SW BRIDGEPORT ROAD, PORTLAND, OR 97224
[e-mail], TEL: [phone], FAX: [phone]
18
SD: 480i/576i, 480P/576P
8.1 Down Scaling the output
The HDMI-IP-E has the capability of down scaling the input source to a lower
resolution by setting the output with the pull down menu.
Fig 8-3: FHD (1080P/i) source can be down scaled to HD (720P) or SD
Figure 8-4: HD (720) source can be down scaled to SD
8.2 Setting the streaming bitrate
The HDMI-IP-E output bitrate can be set
Figure 8-5: Output bitrate setting can be changed 1Kbps at a time
8.3 Setting the Multicast ID and IP address
The Streaming setting can be configured. There are 63 (0 to 63) multicast IP
address that can be set.
Important Notes:

HDMI-IP-E and HDMI-IP-R
APANTAC LLC, 7470 SW BRIDGEPORT ROAD, PORTLAND, OR 97224
[e-mail], TEL: [phone], FAX: [phone]
19
1. In order for the HDMI-IP-E(TX) and HDMI-IP-R (RX) communicate and
find each other, the Multicast IP address must be set to the same.
2. When the webpage is first launched, the Multicast IP address is read
back from the HDMI-IP-E/R (Tx/Rx)’s Multicast ID Settings.
3. If the Multicast IP is set in the Webpage, then the webpage setting will
overwrite the hardware DIP switch setting, until the Tx/Rx has been
power cycled
4. The OSD will reflect the last Unicast IP setting regardless it is done by
webpage or DIP switch

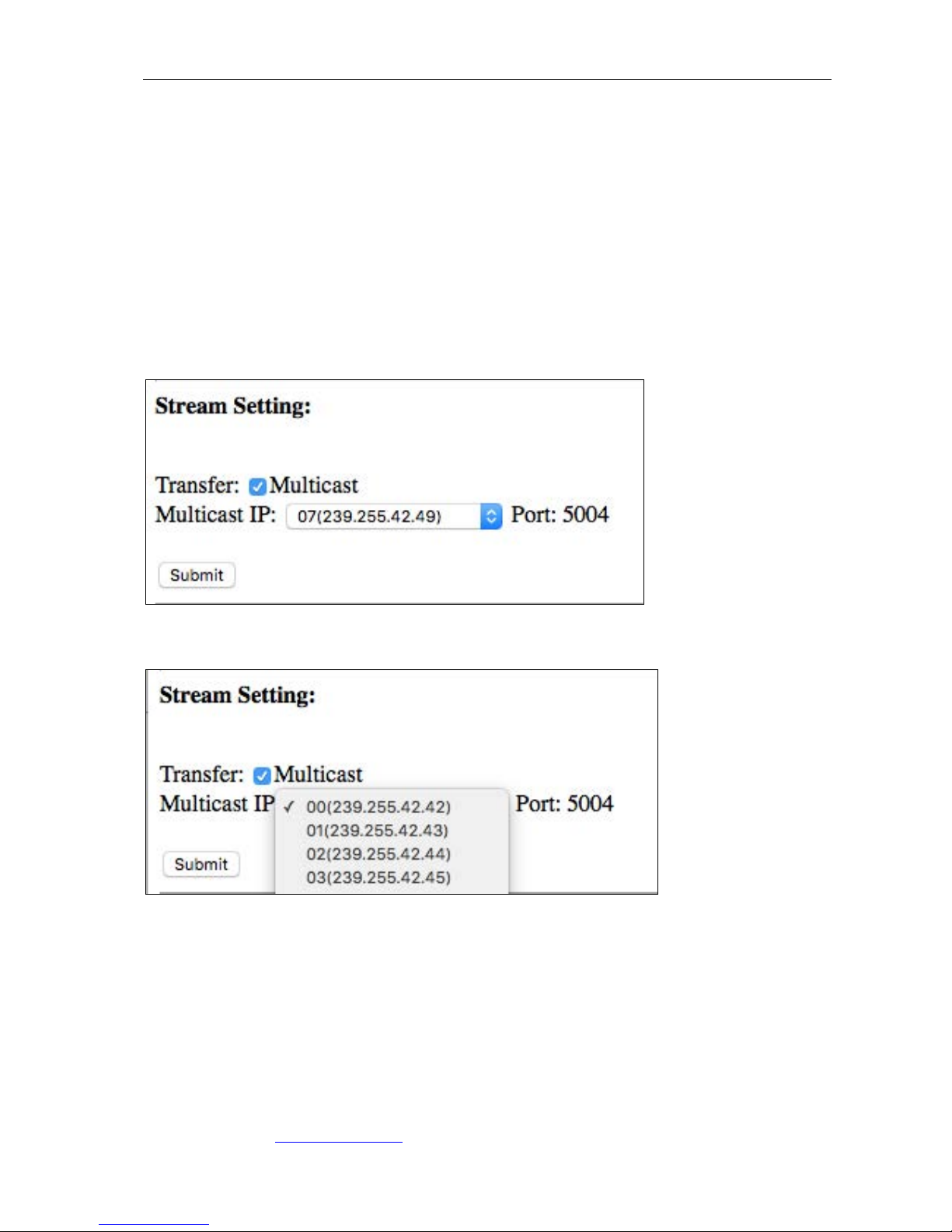

Fig 8-6: Multicast IP setting is read back from the HDMI-IP-E
Fig-8-7: The Multicast IP address can be set via the webpage via the pull down menu (0 – 63)
