Apollo REACH RW1000-660APO User manual

UNBOXING
•When unboxing the detector you will find the unit and its mounting base.
• This comes with pre-formed mounting holes to mountthe detector base
and a securing screw on the base to ensure there is no unwanted removal.
For more information, please refer to the user manual. Available on apollo-fire.co.uk
IMPORTANT TO CONSIDER
When mounting a wireless device, a comprehensive radio survey
should have been carried out to establish the location that provides
the best coverage and optimum reach. Taking into consideration the building
structure and materials, the survey identifies the wireless infrastructure
required and product locations for optimum performance, identifying
any factor that could prevent radio integrity.
Avoid fixing or mounting the unit close to the following:
• Equipment that utilises large electrical currents
• Large metal objects or structures
• Fluorescent lighting fittings
• Metal ceiling structures
• IT cabling.
Keep 2 meters minimum spacing between other wireless equipment
in the area to avoid signal interference.
EN54 approved environmental temperature range is -10°C to +55°C
• Remove the detector’s dust cover, intended to protect
the unit during shipping.
• Remove the detector from the base twisting
anticlockwise.
Remove the battery compartment cover on the base
on the detector.
• Aplastic pop out tag is removable from the base
to enable you to label the address of the detector,
prior to fixing to the ceiling: popout the device label tag
fromthe base and insert it into the side.
• Screw the base to the ceiling using all fixing holes
and appropriate-sized screws.
1
3
2
4

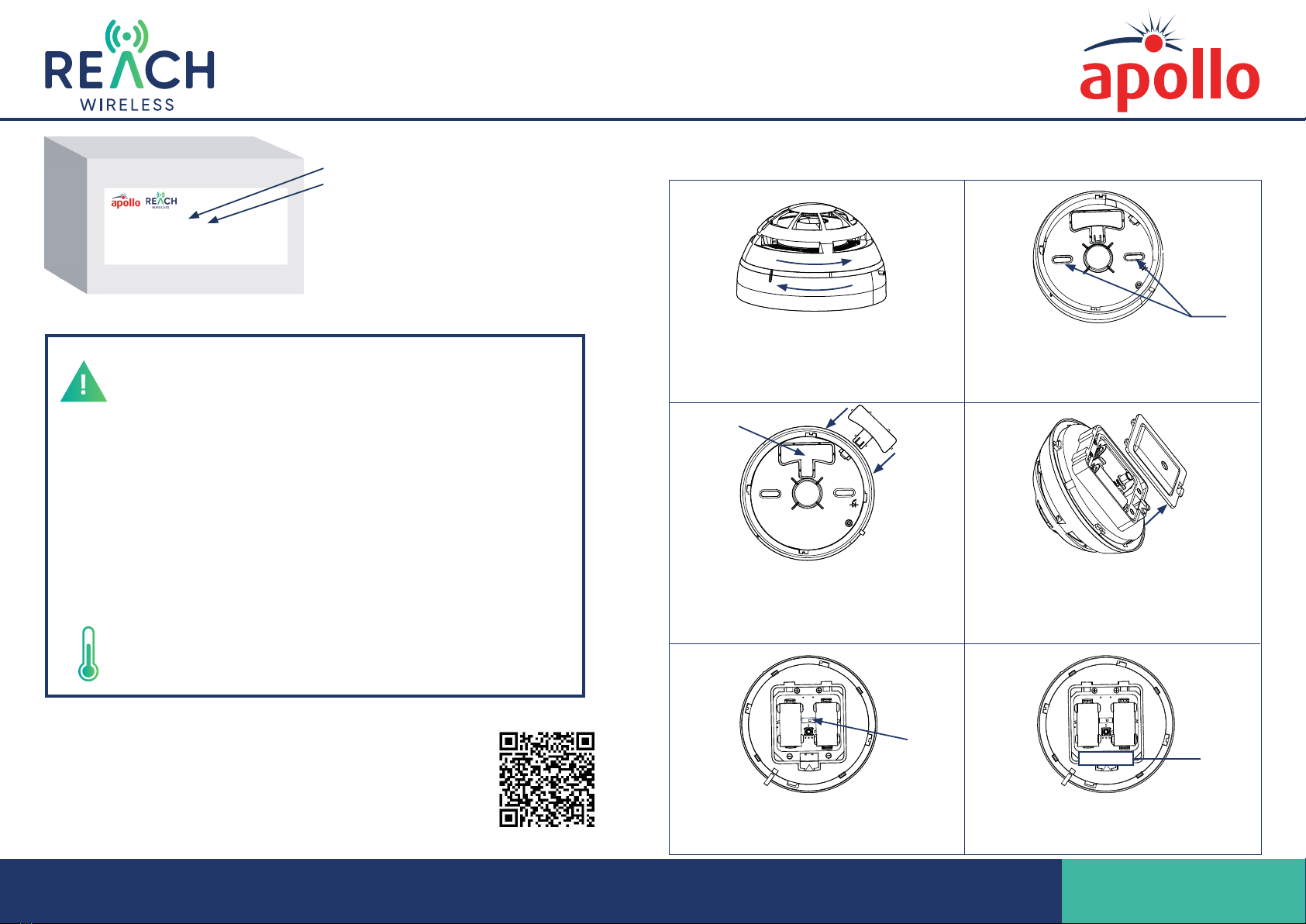

MOUNTING STEPS
Proceed as follows to complete the device installation.
5 6
Ensure the programming switch in the base of the detector
is in position ON.
Remove the batteries’ insulating tab ensuring
the batteries are kept in their lodgement.
MOUNTING
HOLES
REMOVABLE
TAG
UNLOCK
SWITCH
ON REMOVE
INSULATING
TAG
INSIDE THE BOX
•1x Optical Detector
with mounting base
• 2 x CR123A batteries
• 1 x Quick start guide
• Locate the mounting holes and mark them using apencil
on the desired surface you are drilling.
• Using a suitable-sized drill bit (6 mm) drill the marked
screw points on your chosen surface.
• Ensure you use the correct fixings for the type of surface
you are mounting to.
QUICK START GUIDE
Apollo Fire Detectors Ltd. 36 Brookside Road, Havant, Hampshire, United Kingdom, PO9 1JR
T: [phone] - E: techsales@apollo-fire.com - W: www.apollo-fire.co.uk RW_QSG_DETECTOR_OPTICAL_REV_A.3
THE BOX
Product Part Number
Product Description
RW1000-600APO
REACH Optical Smoke Detector
Scan QR code
for full user manual
RW1000-600APO
REACH Optical Smoke Detector
RW1000-660APO
REACH Optical Smoke Detector– BK Bdy

• Move the switch in the base of the detector
to position 1.
• The detector’s LED will blink few seconds green
and then signal alternatively green / red 4 times.
• Ensure you replace the battery cover as this forms
part of the detectors anti-tamper protection and refit
the detector locating it into the base twisting clockwise.
The detector’s LED will signal 4 times red.
SWITCH 1
9
78
LOCK
LED
10
SCREW
• Secure the screw on the base to ensure there is
no unwanted removal using a M3 allen key.
QUICK START GUIDE
Apollo Fire Detectors Ltd. 36 Brookside Road, Havant, Hampshire, United Kingdom, PO9 1JR
T: [phone] - E: techsales@apollo-fire.com - W: www.apollo-fire.co.uk
RW1000-600APO
REACH Optical Smoke Detector
RW1000-660APO
REACH Optical Smoke Detector– BK Bdy
RW_QSG_DETECTOR_OPTICAL_REV_A.3
