8400 Series Thermostats
READ AND SAVE THESE INSTRUCTIONS
Safety &
Installation
Instructions
61000652A 8400 Tstat Install.indd 1 7/23/09 2:20:45 PM

2
Installation location recommendations................................................................3
Outdoor temperature sensor (optional) ................................................................4
Thermostat mounting..............................................................................5
Power & reset options.............................................................................5
Wiring terminal ..................................................................................6
Wiring diagrams .................................................................................7
TABLE OF CONTENTS
INSTALLATION
SETUP & TESTING
REFERENCES
System setup instructions .........................................................................11
System test mode ...............................................................................16
Quick reference to controls & display
 .....................................................22
 .........................................................23
Thermostat features .............................................................................24
 .................................................................................25
Specifications...................................................................................27
61000652A 8400 Tstat Install.indd 2 7/23/09 2:20:46 PM

3
INSTALLATION
INSTALLATION LOCATION RECOMMENDATIONS
Thermostat should be mounted:




Do not mount thermostat:





outside doors

61000652A 8400 Tstat Install.indd 3 7/23/09 2:20:46 PM

4

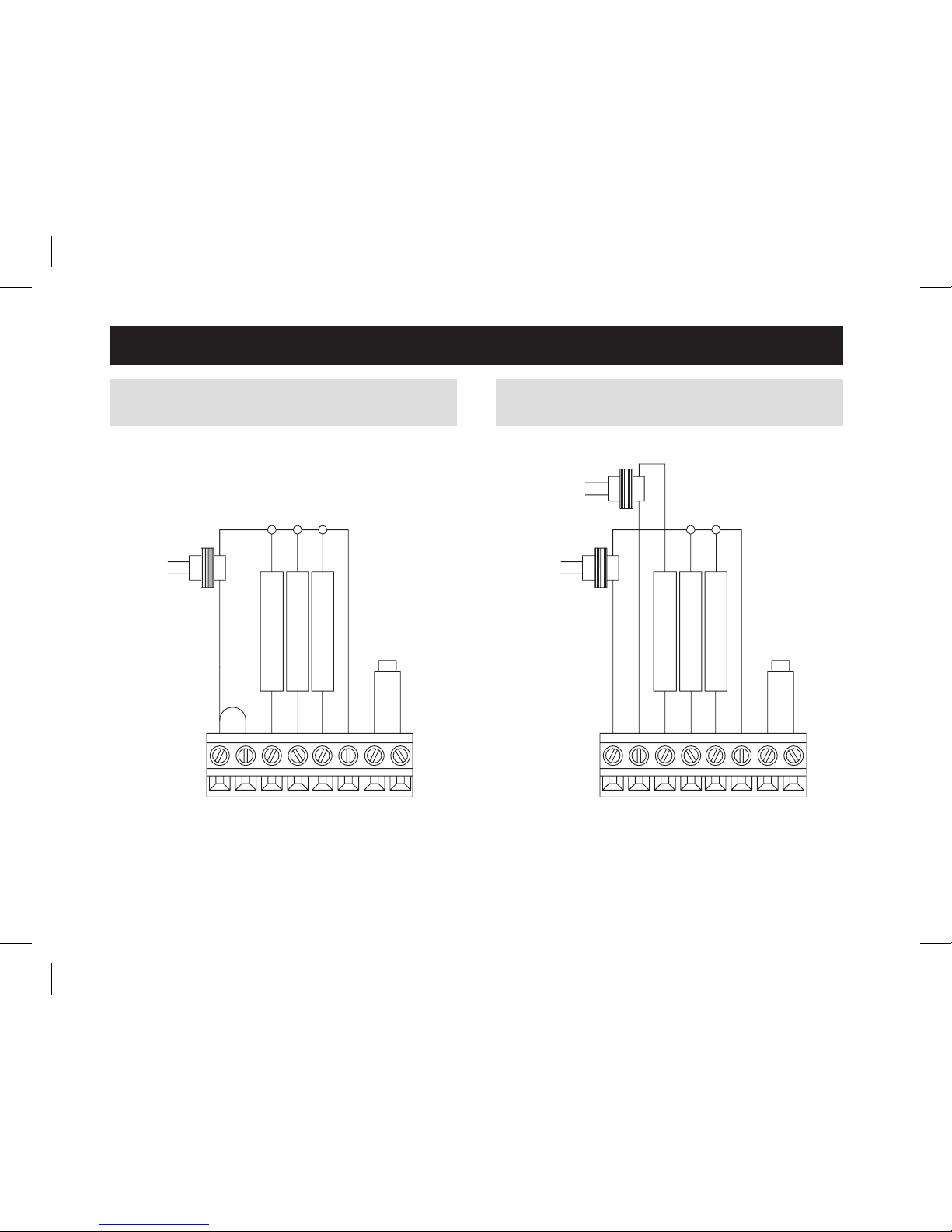

OUTDOOR TEMPERATURE SENSOR (OPTIONAL)



Heat pump models can use the outdoor temperature to







INSTALLATION
C
G
Y
W
RL
S1 S2 O/B W2 Y2
RC

(north side recommended).


lines.


61000652A 8400 Tstat Install.indd 4 7/23/09 2:20:49 PM

5
THERMOSTAT MOUNTING

2. Pull wires through the opening.

and mark the hole locations with a pencil.

(drywall only).


temperature readings.
INSTALLATION
POWER & RESET OPTIONS






and emergency heat indicators to operate.

thermostats settings in case of a power interruption.



61000652A 8400 Tstat Install.indd 5 7/23/09 2:20:50 PM

6
WIRING TERMINAL
Wire specifications

Installation notes





INSTALLATION
RC
R
W
Y
G– Fan
C
S1 & S2 – outdoor temperature sensor (optional)
O/B
L– System fault indicator
W2
Y2
*Jumper between RC & R is used in single transformer systems
(see wiring diagrams).
C
G
Y
W
RL
S1 S2 O/B W2 Y2
RC
61000652A 8400 Tstat Install.indd 6 7/23/09 2:20:51 PM

7
WIRING – MODEL 8463 & 8444 SINGLE
TRANSFORMER (USE JUMPER WIRE)
INSTALLATION
C
G
Y
W
RS1 S2
RC
HEATING
COOLING
FAN
OUTDOOR TEMP
SENSOR
JUMPER
TRANSFORMER
WIRING – MODEL 8463 & 8444 TWO
TRANSFORMERS (REMOVE JUMPER WIRE)
C
G
Y
W
RS1 S2
RC
HEATING
COOLING
FAN
OUTDOOR TEMP
SENSOR
HEATING
TRANSFORMER
COOLING
TRANSFORMER
61000652A 8400 Tstat Install.indd 7 7/23/09 2:20:52 PM

8
WIRING – MODEL 8465 & 8446 SINGLE
TRANSFORMER (USE JUMPER WIRE)
INSTALLATION
AUX HEATING
COMPRESSOR
FAN
REVERSE VALVE
FAULT DETECT
OUTDOOR TEMP
SENSOR
JUMPER
TRANSFORMER
C
G
Y
W
RL
S1 S2 O/B
RC
WIRING – MODEL 8465 & 8446 TWO
TRANSFORMERS (REMOVE JUMPER WIRE)
AUX HEATING
COMPRESSOR
FAN
REVERSE VALVE
FAULT DETECT
OUTDOOR TEMP
SENSOR
AUX HEATING
TRANSFORMER
HEAT PUMP
TRANSFORMER
C
G
Y
W
RL
S1 S2 O/B
RC
61000652A 8400 Tstat Install.indd 8 7/23/09 2:20:53 PM

9
WIRING – MODEL 8466 & 8448 SINGLE
TRANSFORMER (USE JUMPER WIRE)
FOR HEAT/COOL SYSTEM
INSTALLATION
1st HEATING
1st COOLING
FAN
2nd HEATING
2nd COOLING
OUTDOOR TEMP
SENSOR
NOT USED NOT USED
JUMPER
TRANSFORMER
C
G
Y
W
RL
S1 S2 O/B W2 Y2
RC
WIRING – MODEL 8466 & 8448 TWO
TRANSFORMERS (REMOVE JUMPER WIRE)
FOR HEAT/COOL SYSTEM
1st HEATING
1st COOLING
FAN
2nd HEATING
2nd COOLING
OUTDOOR TEMP
SENSOR
NOT USED NOT USED
HEATING
TRANSFORMER
COOLING
TRANSFORMER
C
G
Y
W
RL
S1 S2 O/B W2 Y2
RC
61000652A 8400 Tstat Install.indd 9 7/23/09 2:20:54 PM

10
INSTALLATION
WIRING – MODEL 8466 & 8448 SINGLE
TRANSFORMER (USE JUMPER WIRE)
FOR HEAT PUMP SYSTEM
1st AUX HEATING
1st COMPRESSOR
FAN
REVERSE VALVE
FAULT DETECT
2nd AUX HEATING
2nd COMPRESSOR
OUTDOOR TEMP
SENSOR
HEAT PUMP
TRANSFORMER
C
G
Y
W
RL
S1 S2 O/B W2 Y2
RC
JUMPER
1st AUX HEATING
1st COMPRESSOR
FAN
REVERSE VALVE
FAULT DETECT
2nd AUX HEATING
2nd COMPRESSOR
OUTDOOR TEMP
SENSOR
HEATING
TRANSFORMER
HEAT PUMP
TRANSFORMER
C
G
Y
W
RL
S1 S2 O/B W2 Y2
RC
WIRING – MODEL 8466 & 8448 TWO
TRANSFORMERS (REMOVE JUMPER WIRE)
FOR HEAT PUMP SYSTEM
61000652A 8400 Tstat Install.indd 10 7/23/09 2:20:55 PM

11

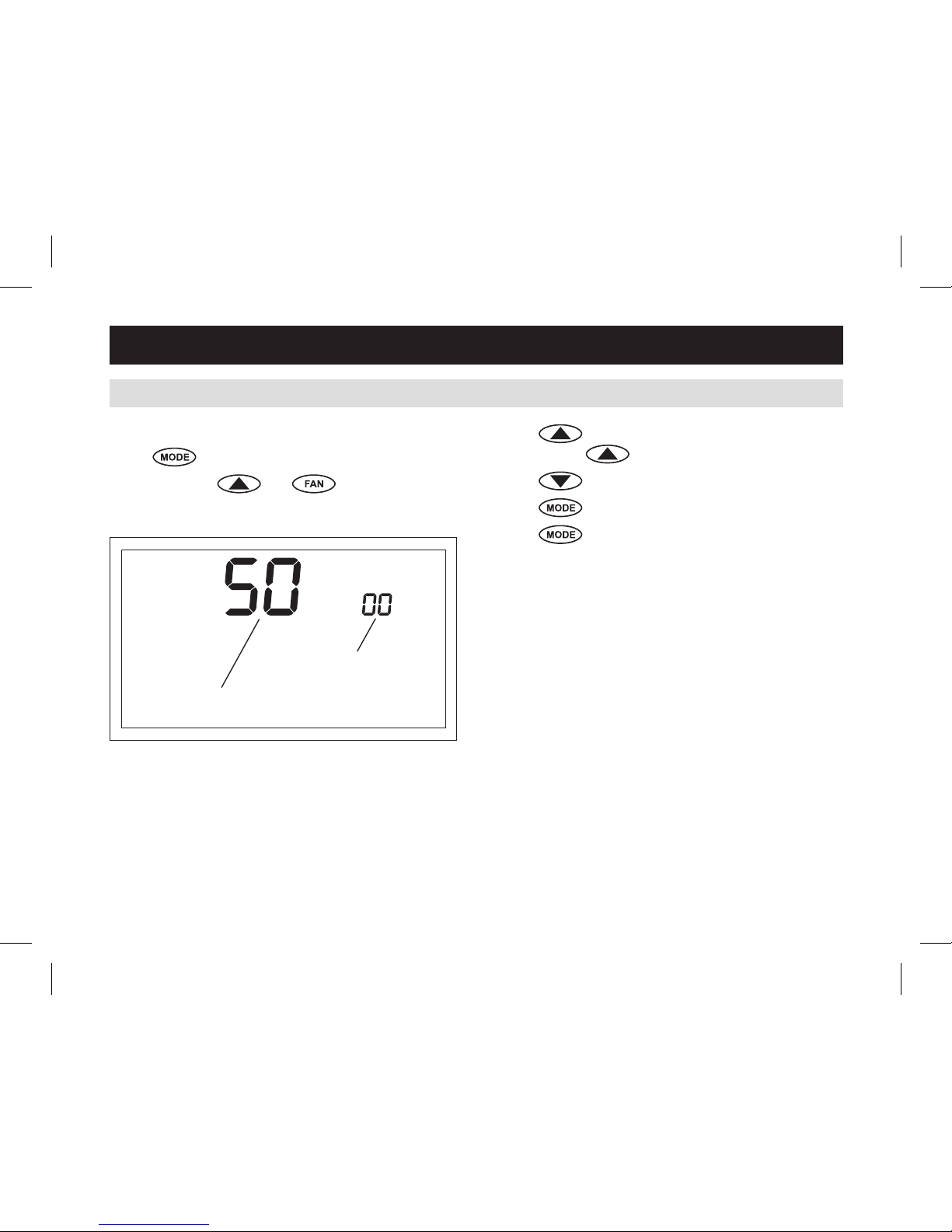

SYSTEM SETUP INSTRUCTIONS
How to enter the system setup menu to change
system settings
Press repeatedly until system is set to OFF.
Press and hold and for three seconds.

SETUP & TESTING
Press or to change the setting.
Press 
Press 
displayed.

pressed in 3 seconds.

RESET

bold. Some settings are only



61000652A 8400 Tstat Install.indd 11 7/23/09 2:20:57 PM

12
SETUP & TESTING
SYSTEM SETUP INSTRUCTIONS (CONTINUED)


these models to display the position of SW1.
SW1


61000652A 8400 Tstat Install.indd 12 7/23/09 2:20:58 PM

13
SETUP & TESTING
System setting Setting range, default in bold
00(Set by SW1) 

01 Temperature scale 0 : Fahrenheit

02 Fan control in heating 0 : Gas or oil furnace (Equipment controls fan)

03 Offset for internal sensor 0° : No offset applied

04 0 : Auto mode is disabled

05 0 : No remote sensor attached

06 5 minutes
1 to 5 minutes in 1 minute steps
07 Heating minimum off time 2 minutes
1 to 5 minutes
SYSTEM SETUP INSTRUCTIONS (CONTINUED)
61000652A 8400 Tstat Install.indd 13 7/23/09 2:20:58 PM

14
SETUP & TESTING
System setting Setting range, default in bold
08 2 minutes
1 to 5 minutes
09 1st stage differential 1°F (0.5°C)

10 1°F (0.5°C)

11 1°F (0.5°C)

12 0 – O/B energized in cooling (O)

13 Integral factor period (P+I control)

4 minutes

14 3°F (2°C)

15 
1 : Progressive recovery is enabled
SYSTEM SETUP INSTRUCTIONS (CONTINUED)
61000652A 8400 Tstat Install.indd 14 7/23/09 2:20:58 PM

15
SETUP & TESTING
System setting Setting range, default in bold
16 20°F (–7°C)

17 60°F (16°C)

19 0 – 5/2 program (Weekdays and Weekends)

20 OFF

21

OFF

22 Humidifier type 0 : Flow through type humidifier (1 reminder per season)
(2 reminders per season)
23 OFF

24 OFF

SYSTEM SETUP INSTRUCTIONS (CONTINUED)
61000652A 8400 Tstat Install.indd 15 7/23/09 2:20:58 PM

16
SYSTEM TEST MODE


outputs on and off. The chart on the following pages shows all of the options for each model.
The test steps are:
SETUP & TESTING
Test
Number
Heat/Cool Models
8444, 8463, 8448HC, 8466HC
Heat Pump Models
8446, 8465, 8448HP, 8466HP
 Heating (W) (W2) 
51  
52  
53 
61000652A 8400 Tstat Install.indd 16 7/23/09 2:20:59 PM

17

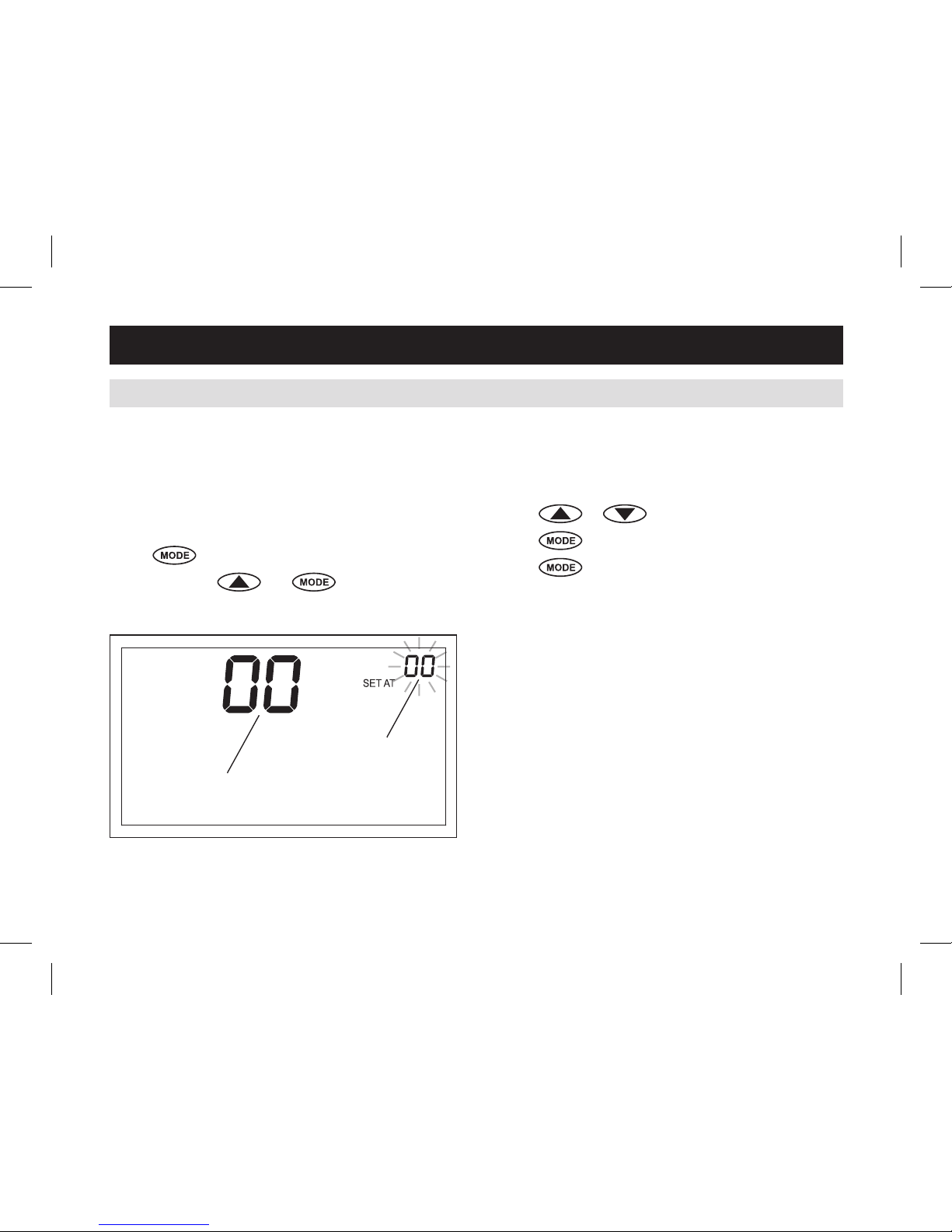

How to enter the system test menu
Press repeatedly until system is set to OFF
Press and hold and for three seconds.

SYSTEM TEST MODE (CONTINUED)
SETUP & TESTING
Press 
press 
Press 
Press 
Press 
displayed.

pressed in 3 seconds.


61000652A 8400 Tstat Install.indd 17 7/23/09 2:21:00 PM

18
SETUP & TESTING
Test steps for 8444 & 8463
Step Key Input
System Setting Display (Output)
#2
01
HEATING
ON (W)
01
COOLING
ON (Y)
01
FAN ON
(G)
   
  

   

#52 Fan  

61000652A 8400 Tstat Install.indd 18 7/23/09 2:21:00 PM

19
SETUP & TESTING
Test steps for 8448HC & 8466HC
Step Key Input
System Setting Display (Output)
#2
01
HEATING
ON (W)
02
HEATING
ON (W2)
01
COOLING
ON (Y)
02
COOLING
ON (Y2)
01
FAN ON
(G)

  
  
   
   


  
   

#52 Fan  

61000652A 8400 Tstat Install.indd 19 7/23/09 2:21:00 PM

20
Test steps for 8446 & 8465
Step Key Input
System Setting Display (Output)
#2 #12
01 AUX
HEATING
ON (W)
01
COOL/HEAT
ON (Y)
01
FAN ON
(G)
O/B
  

  


    
  
  

#52 Heat
   
   
 
 
#53 Fan  

SETUP & TESTING
61000652A 8400 Tstat Install.indd 20 7/23/09 2:21:01 PM
