– 1 –
IMPORTANT: READ ALL INSTRUCTIONS THOROUGHLY
Programming your Aprilaire®Thermostat is done in three easy steps: setting the clock, setting the event
times, and setting your desired temperatures.
Setting Or Changing The Clock
Step 1: If you are currently in Daylight Saving Time
(first Sunday in April thru fourth Sunday in October),
press the DST button and “ “ will appear in the
lower right-hand corner of the display.

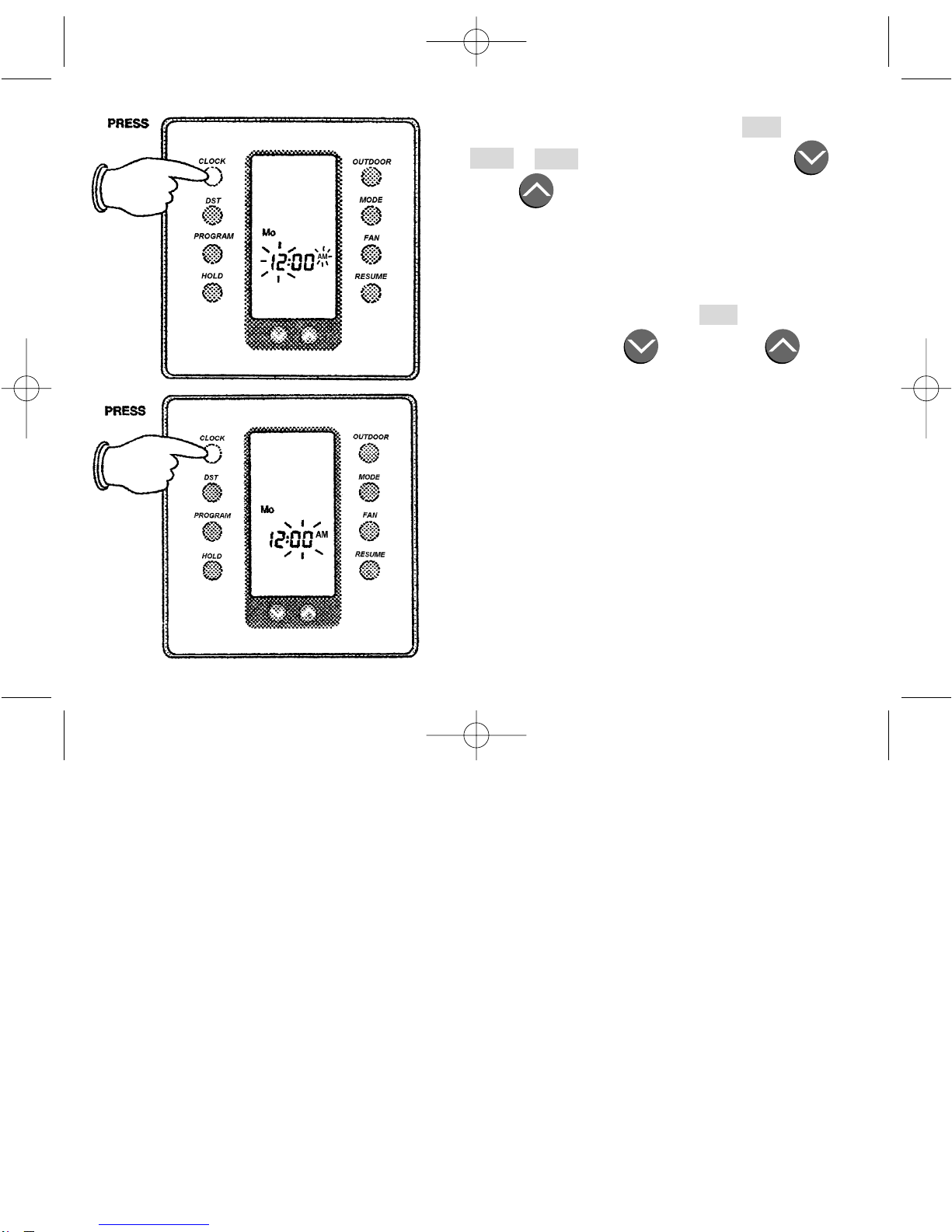

Step 2: Press the CLOCK button and “Mo”
(or another day of the week) will flash. Use the
DECREASE or INCREASE button to
change the flashing symbol to the current day
of week.
110-904 7/11/01 4:29 PM Page 3

– 2 –
Step 3: Press the CLOCK button again and “12:” (hours)
and “AM” or “PM” will flash. Use the DECREASE or
INCREASE button to change the flashing symbol
to the current hour making sure the hour has the proper
AM or PM designation.
Step 4: Press the CLOCK button and “:00” (minutes) will
flash. Use the DECREASE or INCREASE button
to change the flashing symbol to the current minute.
Step 5: Press the CLOCK button again. The clock is now
set and the current time appears on the display.
110-904 7/11/01 4:29 PM Page 4

– 3 –
Setting Or Changing The Weekday Program
Programming your AprilaireElectronic Thermostat involves selecting the temperature you want
in your home and selecting the time you want it to be that temperature. Your Aprilaire Thermostat
will allow a maximum of 4 time schedules per day. Each time schedule is known as an “event.”
The Morning event is typically when you wake up and is the first event of the day. The Day event is
typically set when you leave for work. The Evening event is typically set when you come home from
work and the Night event is set when you go to bed. Each event will have 1 cooling temperature.
Your Aprilaire Thermostat allows 1 program for Monday through Friday and 1 program for Saturday
and Sunday. Complete the chart on page 4 with your desired temperatures and time schedules
before beginning programming.
NOTE: It will take some time for your cooling system to reach the desired temperature when
returning from a setback. Therefore, it is suggested you set your program time before the actual
time you want your home to reach the desired temperature. For example, if you get up at 7:00 AM
and have a 6 degree setback, set your Morning event at 6:00 AM to be sure the desired temperature
is reached by 7:00 AM.
110-904 7/11/01 4:29 PM Page 5

– 4 –
PROGRAM SCHEDULE
TIME SCHEDULE
THERMOSTAT DESIRED MONDAY – SATURDAY &
EVENT SYMBOL TEMPERATURE FRIDAY SUNDAY
SETTING
Morning
Day
Evening
Night
NOTE: While programming you must press a button at least every 15 seconds or the thermostat will revert back to the
operational mode. If this happens, simply repeatedly press the PROGRAM button until you get back to where you left
off. The information you have already entered has been retained.
NOTE: If consecutive events have the same temperature, you can skip an event by simultaneously pressing the
PROGRAM and MODE buttons. Press and release the PROGRAM button to advance to the next event.
110-904 7/11/01 4:29 PM Page 6

– 5 –
Step 1: Press and release the MODE button until the word
“COOL” and the “ ” cooling symbol appear on the display.
Step 2: Press and release the
PROGRAM button – “Mo Tu
We Th Fr”; Morning
event symbol “ ”;
flashing “12:” (or some
other hour); and flashing “AM” or “PM” will appear on the display.
You are now setting the time you want your cooling equipment to
come on in the morning.
Step 3: Press the DECREASE button or INCREASE
button to set the desired hour for the Morning “”
event.
Step 4: Press and release the PROGRAM button – “:00”
(or some other minutes) will flash.
110-904 7/11/01 4:29 PM Page 7

Step 5: Press the DECREASE button or INCREASE
button to set the desired minutes for the Morning “”
event (program starting times are set in ten-minute
increments).
Step 6: Press and release the PROGRAM button – the current
cooling temperature will begin to flash. You are now setting
the cooling temperature you desire in the morning.
Step 7: Press the DECREASE button or INCREASE
button to set the desired cooling temperature for the Morning “ ” event.
Step 8: Press and release the PROGRAM button – the Day “ ” event symbol will appear. You are
now setting the time and cooling temperature you want throughout the day.
Step 9: Repeat steps 2-6 to complete programming for the Day “ ” event.
Step 10: Press and release the PROGRAM button – the Evening “ ” event symbol will appear.
You are now setting the time and cooling temperature you want during the evening.
– 6 –
110-904 7/11/01 4:29 PM Page 8

Step 11: Repeat steps 2-6 to complete programming for the Evening “ ” event.
Step 12: Press and release the PROGRAM button – the Night “ ” event symbol will appear.
You are now setting the time and cooling temperature you want at night.
Step 13: Repeat steps 2-6 to complete programming for the Night “ ” event.
Setting Or Changing The Weekend Program
Step 1: After setting the Night “ ” event Weekday program, press and release the PROGRAM button.
“Sa Su”; the Morning “ ” event symbol; flashing
“12:” (or some other hour); and flashing “AM” or “PM” will
appear on the display. You are now programming the time
and temperatures for the weekend.
Step 2: Repeat steps 2-6 identical to Weekday
programming for Morning “ ”, Day “ ”,
Evening “ ”, and Night “ ” events for
cooling mode as applicable.
– 7 –
110-904 7/11/01 4:29 PM Page 9

Reviewing Programmed Time Schedules
And Temperature Settings
Press and release the PROGRAM button repeatedly to advance to “Mo Tu We Th Fr”, or “Sa Su” and
specific event. Continue pressing the PROGRAM button to review the time schedules and temperature
settings for each desired event.
To Start Running The Program
After all temperatures and start times have been programmed, press and release the RESUME
button to start running programs. If no button is pressed, the thermostat will resume automatically in
approximately 15 seconds.
For Best Performance
The Aprilaire Model 8551 thermostat is designed for accurate temperature control and easy
operation. The following guidelines should be followed to ensure proper operation of the thermostat:
1. When the thermostat is operating, close the cover to allow for proper air circulation over the
temperature sensor.
– 8 –
110-904 7/11/01 4:29 PM Page 10

2. Do not place anything which can give off warm or cool air, such as candles, lamps, or portable
humidifiers, near the thermostat.
3. Although the thermostat is internally equipped to prevent short cycling of the air conditioner,
it is possible to inadvertently override this protection. Do not start, stop, and restart the
equipment without allowing a minimum of 2 minutes between cooling cycles.
Thermostat Operation
The Model 8551 is a full-featured thermostat which allows for additional control and operations after
basic time and temperature programming is completed. In addition to the programming buttons used
to set up all event times and temperatures, additional buttons control the following functions:
TEMPERATURE CONTROL
•Reading the Actual Room Temperature: The Model 8551 normally displays the room temperature,
not the set-point temperature.
•Check the Set-Point Temperature: Press and release the DECREASE button or INCREASE
button. The thermostat will display the programmed set-point temperature and a thermometer for
5 seconds before automatically returning to the actual room temperature display.
– 9 –
110-904 7/11/01 4:29 PM Page 11

– 10 –
110-904 7/11/01 4:29 PM Page 12

•Temporarily Override the Set Temperature: Press and hold the DECREASE button or
INCREASE button to change the room set-point temperature in 1 degree increments.
The new set-point temperature will be held for 3 hours, then the thermostat will automatically
return to the program.
•Hold a New Temperature Set Point: Press and hold the DECREASE button or INCREASE
button to change the room set-point temperature in 1 degree increments. The new set-point
temperature can be maintained indefinitely by pressing and releasing the HOLD button. The word
“HOLD” will be displayed. The thermostat will maintain this new set-point temperature until the
RESUME button is pressed returning the thermostat to the original program. This procedure is
typically used during extended vacant periods (vacations, business trips, etc.), to hold an economical
set point until you return.
•Returning to Programmed Operation: At any time, press the RESUME button to return the
thermostat to operate as programmed.
– 11 –
110-904 7/11/01 4:29 PM Page 13

•Change Between °C and °F : The thermostat has the capability of displaying either Celsius
or Fahrenheit temperatures. If the displayed temperature seems abnormally high or low
(ie: 70˚F = 21˚C) you may need to switch to ˚C or ˚F by simultaneously pressing the
DECREASE button and the INCREASE button.
•Checking the Outdoor Temperature: If your thermostat was installed with the optional
Aprilaire®Outdoor Temperature Sensor, simply press the OUTDOOR button and the
thermostat will display the outdoor temperature for 3 seconds before automatically returning
to the actual room temperature display.
TIME CONTROL
•Change From 12- to 24-Hour Clock: Press and release the CLOCK button, then press the MODE
button. To return to a standard clock, repeat the process.
– 12 –
110-904 7/11/01 4:29 PM Page 14

EQUIPMENT CONTROL
•Turning on the Fan: At any time the system fan can run continuously by pressing the FAN button.
The Fan icon, “ “, will appear in the lower part of the display indicating that the fan is
operating continuously. To return the fan to the normal operating mode, press the FAN button again
which will remove the icon from the display. In the normal operating mode the fan will only run when
the air conditioning is operating. Continuous fan operation is beneficial if your system is equipped with
a high efficiency air cleaner, or to circulate air in the home when the air conditioning is not needed.
•Selecting Cooling Mode: Press the MODE button until the word "COOL" appears on the display.
In this mode the air conditioning system will maintain temperature according to the programming
previously completed unless an override temperature has been entered. Note that a Snowflake icon,
“ “, is on the display, which flashes when the air conditioning is running.
•Turning the System Off: Press the MODE button until the word "OFF" appears on the display. In this
mode, the air conditioning system will not operate regardless of the temperature. The thermostat can
still be programmed, the optional outdoor temperature sensor will work, and the fan will turn on if the
FAN button is pressed.
NOTE: After selecting a new mode, the thermostat initiates a delay of up to 4 minutes to protect the cooling equipment.
– 13 –
110-904 7/11/01 4:29 PM Page 15

Optional Settings For
Additional Thermostat Features

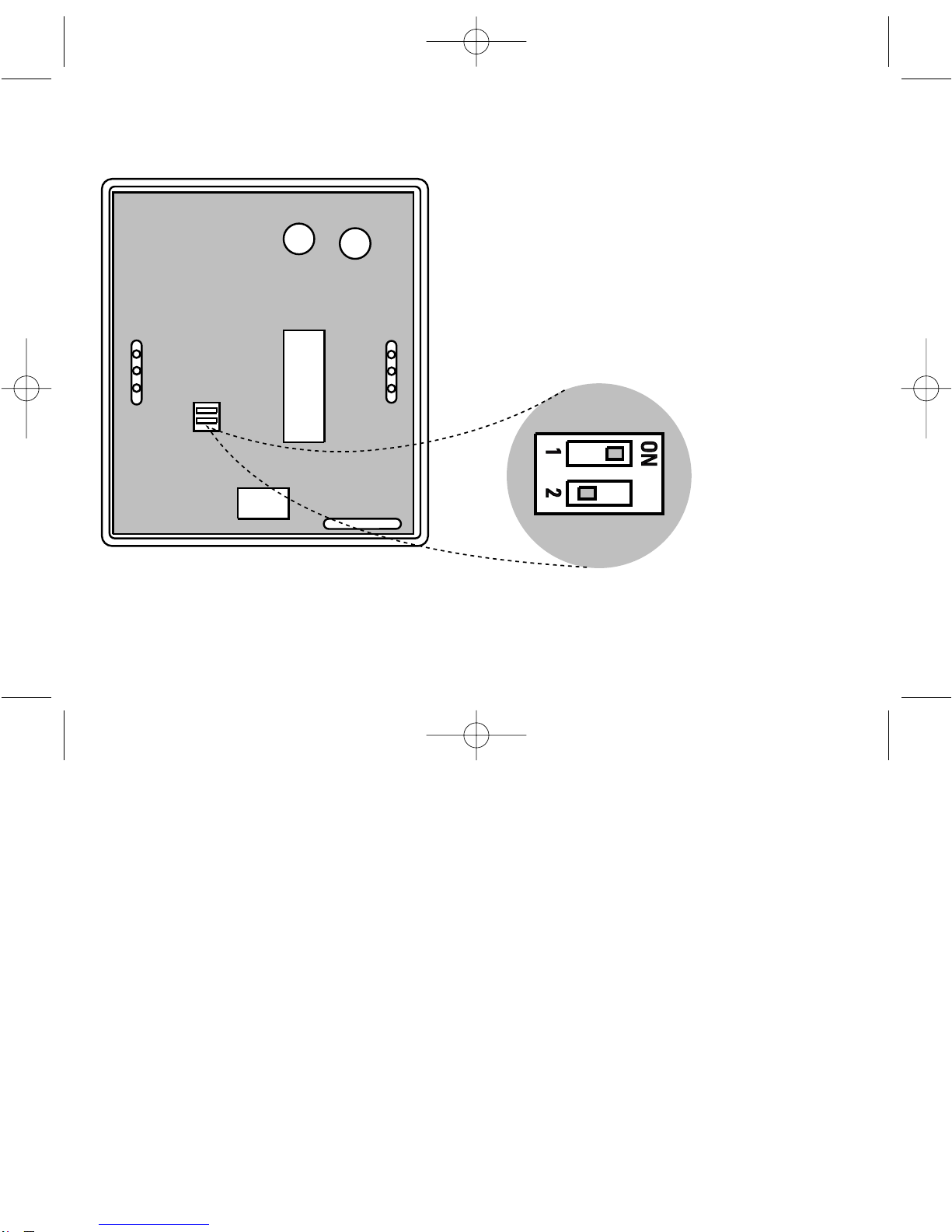

The Model 8551 thermostat is equipped with 2 DIP switches located inside the thermostat on the
printed circuit board. These switches are preset by the factory to typical home air conditioning system
requirements. The installing contractor also reviewed the settings during installation to be sure the
thermostat will operate properly with your air conditioning system.
The DIP switches can however be changed to customize the thermostat’s operation to your particular
needs. This should only be done after consulting with your contractor.
The Model 8551 DIP switches control the following functions:
No. 1 – 4 min./2 min. Minimum Equipment On/Off Times. This switch is factory preset at 2 minutes.
This switch provides short cycle protection for the air conditioning unit. If you feel that the air
conditioning system turns on and off too many times per hour, ask your contractor about changing
the switch to a 4 minute minimum on time. Keep in mind however that this may increase the
overall temperature variation in the house due to longer run and off times. DO NOT change the
position of this switch without first consulting with your contractor.
– 14 –
110-904 7/11/01 4:29 PM Page 16

No. 2 – Keypad Lock. If tampering with the thermostat is expected and unwanted, the keypad can
be locked by moving this switch from the factory set OFF position to the ON position. This should
not be done until all programming is finalized. In the locked position only the following functions
can be done:
• The outdoor temperature button will display the outdoor temperature.
• The DECREASE button or INCREASE button will temporarily change the
set point a maximum of plus or minus 3 degrees for a period of 1 hour, before the
thermostat automatically returns to the original program.
If the thermostat does not respond when a button is pushed it may be because the keypad has
been locked. A Lock icon “ “ will appear when pushing any buttons other than the buttons
outlined above.
– 15 –
110-904 7/11/01 4:29 PM Page 17

– 16 –
To change the DIP switch settings, the thermostat must be removed from the base which is attached to
the wall. The power to the thermostat must be turned off before disassembling or the
thermostat can be permanently damaged. If you do not
know where the switch is that controls the power
to your thermostat, do not attempt to access the
DIP switches. The following procedure must be
carefully followed:
a) Turn off power to
the thermostat.
b) Completely open the
thermostat cover.
The cover will snap
into this position.

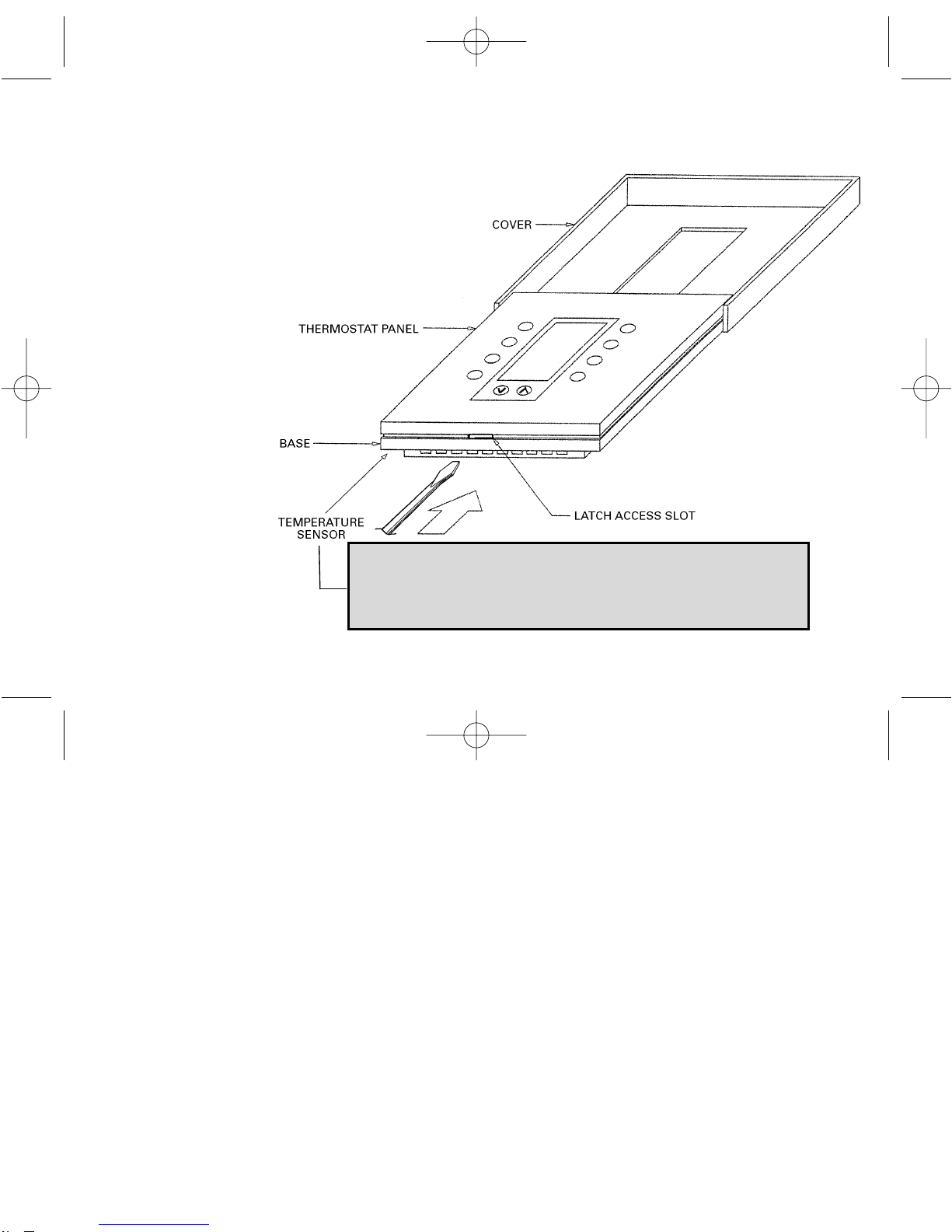

c) Carefully insert a
medium-sized
flathead
screwdriver
into the latch access
slot (see Figure 1).
Figure 1
CAUTION: TO PREVENT DAMAGE, AVOID CONTACT
WITH BLUE TEMPERATURE SENSOR ON BOTTOM RIGHT-
HAND CORNER OF THERMOSTAT CIRCUIT BOARD.
110-904 7/11/01 4:29 PM Page 18

– 17 –
Figure 2 Figure 3

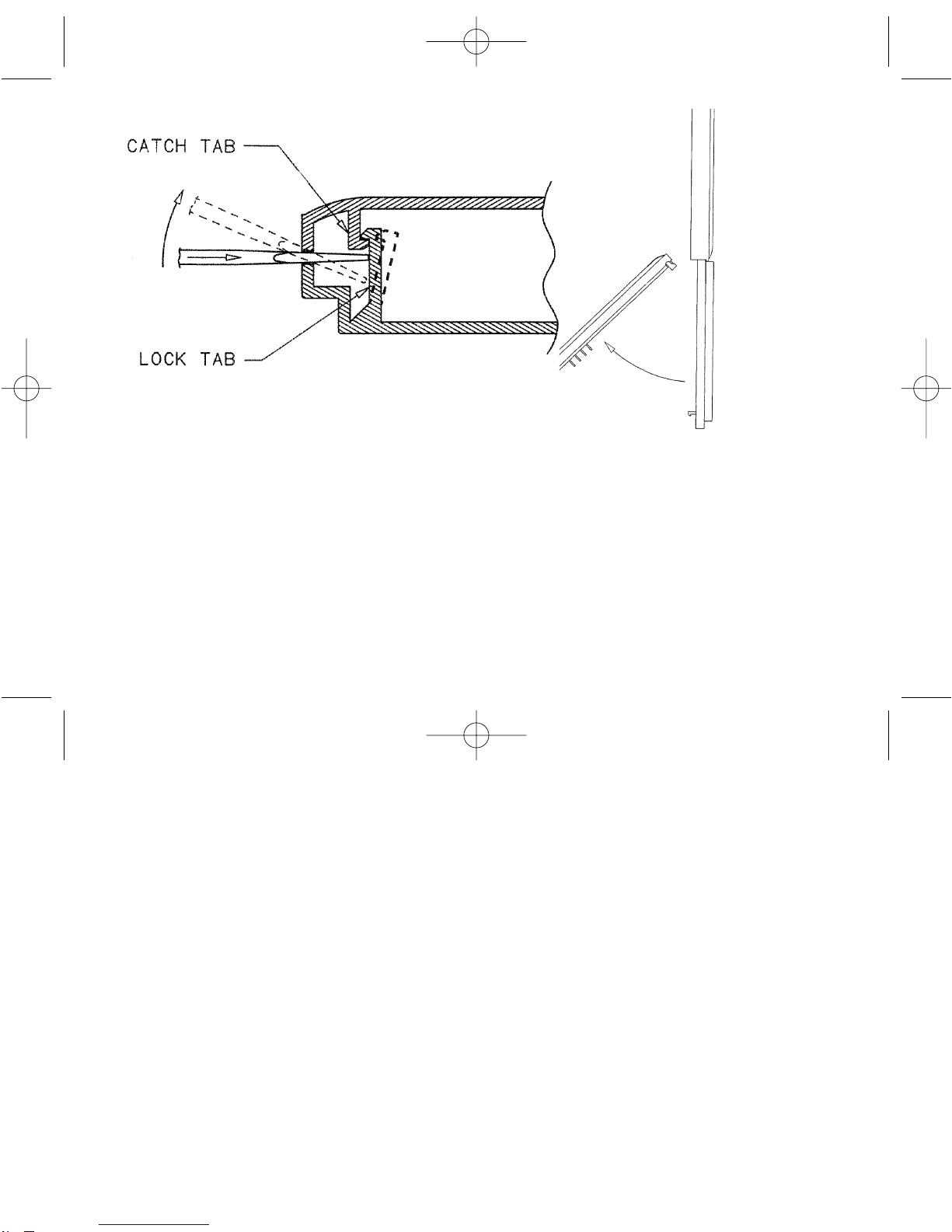

d) Gently push in and pry up on the handle of the
screwdriver until the lock tab disengages from the
catch tab (you should feel or hear a click –
see Figure 2).
e) After the latch releases, grip the thermostat panel at
the bottom corners and swing it up and away from
the base to completely separate (See Figure 3).
110-904 7/11/01 4:29 PM Page 19

– 18 –
Once the thermostat panel has been opened and removed from the base, turn the thermostat over
and locate the DIP switches found on the circuit board according to the following drawing:
Be careful to change only the intended DIP
switches per the explanation given at the
beginning of this section.
After the DIP switches have been set to the desired
position, carefully reassemble the thermostat.
a) Place the cover on the base by lining up the 2
round pegs on the bottom of the cover with the
half circle cutouts on
the top of the base.
Note that the
bottom of the
cover when fully
open slides in
behind the top
of the base. Swing
the cover fully open.
The cover will stay in place.
110-904 7/11/01 4:29 PM Page 20
