APRILIA 3088 User manual

APRILIA
INSTRUCTION
MANUAL
NO.3088-24V BRUSHLESS

APRILIA
If you have a future motorcycle rider in your
life, we have the most amazing gift for you.
This is a kids electric ride-on motorcycle. It is
aprilia motorcycle miniature. It is ideal
option for your little kids to ride on.
motorcycle

Please charge for 12
hours before initial use.
After initial charge
follow the charging
-
tions.

SAFETY
This vehicle must be assembled by an adult who has read and understood the
instructions in this manual.
Keep the packaging and bags away from children and dispose of all packag-
ing before use. Always use common sense and safe practices when operating
this vehicle.
NOTE
The following [safety hazards] may result in serious injury or death:
• Never open the battery. Batteries contain lead and lead compounds (acids)
that are toxic and corrosive.
• Do not leave a child unattended during operation. Do not use this in a loca-
tion that may require braking capability, as this could result in loss of control,
which may cause serious injury or death.
• Use of this vehicle in unsafe conditions such as snow, rain, loose dirt, mud,
sand, or gravel may result in an unexpected accident such as tipping over, and
could damage the electrical system or battery.
• Do not operate this vehicle in an unsafe manner. Examples include but are not
limited to:
- Pulling the vehicle with another vehicle or similar device
- Allowing more than one rider
- Pushing the user
- Traveling at an unsafe speed

SPECIFICATIONS
Weight Capacity 150LBS
Age Range 4-10 years old
Max Speed 2.5-16MPH
Charging Time 8-12hours
Run Time 1-3hours
Battery Type 24V8AH
Electric Motor 24VBrushless
Charger Output: DC 24V
Material PP+Metal
CARING FOR YOUR RIDE-ON
• Park the vehicle indoors or cover it with a tarp to protect it from wet weather.
• Do not leave the vehicle in the sun for long periods of time or fading may occur. Store in shade or
cover with tarp.

• Do not wash the vehicle with a hose.
• Do not wash the vehicle with soap.
• Charge battery at least once a month to prolong the life of the battery.

subject to the purchase page.

TOOLS REQUIRED
HARDWARE
PARTS
150LBS
150 LBSCAPACITY APPROXIMATELY
45 MIN.
ASSEMBLY
WARNING
!WARNING !
ADULT ASSEMBLY REQUIRED CHOKING HAZARD - SMALL PARTS.

Metal Wrenches
1 PC
a1Long Screw
(Training Wheels)
3 PCS
bNuts
3 PCS
cWashers
4 PCS
a2Short Screw
14 PCS
ABC
Foot Pedals
2 PCS
Training Wheels
1 PC
Front Wheel
1 PC

MN
DEF
GHI
JKL
PARTS
Seat
1 PC
Plastic Cap
1 PC
Front Wheel Lock
2 PCS
Front Fork
1 PC
Front Mudguard
1 PC
Front Axle
1 PC
Handlebar
1 PC
Side Mirrors
2 PCS
Front Frame
1 PC
Side Leaf-plates
2 PCS
Tail-light
1 PC

PRODUCT ASSEMBLY
1Flip vehicle over and lay it on a level surface. Remove all parts and packaging from
the vehicle body.
Connect the right-foot pedal brake cable.Insert the [2 Foot Pedals] on both sides into
the vehicle body(Align with the slot and snap it tight. Moreover take care to hide the
extra length of wire in the harness hole).
The Reverse Side

2Beside the foot pedal, align the [Training Wheels] with the slot.Fixed with 3-long
screws and 4-short screws.

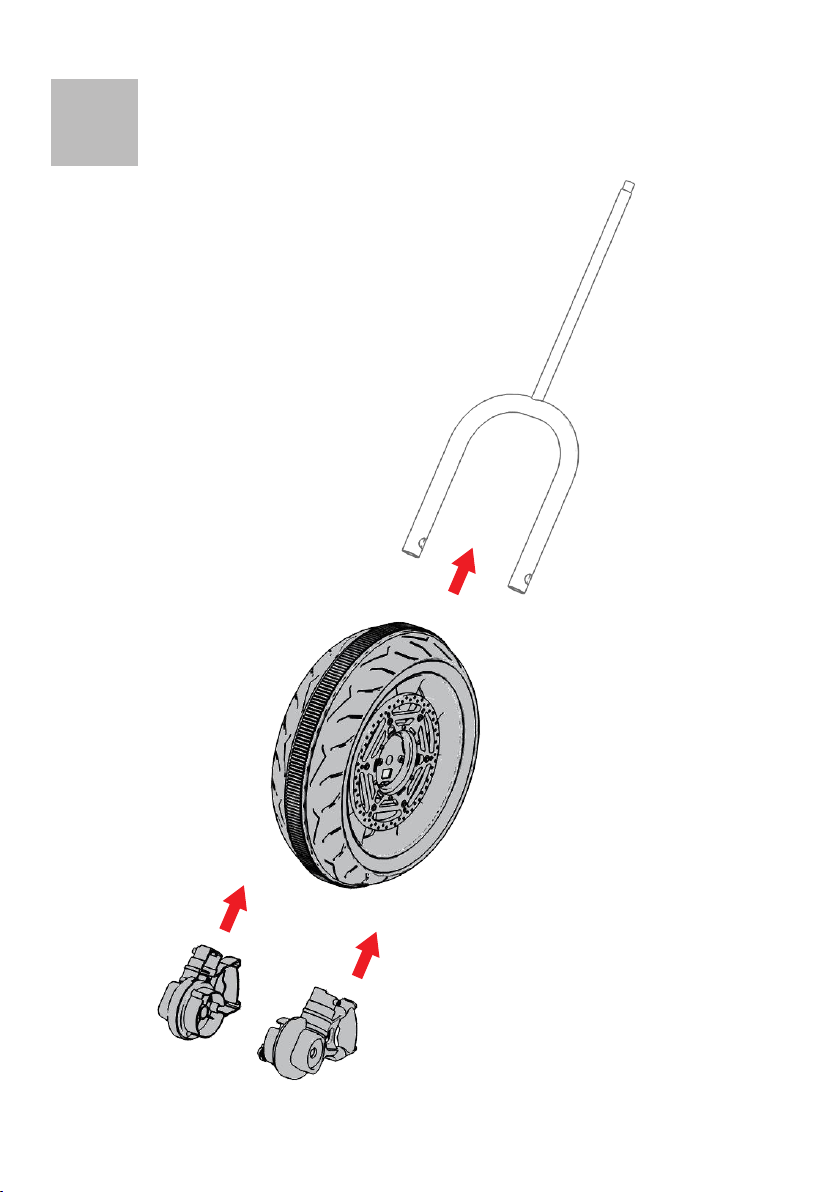

3Slide the [Front Fork] into the [Front Wheel Lock]. Then snap onto the [Front Wheel].

44.Insert the [Front Axle] into the front wheel and secure it with 2 nuts and 2
spacers/washers.
Slide the [Front Mudguard] into the front fork.

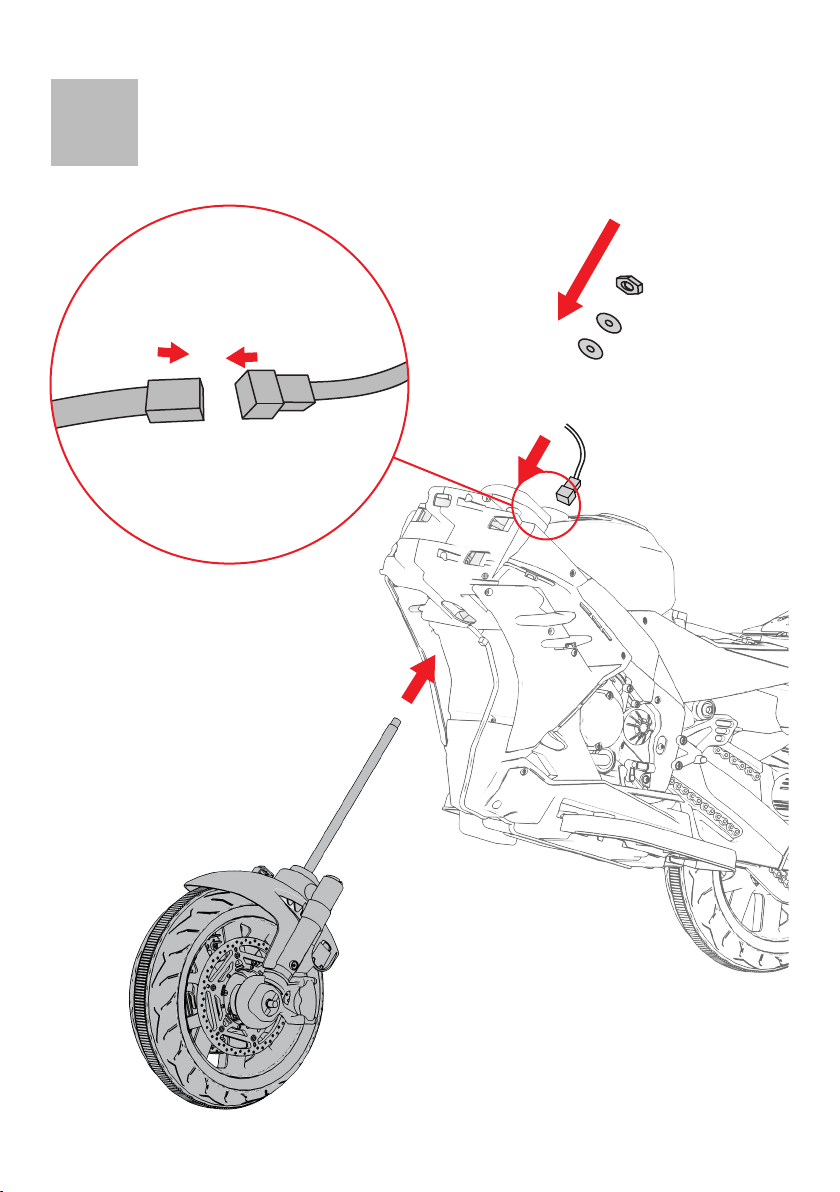

5Insert the already assembled front wheel set into the vehicle body. Connect the
accelerator power wire(Take care to hide the extra length of wire in the harness hole).
Then slide the [Handlebar] into the front-fork axle and put in 2 spacers/washers and
1 nut to secure them. Finally cover with a [Plastic Cap].

6Attach [2 Side Mirrors] with 2 screws to [Front Frame], 1 screw per mirror.
Mounting the front frame set to the vehicle body with 4 screws. And connect the light
power wire (Take care to hide the extra length of wire in the harness hole).

7Connect the motorcycle power cord. And test the power cord connection for proper
operation.
1 2
A
1.Please connect picture 1,the power connec-
tor before assembling the seat.Then usinng
the key start switch to turn on the vehicle.
2.Otherwise,the car will not start because of
no power supply.
1 2
B
1: After charging,please unplug the charger

on the vehicle.
2: Otherwise,the car will not start because of
no power supply.
ATTENTION

8Test the power cord is connected properly and then install the [Seat] with 2 screws.
Then attach the [Tail-light] with 2 screws.Finally install the [2 Side Leaf-plates].

DASHBOARD DIAGRAM
Push down on the pedal to drive forward/reverse. Release the pedal to slow down and stop.
Light switch
Low/High Speeds
USB port
Forward/Pause
Backward Button
Power Key
AUX port

BLUETOOTH
TROUBLESHOOTING
1. Put your audio device near the media player and turn the car on.
2. Press Mode on the media player and wait until you pair your device through bluetooth success-
fully
3. Then select your desired song on your device playing it
Problem
Vehicle does not move
Battery does not
recharge
Battery does not last
Battery is warm and
makes a slight noise
while charging
Slow speed
Reason Solution
Low battery Fully charge the battery
Electrical protection Stop use for several minutes
and restart
Switch not in the
correct position
Battery connectors
disconnected
Battery connectors
disconnected
Charger not connected to
socket or outlet
Battery does not have
a full charge
Normal
Low battery Fully charge the battery
Overloaded vehicle Reduce the weight on the vehicle
Uneven or sloped road 
Vehicles shakes
while driving Loose connection to motor Ensure the motor is properly connected to the battery
Fully charge the battery
Normal
Plug in battery connectors
Completely plug in the charger
Completely press in switches
Plug in battery connectors

QR CODE for product installation explaination

THANKS
FOR YOUR
CHOOICE

with Training Wheels
MOTORCYCLE FOR KIDS
24V BATTERY POWED
Kids Ride-On Motorcycle
APRILIA
