APURO CN219-A User manual

Model:
CN219-A
Hot Chocolate
Dispenser
Instruction manual
CN219-A_A5_v1_170605.indb 1 2017/6/5 15:33

2
AU Telephone Helpline: 1300225960
Safety Tips
• Position on a flat, stable surface.
• A service agent/qualified technician should carry out
installation and any repairs if required. Do not remove any
components on this product.
• Consult Local and National Standards to comply with the
following:
- Health and Safety at Work Legislation
- Fire Precautions
- Wiring Regulations
- Building Regulations
• DO NOT immerse the appliance in water, or use jet/pressure
washers to clean the appliance
• Do not use the appliance for anything other than its intended
use.
• Always switch off and disconnect the power supply to the
appliance when not in use.
• Not suitable for outdoor use.
• Keep all packaging away from children. Dispose of the
packaging in accordance to the regulations of local authorities.
• If the power cord is damaged, it must be replaced by an
Apuro agent or a recommended qualified technician in order
to avoid a hazard.
• This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities,
or lack of experience or knowledge, unless they have been
given supervision or instruction concerning the use of the
appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play
with the appliance.
• Apuro recommend that this appliance is PAT tested on an
annual basis to ensure the product remains safe.
CN219-A_A5_v1_170605.indb 2 2017/6/5 15:33

3
AU
Telephone Helpline: 1300225960
Introduction
Please take a few moments to carefully read
through this manual. Correct maintenance and
operation of this machine will provide the best
possible performance from your Apuro product.
Pack Contents
The following is included:
• Apuro Hot Chocolate Dispenser
• Instruction Manual
• Cleaning Brush
Apuro prides itself on quality and service, ensuring
that at the time of packaging the contents are
supplied fully functional and free of damage.
Should you find any damage as a result of transit,
please contact your Apuro dealer immediately.
Operation
Before first use, ensure to
• Clean the whole appliance
thoroughly, esp. the parts in
contact with liquids.
• Unscrew the drain cap (A)
using the boiler tank lid
(B), to drain the boiler tank
completely.
A
B
Filling the water boiler tank
• Make sure the power switch is set to OFF.
• Remove the lid from the water boiler tank (Fig 1)
• Fill the tank with water until it reaches the
MAX fill line (Fig 2).
• Replace the lid.
Filling the Bowl
• Remove the lid and pour the beverage
prepared according to the manufacturer’s
instructions into the bowl (Fig 3).
• Never exceed the MAX LEVEL mark.
• Replace the lid.
CN219-A_A5_v1_170605.indb 3 2017/6/5 15:33

4
AU Telephone Helpline: 1300225960
Turn on
• Turn on the power using the green switch
(Fig 4). Switch will illuminate when machine is
on.
• Set the thermostat to the required temperature
(Fig 5).
Dispensing the product
Warning: The products
dispensed from the machine can
be hot please take care to avoid
risk of scalding.
• Place a suitable cup beneath the tap
• Push or pull the lever on the tap until the
required amount of product has been poured into
the cup (Fig 6).
• Release the tap lever so that the product stops
pouring.
• If the product to be dispensed is especially
thick pull the tap Rod out to the maximum
position (Fig 7).
• Any clogging in the dispensing line may be
removed by sliding the tap rod back and forth
(Fig 7).
Warning: Never touch the bowl
or lid while the machine is
operating, since they are very
hot; always use the handle
when moving the bowl lid.
Cleaning, care and
Maintenance
Emptying the bowl
Before cleaning out the bowl, it is first necessary to
empty out any product inside it.
• With the machine switched on, empty out all of
the product still inside the bowl, using the lever
on the tap (Fig 8).
Warning: the product dispensed
from the machine has a very
high temperature; risk of
scalding.
CN219-A_A5_v1_170605.indb 4 2017/6/5 15:33

5
AU
Telephone Helpline: 1300225960

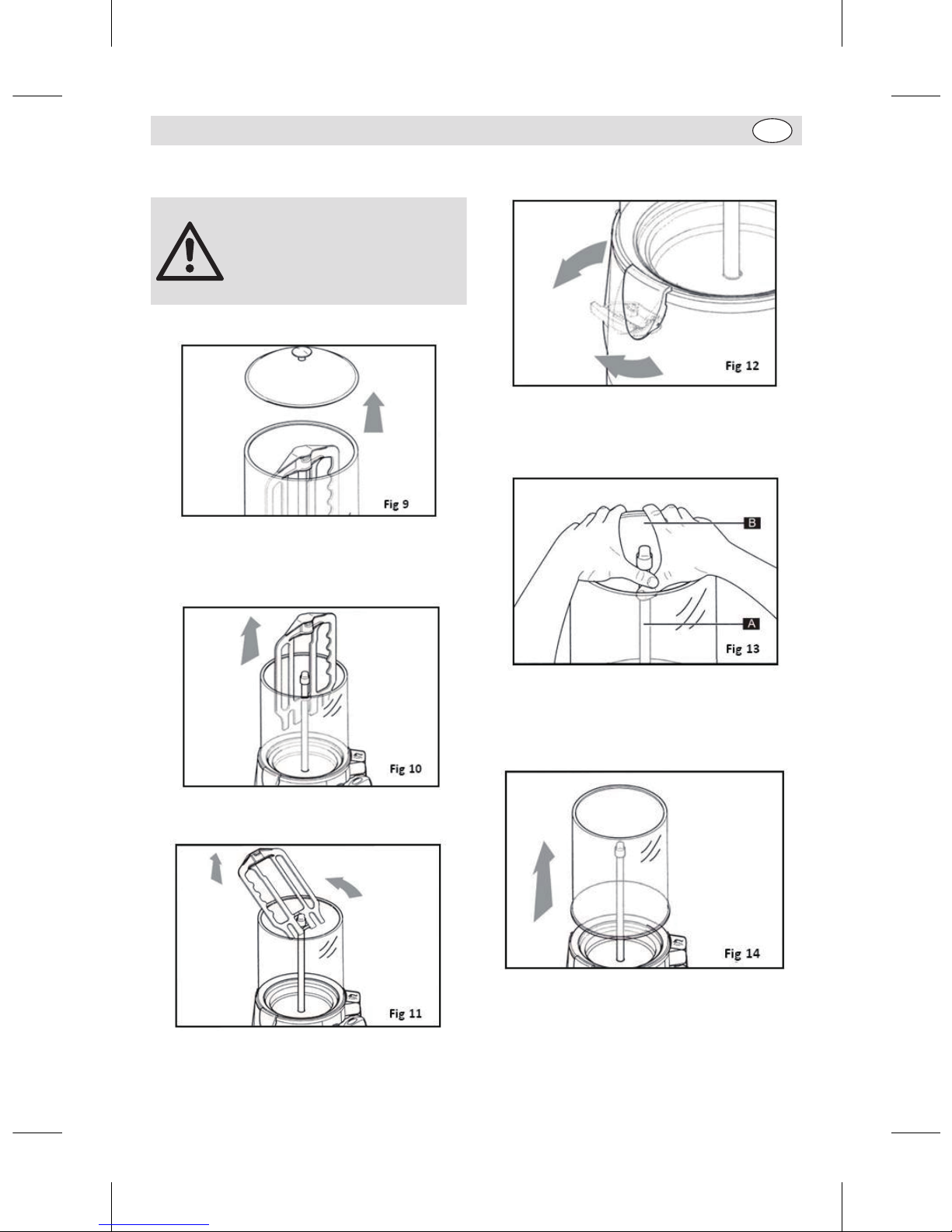

Removing and cleaning the bowl
Warning: before removing
the bowl, make sure that the
main switch is off, the unit is
unplugged from the mains and
that the bowl is empty and
sufficiently cooled down
• Remove the lid (Fig 9)
• Slide the mixing paddle upwards to remove it,
keeping it in line with the central rod until the
bottom slot of the mixing paddle is level with
the rotation pin (Fig 10).
• Tilt the mixing paddle and slide it upwards, as
illustrated in Fig 11, to remove it completely
• Unlock the bowl clips as illustrated in Fig 12, to
free the bowl from the machine body
• Release the bowl from the machine body, using
two fingers to prise it away from the fixed steel
part of the mixer rod (A) and the others to grip
the outlet edge of the bowl (B) (Fig 13)
• Gradually pull the bowl harder until it comes
away from its seating
• Slide the bowl upwards using both hands (Fig
14)
CN219-A_A5_v1_170605.indb 5 2017/6/5 15:33

6
AU Telephone Helpline: 1300225960
• Slide the mixing rod upwards with one hand,
taking care to grip it by the rotation pin
(Fig 15)
• Place the bowl on a flat surface and using both
hands, remove the gasket by sliding it upwards
in the direction shown by the arrow (Fig 16)
• Wash the disassembled bowl and components
with a sanitising detergent solution, rinsing
thoroughly with clean hot water.
• Before reassembling the bowl ensure the
gasket seal is positioned correctly (Fig 16a,
16b).
• Moisten the gasket seal with water and fit
the bowl back into place. DO NOT USE
LUBRICANT.
Warning: make sure that the
bowl is correctly fitted to the
machine; an incorrectly fitted
bowl will cause the product to
leak out with risk of scalding!
• Reassemble the bowl, rod and mixing paddle
by reversing the disassembly instructions
Removing the tap
• Ensure the bowl is empty
• Move the tap rod to the maximum dispensing
position (Fig 17)
• Press the button (A) securing the tap to the
machine and then remove the tap with both
hands (Fig 18)
CN219-A_A5_v1_170605.indb 6 2017/6/5 15:33

7
AU
Telephone Helpline: 1300225960

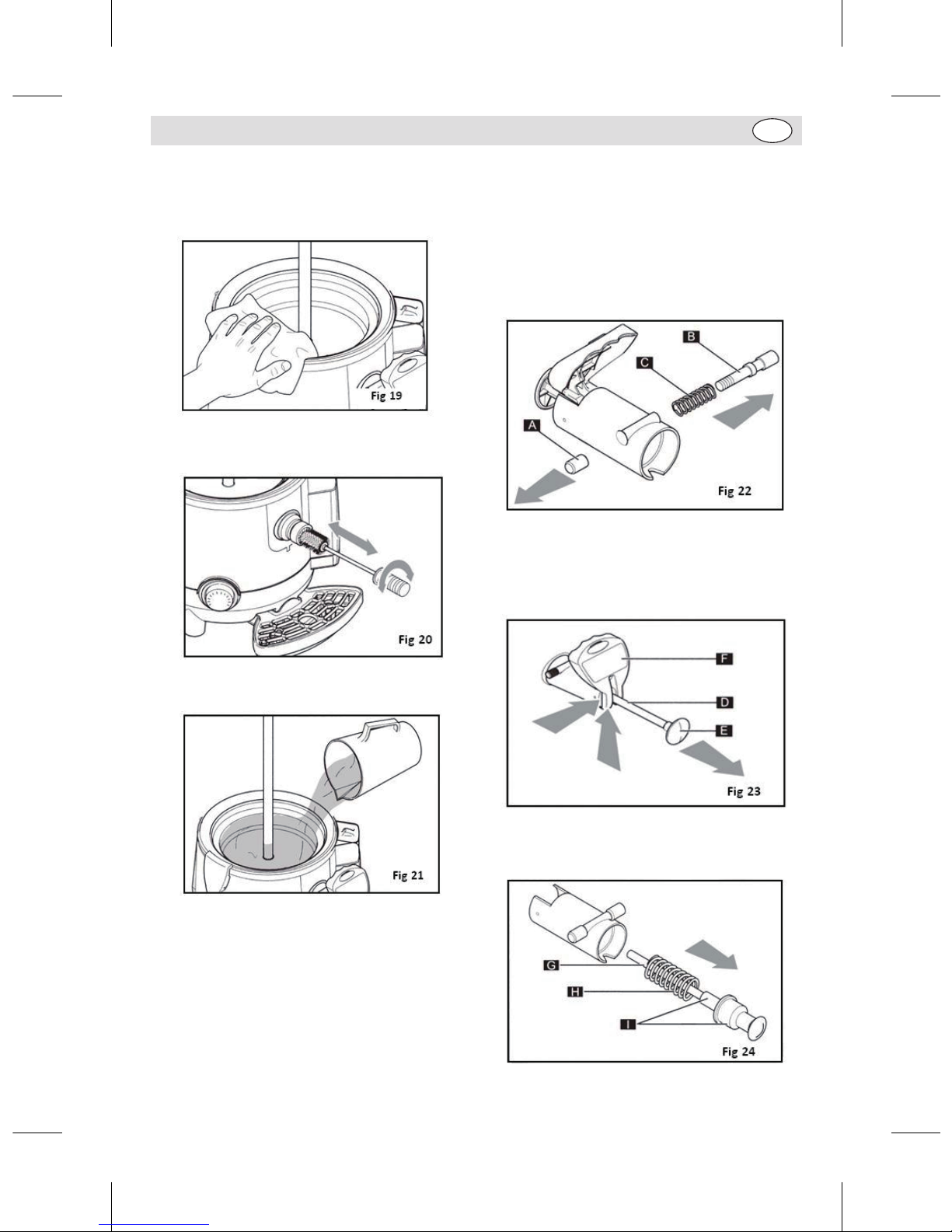

Cleaning the Water Pan
With bowl and tap removed clean the surface of
the pan using a damp cloth and/or a non-abrasive
sponge (Fig 19)
• Clean the channel connecting the bowl and the
tap, using a cleaning brush (included) (fig 20)
• Refit the tap
• Pour a little water inside the pan (Fig 21).
• Use the tap to drain out all water from the pan
so as to eliminate any small product residues
inside the dispensing channel.
Disassembling and cleaning the tap
To clean the inside of the tap, disassemble it as
follows:
• Remove the tap (See “removing the tap”)
• Place the tap on a clean, flat surface
• Loosen and remove the screw (A)
• Slide out the pin (B) and spring (C) from the
seating (Fig 22).
• Pull the lever (D) all the way out from the
knob(E) then push the lever(F) upwards from
bottom until it comes out from the pin guide
(Fig 23). Unscrew the knob E by turning anti-
clockwise while holding the rod in place.
• Pull out the rod (G) and spring (H) from the
tap body (the pin/gasket assembly (I) will slide
out together with the rod) (Fig 24)
CN219-A_A5_v1_170605.indb 7 2017/6/5 15:33

8
AU Telephone Helpline: 1300225960
• Detach the rod (G) from the pin/gasket
assembly (I) (Fig 25)
• Disassemble (by pulling) the pin (L) from the
gasket (M) (Fig 26)
Wash the disassembled components with a
sanitising detergent solution, rinsing thoroughly
with clean hot water.
Reassemble the tap by reversing the disassembly
instructions.
• To fit the lever (F) push the rod (D) from the
inside until the guides protrude; then insert the
lever (F) and slowly release the rod (D)
(Fig 27)
• To fit the tap correctly back in place hold
down the button, making sure that the rod is
completely extracted
• Introduce the tap into the seat and push until
the push button returns to its initial position
(Fig 28)
Cleaning the Drip Tray
The drip tray should be emptied and cleaned daily.
Note: the tray needs to be
emptied out and cleaned every
time that the red float fitted
to the grid rises, this is to stop
liquid from leaking out.
• Lift the tray with grid and pull it outwards to
remove it from its seating (Fig 29).
• Wash the tray and grid separately with warm,
soapy water
• Dry all of the components and reposition the
grid on top of the tray
• Fit the tray back in place and press down to
secure it to the machine.
CN219-A_A5_v1_170605.indb 8 2017/6/5 15:33

9
AU
Telephone Helpline: 1300225960
Cleaning the lid
• Remove the bowl lid from the machine
• Clean the surface using a damp cloth and /
or a non-abrasive sponge soaked in sanitising
product
• Rinse thoroughly using clean water.
Emptying the boiler Tank
Warning: While the boiler is
being emptied, the machine
must be unplugged. The boiler
may be emptied only when the
bowl is empty and the machine
has cooled down sufficiently.
• Remove the drip tray
• Remove the lid (A) (Fig 31)
• Place the machine on a flat surface
• Place a container (B) with a capacity of more
than 3 litres underneath the bleeder cap (C)
(Fig 32)
• Use a coin or Allen wrench to unscrew the
drain cap (C)
• Pull out the cap (C) with a firm movement and
wait for all the water to empty out from the
boiler tank (Fig 32)
Cleaning and de-scaling the Boiler
Tank
Warning: The boiler tank needs
to be de-scaled on a regular
basis
• Follow the steps for draining out the boiler tank
• Insert and secure the boiler tank bleeder cap
• Fill the boiler tank with a solution of scale
remover (suitable for use in coffee machines)
and water (following instructions supplied with
the scale remover)
• Leave the solution in the tank for the time
indicated in the scale remover instructions
• Empty out the solution from inside the boiler
tank
• Rinse out the tank as per scale remover
instructions.
Thermal Protector Switch
If the Boiler tank boils dry, the unit’s thermal
protector switch will activate to protect the heating
element. Allow to cool then reset as follows:
• Use a suitable tool to loosen and remove the
protective screw (A)
• Use a suitable tool to press the button inside to
restore normal machine operation.
CN219-A_A5_v1_170605.indb 9 2017/6/5 15:33

10
AU Telephone Helpline: 1300225960
Troubleshooting
Fault Probable Cause Solution
Unit does not
heat
No power Make sure the machine is plugged in correctly
Switch set to OFF Set the switch to ON
Thermal Protector Switch has
activated
Reset Thermal Protector Switch
Thermostat set to low Adjust the thermostat
Mixing paddle
does not turn
No power Make sure the machine is plugged in correctly
Mixing rod not fitted correctly Ensure mixing rod is correctly fitted
Motor Fault Call Apuro agent or qualified technician
Switch set to OFF Set the switch to ON
Tap leaks Tap not fitted correctly Empty machine and fit tap as per instructions
Build up of debris Empty machine and clean tap as per
instructions
Sealing Gasket needs replacing Call Apuro agent or qualified technician
Water escaping
from boiler
Temperature too high Adjust the thermostat
Tank filled above MAX indication
line
Allow machine to cool then empty the tank and
refill to correct level
Sealing gasket needs replacing Call Apuro agent or qualified technician
Product leaks
from bottom of
bowl
The bowl is not fitted correctly Empty machine and re-fit bowl as per
instructions
Sealing gasket needs replacing Call Apuro agent or qualified technician
Machine shuts
down while in
use
The water level in the boiler tank
has fallen below the minimum
(MIN) level
Fill the boiler tank to MAX fill level and reset
Thermal Protector Switch
No water in boiler tank Fill the boiler tank to MAX fill level and reset
Thermal Protector Switch
If the machine malfunctions due to causes other than those listed or the proposed
corrective actions do not solve the problem please call a Apuro agent or qualified technician
Technical Specifications
Model Voltage Power Current Capacity
(Litres)
Dimensions
H x W x D mm Weight
CN219-A 230V 50Hz 1006W 4.37A 5 465 x 410 x 280 7.3kg
CN219-A_A5_v1_170605.indb 10 2017/6/5 15:33

11
AU
Telephone Helpline: 1300225960
Electrical Wiring
The plug is to be connected to a suitable mains socket.
This appliance is wired as follows:
• Live wire (coloured brown) to terminal marked L
• Neutral wire (coloured blue) to terminal marked N
• Earth wire (coloured green/yellow) to terminal marked E
This appliance must be earthed.
If in doubt consult a qualified electrician.
Electrical isolation points must be kept clear of any obstructions. In the event of any emergency
disconnection being required they must be readily accessible.
Compliance
The WEEE logo on this product or its documentation indicates that the product must
not be disposed of as household waste. To help prevent possible harm to human
health and/or the environment, the product must be disposed of in an approved and
environmentally safe recycling process. For further information on how to dispose of
this product correctly, contact the product supplier, or the local authority responsible for
waste disposal in your area.
APURO parts have undergone strict product testing in order to comply with regulatory
standards and specifications set by international, independent, and federal authorities.
APURO products have been approved to carry the following symbol:
All rights reserved. No part of these instructions may be produced or transmitted in any form or by any means, electronic,
mechanical, photocopying, recording or otherwise, without the prior written permission of APURO.
Every effort is made to ensure all details are correct at the time of going to press, however, APURO reserve the right to
change specifications without notice.
CN219-A_A5_v1_170605.indb 11 2017/6/5 15:33

CN219-A_A5_v1_170605.indb 12 2017/6/5 15:33

CN219-A_A5_v1_170605.indb 13 2017/6/5 15:33

CN219-A_A5_v1_170605.indb 14 2017/6/5 15:33

CN219-A_A5_v1_170605.indb 15 2017/6/5 15:33

CN219-A_A5_v1_170605
CN219-A_A5_v1_170605.indb 16 2017/6/5 15:33
