Aqua Exclusive Green Line UV-C 30 User manual

Aqua Exclusive™
Version: 2023.2
Green Line UV-C 30
OWNER’S MANUAL

YOUR OWNER’S MANUAL
ILLUSTRATIONS AND PRODUCT SPECIFICATIONS
©2006-2023 Aqua ExclusiveTM
For the latest and most accurate information about your lter you can nd the owner’s man-
ual online. To download or view this manual, please go to https://www.aqua-exclusive.com/
manuals.
To ensure that your new lter functions properly and safely, we advise you to read this
manual thoroughly before usage.
The illustrations provided in this document are for demonstration purposes only. All speci-
cations and descriptions contained in this document are veried to be accurate at the time of
printing. However, because continuous improvement is a goal at Aqua Exclusive™, we reserve
the right to make product modications at any time. To communicate any inaccuracies or
omissions in this document, please send an email to: [email protected].
All information in this document and all product software is subject to copyright and other in-
tellectual property rights of Aqua Exclusive™ and its licensors. This material may not be mod-
ied, reproduced or copied, in whole or in part, without the prior written permission of Aqua
Exclusive™. Additional information is available upon request. The following are trademarks
or registered trademarks of Aqua Exclusive™ in the Netherlands and other countries: Green
Line, Green Line RDF, Green Line Bio, Green Line UV-C.

Aqua ExclusiveTM Contents
1.Green Line UV-C..................................................................................................4
1.1 What is the Green Line UV-C?..............................................................................................4
1.2 How does the Green Line UV-C work?...............................................................................4
1.3 Aqua ExclusiveTM Green Line...............................................................................................4
1.4 What is included....................................................................................................................4
1.5 Filter overview.......................................................................................................................5
1.6 Specications.........................................................................................................................6
2. Safety information.............................................................................................7
3. Suitable for many applications........................................................................8
4. Filter installation...............................................................................................9
5. Pump fed or gravity setup..............................................................................10
6. Pump fed setup................................................................................................10
6.1 Advantage pump fed setup...............................................................................................10
6.2 Example pump fed setup...................................................................................................10
7. Gravity setup....................................................................................................11
7.1 Advantage gravity setup.....................................................................................................11
7.2 Example gravity setup........................................................................................................11
8. Water level........................................................................................................12
8.1 Water level pump fed setup..............................................................................................12
8.2 Water level gravity setup....................................................................................................12
9. Flexible couplings.............................................................................................13
10. Slide valve.......................................................................................................13
11. Connecting correct outlets...........................................................................14
11.1 Outlets pump fed setup..................................................................................................14
11.2 Outlets gravity setup........................................................................................................14
12. Connecting the UV-C System........................................................................15
13. Electronic enclosures....................................................................................16
13.1 How to install the uv-c system box................................................................................16
14. Maintenance..................................................................................................17
15. Technical drawing..........................................................................................18
Overview 3

Aqua ExclusiveTM
GREEN LINE OWNER’S MANUAL
Overview
1.1 What is the Green Line UV-C?
1.2 How does the Green Line UV-C work?
The Aqua Exclusive Green Line UV-C system is a very eceint and compact UV-C system. This
system has four 110mm (4 inch) inlets and six 110mm (4 inch) outlets. Up to 4 lamps can be
connected. These lamps have a power of 50 watts each, which equates to a total of 200 watts.
The polished stainless steel 316L interior of the housing reect the UV light and makes the UV
light 35% more eective.
The main function of this system is killing algea and other unwanted microorganismes. When
the water containing these organisms passes through the UV-C light, the light damages the
DNA and RNA of the organisms, preventing them from reproducing and ultimately killing
them. This helps to reduce the overall population of harmful microorganisms in the pond,
which leads to clearer and cleaner water.
However, it is important to note that UV-C light is not a complete solution for maintaining a
healthy ecosystem. While it can help control harmful microorganisms, it does not remove
physical debris from the water, such as leaves or sh waste. A proper ltration system should
be in place to remove these particles and keep the water clean.
1.4 What is included
• Aqua Exclusive™ Green Line UV-C
• UV-C system box
• 24 months manufacturer’s warranty
• Lifetime customer support
The lter is delivered ready to use in a box. You don’t have to assemble the lter, what makes
it easy to install.
1.3 Aqua ExclusiveTM Green Line
4
Figure 1: Green Line overview

Overview 5
Aqua ExclusiveTM Overview

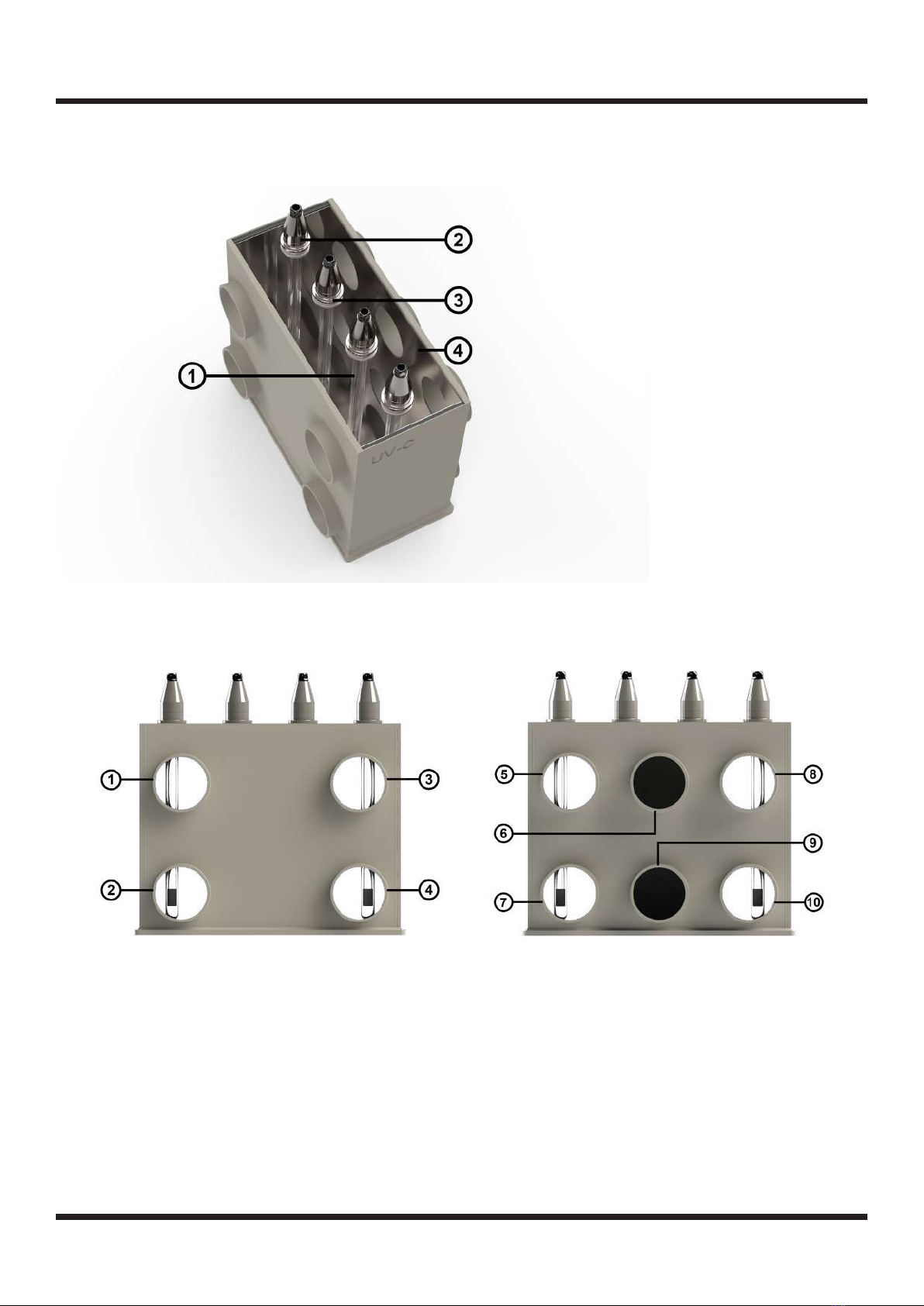

1.5 Filter overview
1. Inlet 110mm (4 inch)
2. Inlet 110mm (4 inch)
3. Inlet 110mm (4 inch)
4. Inlet 110mm (4 inch)
5. Outlet 110mm (4 inch) - Pump fed setup
6. Outlet 110mm (4 inch) - Pump fed setup
7. Outlet 110mm (4 inch) - Gravity setup
8. Outlet 110mm (4 inch) - Pump fed setup
9. Outlet 110mm (4 inch) - Gravity setup
10. Outlet 110mm (4 inch) - Gravity setup
Figure 3: Green Line UV-C front and back view
Figure 2: Green Line UV-C overview
1. Quartz sleeve
2. UV-C connector (SS 316L)
3. Flange (SS 316L)
4. Stainless steel housing

Specications
Model: Green Line UV-C System 30
Brand: Aqua Exclusive™
Product number: 300112/300113/300114/300115
Model Year: 2023
Type of ltering: Ultraviolet (UV) disinfection technology
Type of lter: UV-C system
Water volume: Up to 100.000 Liters (26400 Gallon)
Minimum water ow: No minimum ow required
Maximum water ow: 30.000 LPH (8000 GPH)
Installation: Gravity / Airlift / Pump fed setup
Filter weight: 16kg (35 lbs)
Inlet pipes: 4x 110mm (4” inch)
Outlet pipes pump fed: 3x 110mm (4” inch)
Outlet pipes gravity: 3x 110mm (4” inch)
Materials: Stainless steel 316L, Polypropylene, ABS
UV lamps: 2x 50 watt /4x 50 watt
Wavelength 254nm
Suitable for: Aquaculture, Aquaponics systems, Hydroponics
systems, Fish farms, (koi) ponds, (Large) aquari-
ums, Natural swimming pools and more!
Dimensions (Length x width x height): 240 x 520 x 410 mm (29.9" x 20.5" x 9.45")
Manufacturer: Aqua Exclusive B.V.
Country of origin: Netherlands
1.6 Specications
GREEN LINE OWNER’S MANUAL
6
Aqua ExclusiveTM Specications

2. Safety information
This system may cause bodily harm or damage to property if you do not use it properly and
in accordance with all safety guidelines, or if you attempt to use it for any purpose other than
that for which it was designed. This system must never be operated by children or anyone
under the age of 16, or by anyone who has a physical, mental or sensory impairment or lack
of experience and knowledge, unless they are under supervision and have been instructed
on the safe usage of the system and are informed of the dangers associated with it. Children
must be made aware that this system is not a toy. Cleaning and maintenance must be per-
formed by an adult. This must never be performed by a child, even if they are under supervi-
sion.
• Before commissioning, check the entire device, mains lead and plug for damage. If dam-
age is found, the device may not be used. Contact our support team about the damage.
• When opening the lid/maintenance cover, the power to the device/control box must al-
w7ays be switched o.
• We advice to install the lter in a dry, sheltered place. Not in direct sunlight. The lter can
be placed outside, but this shortens the lifespan of the lter.
• The device is suitable water temperatures between +4 to +35 °C.
• Outside this temperature range, the lter material may loses its strength and can break.
• The device may only be switched on when there is sucient water ow.
• For your own safety, always consult a professional electricianin case of any problems.
If you have any questions or concerns about your lter, you can email support@aqua-exclu-
sive.com or open the live chat at www.aqua-exclusive.com. Our support team is 24/7 avail-
able to help you.
Safety 7
Aqua ExclusiveTM Safety

8 GREEN LINE OWNER’S MANUAL
Aqua ExclusiveTM Installation
The Green Line UV-C system 30 is a part of the Aqua Exclusive Green Line.
With the launch of the Aqua Exclusive™ Green Line, we bring a professional and complete
automatic lter line to the market. A very ecient en compact lter line with the latest tech-
niques in the eld of water purication. This premium lter line oers exceptional perfor-
mance with very low energy consumption.
The Aqua Exclusive Green Line lter is suitable for many applications because you can com-
pose your own lter setup. The dierent lter parts can be ordered separately so you can
make it suitable for the following applications:
- Aquaculture
- Fish Farms
- Koi Ponds
- Natural ponds
- Natural swimming ponds
- Aquaponics systems
- Hydroponics systems
- Aquariums
- And more...
3. Suitable for many applications

Installation 9
Aqua ExclusiveTM Installation
In this manual we show you how to install the Green Line UV-C System 30 on a pond, but the
lter is suitable for almost all freshwater applications. If you plan to install this system in a
way that deviates signicantly from the recommendations in this user manual, allow for a
specialist to inspect the installation to ensure that all technical specications have been met.
The lter must always be placed in a level position. The bottom of the lter must be com-
pletely supported. When positioning the lter, ensure that there is adequate space on all
sides so that you have room to perform maintenance.
Always use high-quality pipes with an adequate wall thickness. Lay the pipes at a downward
angle so that they can be fully emptied during the winter to protect them against frost.
4. Filter installation

10 GREEN LINE OWNER’S MANUAL
Aqua ExclusiveTM Installation
6. Pump Fed setup
In a pump fed setup, a pump moves the water from the pond the lter. The water ows
through the lter and must be able to ow freely back into the pond. These lters are there-
fore always placed above water level, otherwise the lter will overow.
Figure 4: Pump fed setup overview
6.1 Advantage pump fed setup
6.2 Example pump fed setup
The advantage of a pump fed setup is that the lter is quick and easy to install. The disadvan-
tage is that you use more power than with a gravity setup.
5. Pump Fed or Gravity setup?
Before you start with the installation you need to know how you want to install your lter.
The Green Line UV-C System 30 can be used for both, gravity and pump fed setup.

Installation 11
Aqua ExclusiveTM Installation
A gravity fed lter works in the opposite way to a pump fed lter system, with the pump
drawing water away from the lter either via a suction hose, or been situated in the lter’s
nal chamber. Because gravity will always keep the water levels equal, when the pump pulls
water from the lter, pond water is replaced in the lter via the bottom drain. Gravity fed
systems are generally more ecient when compared to pump fed systems; bottom drains
require very little maintenance and are able to remove all pond waste, whereas pump cages
can become blocked over time.The pump in this system is pumping clean, ltered water and
therefore does not need as much maintenance. There are no cables or hoses coming from
the pond which can look unsightly and may trap debris in the pond. Water entering the lter
is not as turbulent as in a pump fed system.
7. Gravity setup
Figure 5: Gravity setup overview
7.1 Advantage gravity setup
7.2 Example gravity setup
The big advantage of a gravity setup compared to a pump fed setup is that you need less
power to run the same amount of water through the lter. The disadvantage is that it takes
more time to install everything.

Aqua ExclusiveTM Installation
12 GREEN LINE OWNER’S MANUAL
8. Water level
It is important to maintain the correct water level for an optimal operation of the lter sys-
tem. A lower water level will not make the system work properly and higher water levels can
cause leaks.
8.1 Water level gravity setup:
- Min. water level: 320mm from the bottom (20mm below the max. level line)
- Max. water level: 340mm from the bottom (max. level line)
8.2 Water level pump fed setup:
- Min. water level: 320mm from the bottom (20mm below the max. level line)
- Max. water level: 340mm from the bottom (max. level line)
Figure 6: Water level gravity setup

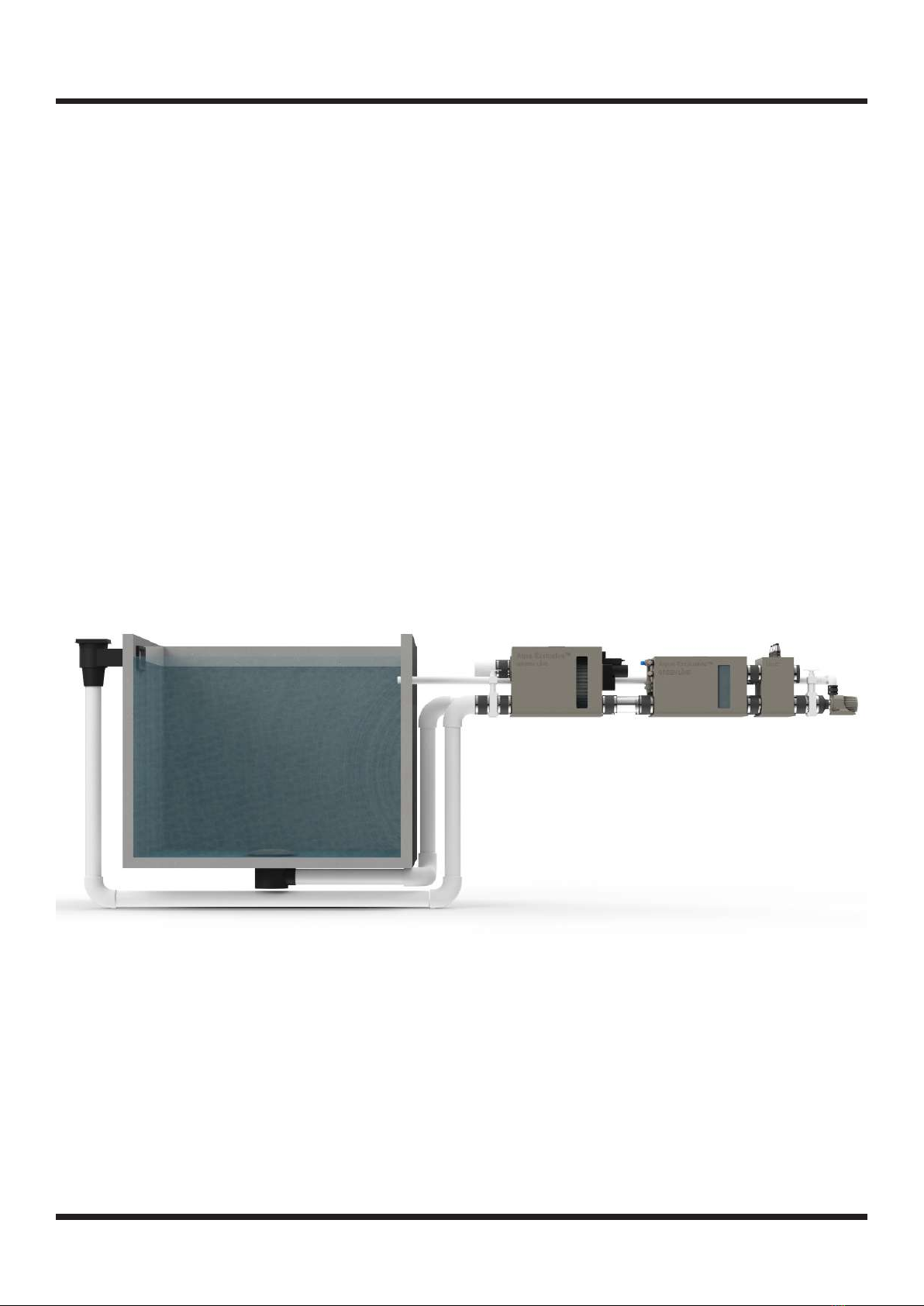

Figure 7: Water level pump fed setup

Aqua ExclusiveTM Installation
Installation 13
It is recommended to use exible rubber couplings when connecting the water lines. These
can compensate for small dierences in dimensions and also absorb vibration. This allows
you to connect the pvc pipes and various lter parts and makes the installation easy.
Figure 9: Green Line RDF, BIO and UV-C

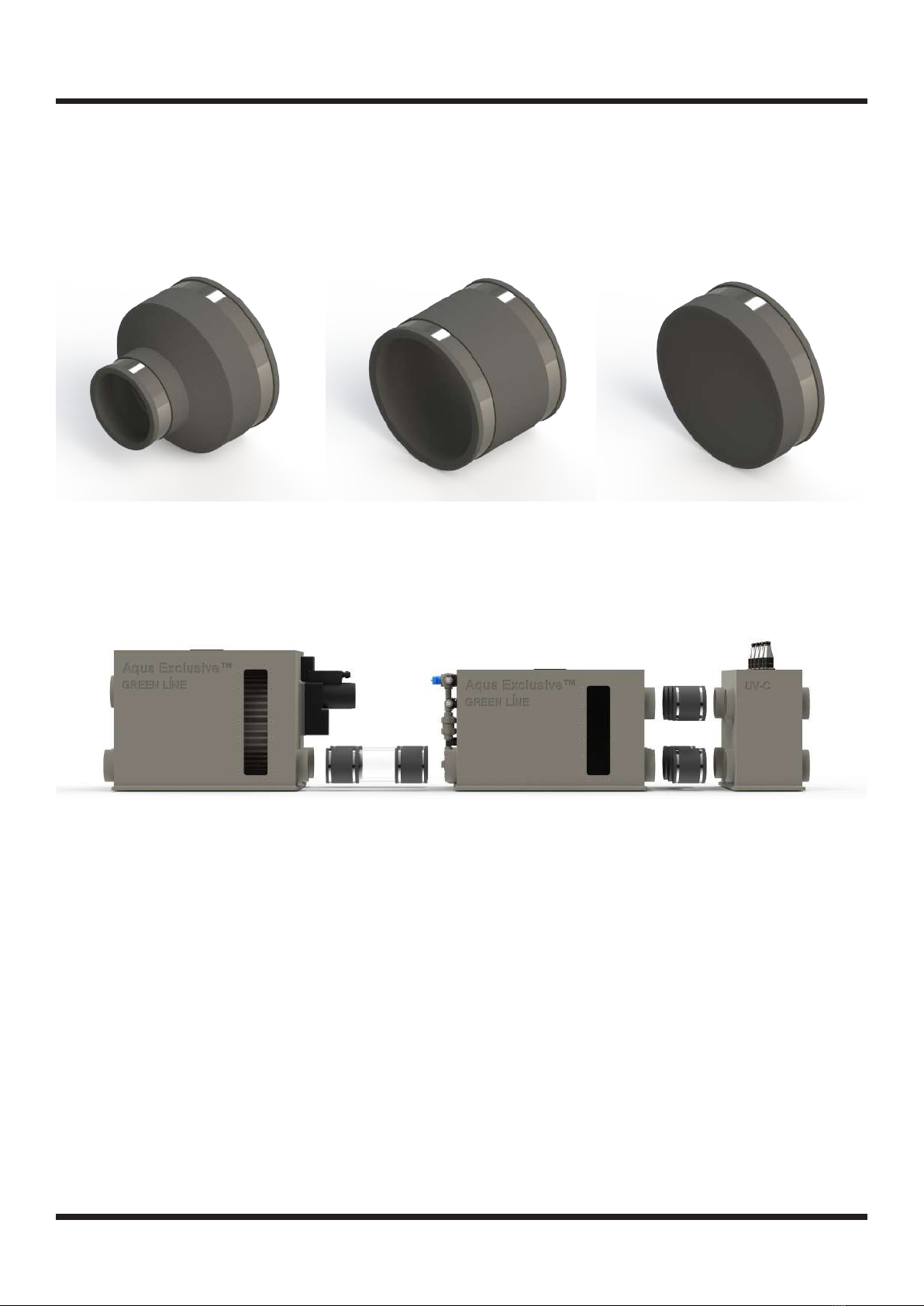

Figure 8: Flexible rubber couplings
9. Flexible couplings
Reducer connector Straight connector End cap
10. Slide Valve
For a gravity setup we advice to install slide valves or ball valves in front of and behind the
lter, so that the lter can be emptied or removed when necessary.

11.1 Outlets pump fed setup
11.2 Outlets gravity setup
11. Connecting correct outlets
14 GREEN LINE OWNER’S MANUAL
Aqua ExclusiveTM Installation
Connect the correct outlets for your setup. For a pump fed setup use the upper outlets and
for a gravity setup use the lower outlets.
Figure 10: Pump fed outlets
Figure 11: Gravity Outlets
Outlets for pump fed setup
Outlets for gravity setup

Installation 15
Aqua ExclusiveTM Installation
The stainless steel 316L head consists of several parts. Below you can see how to assemble it
correctly. Make sure that you always have the power o when you unscrew the head.
12. Connecting the UV-C System
1. UV-C connector
2. UV-C head
3. UV-C bulb
4. Rubber O-ring

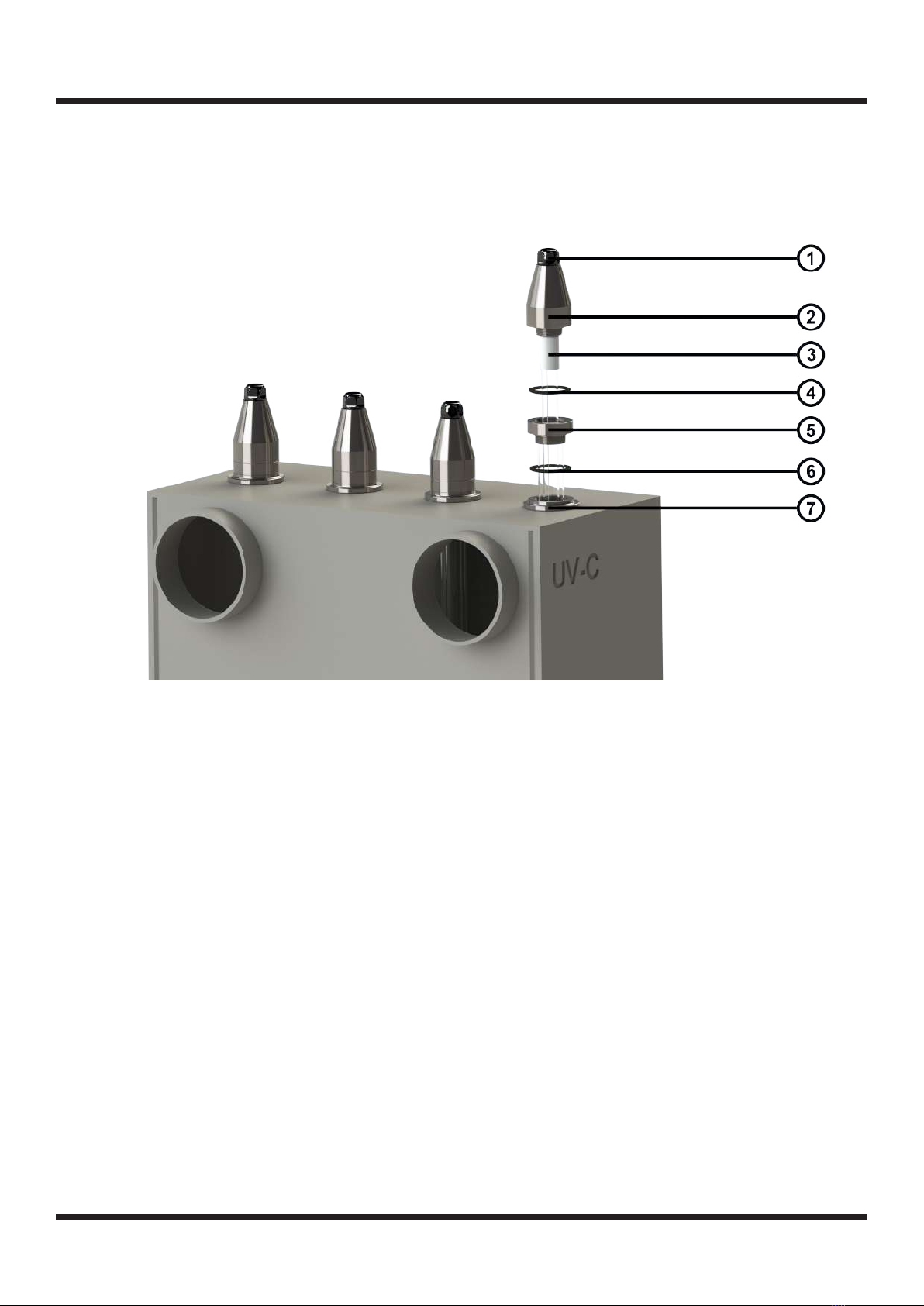

Figure 12: UV-C System
5. Quartz Sleeve
6. Rubber O-ring
7. Flange

Aqua ExclusiveTM Installation
16 GREEN LINE OWNER’S MANUAL
13.1 How to install the uv-c system box
Mount the uv-c system box on a wall. The cable from the uv-c system box must be connected
to the uv-c head. The uv-c system box must be connected to the drum lter control box.

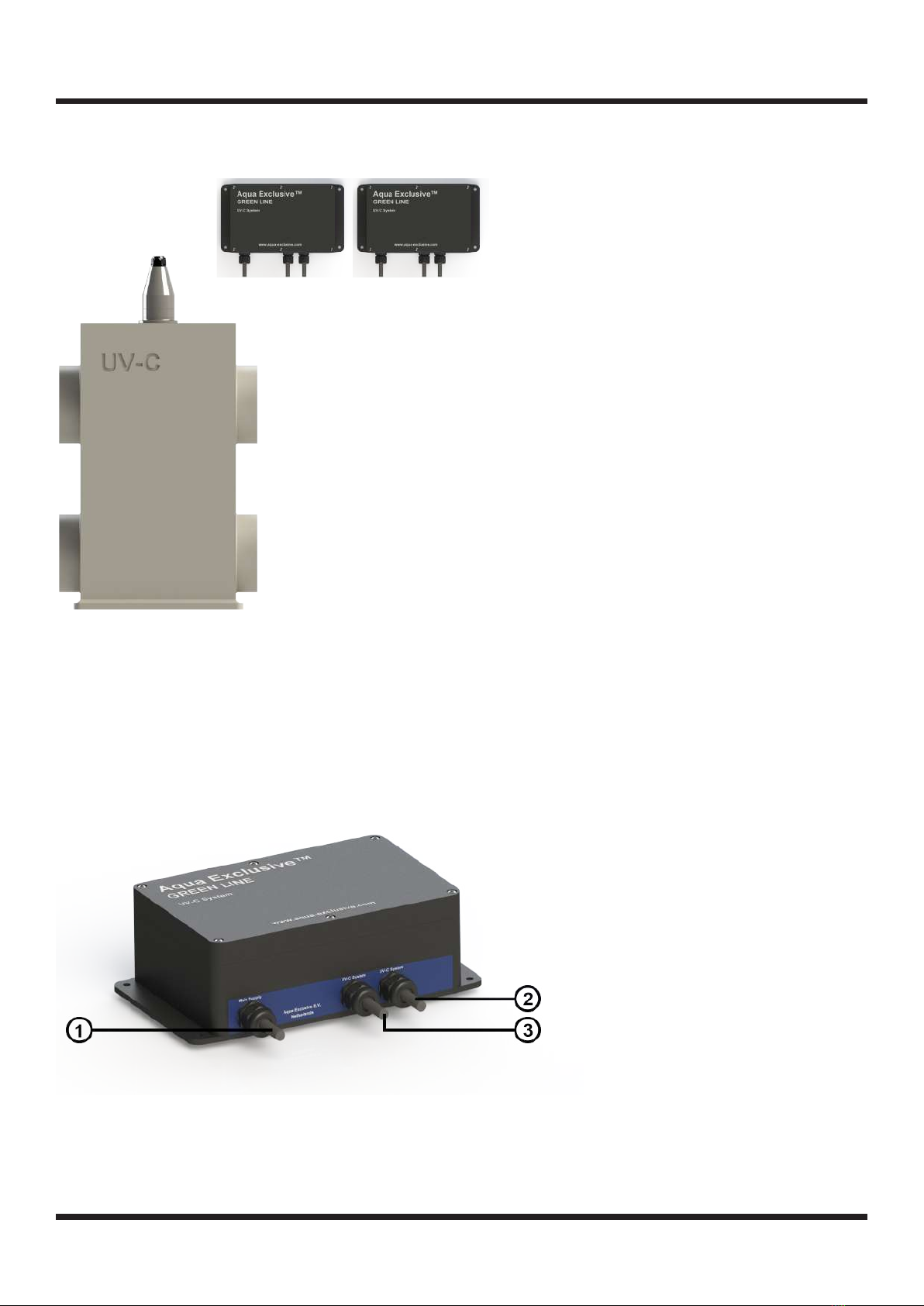

Figure 14: UV-C system box overview
1. Main Supply Cable
2. UV-C system cable
3. UV-C system cable
13. Electronic enclosures
Figure 14: Electronic enclosures

Aqua ExclusiveTM Maintenance
Installation 17
We advice to check your lter system at least once a month, to make sure everything is work-
ing properly.
ATTENTION: the radiation of UV is harmful! When opening the lid/maintenance cover, the
power to the UV box must be OFF.
We recommend replacing the UV lamps every year, the quality of the UV radiation decreases
after a year.
14. Maintenance

Technical Drawing
The technical drawing can be downloaded online at www.aqua-exclusive.com.
15. Technical drawing
Aqua ExclusiveTM
18 GREEN LINE OWNER’S MANUAL

Aqua Exclusive™
Publication date: 2023/02/28
