Aquacal Aerotemp AT100 User manual

POOL & SPA
HEAT PUMP OWNER’S MANUAL
H e a t W a v e A e r o T e m p
H100 AT100
H120 AT120
NOTE: THIS MANUAL ALSO APPLIES TO XL100, XL120, SB120, & APS120 MODELS

2
Owner Notes
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________

3
Table of Contents
WELCOME TO THE AQUACAL FAMILY.......................................................4
IMPORTANT FEATURES OF YOUR NEW HEAT PUMP .............................4
GENERAL SAFETY INFORMATION ................................................................5
WATERCHEMISTRY&TEMPERATUREFACTORS........................................................6
WaterTemperatureSafetyFactors........................................................................................6
WaterChemistrySafetyFactors............................................................................................6
HOW A HEAT PUMP WORKS ............................................................................7
GETTING FAMILIAR WITH CONTROLS .......................................................8
D IGITAL C ONTROLLER –P ANEL L AYOUT ...................................................................................8
D IGITAL C ONTROLLER -O PERATIONAL D ISPLAYS .......................................................................9
GETTING YOUR HEAT PUMP STARTED & STOPPED ............................ 10
I NITIAL S TART U P .....................................................................................................................10
H OWTO O PERATETHE C ONTROLS ............................................................................................10
C ONTINUOUS U SAGEAND W ATER A ROUND U NIT ....................................................................11
R EQUIRED H OURSOF P OOL P UMP O PERATION ..........................................................................11
T O S HUTTHE U NIT O FF ............................................................................................................11
MAINTENANCE .................................................................................................. 12
P LANNED M AINTENANCE P ROGRAM .........................................................................................12
G ENERAL M AINTENANCE ..........................................................................................................12
M AINTAINING P ROPER W ATER F LOW .......................................................................................13
M AINTAINING P ROPER C LEARANCES A ROUND H EATER ...........................................................13
RecommendedClearances…Sides,Front,andRear..........................................................14

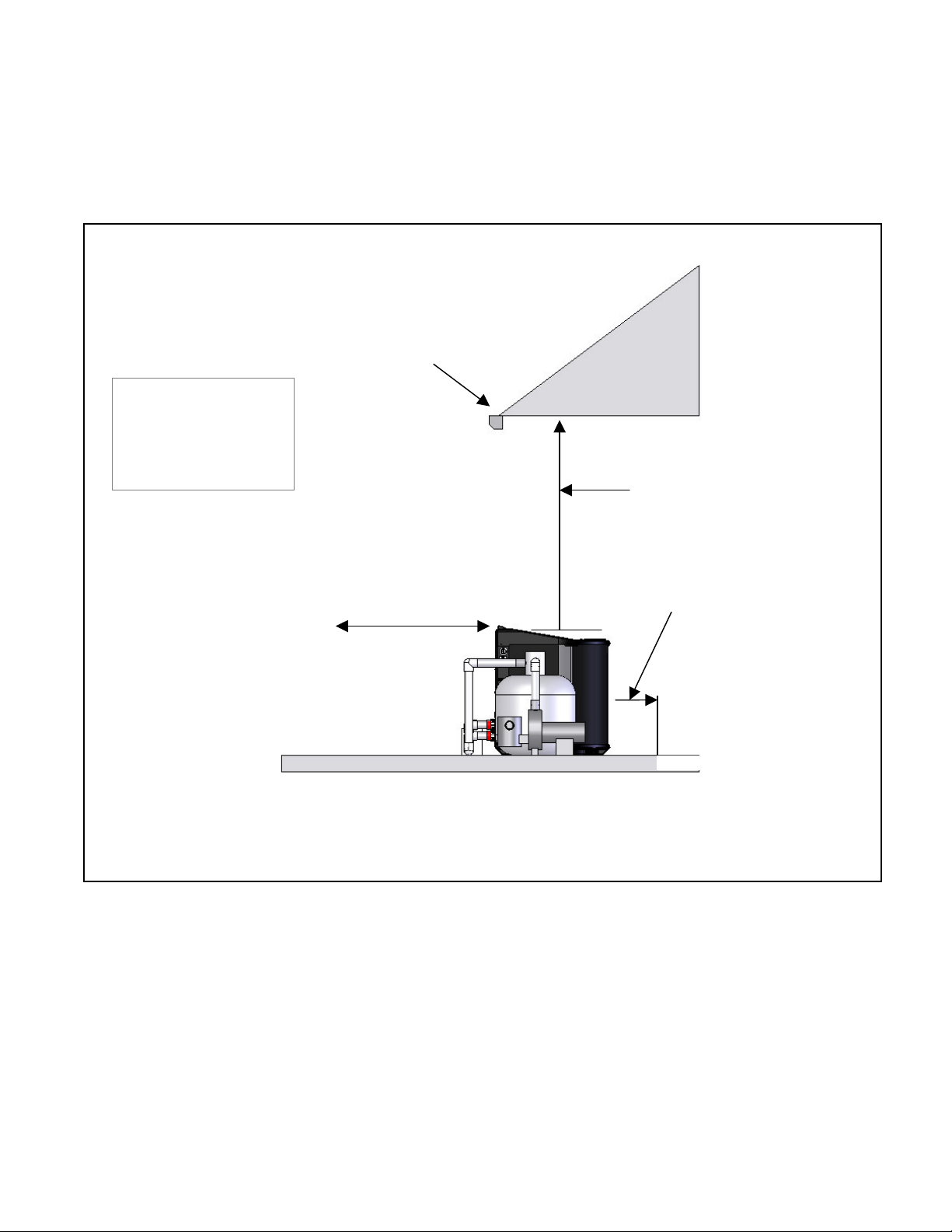

RecommendedClearances…Overhead,Front,&Rear:.....................................................15
SEASONAL USE & SHUT DOWN .................................................................... 16
D URINGTHE S WIM S EASON .......................................................................................................16
F REEZEPROTECTION /E XTENDEDSHUTDOWNS ........................................................................16
W INTERIZING ............................................................................................................................16
ToWinterizeaHeatPumpEquippedwithanInternalDrain..............................................16
ToWinterizeaHeatPumpEquippedwithanExternalDrain............................................18
TROUBLESHOOTING ....................................................................................... 19
H EAT P UMP N OT R UNNING .......................................................................................................19
H EAT P UMP R UNNINGBUT N OT H EATING ................................................................................19
W ATER L EAKING O UTOFTHE H EAT P UMP ...............................................................................20
WHAT WE NEED TO KNOW WHEN YOU CALL US ................................. 20
APPENDIX ............................................................................................................ 21
I. A QUA C AL ’ S P LANNED M AINTENANCE P ROGRAM
II. C ALCULATING I NITIAL H EATING T IME
III. O WNER ’ S I NSTRUCTIONSFOR HP7D IGITAL H EAT P UMPCONTROLLER

4
WELCOME TO THE AQUACAL FAMILY
CongratulationsonyourwisedecisiontomakeanAquaCalheatpumppartof
yourhome. Since1981,AquaCalhasmaintainedtheworldwideleadinthe
manufactureofswimmingpool&spaheatpumps.
Yournewheatpumpisnotonlyagreatinvestment,butalsothemostcosteffective
methodavailableforheatingpoolsandspas.Forexample,asameanstoheatpool
orspawater,yourheatpumpisupto400%moreefficientthangas,and,when
comparedtoelectricresistanceheat,yourheatpumpisnearly600%more
effective. Youcanrestassuredthatyournewheatpumpisofthehighestquality
andefficiency,andisdesignedandbuilttoprovideyearsof trouble-freeoperation.
Moreover,shouldyoudecideyouwouldlikeAquaCaltoprovideregular
inspectionandmaintenanceforyourheatpump–which we do recommend–youwill
findthatAquaCalhasthelargestandmost-qualifiedfactory-trainedservicestaffin
thepool&spaheatpumpindustry.
IMPORTANT FEATURES OF YOUR NEW HEAT PUMP
Y OURNEWHEATPUMPISEQUIPPEDWITHTHEFOLLOWINGINNOVATIVEFEATURES :
• ThermoLink™ HeatExchanger:
TheheartofyourheatpumpisthepatentedThermoLink™ heatexchanger. Theprimary
causeofprematureheatpumpdemiseisthefailureoftheheatexchanger. Ordinaryheat
exchangersaremadefromacupronickelalloy.Thiscupronickelmaterialissusceptibleto
attackfromthesanitizersusedinpoolsandspas,andfromotherrelatedwaterchemistry
conditions.Oncetheheatexchangerfails,theheatpumpisruined.TheThermoLink™ heat
exchangertubeismadefromtitanium,andisvirtuallyimpervioustowater-chemistry
damage.
• ScrollCompressor:
Scrollcompressorscontain50%fewermovingpartsthancommonpiston-typecompressors.
Lessmovingpartsequatestomuchimprovedreliability. Additionally,scrollcompressors
aremuchquieterinoperationthanpiston-typecompressors,andoperateataconsiderably
higherefficiencylevel.
• MicroprocessorControl:
Full-feature,digital-basedmicroprocessor,controlswatertemperaturetowithin1ºFahrenheit
ofsetpoint. Thecontrolleralsopermitsusertopredefinedifferentpoolandspawater
temperatures,andtopreventtamperingbylockingoutcontrolsusingapasscode.
• Corrosion-Proof,UV-ProtectedCabinet
• QuietOperation…Throughtheuseofascrollcompressorandoptimally-sizedfanblade.
P LEASESPENDAFEWMINUTESREADINGFURTHERTOBECOMEFAMILIARWITHALL
THEFEATURES , THESAFEOPERATION , ANDTHECAREOFYOURNEWHEATPUMP …

5
GENERAL SAFETY INFORMATION
Usedandmaintainedproperly,yourheatpumpwillprovideyear-upon-yearofsafe
andeconomicalservice. However,aswithanymechanicalorelectricaldevice,to
getthemostfromyourheatpump–while insuring personal safety for you and
others–certainoperationalandmaintenancefactorsmustbeobserved.
Likewise,exceptingafewminorowner-capablemaintenanceitems(explained
later in this manual), repairandserviceofyourheatpumpmustbeperformedonly
byexperiencedservicepersonnel. Shouldyou,theowner,suspectyourheatpump
isnotperformingproperly,byreferringtothesectioninthismanualentitled:
“Troubleshooting”,youwillbeabletodetermineifacallforserviceisrequired.
Yourinstallercanbeonesourceofservice,orAquaCalCustomerSupport
personnelstandreadytoassistyouat:[phone]. Forquestionsconcerning
installation,modifications,operation,serviceandupkeep,pleasecontactyour
installerorAquaCalCustomerSupport.Warrantiesmaybevoidediftheheaterhas
beenused,maintained,orrepairedimproperly.
Inadditiontopossiblevoidingofwarranties:unapprovedinstallationmethods,
non-standardmodifications,poororincorrectmaintenance,servicebyunqualified
personnel,orimproperuseoftheheatermayresultinpersonalinjuryand/or
propertydamage. Forpersonalsafetyandtoavoiddamagetoequipment,itis
importantthatsafetyinstructionsdisplayedontheheatpump,andwithinthis
manual,beread,understood,andfollowed.
Throughoutthismanualthefollowingtwosafetysignalsareplacedwhere
particularcareisrequired. Pleasenote: “WARNING” relatestopersonalsafety,
while“CAUTION” signalspromoteavoidingdamagetoequipment:
WARNING !
Failuretoheedthefollowingmayresultin
permanentinjuryordeath.
This“Warning”symbolappearsinthismanualwherespecialattentionis
requiredforpersonalsafety. Specific instructions will appear in this box.
CAUTION !
Failuretoheedthefollowingcanresultin
damagetoequipment.
This“Caution”symbolappearsi
nthismanualwherespecialcareisrequiredto
avoidequipmentdamage. Specific instructions will appear in this box.

6
WATER CHEMISTRY & TEMPERATURE FACTORS
Water Temperature Safety Factors
Water Chemistry Safety Factors
RECOMMENDED CHEMISTRY WATER STANDARDS
Chlorine………………: 1.0–3.0ppminpools,1.5–3.0ppminspas
Bromine………………: 2.0–4.0ppminpools,3.0–5.0ppminspas
PH…………………….: 7.4–7.6inpools,7.2–7.8inspas
TotalAlkalinity………: 80–140ppminpools,80–120ppminspas
CalciumHardness……: 200–400ppminpoolsandspas
TotalDissolvedSolids..: 1,000–2,000ppminpools,
1,500ppmaboveyourstart-upTDSinspas
WARNING!
Failuretoheedthefollowingmayresultin
permanentinjuryordeath.
Improperwaterchemistrycanpresentaserioushealthhazard. Toavoid
possiblehazards,maintainPool-Spawaterperstandardsbelow.
CAUTION!
Failuretoheedthefollowingcanresultin
damagetoequipment.
Whileyourheatpump’stitanium-basedheatexchangerprovidesnearly
imperviousprotectionagainstpoorwaterchemistry,improperwaterchemistry
maycauseexpensivedamagetopumps,filters,poolshell,etc. Toavoid
equipmentdamage,maintainPool-Spawaterperstandardsbelow.
Prolongedimmersioninwaterwarmerthannormalbodytemperaturemay
causeaconditionknownasHYPERTHERMIA.Thesymptomsof
hyperthermiainclude:unawarenessofimpendinghazard,failuretoperceive
heat,failuretorecognizetheneedtoexitspa,andunconsciousness. Theuseof
alcohol,drugs,ormedicationcangreatlyincreasetheriskoffatal
hyperthermia. Inaddition,personshavinganadversemedicalhistory,or
pregnantwomen,shouldconsultaphysicianbeforeusingahottuborspa.
Childrenandtheextremeelderlyshouldbesupervisedbyaresponsibleadult.
WARNING !
Failuretoheedthefollowingmayresultin
permanentinjuryordeath.

7
HOW A HEAT PUMP WORKS
T HEFOLLOWINGEXPLANATIONISPROVIDEDTOHELPYOUIN
UNDERSTANDINGWHATTOEXPECTFROMYOURHEATPUMP …
AHeatPumpDoesNotMakeHeat…
Heatpumpsaresoextraordinarilyefficientbecausetheydonotneedtoproduce
heatinordertowarmpoolorspawater. Rather,heatpumpssimplytransfer heat
from theoutsideairintothepoolorspawater. Ifoneconsidersthatabsolute
“0”–the point where all heat is absent–occursat459ºFahrenheitbelowzero,it
becomesevidentthatoutsideair–even at the relative cool temperature of
55ºFahrenheit–stillcontainslargeamountsofheatenergy. Itisthatabundantheat
energythataheatpumpcapturesandplacesintoyourpoolorspa.
C OOL W ATER I N
W ARMED W ATER O UT
H EAT
L ADEN
A IR
E NTERS
H EATREMOVEDFROM A IR …
C OOL A IR O UT
NOTE: Water returning to pool or spa will be warmed approximately 2º to 4º F, each pass through.

8
GETTING FAMILIAR WITH CONTROLS

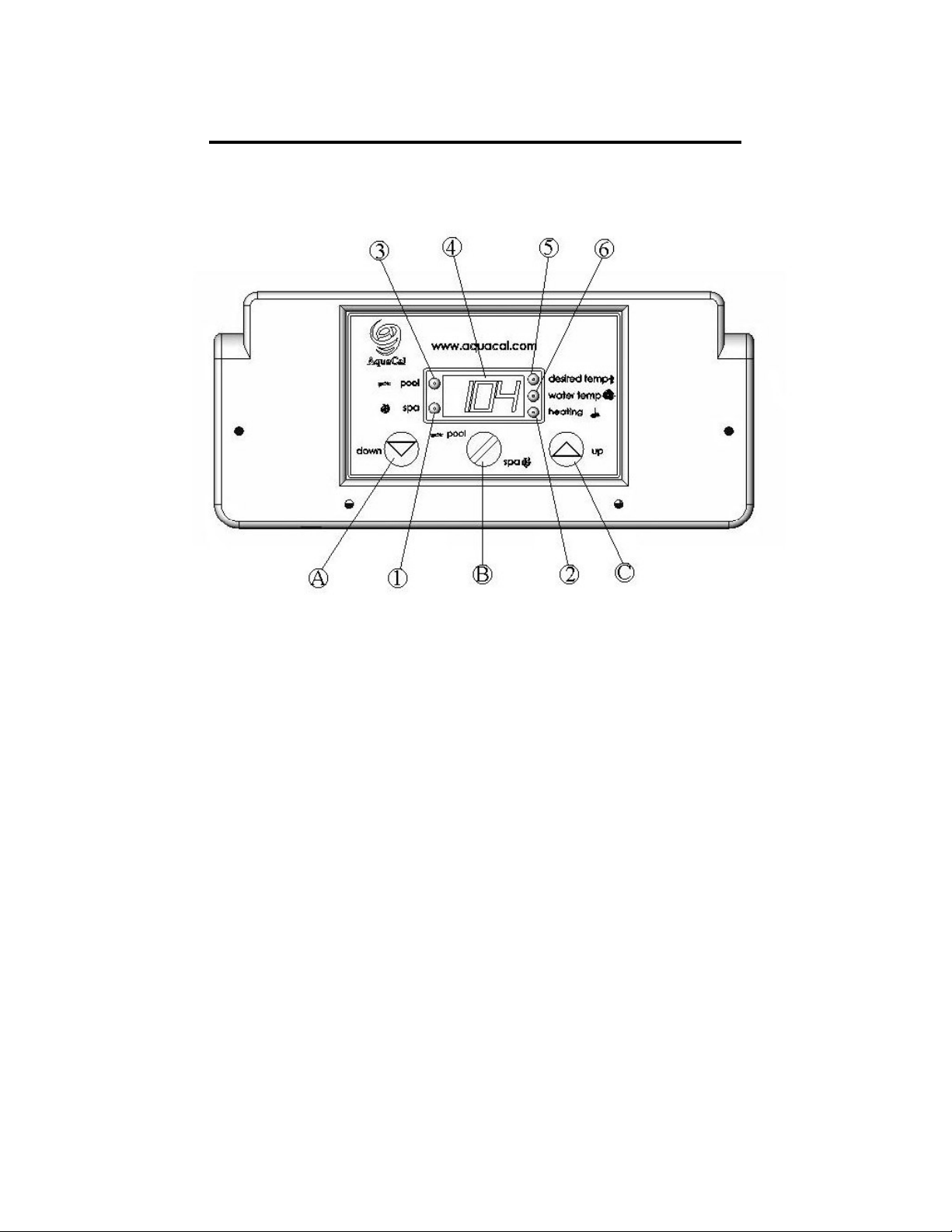

DIGITAL CONTROLLER – PANEL LAYOUT
Control Buttons ( AS INDICATED BY CIRCLED LETTERS )
A. Down Arrow –Pressingthiskeydecreasesthetemperaturesetting. Setting
thetemperaturebelow60°Fturnstheheatpumpoff.
B. Pool / Spa Selector –Pressingthiskeyselectseitherthepoolorspamode.
Alsousedtoacceptprogrammingselections.
C. Up Arrow –Pressingthiskeyincreasesthetemperaturesetting.The
maximumtemperaturesettingis104°F.
Indicator Lights & Displays ( AS INDICATED BY CIRCLED NUMBERS )
1) Spa Indicator Light –Iflit,indicatesspathermostatiscontrollingheater.
2) Heating Indicator Light –Iflit,indicatesheatpumpisheating.
3) Pool Indicator Light –Iflit,indicatespoolthermostatiscontrollingheater.
4) LED Display –DisplayswatertemperaturewhenUP/DOWNARROWSare
notbeingpressed,ordesiredtemperaturewhenUPARROWorDOWN
ARROWispressed. WaterTempDisplay–Example…104ºFdisplayed.
5) Desired Temp Light – Indicatestemperaturesettingisdisplayed,and
temperaturesettingischangingduetotheUPARROWorDOWNARROW
beingpressed.

9
DIGITAL CONTROLLER- OPERATIONAL DISPLAYS
T HEFOLLOWINGCODESWILLBEDISPLAYEDASPART
OFTHENORMALOPERATIONOFTHEHEATER :
OPERATIONAL CODES
o FLO—Nowaterflowdetected. Codemessagewillappearanytimethe
circulatingpumpisoff,orwhentheheaterisnotreceivingcorrectwater
flow.
o OFF—Systemisoff. Systemisoffuntiltemperaturesetpointisraised
above60°F.
o CFI—Celsius/FahrenheitSelection.
o ULC—UserLockCode. Whenactivated,stepstothenextmenulevel:
ELC.
o ELC—EnterLockCode. Allowsendusertoselectasecretcodesoonly
authorizedpersonscanchangeheatersettings.
o CFO—CallFlexOptions. Whenactivated,stepstothenextmenulevel:
CFS.
o CFS—CallorFlexselection. Allowsusertochoosebetweencallorflex
options.
o FS—Heaterindefrostmode. Normalfunctioninlowerairtemperatures.
Fancontinuestorunandcompressorisoff. Compressorwillrestartwhen
aircoiltemperaturerisestoapproximately38°F.
IMPORTANT !
F ORAMOREDETAILEDEXPLANATIONOFDIGITALCONTROLLER
OPERATION , ANDASSOCIATEDDISPLAYCODES , SEE O WNER ’ S
I NSTRUCTIONSFOR HP7D IGITAL H EAT P UMP C ONTROLLER
LOCATEDINTHEAPPENDIXOFTHISMANUAL .

10
GETTING YOUR HEAT PUMP STARTED & STOPPED
ATTENTION:
THIS IS A QUICK-START GUIDE…Formorecompleteinformation
concerningthedigitalcontrollerfeaturesandprogramming,see:Owner’s
Instructions for HP7 Digital Heat Pump Controller, locatedintheappendixofthis
manual.
INITIAL START UP
1. Startthewatercirculatorpump.
NOTE: T HE P OOL F ILTER P UMPMUSTBEOPERATINGFORTHEHEATPUMPTOBEGIN
HEATING . A NYTIMETHE P OOL F ILTER P UMPISTURNEDOFF , THEHEATPUMPWILLALSOBE
OFF .
2. Ensurethattheunithaspowerconnected;displayshouldbeilluminated.
3. Ifthedisplayisblank,becertainthebreakerandheaterdisconnectareswitched
to“ON”.
HOW TO OPERATE THE CONTROLS
1. Oncetheunithaspowerconnected,thedisplayshouldreadeither“OFF”or
theactualpoolorspawatertemperature. Ifotherthan“OFF”ortheactual
watertemperaturearedisplayed,seethe“TroubleShooting”section.
2. Ifthedisplayreads“OFF”, presstheuparrowkeyuntilthedisplayreads
60°Forhigher.
NOTE:T HEDISPLAYREADSCURRENTPOOL / SPAWATERTEMPERATUREWHENTHE
DESIREDTEMPERATUREISSETTO 60°F ORABOVE . W HENTHEDESIREDWATER
TEMPERATUREISSETBELOW 60°F THEDISPLAYREADS “OFF”.
3. Oncetheunitisdisplayingthecurrentwatertemperature,thesystemis
readytooperate. LocatethePOOL/SPAselectorkeyonthecontrolpanel;
bypressingthiskey,youcanselectbetweenthepoolandspamode.
4. UsingthePOOL/SPAselectorkey,selectthepoolmode. Whenthepool
modehasbeenselected,thepoolindicatorlight,locatedontheleftsideof
thedisplay,willbeilluminated.
5. Withthecontrolinthepoolmode,usetheUP/DOWNarrowkeystosetthe
desiredpoolwatertemperature.
6. Ifheaterisalsobeingusedtoheataspa,repeattheprevioustwostepsto
programthedesiredspawatertemperature.
7. Theheatpumpwillnowmaintainthedesiredwatertemperatureforthe
modeselected: POOL,orSPA.

11
GETTING YOUR HEAT PUMP STARTED & STOPPED
(Continued)
8. Inoperation,whenevertheactual(displayed)watertemperaturefallsbelow
thedesiredsetpoint,theunitwillstartheatingafteraninitialtimedelayof
3-4minutes.
NOTE: T HEHEATPUMPINCORPORATESANANTI - SHORTCYCLETIMEDELAY .S HOULD
OPERATIONBEINTERRUPTED , RESTARTWILLBEDELAYEDBYAPPROXIMATELY 4- MINUTES .
CONTINUOUS USAGE AND WATER AROUND UNIT
o Ifyouhavefollowedthedirectionsuptothispoint,youshouldbeonyourwayto
enjoyingawarmpoolorhotspa.
o Aftertheheatpumphasbeenrunningforsometime,youmayseewaterpresent
aroundtheheater. Thiswateriscondensationproducedasaby-productof
transferringheatfromtheairtoyourpoolorspa. Ifthehumidityishigh,water
quantitiesof 6-8gallonsperhourarenotuncommon. Conversely,alow-
humidityconditionmayresultinnocondensationbeingproduced.
REQUIRED HOURS OF POOL PUMP OPERATION
S OMEPOOLSYSTEMSUTILIZEATIMERTOCONTROLTHEPOOLFILTERPUMPONATIME - OF - DAY
BASIS . I FYOURPOOLSYSTEMINCORPORATESATIMER , USETHEFOLLOWINGINSTRUCTIONS :
o Itwillbenecessarytoallowyourpoolcirculatorpumptoruncontinuouslyuntil
thepoolhasreachedthedesiredtemperature.
o Ifatimercontrolsyourpump,itwillbenecessarytooverridethetimerto
temporarilyallowfor24-hr.pumpoperation.
o Oncethedesiredtemperaturehasbeenobtained(this may take up to four days),
youshouldresetyourpumptimeclockfornormaloperatinghours.
R EMEMBER … THE HEAT PUMP CAN ONLY OPERATE WHEN THE CIRCULATOR
P UMP IS RUNNING . T HEREFORE , INORDERTOKEEPUPWITHINCREASEDHEAT
LOSSDURINGCOOLERWEATHER , ITMAYBENECESSARYTOEXTENDTHEPUMP ’ S
DAILYHOURSOFOPERATION .
TO SHUT THE UNIT OFF
o Theunitcanbestoppedbyswitchingofftheelectricalsupplyorbysettingthe
desiredtemperaturelowerthantheactualwatertemperature.
o Theunitwilldisplay“OFF”ifthedesiredwatertemperatureissetbelow60°F.

12
MAINTENANCE
PLANNED MAINTENANCE PROGRAM
AquaCaloffersaveryreasonablypriced,professionally-performed,Planned
MaintenanceProgram….SeeAPPENDIXforfulldetails.
GENERAL MAINTENANCE
o Youshouldhaveyourheatpumpinspectedandmaintainedonanannualbasisby
aqualifiedpoolheatpumpspecialist. Additionally,ifyourheatpumpislocated
onthebeach,orataseawallwheresaltsprayandsandcanaffecttheunit,more
frequentservicemaybenecessary. ForServicePlaninformation,pleasesee
APPENDIX-Iattherearofthismanual,andthencontactAquaCalCustomer
Supportat:800-786-7751.
o Providegoodairflowtotheheatpump. Keepthesidesandtopoftheheatpump
freeofobstructions.
o ControlIrrigation: Inregionswerewellsareusedforirrigation,waterqualityis
sometimeslessthanpoor,andwaterspraycandamageheatercomponents.
Regardlessofwaterquality,itisrecommendedthatsprinklersbedirectedaway
fromtheheatpump.
o Preventrainwaterrun-off,fromroofs,frompouringdirectlyintotheheater. The
heaterisdesignedtowithstandnormalrainfall,butsolidstreamsofwaterfrom
roofdrip-linesmayeventuallydamageheatpumpcomponents. Iftheheatpump
residesbeneatharoofedge,topromoteheatpumplongevity,arainleader
(gutter)orrainshieldwillbenecessary.
o Drainage:Yourheatpumpmayproduceabundantcondensationundercertain
conditions;thisisconsiderednormaloperation. Accordingly,keepthedrain
holesatthebaseoftheheatpumpfreeofgrass,weeds,dirt,orotherobstructions,
allowingforfreeandcompletedrainagearoundtheheater. (Also see, on previous
page: CONTINUOUS USAGE AND WATER AROUND UNIT.)
o Ifyourunitislocatedundertreeswhereleavesfallandaccumulateinthebottom
oftheheatpump,aqualifiedtechnicianshouldperiodicallyremoveaccumulated
leaves.

13
MAINTAINING PROPER WATER FLOW
o Itisimportanttooperateandmaintainyourfilteraccordingtothemanufacturer’s
specifications. Asafiltergetsdirty,thewaterflowtotheheatpumpisreduced.
Thehigherthepressureonthefiltergauge,thelowertheflowrate.
o Similartoadirtyfilter,largeamountsofdebrisinthepumpbasketcanreduce
waterflow…Keepbasketfreeofdebris.
o Checkforimpropervalvesettings. Apartiallyclosedvalveafterthefilter,ora
full-openbypassaroundtheheater,willcauseinsufficientwaterflowthroughthe
heater.
o Iftheconditionslistedaboveremainunresolved,thewaterflowthroughthe
heatermaybereducedtoapointwhereinternalsafetydevicesshuttheheateroff.
Forexample,shouldan“HP”or“Flo”codebeobservedonthedisplay–either
willpreventtheheaterfromoperating–insufficientwaterflowcouldbethecause.
Beforecallingforservice,alwayscheckthefilter,thepumpbasket,andwater
valvepositions. Iftheproblempersists,callAquaCalCustomerSupportat:
1-800-786-7751.
o NOTE: Duringpoolrefinishingoracidwashing,thewaterflowthroughthepool
heatermustbeshutoffuntiltheprocessiscompleted,andthepoolchemistryis
onceagaininbalance.
MAINTAINING PROPER CLEARANCES AROUND HEATER
o Formaximumefficiency,properairflowclearancesaroundheatermustbe
maintained.
o Itisimportanttokeeptheareaaroundyourheatpumpclearofitemssuchas
shrubsandbushes,lawnfurniture,chemicalscontainers,etc. Theseitemscan
preventairfromcirculatingproperlythroughtheheater,andwillresultin
inefficientoperationordamagetocomponentsinsidetheheatpump.Donot
placeobjectsontopoftheheatpump;doingsowillblocktheairfromexiting
the heater,andwillresultindamagetothecompressorandfanmotor.
o Properclearancesarealsonecessaryinordertoaccesstheworkingpartsof
yourheater. Aheaterthatiseasyto“getto”,willbeaheaterthatiseasyto
maintain;serviceandmaintenancepersonnelwillthankyouforkeepingthe
areaaroundyourheaterunobstructed.
o Pleaseseethenexttwopagesforrecommendedclearances.

14
Recommended Clearances… Sides, Front, and Rear
12-I NCHES
(R EAR )
24-I NCHES
( SIDE )
24-I NCHES
( SIDE )
30-I NCHES
( FRONT )

15
Recommended Clearances… Overhead, Front, & Rear:
RAINRUN - OFF
MUSTBE
DIRECTEDAWAY
FROMUNIT
.
OVERHANGWITH
GUTTER
30”M INIMUM
C LEARANCE ,F RONT 1F
T . MINIMUM
C LEARANCE ,R EAR
5 FT . MINIMUM
CLEARANCE ,O VERHEAD
NoScale

16
SEASONAL USE & SHUT DOWN
DURING THE SWIM SEASON
o Duringtheswimseason,evenifthepoolorspaisnotinuse,allowwatertoflow
throughtheheater.
o Thiseliminatestheneedtorepositionvalveswhenyoudo wishtoheatyourpool
orspa.
FREEZE PROTECTION / EXTENDED SHUT DOWNS
o Inareaswherefreezingconditionsarearareoccurrence,allowthefiltration
systemtoruncontinuallythroughthefreezeperiod. Typically,duringlight
freezeconditions,circulatingwaterwillnotfreeze.
o Inareaswherefreezingconditionsareprevalent,pleaserefertowinterizing
instructionsfollowingthissection.
WINTERIZING
To Winterize a Heat Pump Equipped with an Internal Drain
(Per Figures 1 & 2)
1. Disconnectallelectricalpowertotheheater;turnOFFcirculatingpump.
2. Atthetwo(2)connectionunions,disconnecttheplumbingtotheheater
(removaliscounter-clockwise).
3. RemovethefrontplasticpanelbyremovingthescrewsshowninFigure-1.
4. Locatethedrainplugatbaseofthetitaniumcondenserandremove(removalis
counter-clockwise).SeeFigure-2.
CAUTION!
Failuretoheedthefollowingcanresultin
damagetoequipmentand/orproperty.
Failuretoproperlywinterizeunitmayresultinfreezedamagetotheheat
pump. Freezedamageisnotcoveredundertheunitwarranty.
WARNING!
Failuretoheedthefollowingmayresultin
permanentinjuryordeath.
Toavoidinjuryfromrotatingequipment(fan blade),disconnectelectrical
powertoheatpumpbeforeproceedingwithwinterizingprocess.

17
Winterizing (Continued)
5. Permitallofthewatertodrainoutofthecondenserandthen,threading
clockwise,replacetheplugfinger-tight.
6. Reinstalltheheaterfrontcoverandsecurewithattachingscrewspreviously
removed.
7. Topreventinsectsandverminfromenteringtheplumbingduringthe
winterizedperiod,partiallyreconnectthetwo(2)plumbingconnectionunions:
coupleeachuniononeortwothreads;thiswillpermitcondensationtodrain,
butwillpreventmostinsectsandanimalsfromenteringtheplumbingcircuit.
8. NextSeason:toreadytheheatpumpforuse,simplyre-tightenplumbing
connectionunions. Hand-tightisgenerallysufficient.
Figure1
CAUTION!
Failuretoheedthefollowingcanresultin
damagetoequipmentand/orproperty.
Whiletheplumbingconnectionsareinthewinterizedcondition(not fully
tightenetlunin in gmplral nedpltlltuarwater f ot

18
Winterizing (Continued)
To Winterize a Heat Pump Equipped with an External Drain
(Per Figure-3)
1. Disconnectallelectricalpowertotheheater;turnOFFcirculatingpump.
2. Atthetwo(2)connectionunions,disconnecttheplumbingtotheheater
(removaliscounter-clockwise).
3. Locatethedrainplugatlower,right-hand,frontcornerofheater.SeeFigure-3.
4. Usinga5/8”,box-endwrench,removethedrainplug(removaliscounter-
clockwise).
5. Permitallofthewatertodrainoutofthecondenser,andthenreplacetheplug:
threadthepluginclockwiseuntiljustsnug,thenapplyanadditional1/8turn.
6. Topreventinsectsandverminfromenteringtheplumbingduringthe
winterizedperiod,partiallyreconnectthetwo(2)plumbingconnectionunions:
coupleeachuniononeortwothreads;thiswillpermitcondensationtodrain,
butwillpreventmostinsectsandanimalsfromenteringtheplumbingcircuit.
7. NextSeason:toreadytheheatpumpforuse,simplyre-tightenplumbing
connectionunions. Hand-tightisgenerallysufficient.

19
TROUBLESHOOTING
HEAT PUMP NOT RUNNING
o Isthedisplaylit? Ifnot,ensurethemainbreaker(located at the power supply
panel) andthedisconnectswitch(located near the heat pump) arebothturnedON.
o Doesthedisplayread“Flo”? Ifso,checktobesurethatthecirculatingpumpis
operatingandthefilterisclean. Theremayalsobeavalvepositionedincorrectly
allowingwatertoby-passtheheatpump;besurewaterisflowingthroughthe
heater.
o Doesthedisplayread“OFF”? Ifsothedesiredwatertemperatureissetbelow
60°F. Raisethedesiredwatertemperatureabovetheactualwatertemperatureand
theunitshouldstartaftera3-to-4minutedelay.
Ifthedisplayisshowinganyotherfaultcodes,orisblank,contactAquaCalat
800-786-7751. Servicemayberequired.
HEAT PUMP RUNNING BUT NOT HEATING
o Istheairblowingoutofthetopoftheunitnoticeablycoolerthanthesurrounding
air? (A 9°F to 12°F difference is typical.) Ifnot,callAquaCalforserviceat
800-786-7751.
o Besureallaircoilsurfacesarefreefromobstructions;lowroofoverhangs,
landscaping,walls,fences,etc. Theheatpumpneedsgoodairflowtooperateat
peakefficiency.
o Howlongareyourunningyourcirculatingpumpeachday? Coolerweather
conditions,orheatingtoahighertemperature,maynecessitaterunningtheheat
pumpforalongerperiodoftime. Apoolblanketcanbeusefulinpermitting
shorterruntimes,inturnleadingtosubstantialenergycostsavings.
o Whatistheairtemperature? Yourheatpumpmaybeinthedefrostmodeifair
temperaturesarebelow50°F. Thedigitaldisplaywillread“FS”iftheunitis
defrostingorairtemperaturesaretoocold.

20
WATER LEAKING OUT OF THE HEAT PUMP
(Is it a leak or just condensation from normal operation? Here’s how to find out).
o Shutoffyourheatpump,leavingthepoolpumprunning. Inacoupleofhours
thereshouldbeamarkedreductionintheamountofwateraroundthebottomof
theheatpump.
o Or,asanalternatemethodtocheckforawaterleak,youcantestthewater
drainingoutthebaseforthepresenceofthesanitizeryouareusinginyourpool
orspa. Useyourwatertestkit,orateststrip,tocheckasampleofthewaterfor
chlorineorbromine. Ifthesampletestspositiveforsanitizer,callAquaCalfor
serviceat:800-786-7751. Ifthetestisnegative,thewaterisprobablyharmless
condensate.
NOTE:
I FYOUAREUSINGANIONIZEROROZONEGENERATORTOPRODUCESANITIZER , THIS TEST
METHODWILLNOTBEEFFECTIVE .
WHAT WE NEED TO KNOW WHEN YOU CALL US
o IfyoushouldneedtocallAquaCalforservice,pleasehavethefollowing
informationreadywhenyoucall.
Model:________________________________
SerialNumber:__________________________
InstallationDate:________________________
o Having the above information ready will speed up the service process and
allow us to respond more quickly. Abriefdescriptionofwhattheunitisoris
notdoingwillalsohelpthesituation. Youmaycontactusat800-786-7751. Our
officehoursare8a.m.to5p.m.EST,MondaythroughFriday. Ifcallingafter
hours,ourvoice-mailservicewillhandleyourcall. Besuretoleaveyourname,
completeaddress,andphonenumber. Ifyouprefer,youmayFAXthe
informationto: 727-821-7471.
