Aquacal WATER SOURCE WS03 User manual

AquaCal®
Installation Manual
Important
Read this document before operating / installing this product
For additional product manuals and operation / installation procedures, please visit www.AquaCal.com
LTP0116 REV 3.3- (project rel 7.02)

Table of Contents
Contacting AquaCalAutoPilot, Inc. 1
Safety Instructions 1
1 - Installation 3
1.1 Positioning Equipment 4
1.2 Clearances 4
1.3 Dimensions 6
1.4 Plumbing 7
1.4.a Plumbing Requirements 7
1.4.b Plumbing Diagrams (Water Source) 8
1.4.c Plumbing Diagrams (SunPower) 11
1.4.d Water Connections to Heat Pump 12
1.4.e In-Line Chlorine Feeders 14
1.4.f Water Flow Rates 14
1.4.g Adjusting Water Flow Using ΔT (Delta-T) 15
1.4.h Geothermal Menus 17
1.4.i Maintaining Ability to Winterize 18
1.5 Electrical 19
1.5.a Electrical Requirements 19
1.5.b Incoming Power Access Holes 22
1.5.c Access Panels 23
1.5.d Verifying Transformer Setting 23
1.5.e Three-Phase Adjustment 25
1.5.f Schematic Location 25
1.6 External Equipment 26
1.6.a Connecting a Call Flex 26
1.6.b Connecting a Source Water Relay Switch 29
1.6.c Connecting External Controllers to Heat Pump 29
c.1 Connecting Smart Bus Controllers 30
c.2 Connecting Two-wire Controllers (with internal thermostat) 33
1.6.d Connecting Gas Backup Heater to Heat Pump 36
1.6.e Connecting Multiple Heat Pumps (Primary / Secondary) 41
1.6.f Connecting a Pool/Spa Switching Relay 47
1.7 Program Heat Pump for the Customer 50
1.7.a Setting Date and Time 50
1.7.b Setting Time and Date Format 51
1.7.c Selecting Celsius or Fahrenheit 55
1.7.d Setting Entry Code Option 56
1.7.e Using Entry Code to Access Heat Pump 58
1.7.f Resetting Factory Defaults 58
1.8 Cleaning Equipment After Installation 60
2 - Troubleshooting 62
2.1 Fault Codes 63
2.2 Issues and Resolutions 67
3 - Appendix 73
3.1 Factory Defaults 73
3.2 Identifying Model Specifications 74
i

3.3 Weights 75
3.4 Heating Recommendations 76
3.5 Cooling Recommendations 76
3.6 Available Accessories 76
3.7 ICM Digital 3-Phase Monitor 78
3.8 Schematics 80
Schematic LTM0943 82
Schematic LTM0946 83
Schematic LTM0951 84
ii

Page - 1
Contacting AquaCalAutoPilot, Inc.
For further assistance, please contact the distributor or installer of this product.
If unavailable, please contact AquaCal®for a partner in your area. To better assist you, please have the heat
pump model and serial number available.
lSee "Identifying Model Specifications" on page74.
Product Information:
Website www.AquaCal.com
Phone [phone]
Hours 8-5 pm, Eastern M-F
Service Information:
Website www.AquaCal.com/request-heat-pump-service/
SAFETY INSTRUCTIONS
lFor personal safety, and to avoid damage to equipment, follow all safety instructions displayed on the equipment
and within this manual. Repair and service of heat pump must be performed by an authorized service center.
lWarranties may be voided if the equipment has been improperly installed, maintained or serviced.
lIf service is deemed necessary, please contact AquaCal. See "Contacting AquaCalAutoPilot, Inc." above.
SAFETY SIGNALS
Throughout this document, safety signals have been placed where particular attention is
required.
DANGER Failure to heed the following will result in injury or death.
WARNING Failure to heed the following may result in injury or death.
NOTICE
Failure to heed the following may result in damage to
equipment.
When installing and using your heat pump basic safety precautions must always be followed, including the
following:
DANGER Failure to heed the following will result in injury or death.
lThe heat pump utilizes high voltage. Use caution when servicing.
lFollow all National Electric Codes (NEC) and/or State and Local guidelines.

Page - 2
WARNING Failure to heed the following may result in injury or death.
lInstallation and repairs must be performed by a qualified technician.
lThe heat pump contains refrigerant under pressure. Repairs to the refrigerant circuit must not be attempted by
untrained and/or unqualified individuals. Service must be performed only by qualified HVAC technicians. Recover
refrigerant before opening the system.
lImproper water chemistry can present a serious health hazard. To avoid possible hazards, maintain pool/spa water
per standards as detailed in the product's operation manual.
lProlonged immersion in water warmer than normal body temperature may cause a condition known as
Hyperthermia. The symptoms of Hyperthermia include unawareness of impending hazard, failure to perceive heat,
failure to recognize the need to exit the pool or spa, and unconsciousness. The use of alcohol, drugs, or medication
can greatly increase the risk of fatal Hyperthermia. People having an adverse medical history, or pregnant women
should consult a physician before using a hot tub or spa. Children and the elderly should be supervised by a
responsible adult.
lProlonged immersion in water colder than normal body temperature may cause a condition known as Hypothermia.
The symptoms of Hypothermia include shivering (although as hypothermia worsens, shivering stops), clumsiness
or lack of coordination, slurred speech or mumbling, confusion and poor decision-making, drowsiness or low
energy, lack of concern about personal welfare, progressive loss of consciousness, weak pulse and slow or shallow
breathing. Persons having an adverse medical history, or pregnant women, should consult a physician before
immersing in a cold body of water. Children and the elderly should be supervised by a responsible adult.
NOTICE
Failure to heed the following may result in damage to equipment.
lMaintain proper water chemistry to avoid damage to the pump, filter, pool shell, etc.
lWater flow exceeding the maximum flow rate requires a bypass. Damage due to excessive water flow will void the
warranty.
SAVE THESE INSTRUCTIONS

Page - 3
1 - Installation
WARNING Failure to heed the following may result in injury or death.
lInstallation of this equipment by anyone other than a qualified installer can result in a safety hazard.
lThe information contained throughout the "Installation" section is intended for use by qualified installation
technicians familiar with the swimming Pool/Spa safety standards.
NOTICE
Failure to heed the following may result in damage to equipment.
lFailure to protect equipment against corrosive conditions will adversely affect the life of the equipment and will
void equipment warranty.
IN THIS SECTION:
1.1 Positioning Equipment 4
1.2 Clearances 4
1.3 Dimensions 6
1.4 Plumbing 7
1.4.a Plumbing Requirements 7
1.4.b Plumbing Diagrams (Water Source) 8
1.4.c Plumbing Diagrams (SunPower) 11
1.4.d Water Connections to Heat Pump 12
1.4.e In-Line Chlorine Feeders 14
1.4.f Water Flow Rates 14
1.4.g Adjusting Water Flow Using ΔT (Delta-T) 15
1.4.h Geothermal Menus 17
1.4.i Maintaining Ability to Winterize 18
1.5 Electrical 19
1.5.a Electrical Requirements 19
1.5.b Incoming Power Access Holes 22
1.5.c Access Panels 23
1.5.d Verifying Transformer Setting 23
1.5.e Three-Phase Adjustment 25
1.5.f Schematic Location 25
1.6 External Equipment 26
1.6.a Connecting a Call Flex 26
1.6.b Connecting a Source Water Relay Switch 29
1.6.c Connecting External Controllers to Heat Pump 29
1.6.d Connecting Gas Backup Heater to Heat Pump 36
1.6.e Connecting Multiple Heat Pumps (Primary / Secondary) 41
1.6.f Connecting a Pool/Spa Switching Relay 47
1.7 Program Heat Pump for the Customer 50
1.7.a Setting Date and Time 50
1.7.b Setting Time and Date Format 51
1.7.c Selecting Celsius or Fahrenheit 55
1.7.d Setting Entry Code Option 56
1.7.e Using Entry Code to Access Heat Pump 58
1.7.f Resetting Factory Defaults 58
1.8 Cleaning Equipment After Installation 60
1 - Installation

Page - 4
1.1 Positioning Equipment
Controlling Irrigation and Rainwater Runoff
lIrrigation water may damage heat pump components. Direct irrigation water away from the heat pump.
lThe heat pump will withstand normal rainfall. Do not allow a roof slope to direct rainwater onto the heat pump.
Have a gutter installed on the roof edge to direct this water away from the heat pump. Or install the heat pump in
another location.
Mounting Pad Requirements
lThe heat pump's base must be installed on a flat and level surface that completely supports the entire base.
lBuild the heat pump pad out of concrete or other code-approved material.
lConfirm the pad can support the weight of the heat pump. See "Weights" on page75.
lElevate the pad enough to allow for drainage.
lMake sure the pad is flat and level.
lHave the pad support the entire heat pump base in all directions.
lDo not install the heat pump on soil or grass.
lDo not allow the heat pump base to touch the building's foundation.
lDo not place the heat pump directly on a concrete floor. This can cause noise to be transmitted to an occupied
space. If necessary install vibration dampers between the heat pump base and floor.
lEquipment pad must meet all requirements of authorities having code-related jurisdiction.
Anchoring to Pad
lFollow all applicable local, state, and national requirements regarding wind load anchoring.
lThe shipping brackets used to secure the heat pump to the pallet are approved mounting (hurricane) brackets.
They should be used to anchor the heat pump to the pad.
lIf needed, contact AquaCal®to obtain anchoring kit information. Please have the heat pump model number and
serial number when requesting support. See "Identifying Model Specifications" on page74.
1.2 Clearances
lLocate the heat pump at least 24 inches (61 cm) away from the wall. And provide a minimum 24 inches (61 cm)
between heat pumps. This will allow for rear plumbing access and electrical connections.
lDo not stack heat pumps on top of each other. Use approved racks when stacking equipment.
lOnly rack equipment two units high.
lEquipment rack must meet all requirements of authorities having code-related jurisdiction.
lAvoid storing chemical containers near the heat pump. The chemicals can cause equipment damage.
lAvoid placing objects near or on top of the heat pump. This includes shrubbery and lawn furniture. These objects
will hinder maintenance access.
1 - Installation

Page - 5
Water Source (Top View) Water Source (Side View)
1 - Installation

Page - 6

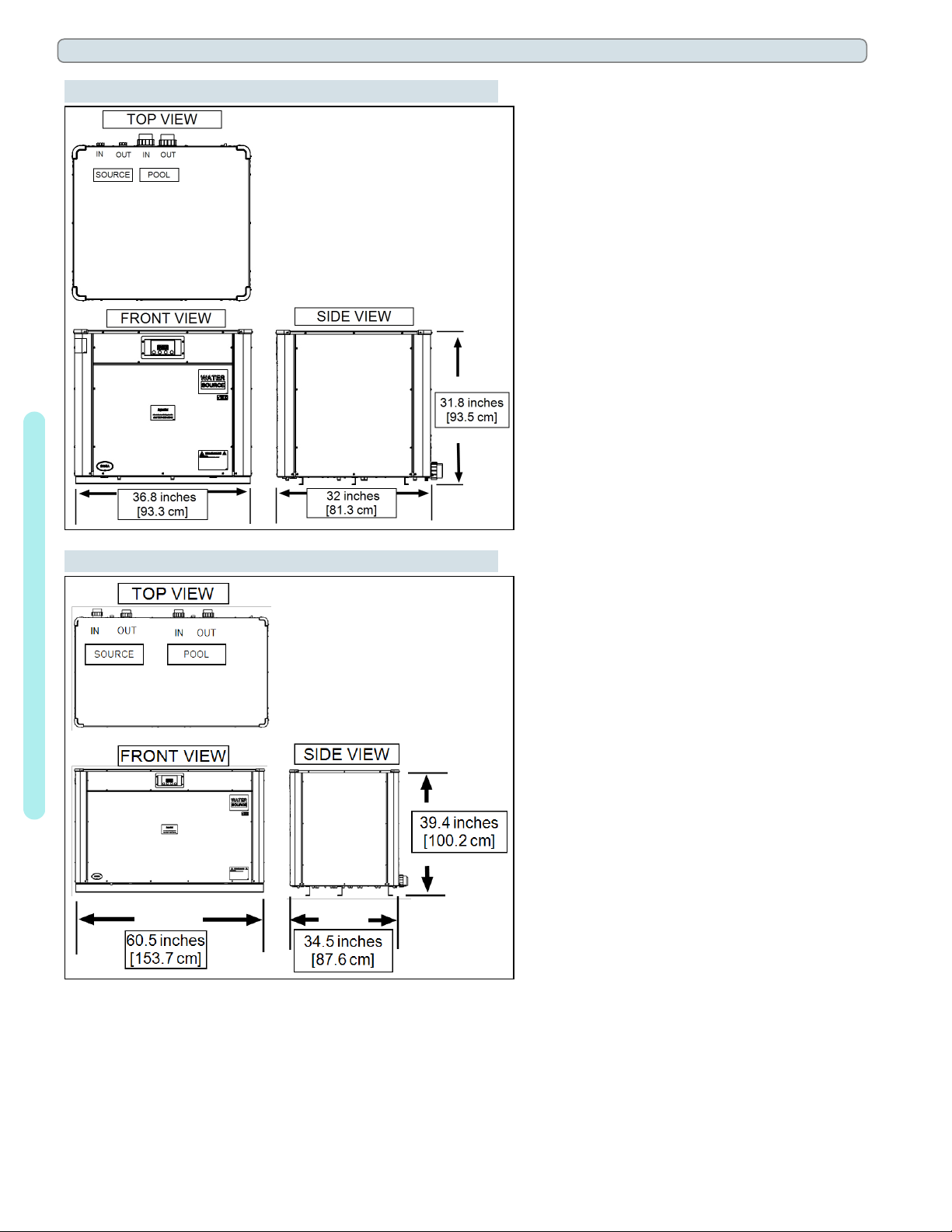

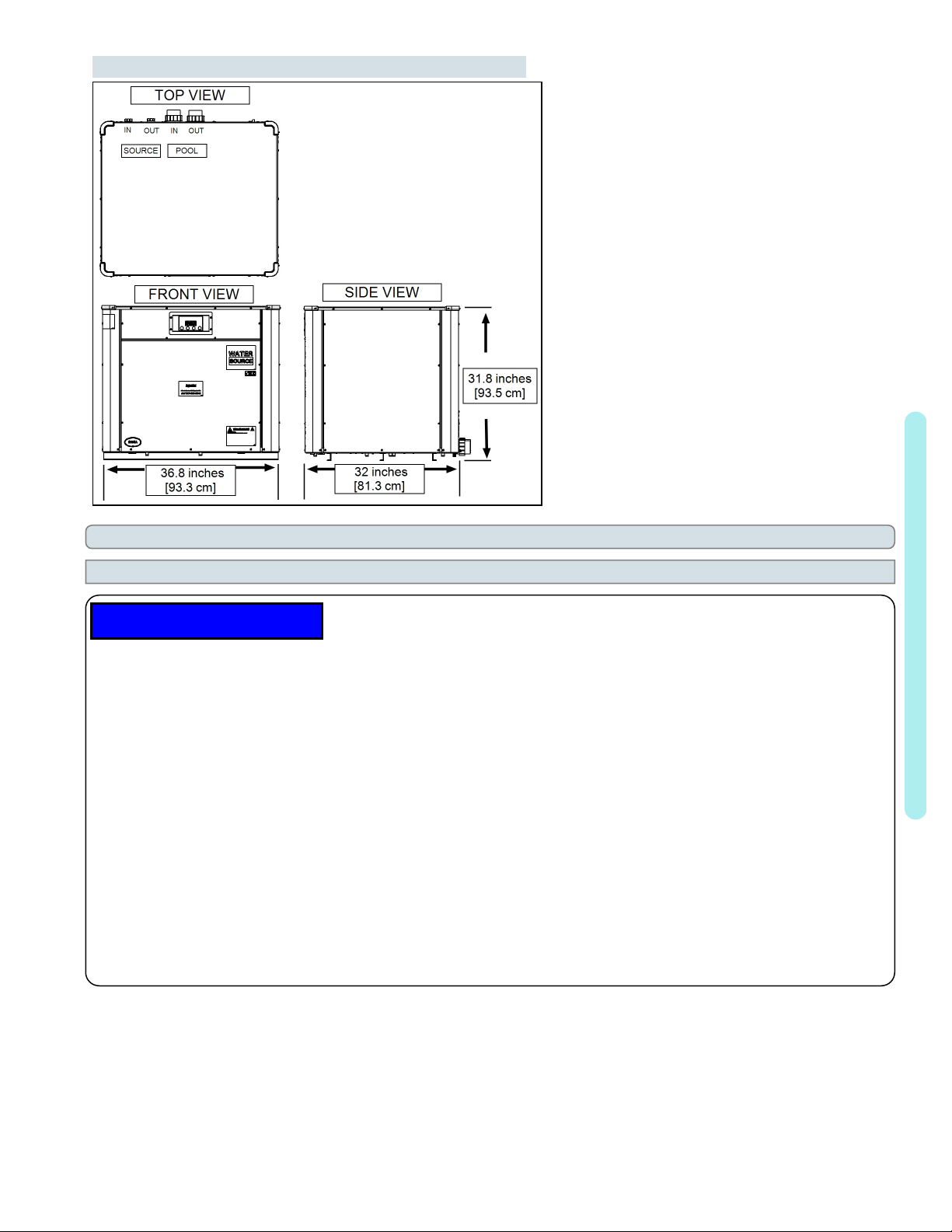

1.3 Dimensions
(Water Source WS03, WS05)
(Water Source WS10)
1 - Installation

Page - 7
(SunPower SP05)
1.4 Plumbing
1.4.a Plumbing Requirements
NOTICE
Failure to heed the following may result in damage to equipment.
lDo not use glue on the threaded portion of the equipment’s unions. A glued-in-place union will prevent the
equipment from being properly winterized.
lThe heat pump must receive water flow within the specified minimum ranges under worst-case conditions such as
a fouled water filter.
lFailure to provide clean filtered water to the heat pump can void the product warranty.
lWater flow exceeding maximum flow rates will negatively affect the total pool filtration performance and may
damage the heat pump. This will not be covered under the equipment warranty. See "Water Flow Rates" on
page14.
lUsing open saltwater applications as the heat pumps source water is not recommended.
lSaltwater can promote the growth of crustaceans, which can clog a heat pump’s heat exchanger. These types of
applications are highly problematic and require additional maintenance.
lIf a saltwater source is unavoidable, install an external plate heat exchanger to protect the heat pump from
fouling. Please note – Saltwater wells do not require an external plate heat exchanger.
lA safety-enhancing "Over Temperature Alarm"kit is strongly recommended for all spa applications. See "Over
Temperature Alarm Kit" on page77.
1 - Installation

Page - 8
1.4.b Plumbing Diagrams (Water Source)
Plumbing diagrams are provided in this section as a planning guide to the sequence of equipment, valves, and
fittings.
lThe basic plumbing configurations for typical installations are shown.
lIf the installation does not closely follow any of the supplied plumbing diagrams, AquaCal®Technical Support is
available for installation advice and guidance.
lConfirm water provided to the heat pump is clean and filtered.
It's important to use contractors familiar with geothermal applications when installing a
Water Source heat pump.
Single Water Source Heat Pump Configuration (Standard Pressures)
1 - Installation

Page - 9
Multiple Water Source Heat Pump Configuration (Standard Pressures)
Single Water Source Heat Pump Configuration (High-Pressure)
1 - Installation

Page - 10
Multiple Water Source Heat Pump Configuration (High-Pressure)
Water Source Heat Pump with Support Equipment
1 - Installation

Page - 11
1.4.c Plumbing Diagrams (SunPower)
Plumbing diagrams are provided in this section as a planning guide to the sequence of equipment, valves, and
fittings.
lThe basic plumbing configurations for typical installations are shown.
lIf the installation does not closely follow any of the supplied plumbing diagrams, AquaCal®Technical Support is
available for installation advice and guidance.
lConfirm water provided to the heat pump is clean and filtered.
Typical SunPower Installation
Dedicated Spa Heater using Pool as the Heat Source.
PLEASE NOTE -
The SunPower is designed to provide heating for a spa. Not a pool.
1 - Installation

Page - 12
SunPower Heat Pump Configuration
1.4.d Water Connections to Heat Pump
lHeat Pump union sizes are specified on diagrams.
lConnections to site plumbing are made via PVC solvent cement to the female slip socket of the plumbing unions.
lHigh-pressure units use joint compound on threaded copper connections.
lPlumbing unions are available from AquaCal®.
NOTICE
Failure to heed the following may result in damage to equipment.
lDo not use glue on the threaded portion of the equipment’s unions. A glued-in-place union will prevent the
equipment from being properly winterized.
Water Source WS10 (Titanium or Cupronickel Exchanger)
1 - Installation

Page - 13
Water Source WS03 and WS05 (Titanium Exchanger Only)
Water Source WS03 and WS05 (Titanium / Cupronickel Exchanger Combination)
SunPower SP05 (Titanium Exchanger Only)
1 - Installation

Page - 14
SunPower SP05 (Titanium / Cupronickel Exchanger Combination)
1.4.e In-Line Chlorine Feeders
Place in-line chlorinators downstream from the heat pump and as low in elevation as possible.
lIf an erosion type feeder is used, it is recommended that a Hartford Loop be installed to protect internal heat
pump components.
lA Hartford Loop is not necessary with a Salt Chlorine Generator.
Heat Pump with Hartford Loop
1.4.f Water Flow Rates
Maintain water flow rates as indicated. Please note, these specifications relate to the heat pump only. Code-
specified whole system turnover rates must be satisfied.
NOTICE
Failure to heed the following may result in damage to equipment.
lWater flow exceeding maximum flow rates will negatively affect the total pool filtration performance and may
damage the heat pump. This will not be covered under the equipment warranty.
Water Source
MODEL SOURCE HEAT EXCHANGER TYPE FLOW RATES
MINIMUM MAXIMUM
WS03 Source-Side Titanium ThermoLink®20 GPM (75.7 L/min) 70 GPM (265 L/min) Cupronickel 10 GPM (37.9 L/min) 14 GPM (53 L/min)
Pool / Spa Titanium ThermoLink®30 GPM (113.6 L/min) 70 GPM (265 L/min)
1 - Installation

Page - 15
MODEL SOURCE HEAT EXCHANGER TYPE FLOW RATES
MINIMUM MAXIMUM
WS05 Source-Side Titanium ThermoLink®20 GPM (75.7 L/min) 70 GPM (265 L/min) Cupronickel 10 GPM (37.9 L/min) 18 GPM (68 L/min)
Pool / Spa Titanium ThermoLink®30 GPM (113.6 L/min) 70 GPM (265 L/min)
WS10 Source-Side Titanium ThermoLink®30 GPM (113.6 L/min) 70 GPM (265 L/min)
Cupronickel 30 GPM (113.6 L/min) 54 GPM (204.4 L/min)
Pool / Spa Titanium ThermoLink®30 GPM (113.6 L/min) 70 GPM (265 L/min)
SunPower
MODEL SOURCE HEAT EXCHANGER TYPE FLOW RATES
MINIMUM MAXIMUM
SP05 Source-Side Titanium ThermoLink®20 GPM (91 L/min) 70 GPM (265 L/min)
Spa Side Titanium ThermoLink®30 GPM (113.6 L/min) 70 GPM (265 L/min)
PLEASE NOTE -
If minimum flow rates are not met, heat pump performance is reduced and performance will
suffer. Internal safety devices may deactivate the heat pump with the following errors:
lHIGH PRESSURE FAULT
lHP5 SYSTEM LOCKOUT
lLOW PRESSURE FAULT
lLP5 SYSTEM LOCKOUT
lOperate water filtration devices per manufacturer's specifications. Dirty filters can cause a reduction of water flow
to the heat pump. An increase of 7-10 psi (48 to 69 kPa) higher than the clean filter pressure typically reduces
flow rates. This requires the filter to be cleaned or back-washed.
lKeep baskets free of debris. A large quantity of debris in the pump and skimmer baskets can reduce water flow.
lCheck for improper valve settings. A partially closed valve after the filter, or a full-open bypass around the heat
pump, will cause insufficient water flow through the heat pump.
lThe maximum static pressure (or operating pressure) is 50 psi (345 kPa) unless a special "high-pressure" unit has
been ordered. These specifications relate to the heat pump only.
lCode-specified whole system turnover rates must be satisfied.
1.4.g Adjusting Water Flow Using ΔT (Delta-T)
The Delta-T is the temperature difference between the water temperatures entering and leaving the heat pump.
The equipment can be fine-tuned for maximum performance by balancing water flow rates to maintain an
ideal ∆T.
The adjustment procedure must be completed with the unit in heating mode.
PLEASE NOTE -
nSee "Temperature Port Kit (# STK0096)" on page78.
1. Adjust the thermostat to its lowest setting with the unit in heating mode.
2. Deactivate the water filtration pump.
1 - Installation

Page - 16
3. Confirm that the filters leading to the heat pump are clean.
4. Adjust the valves controlling water headed towards the heat pump to the half-open position.
5. Adjust the valves controlling water leading away from the heat pump to a fully open position.
6. Activate the pool water filtration pump.
7. Slowly raise the thermostat temperature until the heat pump activates.
lThe source-water filtration pump will cycle on first.
lAfter a three-minute delay, the heat pump's compressor will start.
8. With the heat pump running, confirm the source-side water filtration pump is operating properly with adequate
flow and no short cycling.
9. Wait for water temperatures to stabilize (approximately 5 minutes).

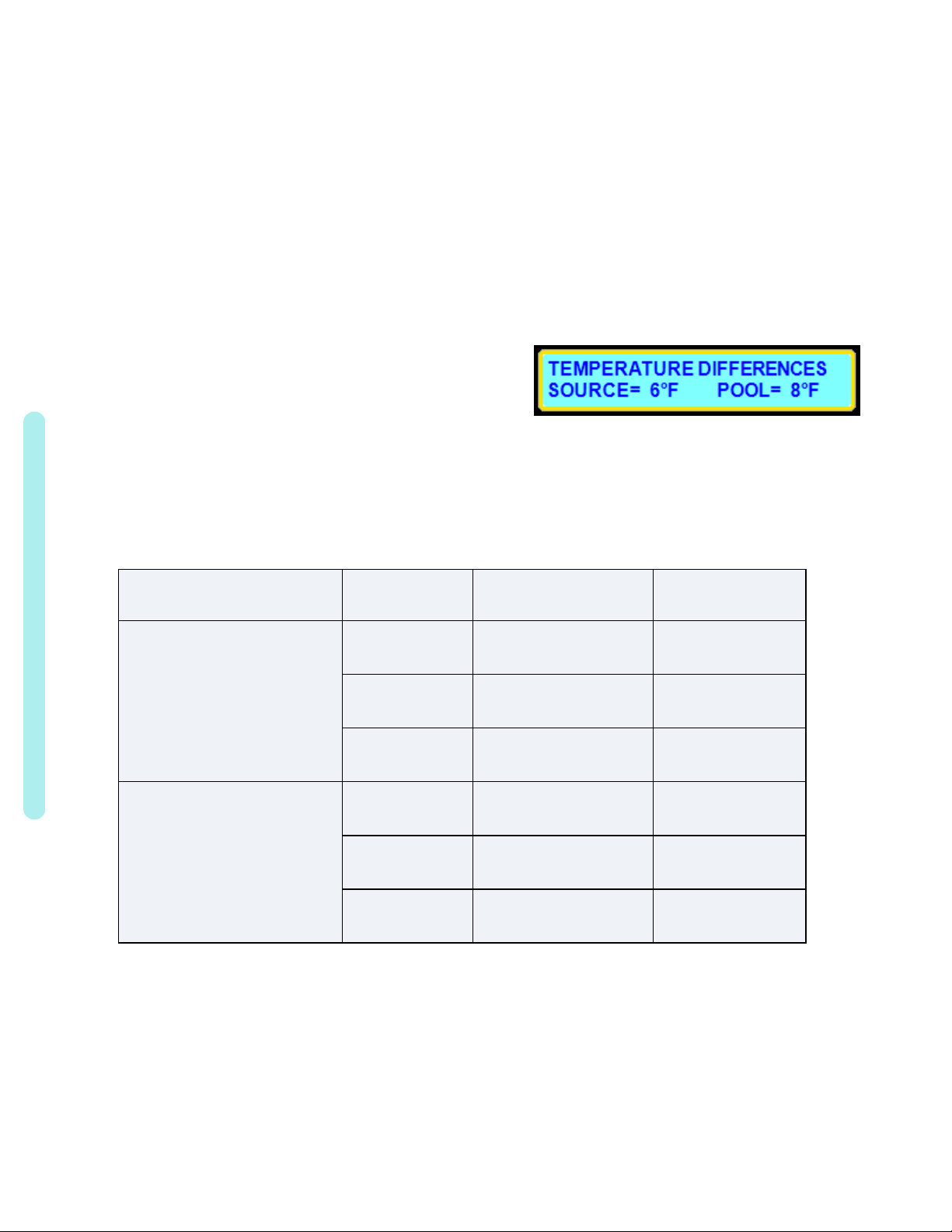

10. Open the temperatures differences screen in the Geothermal Menus. See "Geothermal Menus" on the facing
page.
12. Adjust valves in the following order using the temperature
chart provided.
a. Adjust the source-side valve on the heat pump outlet
until the correct temperature differential is achieved.
b. Adjust the pool-side valve that controls water exiting the
heat pump until the correct temperature differential is
achieved.
c. Wait for water temperatures to stabilize. Then check the source-side temperature again. Re-adjust the valve as
needed.
13. Mark valves at these positions for future reference.
HEAT EXCHANGER
TYPE MODEL SOURCE-SIDE POOL-SIDE
Titanium pool-side and
source-side exchangers WS03 1° to 5° F
(.5° C to 2.8° C)
2° to 4° F
(1.1° C to 2.2° C)
WS05 2° to 8° F
(1.1° C to 4.4° C)
3° to 6° F
(1.7° C to 3.3° C)
WS10 5° to 12° F
(2.8° C to 6.7° C)
6° to 14° F
(3.3° C to 7.8° C)
Titanium pool-side
exchanger and
cupronickel source-side
exchanger
WS03 6° to 8° F
(3.3° C to 4.4° C)
1° to 3° F
(.5° C to 1.7° C)
WS05 7° to 13° F
(3.9° C to 7.2° C)
2° to 6° F
(1.1° C to 3.3° C)
WS10 6° to 11° F
(3.3° C to 6.1° C)
6° to 14° F
(3.3° C to 7.8° C)
Table 1 - Temperature Chart (Water Source)
1 - Installation
