AquaCare AS90000 User manual

Dental Air Abrasion & Polishing Unit
MEDIVANCE INSTRUMENTS LTD. • Barretts Green Road • Harlesden • London • NW10 7AP
www.velopex.com
9051184 0120
Temperature Limit
15°C
10%
40°C
80%
IIa
Medical Device
CLASS
1.95KG
ATTENTION:
DO NOT CONNECT TO THE AIR SUPPLY BEFORE READING THIS GUIDE.
AS90000
ENGLISH
AquaCare
User Manual Iss. 6
I/LIT0101 Issued 07/2016
Installation & Operation Maintenance Manual
AquaSol.
AquaCare
https://stomdevice.ru - стоматологическое изуботехническое оборудование сдоставкой по России иСНГ

2
AquaCare: Introduction
Contents
INTRODUCTION PAGE
CONTENTS 2-3
INDICATIONS FOR USE AND CONTRAINDICATIONS 4
SAFETY WARNINGS 5-6
TABLE OF SYMBOLS 7
TECHNICAL DESCRIPTION 8
CONTENTS OF THE PACKAGING 9
AQUACARE PARTS AND FEATURES
EXTERNAL AQUACARE FEATURES 10
REAR VIEW OF AQUACARE 11
FOOT PEDAL 11
HANDPIECE 12

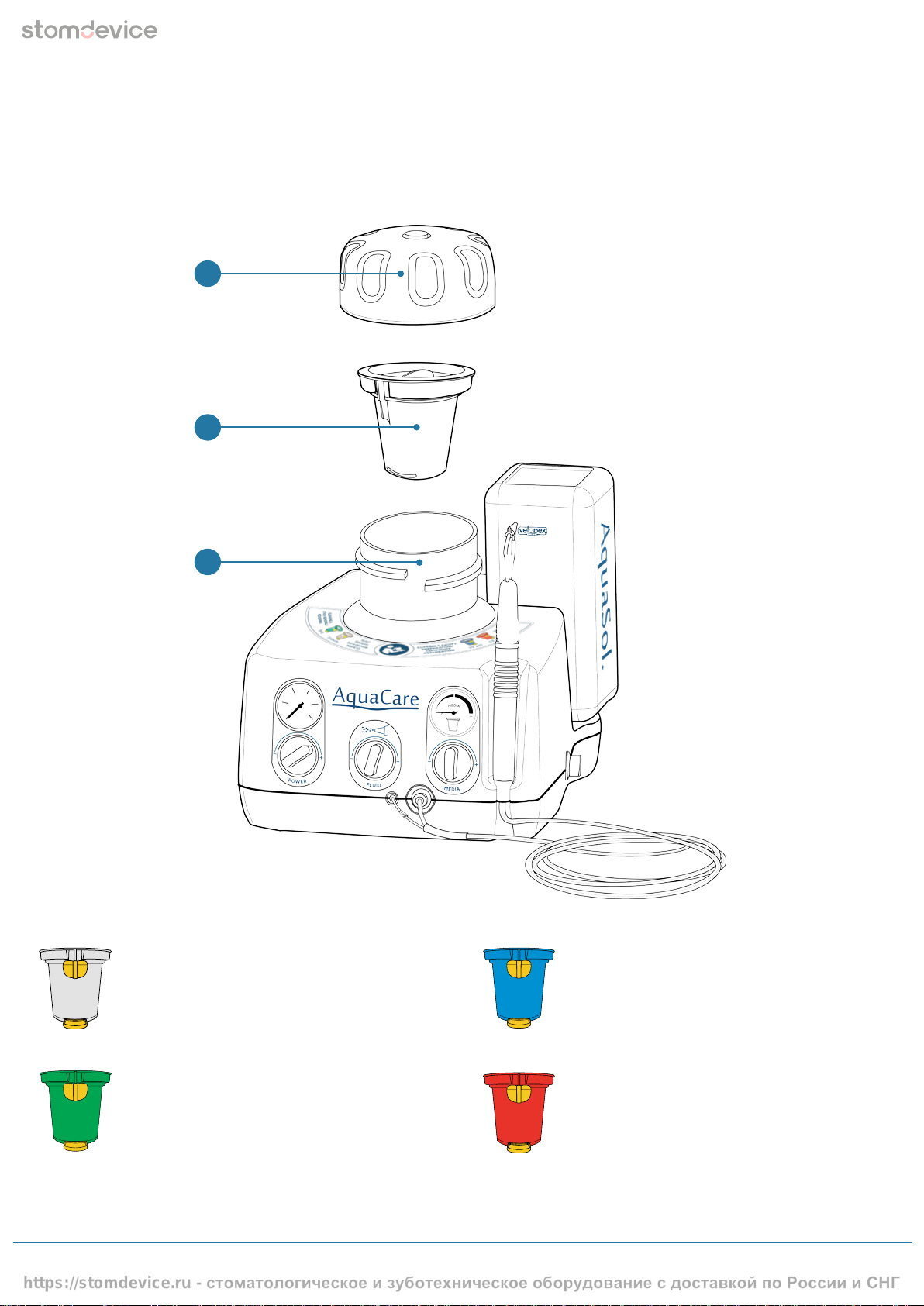

POWDER CARTRIDGES 13
INSTALLATION

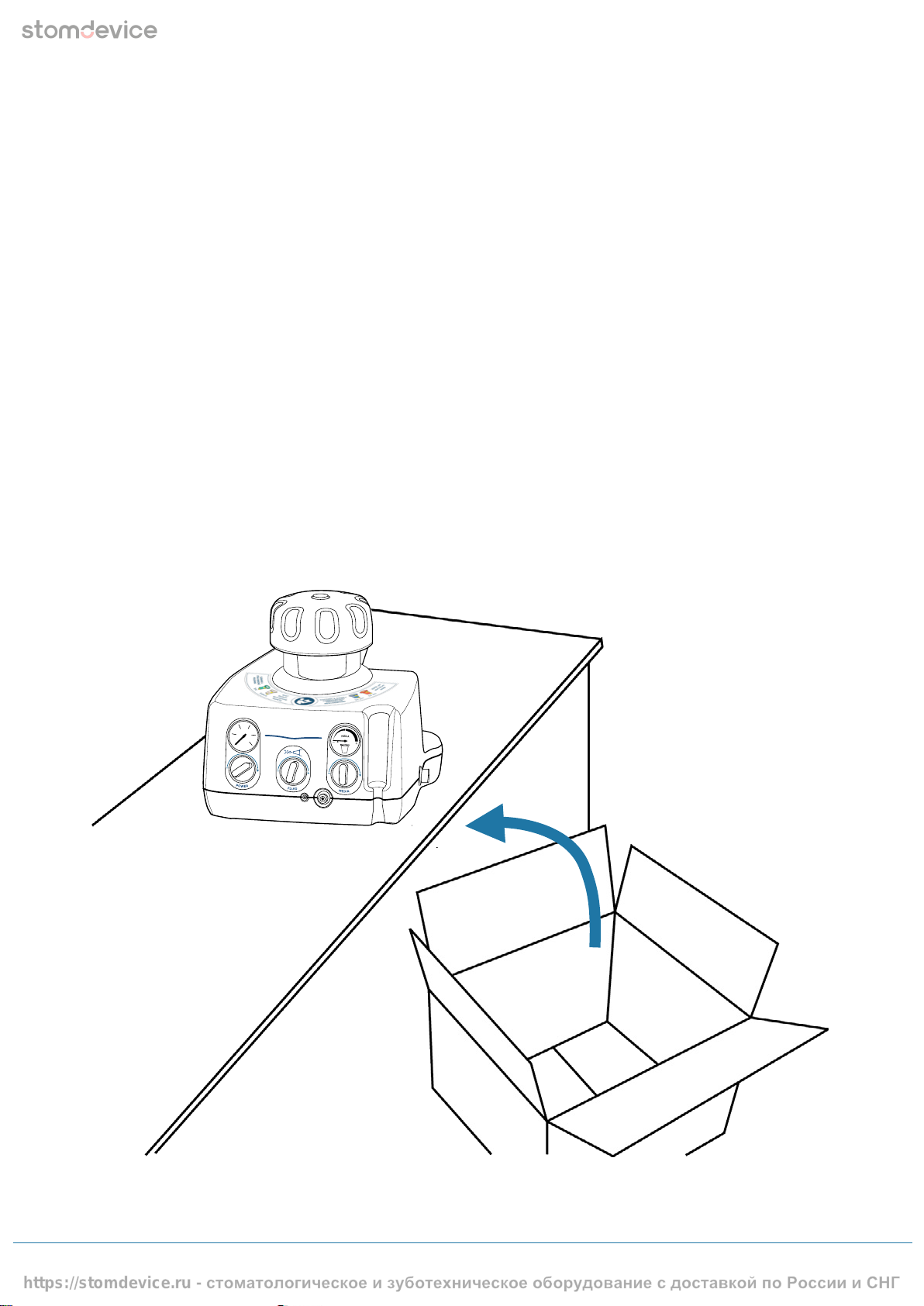

SITING THE AQUACARE 14

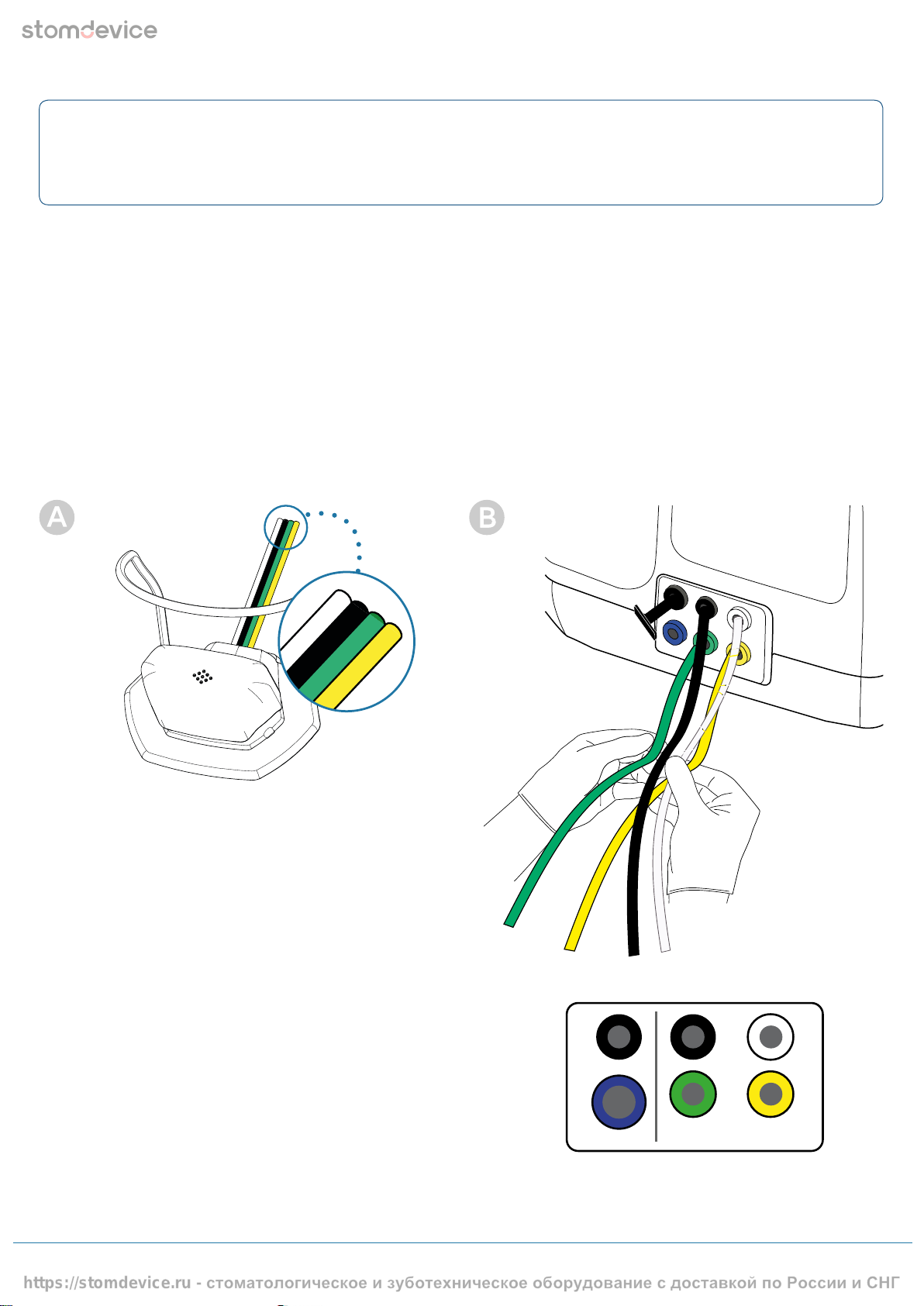

ATTACHING THE FOOT PEDAL 15
INSERTING THE FLUID CONTAINER 16
ASSEMBLING THE HANDPIECE 17
FITTING THE DISPOSABLE FEEDLINE AND TIP 17
CONNECTING THE AIR SUPPLY 18
INSTALLATION TEST 19
REMOVING THE DOSING CHAMBER LID 20
INSERTING THE POWDER CARTRIDGES 21
PREPARING THE AQUACARE FOR FIRST USE 22
https://stomdevice.ru - стоматологическое изуботехническое оборудование сдоставкой по России иСНГ

3
AquaCare: Introduction
OPERATION
FIRST STEPS TO MASTERING THE AQUACARE 23
SUGGESTED TREATMENT METHODS 24
PREPARATIONS BEFORE TREATMENT 25
TREATMENTS 26
- Cleaning
- Fissure Caries
- Cavity Preparation
- Removal of Composite Restorations
- Bonding Orthodontic Brackets
MAINTENANCE
STERILISING THE HANDPIECE 31
HANDPIECE MAINTENANCE 32
TWIN TUBE ASSEMBLY MAINTENANCE 32
PURGING THE AQUACARE 33
CLEANING THE AQUACARE 34
TROUBLESHOOTING 35-37
SERVICE
ANNUAL SERVICE AND SAFETY CHECK 38
RECOMMENDED COMPLIMENTARY ACCESSORIES 39
NOTES 40-43
Contents
https://stomdevice.ru - стоматологическое изуботехническое оборудование сдоставкой по России иСНГ

4
AquaCare: Introduction
Indications For Use and Contraindications
Indications For Use
The AquaCare can be used for:
• Preparation for pit and ssure sealants.
• Removal of composites for restoration.
• Cavity preparation.
• Cleaning, polishing and stain removal.
• Etching of enamel, metal and porcelain.
Contraindications For Use
The AquaCare is not intended for removal of calculus.
The AquaCare is not intended for cutting or removal of amalgam.
Please refer to INTRODUCTION: SAFETY WARNINGS, Pg 5/6, and read these
safety notes carefully before using the machine.
It is strongly recommended that initial training is carried out on glass slides and
extracted teeth before patient treatment with the AquaCare is attempted.
https://stomdevice.ru - стоматологическое изуботехническое оборудование сдоставкой по России иСНГ

5
AquaCare: Introduction
Only qualied dentists and dental hygienists should use the AquaCare on patients.
Before using the AquaCare:
a) Read the manual thoroughly.
b) Make sure the operator of the unit, any assistants, the patient, and anyone
else in the room wear eye protection to BS EN 166 IF 4/5.
c) Make sure the operator of the unit, any assistants, and anyone else in the
room, except the patient, wear respiratory masks to BS EN 149 FF2S.
d) Make sure you are in full control of the handpiece, and are aiming the
handpiece nozzle in a safe direction.
e) Make sure you have selected the correct powder for the treatment you are
performing. Incorrect selection of powder can cause hard tissue damage.
f) Use a high speed intra-oral aspirator during treatment. An extra-oral
aspirator can be used in addition if desired.
e) Ensure machine has adjusted to room temperature (>15°C) before
operating if coming from a cold environment.
ATTENTION- Please read all the following important warnings
before using the AquaCare:
Safety Warnings
Patients should consult their physician before having treatment with the
AquaCare if they have:
 a)Respiratorydiculties
b) Asthma
c) Blocked nasal passages
d) A cold
e) A restricted sodium diet
f) Any other medical problem preventing breathing through the nose.
The disposable feedline and tip should be changed for each patient treatment to
prevent cross-contamination. Ensure that new tips are tted rmly onto the nozzle.
Used feedlines and tips should be discarded. Attempts to reuse the AquaCare
feedlines and tips, or to use them with any other micro abrasion machines could be
hazardous.
ALWAYS AIM TOWARDS THE INCISAL EDGE OF THE TOOTH.
The AquaCare Twin may cause soft tissue damage, including inammation,
bleeding, and creation of an air embolism. The AquaCare Twin may cause hard
tissue damage, including etching or abrasion of enamel or exposed root surfaces
of the teeth.
https://stomdevice.ru - стоматологическое изуботехническое оборудование сдоставкой по России иСНГ

6AquaCare: Introduction
Safety Warnings
In most cases the plastic tip should last long enough for one treatment. However,
during prolonged treatments the tip may need replacing to prevent erratic ow of
uid.Do not use the handpiece if the hole in the tip of the nozzle has worn to the
outer edge, or if the swan neck tube has been perforated.
Sterilise the handpiece before rst use and between each patient treatment.
Fluidissuppliedtotheunitviatheuidbottle.The AquaCare air inlet should
NEVER be connected to a running water supplyasthiswilloodthemachine.
To rectify this the machine will require a full service and rebuild - this will be
carried out at the customer’s expense.
All powders supplied by Velopex are sterile until opened, and the containers are not
reusable.
The powder lines and handpiece should be purged/primed each time you switch
between the powder cartridges (See MAINTENANCE: PURGING THE AQUACARE,
Pg 33).
The AquaCare produces ne powder dust when in use. Protect sensitive equipment
from this dust.
Only use parts and consumables supplied by Velopex. Non-Velopex products may
damage the unit or alter the performance. The uid used with the machine must be
a biostatic solution like the AquaSol from Velopex, see page 16.
Site the foot pedal carefully so that it cannot be operated by accident. Always close
the foot pedal safety cover when not in use. Accidental operation can cause an
uncontrolled and dangerous high pressure stream of abrasive powder.
Do not place the unit in direct sunlight.
When turning the AquaCare on and off, ensure that the nozzle is aimed into the inlet
of your evacuation unit, and that the evacuation unit is switched on.
When turning the AquaCare off, wait for the machine to depressurise before
attempting to remove the dosing chamber lids. Depressurising takes roughly 30
seconds.
If the AquaCare is dropped or otherwise damaged, it must not be used until it has
been inspected by a Velopex Representative or Authorised Distributor.
If the AquaCare ceases to operate correctly, or if you experience a
deterioration in performance, see TROUBLESHOOTING, Pg 35-37.
https://stomdevice.ru - стоматологическое изуботехническое оборудование сдоставкой по России иСНГ

7AquaCare: Introduction
Air supply off
Air supply on
Media volume control
Cutting speed control
Fluid container/bottle
Fluid volume control
Pressure gauge
OFF
ON
MEDIA
POWER
AquaSol.
Control Symbols
Using the controls
These are the standard settings when using the machine and users can vary these
settings to best suit their requirements.
Standard settings
Switch on 4 Bar As required
Midway Position for
Polishing media
& Cutting media
ON
OFF
ON
OFF
ON
OFF
0
2
46
8
10
Media gauge
NOTE:
1. The Power and Media controls operate by continuous rotation (approximately 7
turns) from the minimum to maximum position.
2. The Fluid control has approxiamately 3 rotations from minimum to maximum
position.
https://stomdevice.ru - стоматологическое изуботехническое оборудование сдоставкой по России иСНГ

8
AquaCare: Introduction
READ THIS MANUAL FULLY BEFORE ATTEMPTING TO INSTALL
OR USE THE AQUACARE MACHINE.
The AquaCare is a uid abrasion unit which cuts by emitting a stream of air, uid and
powder from its handpiece. It can be loaded with two different powders for use in
cutting and cleaning operations. The only supply the unit requires is clean, dry air of
5-7 bar which conforms to ISO 8573.1 class 1.4.1. The incoming air to the AquaCare
is internally regulated to 7 bar. The AquaCare is operated by pressing the foot pedal
in three modes: Dry, Wash and Cut/Clean. The air supply, power, media volume, and
uid volume can all be adjusted using the four controls available. The handpiece can
be removed from the airline for sterilisation.
Technical Description
The overall dimensions of the AquaCare are:
Width 183mm / 7.2”
Height 185mm / 7.3”
Depth 207mm / 8.1”
Net weight 1.95kg / 4 lbs 4.8oz
The AquaCare is a class lla medical device.
ENVIRONMENTAL CONDITIONS FOR TRANSPORT AND
STORAGE.
The AquaCare should be kept within the Temperature range -10°C and +40°C (14°F
and 104°F) and below 80% humidity.
https://stomdevice.ru - стоматологическое изуботехническое оборудование сдоставкой по России иСНГ

9AquaCare: Introduction
Contents
AquaSol.
AquaCare
A C D EF G
H I J K
B
LM
P
N
OQR
FEEDLINES / TIPS
PROPHYPREP
A. 1 x AquaCare air abrasion unit.
B. 1 x Inline Air Filter.
C. 1 x Three-position foot pedal.
D. 1 x Silver 0.6mm handpiece.
E. 1 x Gold 0.8mm handpiece.
F. 1 x Quick release twin feed tube assembly.
G. 1 x 500ml AquaCare cutting uid (AquaSol).
H. 1 x Cartridge of gamma irradiated aluminium oxide, 53 micron (Red).
I. 1 x Cartridge of gamma irradiated aluminium oxide, 29 micron (Blue).
J. 1 x Cartridge of gamma irradiated ne granular sodium bicarbonate (Clear).
K. 1 x Cartridge of gamma irradiated Sylc for AquaCare (Green).
L. 1 x Pack of 5 glass slides.
M. 1 x Nozzle cleaning wire.
N. 1 x 2 metre length 6mm air input hose.
O. 1 x Pack of 50 disposable feedlines.
P. 1 x Pack of 50 disposable tips.
Q. 1 x Powder storage pot.
R. 1 x Pack of 5 spare handpiece handles.
S. 1 x Handpiece Tube removal tool.
T. 1 x Pack of 2 nozzle wash syringe.
U. 1 x Powder Purge Bottle.
AquaSol.
S T U
https://stomdevice.ru - стоматологическое изуботехническое оборудование сдоставкой по России иСНГ

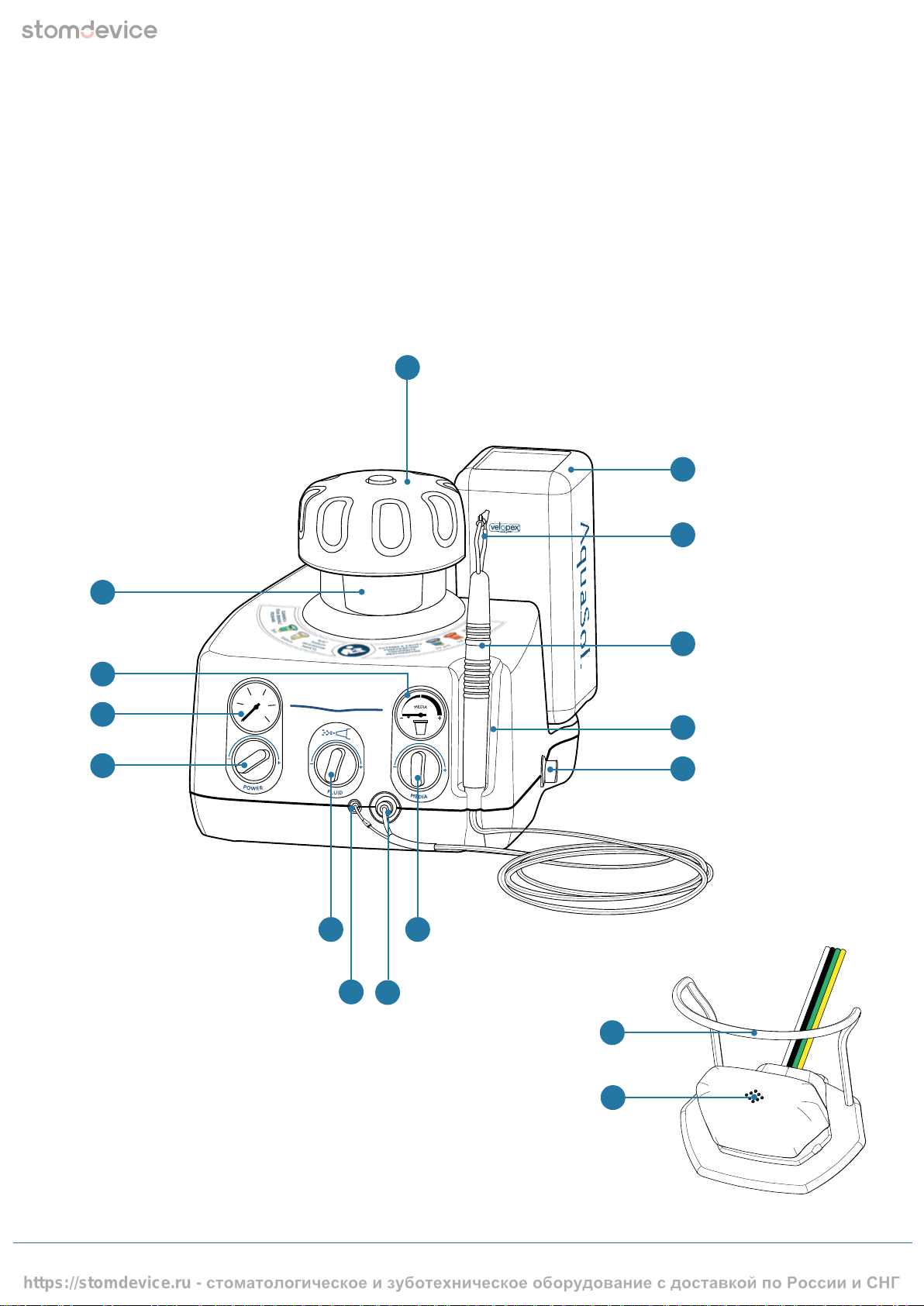

10AquaCare: Parts and Features
AquaSol.
AquaCare
1. Media Control
2. Powder Out Connection
3. Fluid Out Connection
4. Fluid Control
5. Power Control
6. Air Pressure Gauge
7. Media Gauge
8. Dosing Chamber
9. Dosing Chamber Lid
10. Fluid (500ml) Bottle
11. Handpiece Nozzle/Tip
12. Handpiece
13. Handpiece Holder
14. ON/OFF Switch
15. Foot Pedal
16. Foot Pedal Lifting Arch
External AquaCare Features
1
10
2
3
4
5
6
7
8
9
11
12
13
14
16
15
https://stomdevice.ru - стоматологическое изуботехническое оборудование сдоставкой по России иСНГ

11
AquaCare: Parts and Features
Rear View Of AquaCare
Using The Foot Pedal
Air1
2
3
=
=Fluid
+
Air
Powder
+
Fluid
+
Air
=
17. Unused Connection + Blanking Plug
18. Foot Pedal Connection Black
(4 Way Tubing)
19. Foot Pedal Connection White
(4 Way Tubing)
20. Air In Supply - Blue
21. Foot Pedal Connection Green
(4 Way Tubing)
22. Foot Pedal Connection Yellow
(4 Way Tubing)
19
18
17
20 21 22
WATER
AIR FOOT PEDAL
https://stomdevice.ru - стоматологическое изуботехническое оборудование сдоставкой по России иСНГ

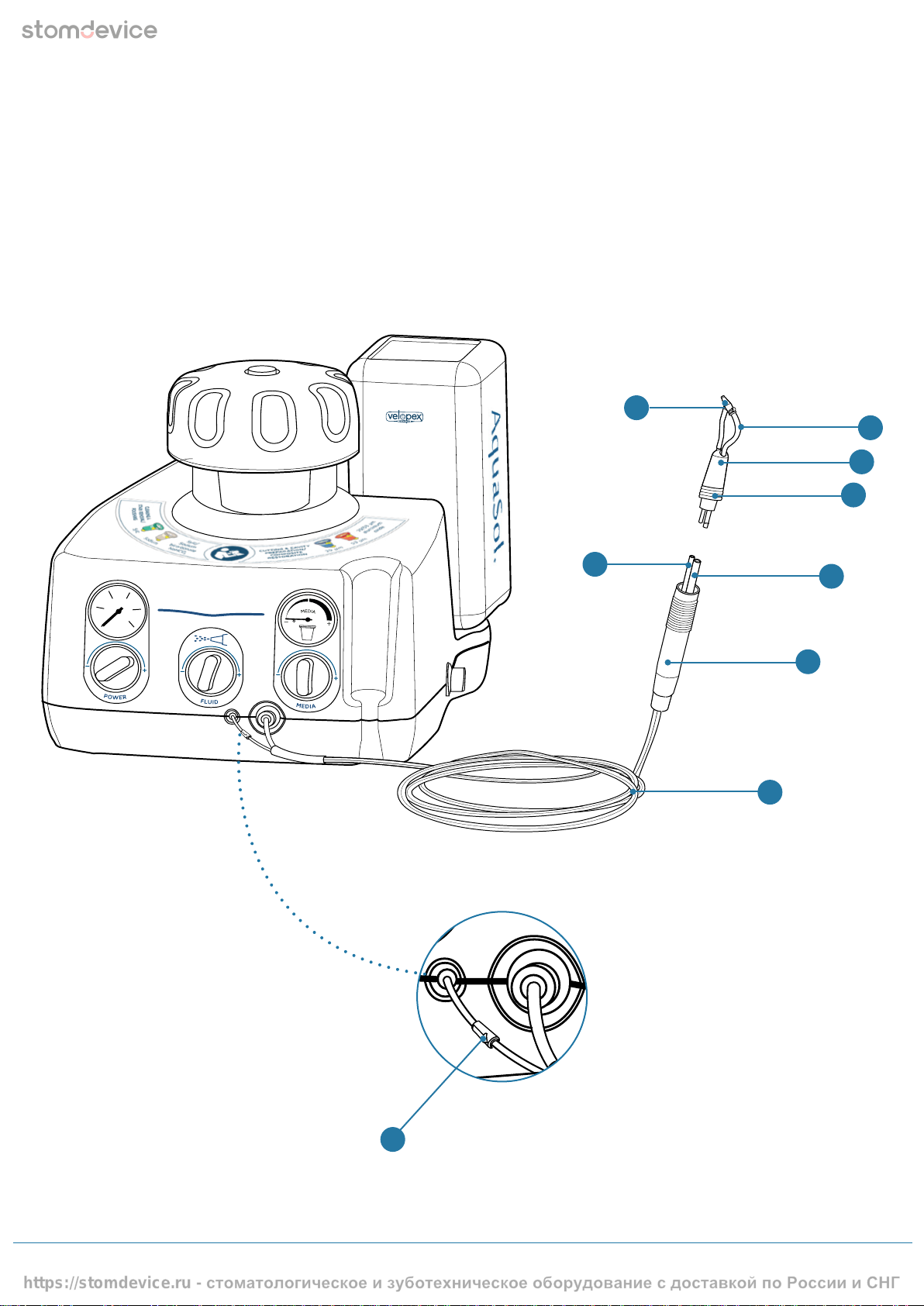

12AquaCare: Parts and Features
AquaSol.
AquaCare
Handpiece
23. Fluid Connection
24. Feedline And Tip
25. Nozzle (Range Of Sizes)
26. Handpiece Front
27. Hand Grip
28. Powder Connection
29. Handle
30. Twin Tube
31. Check Valve
25
26
27
28
29
30
23
24
AquaCare
31
https://stomdevice.ru - стоматологическое изуботехническое оборудование сдоставкой по России иСНГ

13
AquaCare: Parts and Features
Powder Cartridges
32. Removed Dosing Chamber Lid
33. Powder Cartridge
34. Open Dosing Chamber
ProCut+ (Aluminium Oxide 53μ)
For cutting, cavity preparation and
composite preparation
ProCut (Aluminium Oxide 29μ)
For cutting, cavity preparation and
composite preparation
ProClean (Sodium Bicarbonate)
For cleaning and polishing
ProSylc (Sylc for AquaCareTM)
For cleaning and polishing
AquaSol.
32
33
34
https://stomdevice.ru - стоматологическое изуботехническое оборудование сдоставкой по России иСНГ

14AquaCare: Installation
Remove the AquaCare from its box and retain the packaging, use to return unit for
service as required.
If you are using the AquaCare with the Velopex Patient Treatment Centre, place the
machine on the top shelf of the trolley, following the instructions received with the
trolley. See RECOMMENDED AND COMPLIMENTARY ACCESSORIES, Pg 39.
If you do not have a specialised trolley, place the machine securely on a rigid, sturdy
desk or table top.
Do not place the machine close to, or allow it to hang over, the edge of the table top.
The machine is designed to have all the controls within easy reach of the dentist
when situated in this way.
The unit should be kept within a temperature range of +15ºC and +40ºC, and should
also be kept below 80% humidity.
Siting The AquaCare
AquaCare
https://stomdevice.ru - стоматологическое изуботехническое оборудование сдоставкой по России иСНГ

15
AquaCare: Installation
Attaching the foot pedal
A. See PARTS AND FEATURES: FOOT PEDAL, Pg11. Place the foot pedal on the oor
near the machine and within easy reach of the dentist.
B. Connect the foot pedal to the back of the machine by pushing each coloured tube
into its colour-corresponding connector.
WARNING: Accidental operation of the foot pedal can be hazardous. To avoid
this, make sure the foot pedal is always under strict control when the unit is
on.
TIP: To disconnect, push the coloured connector into the machine, and gently pull the
tube out.
WATER
AIR FOOT PEDAL
https://stomdevice.ru - стоматологическое изуботехническое оборудование сдоставкой по России иСНГ

16AquaCare: Installation
Insertingtheuidcontainer
BEST BEFORE END:
SEE BASE OF BOTTLE
MEDIVANCE INSTRUMENTS LTD.
BARRETTS GREEN ROAD
LONDON NW10 7AP UK
TEL: [phone]
EMAIL: [e-mail]
For use with the Velopex
Aquacut / AquaCare Range
AquaSol.
Contains no significant quantities of hazardous
materials.Water Based Solution containing 17.5%
w/w Ethanol
Ne contient aucune quantité importante de
matières dangereuses. Solution à base aqueuse
contenant 17,5% w/w d'éthanol.
Enthält keine gesundheitsschädliche
Inhaltsstoffe:Lösung auf Wasserbasis, enthält
17,5% w/w Ethanolalkohol.
Contiene una piccola quantità di materiale
pericoloso. Soluzione a base di acqua contenente
un 17,5% w/w di etanolo.
No contiene una cantidad importante de material
peligroso. Solución acuosa. Contiene 17,5% w/w
de etanol.
Co ep e a e oe o ec o o ac x
a ep a o
Bo pac op, co ep a 17,5% o o o
cp a
Information
Holding the uid container with the lid upward, peel off the label as shown in gure
B, then turn the container over and insert into the rear water socket as shown in
gure C. Push down with light pressure to ensure that the needle punctures the seal.
NOTE:ThecontainersareNOTrellableandmustbereplacedasrequired,remove
the empty container and replace as shown.
I/PAC 8200F
WARNING:Theaboveuidcontainerislledwitha17%alcoholsolution.This
actsasabiostaticsolutioninordertoreducebiologicalgrowthwithintheuid
system. NOTE: Not for human consumption.
Should the AquaCare unit be used with another solution obtained by the user,
thismustprovidetherequiredbiostaticeffecttoensurethemachine’suid
system cannot sustain biological growth.
Failure to follow these guidelines could lead to user or patient contracting some
sort of infection.
https://stomdevice.ru - стоматологическое изуботехническое оборудование сдоставкой по России иСНГ

17
AquaCare: Installation
Assembling the handpiece
A. See Parts and Features: Handpiece, Pg 12. Slide the handpiece handle onto the twin
tube. This goes at the end of the tube without a check valve.
B. Push the twin tubes rmly onto the nozzle tubes. The small twin tube pushes onto the
small nozzle tube, and the large twin tube pushes onto the large nozzle tube. Make sure
the twin tubes are securely in place.
C. Slide the handle onto the handpiece until it is securely in place.
D. Push the free end of the larger twin tube into the ‘Powder Out’ connector on the
machine, see page 10 item 2.
E. Push the free end of the smaller twin tube onto the ‘Fluid Out’ connector on the
machine, see page 10 item 3.
AquaCare
Fitting the Disposable Feedline and Tip
A. Take a new tip and fold over the locking tab as shown.
B. Push the tip onto the nozzle until rmly engaged.
C. Rotate the tip so that the free end points towards the handpiece.
D. Push one end of the feedline onto the end of the handpiece.
E. Push the other end of the feedline onto the tip.
The tips and feedlines are for one time use only, a new tip and feedline should be used for
each patient. To switch tips and feedlines remove the existing feedline tip and discard. Then
follow the steps above. Purge the uid through the system.
See Maintenance: Purging the AquaCare Pg 33.
WARNING: The handpiece should be sterilised before use and after each
subsequent use. See Maintenance: Sterilising the Handpiece, Pg 31.
Feedline
https://stomdevice.ru - стоматологическое изуботехническое оборудование сдоставкой по России иСНГ

18
AquaCare: Installation
Connecting the air supply
4 - 7 bar
See PARTS AND FEATURES: REAR VIEW OF AQUACARE, Pg 11.
The practice’s existing air supply system/compressor can be used provided it is tted
with a water removing lter and shut-off valve in the supply line.
Medivance Instruments Ltd can supply an air lter (See ACCESSORIES, Pg 39).
Connect the blue air supply tube to the machine by pushing it fully into the blue
connector.
Air Supply Requirements
Clean dry air to ISO 8573 Class 1.4.1.
Pressure between 4 bar (72psi) and 7 bar (100psi).
Maximum ow rate +70 l/min. 6mm O/D input connection.
Air
WATER
AIR FOOT PEDAL
https://stomdevice.ru - стоматологическое изуботехническое оборудование сдоставкой по России иСНГ

19AquaCare: Installation
Before adding the powder to complete installation of the AquaCare, you can check
that the installation has been performed correctly using the following procedure:
A. Check that the machine is off.
B. Sterilise the handpiece. Refer to MAINTENANCE: STERILISING THE HANDPIECE,
Pg 31.
C. Fit the 0.6mm silver handpiece to the machine.
D. Fit a new disposable feedline and tip.
E. Check that the uid container has been tted.
F. Make sure you are in full control of the handpiece before turning the machine on.
G. Switch the On/Off selector to position On.
H. Press the foot pedal down to the DRY position (1). (See PARTS AND FEATURES:
FOOT PEDAL, Pg 11). Check that air comes out of the nozzle. There should be no
uid or powder.
I. Press the foot pedal down to the WASH position (2). After a few seconds you
should observe the ow of air change to a ne mist.
J. Turn the Fluid volume dial, observing the spray. Place a paper towel under the
nozzle at a distance of 25-30mm to make the effect easier to see. The Fluid
volume range varies between:
DROPLET - Small quantity of water. Very ne mist.
SPRAY - Larger quantity of water. Heavier spray.
K. Press the foot pedal fully down to the CUT position (3). You should hear the
vibrator start to operate. Turn the media dial to set the gauge to the midway
position. The nozzle will continue to spray a mixture of uid and water, but no
powder as this has not yet been installed.
L. Turn the Power dial, observing the Pressure gauge. The pressure ranges are:
2 - Low energy, gentle cleaning/polishing action.
4 - Medium energy, medium cutting action.
6 - High energy, very fast cutting action.
M. Switch the machine off.
Installation Test
Standard settings
On/Off 4 Bar As required Midway Position of
Polishing media & Cutting media
ON
OFF
ON
OFF
ON
OFF
0
2
46
8
10
If your observations do not match the procedure above, check that all INSTALLATION
sections have been completed correctly. If installation problems continue to occur,
contact a Velopex Representative or Authorised Distributor for assistance.
https://stomdevice.ru - стоматологическое изуботехническое оборудование сдоставкой по России иСНГ

20
AquaCare: Installation
AquaSol.
AquaCare
Removing The Dosing Chamber Lid
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
WAIT FOR DECOMPRESSION
A. Ensure the unit is turned off and fully depressurised. If the machine has been ON
recently, allow 30 seconds for depressurising before attempting to remove the lid.
B. Unscrew the dosing chamber lid anti-clockwise 2/3 of a turn to relieve the
pressure. Then unscrew a further turn and lift off.
C. Select the required powder, i.e. Prep or Prophy, and shake the required Powder
Cartridge for 10 to 20 seconds (See TREATMENTS, Pg 26-30).
D. Pull out top yellow insert from the cartridge.
E. Pull out the yellow lower draw tab on the cartridge.
F. Line up the rib on the outside of the powder cartridge with the slot on the inside of
the dosing chamber.
G. Slide the powder cartridge down into the dosing chamber until it sits comfortably
inside. If the cartridge sits unevenly or above the top of the dosing chamber, then
lift it out and re-insert. Check that the rib of the powder cartridge slides down the
slot in the dosing chamber - ret the dosing chamber lid.
H. Close the dosing chamber by turning lid clockwise. Turn rmly until a strong
resistance is felt from the seal engaging with the top of the chamber. Continue to
turn the lid until you feel the lid tighten against a stop. Always make sure the lid
is fully closed before pressurising the machine.
I. To remove a powder cartridge, open the dosing chamber lid and gently lift the
cartridge out of the machine. If the cartridge still contains some powder and will be
used again, place the cartridge carefully into the powder storage pot supplied.
All powder cartridges supplied by Velopex are gamma irradiated. The contents are
sterile until opened. Powder cartridges must not be relled as the cartridges are
not reusable.
AquaSol.
https://stomdevice.ru - стоматологическое изуботехническое оборудование сдоставкой по России иСНГ
