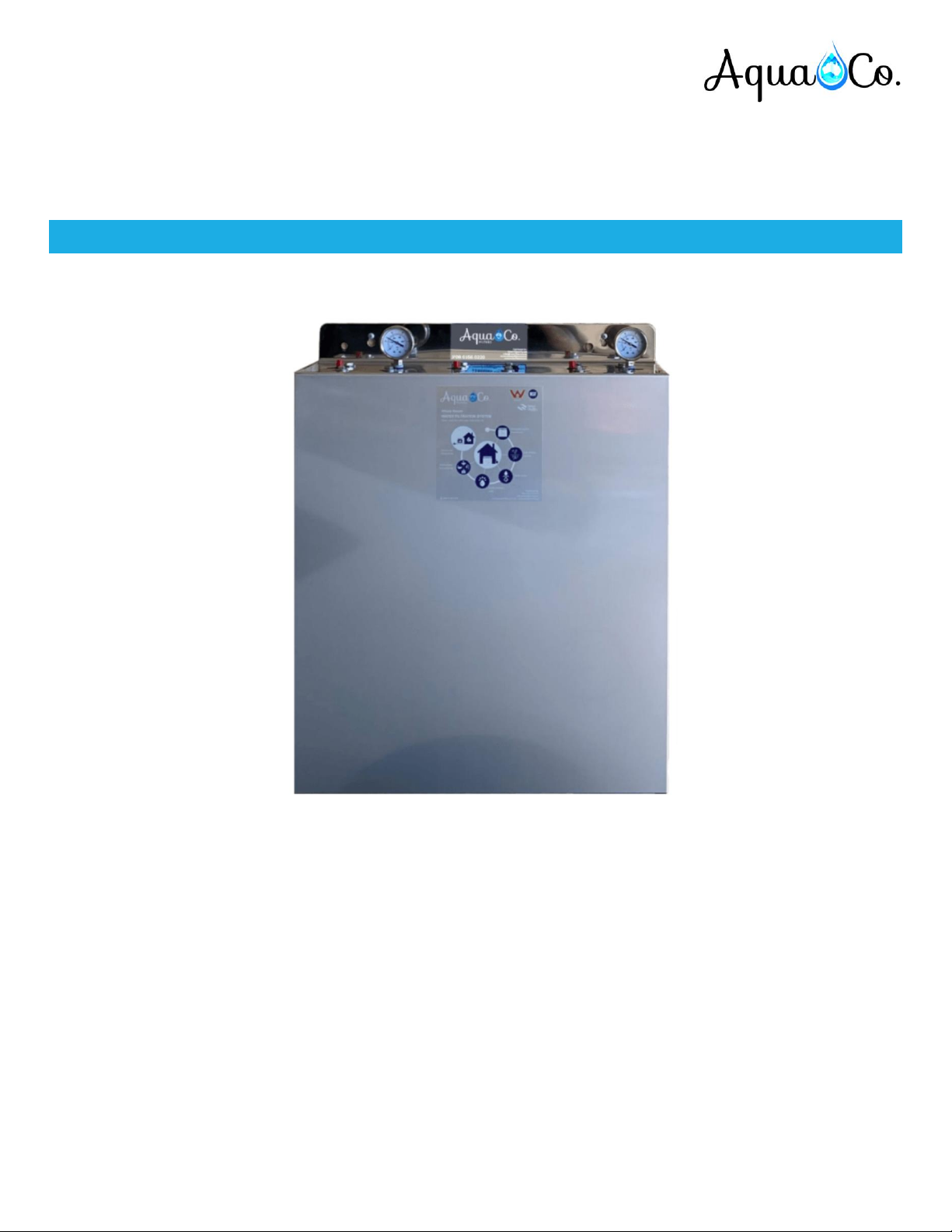

AquaCo SYS-203-WAWF User manual

Whole House Water Filtration System
Product Code: SYS-203-WAWF
Page 1of 13
WARNING: For correct operation & installation, it is essential to observe these instructions
WHOLE HOUSE WATER FILTRATION SYSTEM

Whole House Water Filtration System
Product Code: SYS-203-WAWF
Page 2of 13
CONTENTS
Whole House Water Filtration System................................................................................................................................................1
Installation and Operation Manual.....................................................................................................................................................3
AquaCo Customer Service ..............................................................................................................................................................3
Guidelines and Warnings................................................................................................................................................................3
INSTALLATION................................................................................................................................................................................4
Before Installation......................................................................................................................................................................4
Typical Installation .........................................................................................................................................................................5
Replacement Guide........................................................................................................................................................................7
Cartridge Installation / Replacement ..............................................................................................................................................7
Replacement Parts and Components..............................................................................................................................................8
Performance Data Sheet...........................................................................................................................................................11
Notes...........................................................................................................................................................................................13
Warranty .....................................................................................................................................................................................13
Warranty/Australia...................................................................................................................................................................13

Whole House Water Filtration System
Product Code: SYS-203-WAWF
Page 3of 13
INSTALLATION AND OPERATION MANUAL
AQUACO CUSTOMER SERVICE
Thank you for purchasing an AquaCo Whole House Water Filtration System. Your system is a proven performer manufactured from
only quality materials and components and will give years of ‘spring fresh’ water free of impurities if maintained properly.
Caution: Do not use with water that is microbiologically unsafe or with water of unknown quality without adequate disinfection
before or after the system.
The system is designed for mains (SYS-203-WAWF) supply but can be used in other situations. For other types of water supply please
contact your local AquaCo stockist or call our AquaCo Customer Service Helpline.
The AquaCo filter systems cartridges need replacing regularly to maintain optimum performance. This is a simple procedure when
following instructions. For cartridge replacements contact your nearest AquaCo stockist.
Customer Service Helpline 08 6156 0220 (Australia).
GUIDELINES AND WARNINGS
•Where line pressure exceeds 520 kPa, a pressure limiting valve must be installed. Protect the housing from water hammer.
•Use on cold water line only (with water up to 52°C). For installation over 52°C please enquire as to a suitable housing.
Protect the housing from freezing.
•Avoid installing in direct sunlight.
•Use PTFE thread seal tape on all connections. Use of pipe sealants will void warranty.
•Do not overtighten. Too much tape or over tightening may cause head to split.
•For point of entry installations an approved dual check backflow prevention device must be fitted in accordance with
national plumbing product codes.
•Do not use with water that is microbiologically unsafe or with water of unknown quality without adequate disinfection.
•This product must be installed in accordance with local plumbing regulations by a licensed plumber.
Installation Note: A water filter system/tap, like any product, has a limited life and may eventually fail. Also sometimes failure
happens early due to unforeseen circumstances. To avoid possible property damage, this product should be regularly examined for
leakage and/or deterioration and replaced when necessary. A drain pan, plumbed to an appropriate drain or outfitted with a leak
detector, should be used in those applications where any leakage could cause property damage, and/or the water supply should be
turned off if no one is home/present.
INSTALLATION MUST BE COMPLETED BY A LICENCED PLUMBER. FAULTY OPERATION DUE TO UNQUALIFIED PERSONS WILL
RESULT IN VOIDED WARRANTY COVERAGE.

Whole House Water Filtration System
Product Code: SYS-203-WAWF
Page 4of 13
INSTALLATION
BEFORE INSTALLATION
PROFESSIONAL INSTALLATION REQUIRED
Installation requires shutting water off to home, cutting home water supply pipe and using a welding torch to add piping
and fittings. Specialized tools and skills are required. Not a do-it-yourself type of project.
POSITIONING YOUR PRE-FILTRATION SYSTEM
Choose a location where any water spillage will not cause damage. Make sure mounting position is solid so that the filter
housing stays in position when changing filters. An isolation valve may be installed immediately prior to the filter to isolate
the filter for changing the cartridge.
INSTALL PRE-FILTRATION SYSTEM
1. Isolate water supply and relieve pressure by opening a downstream tap.
2. Cut pipe to suit length of required valve and housing installation.
3. Use approved brass, galv/poly plumbing fittings to suit existing pipework. The female threads on the housing will receive
tapered male threads. Thread into housing head carefully as too much tape or overtightening may cause it to split.
Warning: Use PTFE thread seal tape on all connections. Use of pipe sealants will void warranty.
4. If using sweated fittings, allow enough time to cool before connecting to the housing.
5. Securely fix wall mount bracket and pipework with suitable clips. Allow 50mm clearance underbowl for filter changes.
6. Flush debris from pipework.
7. Install filter cartridge as per cartridge replacement instructions (pg.7).

Whole House Water Filtration System
Product Code: SYS-203-WAWF
Page 5of 13

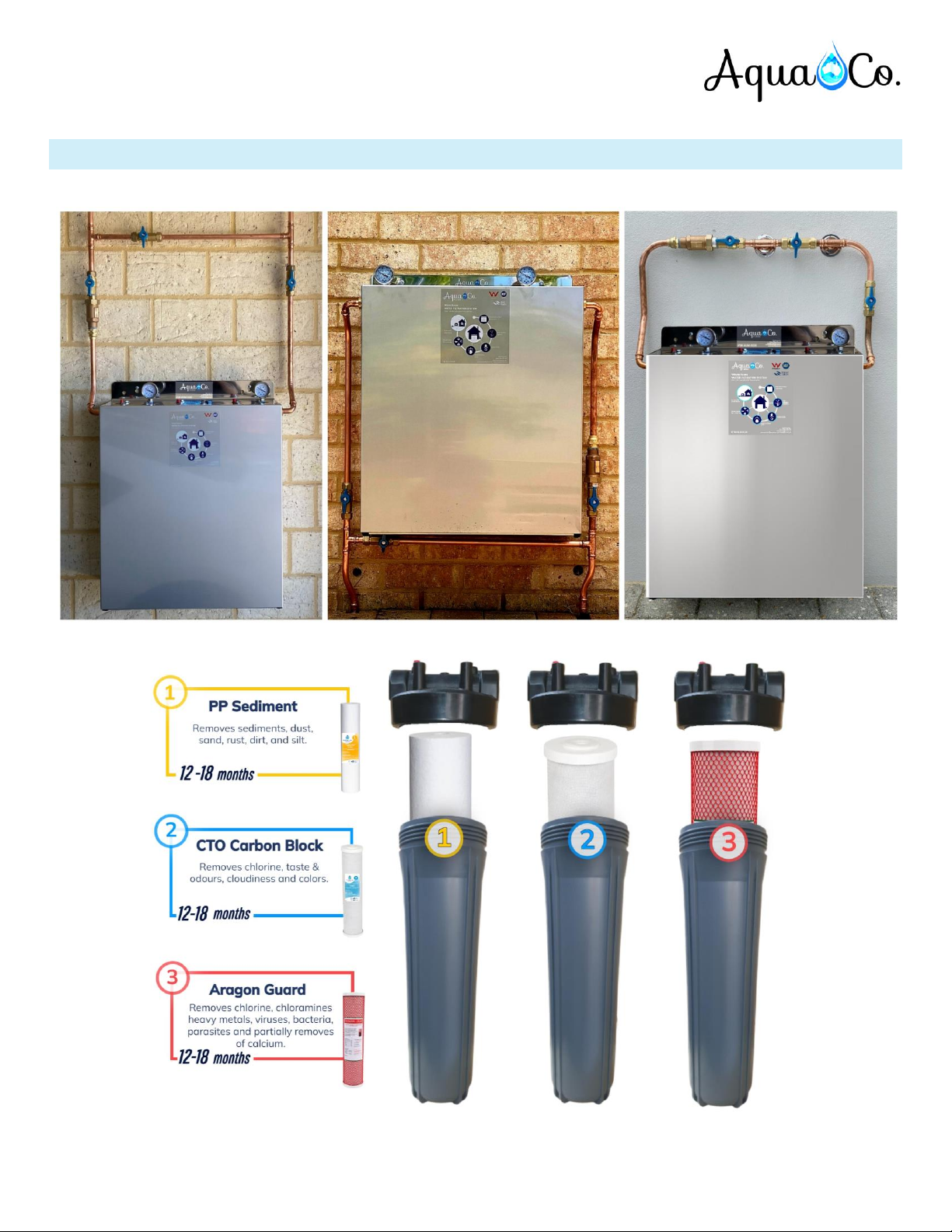

TYPICAL INSTALLATION
Figure 1

Whole House Water Filtration System
Product Code: SYS-203-WAWF
Page 6of 13

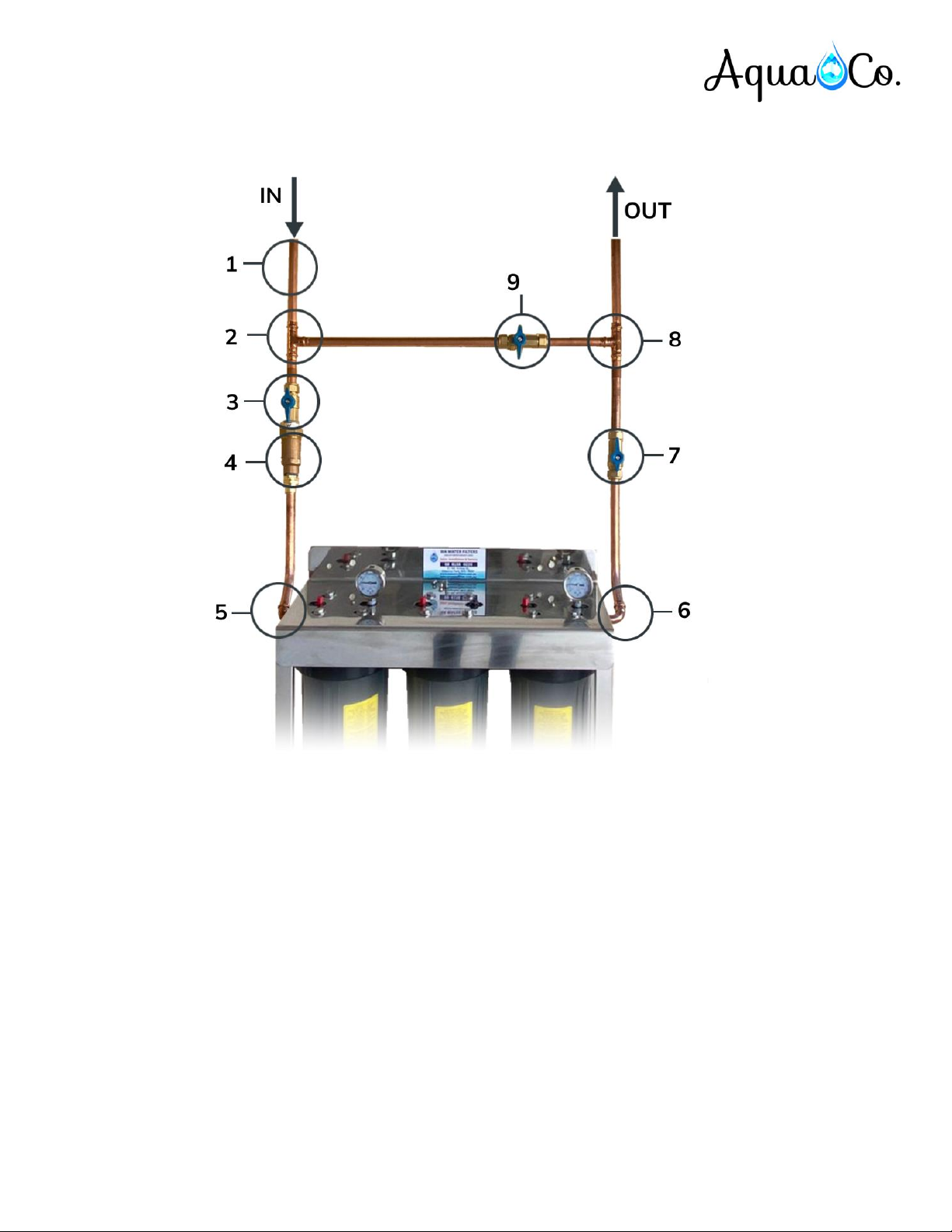

1. Inlet and Connecting Pipework (Not included)
2. Equal Tee (Not included)
3. Isolation Valve (Not included)
4. Backflow Prevention Valve (Not included)
5. 90 Degree Elbow (Not included)
6. 90 Degree Elbow (Not included)
7. Isolation Valve (Not included)
8. Equal Tee (Not included)
9. Bypass (Not included)
Figure 2

Whole House Water Filtration System
Product Code: SYS-203-WAWF
Page 7of 13
REPLACEMENT GUIDE
You can obtain replacements from your local AquaCo dealer. To maintain performance, warranty and standards use genuine AquaCo
replacements.
To maintain the high quality of the purified water the cartridge(s) need changing every 12-18 months (this is dependent on water
quality and usage). You can obtain replacement cartridges from your local AquaCo stockist. To maintain performance and warranty
use genuine AquaCo replacements.
CARTRIDGE INSTALLATION / REPLACEMENT
To change the filter cartridge(s) please adhere to the following procedure:
1. Turn water supply off and relieve pressure by opening a downstream tap or
pressing the red pressure relief button on the housing(s) (if fitted).
2. Unscrew the filter bowl(s). If difficult to undo, use the wrench provided. Remove
old cartridge(s). We recommend replacing O-rings every 3 - 5 years to ensure a
water tight seal, preventing any leaks.
3. Clean bowl(s) with soap and warm water and rinse thoroughly. Check O-Ring(s)
for damage and if there is any, replace.
4. Check O-ring(s) lubrication and if necessary, apply a light coating of food grade
silicone lubricant (or similar).
5. Remove all packaging from new filter cartridge(s) and insert into housing bowl(s)
making sure cartridge(s) is properly seated over spigot in base of bowl(s).
Remember to record the model no. of the cartridge(s) you use.
6. Hold bowl(s) upright while screwing onto head. Make certain that the spigot in
the housing head(s) is located centrally to the cartridge(s) to make a good seal.
Hand tighten bowl until firm. DO NOT OVER TIGHTEN.
7. Open downstream tap to allow air to be released and gently open water supply
allowing all air to be purged.
8. Allow water to run for 2 minutes to flush the system.
9. Close down stream tap and check for leaks. Flush system for 10 minutes after
any period of non-use more than 2 days. For a period of non-use of 2 weeks or
more, it may be necessary to replace the cartridge.
NOTE: TO RUN UNFILTERED WATER TO THE HOUSE (WHEN GARDENING OR
FILLING THE POOL), PLEASE CLOSE VALVES GOING IN AND OUT OF THE
FILTER SYSTEM (#3 & #7) AND OPEN THE BYPASS (VALVE #9).
Figure 3
Figure 4

Whole House Water Filtration System
Product Code: SYS-203-WAWF
Page 8of 13
REPLACEMENT PARTS AND COMPONENTS
Premium Replacement Filters
Set of replacement filter cartridges for the 1st, 2nd
and 3rd stage of the whole house water filtration
system.
✓ Sediments
✓ Chlorine
✓ Pesticides & Herbicides
✓ VOCs (Acetone, Alcohol, Ethanol, Acetic Acid…)
✓ Taste, Odours & Colour
✓ Heavy Metals (Copper, Arsenic, Mercury, Lead)
✓ Parasites
✓ Bacteria & Viruses
✓ Chloramines
✓ Partial removal of calcium
*WORK FOR HARD WATER, CITY WATER, WELL
WATER AND TANK WATER.
Maintenance: Replacement filters are recommended to be changed every 18 months. However, replacement frequency depends of
water quality and usage.
Version
Price
20” x 4.5” Premium Replacement Filters
$395
*Prices are valid from the 01/11/2021 to 01/03/2022.
Water Filters Pty Ltd reserves the right to change pricing at any time without notice.

Whole House Water Filtration System
Product Code: SYS-203-WAWF
Page 9of 13
Standard Replacement Filters
Set of replacement filter cartridges for the 1st, 2nd
and 3rd stage of the whole house water filtration
system.
✓ Sediments
✓ Chlorine
✓ Pesticides & Herbicides
✓ VOCs (Acetone, Alcohol, Ethanol, Acetic Acid…)
✓ Taste, Odours & Colour
 Heavy Metals (Copper, Arsenic, Mercury, Lead)
✓ Parasites
 Bacteria & Viruses
 Chloramines
 Partial removal of calcium
*WORK CITY/TOWN WATER.
Maintenance: Replacement filters are recommended to be changed every 18 months. However, replacement frequency depends of
water quality and usage.
Version
Price
20” x 4.5” Standard Replacement Filters
$250
*Prices are valid from the 01/11/2021 to 01/03/2022.
Water Filters Pty Ltd reserves the right to change pricing at any time without notice.
Filter Casing/Housing Sump
20” x 4.5” high virgin polypropylene filter housing
with ABS caps and reinforced brass ports for
maximum durability.
*WORK FOR HIGH WATER PRESSURES.
Maintenance: Filter housings are recommended to be changed every 10 years. However, replacement frequency can vary if filter
housings have been dropped or are directly/indirectly exposed to the sun.
Version
Price
20” x 4.5” Water Filter Housing Sump
$199
*Prices are valid from the 01/11/2021 to 01/03/2022.
Water Filters Pty Ltd reserves the right to change pricing at any time without notice.

Whole House Water Filtration System
Product Code: SYS-203-WAWF
Page 10 of 13
Stainless Steel/Glass Pressure Gauges
Read the water pressure of the outgoing and
incoming water for easy monitoring.
Version
Price
Stainless Steel/Glass Pressure Gauge
$35
*Prices are valid from the 01/11/2021 to 01/03/2022.
Water Filters Pty Ltd reserves the right to change pricing at any time without notice.
Big Blue Spanner
Opening tool to tight and loose the filter housing for
easy service and maintenance.
Version
Price
Big Blue Housing Spanner
$15
*Prices are valid from the 01/11/2021 to 01/03/2022.
Water Filters Pty Ltd reserves the right to change pricing at any time without notice.
Housing Sump O-Rings
Set of 2 O-rings for Housing Sumps. The seal rings are
made of high-quality rubber. They are light weight,
soft and flexible, and offer a long service life. They
can be used with all food grade lubricants to help
you keep the water filter leak free.
Maintenance: O-rings are recommended to be changed every 2-3 years. However, after every service it is recommended to remove,
clean and grease the o-rings and o-ring grooves, and bezel threading as often as required to ensure a good seal and to give you
peace of mind.
Version
Price
4.5” B.B O-ring Set
$20
*Prices are valid from the 01/11/2021 to 01/03/2022.
Water Filters Pty Ltd reserves the right to change pricing at any time without notice.

Whole House Water Filtration System
Product Code: SYS-203-WAWF
Page 11 of 13
Pressure Relief Button
Set of 2 pressure relief buttons. Provide pressure relief
for easier changing of cartridges.
Version
Price
Pressure Relief Button Set
$10
*Prices are valid from the 01/11/2021 to 01/03/2022.
Water Filters Pty Ltd reserves the right to change pricing at any time without notice.
1/4” Plug for Gauge Hole
Set of 2 plugs/stopper for ¼” NPT pressure gauge hole
in housing cap.
Version
Price
1/4” Plug for Gauge Hole
$10
*Prices are valid from the 01/11/2021 to 01/03/2022.
Water Filters Pty Ltd reserves the right to change pricing at any time without notice.
PERFORMANCE DATA SHEET
PRODUCT CODE: CB-2045-5-WAWF
CARBON FILTER
Micron Rating
>98% @ 5 μm
Filter Dimensions
20” x 4.5”
Chlorine Reduction >95%
100,000 gallons @ 15 gpm
Initial _P
>5.0 psid @15 gpm
Carbon Type
Activated Carbon
NOTES: CHLORINE REDUCTION CAPACITY BASED ON LABORATORY TESTING CONDUCTED USING TEST PROTOCOL CONTAINED IN NSF STANDARD 42 .
PRODUCT CODE: SCB-2045-5-WAWF
SILVER IMPREGNATED CARBON FILTER
Micron Rating
>98% @ 5 μm
Filter Dimensions
20” x 4.5”
Chlorine Reduction >95%
100,000 gallons @ 15 gpm
Initial _P
>5.0 psid @15 gpm
Carbon Type
Activated Carbon
NOTES: CHLORINE REDUCTION CAPACITY BASED ON LABORATORY TESTING CONDUCTED USING TEST PROTOCOL CONTAINED IN NSF STANDARD 42 .

Whole House Water Filtration System
Product Code: SYS-203-WAWF
Page 12 of 13
PRODUCT CODE: ARA-2045-WAWF
ARAGON FILTER
Micron Rating
>99.999% @2 μm
Filter Dimensions
20” x 4.5”
Suspended impurities (rust, sand, algae, other particles) over
5 µm
100%
Heavy and radioactive metals (lead, cadmium, copper,
strontium-90, caesium)
>99%
Active chlorine
>100%
Organic compounds
>92%
Hardness salts
>85%
Microorganism and coliform bacillus
>99%
Hepatitis A virus, rotaviruses and Noroviruses
>99%
Capacity
60,000 L @0.3 mg/l of iron
300,000 L @0.06 mg/l of iron
* DEPENDS ON CONTAMINATION DEGREE OF INITIAL WATER
** GIVEN THE IRON CONTENT OF WATER UP TO 0.3 MG/L WITH CONSIDERATION FOR REGENERATION
*** AT HARDNESS UP TO 3 MG-EQ/L WITH CONSIDERATION FOR REGENERATION
This is confirmed by:
•Certified by Institut Pasteur de Lille (France)
•Certified by S.M Kirov Military Medical Academy (Russia)
•Certified by The Research Institute of Influenza (Russia)
•Certified by V.G Khlopin Radium Institute (Russia)
•Certified by The Research Institute of Epidemiology and Microbiology (Russia)
•Certified by IFTS (France)
•Certified by IAPMO (United States)
•Certified by University of Ferrara (Italy)
In accordance with the test report based on the filtration of the artificially contaminated ultra-clean water, the GEYSER ARAGON BIO
filters are capable to remove the bacterial and viral contamination with the following parameters:
•Legionella pneumobilia, Serogroup 1 (CIP 103854): mean removal efficiency 99.99987 % (5.9 log)
•Salmonella Typhimurium (ATCC 14028): mean removal efficiency 99.998 % (4.8 log)
•Poliovirus, Sabin Strain of Type 1: mean removal efficiency 99.84 % (2.8 log)
•Rotavirus, Simiens Strain SA114F1: mean removal efficiency 99.99 % (4.0 log)
•Hepatitis A virus, Strain HM175/18f (ATCC VR-1402): mean removal efficiency 96 % (1.4 log)

Whole House Water Filtration System
Product Code: SYS-203-WAWF
Page 13 of 13
NOTES
AquaCo water care products are designed, manufactured and supported by Water Filters Pty Ltd the name you can trust for viable
and proven water solutions. The complete range of AquaCo products are developed, refined, made to meet and exceed stringent
specifications for the worldwide market.
Important: Sales of products are subject to our Terms and Conditions which are available upon request. All specifications,
information and photos are a guide only and are subject to change without notice. Please ring to confirm details. Warning: For
correct operation of this appliance it is essential to observe manufacturer’s instructions.
WARRANTY
Any claim under this warranty must be made within 5 years of the date of purchase of the product. This product is warranted to be
free of defect of material and workmanship for 5 years from date of purchase. 5 year warranty is 1 year parts and labour, plus 4
years parts only.
To make a claim under the warranty, take the product and proof of purchase to place where you purchased the product, and they
will lodge a Warranty Request with AquaCo.
AquaCo will pay your reasonable, direct expenses of claiming under this warranty. You may submit details and proof of your expense
claim to place of purchase for consideration.
The warranty only applies if the product was used and/or installed in accordance with the user guide and/ or installation
instructions. This warranty is given in lieu of all other express or implied warranties and manufacturer shall in no circumstance be
held liable for damages consequential or otherwise or delays caused or faulty manufacturing except as excluded by law.
Applicable to all above, is that the Warranties need to be approved by AquaCo to ensure product was not incorrectly used, installed
or claimed. False and incorrect claims will be pursued at AquaCo’s discretion, including chargeable inspection and labour costs
incurred.
All installation and service work should be completed by qualified tradespeople. Faulty operation due to unqualified persons will
result in voided warranty coverage.
Use PTFE thread seal tape on all connections. Use of liquid pipe sealant/dope will void warranty.
Warranty/Australia
This warranty is given by Water Filters Pty Ltd, ABN 68618671677, telephone no. 08 6156 0220 and email at
[e-mail].
This warranty is provided in addition to other rights and remedies you have under law: Our goods come with guarantees which
cannot be excluded under the Australian Consumer Law. You are entitled to replacement or refund for a major failure and to
compensation for other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the
goods fail to be of acceptable quality and the failure does not amount to a major failure.
