Aquadart Venturi 8 User manual

INSTALLATION INSTRUCTIONS
Slider
www.aquadart.co.uk
Tools Required
8
PH2 TYPE
2.75

Box Contents

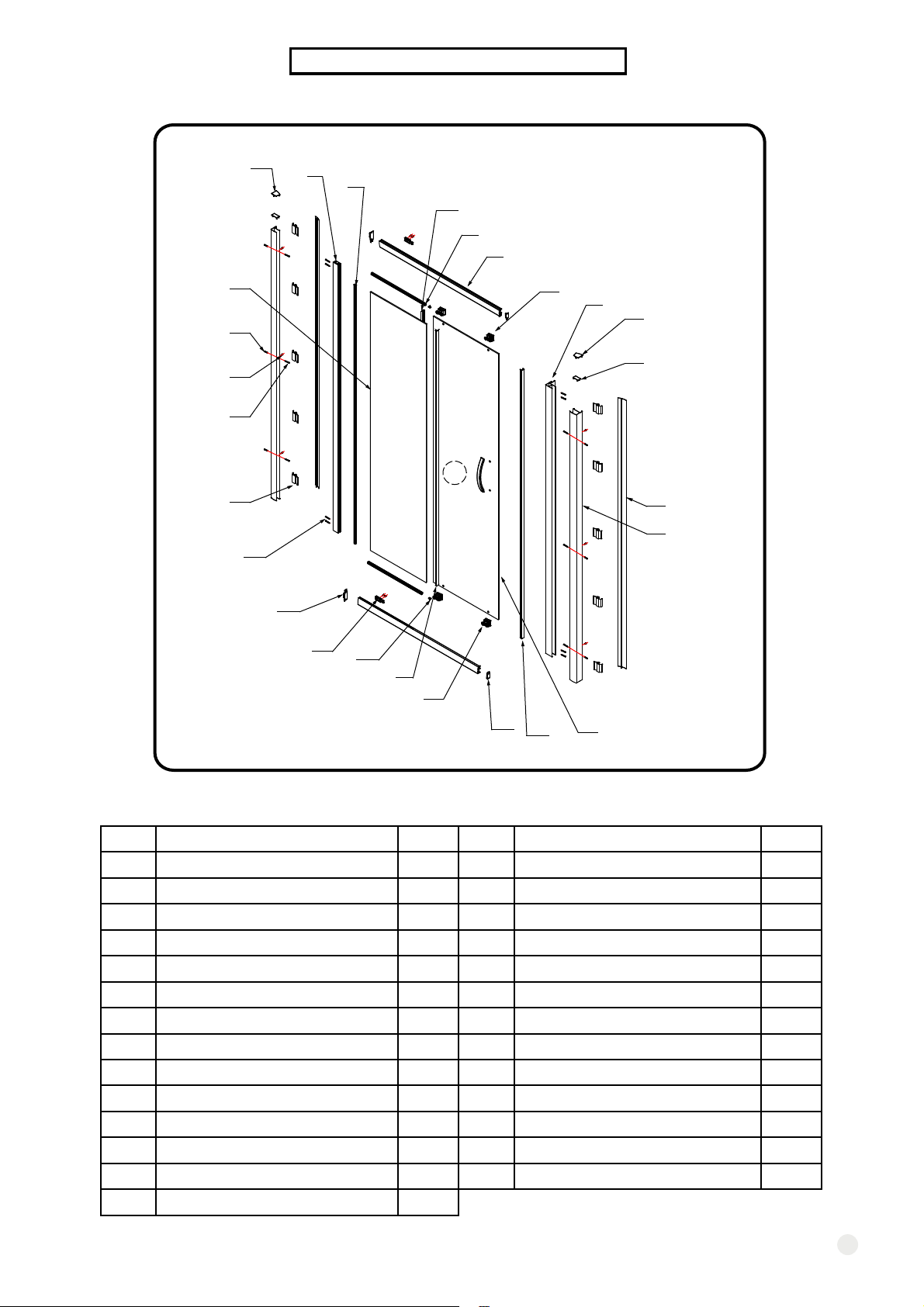

COMPONENTS AND BOX CONTENTS
2
SN
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Description Qty
Wall Profile
Cover Profile
Upright Profile
Horizontal Profile
Closing Profile
Seal
U Shape Seal
Door Seal
Upright Profile Cap
Wall Profile Cap-L
Wall Profile Cap-R
Upright Seal-6-14.5 mm
Upright Seal-8-16.5 mm
Horizontal Profile Cap-L
2
2
1
1
2
2
1
1
1
1
2
1
1
1 SET
SN
Description Qty
15
17
18
19
20
21
16
22
23
24
25
26
27
Glass Clip
Soft Closing Buffer
Profile Clip
Top Roller
Bottom Roller
Handle
Wall Plug
Screw ST3.5x10
Screw ST3.5x40
Screw ST4x45
Side Glass Panel
Moving Glass Panel
Horizontal Profile Cap-R
2
10
2
2
1
6
10
6
8
1
1
1SET
1SET
1
2
3
4
5
6
7
8
9
10
11
13
12
14
16
17
18
19
20
21
22
23
25
24
26
27
15

IMPORTANT - Missing Components
Please check this product for missing components prior to installation.
For spare parts visit www.aquadart.co.uk
IMPORTANT - Installation site
1. Ensure the top surface of the shower tray on which the enclosure will be installed is level in every direction.
2. The tiles or other wall finishing should be effectively sealed at tray edges.
3. Tiles should extend at least to the corner of the tray and a minimum of 1.9 meters from the top of the tray.
FIXING KIT COMPONENTS, SITE CONDITIONS
FIXING KIT
3
Wall Profile Cap
× 2
Wall Plug
6 pcs
Screw
ST4x45
6 pcs
Screw
ST3.5x45
8 pcs
Screw
3.5x10
10 pcs
Upright Profile Cap
× 2
Glass Clip
x 2
Cover Cap
x 2
Profile Clip
x 10
Handle × 1
Outside Handle × 1
Screw Cap × 2
Washer × 4
Countersunk Screw × 2
M5×16
Venturi Handle
Inside Handle × 1
Horizontal Profile Cap-L
× 2
Horizontal Profile Cap-R
× 2
Soft Closing Buffer
X2
Top Roller
x 2
Bottom Roller
x 2

4
INSTALLATION INSTRUCTIONS
Slider
2C

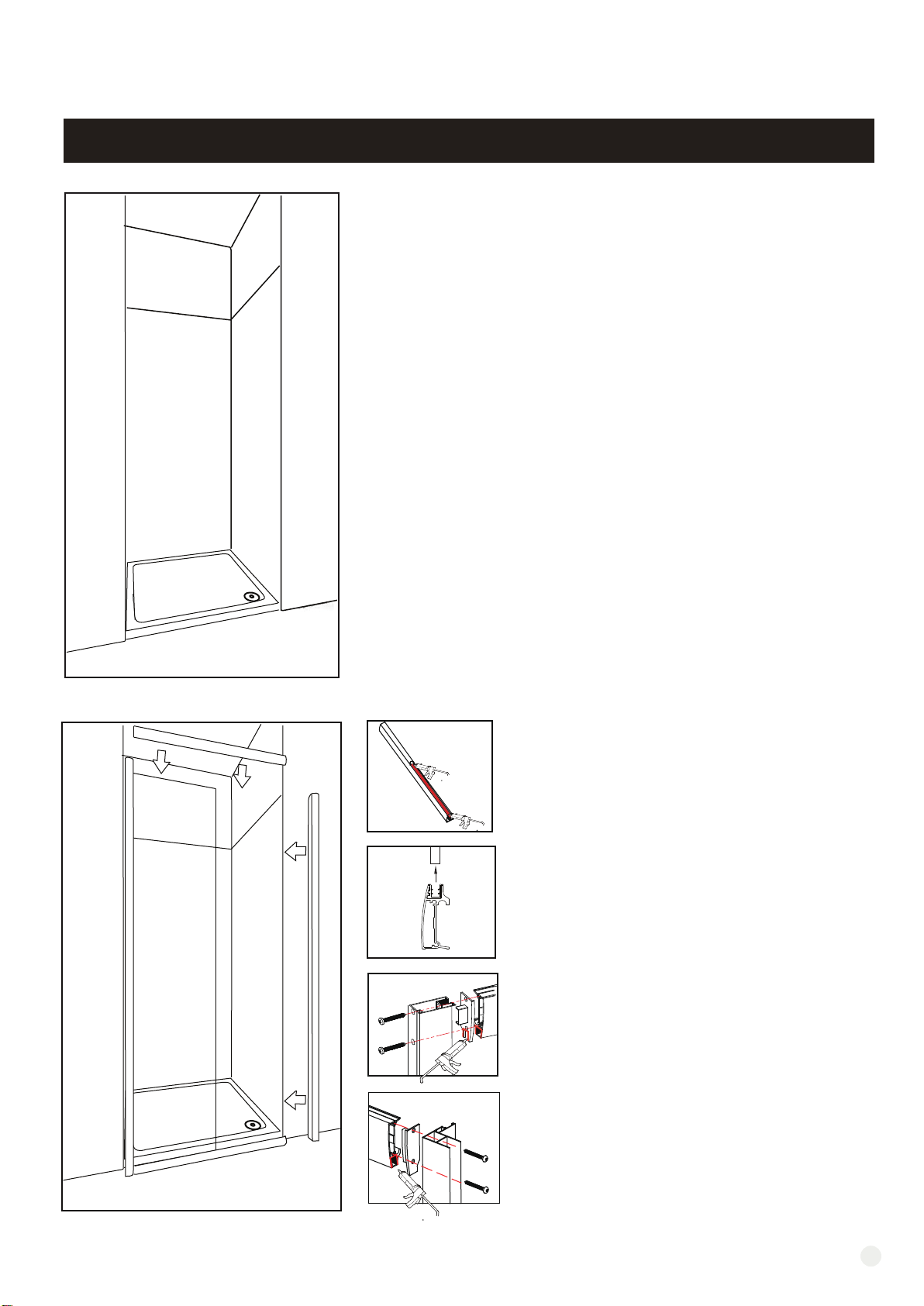

1 - Install the shower tray following the tray
installation guide.
Inside enclosure
Outside enclosure
2a - Drop the silicone into the groove
of the raill profile along with the pre-fitted
seal,then push 1x horizontal rail onto the
bottom of the fixed panel.
2b – Insert the horizontal profile cap
( leftand right ) then fix the pieces together
using 2 x ST3.5 x 45 fixing screws through
the metal profile of the fixed panels and into
the end of the horizontal rail. (Note: Put a little bit
of silicone in the corner of the profile cap and
the horizontal profile as the diagram shown).
Once this is done repeat for the top horizontal rail.
2c – Then fix the closing profile to the top and
bottom rail in the same way. Ensure that the closing
profile faces the correct direction as illustrated.
2a
2a
2b
2
1

5
INSTALLATION INSTRUCTIONS
Slider
3

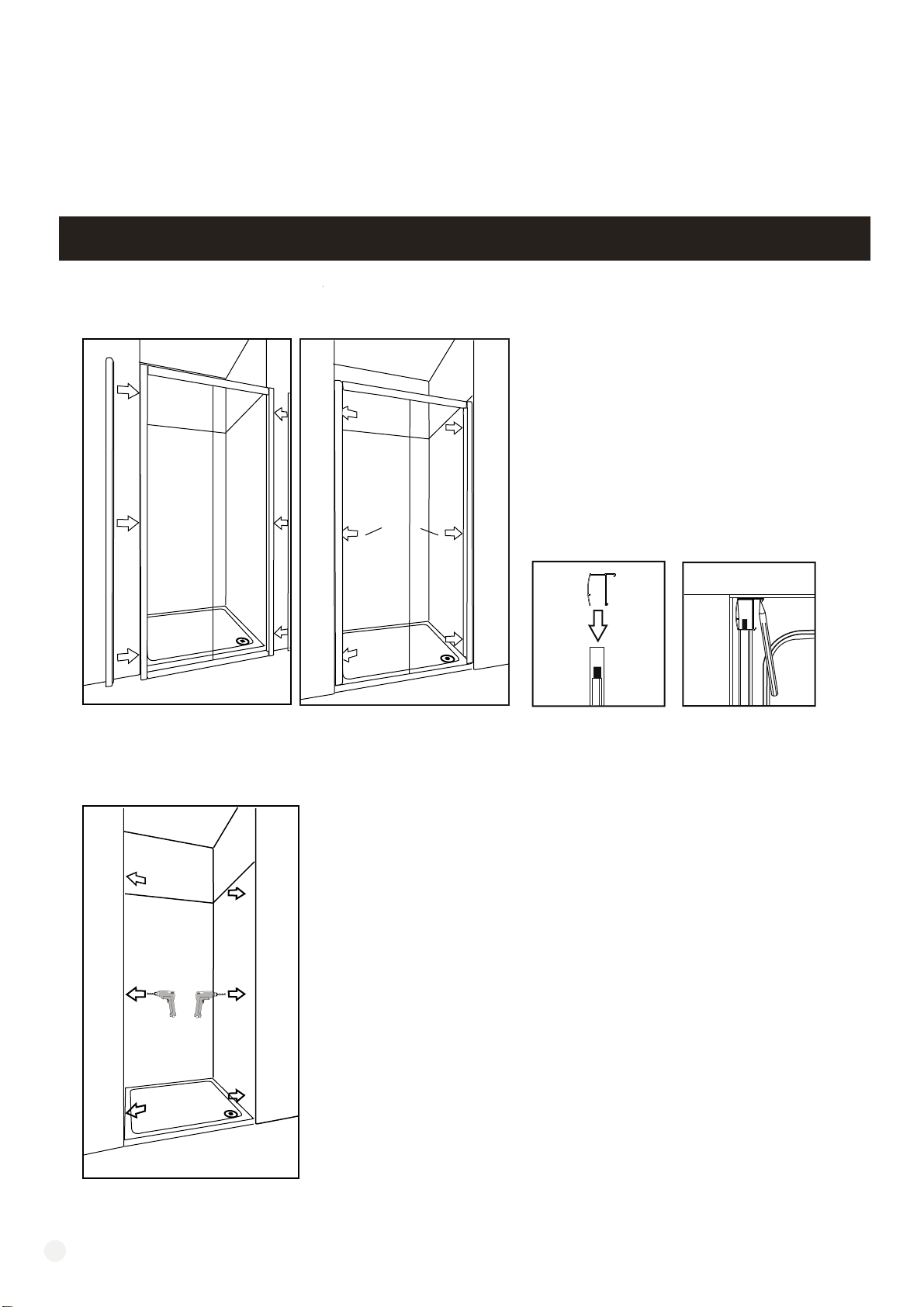

3 - Push the wall channels onto the edges
of
the assembly as illustrated and then
position
the assembly onto the shower tray
as shown
(roughly 10mm from the front of
the tray).
Level the wall channels using a spirit level
and mark the 3 pre-drilled screw points
through each of the wall channels onto the
wall.
NOTE: you may find it easier to mark and
drill the wall if you apply masking tape to it
first.
Inside enclosure
Outside enclosure
4 - Remove the assembly and drill the
marked points using a 8mm masonry drill
bit, once this is done insert 6 x wall plugs
into the holes.
4

6
INSTALLATION INSTRUCTIONS
Slider
5

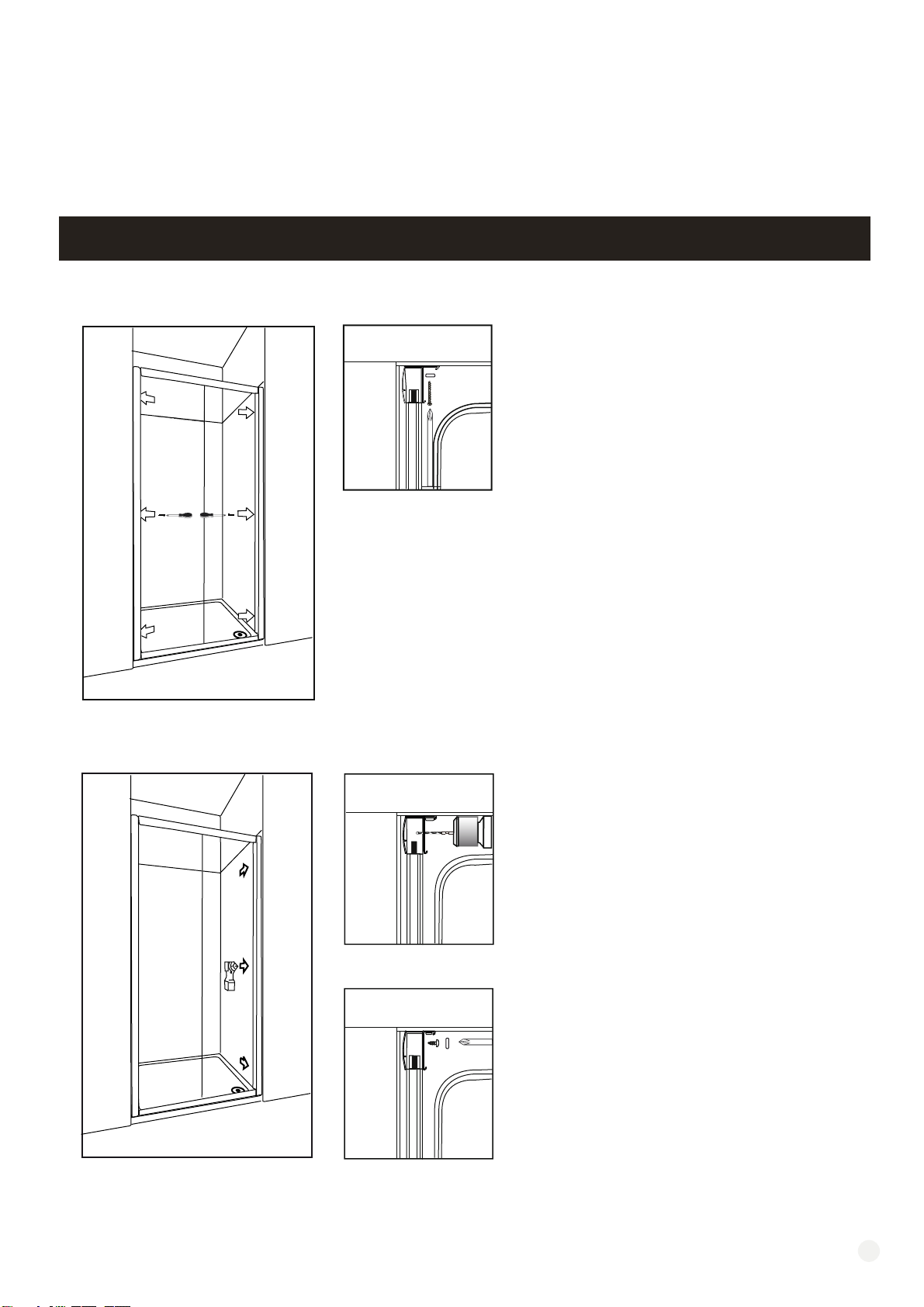

5 - Reposition the assembly and fix the wall
channels to the wall using 6 x ST4x45 long
screws (3 per channel).
6
6 - Whilst using the available play to ensure
that the assembly is central between the wall
channels and held against the shower
tray at
the bottom fix the assembly to the
wall chan-
nels by drilling through the pre
drilled holes
in the wall channels into the
profiles using a
2.75mm metal drill bit . Then
secure using
6xST3.5x10 short Screws (3 per
wall channel).

7
INSTALLATION INSTRUCTIONS
Slider
Inside enclosure
Outside enclosure

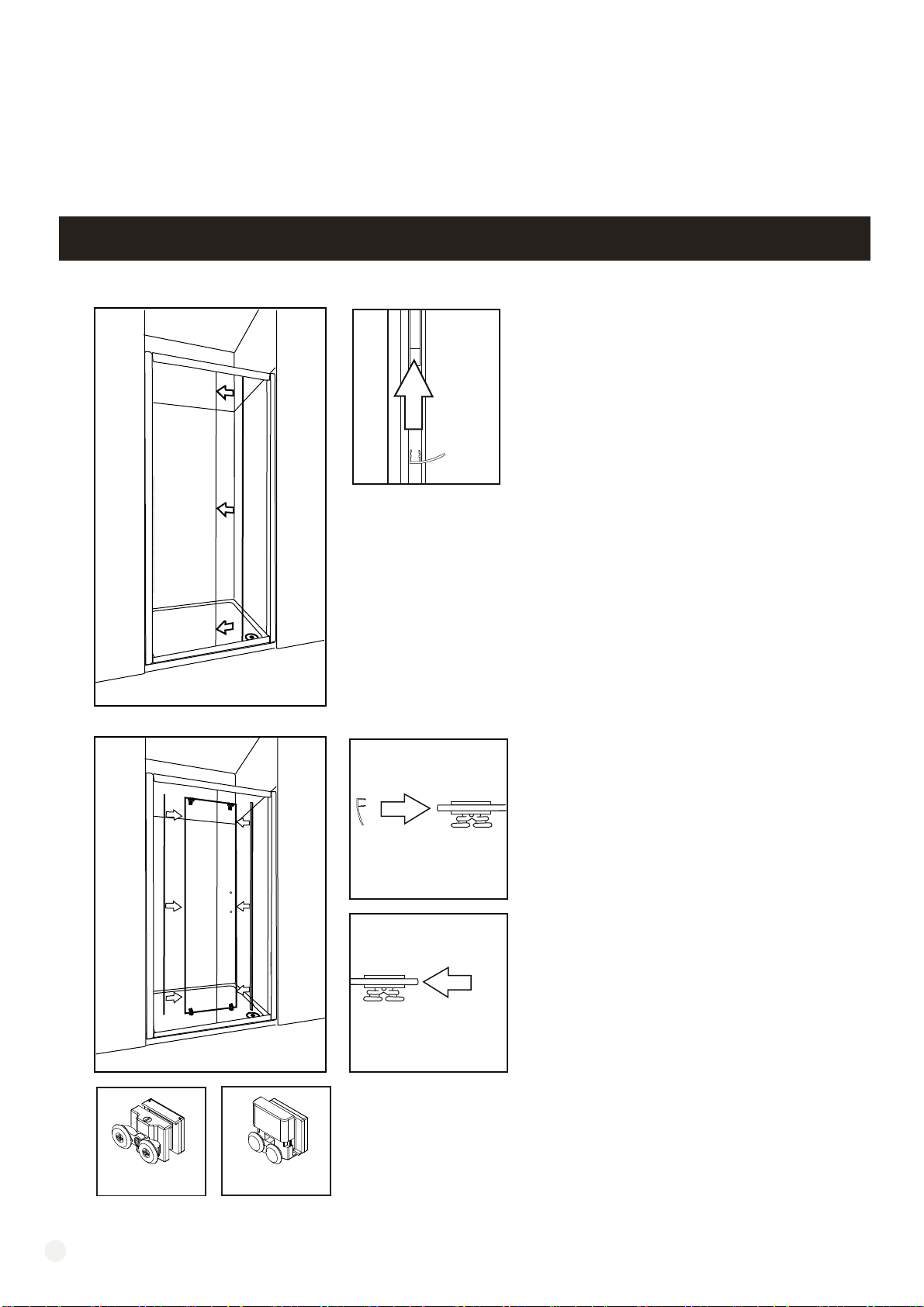

7 - Push the shorter of the 2 water seals
onto the exposed glass edges of the fixed
panels, the flap should face into the shower
as illustrated.
NOTE: If both water seals are the same size
then some trimming may be required.
7
8
8 - Fit the rollers to the door. Ensure that the
wheels of the rollers are facing away from the
enclosure. Ensure the top rollers are fixed to
the top of the door and the bottom rollers are
fixed to the bottom of the door.
Attach the handle making sure that the rubber
washers that come with the handle are placed
between the handles and the glass.
The next step is to push the longer water seal
onto the edge of the door furthest from
the
handle (the flap should face out of the enclo-
sure).
Then push the magnet plastic extrusion onto
the edge closest to the handle.
Inside enclosure
Outside enclosure
Inside enclosure
Outside enclosure
Top Roller Bottom Roller

8
INSTALLATION INSTRUCTIONS
Slider
If the wheels do not fit into the profile , the
door can be lowered by adjusting the top
runners . The bottom runners are also
9 - Once the door is ready it needs to be
hung in the enclosure , start by lifting the
door up and guiding the top support wheels
into the top horizontal profile , then using the
quick release mechanism on the bottom
wheels guide them into the bottom horizontal
profile as shown.
9
adjustable.
10 - Once you are happy that the installation
is correct and that the door is running smo-
othly , push the cover caps onto the edges
and tops of the wall channel as shown ,
( smaller top cap first followed by the larger
wall channel top cap and then the wall chan-
nels snap on cover) then silicone the outside
of the enclosure where the metal profiles
meet the wall and the tray.
10
Do not use the enclosure for 24 hours.
To finally seal the installation, plug the small
holes at the end of the fixed panel glass with
a dab of silicone and insert the glass clips as
illustrated.

AFTERCARE
This product has been treated with Clean & Clear
TM
easy clean glass treatment, a protective barrier which creates
a ‘non-stick’ surface on your glass, helping to resist lime scale build up and water spots. For further information on
Clean & Clear please visit
Aftercare
Clean & Clear glass can be cleaned with any suitable nonabrasive glass cleaner - with PH value of between 3-
11; the coating wi ll not be damaged. Avoid surfactants and heavily perfumed products. Vinegar and water based
products are very effective. Do not use abrasive scrubbing cleaners or equipment for cleaning.
Warranty
Limited 5 year Warranty for Clean & Clear treatment: To guarantee treated surfaces will remain more repellent
than untreated glass for 5 years from start of use, as long as basic manufacturer maintenance recommendations
are foll ow ed and no harsh or abrasive cleaners are used.
Aftercare & Reapplication Kit
To continue the benefits of the Clean & Clear glass treatment an aftercare & reapplication kit is available at
Cleaning Instructions
It is important to clean your Aquadart shower enclosure after every use. Please wipe down all glass and metal
with a clean soft cloth. Ensure that all residual water on the glass is removed after every use.
Usage
For reliable, watertight performance from your Aquadart enclosure your shower head should not be positioned so
the shower sprays directly onto the enclosure door. Failure to comply with this may cause the shower to leak.
Outward opening doors may cause water to drip onto the floor, please ensure that the floor covering immediately
outside the enclosure will not be affected by water.
AQUADART PRODUCTS
North Dean Road, West Yorkshire,Keighley, BD22 6QY
parts
that
TM
www.aquadart.co.uk
TM
TM
TM
www.aquadart.co.uk
For technical / aftersales queries , please visit our website : www.aquadart.co.uk
or Sales Tel : [phone] Fax : [phone] Technical : 01535 613860
