AQUAESTIL VENUS D+D User manual

Upute za ugradnju
Installation Manual
Bags with components for the assembly
mod. VENUS D + D
Important notes
Although the material used in the construction of our products is
of the highest quality, they may be damaged by certain chemical
agents such as acetone or solvents in general.
During installation, it is advisable to protect the surfaces of the
product (such as the shower tray) using cardboard.
The shower box must be installed by qualifiedpersonnel.
The manufacturer declines all liability for damage or injury
to person or things caused by incorrect installation.
Važno
Iako je materijal koji se koristi u proizvodnji najbolje
kvalitete, može se oštetiti uporabom određenih
kemikalija, kao što su aceton i razgrađivači općenito.
Tijekom ugradnje, preporučuje se zaštiti proizvod (na
primjer tuš kadu) kartonom.
Tuš kabinu moraju ugraditi za to ovlaštene osobe.
Proizvođač ne odgovara za štetu ili ozljede osoba ili
stvari nastale nepravilnom ugradnjom.
Vrečica s dijelovima za montažu kabine
FAZA 3
PHASE 3

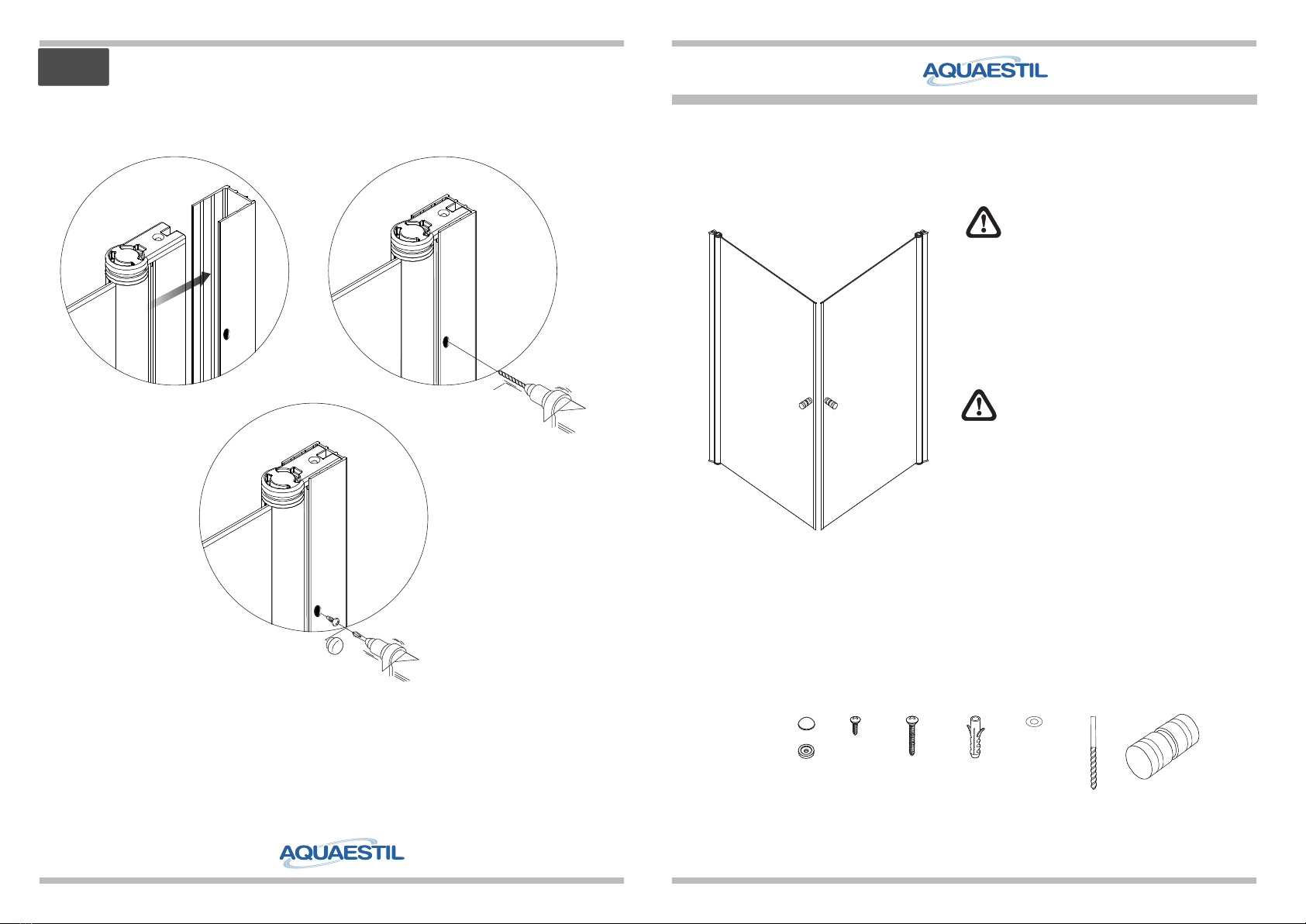

Montaža panela Fitting the panel
On the inside part of the shower cabin, bore the profiles with
3mm Ø drill. Block by using screws, rings and plugs.
Na unutarnjem dijelu tuš kabine probušite rupe fi 3 mm
bušilicom. Učvrstite pomoću vijaka, prstenova i čepova.
6x 6x 6x 6x 6x 1x
3,5 x 13
3,5 x 32
2 x
A
B
Ø 3mm
C

Fitting the compensation profile
strip
Position the compensation profile strip against the wall and
use a spirit level to check that it is vertical. Mark the positions of
the holes to be drilled in the wall through the holes pre-drilled in
the strip.
Remove the compensation profile strip, drill the holes and insert
the wall plugs. Apply a layer of silicone to the profile strip,
insert the internal section of the strip and secure both to the
wall using the screws.
Postavljanje zidnog profila
Naslonite profil uza zid i libelom provjerite da je
vertikalno postavljen. Označite mjesta za bušenje na
zidu pomoću rupa već izbušenih na profilu.
Odmaknite profil, izbušite rupe u zidu i stavite tiple.
Nanesite sloj silikonskog kita na zadnju stranu
profila, postavite ga na zid i učvrstite vijcima.
FAZA 1
PHASE 1
FAZA 2
PHASE 2
Ø 6mm
10 mm
Brtve
Gasket
Brtve
Gasket
A
BB
