Aquafine RBE Series User manual

This manual covers the preliminary installation, operation and general
maintenance requirements for Aquafine Ultraviolet Water Treatment
Equipment for the following applications:
• Disinfection
• Ozone
• TOC Reduction
• Chlorine/Chloramine Destruction
It is imperative that those responsible for the installation of this equipment,
as well as operating personnel, read this manual and carefully follow all
instructions and guidelines.
EQEQ
EQEQ
EQUIPMENT OPERAUIPMENT OPERA
UIPMENT OPERAUIPMENT OPERA
UIPMENT OPERATT
TT
TORSORS
ORSORS
ORS AND INSTAND INST
AND INSTAND INST
AND INSTALLERSALLERS
ALLERSALLERS
ALLERS
MUST COMPLMUST COMPL
MUST COMPLMUST COMPL
MUST COMPLYY
YY
Y WITH OPERAWITH OPERA
WITH OPERAWITH OPERA
WITH OPERATIONTION
TIONTION
TIONAL SAFETY REQAL SAFETY REQ
AL SAFETY REQAL SAFETY REQ
AL SAFETY REQUIREMENTSUIREMENTS
UIREMENTSUIREMENTS
UIREMENTS..
..
.
Aquafine Corporation builds the finest quality ultraviolet equipment in the
world. When properly installed and operated, Aquafine ultraviolet
treatment units will provide many years of service.
Installation,
Maintenance and
Operation Manual
RBE Series
READ THIS MANUAL
PLEASE KEEP FOR PERMANENT REFERENCE
Part No. 115-2, Revised 6/01, v. 1.1

2
Installation and Operational Safety .................. 3
Description of Equipment
RBE Series ............................................................ 4
Warranty Information ....................................4-5
Unit Installation
Where to Install the Unit ...................................... 6
How to Protect Your Unit ..................................... 6
Hot Water Sanitization .......................................... 6
Operating Pressure ................................................ 6
Removing the Plastic Dowel(s) ............................ 6
Intermittent Operating Requirements ................... 6
Special Requirements for Ultrapure Water ........... 7
Wiring the Unit ..................................................... 7
Installing the Quartz Sleeves
SE, DE and HT units ............................................ 8-9
USD-RBE Series units only ................................... 10
Installing the UV Lamps
Single-Ended (SE) Lamp Design ........................... 11
Double-Ended(DE) Lamp Design......................... 12
High-Temperature (HT) Unit Design ..................... 13
USD-RBE Series units only ................................... 14
Powering Up the Ultraviolet (UV) Unit .......... 15
Monitoring Devices
UV Lamp Operational Display Panel ................. 16
Running Time Meter ........................................... 16
S-254 UV Optical Sensor ................................... 17
Setting The UV Monitor .........................................17
Alarm Contacts .......................................................17
Sensor Alarm ..........................................................17
4-20 mA Sensor Signal Option ........................... 18
Temperature Safety Control Option ................... 18
Lamp Out Alert Indicator Option ....................... 18
Troubleshooting ................................................ 19
Maintenance Requirements ............................. 20
Cleaning the Unit ................................................ 20
LED Display Panel ............................................. 20
UV Lamp Replacement ...................................... 20
Quartz Sleeve Cleaning and Replacement .......... 20
Cleaning the Sensor Probe Window ..............20-21
Measuring Performance, Sampling .................... 21
Ballast Replacement ........................................... 22
Parts List ......................................................23-26
Electrical Diagram,
General Assembly Drawing and
Warranty Registration Card ........... Back Pocket
Refer to this nameplate sticker on your
unit when ordering parts or service.

3
DO NOT LOOK
AT UV LIGHT
8.Do not allow the unit to overheat by operating
without water flow. Normal operating temperature
for standard UV units is 50° to 100°F (10°- 38°C).
For high-temperature units, normal operating
temperature is 50° to 150°F (10°- 66°C).
9. If the inlet water temperature exceeds 100°F (38°C),
contact the factory for assistance.
10. Do not allow the water temperature to drop below
35°F (2°C).
11. Do not allow the flow rate to exceed the maximum
rated capacity.
12. DO NOT ELECTRICALLY CYCLE THE UV
UNIT MORE THAN THREE (3) ON/OFF
CYCLES IN AN 24-HOUR PERIOD.
13. Before start up, flush the UV unit and discharge
piping to rinse out any debris left from installation.
This “Safety Issue” icon marks
all items relating to safety
issues. Please read and adhere
to these comments carefully.
safety requirements for
UV equipment
The following safety requirements
relate directly to operator safety. Please
review with all appropriate personnel to
ensure continuous compliance.
These safety requirements are
MANDATORY. Failure to carefully follow
these requirements can cause injury to
the operator and damage the UV unit.
1. Release the pressure in the UV treatment chamber
before attempting to remove the protective covers
and sealing items.
2. Disconnect all power to the UV unit before
servicing. The unit operates on high voltage and
should only be serviced by qualified personnel.
3. Do not look at the lighted blue ultraviolet lamps.
Do not operate the ultraviolet lamps outside of the
UV treatment chamber. Exposure can severely
burn and damage eyes and skin.
4. Supply the unit with the correct voltage and
frequency as indicated on the nameplate decal,
ensuring the unit is wired in accordance with local
electrical codes.
5. Properly ground the unit. Failure to comply may
result in severe or fatal electrical shock.
6. Install the unit away from undue vibration that can
damage the electrical components and UV lamps.
7. Ensure all water connections (flanges and compres-
sion nuts) are tightly sealed before applying
pressure to the UV unit. Do not stand in a direct
line with the endplate when inspecting for water
leaks; observe from the front or back.

4
To maintain your UV units warranty, please complete
and return the Warranty Registration Card located in
the back pocket of this manual.
The following installation and operating conditions are
considered hazardous or damaging to the equipment and
can compromise the ability of the Aquafine unit to
perform as intended.
ANY OF THE FOLLOWING CONDITIONS WILL
VOID THE EQUIPMENT WARRANTY:
1. Failure to connect proper electrical service to unit.
2. Failure to properly ground the unit.
3. Failure to eliminate excessive vibration, piping
movement, or water hammer.
4. Failure to exercise caution in the handling of the
sensitive and delicate components (such as lamps,
quartz sleeves, electronic boards, etc.) during
installation and/or maintenance procedures.
5. Failure to avoid excessive stops and starts. Not more
than three (3) on/off cycles per 24 hours of operation.
6. Operation of visibly damaged equipment.
7. Failure to avoid undue overhead piping stress
which can result in structural damage to the UV
unit. Limit the load to 50 lbs (22.7 kg) per flange.
8. Use of components other than those provided or
authorized by Aquafine.
9. Failure to correct overhead piping connection leaks
or compression nut seal leaks which result in
damage to the electrical components.
10. Operating the unit without water flow.
RBE series
The models in this series contain all electrical compo-
nents in a Remote Electrical Enclosure. This is ideal for
applications where the treatment chamber is outdoors or
subject to washdown, etc. All electrical service and
instrument monitoring can be done at the remote site.
The Remote Electrical Enclosure contains various
electrical components, circuit boards, and all
instrumentation. It is connected to the treatment
chamber via a flexible, watertight electrical cable.
treatment chamber
The UV treatment chamber is comprised of one or more
multi-lamp cylinders. On either end are gasketed end
plates which contain the stainless steel nipples and the
lamp socket retainer assemblies.
Inside each cylinder is a helical baffle that prevents
laminar flow and maximizes the unit’s performance.
The quartz sleeves fit inside the UV treatment chamber
through the holes in the helical baffle. The lamps fit
inside the quartz sleeves. The lamp sockets connect to
the lamps, providing a waterproof seal and a vibration-
proof grip. The socket covers on either end of the
chamber protect the lamp sockets and lamp socket
assemblies.

5
more
Aquafine equipment is guaranteed to be free from
defects in materials and workmanship (excluding
ultraviolet lamps) for a period of one year from the
date of purchase. Any part suspected of being
defective should be returned prepaid to Aquafine
Corporation. If upon our inspection, the part(s)
proves to be defective, it will be replaced or repaired
(our option) and returned to sender prepaid.
Before returning any part, contact Aquafine
Corporation for return authorization and shipping
instructions. This guarantee is void if the equipment
has not been installed and maintained in accordance
with instructions. This guarantee is in lieu of all other
warranties, expressed or implied.
To keep your warranty valid and to ensure peak
performance, fill out and return your warranty
registration card (located in the back pocket of
this manual) and use only genuine Aquafine
replacement parts.
WARRANTY

6
operating pressure
Standard units are rated for a maximum operating
pressure of 120 psig (8.24 bar).
If your unit has the High Pressure Modification option
(model number suffix “HP”) operating pressure may
increase to 150 psig (10.34 bar).
hot water sanitization
For hot water sanitization (temperatures exceeding
170°F (77°C) up to a maximum of 194°F (90°C)), it is
recommended that stainless steel compression nuts be
used in place of CPVC compression nuts. During hot
water sanitization the S-254 sensor element must be
removed. The selection of the elastomers should be
considered.
remove the plastic dowel(s)
A plastic dowel is placed inside the UV treatment
chamber to secure the baffle during shipping. The 30”
units have one dowel on the left side only and the 60”
units have two dowels -- one on each side.
Remove the compression nut in the twelve o’clock position on
the left side of the UV treatment chamber. Remove and
discard the plastic dowel. Replace the compression nut. You
can then proceed with the installation of the quartz sleeves.
where to install the unit
Install the UV treatment unit in a horizontal position in
a sheltered area with ample ventilation. Ambient
temperatures surrounding the unit should be between
35oF (2oC) and 110oF (43oC). Should your requirements
differ, contact the factory for assistance.
As an ultraviolet UV treatment unit does not introduce
any chemical residue within the water, it is desirable to
install the unit as close as possible to the point-of-use in
order to avoid potential recontamination by discharge
pipes, fittings, etc. The base of the UV treatment unit
should be mounted on suitable support to avoid undue
strain on the unit or your related pipes and fittings.
Allow sufficient service access clearance. In making
your plumbing connections, provide unions, valves,
bypass and drain.
how to protect your unit
The location should be free from undue vibration which
could be caused by proximity to heavy equipment,
erratic or improper pumps. Excessive vibration will
damage internal electrical components and cause
premature failure of the UV lamps.
Limit overhead piping load to 50 lbs (22.7 kg) per
flange. If your piping system is subject to impulse
pressure resulting in a “water hammer” condition, a
surge tank or other means must be provided to remove
this condition, otherwise the extreme momentary
pressure may rupture and fracture the quartz sleeves.
A parts check list was included when this unit
was shipped. Please refer to this list and note
that some parts are small and can be easily
overlooked when discarding packaging.
Depending on the size of the lamp being used, please allow at least
36 inches (92 cm) of clearance for 30-inch units or 72 inches (182
cm) of clearance for 60-inch units on the lamp-changing end of the
unit.

7
more
intermittent operation
Never operate the unit without water flow. Permanent
damage is caused to the UV lamps, electronic ballasts
and related components without water flow.
Operating the ultraviolet unit without water flow
through the chamber automatically voids the warranty.
If operated without water flow, the fluid within the
ultraviolet chamber will become hot causing the UV
lamps to lose effectiveness. The heat can permanently
damage the ultraviolet lamps, UV sensor, the lamp ballast
components and related instrumentation.
Should the unit be used for specific batch flow opera-
tions, it can be turned “On” and “Off” manually. Make
sure the unit is allowed to warm up for at least one
minute before use, and make sure the unit is turned
“Off” after each session. Do not exceed 3 on/off cycles
per 24 hour operation.
If you need help to determine the best method of operat-
ing your UV treatment unit under intermittent conditions,
contact your local representative or the factory.
An optional Temperature Safety Control Device is available
to prevent the overheating problems described above.
special piping requirements
for users of ultrapure water
Ultrapure water users have reported that over time,
exposure to ultraviolet light may photochemically
degrade nonmetallic piping materials, including most or
all fluoro-polymers, resulting in material breakdown
and/or structural failure.
Should your water application and piping material be so
classified, we recommend you install “UV light traps”
to isolate any such susceptible material from direct
exposure to the ultraviolet light. Install the UV light trap
to the inlet/outlet of the UV treatment chamber prior to
the connection of any nonmetallic materials. UV light
traps protect nonmetallic piping. Should you require any
additional assistance, please contact your local Aquafine
representative or the factory directly.
wiring the unit
Connect the liquid-tight flex conduit, which contains
the interconnecting wiring harness, into the remote electrical
enclosure through the liquid-tight connector which is
provided. Connect the wiring harness to the terminal block
starting with terminal block assembly A through terminal
block assembly B. (See Wiring Diagram in back pocket of
this manual.) Optional equipment connections are made on
terminal C. Terminal C blocks are included with optional
equipment.
Bring your incoming wiring to the 1/2-inch electrical
knockout in the bottom of the remote electrical enclosure.
Make connections to terminal blocks G, N and L. Terminal
block L is “hot”; N is “neutral”; and G is the “ground”.
Make sure your electrical service matches the specifications
on the electrical name plate decal on your unit. Locate an
“on/off” switch near the unit so the current may be turned off
for servicing.
GRGR
GRGR
GROUNDINGOUNDING
OUNDINGOUNDING
OUNDING
IT IS IMPERATIVE THAT THE UNIT BE PROPERLY
GROUNDED FOR SAFE AND PROPER OPERATION.
Failure to properly ground the UV treatment unit automati-
cally voids all equipment warranty.
UV performance is line voltage sensitive. Line voltage
should be +10% of rating shown on the electrical
nameplate decal. Voltage outside these limits can reduce
the performance of the UV equipment.

8
The procedures on this and the following page apply to
Double-Ended (DE), Single-Ended (SE) and High Tempera-
ture (HT) RBE units.

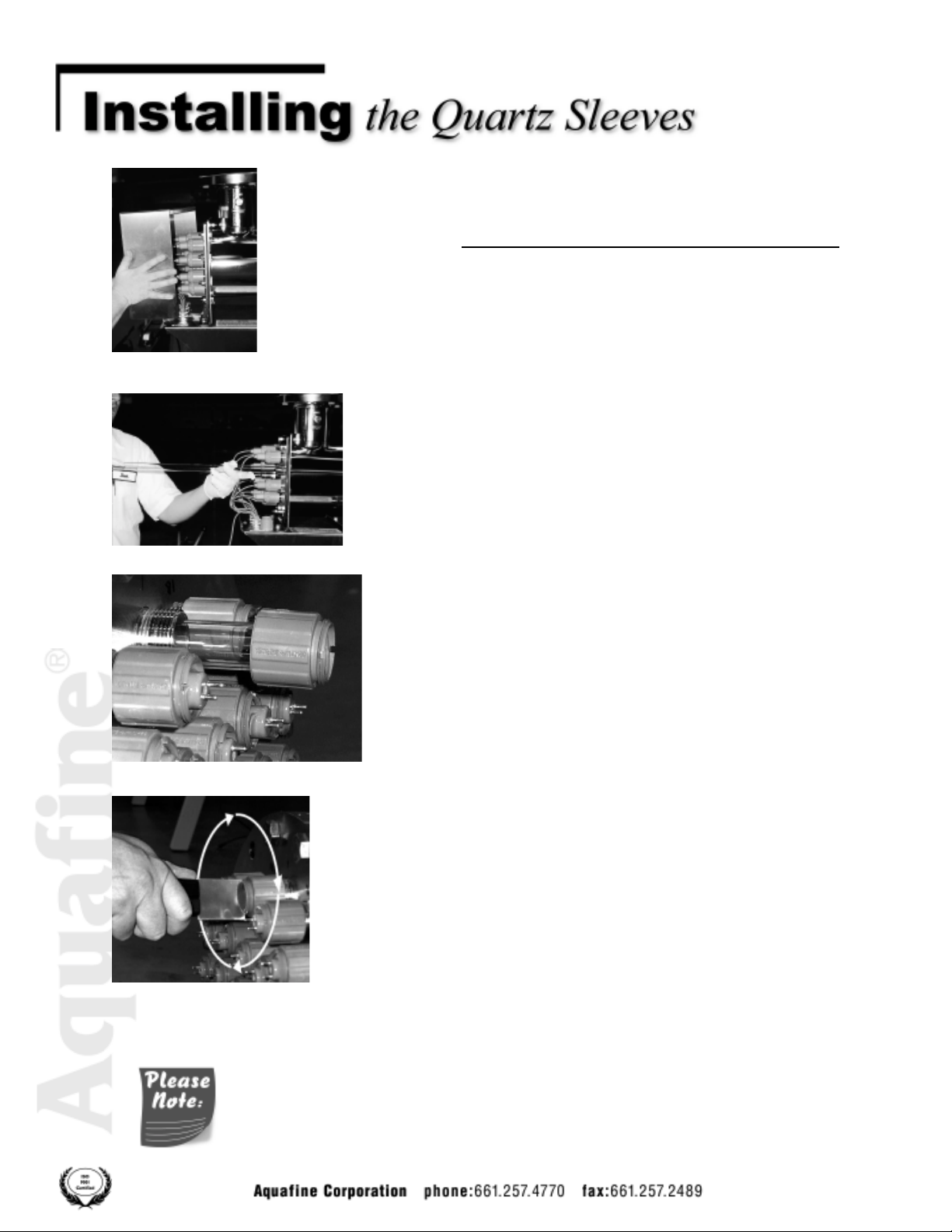

quartz sleeve installation
procedures for new equipment
The quartz sleeves designed for this unit are open
on both ends. For first time unit installations, follow these
quartz sleeve installation procedures:
1. Turn off all power to the unit.
2. Wear clean cotton gloves to prevent contamination of
the quartz sleeves.
3. Carefully remove each quartz sleeve from the factory
packaging. Handle these with care as they are fragile.
4. Visually inspect all quartz sleeves for cracks or other
damage. Do not install damaged quartz sleeves.
5. Remove the socket covers on the ends of the treat-
ment chamber.
6. For High-Temperature units, remove the alignment plate
from both ends of the unit.
7. Remove all compression nuts and any packaging
material from the end plate (if installed).
8. Place the end of the quartz sleeve into the threaded
nipple and slowly push the sleeve into the chamber
through to the second end plate. Repeat for all quartz
sleeves.
9. Install the compression nut and o-ring by placing the o-
ring into the internal relief of the compression nut below
the threaded area. The o-ring should fit into the com-
pression nut.
10. Place the compression nut and o-ring onto the end of the
quartz sleeve until the end of the quartz sleeve touches
the end of the compression nut. Some pushing and
twisting may be required. Deionized water may be used
as a lubricant.
11. Tighten the compression nut approximately 1/2 turn
after the threaded nipple and o-ring make contact.
12. Repeat this procedure for the second endplate.
13. Slowly pressurize the system and fill the chamber with
water to check for leaks.
14. If there are leaks in any compression nut assembly,
depressurize the system and use the compression nut tool
to slightly tighten the leaking compression nut assembly.
15. Retest until a leak-free installation is verified.
16. You are now ready to install the UV lamps.
Compression nut assembled on the quartz sleeve
Rotate compression nut clockwise onto the
threaded stainless nippled end plate with
compression nut tool
Place end of quartz sleeve into threaded nipple
Remove socket covers
Over tightening can break the
quartz sleeves or create leaks.

9
more
Over tightening can break the
quartz sleeves or create leaks.
Place end of quartz sleeve into threaded nipple
Remove socket covers
quartz sleeve replacement procedures
for existing equipment
The quartz sleeves designed for this unit are open on both ends. For
existing equipment, replace the quartz sleeves as follows:
1. Turn off all power to the unit.
2. Depressurize the system and drain the UV unit.
3. Remove the socket covers on the ends of the
treatment chamber.
4. For High-Temperature units, remove the alignment plate from both
ends of the unit.
5. Remove the existing lamp sockets and compression nuts from
the endplate.
6. Wear clean cotton gloves to prevent contamination of the quartz
sleeves and UV lamps.
7. Remove the existing UV lamps.
8. Remove the existing quartz sleeves.
9. Carefully remove each new quartz sleeve from the factory packag-
ing. Handle these with care as they are fragile.
10. Visually inspect all quartz sleeves for cracks or other damage. Do
not install damaged quartz sleeves.
11. Place the end of the quartz sleeve into the threaded nipple and
slowly push the sleeve into the chamber through to the second
endplate. Repeat for all quartz sleeves.
12. Install the compression nut and o-ring by placing the o-ring into the
internal relief of the compression nut below the threaded area. The
o-ring should fit into the compression nut.
13. Place the compression nut and o-ring onto the end of the quartz
sleeve until the end of the quartz sleeve touches the end of the
compression nut. Some pushing and twisting may be required.
Deionized water may be used as a lubricant.
14. Tighten the compression nut approximately 1/2 turn after the
threaded nipple and o-ring make contact.
15. Repeat this procedure for the second endplate.
16. Slowly repressurize the system and fill the treatment chamber with
water to check for leaks.
17. If there are leaks in any compression nut assembly, depressurize the
system and use the compression nut tool to slightly tighten the leaking
compression nut assembly.
18. Retest until a leak-free installation is verified.
19. You are now ready to install the UV lamps.
Rotate Compression Nut clockwise onto the
threaded stainless nippled end plate with
Compression Nut tool
Compression Nut assembled on the Quartz Sleeve

10
Quartz sleeve installation
Compression nut assembled on the quartz sleeve
Stainless socket & lamp end cover design
Compression Nut Tool - Rotate clockwise onto
the threaded stainless nippled end plate with
compression nut tool
USD-RBE Series units only
The quartz sleeves for this unit utilize a design that is open on one end and
closed on the other end. The closed end of the tube is inserted into the threaded
nipple and then through the baffle system in the chamber. Within the baffle,
Teflon bushings provide additional support to the quartz sleeves.
QQ
QQ
QUU
UU
UARAR
ARAR
ARTZ SLEEVE INSTTZ SLEEVE INST
TZ SLEEVE INSTTZ SLEEVE INST
TZ SLEEVE INSTALLAALLA
ALLAALLA
ALLATION PRTION PR
TION PRTION PR
TION PROCEDURESOCEDURES
OCEDURESOCEDURES
OCEDURES
For first time unit installations, follow these quartz sleeve
installation procedures:
1. Turn off all power to the unit.
2. Wear clean cotton gloves to prevent contamination of the quartz sleeves.
3. Carefully remove each quartz sleeve from the factory packaging.
Handle these with care as they are fragile.
4. Visually inspect all quartz sleeves for cracks or other damage. Do not
install damaged quartz sleeves.
5. Remove the socket covers on the ends of the treatment chamber.
6. Remove all compression nuts and any packaging material from the end
plate (if installed).
7. Place the closed end of the quartz sleeve into the threaded nipple and
slowly push the sleeve into the chamber. Some resistance may be felt
from the Teflon bushing.
8. Install the compression nut and o-ring by placing the o-ring into the
internal relief of the compression nut below the threaded area.
The o-ring should fit into the compression nut.
9. Place the compression nut and o-ring onto the end of the quartz sleeve until the
end of the quartz sleeve touches the end of the compression nut and hand tighten
until snug. Deionized water may be used as a lubricant.
10. Tighten the compression nut approximately 1/2 turn after the threaded
nipple and o-ring make contact.
11. Repeat this procedure for all quartz sleeves.
12. Slowly pressurize the system and fill the chamber with water to check for leaks.
13. When applicable, bleed the air from the UV treatment chamber by
opening the plug on top of the chamber. Replace with a suitable valve.
14. If there are leaks in any compression nut assembly, depressurize the system
and use the compression nut tool to slightly tighten the leaking compression
nut assembly.
15. Retest until a leak-free installation is verified.
16. You are now ready to install the UV lamps.
Over tightening can break the
quartz sleeves or create leaks.

11

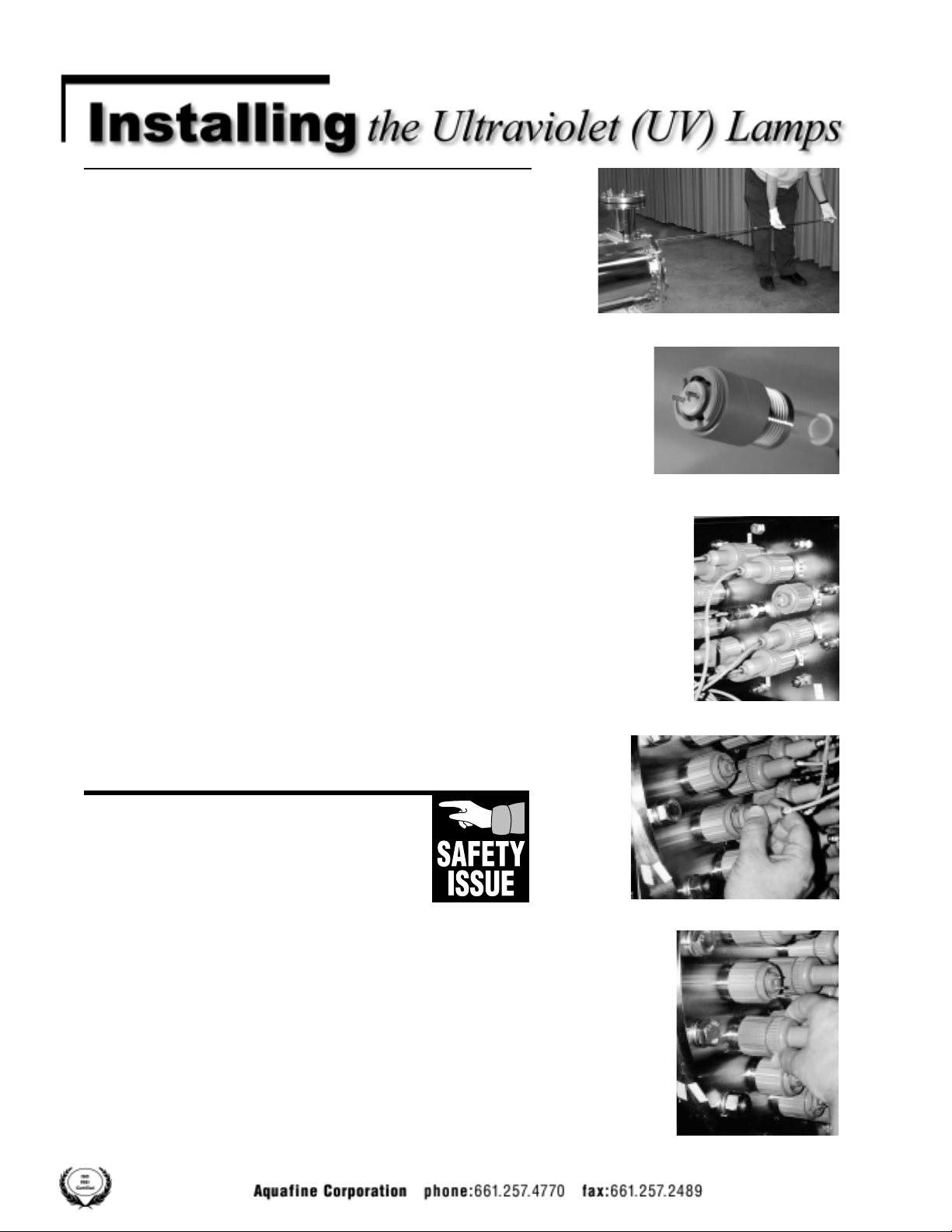

single-ended lamp design for units
manufactured after January 1, 1999
Once it has been verified that there are no leaks in the system, the UV
lamps are ready for installation.
1. Remove all power to the UV unit.
2. Depressurize the system.
3. Wear clean cotton gloves to prevent contamination of the UV lamps.
4. Carefully remove each UV lamp from the factory packaging.
Handle these with care as they are fragile.
5. Visually inspect all lamps for cracks or damage.
Do not install damaged lamps.
6. Using both hands, slowly insert the lamp into the quartz sleeve
by pushing one end of the lamp with one hand, while continuing
to support the lamp in a level, horizontal position with the other
hand. This is very important. If not installed properly, lamp or
quartz breakage will occur.
7. Twist the lamp into the locking mechanism of the compression nut.
This ensures the lamp is secure within the chamber.
8. Each lamp socket is identified with a number that corresponds to
each lamp position marked on the end plate. Match the lamp socket
and connect to the appropriate lamp.
9. The two pins in the lamp must be pushed down to fit securely into
the pins with the connector.
10. Rotate and screw the lamp socket cap into place. Only hand
tightening is required. Do not overtighten!
11. Repeat the procedure above for the second endplate for the
non-pin lamp ends. Instead of securing the lamp socket lead
assembly to this end of the assembly you will twist on and firmly
secure the fixed Compression Nut Cap to the compression nut
assembled on the quartz sleeve.
CAUTION! Prior to energizing the
ballasts and lamps, ensure there is no
water leaking into the quartz sleeves and
compression nut cavities by properly
installing these components. Even a small
leak can flood a quartz sleeve and
compression nut cavity.
During operation, high voltage is present at the lamp
pins and receptacles of the lamp connectors. Pro-
longed flooding of a quartz sleeve and compression
nut cavity can cause premature failure of the lamp
due to repeated arcing, overheating of the lamp
connector cable, and may result in a meltdown of
the cable insulation.
Screw the lamp socket cap on
Insert the
lamp into
quartz sleeve
Lamp locked into compression nut
Lamp socket ID number on end plate
Firmly connect the lamp pins with the connector

12

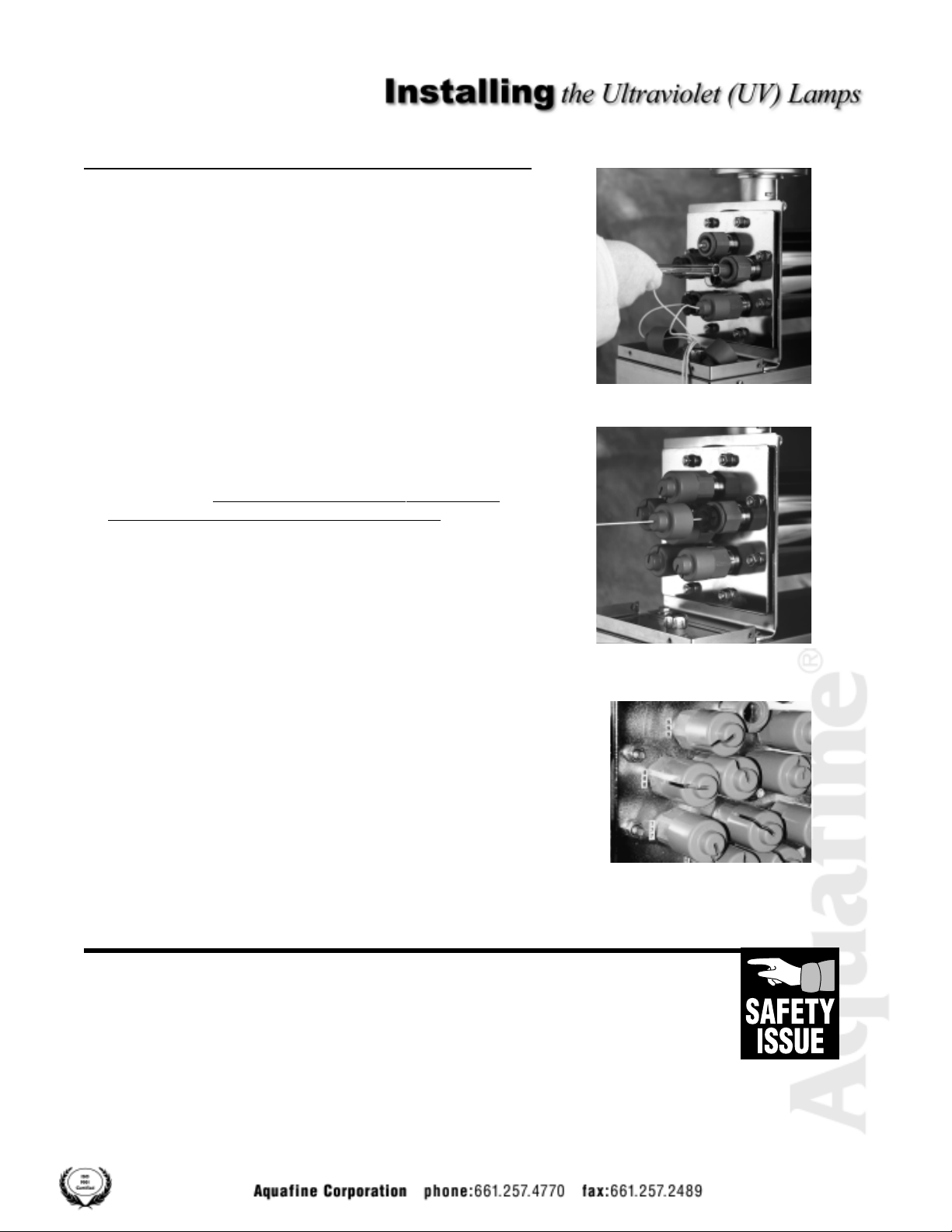

double-ended lamp design for units
manufactured prior to Jan. 1, 1999
1. Remove all power to the UV unit.
2. Depressurize the system.
3. Wear clean cotton gloves to prevent contamination of the UV lamps.
4. Insert one UV lamp into each open quartz sleeve and push it about
2”-3” (51-76mm) out beyond the left compression nut, so as to be
able to hold the lamp with your right hand.
5. Unscrew and pull back the retainer cap from the rubber lamp socket.
6. Insert the lamp base into the rubber socket. Push until you feel a
firm “bottomed out” connection.
7. Carefully slide the rubber boot portion of the lamp socket over the
end of the lamp. CAUTION: DO NOT INSERTUV LAMPS
WITH OPPOSING RETAINER CAP IN PLACE. Verify no
portion of the rubber boot has folded under during this process.
8. Screw the slotted retainer cap clockwise onto the compression
nut, making sure the number on the socket lead wire and the end
plate correspond.
9. Connect the right side rubber lamp sockets and spring-loaded lamp
socket retainer assemblies onto each lamp. Pay special attention to
match the numbers on the retainer assemblies with the numbers
beside each steel nipple on the end plate.
10. Carefully pull out each rubber lamp socket from each spring-loaded
socket retainer assembly.
11. With one hand, push the rubber socket boot onto the end of each
ultraviolet lamp. When properly attached, a slight “snap” can be
felt, which indicates a proper connection.
12. Carefully slide each lamp socket retainer assembly up and over the
rubber lamp socket boot, until the retainer assembly reaches the
male-threaded portion of the compression nut.
13. Then, turn clockwise until the socket retainer cap bottoms out
against the compression nut. Avoid overtightening.
more
Insert Lamp Base into Quartz Sleeve
Screw the slotted Retainer Cap onto
the Compression Nut
Lamp socket ID number on End Plate
CAUTION! Prior to energizing the ballasts and lamps, ensure there is no water
leaking into the quartz sleeves and compression nut cavities by properly install-
ing these components. Even a small leak can flood a quartz sleeve and compres-
sion nut cavity.
During operation, high voltage is present at the lamp pins and receptacles
of the lamp connectors. Prolonged flooding of a quartz sleeve and
compression nut cavity can cause premature failure of the lamp due to repeated arcing,
overheating of the lamp connector cable, and may result in a meltdown of the cable
insulation.

13
more
high-temperature (HT) units
Once it has been verified that there are no leaks in the
system, the UV lamps are ready for installation.
1. Remove all power to the UV unit.
2. Depressurize the system.
3. Wear clean cotton gloves to prevent
contamination of the lamps.
4. Carefully remove each UV lamp from the factory
packaging. Handle these with care as they are fragile.
5. Visually inspect all lamps for cracks or damage.
Do not install damaged lamps.
6. Using both hands, slowly insert the lamp into the
quartz sleeve by pushing one end of the lamp with
one hand, while continuing to support the lamp in a
level, horizontal position with the other hand. This
is very important. If not installed properly, lamp or
quartz breakage will occur.
7. Place the PVC alignment plate on one end and
secure in place with locknuts.
8. Guide each lamp into the lamp socket, making
sure you have a firm and complete connection.
9. Place the PVC alignment plate on the opposite end
of the disinfection chamber and align, making sure
you have a firm connection of all lamps and lamp
sockets, then secure the PVC alignment plate into
position with the locknuts. Should you find the UV
lamp failing to operate, the cause will generally be
attributed to an improper lamp socket connection.
10. Place each socket cover near the ends of the
disinfection unit and connect the two fan wires with
the two power wires supplied from the unit base.
Secure the socket cover to the disinfection cabinet
with the screws that are provided.
CAUTION! Do not look at
lighted blue ultraviolet
lamps. Do not operate
ultraviolet lamps outside
the treatment chamber.
Severe irritation to the
eyes and skin will result.
Aquafine High-Temperature UV Unit

14
Lamp socket ID number on end plate
Secure lamp socket connector to lamp
Insert the lamp in a level, horizontal position.
Screw the lamp socket cap into place
UV Lamp securely inside locking mechanism
USD-RBE Series units only
Once it has been verified that there are no leaks in the system,
the UV lamps are ready for installation.
1. Remove all power to the UV unit.
2. Depressurize the system.
3. Wear clean cotton gloves to prevent contamination of
the UV lamps.
4. Carefully remove each UV lamp from the factory packaging.
Handle these with care as they are fragile.
5. Visually inspect all lamps for cracks or damage.
Do not install damaged lamps.
6. Using both hands, slowly insert the lamp into the quartz sleeve by
pushing it with one hand while guiding it with the other in a level,
horizontal position. This is very important. If not installed
properly, lamp or quartz breakage will occur.
7. Twist the lamp into the locking mechanism of the compression nut.
This ensures the lamp is secure within the chamber.
8. Each lamp socket is identified with a number that corresponds to
each lamp position marked on the end plate. Match the lamp socket
and connect to the appropriate lamp.
9. The lamp pins must be pushed down to fit securely in the lamp
socket connector.
10. Rotate and screw the lamp socket cap into place. Only hand
tightening is required. Do not overtighten!
CAUTION! Prior to energizing the
ballasts and lamps, ensure there is no
water leaking into the quartz sleeves
and compression nut cavities by prop-
erly installing these components. Even
a small leak can flood a quartz sleeve
and compression nut cavity.
During operation, high voltage is present
at the lamp pins and receptacles of the
lamp connectors. Prolonged flooding of
a quartz sleeve and compression nut
cavity can cause premature failure of
the lamp due to repeated arcing, over-
heating of the lamp connector cable,
and may result in a meltdown of the
cable insulation.

15
prior to turning on the UV unit,
the following must be verified:
• With water flowing through the system, ensure that
there are no system leaks and no piping connection
leaks
• All earth ground connections are properly made
• All lamp connections are properly made.
• The socket covers are secured to both ends of the UV
treatment unit.
1. Verify that all incoming power conductors, including the
ground conductor, are properly terminated.
2. Turn on the electrical power to the UV unit.
3. Observe the UV Lamp Operational Display panel. All
yellow lights produce a steady glow after 3 minutes
time. Operate 10 more minutes and recheck. The UV
unit is now ready for operation.
Turn the power off until actual operational start-up
begins.
CAUTION! Rapid successive
cycling of the power to the
ballasts can cause premature
failure of the system
components.

16
UV lamp operational display panel
To verify that all the UV lamps are operating properly, your UV
treatment unit has been provided with a UV Lamp Operational
Display Panel. The panel consists of as many LED indicators as
there are ultraviolet lamps. Each LED indicator is electrically
connected to the lamp circuitry of a specific UV lamp. The LED
indicators are intended to operate “on” when the UV lamps are
also turned “on”.
Should any UV lamp fail to operate electrically, the corresponding
LED will automatically turn “off”.
Each UV lamp is numbered at the end of the UV treatment chamber,
and the corresponding LED light carries the same number on the
display panel; thus, if one or more LED lights fail to operate, you can
easily determine which specific lamp requires attention.
We recommend you monitor the LED Panel daily to ensure proper
performance.
running time meter
Your ultraviolet treatment unit has been furnished with a Running Time
Meter, located on the front instrument panel. This non-resettable
running time meter will log up to 99,999 hours. It is intended to remind
you of the number of operating hours on the equipment, as certain
maintenance functions need to be performed at certain time intervals.
A maintenance log is attached to the unit for your use. It should be kept
current. This provides an immediate maintenance reference: when it
was performed and when the next service is due. Additional service logs
are available from Aquafine, and are intended to be placed on top of the
existing service logs.
Running Time Meter
UV Lamp Operational Display Panel

17
model S-254 UV optical sensor
option
The optional S-254 UV optical sensor measures the
relative output of ultraviolet light within the UV
treatment chamber. Degradation of the UV lamps,
fouling of the quartz sleeves, water temperature
fluctuation and increased turbidity of the water will
all affect the sensor reading.
The UV meter assembly and instrumentation setpoint
potentiometers are located on the front of the electrical
enclosure. The peripheral alarm contacts are accessible
from the back side of the meter. A shielded signal cable
connects the sensor meter assembly to the sensor probe.
The sensor probe is located in the sensor port fitting on
the top of the UV treatment chamber in Double-Ended,
High-Temperature (HT) units and in the endplate in
Single Ended units.
All S-254 UV optical sensors are tested and preset at
the factory in free air. Setpoint adjustments are required
at installation and after each subsequent lamp changeout
cycle.
SETTING THE UV METERSETTING THE UV METER
SETTING THE UV METERSETTING THE UV METER
SETTING THE UV METER
1. Gradually start the normal flow rate.
2. Bring the unit up to normal operating pressure.
3. Turn the UV lamps
on for a minimum of
15 minutes.
4. Adjust the potenti-
ometer sensitivity to
100%.
5. Adjust the potenti-
ometer sensitivity to
50%.
6. Adjust the potentiom-
eter alarm until the
red LED barely
comes on.
7. Set the potentiom-
eter sensitivity back
to 100%.
8. Turn the potentiometer sensitivity to 50%; the red LED
should come on.
9. Turn the potentiometer sensitivity back to 100%.
Re-calibration must be performed after the first 100
hours of operation on new UV lamps, both at the
time of installation and each time the UV lamps are
replaced.
ALARM CONTALARM CONT
ALARM CONTALARM CONT
ALARM CONTAA
AA
ACTS (CTS (
CTS (CTS (
CTS (optionaloptional
optionaloptional
optional))
))
)
Normally Closed and Normally Open alarm contacts are
also provided for use with user-supplied peripheral
equipment, such as remote alarms or solenoid valves.
Dry relay contacts are rated as follows: 0.52 AMP 120
VAC., 0.25 AMP 240 VAC
If your application requires higher contact ratings,
use a slave relay. Connection of peripheral equip-
ment is the responsibility of the user.
See the wiring schematic in back pocket of this manual
SENSOR ALARMSENSOR ALARM
SENSOR ALARMSENSOR ALARM
SENSOR ALARM
The S-254 UV optical sensor provides information
about the relative amount of UV passing through the
water. The reading is affected by quartz sleeve fouling
and/or the germicidal lamp efficiency. The UV sensor is
sensitive to, and reflects changes in, UV transmission
when a substantial change occurs in the normal operat-
ing flow rate, temperature, operating pressure, or quality
of the fluid flowing in the system.
When the UV intensity falls below the minimum
standard due to any of the above conditions, the sensor
alarm light (red LED) will come “on” and corrective
action must be taken to optimize the performance of the
UV treatment unit.
1. Examine your system for any significant changes in
normal operating conditions.
2. Check if all UV lamps are electrically operating
and/or need replacement. Verify the quartz sleeves
are clean.
If quartz sleeve fouling has caused the optical sensor
alarm to activate, the quartz sleeves must be cleaned. At
the same time, you must clean the sensor probe quartz
window. Please find this information in the maintenance
section of this manual.
S-254 UV Optical Sensor

18
more
It is essential that all non-operational
lamps be changed immediately to
maintain system efficiency.
temperature
safety control option*
The Temperature Safety Control consists of a heat-
sensing probe. This device protects against inadvertent
overheating inside the UV chamber, which can damage
the UV lamps and the ballast/LED Display Panel circuitry.
The Temperature Safety Control senses raised water
temperature and assumes the UV lamps are operating
“on” with no water flow.
STST
STST
STANDAND
ANDAND
ANDARD UNITSARD UNITS
ARD UNITSARD UNITS
ARD UNITS
The device automatically turns the UV lamps off when
the water temperature reaches 120º F (49ºC) and
automatically turns the UV lamps back on when the
temperature falls to 100º F (38ºC). This feature is
optional on all standard RBE models.
HIGH-TEMPERAHIGH-TEMPERA
HIGH-TEMPERAHIGH-TEMPERA
HIGH-TEMPERATURE (HT) UNITSTURE (HT) UNITS
TURE (HT) UNITSTURE (HT) UNITS
TURE (HT) UNITS
The device automatically turns the UV lamps “off”
when the water temperature reaches 170ºF (77ºC) and
automatically turns the UV lamps back “on” when the
temperature falls to 150ºF (66ºC).
This temperature spread prevents excessive stop/starts
during no flow conditions, and it protects the UV lamps
and the electrical components from overheating damage.
The temperature probe is located in the end plate. No
operator intervention is required other than periodic
visual verification that the UV lamps (LED Display
Panel) are properly operating during normal water flow
conditions.
* This feature is standard on all High Efficiency (HE)
units.
lamp-out alert indicator option
Lamp Out Alert is an optional accessory package that
activates a relay when a UV lamp fails to operate.
A visual inspection of the LED UV Lamp Display Panel
will indicate which lamp has failed. Dry contacts are
provided for customer connection. The dry contacts are
rated at 3.0 Amps maximum @ 120 volts.
Wire color codes:
Green = Normally Closed
White = Common
Yellow = Normally Open
4-20 mA sensor signal option
This option works with the optional S-254 optical
sensor. It generates a 4-20 mA output signal based upon
the relative UV intensity which may be monitored at a
remote control panel or control PC. The customer is
responsible for providing an appropriate 4-20 mA
display instrument and connecting it.

19
using the LED display
If an LED bulb does not light after you replace a UV lamp, you need
to verify the electrical output of the ballast connected to that specific
UV lamp. This is done by testing the ballast open circuit voltage.
This should be done by an electrician or qualified facilities
personnel. Follow these recommended procedures:
1. Turn power “off” to the UV unit.
2. Remove the socket cover.
3. Identify the “faulty” UV lamp which corresponds to the
number on the LED display.
4. Remove the lamp socket(s) from the “faulty” UV lamp base.
5. Use a voltmeter and set an operating range at >700 VAC.
6. Measure the open circuit voltage:
For single-ended (SE) UV lamps: connect the voltmeter across
the receptacles of the lamp socket.
For double-ended (DE) and high temperature (HT) UV
lamps: connect one end of the voltmeter to one end of the lamp
socket and the other end of the voltmeter of the opposite end of
the lamp socket.
7. Turn power “on” to the UV unit.
8. Record the reading.
9. Turn power “off.”
10. Listed below please find the open circuit voltages for the
various ballasts:
If the voltage reading is zero or a number above or below the
acceptable ranges, this indicates a ballast fault, and the ballast
connected to the “faulty” UV lamp must now be replaced.
If the voltage reading is within acceptable ranges but the LED
does not light, the LED board has failed and needs to be replaced.
Refer to the Replacement Parts Lists in the back of this manual to
identify the proper ballast and/or LED part number.
UV Lamp Operational Display Panel
Ballast type
120 Volt Electronic 240 Volt Magnetic 240 Volt HE
550-650 575-675 450-660
CAUTION! Avoid
touching the lamp
tip after you remove
the lamp socket.
This is a shock
hazard.

20
cleaning the unit
The exterior surfaces of the Aquafine UV unit should be
kept clean as part of routine maintenance. Use a soft cloth
with soap and water or any commercial stainless steel
cleaner. Avoid scratching the Lexan instrument window.
LED status display panel
Monitor the Status Display LED Panel daily.
Immediately replace any failed UV lamp.
UV lamp replacement
Replace Standard UV lamps after 8,000 hours of use. Replace
High Efficiency (HE) UV lamps after 6,000 hours of use.
THIS IS BASED ON NO MORE THAN 3 ON/OFF
POWER CYCLES PER 24 HR. PERIOD.
Please follow all operating requirements outlined in the
warranty section of this manual.
Premature lamp failure or lamp life deterioration can be
expected if the UV unit is cycled on/off more than three
(3) times a day. To replace the lamps, follow the proce-
dures on pages 11-14.
quartz sleeve cleaning
& replacement
As water passes through the ultraviolet treatment unit,
minerals, debris and other substances in the water will
settle and deposit onto the quartz sleeve. This will impair
the ability of the ultraviolet rays to penetrate the water.
CAUTION! Prior to remov-
ing the socket cover to
access the lamps and
quartz sleeves, you must
release all pressure to the
UV treatment chamber.
Drain the chamber if required. Do not
stand in a direct line with the endplate;
observe from the front or back of the
unit.
Recent studies have shown that degradation of the quartz
sleeve from continuous exposure to UV reduces the amount
of UV radiation transmitted into the water stream. Based
on these findings, we recommend the annual replace-
ment of the quartz sleeves in addition to routine
cleaning.
cleaning the quartz sleeves
Visually inspect a quartz sleeve thirty days after use to
see if any debris or film has settled on the outside. If
dirty, follow these procedures:
1. Turn off the water to the unit.
2. Disconnect the electrical circuit.
3. Drain the UV treatment chamber.
4. Wear clean cotton gloves to prevent contamination of
the quartz sleeves and UV lamps.
5. Remove the retainer caps and lamp sockets.
6. Remove the ultraviolet lamps from inside the
quartz sleeves.
7. Using the appropriate compression nut tool, loosen
the compression nuts and carefully remove the
quartz sleeves.
8. Wash the quartz sleeves with mild soap and water
and rinse with clean, hot water.
Should this be insufficient to clean the quartz sleeves,
they should be replaced. To place an order, contact
Aquafine or your local representative. To replace the
quartz sleeves, follow the procedures on pages 8-10.
cleaning the sensor probe
window
1. Shut off the flow and release the pressure.
2. Shut off all power to the UV unit.
3. Remove the coaxial cable by pushing and twisting
the BNC terminal counterclockwise. The connector
will slide off.
4. Twist and pull the probe from the sensor fitting.
5. Use a lint-free cloth with alcohol and very
carefully wipe the lens face on the front of the
probe. Failure to do so may result in false readings.
