Aquafog XE-HRSM-2000-EXP Manual

Read & Understand
Retain for Future Reference
XE MOBILE ATOMIZER
USER'S MANUAL AND OPERATING INSTRUCTIONS
OPERATOR'S MANUAL
UL and CSA Electrical Components
NOTICE
MODEL:
XE-HRSM-2000-EXP
ON
OFF
Rear-Feed

General Safety . . . . . . . . . . . . . . . . . . . . . . . .
Getting Started . . . . . . . . . . . . . . . . . . . . . . . .
Controls and Installation . . . . . . . . . . . . . . .
Testing and Operation . . . . . . . . . . . . . . . . . .
Troubleshooting . . . . . . . . . . . . . . . . . . . .

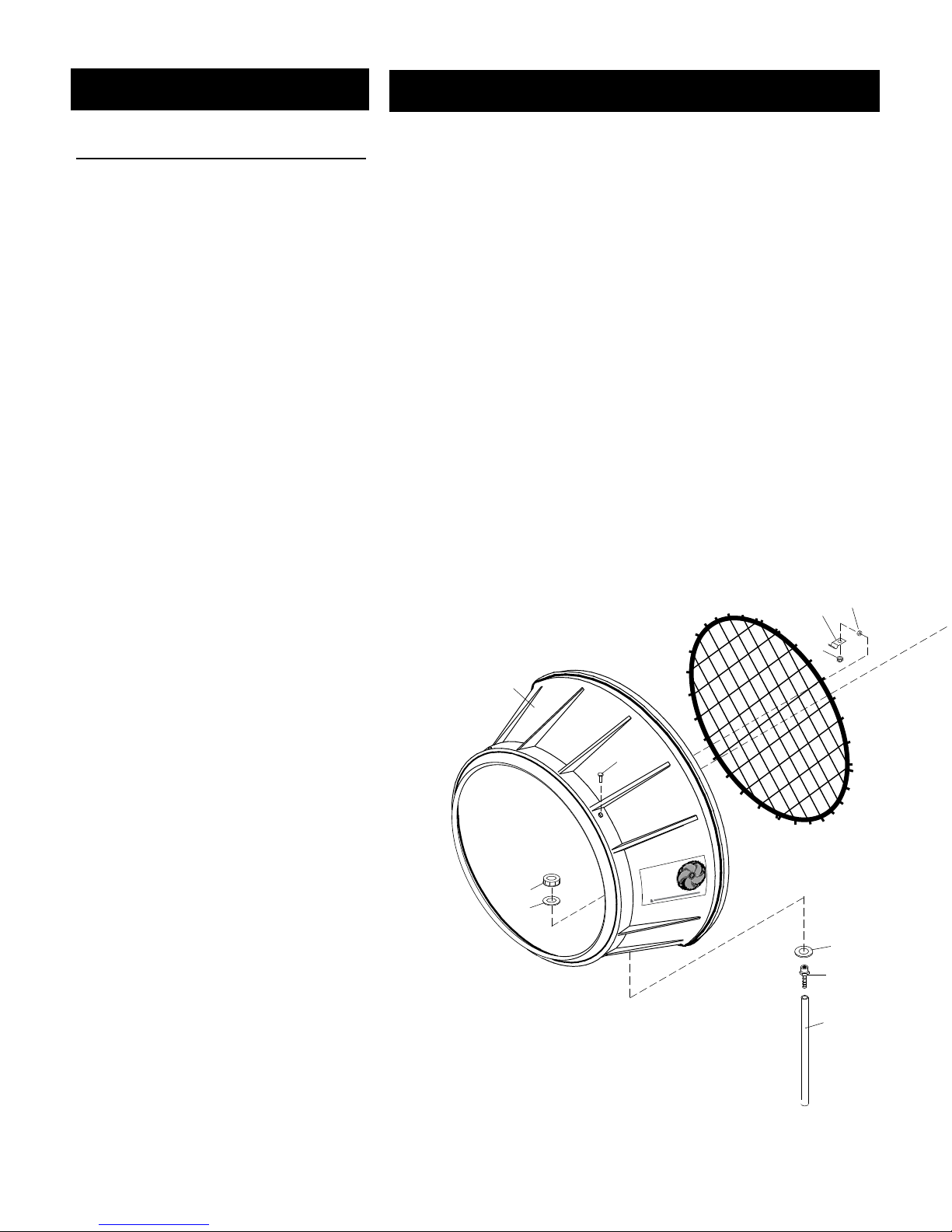

Aquafog Fan Exploded View . . . . . . . . .

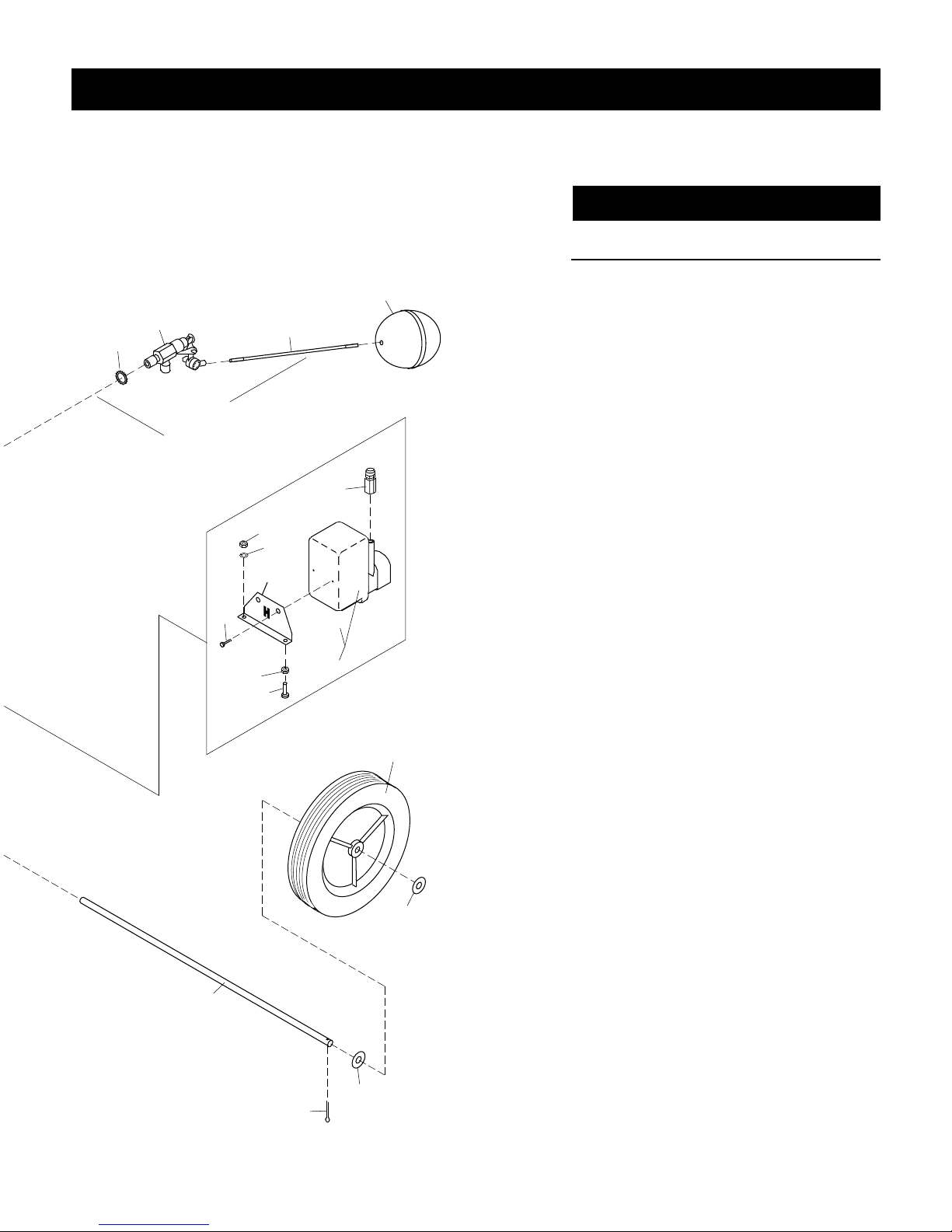

HRSM Tank Exploded View . . . . . . . . . .
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . .
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2
PAGE
3
4
5
6
7 - 8
9 - 10
11 - 12
13
14
Safety GuidelineS
This manual contains very important information.
This information will help ensure SAFETY and
PREVENT EQUIPMENT PROBLEMS. Use these
symbols to understand safety guidelines.
DANGER DANGER INDICATES AN
IMMINENTLY HAZARDOUS
SITUATION WHICH, IF NOT AVOIDED, WILL RESULT IN
DEATH OR SERIOUS INJURY.
WARNING INDICATES A
POTENTIALLY HAZARDOUS
SITUATION WHICH, IF NOT AVOIDED, COULD RESULT IN
DEATH OR SERIOUS INJURY.
CAUTION INDICATES A
POTENTIALLY HAZARDOUS
SITUATION WHICH, IF NOT AVOIDED, MAY RESULT IN
MINOR OR MODERATE INJURY.
NOTICE INDICATES IMPORTANT
INFORMATION, THAT IF NOT
FOLLOWED, MAY CAUSE DAMAGE TO EQUIPMENT.
table of ContentS
WARNING
CAUTION
NOTICE
Notes
deSCription
Aquafog mobile units are intended to condition large
volumes of air using water or other non-hazardous
liquids at air temperatures between 31ºF and 145ºF.
Any other use of these units will void the warranty
and the manufacturer will not be responsible for
problems or damages resulting from misuse.

General Safety
Since the mobile HRSM-EXP uses high-speed
components to atomize liquids, the following safety
precautions must be observed at all times:
1. Read all manuals included
with this product. Be familiar
with the product and controls.
2. The HRSM-EXP is intended to
be used on level ground. Test for stability
before operation.
3. Follow United States Environmental Protection
Agency (EPA) guidelines and regulations when
fogging pesticide or chemical solutions.
4. Follow all local electrical and safety codes
as well as the United States National
Electrical Codes (NEC) and Occupational Safety
and Health Act (OSHA).
5. Only persons well acquainted with these rules
of safe operation should be allowed to use the
atomizer.
6. Keep visitors away and NEVER allow children in
the work area.
7. Use of an extension cord for the HRSM-
EXP is not recommended. If necessary,
refer to the A.W.G chart in the following section
or consult a certied electrician.
8. Before each use, inspect blade assembly
and electrical components for signs of damage,
deterioration, weakness or leakage. Repair or
replace defective items before using.
9. Check all fasteners at frequent intervals for
proper tightness.
MOTORS, ELECTRICAL EQUIPMENT, AND
CONTROLS CAN CAUSE ELECTRICAL
ARCS THAT WILL IGNITE FLAMMABLE
LIQUID OR GAS. NEVER OPERATE
OR REPAIR IN OR NEAR FLAMMABLE LIQUID OR GAS.
NEVER STORE FLAMMABLE LIQUIDS OR GASES IN THE
VICINITY OF THE ATOMIZER.
WARNING
DANGER
3
11. When this unit is automated
by controls, warning signs
should be posted near the high-
speed equipment.
12. Disconnect and lock-out power
source to inspect or service the unit.

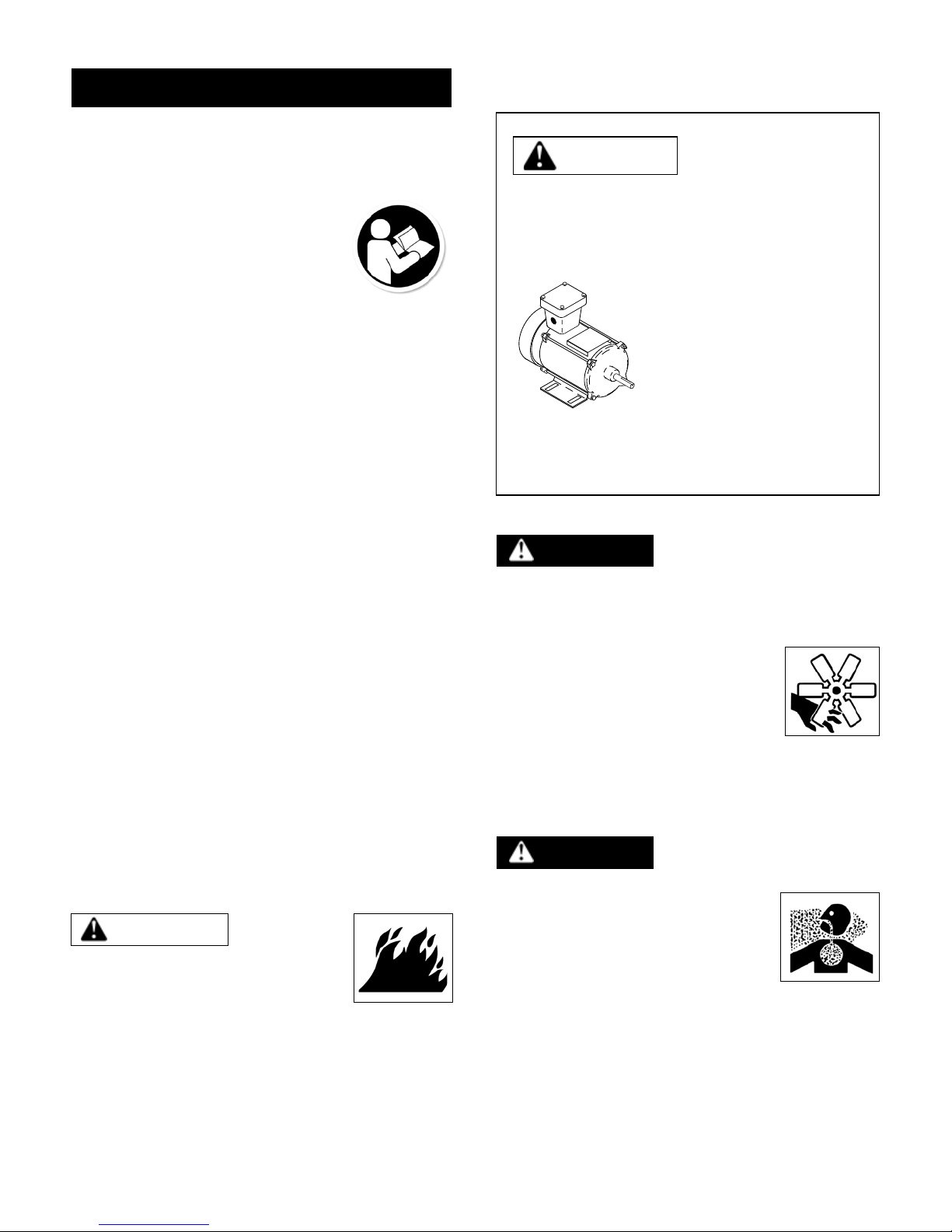

Baldor®Explosion-Proof motors are UL and
CSA approved for the following hazardous
locations:
CLASS 1, Group D locations
containing volatile gases
such as Gasoline, Hexane,
Naphtha, Benzine,
Propane, Alcohol etc.
CLASS 2, Group F & G
locations containing dust
such as (F) Carbon Black, Coal or Coke Dust
or (G) Flour, Starch, or Grain Dusts.
DO NOT ATOMIZE
FLAMMABLE MATERIALS.
13. Humidity and cold air are
two common asthma triggers.
Asthmatic people working
with this equipment need to
be made aware of the risk.
14. When atomizing toxic chemicals, follow the
instructions provided by the chemical
manufacturer.
HIGH-SPEED ROTATION. A
MOTIONLESS ATOMIZER MAY
APPEAR SAFE, BUT ITS BLADE COULD SUDDENLY BEGIN
HIGH-SPEED ROTATION WITHOUT WARNING AS A RESULT
OF CONTROL PROGRAMMING.
DANGER
HAZARDOUS DUTY
CERTIFICATION
Fogging Precautions
NOTICE

► Un-crate carefully and position HRSM-EXP
on level ground.
► Save crate and packing materials until
evaluation and testing are complete.
► Read manual carefully and understand all
instructions.
► Do not connect power until after thorough
inspection and lling the sump with liquid.
► After lling the unit with some liquid, inspect
for leaks.
► Never operate without liquid in tank.
► Be sure guards are securely in place and
warnings are clearly visible.
► Check power supply for correct voltage.
4

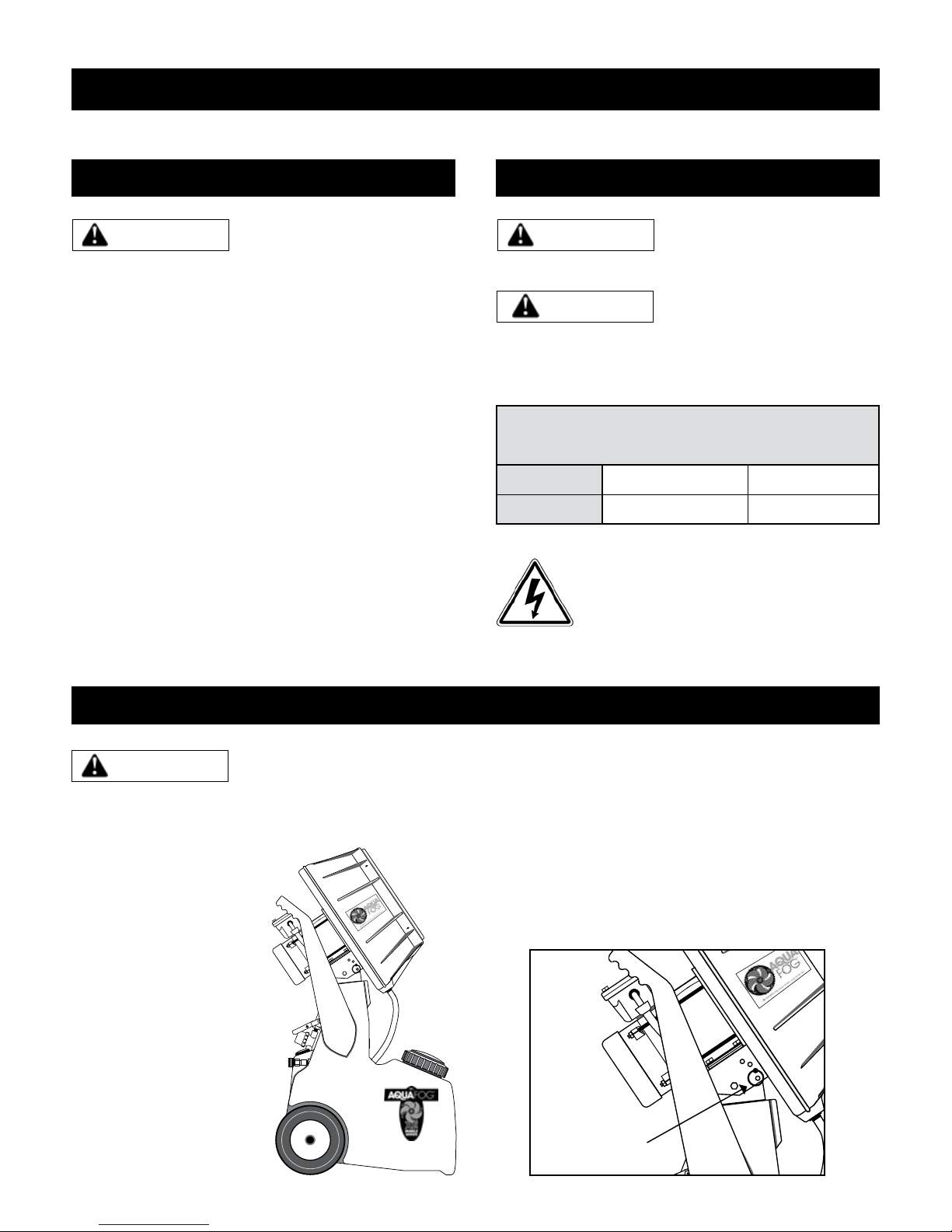

GettinG Started
Unpacking checklist
DO NOT OPERATE UNIT IF
DAMAGED DURING SHIPPING,
HANDLING OR USE. DAMAGE MAY RESULT IN BREAKAGE
AND CAUSE INJURY OR PROPERTY DAMAGE.
WARNING
electrical
GROUND FAULT RECEPTACLES
ARE RECOMMENDED AND MAY
BE REQUIRED BY LOCAL AND/OR NATIONAL CODE.
WARNING
USE OF AN EXTENSION CORD IS
NOT RECOMMENDED.
IF NECESSARY, REFER TO FIG. 12.
NOTICE
* Grounded and suitable for hazardous
duty locations.
Unit preparation
EXTENSION CORD SPECIFICATIONS*
FOR SINGLE FAN USE ONLY • (AWG - American Wire Gauge)
Voltage 25 to 50 ft. 50 to 100 ft.
115/230 16 AWG 14 AWG
Fig. 12
4
ENSURE THE BLADE ASSEMBLY
IS FREE & CLEAR FOR
START-UP (HIGH-SPEED ROTATION).
WARNING
Locate a level, stable
area to place the
HRSM-EXP. If there's a
slight grade, blocking
the wheels may be
necessary to keep unit
secure.
Visually check to
make sure the fan
blades can rotate
freely. There should
be approximately 1/4"
space between the
venturi pins and the
blades.
ON
OFF
ON
OFF
Adjustment Pin
Fig. 1
The HRSM-EXP is equipped with a four position
pivoting fogging head with 15º intervals up to 45º
(see Fig. 1)
Propelling the fog upward allows more time for the
particles to evaporate, keeping oor areas drier.
When making an adjustment, support the weight of
the fogging head off of the pin for easy removal.

5
Fig. 2
Flow Control
Valve
In-Line
Strainer
Fluid Level
Gauge
Hose
Connection
ControlS/ featureS
▼
▲
OFF
ON
READ &
UNDERSTAND
NOTICE
WARNING
MAINTAIN A
FULL TANK TO
RETAINEXPLOSION-
PROOF FEATURES!
OPERATE ONLY WHEN TANK IS FILLED
AND UNIT IS CONNECTED TO A
RELIABLE WATER SOURCE.
WARNING
DANGER
ALL WIRING AND
ELECTRICAL
CONNECTIONS
MUST BE PERFORMED BY A QUALIFIED
ELECTRICIAN.
inStallation
A) Stationary Use
For permanent installation, connect
the unit's power cord directly to
a hazardous duty power supply
enclosure.
A) Mobile Use
Optional hazardous duty male plug
can be used if switch controlled
hazardous duty female receptacles
are available.
SetupS
Hazardous-duty enclosure
with automated power
supply controller.
Liquid Supply
Hose Connection Liquid
Storage
Atomized
Liquid
449
20A Dedicated
Power Supply ►
The volume of fog can be regulated by adjusting
the Flow Control Valve. (See Fig. 2)
Particle size is smaller/drier at lower outputs,
so it is wise to operate the unit at a lower output
for longer periods of time rather than high
outputs for short periods of time.
At the base of the plumbing is an in-line strainer
with a removable cap. Occasionally, check inside
and ush any sediment from the screen.
The Hose Connection is used to supply fresh
water to the unit and is controlled by an internal
oat valve assembly. There is also a secondary
back up oat valve assembly to ensure tank's
water level.
A Fluid Level Gauge to aid in monitoring the
tank's 18 gallon capacity.
Operation Controls
KEEP HANDS
CLEAR!
HIGH-SPEED
WARNING. MAKE SURE GUARDS ARE
INSTALLED OR UNIT IS OUT OF REACH.
Secondary Float
Valve Feed Line
ON
OFF

operation
6
1. Operate only when tank is lled and the
unit is connected to a constant and reliable
water supply source (See Fig. 3). A liquid level
warning is clearly posted on the back of the
unit explaining the importance of maintaining
an appropriate water level in the tank at all
times during operation.
2. This HRSM-EXP is equipped with a back-up
oat valve assembly if the unit is observed
operating below half-full water level,
discontinue use and check the primary
water ll oat valve assembly for clogs,
required maintenance, or possible need
for replacement (See Fig. 3).
WARNING

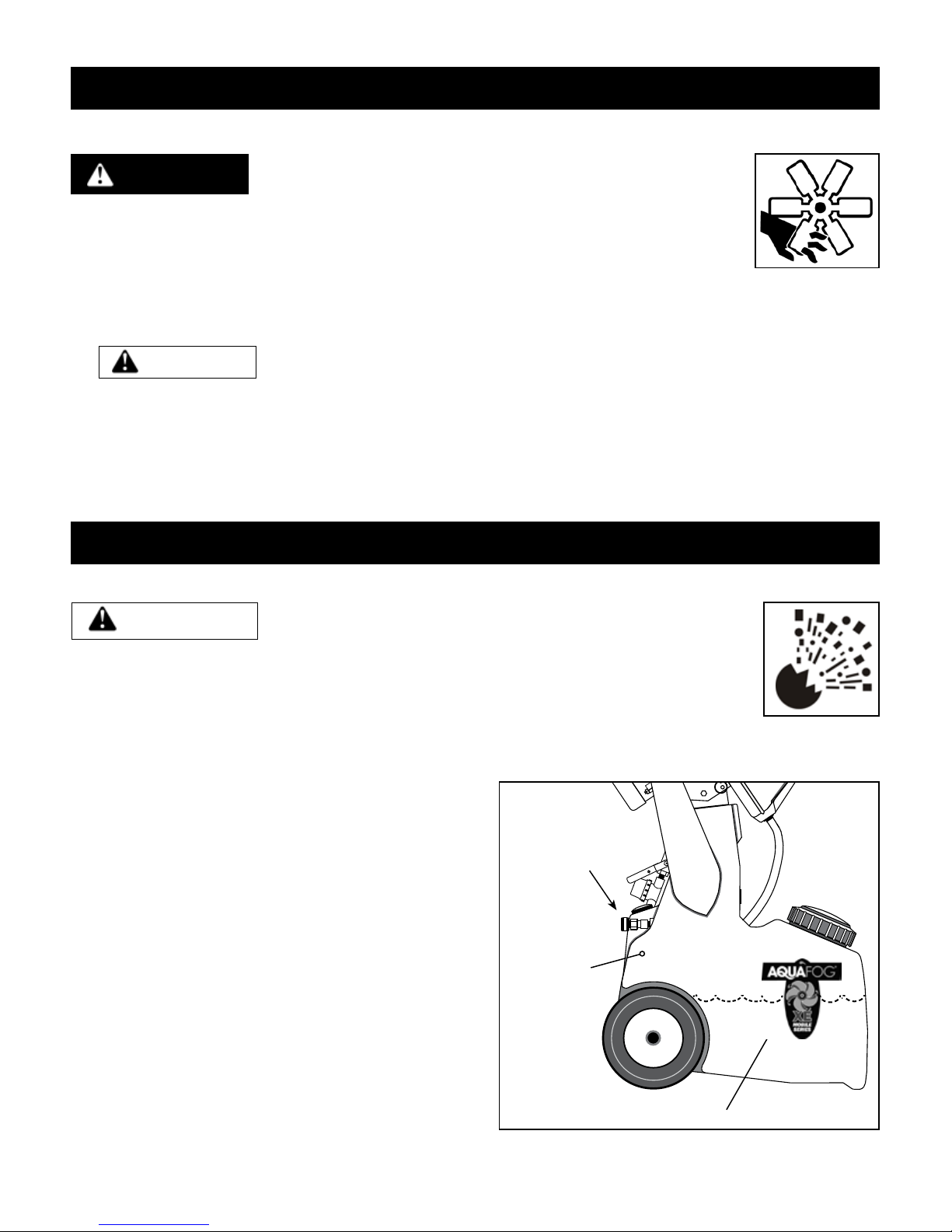

Maintain Tank's Water Supply
Water Connection
with Primary Fill
Float Valve
Back-up
Float Valve
Inside Tank
teStinG and evaluation
► Turn on the unit and listen for any possible abnormalities, such as the blades rubbing against the
venturi. Make re-adjustments if necessary.
► Evaluate fog quality by adjusting the output using the ow control valve. (See Fig. 2). After starting,
it generally takes several seconds for the liquid to reach the atomizing fan.
BEFORE TESTING FAN MAKE SURE ALL OBJECTS ARE OUT OF THE
ROTATION PATH OF THE FAN BLADES.HIGH-SPEED WARNING. KEEP HANDS
CLEAR! MAKE SURE GUARDS ARE INSTALLED OR UNIT IS OUT OF REACH.
DANGER
CAREFULLY LISTEN FOR UNUSUAL NOISE OR VIBRATION.
CAUTION
► For rst-time evaluation, ll tank (with water only) about one quarter full.
► Connect to power supply.
► BUMP START HRSM-EXP and check for proper fan blade rotation (clockwise if looking at front of
unit). If incorrect, nd rotation connection changes on the motor's electrical schematic.
ON
OFF
THIS UNIT REQUIRES A HAZARDOUS DUTY ELECTRICAL
RECEPTACLE OR POWER SUPPLY
Fig. 3

7

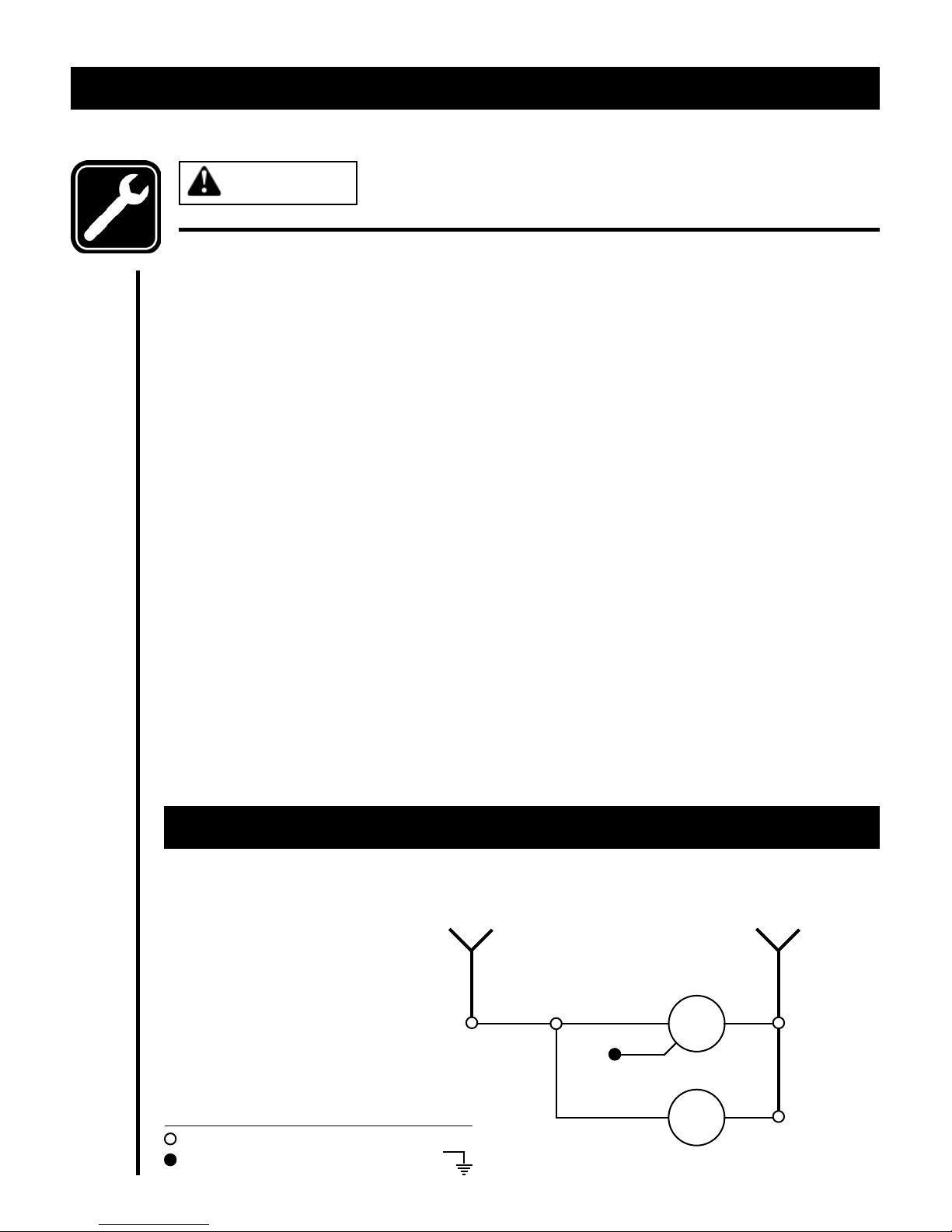

1. Fan Does Not Operate
A.) Check voltage requirements on unit and electrical supply. Check for live receptacle, plug,
and power line.
B.) Look for any loose connections inside the main motor's junction box.
2. Blades Rub Against Venturi
A.) To make a horizontal adjustment, loosen the 4 bolts (Part #56) at the base of the main
fan motor and shift motor side to side until centered. Retighten bolts.
B.) To make a vertical adjustment, slightly loosen 4 bolts (Part #52) and make necessary
adjustments. Retighten bolts.
3. Unusual Noise
Squealing at start-up or during operation may be caused by the motor shaft's bearing
seal. Spray with lubricant at the front of the motor where the shaft exits the motor's frame.
4. No Fog
A.) Check to see if ow control valve is open. The valve is open when the handle is down
and closed when up. If the valve is open and there is still no fog, the pump may need
to be primed. In rare cases the pump may retain an air bubble. To prime the pump,
remove the inline strainer cap (Part #71) and turn the system ON for a few seconds.
Replace cap and try operating unit again.
B.) If pump is receiving electricity but there is no fog, check for sediment in the pump's
intake screen. Spray around the pump with a garden hose or remove the pump
and thoroughly clean the intake screen. Clean and ush out the tank area by removing
the drainage plug located on the bottom rear of RSM.
C.) If no liquid enters the tank when using the automatic ll, check oat valve assembly for
debris. When the oat arm is up, water should shut off; when it is down, water should
freely enter RSM tank.
5. Liquid Spilling From Overow Port
A.) Check the oat valve assembly. If the oat (Part #99) is lling with water, it should be
replaced. Also check to see if debris is not allowing the valve (Part #97) to seal properly.
Clean as needed.
B.) Reduce the in-line water pressure.
6. Liquid Spilling From Fan Housing
If liquid builds up inside the housing, the drain tube is probably clogged. Clean debris
from the drain strainer and drain tube.
troubleShootinG
BEFORE INSPECTION AND /OR SERVICE,
DISCONNECT AND LOCK OUT POWER SOURCE.
WARNING

8
Contact Your Sales Representative for Further Assistance.
7. Poor Quality Fog
A.) The liquid feed tube (Part #575) may not be properly positioned. The feed tube is located
behind the blade assembly and should be inserted approximately 1/4" into the slot
between the motor shaft and the stainless steel face plate. Centered in the slot area and
aimed slightly downward, free from any rotational contact.
B.) Liquid not traveling through the fan blades. This can be diagnosed by viewing the back
of a blade assembly during operation (using a bright ashlight). If system is clogged,
liquid can be seen spinning out of the slot area between the motor shaft and stainless
steel face plate (Part #573). If conrmed, replace fan blade assembly (Part #571-assy).
Cleaning the internal passageways of a blade assembly is feasible with the aid of some
speciality tools.
8. Fan Motor Becomes Excessively Hot
The main fan motor normally becomes very hot to the touch. However, if it gets so hot that it
begins to smell or smoke or the power cord becomes hot, discontinue operation and consult
an electrician to properly evaluate the problem.
9. Electrical Breaker Tripping
If the electrical breaker trips off, there is an overload in the system and there may be a serious
motor problem. Turn off all other devices connected to the same circuit. If the breaker continues
to trip, the motor is probably in need of repair. Consult an electrician for evaluation.
10. Fan and/or Motor Vibration
A.) If the fan unit begins vibrating severely, rst be sure the blade assembly is fully engaged
and securely tightened on the motor shaft. Next, inspect the blade assembly, particularly
the ends of the blades. Look for wear or cracks - replace as necessary. Look for deposits
of calcium or minerals - clean and remove mineral deposits and/or calcium.
B.) If the vibration seems to be coming from the motor, rst check that the motor mounting
hardware is securely tightened. If hardware is secure, remove the blade assembly and
operate the motor without the blade. If vibration continues, the motor has a serious
mechanical problem and probably needs to be replaced.
11. Plumbing Leaks
Un-thread ttings and clean both the male and female threads. Apply new thread tape
(approximately 2-3 wraps) and reconnect. If a tube tting is leaking, tighten the cap - no
more than 1 turn past nger tightened. If the leak persists, replace the tube tting insert.
troubleShootinG (Cont.)
BEFORE INSPECTION AND /OR SERVICE,
DISCONNECT AND LOCK OUT POWER SOURCE.
WARNING

9
turbo fan exploded view
1 Housing 1
2 Safety guard 1
7 Liquid feed tube tting 1
8 Drain tting 1
10-2002 Explosion-Proof motor 115V 1
14 Pinned venturi assembly 1
16 Rear guard 1
20 1/4" Heavy large diameter washer 8
32 1/4-20 nylon stop nut SST 8
35 SST washer for feed tube tting 3
41 10-24 x 1/2" phillips RH SST 4
42 10-24 nylon stop nut SST 4
43 11/16 x 1 1/4" at washer SST 1
49 10-24 x 1/2" TH phillips SST 4
52 1/4-20 x 3/4" HH bolt SST 4
54 1/4-20 x 3/8" button head cap screw 6
56 5/16-18 x 3/4" HH bolt SST 10
57 5/16" lock washer SST 10
58 5/16" at washer SST 8
114 Drain tting nut 1
115 Drain gasket 1
116 5/16-18 nish nut SST 4
117 1/4-20 x 5/8" HH bolt SST 8
288 1/8" NPT-F elbow 1
294 1/8" NPT-M x 3/8" tube tting 1
349 5/16" brass rod 1
391 Top pivot plate 1
392 Bottom pivot plate 1
395 5/16" nylon lock nut 2
400-047 XE Faceplate screw SST 8
403 Brass ring 1
417 Machine nut 4
427 Safety guard clip 4
452 3/4" Liquid tight 90º elbow 1
454 Supertough 90º elbow 1
457 1/2" NPT aluminum coupling 1
458 1/2" NPT aluminum nipple 1
459 3/4" x 1/2" reducing bushing 1
460 3/4" EDPM O-ring 1
479 Hair pin SST 1
510 10-24 setscrew SST 2
517 SST pivot washer 2
562 Drain tubing 1.5'
568 Feed tube support SST 1
571 Turbo XE blade assembly (Ref.) 1
573 XE rear-feed faceplate SST 1
574 O-ring 1
578 Exp. stand-off 2
579 5/16" BHSCS 2
580 Exp. feed tube w/ cap 1
600-L RSM support left 1
600-R RSM support right 1
664 3/8" high ex tubing 2'
W-38 3/8" tubing 2.5'
ID # Description Qty/Unit
part identifiCation
AQUA
FOG
1
41
114
115
42
417
427
8
43
562

574
573
400-047
571
510
308
Side of top
pivot plate
Rear of
Housing
16
52
600-L
117
54
20
49
32
32
20
600-R
►
◄
10
Top of Tank
Power
Cord
58
56
58
57
56
57
116
391
392
56
517
395
479
Side view of motor
458
459
460
452
454
458
457
453
10-2002
10-2002
▼
►
349
403
578
580
7
57
579
35
288
294
664
568

XE
MOBILE
SERIES
AQUAFOG
11
Jaybird Mfg., Inc.
65
59
372
351
60 61
71
423
75
72
72
65
65
143
143
65
65
67
65
Tank's Wall
Inside Tank
93
94
677
hrSM-exp tank exploded view
Wall
Inside Tank
Unit's 25' Power
Line from Motor
400-132
400-036
35
400-088
(Optional)
449
483
STO-14/3
455
290
298
295
READ &
UNDERSTAND
NOTICE
WARNING
MAINTAINA
FULL TANKTO
RETAINEXPLOSION-PROOF FEATURES!
OPERATEONLY WHEN TANK IS FILLED
AND UNIT IS CONNECTED TO A
RELIABLE WATERSOURCE.
WARNING
KEEP HANDS
CLEAR!
HIGH-SPEED WARNING.MAKE SURE
GUARDSARE INSTALLED OR UNIT IS OUT
OF REACH.
DANGER
ALL WIRING AND
ELECTRICAL
CONNECTIONS MUST BE PERFORMED BY
A QUALIFIEDELECTRICIAN .
96
▼
◄
◄

12
part identifiCation liSt
ID # Description Qty/Unit
part identifiCation
32 1/4-20 nylon stop nut SST 2
35 SST washer 1
55 Serrated lock washer SST 1
59 Fluid level gauge 1
60 RSM tank 1
61 Fill cap 1
65 1/2" at washer SST 8
67 5/32 x 1 1/4" cotter pin SST 2
71 Inline strainer 1/4" female NPT 1
72 1/4" NPT street elbow 2
75 Flow control valve 1
93 Hose connector gasket 1
94 Hose connector 1
96 Gasket 2
97 Float valve 1
98 Stem 1
99 Float 1
100 Pump HRSM 115 volt 60hz. 1
108 #8 x 3/8" self tapping phillips SST 2
111 Axle SST 1
126 1/4" lock washer SST 2
143 1/4" NPT-M x 3/8 tube tting 2
154 1/4-20 nish nut SST 2
288 1/8" NPT elbow 1
290 1/4" NPT street tee 1
294 1/8" NPT-F x 3/8 tube tting 1
295 1/4" NPT-M x 1/4 tube tting 1
297 1/4" NPT-F x 3/8 tube tting 1
298 1/2" NPT-M x 1/4" NPT-F bushing 1
344 10-24 x 1/2" phillips truss head SST 4
351 1" NPT black nylong hex plug 1
372 Heavy-duty RSM wheel 2
400-036 Serrated washer SST 1
400-088 1/4" Flex tubing 2'
400-132-S Float Valve w/ straight stem 1
423 1/4" NPT close nipple 1
443 1/4-20 x 1-1/4" HH bolt 2
449 Hazardous duty NEMA 5-20P plug 1
455 1/4" NPT-M x 1/2" NPT-F bushing 1
483 Alum. cord connector 1/2" NPT 1
606 H Pump support bracket 1
677 11/16 x 1-1/4" at washer SST 1
STO-14/3 Hazardous duty power cord 25'
H
Internal tank pump components
65
65
67
372
97
99
443
606
108
297
98
55
100
101
32
154
126
111
Inside Tank
Inside Tank

13
MaintenanCe
1. Clean Strainers
The RSM is equipped with 2 strainers that should be cleaned periodically - the Inline Strainer
(Part #71) at the bottom of the Flow Control Valve and the Pump Screen on the Pump. Check
strainers and remove any trapped debris.
2. Flush Out Tank
The tank should be rinsed regularly, especially if using chemicals. Remove drain plug
(Part #351) and, using a garden hose, thoroughly ush tank and pump of any sediment.
3. Explosion-Proof Motor
The main motor is a permanently sealed and lubricated motor. Any disassembly for service or
repair will void warranty and could eliminate the explosion-proof properties of the motor. If a
motor should fail, a replacement motor will be required.
4. Inspect Blade Assembly
Clean the blade assembly about once a year, especially if a lm of calcium or mineral deposits
is visible on the exterior of the blades. Remove any build-up from the blades and any debris
from blade passageways. While cleaning, inspect for irregularities or hairline cracks and
replace as necessary.
5. Storage
Protect your mobile Aquafog from winter damage. Expansion due to freezing can burst the
ttings or the internal feed pump. If storing unit in below freezing temperatures, be sure all uid
is drained from the tank area. Damage due to freezing is not covered under warranty.
DISCONNECT AND LOCK OUT POWER SOURCE
BEFORE SERVICING
WARNING
eleCtriCal SCheMatiC
Note: All green wires
go to ground
Denotes Line Connection
Denotes Wire NutTermination
Electrical Schematic Code Desination
2, J, 5
N
mtr
FAN
mtr
PUMP
115 VAC
LINE
41, 3, 8
Brown Blue
115V
115V

one year liMited warranty
Aquafog and accessories are warranted to the original purchaser against defects in
material and workmanship under normal use for one full year from date of purchase. Any part
determined to be defective and returned to the manufacturer, shipping cost prepaid, will be
repaired or replaced at Jaybird Manufacturing, Inc.'s discretion without charge. Proof of purchase
date and an explanation of the problem or complaint must accompany the returned portion of
the machine.
Jaybird Manufacturing, Inc. reserves the right to verify the legitimacy of claimed defects.
The provisions of this warranty do not apply to damage resulting from direct or indirect misuse,
negligence, accident, lack of maintenance, or unauthorized repairs or alterations which affect
the machine's performance or reliability.
LIMITATIONS OF LIABILITY. TO THE EXTENT ALLOWABLE UNDER APPLICABLE LAW,
JAYBIRD MANUFACTURING, INC.'S LIABILITY FOR DEATH, INJURIES TO PERSONS OR PROP-
ERTY, OR FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES ARISING FROM THE USE OF OUR
EQUIPMENT IS EXPRESSLY DISCLAIMED. JAYBIRD MANUFACTURING, INC.'S LIABILITY IN ALL
EVENTS IS LIMITED TO, AND SHALL NOT EXCEED, THE PURCHASE PRICE PAID. NO OTHER
WARRANTY, EXPRESSED OR IMPLIED, IS AUTHORIZED, INCLUDING WARRANTIES OF MER-
CHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
This warranty gives you specic legal rights, and you may also have other rights, which vary from state to state.
Printed in U.S.A.
© 2019 Jaybird Mfg., Inc.
Jaybird Manufacturing, Inc.
135 Summer Lane
Centre Hall, PA 16828
Parts & Service: 1.814.364.1800
Website: www.jaybird-mfg.com
1
year
