Important information
The Visage Digital remote control is a remote button which provides a secondary method of ‘Start/stop’ for Visage
Digital shower systems. When used with the Visage Digital diverter system, the remote can operate each outlet by
pushing and holding the ‘Start/stop’ button for a few seconds as required. The remote control may be sited inside
the showering area, as long as it is not subjected to continuous spray, or it can be sited outside the showering area –
up to 10 metres from the Digital processor.
The Visage Digital remote control is not suitable for use with any other Aqualisa Digital product range.
THIS PRODUCT UST BE INSTALLED BY A CO PETENT PERSON IN ACCORDANCE WITH ALL RELEVANT CURRENT
WATER AND ELECTRICAL SUPPLY REGULATIONS.
ALL SHOWERS REQUIRING AN ELECTRICAL CONNECTION UST BE INSTALLED BY A QUALIFIED PERSON
FOLLOWING THE LATEST REVISION OF BS7671 (WIRING REGULATIONS) AND CERTIFIED TO CURRENT BUILDING
REGULATIONS.
This product is suitable for domestic use only.
This product is supplied complete with a 2 year guarantee.

Visage Digital remote control installation instructions Page 5
Installation instructions
Visage Digital remote control
In addition to the guide below it is essential that the written
instructions below are read and understood and that you have all
the necessary components (shown overleaf) before commencing
installation. Failure to install the product in accordance with these
instructions may adversely affect the warranty terms and
conditions. Do not undertake any part of this installation unless you
are competent to do so. Prior to starting, ensure that you are
familiar with the necessary plumbing regulations required to install
the product correctly and safely.
THE DIGITAL PROCESSOR UST BE ISOLATED FRO THE AINS
POWER SUPPLY PRIOR TO INSTALLING THE VISAGE DIGITAL
RE OTE CONTROL.
!
Single outlet
IF FITTING THIS PRODUCT WITH A VISAGE DIGITAL SINGLE
OUTLET SHOWER SYSTE , PLEASE FOLLOW THE FITTING
INSTRUCTIONS BELOW.
!

Visage Digital remote control installation instructions Page 6
Using the back plate as a
template, mark the position of
the fixing screws and a Ø16mm
hole for the data cable entry
point. The cable entry point
should be made in the top right
hand corner of the back plate re-
cess, to ensure the two holes are
kept separate.
1
Prepare suitable wall fixings to accommodate no. 8 non-rusting
countersunk head screws of a suitable length (not included).
2
Wiring diagram
10m Data
Cable
10m Data
Cable

Visage Digital remote control installation instructions Page 7
Prepare a suitable route and install
the 10m low voltage data cable
leaving a working end of at least
70mm including the connector plug.
The end of the data cable closest to
the processor should terminate at
a maximum of 500mm from the
processor to allow for connection to the data cable connection
block.
3
DATA CABLES UST BE PROTECTED BY SUITABLE SHEATHING OR
CONDUIT IN THE EVENT OF SERVICING AND AINTENANCE.
!
Pull the data cable through
before securing the back plate
to the wall using suitable no. 8
non-rusting countersunk screws.
4

Visage Digital remote control installation instructions Page 8

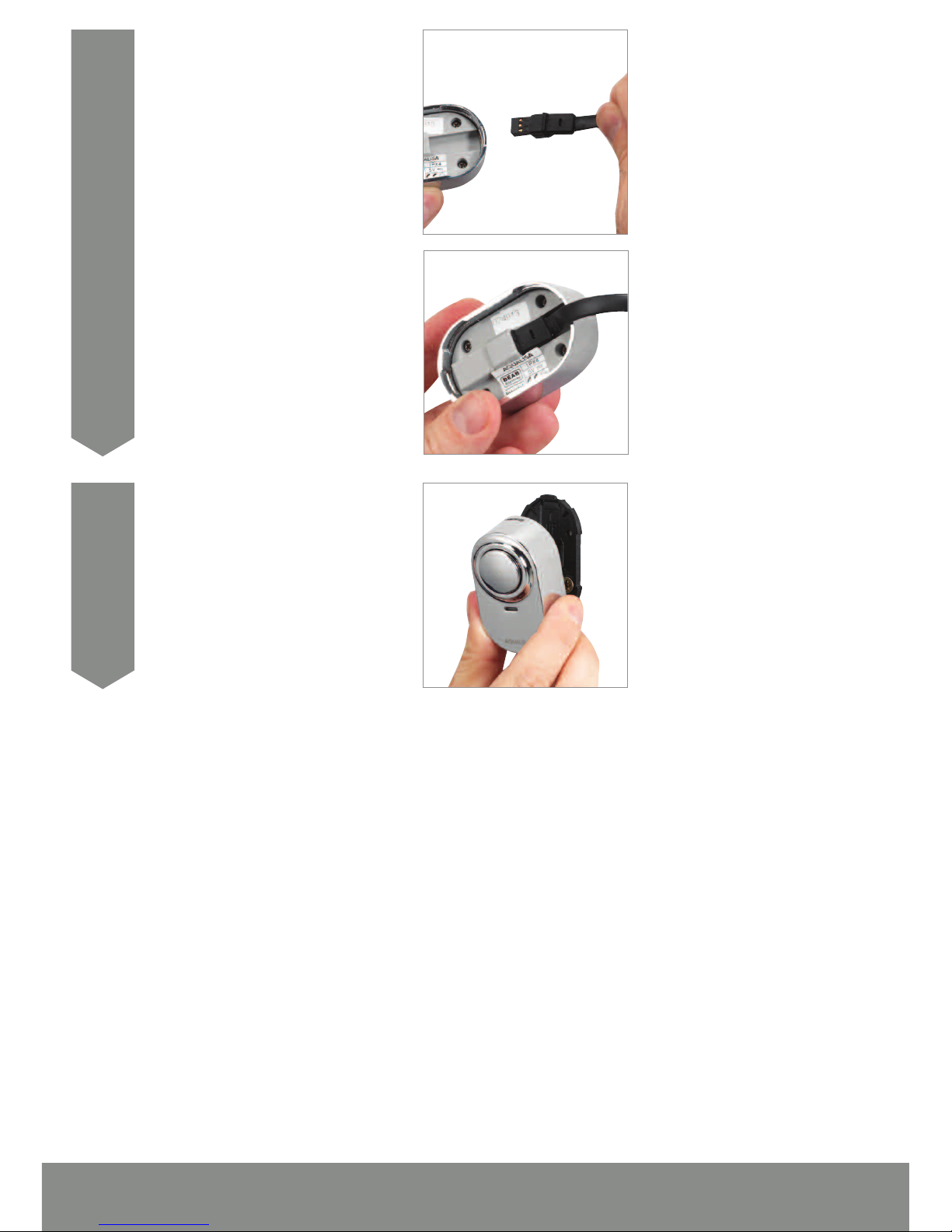

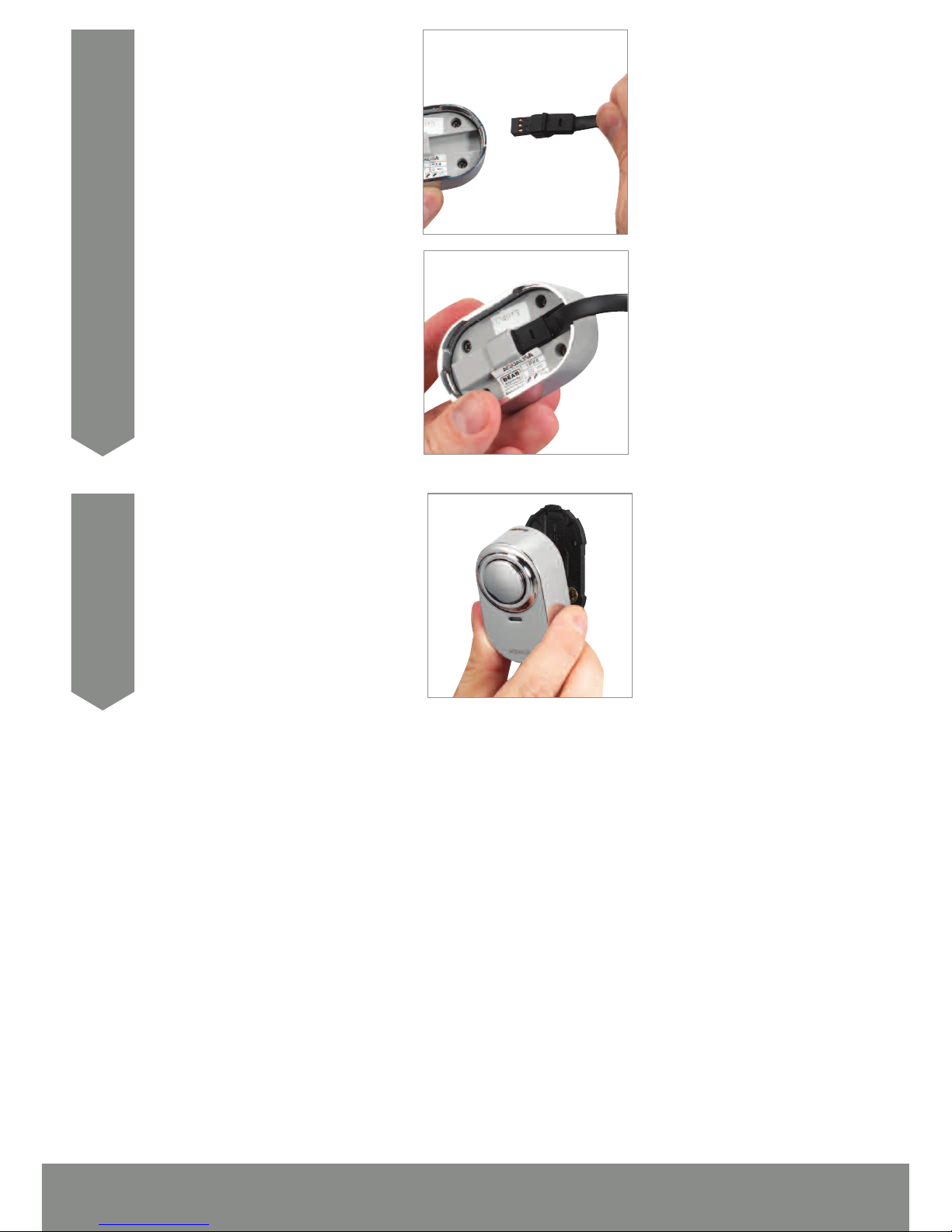

Push the data cable plug into the
back of the button fully home to
ensure a water tight seal making
sure the seal is no longer visible.
5
Locate the slot at the bottom of
the button assembly, onto the
locating peg at the bottom of the
back plate assembly, and offer
the button into position.
6

Visage Digital remote control installation instructions Page 9
Secure the button to the back plate
by carefully but firmly pushing the
button assembly onto the locking
clip at the top of the back plate.
7

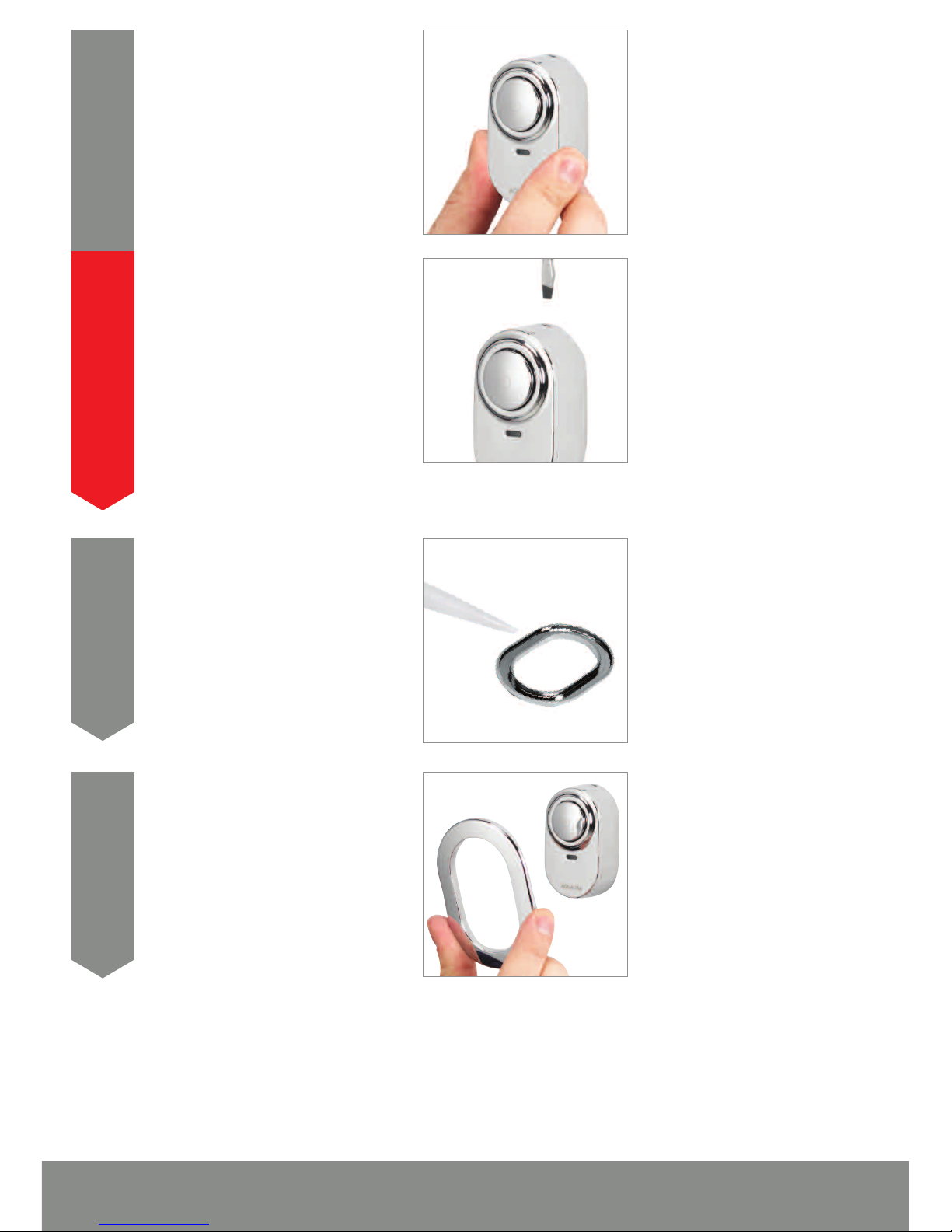

Apply a thin bead of mastic to
the groove at the rear of the wall
plate.
8
To release the button, insert a small
flat bladed screw driver into the
small slot at the top of the button
assembly, to release the locking
clip, taking care to avoid damaging
the plated surface. Carefully lift the
button out and up off of the back
plate bottom locating peg.
!
Place the wall plate into position
and push flush to the finished wall
surface, taking care to avoid any
transfer of mastic from the wall
plate onto the button assembly.
9
BEFORE ANY ELECTRICAL ADJUST ENT IS ATTE PTED, THE
ELECTRICITY SUPPLY UST BE TURNED OFF AT THE AINS
SWITCH.
ELECTRICAL INSTALLATION AY ONLY BE CARRIED OUT BY
A QUALIFIED PERSON.
!

Visage Digital remote control installation instructions Page 10
The Digital processor features a
secondary data cable socket next
to the main data cable connection
for use with the Digital remote
control secondary ‘Start/stop’
button. Carefully snap and remove
the entry pillar and connect the cable
to the socket as shown.
10
Prior to commissioning the Visage Digital remote control following
the procedure overleaf, please refer to the installation instructions
provided with the main Visage Digital product to complete the
installation of the Digital processor.
11
If using a Digital Divert system, the cable plugs into the diverter
using the splitter box provided.
If using with a Divert product, refer to the Digital Divert
instructions opposite.
!
IF FITTING THIS PRODUCT WITH A VISAGE DIGITAL DIVERT
SHOWER SYSTE , PLEASE FOLLOW THE FITTING INSTRUCTIONS
BELOW.
!
Dual outlet

Visage Digital remote control installation instructions Page 11
10m Data Cable
10m Data
Cable
Splitter box
2m Data Cable
Wiring diagram

Visage Digital remote control installation instructions Page 12
Using the back plate as a template,
mark the position of the fixing
screws and a Ø16mm hole for the
data cable entry point. The cable
entry point should be made in the
top right hand corner of the back
plate recess, to ensure the two holes
are kept separate.
1
Prepare suitable wall fixings to accommodate no. 8 non-rusting
countersunk head screws of a suitable length (not included).
2
Pull the data cable through be-
fore securing the back plate to
the wall using suitable no. 8 non
rusting countersunk screws.
4
Prepare a suitable route and install
the 10m low voltage data cable
leaving a working end of at least
70mm including the connector plug.
The end of the data cable closest to
the processor should terminate at
a maximum of 500mm from the
processor to allow for connection to the data cable connection
block.
3
DATA CABLES UST BE PROTECTED BY SUITABLE SHEATHING OR
CONDUIT IN THE EVENT OF SERVICING AND AINTENANCE.
!

Visage Digital remote control installation instructions Page 13
Locate the slot at the bottom of
the button assembly, onto the
locating peg at the bottom of the
back plate assembly, and offer
the button into position.
6
Push the data cable plug into the
back of the button fully home to
ensure a water tight seal making
sure the seal is no longer visible.
5

Visage Digital remote control installation instructions Page 14
Apply a thin bead of mastic to
the groove at the rear of the wall
plate.
8
Secure the button to the back plate
by carefully but firmly pushing the
button assembly onto the locking
clip at the top of the back plate.
7
To release the button, insert a small
flat bladed screw driver into the
small slot at the top of the button
assembly, to release the locking
clip, taking care to avoid damaging
the plated surface. Carefully lift the
button out and up off of the back
plate bottom locating peg.
!
Place the wall plate into position
and push flush to the finished
wall surface, taking care to avoid
any transfer of mastic from the
wall plate onto the button
assembly.
9

Visage Digital remote control installation instructions Page 15
BEFORE ANY ELECTRICAL ADJUST ENT IS ATTE PTED, THE
ELECTRICITY SUPPLY UST BE TURNED OFF AT THE AINS
SWITCH.
ELECTRICAL INSTALLATION AY ONLY BE CARRIED OUT BY
A QUALIFIED PERSON.
!
Plug the other end of the 2m
data cable (supplied with the
Digital Diverter) into ort 2
on the Digital Diverter.
11
Plug the end of the attached data
cable feeding from the splitter box
into ort 1 of the Digital Diverter.
12
Plug one end of the 2m data cable
(supplied with the Digital Diverter)
into the open entry port of the main
processor box.
10

Visage Digital remote control installation instructions Page 16
Plug the end of the 10m low
voltage data cable feeding from
the main controller, as well as the
end of the 10m low voltage data
cable feeding from the remote
button, into the two side by side
entry ports on the splitter junction
box as shown.
13
PLEASE NOTE, THE 10 LOW VOLTAGE DATA CABLES CAN BE
PLUGGED INTO EITHER OF THE SIDE BY SIDE ENTRY PORTS OF
THE SPLITTER JUNCTION BOX, THIS WILL NOT AFFECT THE
OPERATION OF THIS PRODUCT.
!
Prior to commissioning the Visage Digital remote control following
the procedure overleaf, please refer to the installation instructions
provided with the main Visage Digital product to complete the
installation of the Digital processor.
14
