aquanique WP1300UV User manual

Before returning to your retailer, call our customer service department at
1-888-314-2588, 8 a.m.-6 p.m., EST, Monday-Friday.
Submersible Waterfall Pump with UV
1300 Gallons Per Hour
ITEM # WP1300UV

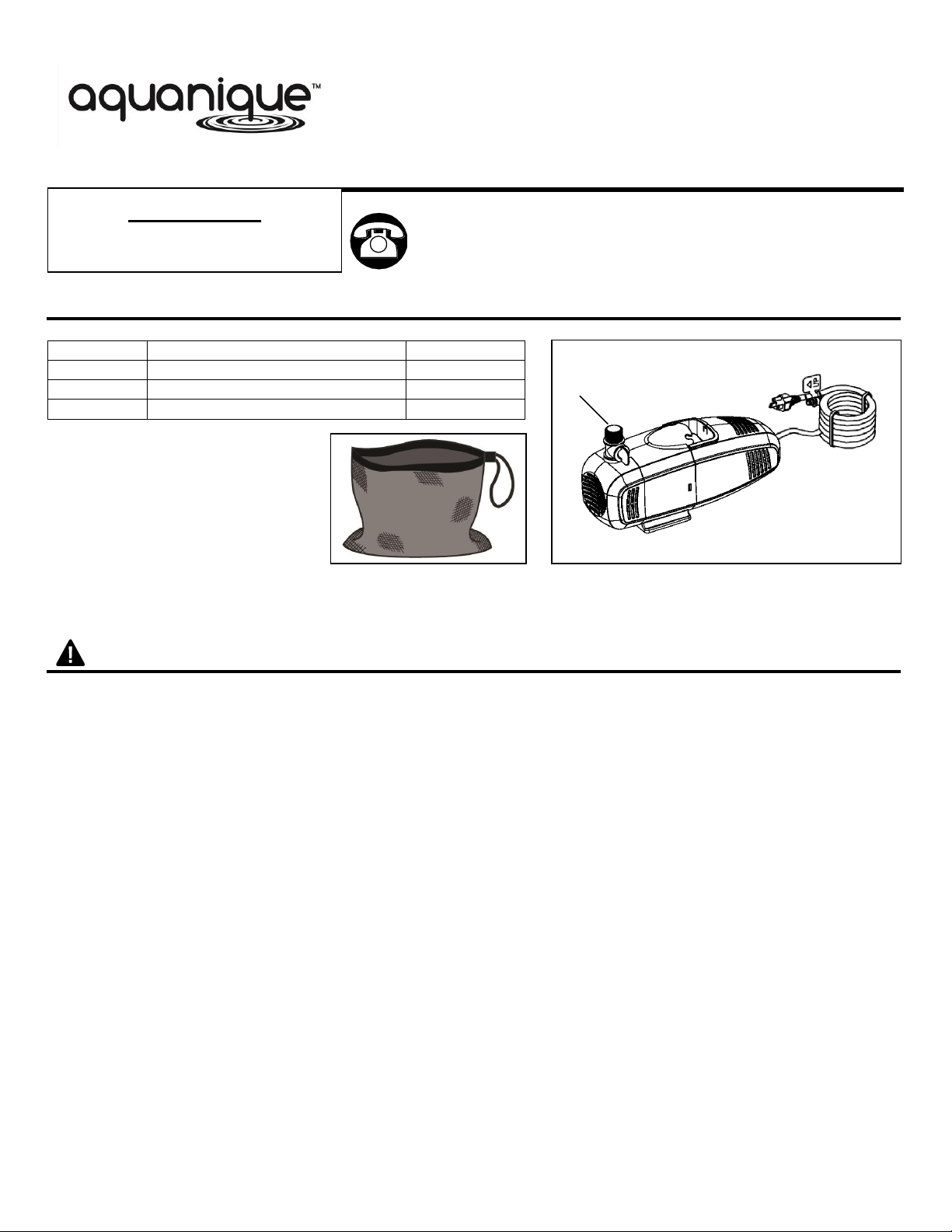

PACKAGE CONTENTS
WARNINGS AND CAUTIONS
WARNING
Risk of electrical shock. This pump is supplied with a grounding conductor and grounding–type
attachment plug. To reduce the risk of electric shock, be certain that it is connected only to a properly
grounded, grounding-type receptacle.
Do not exceed the voltage shown on the pump.
Always disconnect pump from the power source before beginning any maintenance or work on the
pump.
Inspect cord for damage before installation and/or maintenance. Replace the entire pump assembly if
damage is found.
Do not remove the grounding pin from the power cord plug.
Risk of electrical shock: This pump has not been investigated for use in swimming pools or marine
areas.
CAUTION
This pump has been evaluated for use with fresh water only.
Use a proper power source as indicated on the pump label.
Keep the cord away from high temperatures or other heat sources.
Do not pump heated liquids.
Do not let the pump run dry. Pump must be completely submerged for proper operation and cooling.
Operate in fresh water only. Avoid heavily chlorinated water and water with high pH levels.
Do not lift the pump by its power cord.
Part
Description
Quantity
A
Pump
1
B
1-in. adapter with flow control
1
C
Pump barrier bag
1
REMINDER
CALL 1-888-314-2588
BEFORE RETURNING TO STORE.
Questions, problems, missing parts? Before returning
to your retailer, call our customer service department at
1-888-314-2588, 8 a.m.-6 p.m., EST, Monday-Friday
C
A
B

Before returning to your retailer, call our customer service department at
1-888-314-2588, 8 a.m.-6 p.m., EST, Monday-Friday.
CAUTION
UV light may cause irritation to the skin and/or eyes. Avoid exposure.
DANGER –ULTRAVIOLET RADIATION –disconnect power before replacing lamp.
Prolonged or repeated exposure to UV light may have adverse physical effects including, severe
damage to your skin and eyes. Seek immediate medical attention for overexposure to UV radiation.
This light assembly has not been investigated for use in swimming pools or hot tubs.
PREPARATION
Before beginning assembly or operation of product, make sure all parts are present. Compare parts with
package contents list and diagram above. If any part is missing or damaged, do not attempt to assemble,
install or operate the product. Contact customer service for replacement parts.
Estimated Assembly Time: 5 minutes
Tools Required for Assembly: Philipshead screwdriver.
OPERATION INSTRUCTIONS
1. Connect the adapter to the pump by inserting into the pump
discharge and twisting clockwise. Then connect tubing to the
adapter. Fig. 1
Fig. 1
2. Route the power cord through the handle on the top of the pump.
Fig. 2
Fig. 2
3. Place the pump inside the pump barrier bag. Pull the drawstring
until the pump barrier bag is fully closed around the tubing and
power cord. Tie a knot in the drawstring. Fig. 3
Fig. 3

Before returning to your retailer, call our customer service department at
1-888-314-2588, 8 a.m.-6 p.m., EST, Monday-Friday.

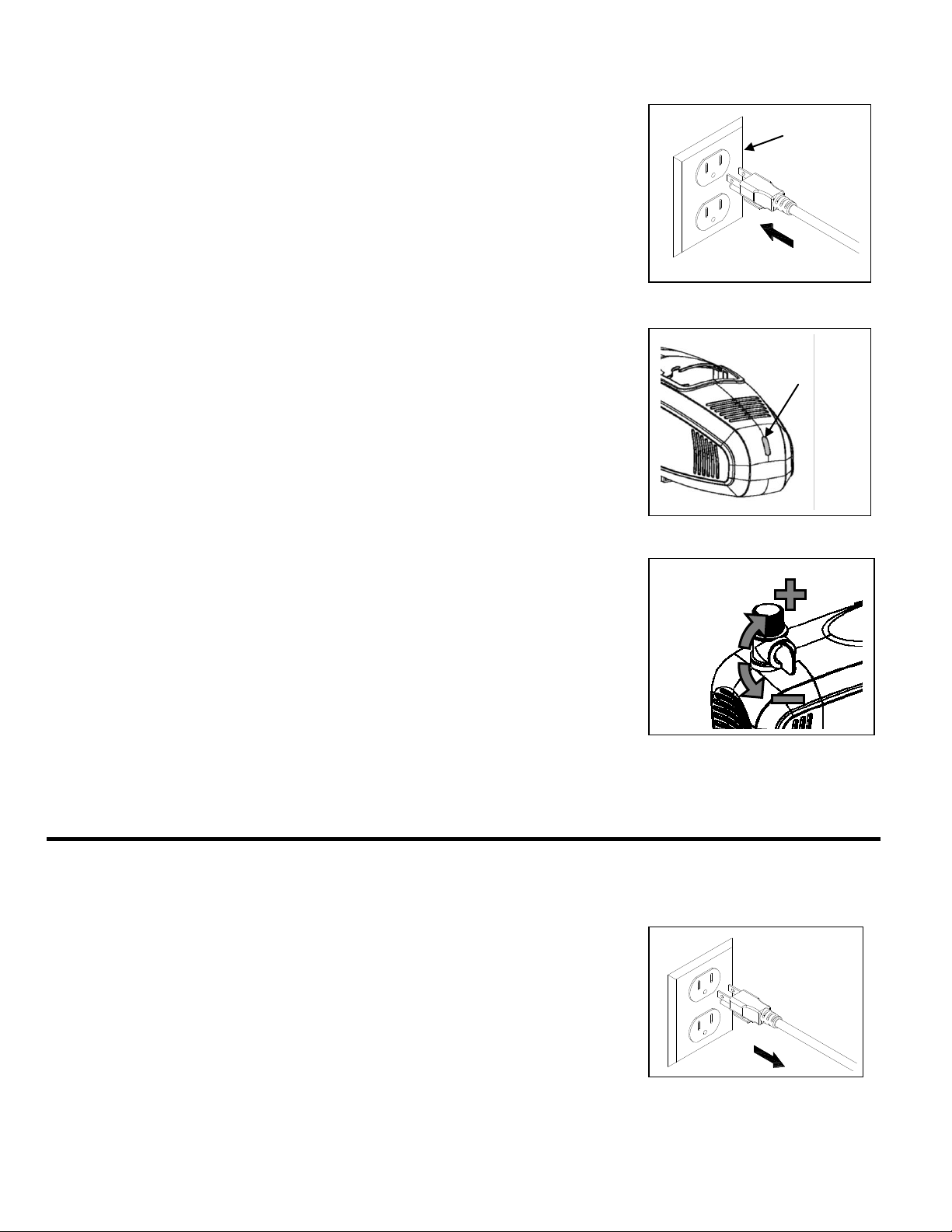

4. Place the pump into the water and connect to a proper power
source. Fig. 4
Fig. 4
5. Note the indicator light on the back of the pump. This light
indicates whether or not the UV light is on or off. Fig. 5
Fig. 5
6. Adjust the flow control to the preferred setting. Fig. 6
Fig. 6
MAINTENANCE PROCEDURE
In order to insure optimal operation of the UV pump, the following procedures should be performed
periodically. When the performance of the pump is reduced –it is an indication that cleaning of the unit
is needed.
1. Unplug pump, remove from pond. Fig. 7
Fig. 7
GFCI
Indicator
light

Before returning to your retailer, call our customer service department at
1-888-314-2588, 8 a.m.-6 p.m., EST, Monday-Friday.

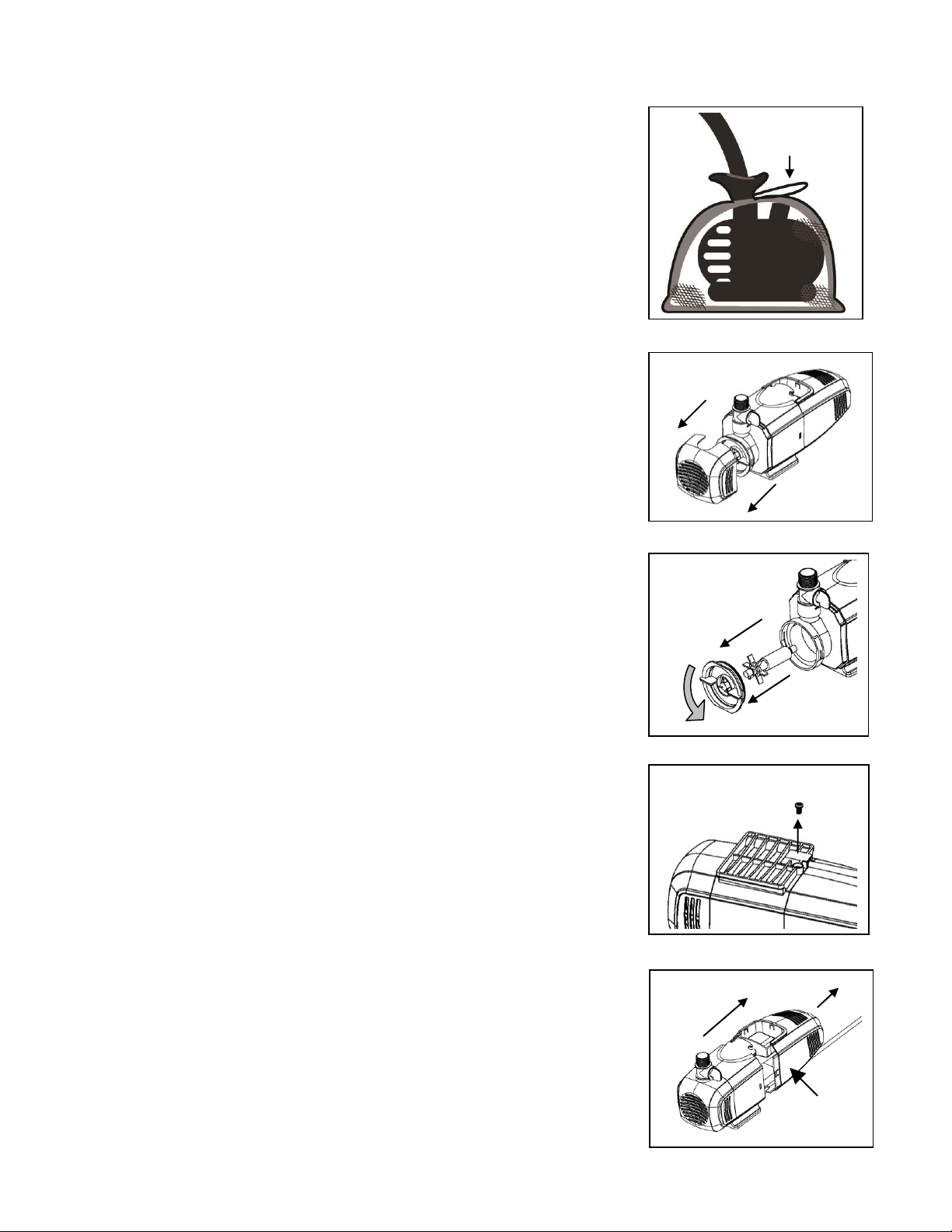

2. Untie the drawstring on the pump barrier bag and then remove the
pump from the pump barrier bag. Clean the pump barrier bag then
place the pump back inside the pump barrier bag and test the pump.
Fig. 8
NOTE: If the pump performance is still unsatisfactory, unplug the
pump and proceed to step 3.
Fig. 8
3. Remove the front cover from the pump. Fig. 9
Fig. 9
4. Remove the impeller cover to expose the impeller assembly.
Remove the impeller assembly by gently pulling on the impeller
blades. Use a soft cloth or brush to clean the impeller assembly
and inside of the impeller housing. Fig. 10
Fig. 10
5. Remove the locking screw, which is located on the bottom of the
pump. Fig. 11
Fig. 11
6. Remove rear cover by gently pressing on the sides and pulling it
away from the pump. Fig. 12
Untie
drawsting
Press
here

Before returning to your retailer, call our customer service department at
1-888-314-2588, 8 a.m.-6 p.m., EST, Monday-Friday.
Fig. 12
7. Remove the light cover from the pump by turning it
counterclockwise and pulling it away from the pump. Fig. 13
Fig. 13
8. Note: In the unlikely event the UV bulb needs replacing, remove
glass tube by turning the glass tube assembly counterclockwise
and pulling away from the lamp base. Gently the pull bulb straight
apart from the bulb socket and insert the replacement bulb in the
reverse manner. Fig. 14
Fig. 14
9. Clean the exterior of the UV glass tube with warm soapy water.
Fig. 15
Fig. 15
10. Reassemble all of the components. Fig. 16
Fig. 16
Clean with soap

Before returning to your retailer, call our customer service department at
1-888-314-2588, 8 a.m.-6 p.m., EST, Monday-Friday.
CARE AND MAINTENANCE
Clean the pump regularly depending upon the environment in which it is operated. Clean the pump
when it is visibly soiled or when a drop in performance is detected.
Before cleaning, always disconnect the pump from the power source.
Remove all parts from the pump and clean in warm, soapy water.
Remove any large debris from pump barrier bag. Use a garden hose to rinse off any other dirt
from the pump barrier bag.
TROUBLESHOOTING
If the pump fails to operate:
Check to make sure the power cord is plugged in, the pump is getting power and the pump is
fully submerged.
Check the pump outlet and any tubing, fountains, spitters etc. for kinks or obstructions.
Remove the inlet screen and/or pump cover, and impeller cover to expose the impeller. Turn
the impeller to ensure that it is not broken or jammed. Also check the ceramic shaft to make
sure that it is not broken.
If the performance of the pump is not satisfactory or the pump does not flow evenly:
Check to make sure the pump is completely submerged in water.
Check to make sure the impeller and the housing are clean clear of debris.
Check the pump outlet and any tubing, fountains, spitters etc. for kinks or obstructions.
Adjust flow control.
Check to make sure the pump barrier bag is clean.
REPLACEMENT PARTS LIST
For replacement parts, call our customer service department at 1-888-314-2588, 8 a.m.-6 p.m., EST, Monday-
Friday.
Part
Description
B
1-in. adapter with flow control
C
Pump barrier bag
D
Front cover
E
Impeller cover
F
Impeller assembly
G
Ceramic shaft
H
Shaft support
I
Rear cover
J
Top cover
K
Screw
L
Light cover
M
Flow chamber
N
Glass tube assembly
O
UV bulb
C
J
I
H
D
N
O
E
F
G
H
K
M
L
B

Before returning to your retailer, call our customer service department at
1-888-314-2588, 8 a.m.-6 p.m., EST, Monday-Friday.
PUMP PERFORMANCE
FLOW RATES
LIFT (FEET)
12
476
GPH
11
560
GPH
10
630
GPH
9
710
GPH
8
793
GPH
7
850
GPH
6
910
GPH
5
970
GPH
4
1,040
GPH
3
1,100
GPH
2
1,170
GPH
1
1,268
GPH
0
1,375
GPH
WP1300UV
LIMITED WARRANTY
All pumps and electrical products are warranted to the user against defective material and workmanship,
under normal working conditions. This warranty period begins on the date of purchase by the original
purchaser.
All aquanique™ electrical products are warranted to the user against defective material and workmanship,
under normal working conditions for 1 year from the date of purchase. All aquanique™ liners are
warranted to the user against defective workmanship, under normal working conditions for 20 years from
the date of purchase. All other aquanique™ product is warranted to the user against defective material
and workmanship, under normal working conditions for 90 days.
Application
Warranty covers only properly installed and maintained units. Pump warranty is limited to applications
pumping fresh water in a pond or fountain only. Other liquid applications or extreme temperature uses
must be approved in writing by the manufacturer. Receipt and product date code are required for warranty
claims.
Warranty Claim
Warranty claims must be made by calling customer service (at 1-888-314-2588). If the item is
determined to be defective, you will be given authorization to return the defective part(s), freight pre-paid,
along with proof of purchase.
Disposition
The manufacturer will make a good faith effort for prompt disposition regarding all warranty claims.
Returned product will be inspected to determine cause of failure before warranty is applied. Warranty does
not cover any costs associated with the shipping, handling, installation or removal of products or parts
subject to this warranty. For products damaged in transit, a claim should be filed with the carrier.

Before returning to your retailer, call our customer service department at
1-888-314-2588, 8 a.m.-6 p.m., EST, Monday-Friday.
Disclaimer
Any oral statements made about the product by the seller, the manufacturer, the representatives, or any
other parties do not constitute warranties, should not be relied upon by the user, and are not part of the
contract for sale. The seller’s and manufacturer’s only obligation, and buyer’s only remedy shall be for the
manufacturer to either replace and/or repair at the manufacturer’s sole discretion, the product as described
above. Neither seller nor the manufacturer shall be liable for injury, loss or damages for lost profits, lost
sales, injury to person or property, or any other incidental or consequential loss arising from any cause
whatsoever, no matter whether based upon warranty, contract, negligence or other misuse, and the buyer
and user agree that no other remedy shall be available to them. Before using, the buyer and user shall
determine the suitability of the product for the intended use, and assume all risk and liability whatsoever in
connection therewith. The warranty and remedy described in this limited warranty is an exclusive warranty
and remedy in lieu of any other warranty or remedy expressed or implied. All other warranties and
remedies are hereby expressly excluded, including but not limited to any implied warranty of
merchantability of fitness for any particular purpose. This warranty gives the buyer and user specific legal
rights, and buyer and user may also have other rights which vary from state to state. Some states do not
allow exclusions or limitations of incidental or consequential damages, so the above limitations or
exclusions may not apply to you.
REMINDER
CALL 1-888-314-2588
BEFORE RETURNING TO STORE.
