Aquapeutics WG-U6811 User manual

Installation Manual
STEAM ROOM
Make the most of your shower;make the best for your home!
WG-U6811
Aquapeutics
Aquapeutics

1. The electrical installation should be performed by a qualified technician or
professional.
2. The power supply should match the electric parameter of the product, certified
GFCI Circuit . distance among outlets ≧3mm.
3. Cutting any wire on this product is strictly prohibited in the process of handling
installation. Do not take apart computer control box, control panel or remote
control, or warranty will be void.
4. Before using, check whether power is sufficient? Whether control faucet is
open.
5. Avoid Organic liquid like Acetone, ammonia, petrol and vitriol chemicals that
will blemish the acrylic surface and plated parts.
Safety notice
Advice:
1. Pay attention to high temperatures to prevent burns when using the
steam shower.
2. Persons that are intoxicated, hypertensive, asthmatic, or have heart
disease should avoid prolonged use of the steam shower.
3. Children should be accompanied with adult when using the steam
shower.
4. close the door and do not enter the steam shower when the sterilization
is on.
5. The massage bath tub can not be filled while using the steam shower.
6. Don't forget to cut water supply and power supply after each use.
7. Unit must be properly grounded.
8. Out door use is not allowed.
Warning:
Users must operate according to the Safety Notice and installation
requirements otherwise, personal injury may occur
The manufacturer reserves the right to modify this unit and technical
parameters at any time .
1

Technical parameter
Pedal Discharge Control
Manual drainer
Drainer
Bubble
Surf
Waterfall Inlet
Under-water lamp
Steam Generator protecttion
Top light
Sliding handle shower
Top shower Time setting Temperature setting Temperature detector Acupuncture massage Multi-function shower Hydraulic pressure adjustor Cold / Hot Water Switch Telephone answer Bluetooth
FM Radio
Leakage protection
Steam bath
Ozone sterilization
Exhaust Fans Control Panel
MODEL
WG-U6811
Product Features - Standard Configuration
Function and device
The information of this table are only reference, the company have right to amend
the technique parameter、specification 、model、collocate before any advance
inform, the detail please inquire about dealer.
Water Parameter：
Work hydraulic pressure
Current capacity Diameter of drainer
Mpa L/min Cold/hot water Drainer
0.2-0.48-12
Electrical
source voltage
Electric Parameter：
WG-U6811 220-240
(V) (Hz) (W) (W) (W)
50 750 3004500
(A)
Model Steam
generator
Size(mm)
Rated Power
Rated current
Blower
DN15 DN40
1620X1620X2230
Pump
2

Power Use Advice: The main Power Supply Switch(With the Creepage Protection Switch )
should be mounted about 1000 mm away from the steam room during installation in the site
so that the power can be cut off after each use to ensure safety and the service life of computer
control system of the product.

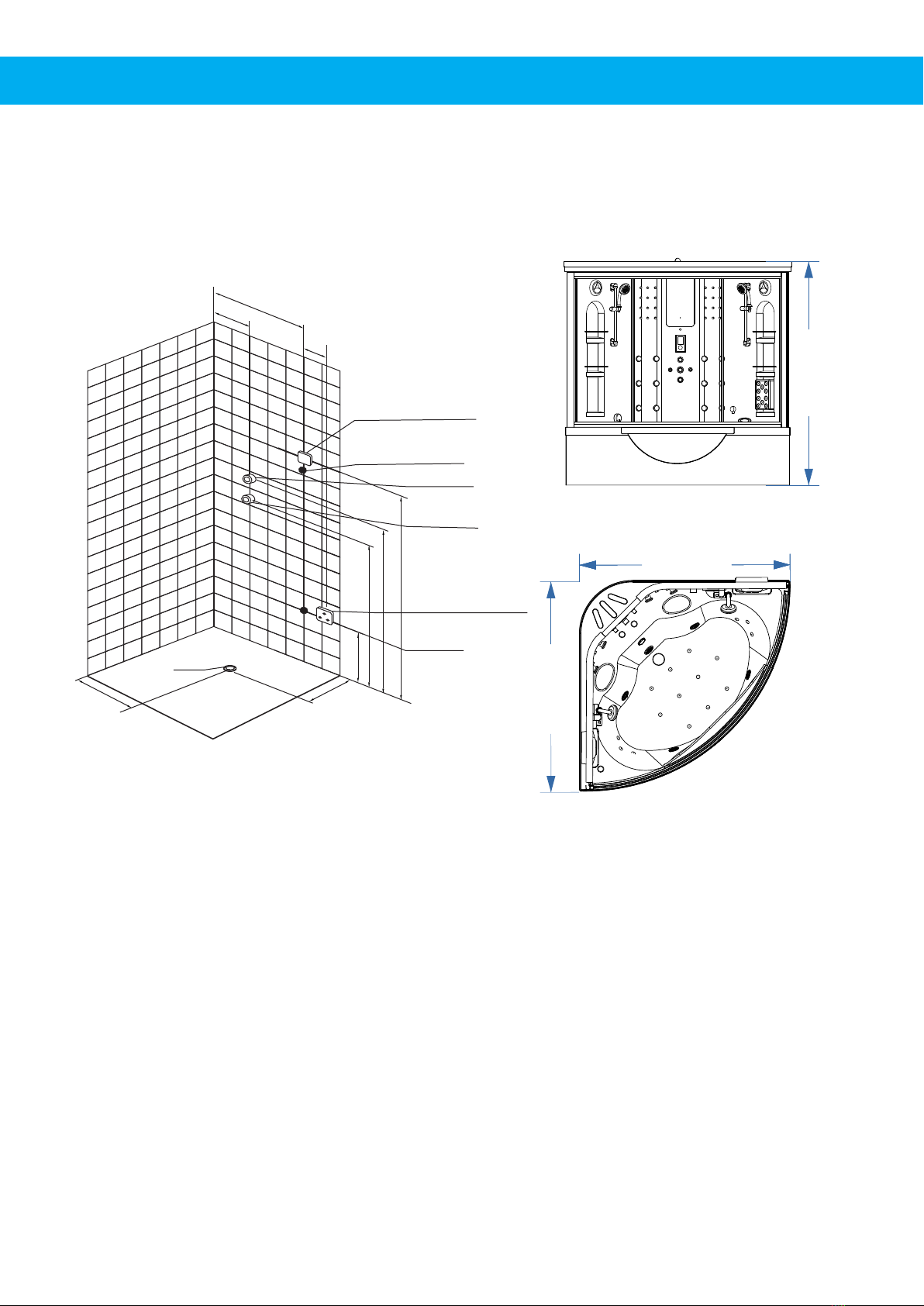

Plumbing & Electrical
Plane Dimension Drawing
Three-dimensional Installation Dimension Drawing
300
400
400
1000
1500
800
200
1100
200
Ground wire
connector
Drainage Hole
Hot water
Cold water
Ground wire
connector
25A Waterproof
Creepage protection
Switch
20A
waterproof
socket
1.Water Supply: One Cold and one Hot pipe. Shut-off Valve with outside Yoke (DN15(G1/2))shall be
mounted on the wall which should be 1000mm above from the ground. 0.15mPa=Pressure=0.4mPa.
2.The steamer power: 4500W. Power supply voltage:AC220V±10%. Frequency:50Hz. Single Phase and
Three Wire System with 3X4mm2 rubber-insulated copper wire which is independent loop. The steamer is
mounted with the Creepage Overload Protection device and must have the reliable ground wire. Bathtub
body: 7500W/AC220V/50Hz. Single Phase and Three Wire System. BV=3x2.5mm2. With one 10A Water
Proof Socket. This product must be powered through Electric Creepage protection plug and Overload
Protection Device with less than 30mA electric current. The ground wire of appliance must be permanently
connected to valid and reliable ground wire of Power Supply.
3.Water Drainage: The floor drainage hole should be the same or bigger than DN50, and should be on a
line with the ground.
2210mm
1620 mm
1620 mm1620 mm1620 mm
1620 mm
3

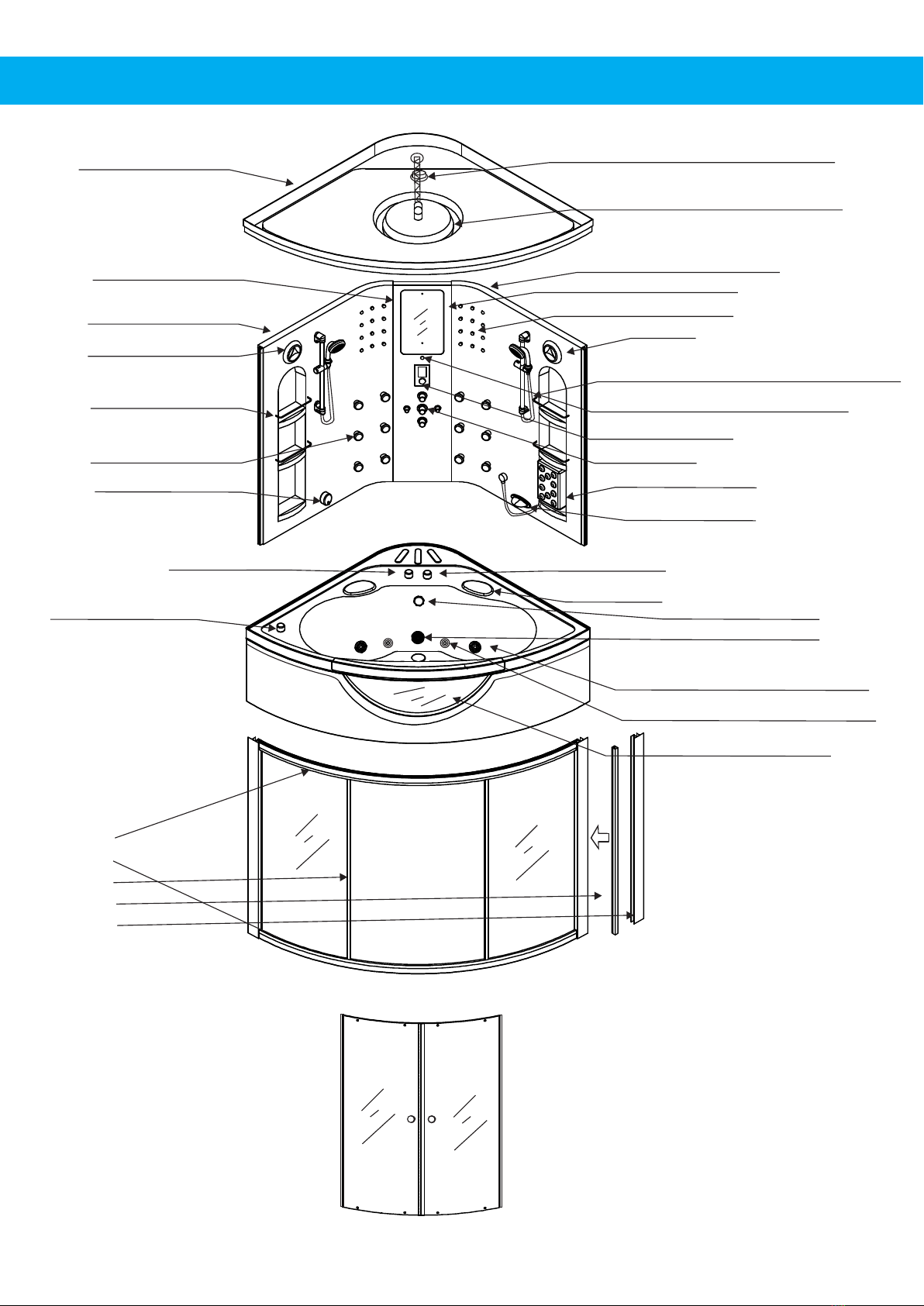

Exploded pictures
ROOF
HEAD SHOWER WITH LIGHT
OZONE STERILIZATION
MIRROR
LED LIGHT
LOUDSPEAKER SETS SHOWER SLIDING BAR
WITH HAND HELD SHOWER* 2
TEMPERATURE DETECTOR
S198 SYSTEM
FAUCETS
AIR PUMP SWITCH
WATER PUMP SWITCH
SMALL WATER
MASSAGE JETS * 10
UNDER WATER LIGHT
AIR JETS * 10
VIEWING WINDOW
AIR-CONDITIONING SWITCH
HANDRAILS FOR
*4 STORAGE RACK
ACUPUNCTURE
MASSAGE JETS*12
MEDICINE BOX
MIDDLE BACKBOARD
LEFT BACKBOARD
BATHTUB
ALUMINUM FRAME
A1
A2
B*2
C*2
D*2
GLASS*2
GLASSDOOR*2
HANDLE*2
WHEEL*4
FSPARE*2
RIGHT BACKBOARD
FAN
FOOT MASSAGE
WATER NOZZLE
CUSHIONS*2
MANUAL DRAINER
SUCTION
ADJUSTABLE BIG WATER
MASSAGE JETS *12
4

Installation Steps
M6*25Screw*10
Install bathtub
Open the packing put the tray to the appropriate place. Use the level
ruler test all direction is balance. Adjust the screw which in foot to
the tub until level, and then screw down the nut. The feet must adhere
to the ground.
5

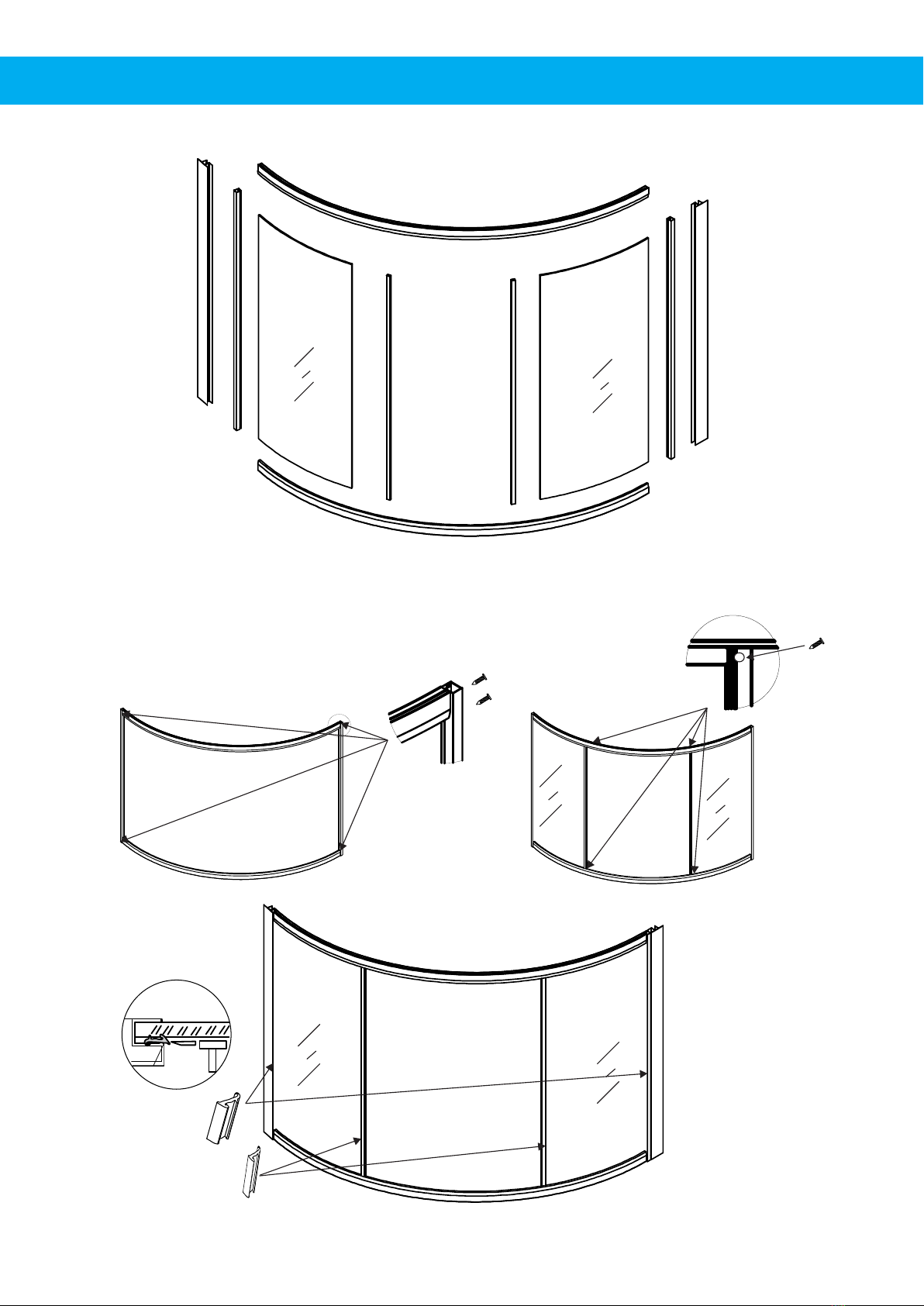

Installation Steps
M4*16(4)
M4*25(8)
A1
A1
A1
A2
BB
B
C
C
C
D
D
The big single side seal
The small single side seal
6

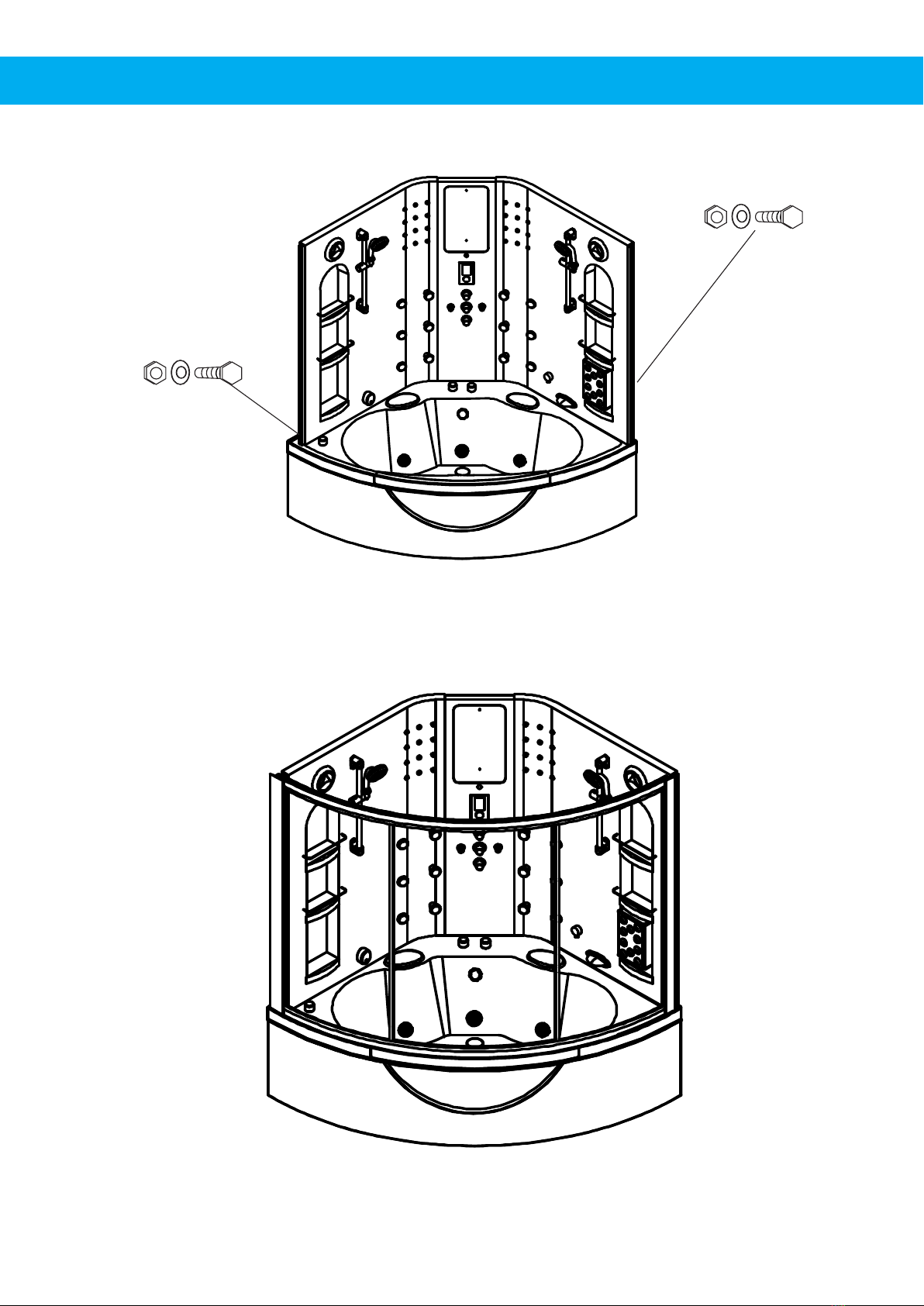

Installation Steps
M6*25Screw*4
M6*25Screw*4
7

Installation Steps
M4*16(5)
M6*25Screw*11
F Spare
install the wheels
install the wheels
foot massage
shower fitting
steam box
8

Installation Steps
Hot water
Cold water
Connect handheld shower
Connect top shower
Connect waterfall
Connect back jets
Connect foot massage

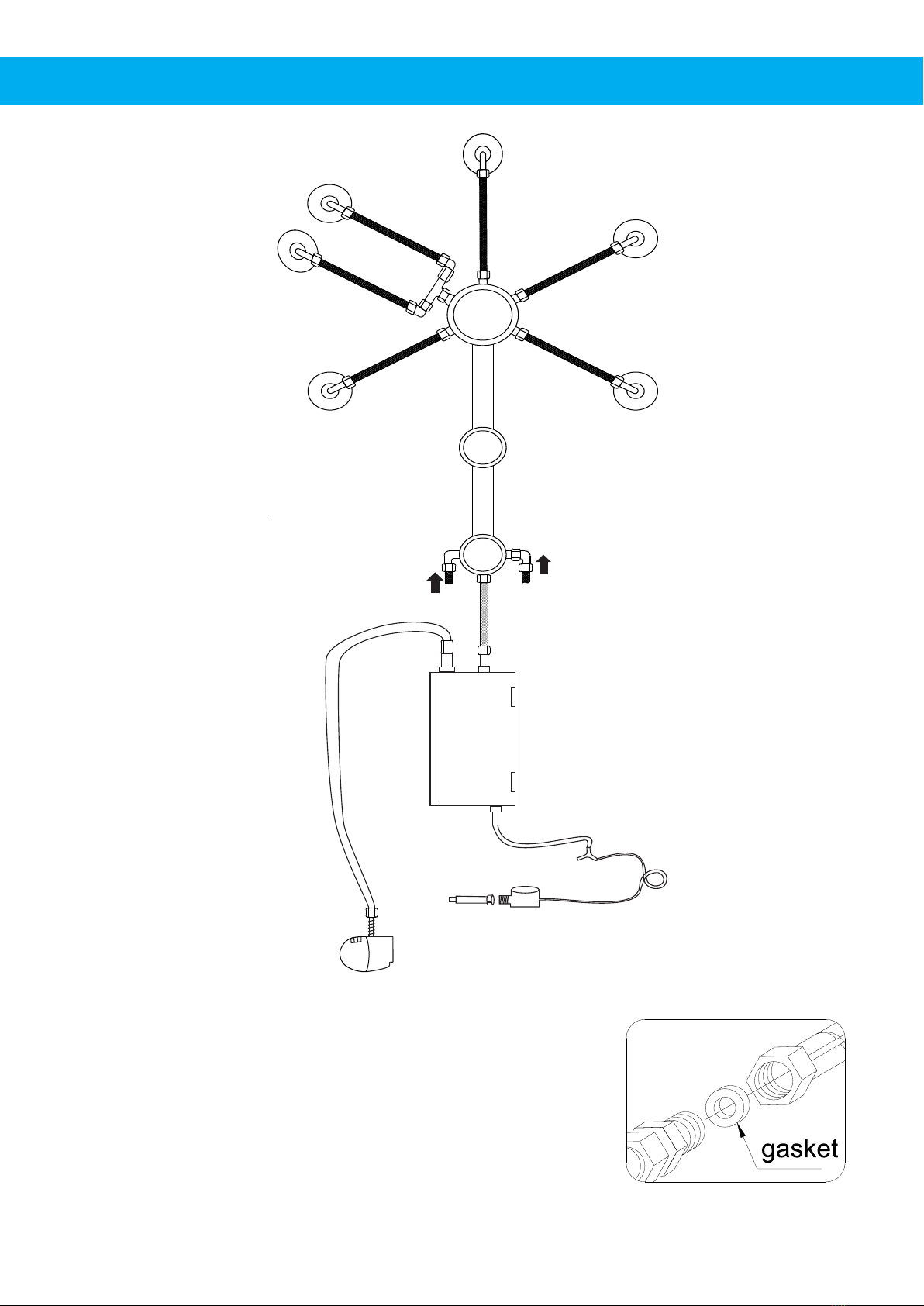

Hose diagram
Steam Generator Water out
Steam box
Steam generator
Drainer
Steam generator water in
Note: all pipe there must be gasket
9

30
35
38
45
50
C° cold

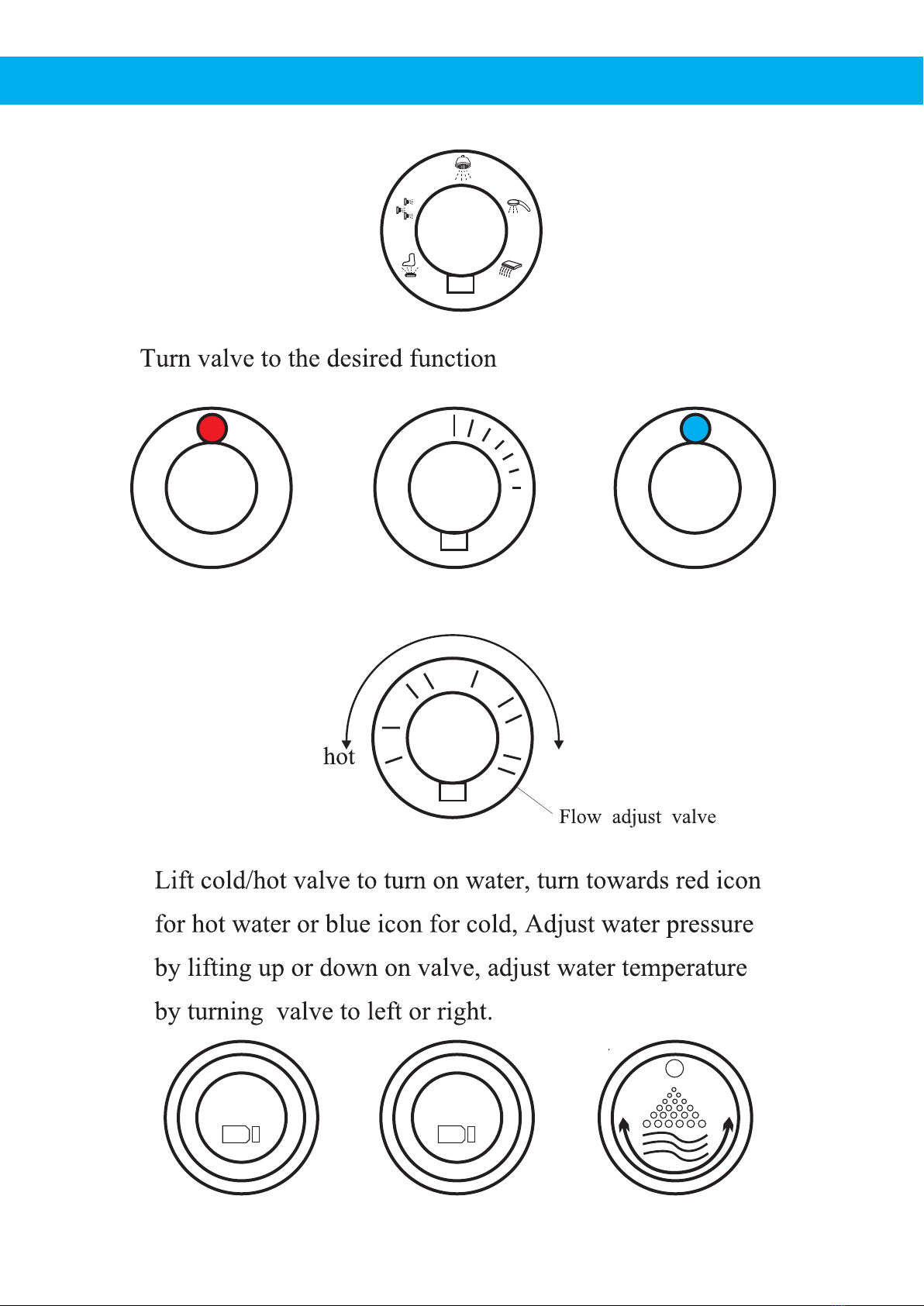

Operation Instruction Of Steam Room
Handheld shower
Top shower
Waterfall
Handheld shower
Left ON/OFF
Handheld shower
Right ON/OFF
Foot massage
Back jets
POWER
ON/OFF
POWER
ON/OFF
AIR PUMP SWITCHWATER PUMP SWITCH AIR-CONDITIONING SWITCH
10

-----LCD screen
-----Power switch
-- - --
-----Last song
-----Volume control
-----Next song
Shuttle switch
33 44
1 1
22
1414
8
55
66
33
44
6
5
1 1
22
1
2
Operation instruction of S198E system
11

Operation instruction of S198E system
1
2
-----Lower spray
-----Middle spray
-----Upper spray
-----Overhead spray
-----Spray
-----Steam
-----Temperature indication
-----Steaming time setting
-----Radio frequency indication
-----FM
-----Cleaning
-----Stored channel indication
-----Volume indication
-----Channel indication
-----Minute indication
-----Celsius indication
-----Fahrenheit indication(none)
-----Turning
-----Channel search
-----Bluetooth
-----Keyboard lock
-----Steam temperature setting
-----Telephone answer
-----Sterilization
-----Cursor(Optional )
-----2 modes of shortcut key
-----Fan
14
14
14
14
14
14
14
14
1414
14
14
1414
-----Lighting
12
33
15
16
12
2323
20
88
2727
24
27
44
13 14
18
9
20
15
7
13
22
19
5
9
2626
23
26
3
55
10
1
1 1
A
17
14
18
10
2525
22
66
11
2
A
A
A
A
A
22
16
19
8
21
17
6
11
2424
21
4
77
28
25
28
A
A
AA
A
A
A
-----Display of volume,minte,channel
12

Operation instruction of S198E system
-----Ozone function key
-----Side spray function key (Optional )
-----Switch function key
-----Fan function key
-----Lighting function key
-----Bluetooth function key
-----Turning/song switch function key
-----Tune rising function key
-----Steam function key
-----Channel storage function key
-----Setting function key
-----Tune falling function key
-----Radion function key
14
14
1414
-----Overhead spray function key
33
12
8
44
13
9
55
1 1
14
10
66
22
11
77
1414
33
88
44
9
55
1 1
66
22
77
11
12
10
14
13
14
14
13

1.Notes：
(1)this panel is equipped with capacitive touch buttons,make sure to advod direct
Contact with shower head while selecting installation loaction of the
panel.Otherwise it would lead to maloperation or trigger the panel lock
(2)all function keys are located at the most conveniet locations。
(3)the panel would give a sound once being energized。
2.Function introduction
(1)spray massage；
(2)steaming；(3)exhaust fan；
(5)lighting；
(4)FM;
(6)ozone disinfection；(7)bluetooth； (8)telephone
3.Functional operation instructions
(1)start up/shut down and unlocking of panel
①startup
Touch on the panelor press on the remote control to turn on the system.
The back light of shuttle switch and LCD screen would light up;the screen would
show currenct temperature.The system would automatically set a countdown of
one hour and turn on the overhead light.
②shutdown
When the system is operational and unlocked,touch on the panelor on
the remote control to turn off the system.It would also stop functioning as the
countdown ends
③Locking / unlocking of the panel
When the system is operational.The panel would be locked for no operation
in 30 seconds and the icon on the LCD sreen would light up,press shuttle
switch to unlock the panel.The icon would disappear and all keys on the
panel would become operable.
Operation instruction of S198E system
14

(2)Instruction for use
After stratup the default location of cursor would be .Rotate the
shuttle switch to move the cursor.After the cursor moves to a function,press the
shuttle switch or the function keys on the remote control to quickly turn on and
turn off the function.The icons would light up after functions are turned on and
vanish after functions are turned off.
(3)、operating instruction
1. Setting of steam function, temperature and duration
①. Move the cursor to ,press the shuttle switch or momently press
on remote control to start the steam bath function. After startup, the icon
would light up. would flash for shortage of water. Press the shuttle switch or
on remote control again to turn off the steam function. After the steam function
is turned on,the steam machine would shut down automatically as the steam
temperature reaches the set value and reopens as the steam temperature falls below
the set value.
②. The default steam temperature is 45 ℃ and the default duration is 45min.
③ Setting of steam bath temperature: After turning on the steam machine,
move the cursor to , press the shuttle switch or momently press on
remote control to enter the temperature setting mode. As the icon flashes, rotate
the shuttle switch to adjust the temperature or press on the remote control to
raise the temperature or to lower the temperature. Temperature setting
range: 25 ~ 60 ℃
④ setting of duration: After turning on the steam machine, move the cursor
to ,press the shuttle switch or momently press on remote control to
enter the temperature setting mode, .
Operation instruction of S198E system
15

Operation instruction of S198E system
then momently press once again to enter duration setting mode. As the icon
flashes, rotate the shuttle switch to adjust the time or press on the remote
control to increase the time or to decrease the time. Timing range: 5 ~ 50min.
⑤. Settings of temperature and time would automatically take effect in 3 seconds,
the system would exit the temperature and time setting mode.
⑥ Drainage: 5 minutes after the shutdown of system, the steam tank would drain
water for 3 minutes.
2. Spray(Optional )
Move the cursor to and press the shuttle switch. The first press would
turn on upper spray; the second press--switch to middle spray; the third press–
switch to lower spray; the fourth press would start the automatic cycle of upper,
middle and lower spray; the fifth press--switch to overhead spray. There is a
1-second delay before the overhead spray starts; the sixth press would turn off the
spray. The spray type would change every 5 seconds in the cyclical mode.
In the case that the remote control is used to control the spray, momently
press on the remote control. The first press would turn on upper spray; the
second press--switch to middle spray; the third press--switch to lower spray; the
fourth press would start the automatic cycle of upper, middle and lower spray; the
fifth press would turn off the spray. When the overhead spray is off, press on
the remote control to open overhead spray (other sprays are off). Then press the
button again to turn off overhead spray.
3 Exhaust fan function
Move the cursor to and press the shuttle switch or momently press
16

Operation instruction of S198E system
on the remote control to turn on or turn off the exhaust fan. Icon would light up
after startup.
4. Move the cursor to and press the shuttle switch or momently
press on the remote control to turn on or turn off the lights. Icon would light
up after startup.
5. Ozone disinfection
When steam machine, spray, fan and multimedia are off, move the cursor to
and press the shuttle switch or momently press on the remote
control to turn on or turn off the ozone. After startup, icon would light up and
all other functions would be disabled except lighting function. Emission of ozone
would last 10minutes, then the exhaust fan would automatically start and operate
for 15 minutes.
6. Radio Function
Move the cursor and press the shuttle switch or momently press
on the remote control to turn on or turn off the radio function. Icon would light
up after startup.
① Channel search: After turning on the radio function, move the cursor to
and press the shuttle switch or press on the remote control to turn on
the channel search function. Then the LCD would show channel and the icon
“Frequency” would flash. would flash. Rotate the shuttle switch to turn on
incremental tuner or momently press and on the remote control to switch
channels. The step length is 0.1MHz.In radio mode, touch or to start
automatic upward,downward search; or press on the remote control to enter
17

Operation instruction of S198E system
channel search mode and press or on the remote control for one second,
which would start automatic upward, downward search until a valid station is
obtained.After unlocking the panel and exiting from function settings,
touch or . The cursor would automatically return to and start
the automatic upward, downward search until a valid station is obtained
② Station storage: when a radio station has been found (the “radio frequency”
icon would flash), press the shuttle switch for 2 seconds or press on the remote
control for 2 seconds to store the current radio frequency. The LCD would show the
frequency and icon would flash for two seconds; in this way, at most 10 radio
frequencies can be stored on different channels.
③ Frequency range: 87.5 ~ 108.0MHz.
④ Switch of channels: When the radio is turned on and the panel is unlocked,
move the cursor to press the shuttle switch, rotate the shuttle switch
or momently ,press on the remote control to switch channels and play
programs on the stored radio channel.
7. Bluetooth
Turn on the system and the power supply of Bluetooth module. Bluetooth
module would connect to cellphone 5 seconds later; Bluetooth module would
break the connection and refuse connection request when the system is turned off.
Move the cursor to and press the shuttle switch or momently
press on the remote control to turn on or turn off the Bluetooth function.
After Bluetooth is enabled, icon would flash for no connection and would be
dynamically displayed for successful connection. The screen would show "OFF"
when the music halts and "On" when the music goes on.
After turning on Bluetooth player, momently press on the panel to
18

Operation instruction of S198E system
switch to the next song, momently press on the panel to switch to the previous
song. When using remote control to switch songs, you first need to press on the
remote control to song switch mode, then press to switch to the next song and
for the previous song.
8. Phone function
After turning on the system and completing Bluetooth connection, the cursor
would automatically move to “Telephone” icon, the icon would light up and
would flash when a phone call comes in.
Press the shuttle switch to answer the phone, the icon would be dynamically
displayed. Then press the shuttle switch to hang up the phone and the multimedia
player would automatically return to the original state.
During the access to or reception of phone calls, the cursor can only move between
non-multimedia functions and phone. After the cursor moves to a non-telephone icon,
it would automatically return to the phone icon for no operation in five seconds.
Multimedia control keys on the remote control will be disabled during ringing and
reception of calls. When a phone call comes in, touch to reject the call.
9. Volume control
In the radio and Bluetooth mode, touch on the panel to enter the volume
adjustment mode. Icon would flash on the LCD screen. Rotate the shuttle
switch to adjust volume. Wait for 3 seconds or press the shuttle switch to exit from
the volume adjustment mode.In radio or Bluetooth mode, when the remote control is
used to adjust the volume, momently press on the remote control to enter volume
adjustment mode if steam machine is off, then press or on the remote
control to increase or lower the volume; if the steam machine is operational,
19
