Aquapeutics L52 Series User manual

Steam Room Installation Manual
L52 Series
(L528)
All set up dimensions are in Millimeters

200
550
1000
1200
1500
1050 100
1
2
3
4
5
6
7
8
9
1 0
1 1
1 2
1 3
1 4
1 5
1 6
1 7
1 8
1 9
2 0
2 1
2 2
Speaker
Fixed Glass
Mirror
Bottom Track
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
Edge Aluminum
Active Glass
Shower Chain
Seat
Top Cover
Top Shower
Colorful Top Light
Scotland Waterfall
Handheld Shower
Storage Shelf
Control Panel
Steam Box
Acupuncture Jet
Foot Massage
No. Components No. Components No. Components No. Components
Top Track
Sliding Bar Changeover Switch
Fan

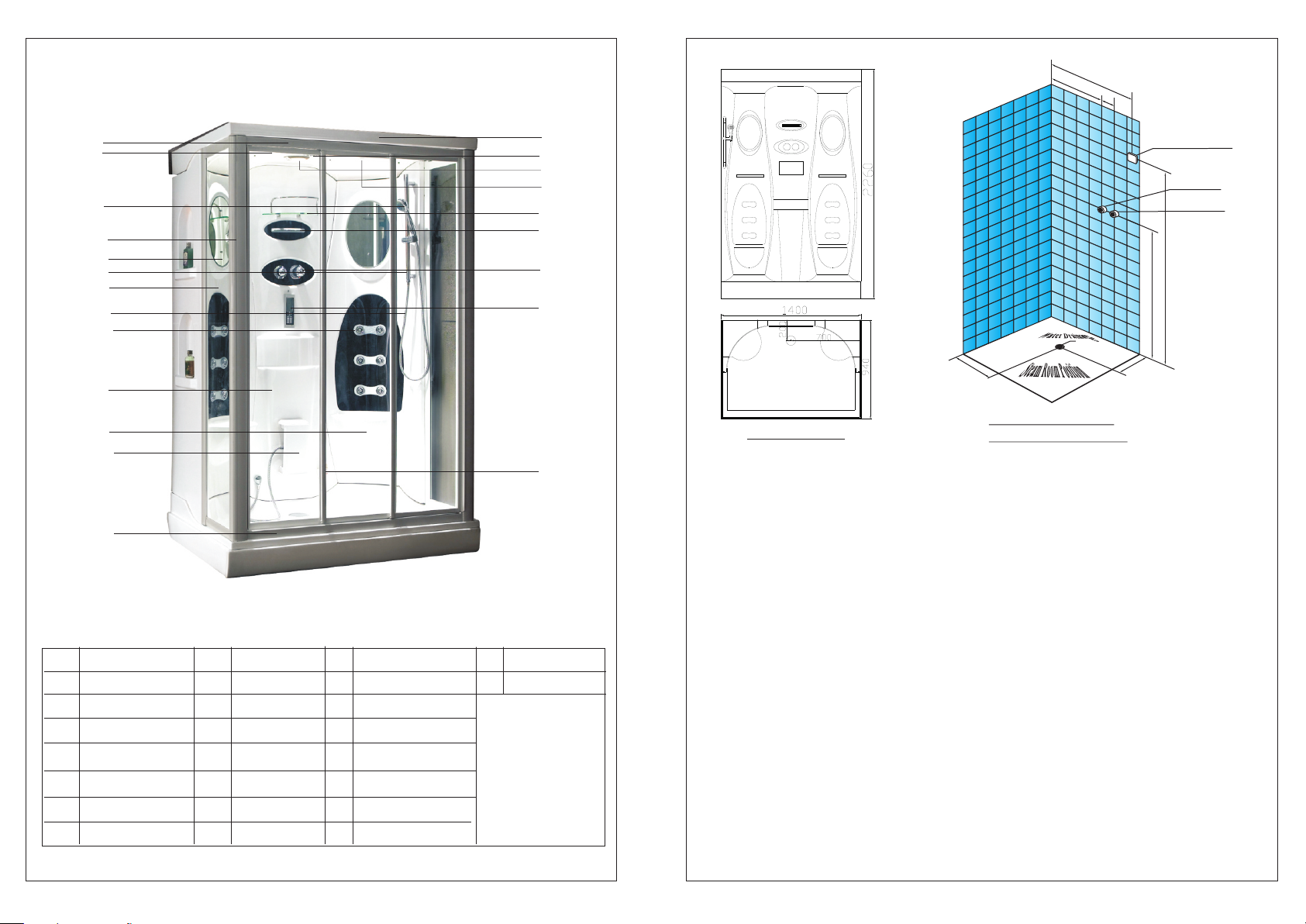

L528 Steam Room structure
Size：1400x940x2260mm
30A GFCI Circuit
Hot Water
Cold Water
Plane Diagram
Three Dimensional
Installation Diagram
01. Water Supply : one hot water pipe and one cold water pipe, Install the
DN15(G1/2) shut-off valve 1000mm from the floor, 0.15Mpa ≤Water Pressure ≤
0.4MPa.
02. Power Supply : Steam Generator Power : 4000W, Rated Voltage : AC220V~
240V / 50~60Hz, Single-phase three-wire 3x4mm² copper insulated wire,
Independent electrocircuit, install only GFCI breakers with a reliable ground wire
protection, Install the 30A GFCI circuit at the 1500mm wall height to connect the
steam generator circuit.
03. Water Drainage : the Floor drain outlet should be ≥DN50 (2 inch), keep the
same level as the ground.
04. Models with a telephone and CD, install the telephone and CD socket above
the power socket.
Installation Requirement
First check the package factory code marked on crates. Numbers should match.
Second prepare the following tools : phillips screwdriver, slotted screwdriver,6~30#
adjustable wrench,level,knife, silicone sealant, caulk gun,wood wedge ,
plastic hammer .
21

Installation Steps
1. Install Tray
Move the Tray to the desired location, every ground foot nut should touch the
ground, Use the leveling feet to level the tub. Insert the drain pipe into the
drainage outlet. Drain should be a minimum of 2 inch dia. Refer to Pic 1
2.Install Mid back panel / Left Panel / Right Panel
(1)Glue plastic washer to every mid back panel installation hole. Apply
silicone continually along the installation holes (As Pic2 )
Pic2
Pic1
Glue down
plastic
washer
Clear Silicone
(2) line up the mid back panel holes to bathtub holes. Use M6x35 hexagon screws to
connect( As Pic 3) Leave all hardware loose until unit is completely assembled.
(3) Apply silicone along the mid back panel left edge. (As Pic 3)
(4)Glue plastic washer to the left panel installation hole. Apply silicone
continually along the installation holes . ( As Pic 2)
(5) Use M6x25 hexagon screws to connect the Left panel to mid back panel holes.
Use M6x35 hexagon screws to connect the Left panel to tray holes .(As Pic 4)
(6) Use the same method to install the Right Panel.(As Pic 5)
Pic3
Silicone
Pic4
M6x35mm
Plastic washer
Mid Back Panel
Mid Back Panel
Left-Panel
M6x35mm
Plastic washer
M6x25
Mid Back Panel
Left-Panel
Pic5
Right-Panel
43

3.Install Aluminum Frame
(1) Insert the Left fix glass and Right fix glass into left panel and right panel ( As Pic 6)
Left-Panel
Right-Panel
Left Fix Glass
Right Fix Glass
Pic6
M4x16
M4x10
(2) Set the glass door frame between the left fix glass and right fix glass. (As pic 7)
(3) Align the glass door frame holes to the left fix glass and right fix glass holes, then
use the M4x16 self-tapping screws to connect them. (As pic 7)
(4) After glass door frame cline to the fix glass, then in the inner of glass door frame,
use the M4x10 self-tapping screws to fix the glass door frame aluminum, then install
the screws caps. (As pic 7)
Left Fix Glass Right Fix Glass
Pic7
4. Install Cover
Put the top cover on the roof
(1)Align the left panel and right panel holes , use the M6x25 hexagon screws to
connect them.
(2)Align the glass door frame ,left panel and right panel holes ,Use M4x16 self-
tapping screws to connect them(As Pic 8)
M4x16
M6x25
Pic8
M4x16
Shower
Sliding Bar
4. Install parts:
Install the handheld shower, steam box, storage shelf, foot massage and so on to the
steam room corresponding holes. (As Pic 9)
Pic9
65

Connect
Electromagnetic Valve
Connect
Foot Massage
Connect
Waterfall
Connect
Waterfall
Connect
Handheld
Shower
Connect
Top Shower
Hot Water
Cold Water
Steam Generator Water in
Steam G enerator Wat er out
Steam
Generator
Steam Box
Drain Outlet
6. Connect Electrocircuit
Connect Speaker, exhaust fan, and ozone and so on .
7.Sealing the shower chamber
Apply clear silicone to all seams and gaps.
8. Test
After finishing installation, connect the water and electrical supply. Make sure the
steam room and bathtub function properly , with no leaks.
5. Install the pipe (As Water Connection Diagram)
87
