AUTOMATIC
DOSING
SYSTEM
1
Y
E
A
R
W
A
R
R
A
N
T
Y
G
A
R
A
N
T
I
E
D
E
1
A
N
1

No. Description
1. (1) Automatic Dosing System
2. (1) 6 W transformer
3. (1) Discharge tubing (6')
4. (1) Output Hose Holder
5. (1) Water Treatment
6. (1) Mounting Plate
Contents
Contents
3
www.aquascapeinc.com |
☎
CAN 1-866-766-3426 |
☎
US 1-866-877-6637
Introduction
The Aquascape Automatic Dosing System when used in conjunction with the Aquascape Automatic Dosing System
water treatments will provide pond and water feature owners with optimum water conditions and crystal-clear water. The
Aquascape Automatic Dosing System was designed to take the guesswork and mundane chore out of adding water
treatments to your pond or fountain on a consistent and regular basis. Adding water treatments consistently and often
ensures pristine water conditions and optimizes water conditions for pond inhabitants. This Instruction Manual will guide both
your installation of this filter and recommended maintenance procedures to ensure long-term effectiveness.
1
1
2
3
4
5
6
4
2
6
3
5
Safety Information
WARNING: Risk of electric shock – This
Product has not been approved for use
in swimming pool or marine areas.
WARNING: To provide continued protection
against risk of electric shock, connect to
properly grounded, ground fault circuit
interrupter (GFCI) outlets only.
PLEASE NOTE: Aquascape Automatic
Dosing System water treatments have been
specifically formulated to work with the
Aquascape Automatic Dosing System.
Using water treatments not designed for use
with the system may permanently damage the
unit and void the warranty.
WARNING: This product is weatherproof, but is not
designed to be submersed in the water or operated
at ambient temperatures below 40°F/4°C.
- Have a qualified electrician install a properly grounded
receptacle outlet, acceptable for outdoor use when protected
from direct sunlight snow and rain. If possible locate the outlet
or filter so that the power cord will reach the outlet without an
extension cord.
- Inspect cord for damage before using.
If an extension cord is required be sure it is rated for outdoor
use.
- Any wiring of this product should be performed by a qualified
electrician to ensure code compliance and user safety.
- To reduce risk of electrical shock, all wiring and junction
connections should be made per local codes. Requirements
may vary depending on usage and location.
- The power cable should be protected at all times to avoid
punctures, cuts, bruises and abrasions.
- Never handle power cords with wet hands.
- Unplug filter at receptacle outlet when not in use.
- Do not remove cord and strain relief. Do not connect conduit to
product.
- Do not use power cable to lift the Automatic Dosing System.

4☎
US 1-866-877-6637 |
☎
CAN 1-866-766-3426 |www.aquascapeinc.com
Electrical Specifications

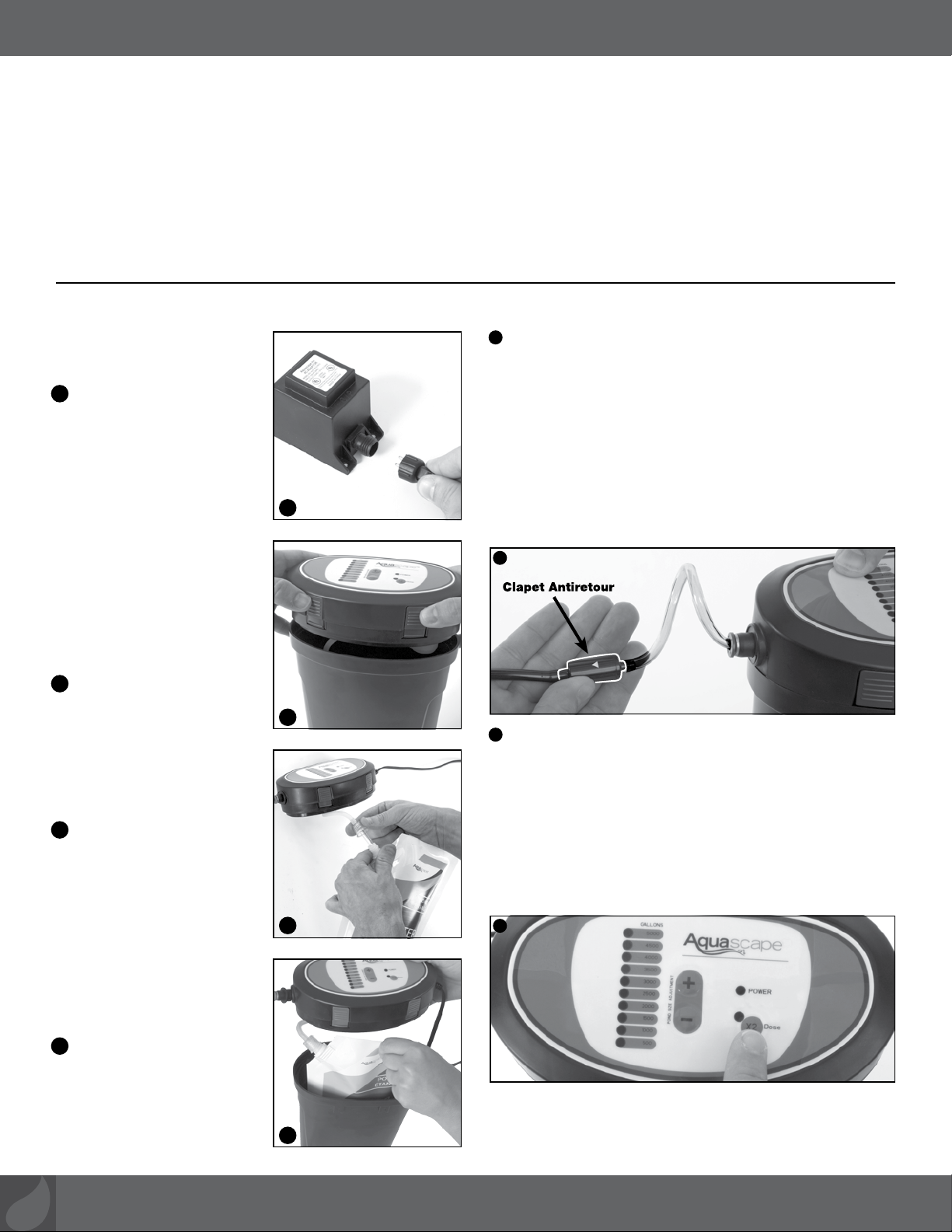

Instructions
Transformer
• Input Voltage: 120V ac
• Input frequency: 60 Hz
• 6 Watts
• For outdoor or indoor use
• Thermally protected
Automatic Dosing System
• Input Voltage: 12V ac
• Input frequency: 60 Hz
• For outdoor or indoor use
• Thermally protected
• This system has been
evaluated for use with the
Automatic Dosing System
Water Treatments only.
Carefully remove the dosing
system from the packaging

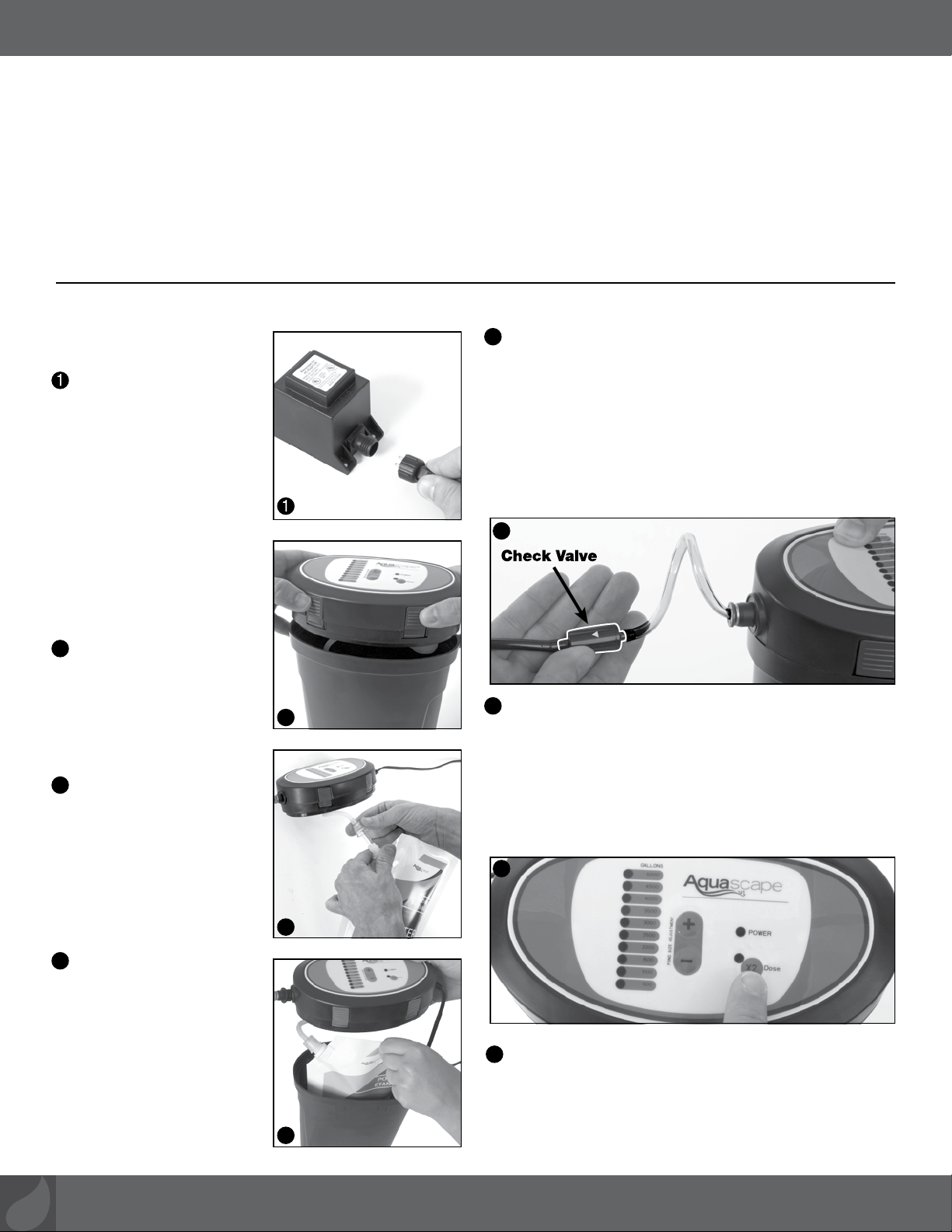

1. Attach the transformer to
the dosing system power
cord using the quick
connect fitting attached
to the dosing pump main
power cord. (Please
note that the transformer
should be plugged into a
GFCI rated receptacle),
the transformer included is
12V. The unit can also be
powered by an existing 12V
transformer used for 12V
lighting.
2. Open the dosing system
container by pressing
the four blue tabs
simultaneously on the
top portion of the dosing
system, gently lifting at the
same time.
3. Attach the water treatment
by removing the existing
cap included with the
water treatment, inserting
the proprietary pump tube
from the dosing pump into
the water treatment and
then seal the bag with the
included threaded adapter.
4. Place the attached
treatment inside the dosing
system canister.
5. Attach the included discharge tubing to the fitting on the
side of the dosing system control panel. Simply insert
the hose into the fitting until it stops. Ensure that the
check valve is in the right orientation with arrow pointing
away from the dosing system. The discharge tubing can
be installed two ways, either directly into the pond or
fountain or by using included output hose holder. The
hose holder can be easily attached to plumbing or other
round surfaces. Refer to the installation diagrams on the
following page for more information.
2
2
3
4
4
5
6
6. To purge the system and get it ready for proper operation
press and hold the X2 button-down until the water
treatment starts dripping out into the pond or fountain. This
may take several minutes depending on the distance from
the dosing pump to the pond or fountain. Make sure to
install the dosing system as close to the water feature
as possible to avoid the water treatments having to travel
through long lengths of tubing.
7. Be sure to inspect your dosing system often to insure
proper function and to verify your water treatment is not
empty, use the chart found on page 7 of this instruction
manual to approximate the replacement frequency of your
selected water treatment.
3
5
6
7

Soil depth Soil depth
5
www.aquascapeinc.com |
☎
CAN 1-866-766-3426 |
☎
US 1-866-877-6637

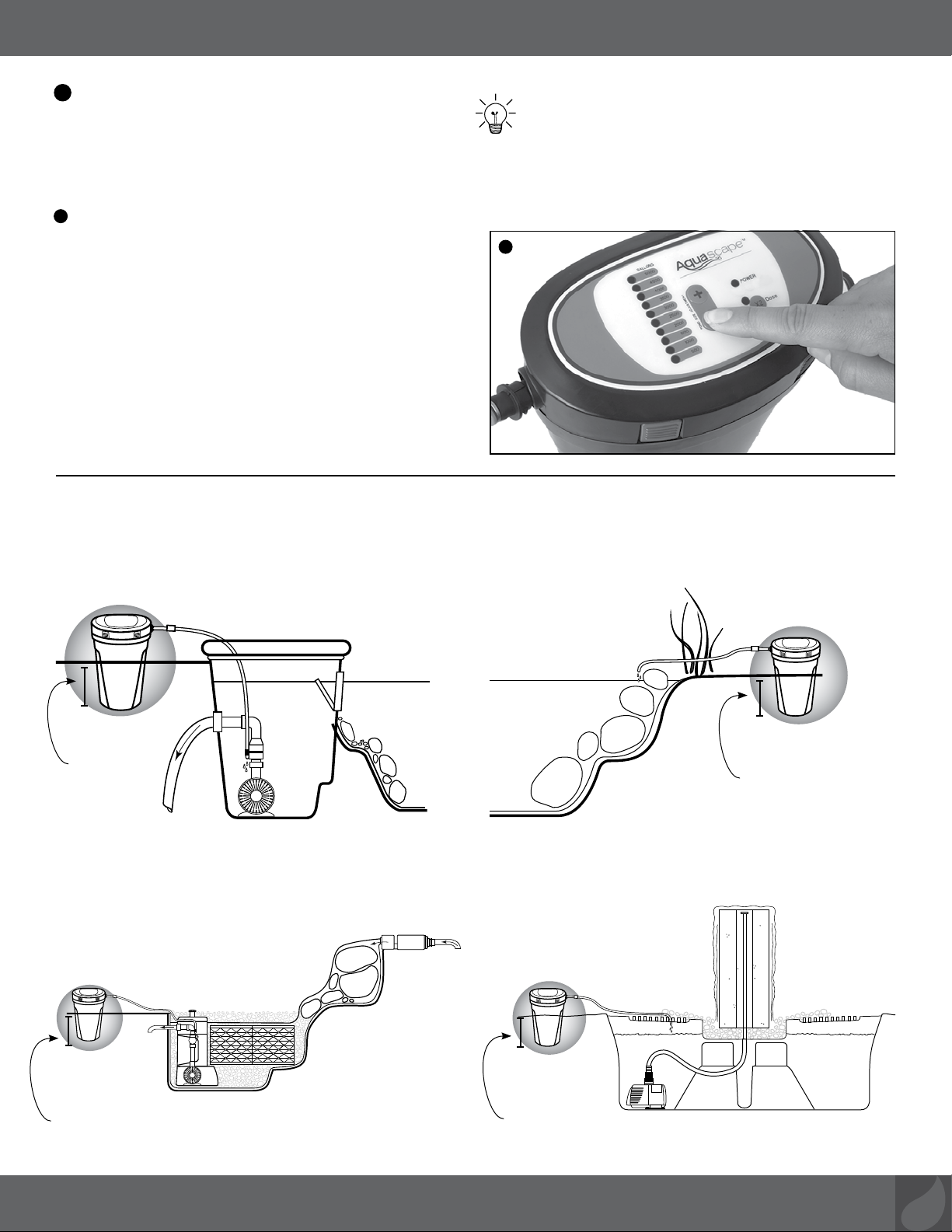

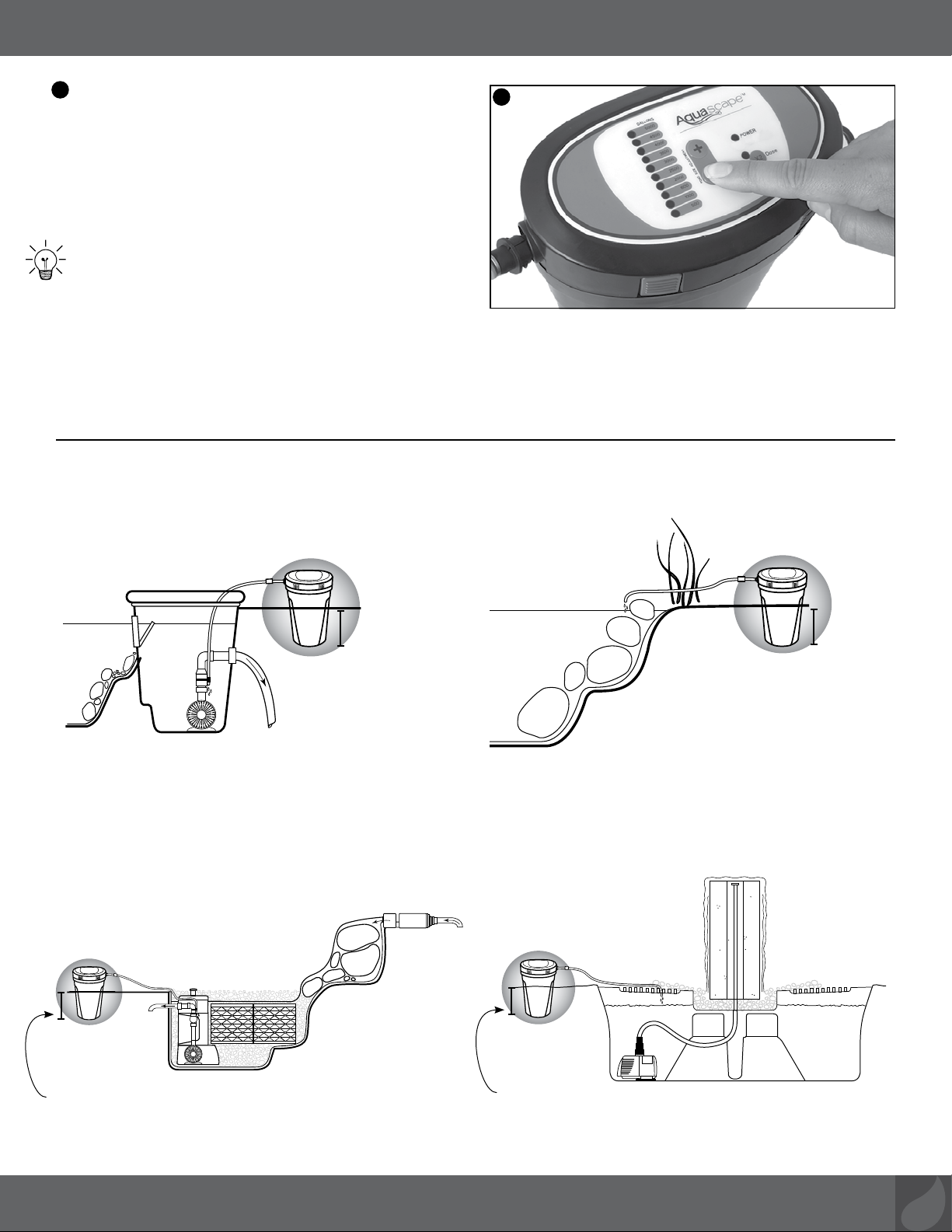

7. Select the appropriate amount of gallons to be maintained
by pressing the plus or minus button to the appropriate
number. If you are treating a fountain we recommend
using 500 gallons for any water feature, increasing it
if the fountain or Pondless®Waterfall contains more water.
To Calculate Pond Size in US Gallons:
Length (in feet) x Width (in feet) x Average Depth (in feet) x 7.48.
TIP: For new or problem ponds or fountains we
recommend using the X2 button for the first two weeks
of operation.
Installation
Dosing Directly into Skimmer
(Pond Application)
Dosing Directly into Pond
(Pond Application)
Skimmer
Soil depth
Automatic
Dosing System
Automatic
Dosing System
Automatic
Dosing System
Dosing Directly into Pondless®Waterfall Vault
(Pondless® Waterfall Application)
8
Dosing Directly into AquaBasin®
(Fountain Application)
Automatic
Dosing System
8
Soil depth
