Arada BK743 User guide

BK743 SPECIFIC Rev 02 ISSUE DATE : 16/12/2020
BS EN 613: 2001 + A1: 2003 +C1:2008
For use in GB & IE (United Kingdom and Ireland)
PLEASE RETAIN THIS GUIDE FOR FUTURE REFERENCE
Ecoburn (S3) Gas
Convenonal Flue
Installaon, Servicing
and User Guide

Page 2 BK743
Ecoburn (S3) Gas CF Stove Installaon and Servicing
Ecoburn (S3) Gas Stove
Congratulations on the purchase of your new Arada stove!
Your stove is built to the highest standard of craftsmanship using the
best materials and the most modern equipment available. It is a highly efficient
and sophisticated piece of machinery and when properly installed and
operated it should provide a lifetime of heating satisfaction.
Should you have any questions about your stove which are not covered by this
manual, please contact the Arada retailer in your area, call our technical
support department on [phone] or visit our website
www.aradastoves.com which offers a wealth of information on how to care for,
and get the best from your stove.
Please ensure that you read these instructions in full and understand them
before operating your stove.
Arada has a policy of continuous product development and therefore we
reserve the right to amend specifications without prior notice. Due to printing
cycles, items or options may be described before they are generally available
or after they have ceased. Please check with your retailer or dealer if you are
unsure about any aspect of your stove, its installation or correct use.

BK743 Page 3
Ecoburn (S3) Gas CF Stove Installaon and Servicing
Contents
Installation & Service
1 Appliance Information
1.1 Conditions Of Installation…………………………………....…..
1.2 Flue & Chimney Suitability……………………………….. …….
2 Installation
2.1 Hearth……………………………………………………………..
2.2 Siting ……………………………………………………………...
2.3 Flue Connection ………………………………………………….
2.4 Ventilation ………………………………………………………..
2.5 Gas Connection ………………………………………………….
2.6 Placement Of The Ceramic Logs……………………………….
2.7 Operating Instructions …………………………………………..
2.8 Spillage ……………………………………………………………
2.9 Customer Education …………………………………………….
3 Servicing Instructions
3.1 Replacement Parts……………………………………………….
User Instructions
4 Important Information
4.1 Important Information For Use Of Appliance………………….
4.2 Layout Of Ceramic Logs…………………………………………
4.3 Operating Control Locations…………………………………….
4.4 Battery Replacement…………………………………………….
4.5 Fire Control Valve—Red Indicator Meaning………………….
4.6 Using The Remote Display Handset…………………………..
4.7 Trouble Shooting / FAQ …………………………………………
4.8 Remote Display Handset Optional Features…………………..
5 Guarantee
5.1 Guarantee………………………………………………………...
5.2 Terms & Conditions………………………………………………
5.3 General…………………………………………………………….
5.4 Notes……………………………………………………………….
4
5
6
6
7
7
7
8-12
13-16
17
17
17
19
19-23
24
25
25
26-27
27
28-32
33
33-34
34
35
Installation & Service

Page 4 BK743
Ecoburn (S3) Gas CF Stove Installaon and Servicing
SECTION 1 : APPLIANCE INFORMATION
1.1 - Conditions Of Installation
Before installation, check that the local distribution conditions, nature of the gas and pressure, and adjustment
of the appliance compatible. It is the law that only a competent person installs all gas appliances ie: a gas
registered installer in accordance with the current edition of the gas safety (installation and use) regulations or
the rules in force, failure to do so could lead to prosecution.
The installer must be gas safe registered.
The installation must also be in accordance with all relevant parts of the local and national buildings
regulations where appropriate, the building regulations (Scotland consolidation) issued by the Scottish
development department, and all applicable requirements of the following standard codes of practice :
1. BS 5871 part 1
2. BS 6891 installation of gas pipework
3. BS 5440 parts 1 & 2 installation of flues and ventilation
4. BS 8303 installation of domestic heating appliances
5. IS 813 Domestic gas installation (Republic Of Ireland)
No purpose made additional ventilation is normally required for this appliance when
installed in G.B. When installing in I.E. please consult document IS 813 domestic gas
installation, which is issued by the national standards authority of Ireland, if installing in
Northern Ireland please consult local building regulations. In Scotland, please consult
the current edition of the building standards regulations, issued by the Scottish
executive. Any purpose made ventilation must be checked periodically to ensure that it
is free from obstruction.
PLEASE NOTE—The stove is a very heavy appliance and care must be used when lifting and moving, we
recommend 2 people lift following lifting guidelines. Preferably wear gloves when lifting.
Model
Gas Type G20 (Natural Gas) G31 (Propane) G30 (Butane)
Supply Pressure (Measured At Test Elbow), (mbar) 20 37 29
Injector (x1) Stereomatic 320 Stereomatic 120 Stereomatic 120
Oxypilot Type Erta PG-82-330 Erta PG-82-350 Erta PG-82-350
Nominal Heat Input (Qn), kW (Gross) Maximum Rate 54.4 4.5
Gas Consumption At Maximum Rate, (m3/h) 0.47 0.157 0.121
Minimum Heat Input, kW (Gross) 2.3 1.8 2.7
Gas Consumption At Minimum Rate, (m3/h) 0.22 0.061 0.074
Gas Connection 8mm Compression 8mm Compression 8mm Compression
Remote Gas Valve TESC01 RF868-15 TESC01 RF868-15 TESC01 RF868-15
Countries Of Destination GB & IE GB & IE GB & IE
Efficiency Class 1 BBB
NOX 95mg/kWH 97mg/kWH 98mg/kWH
Ecoburn (S3) Gas

BK743 Page 5
Ecoburn (S3) Gas CF Stove Installaon and Servicing
1.2 - FLUE & CHIMNEY SUITABILITY
This appliance is designed for use with conventional brick built or lined chimneys, all flues must conform to the
following minimum dimensions :
Before commencing installation a flue or chimney should be inspected to ensure that all of the following
conditions are satisfied :
1. Check that the chimney / flue only serves one fireplace and is clear of any obstruction, any dampers or
register plates must be removed or securely locked in the open position.
2. Brick / stone built chimneys or any chimney or flue which has been used for an appliance burning fuel
other than gas must be thoroughly swept.
3. Any under floor air supply to the fireplace must be completely sealed off.
4. Ensure that the inside of the chimney / flue is in good condition along its length and check that there is
no leakage of the smoke through the structure of the chimney / flue during and after the smoke pellet
test.
5. Using a smoke pellet check there is an updraft in the chimney / flue and that the smoke can be see
coming from the terminal / pot outside.
There must be no leakage of smoke through the structure of the chimney during or after the smoke
pellet test and it is important to check the inside upstairs rooms adjacent to the chimney / flue.
Check the chimney pot / terminal and general condition or the brickwork and masonry. If the chimney /
flue is in poor condition or if there is no up-draught do not proceed with the installation, if there is a
history of down draught conditions with the chimney / flue, again do not proceed until the fault has been
fixed.
A tested and certificated flue terminal or cowl suitable for the relevant flue type should be considered.
6. A spillage test must always be carried out during commissioning of this appliance.
MINIMUM DIMENSION OF FLUES 125 mm DIAMETER.
MINIMUM EFFECTIVE HEIGHT OF ALL FLUE TYPES 3 METRES.

Page 6 BK743
Ecoburn (S3) Gas CF Stove Installaon and Servicing
WARNING
This stove is fitted with a spillage monitoring system consisting of a thermal switch, which shuts the appliance
off in the event of a blocked flue or inadequate flue pull occurring.
The system shall not be adjusted by the installer or shall not be put out of action.
When the spillage monitoring system is required to be replaced, only original manufacturers parts shall be
used.
If the stove switches off for no apparent reason, the appliance should not be used until expert advice is
obtained and the fault rectified.
All surfaces, except the control valve, are working surfaces and become very hot in use. They must not be
touched or any combustible materials put on them.
It is recommended that a fireguard complying to BS 8423 should be fitted for protection of young children or
elderly or infirm persons.
The door assembly has to be removed, to allow access to remove the glass frame assembly.
Allow this to cool before removing, as it will become very hot and is a working surface when the
appliance is in use.
SECTION 2 : INSTALLATION
2.1 - HEARTH
The stove must be installed on a non-combustible hearth with the hearth material being at least 12mm thick,
the hearth must protrude at least 150mm (6”) in front of the stove and be of a size sufficient to accommodate
the stove.
2.2 - SITING
The stove must not be installed in a bathroom.
Clearance from non-combustible material in the fireplace opening must be at least to dimensions in the table
below :
NOTE : Fitting the stove any closer to the back may cause nuisance shutdown of the
stove as the airflow may be compromised and the thermal cut off will operate.
Position
Above
Back
Left
Right
Distance mm
100 mm
50 mm
100 mm
100 mm
300 mm
300 mm
300 mm
300 mm
Combustible MaterialNon Combustible Material

BK743 Page 7
Ecoburn (S3) Gas CF Stove Installaon and Servicing
2.3 - FLUE CONNECTION
The flue should be at least 3m high and at least 125mm diameter (5”) at no point should there be any
negative or horizontal gradients in the flue pipe.
It is recommended that a minimum height of 600mm from the stove before any significant change of
direction of the flue.
2.4 - VENTILATION
Ventilation should be in accordance with national regulations in the UK purpose provided ventilation is not
normally required BS5871 part 1 and in IE IS813 (IE Only).
2.5 - GAS CONNECTION
The gas connection can be made by removing the glass frame assembly; remove all the fixing screws a
keep safe for future use. Once the frame has been removed, the 4 no. fixings, holding the burner in place
can be removed and access to the gas inlet elbow can be gained. Once the connection has been made and
soundness verified the burner can be replaced ensuring correct position and the 4no. fixings replaced.

Page 8 BK743
Ecoburn (S3) Gas CF Stove Installaon and Servicing
2.6 - PLACEMENT OF THE CERAMIC LOGS
WARNING—DO NOT CHANGE THE FUEL BED LAYOUT, THE TYPE OR
NUMBER OF LOGS.
Contents Of Log Fuel Effect Kit -

BK743 Page 9
Ecoburn (S3) Gas CF Stove Installaon and Servicing

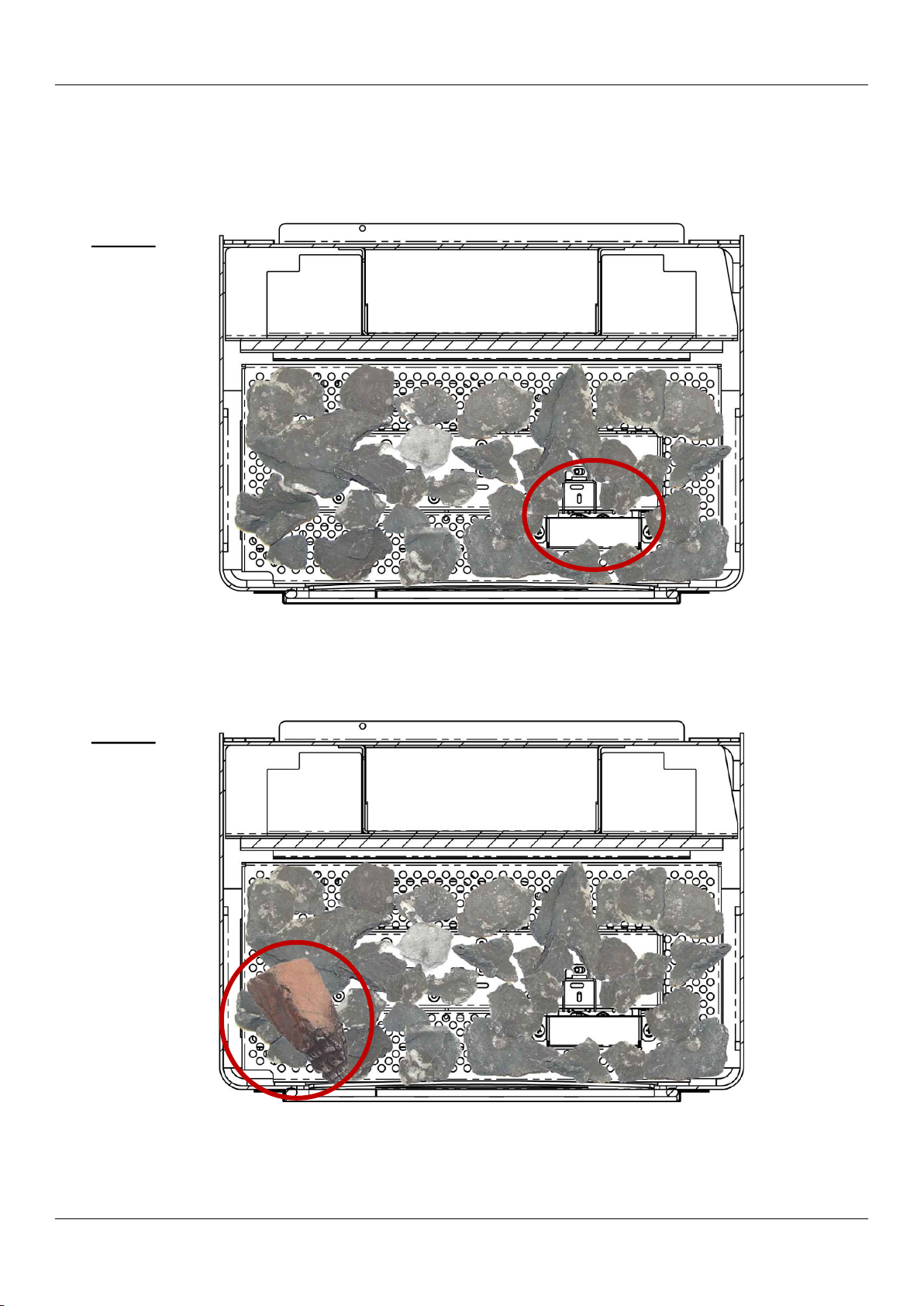

Fitting Procedure For Log Set Layout -
STEP 1
STEP 2
Scatter the bag of embers, evenly over the grate and burner, as shown above, ensuring
the pilot and pilot shield are left clear from embers as indicated.
Place Log 1 as shown above.

Page 10 BK743
Ecoburn (S3) Gas CF Stove Installaon and Servicing
STEP 3
STEP 4
Position Log 2 as shown above. Note, this log rests upon the corner of log 1.
Position Log 3 as shown above.

BK743 Page 11
Ecoburn (S3) Gas CF Stove Installaon and Servicing
STEP 5
STEP 6
Position Log 4 as shown above, centrally at the rear of the burner.
Position Log 5 as shown above, centrally resting upon Logs 2 & 4.

Page 12 BK743
Ecoburn (S3) Gas CF Stove Installaon and Servicing
STEP 7
STEP 8
Position Log 6 as shown above. Note, the left hand corner, rests upon corner of Log 1.
Position Log 7 as shown above. Note, this log sits on top of Log 6, Log 5 & Log 3 as
shown with the arrows.
The pine cone sits in the RH corner, as shown.
NOTE : Check that the Pilot is clear and cross lights smoothly to the main burner.

BK743 Page 13
Ecoburn (S3) Gas CF Stove Installaon and Servicing

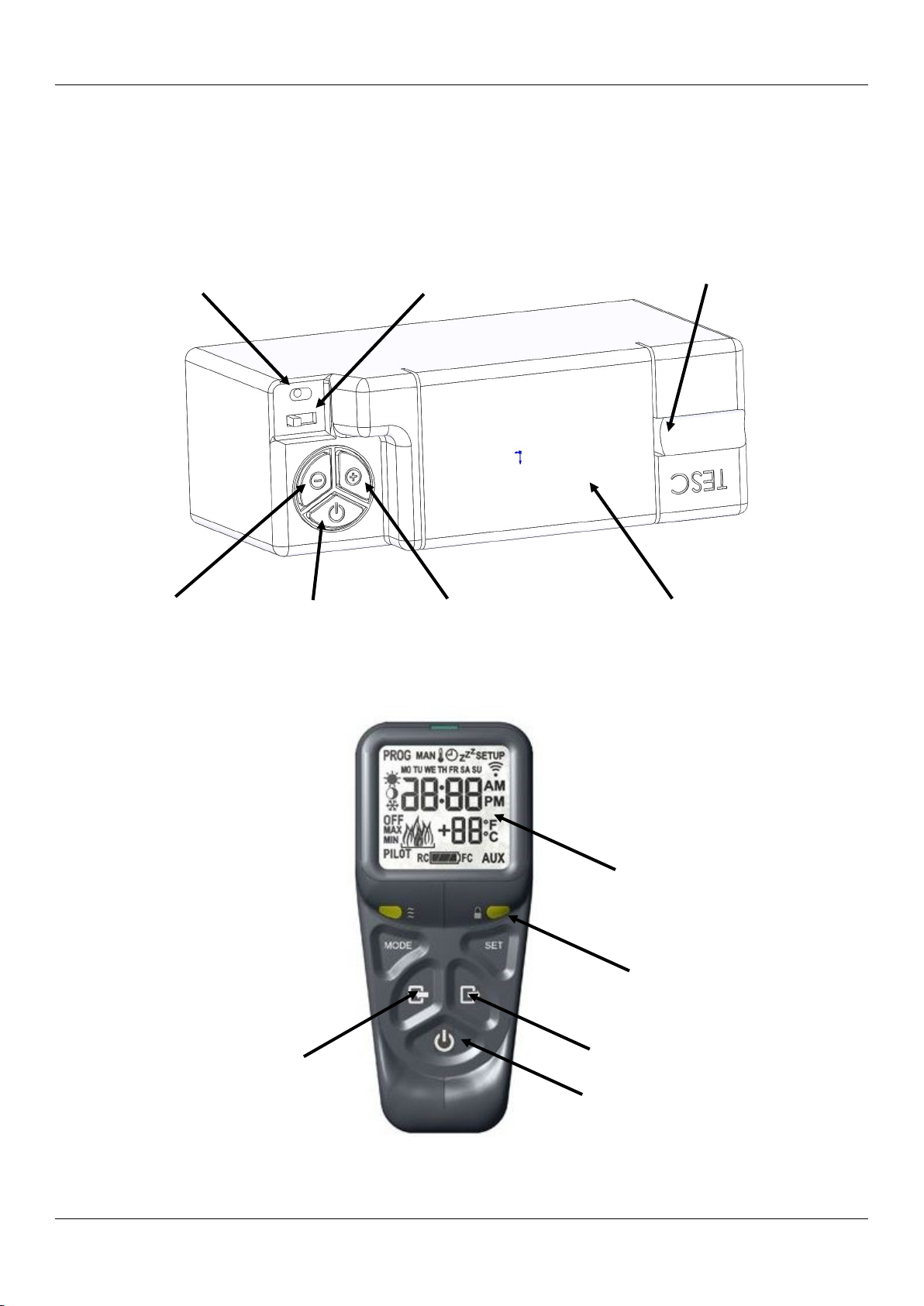

2.7 - OPERATING INSTRUCTIONS
Below the gas controls, which are situated at the bottom left hand side of the appliance (when viewed
looking at the appliance door).
Below the remote control handset.
Battery Compartment Cover
Increase FlamePower Button
Decrease Flame
Indicator Light Power Isolator Switch Battery Compartment Release Lever
Increase Flame
Power Button
Visual Display
Decrease Flame
Lock / Unlock LED

Page 14 BK743
Ecoburn (S3) Gas CF Stove Installaon and Servicing
Replacement of batteries in TESC01 gas control valve -
The TESC01 gas control valve which operates the appliance, is battery powered and will require replacing
periodically; after removing the plastic front cover from the control, the batteries are fitted and positioned as
shown above, always replace the plastic cover once, the new batteries have been fitted.
Replacement of batteries in the handset -
The remote handset also has batteries as shown above. It is important that the batteries are replaced at least
every 12 months.
Meaning (s) of the red indicator on Fire Control Valve (Handset)
RED INDICATOR MEANING
Permanently Lit Valve tried to light but failed in LOCKOUT E00
Flashing Very Fast Valve Is Busy (Will Not Accept Any Command)
Flashing Once A Second Valve Detects An Error
Permanently Off Valve In Standby Or In A Stable Operation
On Momentarily After Power Up Valve Doing A Self Test
Appears After Pressing Start Indicates Time To Release Pressing The Start
Button
-
+
+
-
+
+
+
-
-
-

BK743 Page 15
Ecoburn (S3) Gas CF Stove Installaon and Servicing
INFORMATION ONLY -
NOTE : THE REMOTE CONTROL HANDSET WILL BE SHIPPED PAIRED TO THE GAS
VALVE WITHIN THE BURNER ASSEMBLY—DO NOT ALTER THE PAIRING.
IF FOR ANY REASON THE PAIRING HAS BEEN ALTERED, THEN THE HANDSET
WILL NOT WORK. THE HANDSET WILL NEED TO BE RESET AND PAIRED AGAIN,
PLEASE FOLLOW THE INSTUCTIONS BELOW :
 Ensure the handset and the gas valve control have good batteries and the batteries are the correct
polarity as indicated inside both the battery compartments.
 Ensure the small slide switch on the top left of the gas valve control is slid to he right (I) position.
 Place the handset within half a metre from the gas valve control ( no need to hold it ).
For a new handset the display will show ‘ TESC r5’ or similar text.
To reset a previously paired handset, enter the setup menu and scroll to “C A 0”, when displayed,
change the ‘0’ to ‘1’ using the ‘+’ key and press ‘SET’, the display now shows ‘ TESC r5’ or similar text.
 On the gas valve control, simultaneously press the hold the - and + buttons, until the red light on top left
of gas fire control begins to flash rapidly (this will take about 5-8 seconds).
 Then immediately as the red light starts to flash, release the - and + buttons and quickly press the
power button. (Note: This button press must be done with 1 second of the red light coming on. If not
done quickly enough, then the above must be repeated until done correctly).
 When done correctly, you will hear an audible sound from the handset. Immediately, pick up and grasp
the handset as normal to unlock the key pad and then press and hold the “ SET “ button for around 3 to
5 seconds. The display will show “ “ and you will hear several beeps from the handset
as the pairing has been confirmed.
 You know the pairing has taken, as now when holding the handset the green light will be a steady
green ( not flashing when held ). Setting the time & date etc. can now be performed, please see section
4.8 of this guide.
 The handset is designed to be not too easily operated by accident for safety
reasons. If for any reason the pairing has been altered, then the handset will not
work.
 Note, by removing or replacing the batteries, the pairing will NOT be lost.

Page 16 BK743
Ecoburn (S3) Gas CF Stove Installaon and Servicing
Hold the handset as shown, wrapping
your hand around the handset touching
both sides. In a second or less the green
unlock light will illuminate, allowing the
buttons to work when pushed.
(NOTE: If the green light is not a constant
green or not lit at all the buttons will not
be operable).
Press and hold in the power symbol button and
release immediately when the word pilot ap-
pears at the bottom left of the display (After
about 1-2 seconds).
The stove will light onto MAX burner setting.
(NOTE: Releasing the power button too soon or
too long after the word pilot is illuminated,
results in the burner not lighting, this is for
safety reasons).
If for any reason the ignition sequence fails to
ignite the burner, the fire control valve
automatically re-attempts the lighting
sequence for a further 2 attempts.
To adjust high and low whilst holding the
handset and green light on press + & - to adjust
for the preferred heat setting.
To Stop the stove, hold handset to unlock the
buttons and then press the power button.
The flame stops almost immediately.

BK743 Page 17
Ecoburn (S3) Gas CF Stove Installaon and Servicing
2.8 - SPILLAGE
Check for clearance of combustion products.
Close all doors and windows in the room containing appliance.
Turn on appliance and turn to high, leave running for 5 minutes and insert a lighted taper or smoke match into
the flue diverter at the rear of the appliance.
All the smoke must be drawn into the appliance.
If spillage occurs, allow a further 10 minutes and retest.
Should spillage occur, seek expert advice.
If an extractor fan is situated in the room, the test should be carried out with the fan running, if there is a
connected room with an extractor fan the test should be repeated with the fan running and any
interconnecting doors open.
2.9 - CUSTOMER EDUCATION
Hand these instructions to user.
Advise the user until they are fully educated on the use of the stove and the controls.
Explain regarding the thermal cut off feature.
Advise if this system repeatedly shuts off specialist advice must be consulted.
Advise that if the fire goes off for any reason do not re-light for 3 minutes.
Advise the stove may give off a slight smell due to the newness and any odours will go after a few hours of
use.
Advise that the stove must not be used with the glass panel damaged or broken or missing.
Advise that no materials like washing, may not be draped over the stove.
Recommend regular servicing at least annually.
Recommend no extra fuel pieces are added and only authorized spares used.
3.0 - SERVICING INSTRUCTIONS
The stove is fitted with a spillage monitoring system consisting of a thermal switch this system is non
adjustable and must not be bypassed or put out of action if any parts are replaced it must be with the original
manufacturers parts used.
1. Servicing must be carried out regularly and only by a qualified person, ensure the fire is turned off and cold
(minimum service must be carried out annually)
2. Open the stove door by unscrewing the handle on the left fully and remove the door can now be opened or
even lifted off its hinges then the screws holding the glass can be removed and the glass panel removed.
3. Remove the ceramics carefully.
4. Remove any debris from the burner if necessary vacuum, also clean the pilot or vacuum.
5. If necessary replace pilot (for extended warranty) by removing burner and disconnect gas supply 4 screws
can be removed and burner tray removed the thermal cut off switch will have to be disconnected at the rear of
the fire to allow the tray to be removed it has to be lifted up on the right hand side and carefully twisted out
6. Replace burner tray and reconnect thermal switch the appliance will not work if this is not done and then
replace in reverse order replace glass and stove door.
7. Check the supply pressure and test for spillage
8. The flue will need sweeping periodically for safe use of the appliance.
3.1 REPLACEMENT PARTS
Genuine replacement spare parts can be obtained from www.aradastovesandspares.com or your Arada
dealer.
Please note, that fitting non-official Arada parts to your stove will invalidate the guarantee.

Page 18 BK743
Ecoburn (S3) Gas CF Stove Installaon and Servicing
ECOBURN (S3) GAS STOVE
ARADA Ltd
THE FIREWORKS
WEYCROFT AVENUE
AXMINSTER DEVON
EX13 5HU
NG : APPLIANCE IS CATEGORY I2H FOR
USE WITH NATURAL GAS AT A SUPPLY
PRESSURE OF 20 mbar.
LPG : APPLIANCE IS CATEGORY I3P FOR
USE WITH LIQUID PETROLIUM GAS AT A SUPPLY
PRESSURE OF 37 / 29 mbar.
G.B. AND I.E.
USERS INSTRUCTIONS
THIS MANUAL MUST BE LEFT WITH
THE USER

BK743 Page 19
Ecoburn (S3) Gas CF Stove User Guide
SECTION 4. IMPORTANT INFORMATION
4.1 IMPORTANT INFORMATION FOR USE OF APPLIANCE
This stove should not be used for any other purpose than as a room heater and decorative stove,
due to its newness of materials the stove may give off a slight smell for a period of time after
commissioning, this is quite normal and should clear within a few hours of use.
The installation must be in accordance with the national regulations and must be carried by a qualified
installer EG: gas safe engineer.
Under no circumstances should the stove be operated with the glass panel damaged broken or missing.
All surfaces except controls are considered to be working surfaces and will get very hot during and after use,
they must not be touched or any combustible materials, if young children, the elderly or infirm are likely to be
near the stove, a suitable fireguard to BS8423 is recommended.
A combustible shelf may be fitted above the stove providing the shelf protrudes less than 150mm in front of
the stove and there is 300mm clearance above the top of the stove.
Curtains are not recommended above the stove.
Do not drape clothes or any materials over the stove.
The stove must stand on a non-combustible hearth and be at least 12mm thick and sufficient size to
accommodate the stove.
No purpose provided ventilation is normally required but must be in accordance with national regulations in
force.
The fuel should be arranged only as shown in these instructions.
Should the stove extinguish for any reason do not relight for a minimum of 3 minutes.
All surfaces, except the control valve are working surfaces and become very hot in use, they must not be
touched or any combustible material be placed upon them.
It is recommended that a fireguard complying to BS 8423 should be fitted for the protection of young children
or elderly or infirm persons.
This stove should be serviced regularly at least annually.
Only replace ceramic parts or any parts of the fuel bed with parts supplied by the manufacturer for this stove
do not change the fuel bed layout from the instructions supplied.
The flue will need sweeping periodically.
If the stove fails to light and the appliance goes to reset, the start button will have to be held for 10 seconds to
clear the remote fault.
THE STOVE IS FITTED WITH A SPILLAGE MONITORING SYSTEM CONSISTING OF A
THERMAL SWITCH.
THIS SYSTEM IS NOT ADJUSTABLE AND MUST NOT BE PUT OUT OF ACTION.
IF REQUIRED TO BE REPLACED; ONLY ORIGINAL MANUFACTURERS PARTS MUST
BE USED (IF THE STOVE SWITCHES OFF FOR NO APPARENT REASON THE
APPLIANCE SHOULD NOT BE USED UNTIL EXPERT ADVICE IS TAKEN).

Page 20 BK743
Ecoburn (S3) Gas CF Stove User Guide
4.2 LAYOUT OF THE CERAMIC LOGS
The logs should be positioned as in the pictures below.
WARNING : DO NOT CHANGE THE FUEL BED LAYOUT OR THE TYPE OR NUMBER OF LOGS
STEP 1
STEP 2
Scatter the bag of embers, evenly over the grate and burner, as shown above, ensuring
the pilot and pilot shield are left clear from embers as indicated.
Place Log 1 as shown above.
