Arada Farringdon Catalyst Eco User manual

ISSUE DATE : 10/06/2018
PLEASE RETAIN THIS GUIDE FOR FUTURE REFERENCE
BK724 SPECIFIC Rev 08
Farringdon Catalyst Eco
ADDITIONAL INFORMATION
FOR UK & EU only
EN13240:2011 +A2:2004

UK & EU Customers Only
Congratulations on your choice of an Arada stove.
More than 30 years of experience has been put into the development of
your stove to ensure ultimate performance and years of trouble free use and
enjoyment. Every detail of your stove has been carefully designed and
engineered which is why we are so confident in the reliability of our products.
Your Arada stove is built to the highest standard of craftsmanship using the
best materials and the most modern equipment available. It is a highly efficient
and sophisticated piece of machinery and when properly installed and
operated it should provide a lifetime of heating satisfaction.
Should you have any questions about your stove which are not covered by this
manual, please contact the Arada retailer in your area, call our technical
support department on [phone] or visit our website
www.aradastoves.com which offers a wealth of information on how to care for,
and get the best from your stove.
Please ensure that you read these instructions in full and understand them
before operating your stove.
Arada has a policy of continuous product development and therefore we
reserve the right to amend specifications without prior notice. Due to printing
cycles, items or options may be described before they are generally available
or after they have ceased. Please check with your retailer or dealer if you are
unsure about any aspect of your stove, its installation or correct use.
Page 2 Arada Farringdon Stoves
PLEASE NOTE— Arada has a policy of continuous product development and therefore we
reserve the right to amend the specification without prior notice.
Due to printing cycles, items or options may be described before they are generally available
or after they have ceased, so please check with your retailer or dealer.
PLEASE USE THESE INSTRUCTIONS INCONJUNCTION
WITH BK685 FOR FUTURE REFERENCE

Page 3Arada Farringdon Stoves
WARNING NOTICE UK & EU Only
It is a LEGAL REQUIREMENT that the installation of all new or replacement, wood or
solid fuel heating appliance, obtain building control approval from your local authority or
the installation work must be carried out through a government approved competent
persons scheme. A list of all competent person schemes can be found :
https://www.gov.uk/guidance/competent-person-scheme-current-schemes-and-how-
schemes-are-authorised
Any manufacturer’s instructions must not be taken as overriding statutory requirements.
All Arada Farringdon stoves MUST NOT be connected to a shared flue system.
Please Note: Classification of these appliances is for intermittent use only.
Do not use aerosol sprays or any other flammable materials near the appliance when in
use.
Do not use the appliance as an incinerator.
Use only recommended fuels, STRICTLY NO unsuitable and non recommended fuels or
materials or liquid fuels allowed.
Pure petroleum coke or Bituminous house coal must NOT be burned in this appliance.
The use of these fuels will invalidate the appliance guarantee.
Please ensure that the air inlet vent grills to the dwelling are not obstructed or liable to be
blocked.
Caution must be exercised during operation of the appliance as both internal and external
surfaces will be hot to touch, use the stove mitten provided when the appliance is in
operation.
A fireguard conforming to BS 8423:2002 should be used in the presence of children or
elderly people.
Always observe the distances to combustible materials as stated on the appliance data
plate and in the technical data section of this manual. Ensure no soft furnishings or
combustible materials are susceptible to heat radiating from the appliance.
Under NO circumstances should the stove be operated for extended periods with the main
fire door open. This will result in an over firing situation and will lead to severe damage to
the stove and flue system.
Ignoring the warnings could lead to damage/injury to persons and/or property.
Arada Ltd will not be responsible for any consequential or incidental loss or injury however
caused.
WARNING

Arada Farringdon StovesPage 4
IMPORTANT INSTALLATION INSTRUCTIONS UK & EU Only

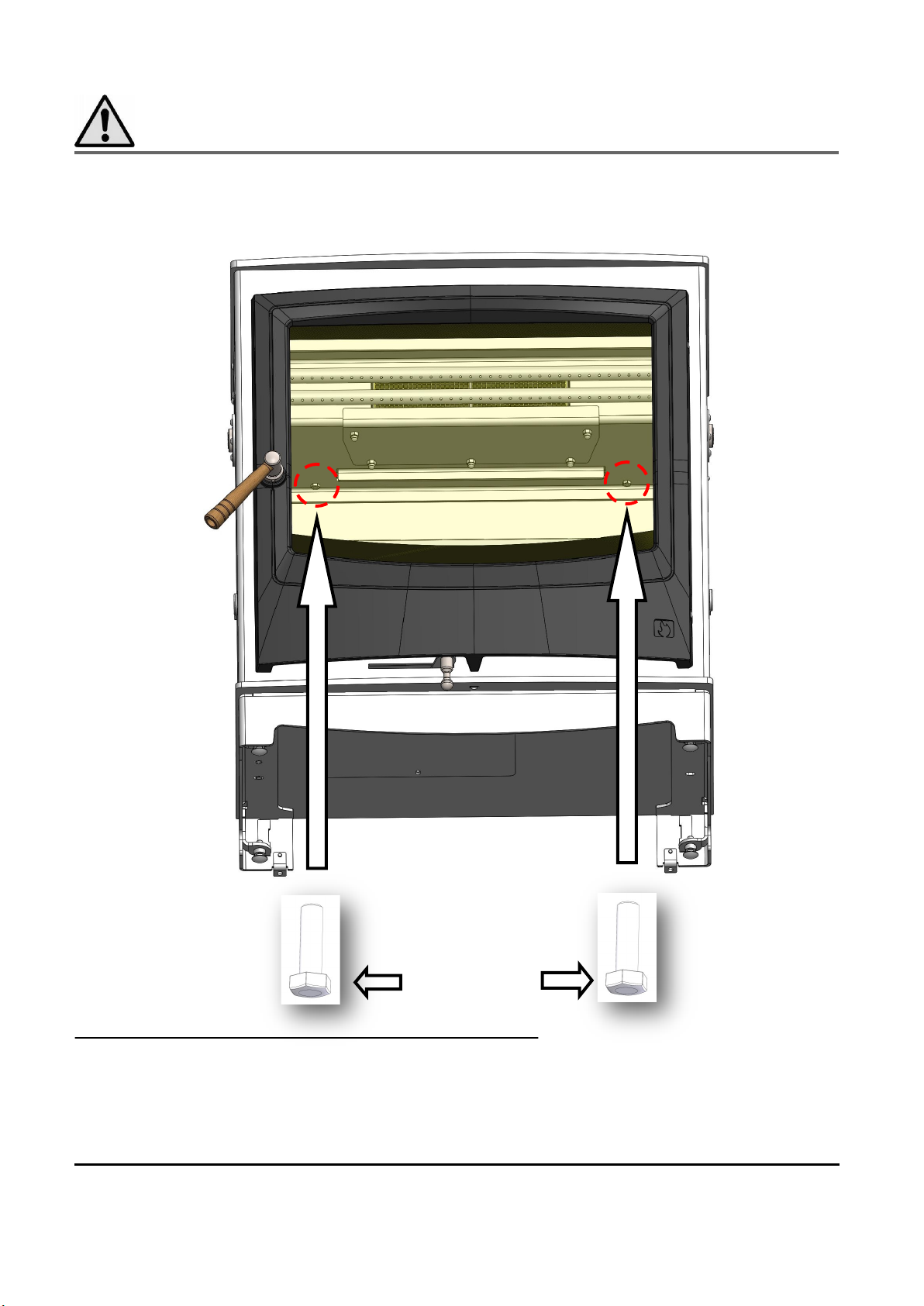

NOTE : PICTURE SHOWS THROAT PLATE & INSULATION BLANKET REMOVED
2 No. M6 x 20
Set Screw
NOTE : Applicable To UK & EU INSTALLATION ONLY.
To comply with the European standards (EN 13240:2011 +A2:2004), the 2 No. M6x20 set
screws must be fully inserted into the threaded holes, in the positions shown above.
NOTE : Please remove the throat plate & insulation blanket, for access to the fixing holes.
Replace these components after fitting.

Information for UK related installation only -
Smoke control areas (The Clean Air Act 1993 & Smoke Control Areas)
Under the Clean Air Act local authorities may declare the whole or part of the district of
the authority to be a smoke control area. It is an offence to emit smoke from a chimney
of a building, from a furnace or from any fixed boiler if located in a designated smoke
control area. It is also an offence to acquire an “unauthorised fuel” for use within a
smoke control area unless it is used in an “exempt” appliance (“exempted” from the
controls which generally apply in the smoke control area).
In England appliances are exempted by publication on a list by the Secretary of State in
accordance with changes made to section 20 and 21 of the Clean Air Act 1993 by
section 15 of the Deregulation Act 2015. In Scotland appliances are exempted by
publication on a list by Scottish Ministers under section 50 of the Regulatory Reform
(Scotland) Act 2014.
Similarly in Northern Ireland appliances are exempted by publication on a list by the
Department of Agriculture, Environment and Rural Affairs under Section 16 of the Envi-
ronmental Better Regulation Act (Northern Ireland) 2016. In Wales appliances are
exempted by regulations made by Welsh Ministers.
Your local authority is responsible for implementing the Clean Air Act 1993 including
designation and supervision of smoke control areas and you can contact them for details
of Clean Air Act requirements.
Further information on the requirements of the Clean Air Act can be found
here : https://www.gov.uk/smoke-control-area-rules
The following list of Farringdon models :
 Farringdon Catalyst Eco stove
are currently exempt or have been recommended as suitable for use in smoke control
areas, when burning wood logs and when fitted with a factory set mechanical stop, to
prevent secondary air closure beyond the 30mm open position.
SMOKE CONTROL AREAS—INFORMATION UK Only
Arada Farringdon Stoves Page 5

Page 6 Arada Farringdon Stoves
Information for UK related installation only—Smoke Control Areas
The minimum air control setting is governed in manufacture to meet the requirements of
Smoke Control exemption and as a result the appliance will NOT shut down completely when
in the minimum air position setting.
Removal or modification of the factory fitted air control plate (See below) is illegal when the
appliance is installed in a smoke exemption area and doing so may result in prosecution and
fine.
Refuelling on to a low fire bed
If there is insufficient burning material in the fire bed to light a new fuel charge, excessive
smoke emission can occur. Refuelling must be carried out onto a sufficient quantity of
glowing embers and ash that the new fuel charge will ignite in a reasonable period. If there
are too few embers in the fire bed, add suitable kindling for ignition to prevent excessive
smoke.
Important notes on usage, to meet the requirements of Smoke Control exemption -
 Always recharge onto hot embers.
 After re-charging, fully open both the primary and secondary air controls for the
following times, in order to establish good combustion -
Farringdon Catalyst Eco —5 minutes together with fire door ajar
 Do not leave the appliance unattended until flames are well established.
 Periodic burning out of the fuel bed at high output to combust any remaining charcoal.
Fuel overloading
The maximum amount of fuel specified in this manual should not be exceeded, overloading
can cause excess smoke. Please see technical data section in this manual.
Operation with door left open
Operation with the door open can cause excess smoke. The appliance MUST NOT be
operated with the appliance door left open except as directed in the instructions.
Dampers / Air controls left open
Operation with the air controls or appliance dampers open can cause excess smoke.
The appliance must not be operated with the air controls, appliance damper or door(s) left
open except as directed in these instructions.
Smoke
Exemption
Plate Security
Fixings
(Anti-
tamper)
Factory Fitted Smoke Exemption Plate
SMOKE CONTROL AREAS—INFORMATION UK Only

Page 7Arada Farringdon Stoves
OPERATING INSTRUCTIONS UK & EU Only
Catalyst
The Arada Farringdon 16 / Catalyst Eco stove is fitted with
a ceramic catalyst to aid clean burning.
The catalyst should be inspected for damage annually and
if necessary replaced. The catalyst part number can be
found in the parts list on page 11.
Only replace with a genuine Arada Catalyst
( Details within instructions BK685 on page 22 )
Catalyst Bypass Control.
The control for the catalyst bypass is on the left and right
side of the stove in the position shown in Fig A.
Actuation is as shown on the label on the right hand side.
The bypass should be placed in the open position during
the lighting stage and prior to opening the door for
re-fuelling.
The Catalyst will be active when the thermometer
indicates 300°C or above, the bypass door should then be
closed. The stove should be run with sufficient combustion
air to maintain a temperature above this level to ensure
proper catalyst function. During re-fuelling or initial lighting
the bypass should remain open until the minimum light-off
temperature of 300°c is reach/re-established
The door/riddling tool is used to control the bypass by
insertion into the tri-lobed boss.
Always run the stove with the bypass door closed during
normal burning phase.
See Fig C & D for cutaway image of bypass actuation
Open Position (Cat bypassed)
Closed Position
Fig A
Fig C
Ceramic
Catalyst
Fig B
Stove thermometer
The stove thermometer indicates when the
stove is at the correct temperature to close the
by-pass door for normal running, and re-open
for re-fueling and/or lighting, See Fig B
Fig D
Catalyst
Thermometer
Catalyst
Bypass Door
Control
(Same Both
Sides)

Arada Farringdon StovesPage 8
GUARANTEE—UK & EU Only
Guarantee (Applicable To UK & Europe Only)
When you buy an Arada stove, you are not only buying a first class appliance, you are receiving a
commitment from us to look after you and your appliance.
If any part of the main body of the stove fails due to a manufacturing or material defect during the
guarantee period that applies in respect of the relevant stove (as set out below), Arada will, at its
sole discretion, repair or replace your Arada stove, for no charge.
For the purposes of this guarantee, a material or manufacturing defect includes the splitting or
cracking of the main body (defined as the steel outer casing and items fixed immovably to the
casing).
Damage caused by over-firing or over-heating is not covered (as described in the operation
manual). Warping and a red-oxide colouring will demonstrate the over- heating of internal parts;
body paint which has turned dusty white is also indicative of such use.
The following guarantee periods shall apply in respect of the following Arada stoves:
Arada stoves come with a lifetime guarantee to the main body.
The external paint finish carries a one-year guarantee only.
Catalyst element (CAT FAR1601) has a limited 5 year warranty against thermal degradation and
disintegration.
This guarantee is subject to the Terms and Conditions set out below.
Terms and Conditions
The following terms and conditions must be satisfied in order for your stove to be covered by the
guarantee set out above:
1. Your stove must have been purchased from an officially approved Arada dealer.
2. You must be the original purchaser of the stove in order to make a claim. This guarantee is not
valid in relation to any claims made by someone who did not originally purchase the stove from
Arada or an approved Arada dealer.
3. Any claim under this guarantee must be made through the approved Arada dealer where the
stove was purchased and accompanied by proof of purchase (e.g. a valid receipt). Stoves not
purchased from an approved Arada dealer will not be covered by this guarantee.
4. Your stove must be installed in the UK for this guarantee to be valid. Stoves installed outside of
the UK will not be covered by this guarantee.
5. Your stove must have been installed by a suitably qualified person and in accordance with the
manufacturer’s installation instructions. Stoves not installed by a suitably qualified person or not
installed in accordance with the manufacturer’s installation instructions will not be covered by this
guarantee.

Page 9Arada Farringdon Stoves
GUARANTEE—UK & EU Only
6. Any claims under this guarantee shall not be valid where the installation of the stove does not
conform to all required building regulations and other legislation in force at the time of purchase
and where flue draw readings have not been made to confirm a suitability of the flue.
The manufacturer’s decision as to whether this condition has been satisfied shall be final.
7. The guarantee does not cover damage caused to the stove through careless handling or mis-
use or neglect of the appliance (misuse and neglect being not following the manufacturer’s
instructions and user guides in relation to the stoves, including the use of non-recommended
fuels).
8. The following consumable service items are not covered by this guarantee:
• Firebox linings
• Grate bars
• Fuel retainer
• Throat plate
• Gaskets
• Door glass
• Seals
9. The guarantee does not cover damage caused by storing or using the stove in a damp
environment, defects or faults caused by local conditions such as draught problems and chimney
defects or corrosion caused by condensation, damp or water ingress into the flue, chimney or the
surrounding of the stove.
10. The guarantee is only valid if the stove is serviced and checked annually by a suitably
qualified heating engineer, with documentation to be retained and produced in the event of a
claim being made.
11. The guarantee is only valid where any spare parts used are supplied by Arada or an
approved Arada dealer. The use of spares other than those supplied by Arada Limited shall
invalidate the guarantee. Parts can be purchased through an approved dealer or directly from
Arada, online at www.aradastoveandspares.com.
12. The guarantee is not valid where any repairs or modifications have been made to the stove
which have been carried out by anyone other than Arada or its authorised representatives or
approved dealers.
13. All guarantee periods commence on the date of purchase and are non-transferable and
solely for the benefit of the original purchaser of the stove.
General
Our guarantee is offered as an addition to your statutory rights and will not effect your
statutory rights. You can obtain information about your legal rights from trading
standards office's or a citizens’ advice bureau.
If you believe your appliance is not working correctly or it has broken down, in the first
instance please contact your local retailer or installer for assistance.
This guarantee is applicable in the UK only and operates exclusively in accordance with
the laws of England and Wales.

Page 10
TECHNICAL DATA UK & EU Only
TECHNICAL DATA Farringdon
Catalyst Eco
Maximum / Nominal Heat Output Kw 11.4
Mean Flue Gas Temperature °C 279
Height mm/inch 659/26
Width mm/inch 533/21
Depth mm/inch ( handle removed ) 330/13
Flue Diameter mm/inch 152/6
Weight Packed Kg/lbs 185/408
Weight Nett Kg/lbs 172/379
Maximum Log Length inch (mm) 12/300
Maximum Log Diameter inch (mm) 4/102
Fuel Beech Wood
Efficiency Nett (%) 82.4
Mean Co Emission @ 13% O2 (%) 0.12
Flue Mass Gas Flow (g/s) 7.5
Typical Fuel Load To Achieve Nominal
Rated Output Per Hour (Kwh/Kg) 2.39
Mean CH Emission @ 13% O2 (%) 91
Mean NOx Emission @ 13% O2 (%) 92
DIN Plus Particulates @ 13% O2 (%) 24
Arada Farringdon Stoves

SPARE PARTS LIST UK & EU Only
Page 11Arada Farringdon Stoves
No. Description Part Number No. Description Part Number
1Airwash Tube Clamp AFS3655 24 Liner 196x135x25 AFS4460
2Liner Fastener AFS4452 25 Liner 300x132x25 Fluted AFS4458
3Glass Clips AFS1010 26 Pilot Tube Clamp AFS3720
4Rope Kit ARA019 27 Pilot Tube AFS4462
5Glass Kit AFS4130 28 Gland Plate & Bypass Lever AFS4463
6Gasket & Glass Clips AFS1361 29 Flexi Grate Bar Medium AFS2025
7Complete Fire Door AFS4453-(xxxx) 30 Grate Bar Support AFS4465
8Handle Boss AFS4475 31 Air Wash Tube AFS4471
9Handle Assembly AFS4476 32 Direct Air Adaptor AFS4466-(xxxx)
10 Hinge Catch Plate AFS3865 33 Heatshield Insulation AFS4467
11 Ash Pan AFS4454 34 Heatshield AFS4468
12 Control Knob AFS3860 35 Catalyst Door AFS4469
13 Air Slider Assembly AFS4190 36 Bypass Damper Assembly AFS4470
14 Body Hinge AFS3690 37 Bypass Door Rope (Rope Kit 3) ARA019
15 Farringdon Feet AFS4455-(xxxx) 38 Catalyst Farringdon 16 CatFAR16.01
16 Base Air Cover AFS4185 39 Throat Plate Insulation AFS4472
17 Fuel Retainer AFS4456-(xxxx) 40 Throat Plate AFS4473
18 Pilot Tube End Bracket AFS3725 41 Catalytic Thermometer AFS4464
19 Comb AFS4457 42 Access Hatch & Seal AFS4474-(xxxx)
20 Comb Lock AFS3855
21 Comb Extension AFS4005
22 Liner 330x52x25 AFS4459
23 Liner 178x167x25 AFS4461
Please Refer To
www.aradastovesandspares.com
Note : (xxxx) Denotes Colour Option

BK724 - Rev 08 Issue Date: 10/06/2018 Page 12
All Arada Stoves are manufactured in the UK
Arada Ltd
The Fireworks,
Weycroft Avenue - Axminster - Devon
EX13 5HU
United Kingdom
www.aradastoves.com
T: [phone]
Email : [e-mail]
