Aranet4

The Aranet4 sensor is a battery powered CO²meter with additional measurements of
temperature, relative humidity and atmospheric pressure. *The device is suitable for
monitoring the CO² level at home, in school, office or any other indoor environment.
Measurement data is displayed on a power-efficient e-ink screen allowing for long battery life.
Additionally the device can provide visual and sound notifications in case of the CO²
concentration becomes unhealthy. The high concentration level of 1400 ppm (parts per
million) – level typically associated with complaints of drowsiness and poor air quality.
By using the Aranet4 app on your smart device it is possible to wirelessly access real-time
data and up to one week of historical measurement data. The app also allows you to
configure the Aranet4 device. The Aranet4 app supports connection of several Aranet4
sensors to monitor their parameters remotely from a single smart device.
Additionally up to 100 Aranet4 PRO devices can be connected to the Aranet PRO base station.
Refer to the chapter Using Aranet4 device with the Aranet PRO base station.
Aranet4 uses the nondispersive infrared (NDIR) sensor to measure the concentration of CO².
The CO²gas in the chamber absorbs infrared light and this absorption is measured by the
sensor. The less light passes through – the higher the CO²concentration. The CO²gas absorbs
only a specific wavelength of the light therefore an optical filter is used.
Gas in Gas out
DetectorIR lamp
Optical filter
* Atmospheric pressure data measurements are available only on the Aranet4 app.
More information in chapter How to pair the Aranet4 to my smart device.
Good
(Green)
Average
(Yellow)
Unhealthy
(Red)
About the Aranet4 device
1
NEW Aranet4 User Manual

5
CO²threshold level indication.
Green represents normal CO²
level (below 1000 ppm)
Yellow represents average CO²
level (1000 to 1400 ppm)
Red represents high CO² level
(above 1400 ppm)
CO²calibration mode
indication.
Symbol “A” is
displayed when
calibration is set to
automatic. No letter is
displayed when
calibration is set to
manual mode.
76
The PRO version of the
product (can be
wirelessly connected to
Aranet PRO base
station & Aranet Cloud)
9
8
Battery level.
Adjustable CO²
thresholds that can be set
using the Aranet4 app.
2
8
1
4
3
6
9
7
5
1 2 3 4
Temperature of the air
in Celsius or
Fahrenheit. Refer to
the switch positions of
the Aranet4 in chapter
Switch positions
explained.
Relative humidity
of the air (RH %).
CO²concentration
level in ppm (parts
per million).
Alarm status. The
speaker symbol is visible
when alarm function is
activated. The alarm
settings can be adjusted
using the Aranet4 app.
The Aranet4 sensor screen explained
2
NEW Aranet4 User Manual

The inverted screen
alerts when CO²
concentration is too
high and unhealthy.
The calibration
progress.
Do not remove batteries
during firmware upgrade.
The battery is exhausted.
Replace the batteries.
Frost can damage the
sensor. The recommended
operating temperature of
the sensor is 0° C to 50° C
(32° F to 122° F).
Pin code representation,
when pairing device with
smartphone trough
Aranet4 app via Bluetooth
The Aranet4 device is calibrated at the factory. However, the user can perform CO²
calibration manually when needed. During the manual calibration the Aranet4 device
must be exposed to fresh air (about 420 ppm of CO²) and the environment should be
stable (not changing). Maintain a distance of at least 1 meter from the device during
the calibration process.
To start the manual CO²calibration, change the position of the switch (see next
chapter Switch positions explained)from MANUAL to AUTO and then back to
MANUAL (maintain maximum of 1 second between each movement).
The calibration progress will be displayed on the screen of the device. In case of a
calibration failure message, make sure that the environment requirements are met
and repeat the process from the beginning.
Manual calibration can be done using the Aranet4 app as well.
In case of automatic calibration mode, the Aranet4 device needs to be exposed to a
fresh air at around 420 ppm (for instance, outdoors or room with good air exchange)
at least once a week.
CO²calibration
3
NEW Aranet4 User Manual

Bluetooth / 0 – enable or
disable (0) the Bluetooth
connectivity.
Enable/disable device
connectivity to Aranet radio
(available only for the PRO
version of the product.).
Refer to chapter Using
Aranet4 device with the
Aranet PRO base station.
Temperature units – switch between
either Celsius or Fahrenheit degrees.
AUTO / MANUAL – switch
the CO²calibration mode to
either manual (default
position) or automatic mode.
Use MANUAL calibration
mode in case you are not
certain which mode to use.
The positions of the
configuration switches have
the following meaning:
AUTO
MANUAL
°C
°F O
(OFF)
O
(OFF)
The Aranet4 device has four small configuration
switches that allow the user to adjust the
preferences of the device.
To access the configuration switches, open the
cover of the battery compartment on the back of
the device. While batteries remain inserted, adjust
the switch position (up or down) using the pin tool
that is supplied with the Aranet4 device (or any
other suitable thin tool).
Switches can be adjusted while batteries are
removed as well, but note that if you remove
the batteries, the measurement history will be
erased from Aranet4 memory. The changed
preference setting will be enabled once the
batteries are inserted back in.
Switch positions explained
4
Switch tool can be found
in Aranet4 Quick Start
Guide english version
NEW Aranet4 User Manual

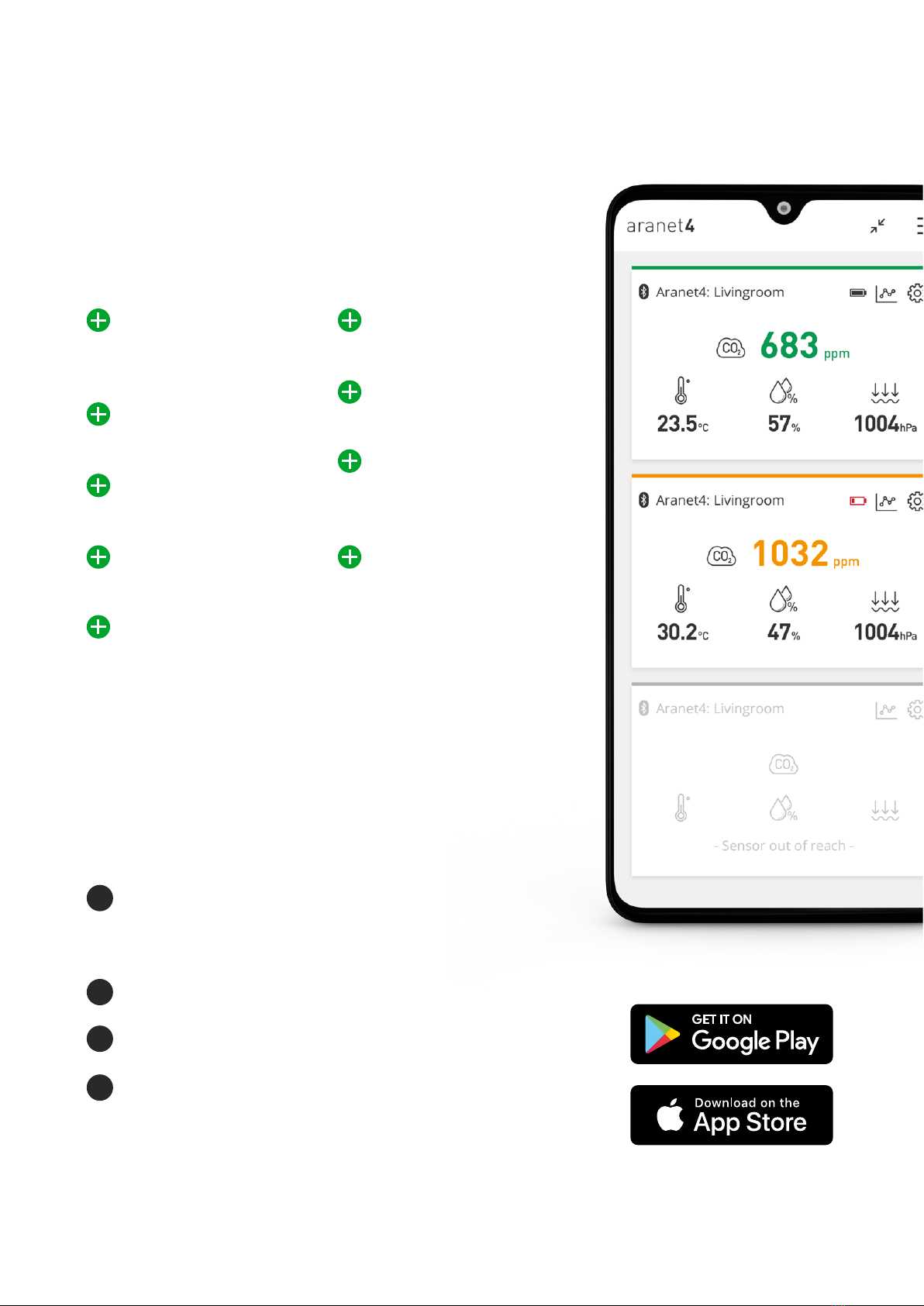

Connect your smartphone with the Aranet4 device via
Bluetooth by using iOS or Android (access to device’s
location should be allowed due to general requirement for
Bluetooth apps to work correctly on Android OS) app to:
How to pair Aranet4 to my smart
device using the Aranet4 app
Access real-time
measurement data
overview
View up to seven day
measurement history
View atmospheric
pressure data
Set adjustable CO²
thresholds
Set alarms and frequency
of sensor readings
Access all nearby
Aranet4 devices
Do the CO²calibration
of the device
Get access to the
available firmware
updates
Connect to smart
devices and show the
readings on larger
TV screens
1
2
3
4
Launch the Aranet4 app and on the main page
(My devices) add a new device by clicking on the
(+) symbol.
Select your Aranet4 device from the list.
When prompted, confirm the start of pairing.
Type in the 6 digit passcode that is shown on the
display of your Aranet4 device.
More answers about Aranet4 app in
forum.aranet.com
Your mobile phone must have either Android 6.0 or newer
(for Android) or iOS 11.00 or newer (for iPhone) in order for
you to be able to download the app.
To connect your Aranet4 device to your smart
device, make sure Bluetooth connectivity is enabled on
your smart device and on your Aranet4 device, and do
the following steps:
5
NEW Aranet4 User Manual

Returns and warranty
In case of a return or a warranty claim, please contact your sales representative.
For Terms and Conditions refer to aranet4.com/terms-conditions.
The Aranet PRO base station serves as a device for collecting, storing and maintaining data
from all types of Aranet sensors, including Aranet4 PRO. Up to 100 sensors can be connected
to a single Aranet PRO base station which has a capacity to store the measurement history up
to 10 years.
To connect the Aranet4 PRO to the Aranet PRO base station, initiate the sensor pairing mode
on the Aranet PRO base station and start the pairing on the Aranet4 device by changing the
switch position from disable (0) to enable (radio symbol). Alternatively, while switch is in the
enable position (radio symbol on screen is visible), remove and reinsert the batteries. Please
note, that by removing the batteries, the measurement history will be erased from the
Aranet4 memory.
Find out more about the Aranet PRO base station at aranet.com and follow the Aranet PRO
User Manual on how to pair Aranet sensors to the Aranet PRO base station.
Using Aranet4 PRO device with the
Aranet PRO base station
6
Frequently asked questions (FAQ)
If you can’t find the answer that you are looking for in this manual, please take a look at the
Aranet Forum at forum.aranet.com. Otherwise send us a message to [e-mail].
Additional links
More information about the product and documentation can
be found https://aranet.com/product/aranet4-sensor/
User manual for older Aranet4 device version
https://dl.aranet.com/wp-content/uploads/2019/01/18095
633/Aranet4_User_manual_and_datasheet.pdf
For more detailed information about Aranet products, please visit www.aranet.com,
contact your Aranet representative or write to [e-mail]. Product specifications
are subject to change without prior notice. © 2021 SAF Tehnika, JSC. All rights reserved.
