Owner's Manual

with Assembly Instructions

For Model P8814

• Please read this manual

and save it with your original

sales receipt.

• Tools needed for assembly:

Phillips screwdriver (regular

and short shaft) and safety

scissors (all not included)

and assembly tool (included).

• Use only with the included

Power Wheels®12 Volt

Lead-Acid Rechargeable

Battery with Built-in Thermal

Fuse and a Power Wheels®

12 Volt Charger with type 12V

connector (both included).

2P8814pr-0920

Important Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Parts Picture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Battery Charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Decoration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Battery Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Battery Care and Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Safe Driving Rules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Vehicle Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Cargo Bed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Vehicle Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Problems and Solutions Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

• Your new vehicle requires adult assembly. Please set aside at

least 30 minutes for assembly.

• You must charge your battery for 18 - 30 hours before you

use your vehicle for the first time. We recommend that you

start charging your battery before beginning assembly.

Please see Battery Charging beginning on page 7 for

detailed instructions.

• Read this manual carefully for important safety information

and operating instructions before using your vehicle. Keep

this manual for future reference as it contains important

information.

• This vehicle is appropriate for use on generally level, rough

terrain (including hard surfaces, wet and dry grass, ruts,

gravel, mulch and mud) and by children 3 years of age

and older.

• This vehicle has been pre-set so it will only operate in low

speed. See the instructions on page 17 to remove the high

speed lock-out screw.

• Use this vehicle ONLY outdoors. Most interior flooring can

be damaged by riding this vehicle indoors. Fisher-Price®will

not be responsible for damage to the floor if the vehicle is

used indoors.

• To prevent damaging the motors and gears, teach your

child to stop the vehicle before switching direction. Do not

exceed the maximum weight capacity of 130 lbs (59 kg) in

the passenger seating area and cargo bed. Cargo bed weight

limit: 25 lbs (11.3 kg).

• This vehicle has adjustable play seat belts. Please note that the

adjustable seat belts are designed to be a play feature and do

not function as protective safety restraints.

• If you have any questions about your Power Wheels®vehicle,

please call our toll-free service lines at 1-800-348-0751 from

9 AM to 7 PM (EST) Monday through Friday and 11 AM to

5 PM (EST) Saturday. Trained customer service

representatives are available to take your call in English or

French. Habla Español? Si usted tiene alguna pregunta

ó necesita asistencia llame gratis 1-800-348-0755 para

los Estados Unidos. Tenemos representantes que hablan

español para atender su llamada.

• For your convenience, Power Wheels®maintains an

independently owned and operated Authorized Service

Center Network with more than 300 authorized service

centers nationwide. Our authorized service centers will repair

or replace parts under warranty at no extra charge, and can

perform non-warranty repairs for a minimal charge. To find

the authorized service center nearest you, please visit us on-

line at www.powerwheels.com or call 1-800-348-0751.

• To register your vehicle, please visit us on-line at

www.powerwheels.com.

IMPORTANT INFORMATION

TABLE OF CONTENTS

3P8814pr-0920

ELECTRICAL HAZARD

RIDING HAZARD

• Prevent Injuries and Deaths

• Direct Adult Supervision Required.

• Never Ride at Night.

• Keep Children Within Safe Riding Areas.

These areas must be:

- away from swimming pools and other bodies of water to prevent drownings

- generally level to prevent tipovers

- away from steps, steep inclines, cars, roads and alleys.

• Riding Rules

Make sure children know and follow these rules for safe driving and riding.

- Always sit on the seat.

- Always wear shoes.

- Only 2 (two) riders at a time.

- Never ride in the cargo bed.

WARNING

To prevent electric shock, do not immerse in water, wipe clean with a damp cloth.

DANGER

• Battery can fall out and injure a child if vehicle tips over. Always use battery retainer.

• PREVENT FIRE

- Never modify the electrical system. Alterations could cause a re resulting in serious injury

and could also ruin the electrical system.

- Use of the wrong type battery or charger could cause a re or explosion resulting in

serious injury.

- Use of Power Wheels®components in products other than Power Wheels®vehicles could

cause overheating, re or explosion.

• The battery must be handled by adults only. The battery is heavy and contains sulfuric acid

(electrolyte). Dropping the battery could result in serious injury.

• Never allow children to charge the battery. Battery charging must be done by adults only.

A child could be injured by the electricity involved in charging the battery.

• Read the safety instructions on the battery.

• Examine the battery, charger and their connectors for excessive wear or damage each time

you charge the battery. If damage or excessive wear is detected, do not use the charger or the

battery until you have replaced the worn or damaged part.

• HOT motors. Handle carefully.

WARNING

4P8814pr-0920

• If you experience a problem with this product, or are missing a part, please call us at 1-800-348-0751, rather than return this product

to the store.

• Please identify all parts before assembly and save all packaging material until assembly is complete to ensure that no parts are discarded.

• Metal parts have been coated with a lubricant to protect them during shipment. Wipe all metal parts with a paper towel to remove any

excess lubricant.

Vehicle

PARTS

Long Seat Belt 2 Short Seat Belts

Seat

Clip

Sport Bar

Windshield

Shovel

Dashboard

Hint: The clip and shovel come fastened together with a plastic tie.

Hint: The dashboard and windshield come assembled and taped together.

5P8814pr-0920

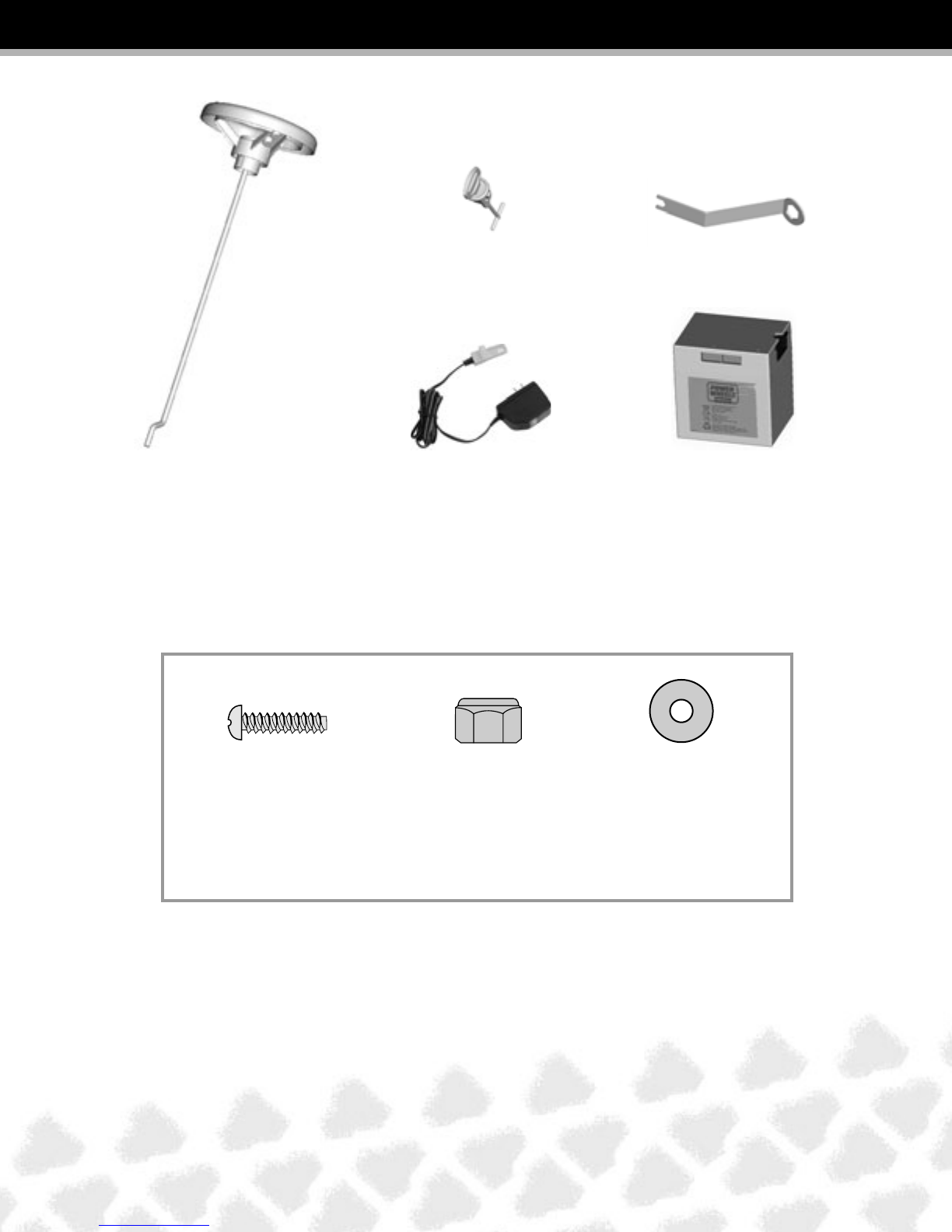

Fasteners Shown Actual Size

#8 x 1" Screw - 20

For your convenience, we included extra fasteners!

Note: Tighten and loosen all screws with a Phillips screwdriver. Do not over-tighten the screws.

3/8" Lock Nut

12 Volt Battery

Part Not Shown: Label Sheet

Key

12 Volt Charger

Steering Wheel Assembly

3/16" Washer - 4

Assembly Tool

6P8814pr-0920

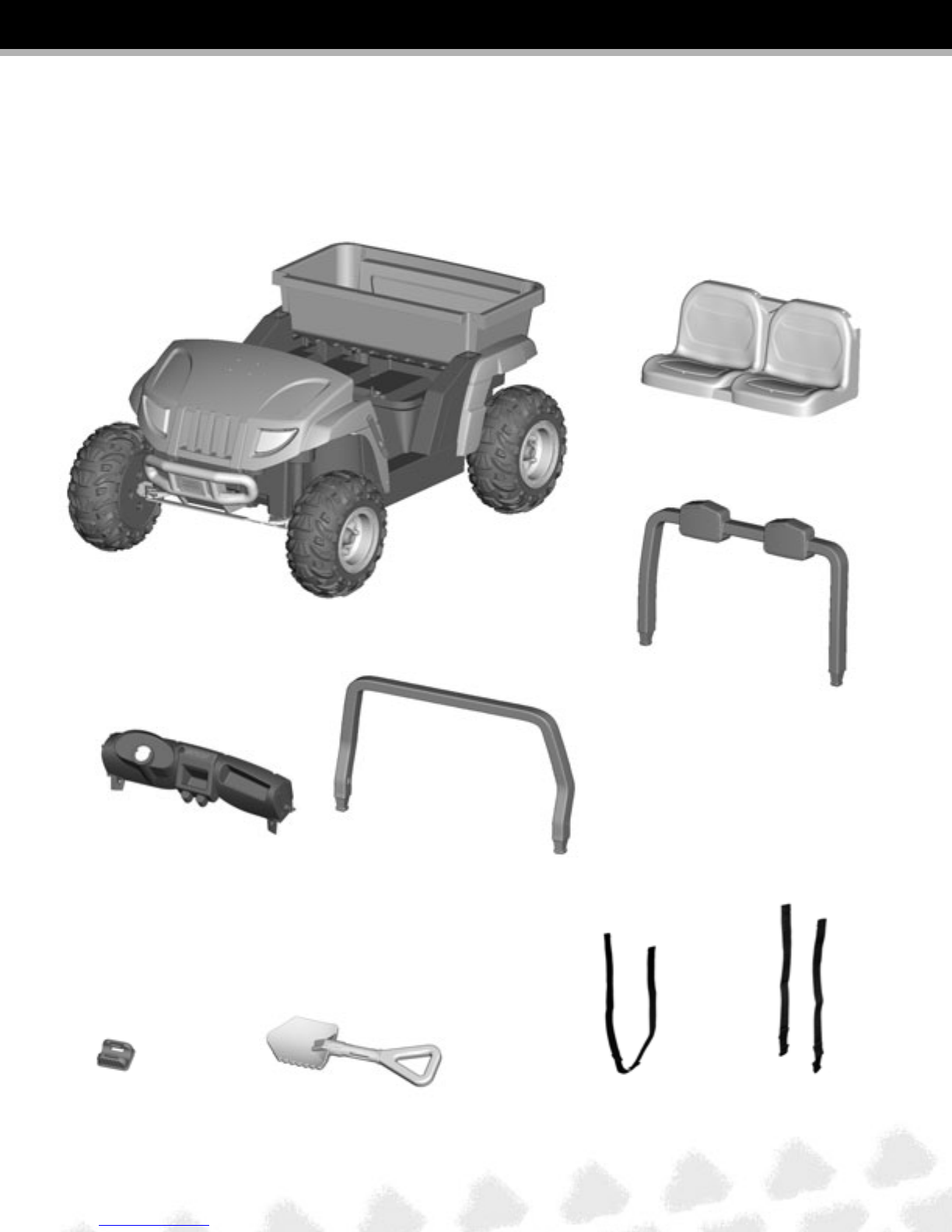

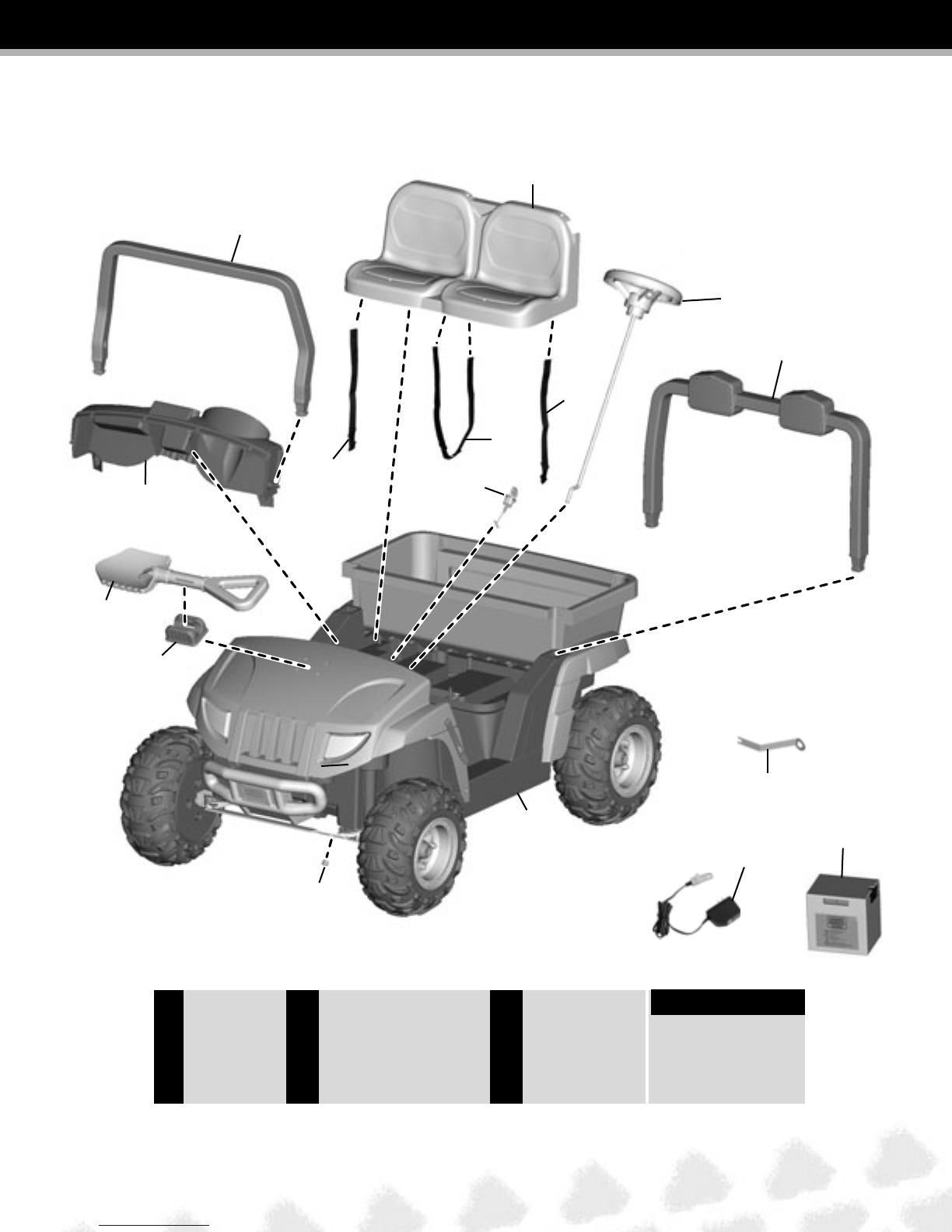

PARTS PICTURE

3/8" Lock Nut

Vehicle

Clip

Shovel

Dashboard

Windshield

Steering Wheel Assembly

Key

Seat

Long Seat Belt

2 Short Seat Belts

Sport Bar

12 Volt Charger

12 Volt Battery

Assembly Tool

Parts Not Shown

Label Sheet

#8 x 1" Screw - 20

/16" Washer

7P8814pr-0920

ELECTRICAL HAZARD

Important Notes

• Your new battery must be charged for at least 18 hours

before you use it in your vehicle for the first time.

• We recommend that you start charging your battery before

beginning assembly of your new vehicle.

• The battery must be upright while charging.

• The charger is not a toy.

• Do not short circuit the battery.

• You do not need to remove the battery from your vehicle to

recharge it.

• Before charging the battery, examine the battery case for cracks

and other damage which may cause sulfuric acid (electrolyte)

to leak during the charging process. If damage is detected, do

not charge the battery or use it in your vehicle. Battery acid is

very corrosive and can cause severe damage to surfaces

it contacts.

• Do not charge the battery on a surface (such as a kitchen

counter top) which could be damaged by the acid contained

inside the battery. Take precautions to protect the surface on

which you charge your battery.

• Use only a Power Wheels®12 volt charger with "12 V"

connector (input 120 VAC 60 Hz with an output of 12 VDC,

1200 mA) to charge your Power Wheels®12 volt battery.

Adults Note: Regularly examine the charger for damage to the

cord, plug, housing or other parts that may result in the risk of

fire, electric shock or injury. In the event of any damage, do not

use the charger until the damage has been properly repaired.

Please call 1-800-348-0751.

• If your battery is old and will not accept a charge, do not leave

it in the vehicle. Always remove a dead battery from the vehicle.

About Thermal Fuses

Your Power Wheels®12 volt battery is equipped with a built-in

thermal fuse. The thermal fuse is a self-resetting safety device

which automatically “trips” and shuts down operation of the

vehicle if the vehicle is overloaded or the driving conditions too

severe. Once a fuse has "tripped", remove your foot from the

pedal and wait approximately 25 seconds before operating the

vehicle again. To avoid repeated automatic shut-downs, do not

overload the vehicle by exceeding the 130 lbs. (59 kg) maximum

weight capacity or by towing anything behind the vehicle. Avoid

severe driving conditions, such as driving up slopes or running

into fixed objects, which can cause the wheels to stop spinning

while power is still being supplied to the motors and make sure

your child stops the vehicle before switching direction. If a

thermal fuse in a battery continually trips under normal driving

conditions, please contact your local Power Wheels®Authorized

Service Center. For the location of the Authorized Service Center

nearest to you, visit us on-line at www.powerwheels.com,

or call 1-800-348-0751.

• Battery can fall out and injure a child if

vehicle tips over. Always use battery retainer.

• PREVENT FIRE

- Never modify the electrical system.

Alterations could cause a re resulting

in serious injury and could also ruin the

electrical system.

- Use of the wrong type battery or charger

could cause a re or explosion resulting

in serious injury.

- Use of Power Wheels®components in

products other than Power Wheels®

vehicles could cause overheating, re

or explosion.

• The battery must be handled by adults only.

The battery is heavy and contains sulfuric

acid (electrolyte). Dropping the battery could

result in serious injury.

• Never allow children to charge the battery.

Battery charging must be done by adults

only. A child could be injured by the elec-

tricity involved in charging the battery.

• Read the safety instructions on the battery.

• Examine the battery, charger and their

connectors for excessive wear or damage

each time you charge the battery. If damage

or excessive wear is detected, do not use

the charger or the battery until you have

replaced the worn or damaged part.

WARNING

Use the charger in dry locations only.

CAUTION

BATTERY CHARGING

8P8814pr-0920

Children can be harmed by small parts,

sharp edges and sharp points in the vehicle's

unassembled state, or by electrical items.

Care should be taken in unpacking and

assembly of the vehicle. Children should not

handle parts, including the battery, or help in

assembly of the vehicle.

• In the unassembled state, this package

contains small parts. Adult assembly

is required.

• Use the charger in dry locations only.

WARNING

CAUTION

• Insert the fastener end of a short seat belt strap up through the

slot near the outer edge of the seat. Make sure the side of the

seat belt with the fastener faces the outer edge of the seat.

• Pull the short seat belt strap completely through the slot until

the last T-loop at the opposite end of the belt catches against

the slot.You will pull one T-loop through the slot.

• Repeat this procedure to assemble the other short seat

belt strap.

• Insert each fastener end of the long seat belt strap through

each slot in the center of the seat. Make sure the fasteners

face the outer edge of the seat.

• Pull each side of the long seat belt strap evenly through the

slots. Make sure to pull each T-loop through a slot.

Charger

Connector

Seat

ASSEMBLY

• Plug the charger connector into the battery

• Plug the charger into a standard wall outlet. The power

indicator lights

Notes:

- If power flow to the wall outlet is controlled by a switch, make

sure the switch is “ON”.

- Use the charger only in a wall outlet. Do not plug the charger

into a ceiling outlet.

• Before first-time use, charge the battery for at least 18 hours.

Never charge the battery longer than 30 hours.

• Recharge the battery for at least 14 hours after each use of

your vehicle. Do not charge the battery longer than 30 hours.

• Once the battery is charged, disconnect the charger connector

from the battery. Unplug the charger from the wall outlet. The

battery is now ready to be installed in your vehicle. Please

see the Battery Installation section on page 14 for detailed

instructions on installing your battery. If your battery is already

installed in your vehicle, simply re-connect the motor harness

connector to the battery.

The power indicator on

the charger does not

indicate the charge status

of your battery. The power

indicator allows you to see

that there is power from

the wall outlet.

Short Seat Belts

Long Seat Belt

9P8814pr-0920

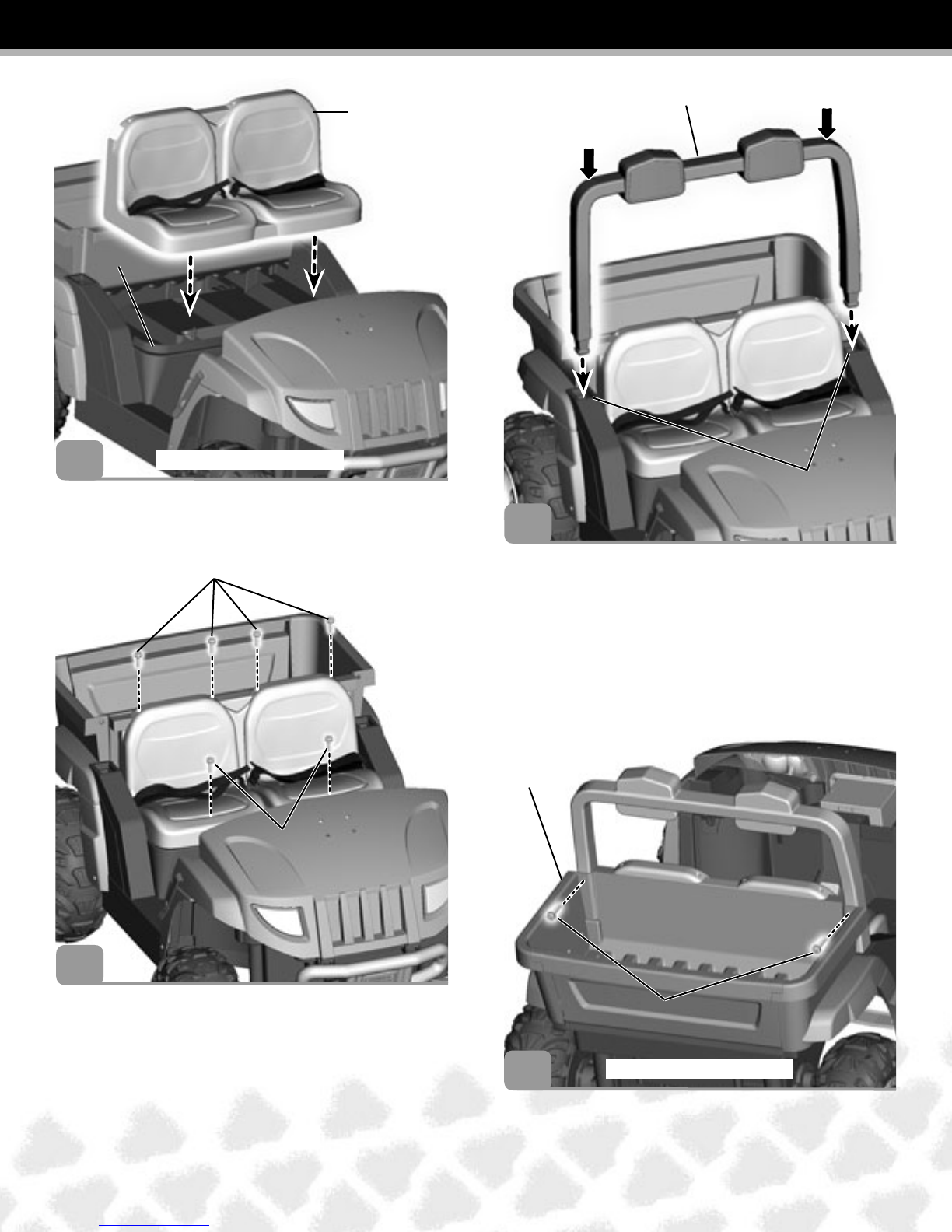

• Insert two screws through the cargo bed and into the ends of

the sport bar. Tighten the screws.

BACK VIEW

Screws

Cargo Bed

• Fit the seat into the vehicle. Make sure the front edge of the

seat is over the ridge in the vehicle.

• Position the sport bar so that the screw holes near each end

face the rear of the vehicle.

• Fit the ends of the sport bar into the slots in the top side of

the vehicle.

• Push down on both ends of the sport bar to “snap” into

place. This may take extra force.

Hint: The sport bar is designed to fit one way. If you cannot

“snap” it into place, turn it around and try again!

• Insert two screws into the seat area and four screws in the

seat back. Tighten the screws.

Screws

Sport Bar

Slots

FRONT VIEW

Seat

Ridge

Screws

PUSH

10 P8814pr-0920

Windshield/Dashboard

Assembly

Slot

PUSH

Hint: Remove the tape holding the hood to the vehicle.

• Pull the hood straps down and then out to unfasten them

from the button on each side of the vehicle.

• Lift the hood open.

• Insert the ends of the windshield/dashboard assembly into

the slots in each side of the vehicle.

• Push down on both ends of the windshield to "snap" it into

place. This may take extra force.

Hint: The windshield/dashboard assembly is designed to fit

one way. If you cannot "snap" it into place, turn it around and

try again!

Hint: The windshield and dashboard come factory assembled

and taped. If these parts come apart after removing the tape,

follow this assembly step.

• Fit the ends of the windshield into the groove and onto the

peg on each side of the dashboard.

Windshield

Dashboard Peg

Hood

SIDE VIEW

Groove

Hood Strap

• Check to made sure that the windshield is properly

assembled to the dashboard.

The windshield is

properly assembled.

The windshield is not properly

assembled. Remove the windshield and

turn it around so that it bends forward.

11 P8814pr-0920

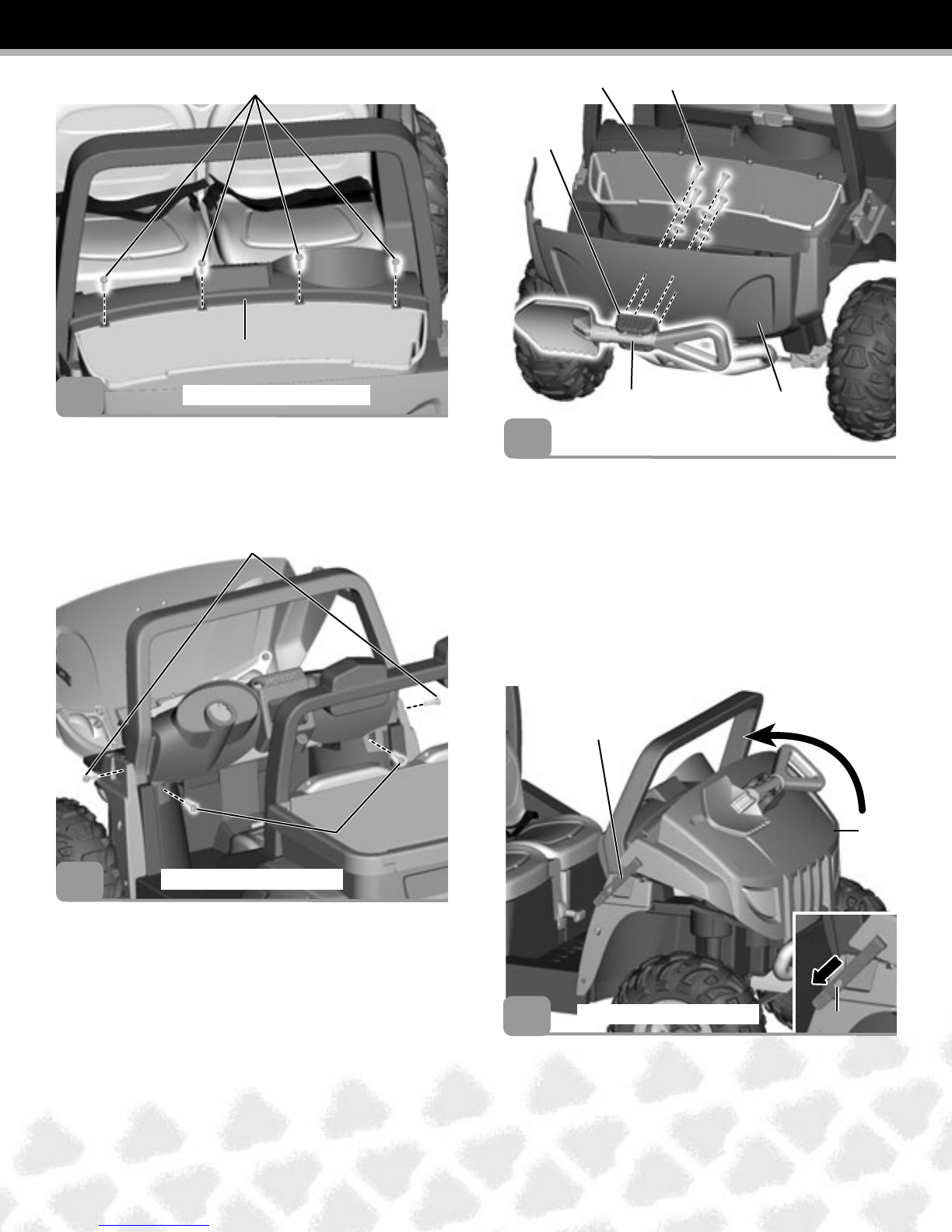

• First, insert a screw through each side of the vehicle and into

the ends of the windshield/dashboard. Tighten the screws.

• Next, insert two screws through the inside of the vehicle and

into the windshield/dashboard. Tighten the screws.

• Using safety scissors, carefully cut the plastic tie holding the

shovel and clip together.

Note to Retailer: Do not cut the plastic tie. The plastic tie holds

the shovel in place for display purposes.

• Place the clip and shovel assembly onto the hood.

• First, slide a washer onto the remaining screws. Then, insert

the four screws with washers through the underside of the

hood and into the clip. Tighten the screws.

• Lift and lower the hood closed.

• Pull the hood strap down and over the button on each side of

the front end of the vehicle.

DASH VIEW

Clip

Shovel Hood

Hood

Screws

FRONT VIEW

SIDE VIEW

Screws

Washers

Button

Hood Strap

• Insert four screws through the dashboard and into the front

end of the vehicle. Tighten the screws with a short shaft

Phillips screwdriver.

Screws

Dashboard

FRONT VIEW

12 P8814pr-0920

• Fit the lock nut onto the end of the steering column.

• Using the closed end of the assembly tool, tighten the lock nut.

• Carefully turn the vehicle over.

• Fit the end of the steering column through the hole in the

steering linkage.

Steering Column

Steering Linkage Hole

Lock Nut

Assembly Tool

Key

BOTTOM VIEW

• Turn the vehicle upright.

• Insert and “snap” the key into the hole in the dashboard.

DASH VIEW

• Position the steering wheel assembly so that the flat side of

the steering wheel is down.

• Fit the steering column down through the hole in the

dashboard and then out through the hole in the floor of

the vehicle.

Hint: You may need to turn the steering column to clear the

windshield and to fit it through both openings.

Flat Side of Steering Wheel

Steering Column

SIDE VIEW

13 P8814pr-0920

6 6 6 6

• Before applying the labels, wipe the surface of the vehicle with a clean, dry cloth to remove any dust or oils.

• Place the labels exactly as shown in the illustrations. For best results, avoid repositioning a label once it has been applied to the vehicle.

• After applying a label, rub the label firmly with a clean, dry cloth to make sure the label is adhered to your vehicle. Start at the center of

a label, and smooth towards the outer edges to remove air bubbles.

DECORATION

LEFT SIDE VIEW

RIGHT SIDE VIEW

14 P8814pr-0920

IMPORTANT! Use only a Power Wheels®12 volt lead-acid

rechargeable battery with built-in thermal fuse. Use of any other

battery will damage your vehicle. Make sure that you charge the

battery for at least 18 hours using the enclosed Power Wheels®

12 volt charger before operating your vehicle for the first time.

Charge the battery for at least 14 hours after each use of the

vehicle. Never charge the battery longer than 30 hours.

Failure to follow these instructions may damage your battery

and will void your warranty.

• Pull the hood straps down and then out to unfasten them

from the button on each side of the vehicle.

• Lift the hood open.

BATTERY INSTALLATION

• Plug the motor harness connector into the battery.

Hood Strap

Battery

Retainer

• Pull the battery retainer backward.

• Place the battery in the battery compartment. Make sure the

battery retainer slides over the top of the battery.

• Lift and lower the hood closed. Pull the hood strap down and

over the button on each side of the front end of the vehicle.

15 P8814pr-0920

• Your Power Wheels®battery is a non-spillable, sealed

lead-acid battery. It must be recycled or disposed of in an

environmentally sound manner.

• Do not dispose of a lead-acid battery in a fire. The battery

may explode or leak.

• Do not dispose of a lead-acid battery in your regular,

household trash. The incineration, landfilling or mixing of

sealed lead-acid batteries with household trash is prohibited

by law in most areas.

• Protect the environment by not disposing of this product with

household waste (2002/96/EC). Check your local authority for

recycling advice and facilities (Europe only).

• Return an exhausted battery to a federal or state approved

lead-acid battery recycler, such as a Power Wheels®

authorized service center or a local seller of automotive

batteries. For the authorized service center location nearest

to you, please visit us on-line at www.powerwheels.com or

call 1-800-348-0751. Contact your local waste management

officials for other information regarding the environmentally

sound collection, recycling and disposal of lead-acid

batteries. If you live in the State of Florida or the State

of Minnesota, it is prohibited by law for anyone to throw

away lead-acid batteries in the municipal waste stream.

Care

If a battery leak develops, avoid contact with the leaking acid

and place the damaged battery in a plastic bag. See information

below for proper disposal.

If acid comes in contact with skin or eyes, flush with cool

water for at least 15 minutes and call a physician.

If acid is internally ingested, give water, milk of magnesia

or egg whites immediately. Never give emetics or induce

vomiting. Call a physician.

• Charge a new battery for at least 18 hours before first use.

Never charge the battery longer than 30 hours. Overcharging

or undercharging the battery may shorten battery life and

decrease vehicle running time.

• After the first charge, recharge the battery for at least 14

hours after each use. Never charge the battery longer than

30 hours. Charge the battery after each use, regardless of

how long the vehicle was used.

• The battery must be upright while charging.

• Do not allow the battery to run down completely

before charging.

• Charge the battery before storing the vehicle.

• Charge the battery at least once per month, even if the

vehicle has not been used.

• Leaving the battery in a discharged condition will ruin it.

• Always remove an exhausted battery from the vehicle. Battery

leakage and corrosion can damage the vehicle.

• Do not store the battery on a surface (such as a kitchen

counter top) which could be damaged by the acid contained

inside the battery. Take precautions to protect the surface on

which you store the battery.

• Do not store the battery in temperatures above 75° F or

below -10° F.

• Use only a Power Wheels®12 volt battery. Remember to

charge the new battery for at least 18 hours before first use.

• Prevent the battery from moving freely inside the battery

compartment. Always use the battery retainer to secure

the battery in the battery compartment.

• Examine the battery, charger and their connectors for

excessive wear or damage each time you charge the battery.

If damage is detected, do not use the charger or the battery

until you have replaced the worn or damaged part.

Disposal

BATTERY CARE AND DISPOSAL

16 P8814pr-0920

RIDING HAZARD

• Prevent Injuries and Deaths

• Direct Adult Supervision Required.

• Never Ride at Night.

• Keep Children Within Safe Riding Areas.

These areas must be:

- away from swimming pools and other

bodies of water to prevent drownings

- generally level to prevent tipovers

- away from steps, steep inclines, cars,

roads and alleys.

• Riding Rules

Make sure children know and follow

these rules for safe driving and riding.

- Always sit on the seat.

- Always wear shoes.

- Only 2 (two) riders at a time.

- Never ride in the cargo bed.

WARNING

SAFE DRIVING RULES

Teach Safety Rules to Children

While children can quickly develop the skill necessary to drive

this vehicle, it is important to remember that their judgment skills

are still very immature. Unsupervised driving by children can

lead to serious injury. Before children use this vehicle, an adult

should carefully evaluate the driving area as well as the children’s

skill level and ability to drive this vehicle safely. Children are not

always able to recognize or anticipate hazards, even when they

have been taught about them. There is no acceptable substitute

for direct adult supervision.

Teach appropriate safety rules to your child before allowing

operation of this vehicle. These rules should also be reviewed

with neighborhood children or other playmates who want to

drive this vehicle.

Riding Rules

Make sure children know and follow these rules for safe driving:

1. Always sit on the seat.

2. Always wear shoes.

3. Only 2 (two) riders at a time. A child who is not sitting on

the seat or who is standing on the vehicle could fall off,

cause a tip-over or block the driver’s view. A child could be

seriously injured.

4. Never ride in the cargo bed. Cargo bed weight limit is

25 lbs (11.3 kg).

5. Do not allow any child to drive the vehicle in the street or near

moving (motorized) vehicles.

6. Do not allow any child to drive near bodies of water (such as

pools or creeks), obstructions (such as furniture, low tree limbs

or play equipment), or drop-offs (such as stairs or decks).

7. Do not allow any child to drive the vehicle in the dark. A child

could encounter unexpected obstacles and have an accident.

Operate the vehicle only in the daytime or a well-lit area.

8. Teach your child to avoid driving on steep inclines or slopes.

Restrict your child's driving to areas that are fairly level with

gentle inclines or slopes.

9. Do not allow your child to drive down or across a steep slope.

- The vehicle may gain unsafe speed, even if the pedal is

released to stop.

- The vehicle may tilt and tip over.

- The wheels could lose traction, causing the vehicle to slip.

10. Do not allow your child to drive up steep inclines. The motor

may stop and the vehicle could roll backwards at an

unsafe speed.

11.Never put anything near any moving parts. Rotating parts such

as motors, gear boxes and wheels can snag fingers, hair, etc.,

causing serious injury. Do not allow operation of the vehicle

when it is on its side or in an upside-down position.

12.Do not operate the vehicle near flammable vapors (gasoline,

paint thinner, acetone, liquid wax, etc.). The vehicle’s electrical

switches, like most electrical switches, emit an internal spark

when first turned on or turned off. The presence of flammable

liquids or vapors could cause an explosion or a fire. Keep all

flammable products in tightly sealed containers and away from

the vehicle.

13.Do not allow a child to operate the vehicle without direct

adult supervision. To prevent unsupervised use of the vehicle,

disconnect the motor harness from the battery when the vehicle

is not in use.

Restrict your child's driving to areas that are generally level.

17 P8814pr-0920

IMPORTANT! Use this vehicle ONLY outdoors. Most interior flooring can be damaged by riding this vehicle indoors. Fisher-Price®will

not be responsible for damage to the floor if the vehicle is used indoors. As assembled, your vehicle is ready to roll in low speed

(21/2mph, maximum). It has been pre-set so it will only operate in low speed. After your child has mastered the basic skills of driving

and understands the rules for safe driving, it’s time to remove the high speed lock-out screw to allow the vehicle to operate in low or

high speed. See the instructions in this section to remove the high speed lock-out screw.

Beginner Use - Low Speed

• Make sure the shifter is in the low speed position 1.

• Press down on the foot pedal 2. The vehicle goes forward at

a maximum of 21/2mph 3. Help your child practice steering to

learn how far and how quickly to turn the steering wheel when

driving forward in low speed.

To Back Up

Advanced Use - High Speed

• Before you disconnect the high speed lock-out, make sure your

child knows how to steer, how to start and stop the vehicle and

knows the rules for safe driving. When the high speed lock-out

is disconnected, the vehicle can be driven forward in low speed

(21/2mph, maximum) or high speed (5 mph, maximum).

• Make sure the shifter is in the low speed position.

• Loosen and remove the screw in the shifter base.

• Place the lock-out screw into the hole in the shifter handle for

future use. It can be re-inserted into the shifter base to lock-out

high speed.

VEHICLE OPERATION

Remove

lock-out screw

for high speed.

• Your vehicle has a patented, electronic braking system that

automatically stops the vehicle when your child’s foot lifts from

the pedal. Make sure your child is comfortable with steering the

vehicle and automatically knows how to stop.

STOP!

Store lock-out

screw here.

1 2 3

IMPORTANT! To avoid damaging the motors and gears, stop the

vehicle before shifting from forward to reverse.

• Once your child is completely comfortable with operating the

vehicle in the forward mode, introduce reverse .

• Make sure the shifter is in the reverse position 1.

• Press down on the foot pedal 2.The vehicle will go in reverse

at a maximum of 21/2mph 3. The vehicle is designed to

operate in low speed only in reverse. Help your child practice

steering to learn how far and how quickly to turn the steering

wheel when driving in reverse.

1 2 3

To Drive

• Make sure the shifter is in the high speed

position 1.

• Press down on the foot pedal 2. The vehicle goes forward at

a maximum of 5 mph 3. Help your child practice steering to

learn how far and how quickly to turn the steering wheel when

driving forward in high speed.

1 2 3

18 P8814pr-0920

CARGO BED

Bumper-to-Bumper*

Limited Warranty

One year limited warranty from the date of purchase

on the Power Wheels®vehicle.

Six month limited warranty on the 12 volt battery.

For the original purchaser, this one year limited warranty covers the

Power Wheels®ride-on vehicle (purchased from Power Wheels®)

against defects in materials and workmanship. The six month

limited warranty applies only to the 12 volt battery included by

Power Wheels®with the original purchase of the vehicle.

This warranty covers normal use and does not cover the

Power Wheels®vehicle or battery if damaged by unreasonable

use, neglect, accident, abuse, misuse, improper service or other

causes not arising out of defects in materials or workmanship.

Evidence of any attempt at consumer repair will void this warranty.

THIS WARRANTY DOES NOT COVER, AND IS INTENDED TO

EXCLUDE, ANY LIABILITY ON THE PART OF POWER WHEELS®,

WHETHER UNDER THIS WARRANTY OR IMPLIED BY LAW FOR

ANY INDIRECT OR CONSEQUENTIAL DAMAGES FOR BREACH OF

WARRANTY. SOME STATES DO NOT ALLOW THE EXCLUSION OR

LIMITATION SO THIS LIMITATION MAY NOT APPLY TO YOU.

Should you need service or assistance with your vehicle during

the warranty period, do not return the vehicle to the store.

Power Wheels®has provided a nationwide network of authorized

service centers. If there is not an authorized service center in your

area, please visit us on-line at www.powerwheels.com or call

Consumer Relations for information, 1-800-348-0751.

This warranty gives you specific legal rights, and you may also have

other rights which may vary from state to state.

PLEASE SAVE YOUR ORIGINAL SALES RECEIPT.

LIMITED WARRANTY

VEHICLE CARE

• Check all screws regularly and tighten as required. Check plastic

parts on a regular basis for cracks or broken pieces.

• During snowy or rainy weather, the vehicle should be stored

inside or under a protective cover. Remember to charge the

battery at least once per month while your vehicle is not in

regular use.

• An extremely dirty vehicle can be rinsed with a hose but

avoid spraying directly into switches, motors and battery

compartment. Water or moisture in the motors or electrical

switches can cause them to corrode, and could cause switch or

motor failure.

• Avoid operating the vehicle on sand. Sand in the motors or

electrical switches can cause them to jam, and could cause

switch or motor failure.

• The vehicle can be wiped down with a soft, dry cloth. For a shiny

finish, you can wipe plastic parts with a non-wax furniture polish

applied to a soft-cloth. Do not use automotive wax.

• To ensure that your vehicle stays in good operating order, we

recommend that you periodically have your vehicle checked by a

Power Wheels®authorized service center. For the location of the

authorized service center nearest you, please visit us on-line at

www.powerwheels.com or call 1-800-348-0751.

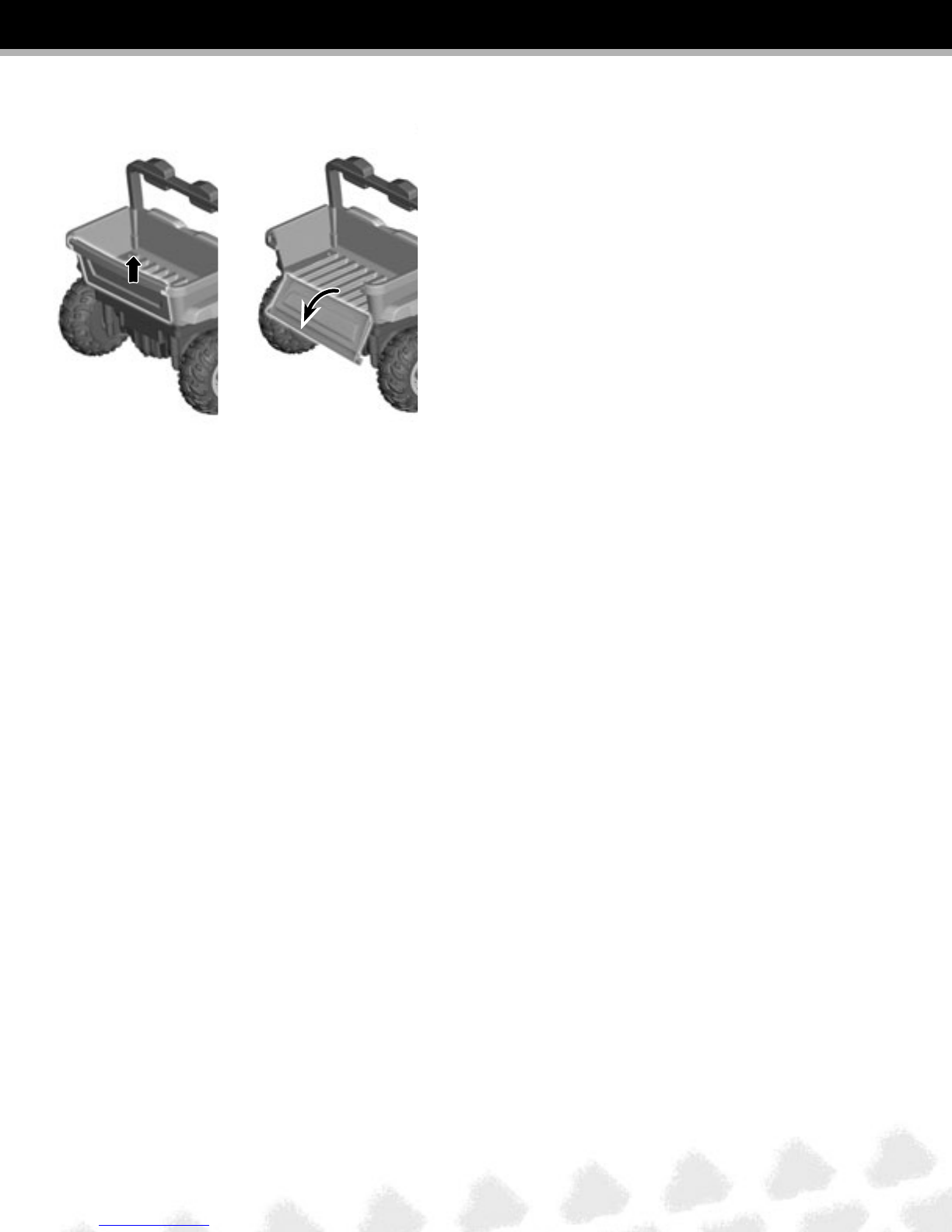

• Lift and lower the tailgate to open.

• To close the tailgate, lift and lower it back into place.

Note: Cargo bed weight limit is 25 lbs (11.3 kg).

19 P8814pr-0920

IMPORTANT! If you experience a problem with your vehicle, first check the Problems and Solutions Guide below. If you still

experience a problem, please contact Power Wheels®Consumer Relations, toll-free at 1-800-348-0751 between 9 AM - 7 PM (EST)

Monday through Friday and 11 AM - 5 PM (EST) Saturday. Or, contact your local Power Wheels®authorized service center. For the

location nearest you, please visit us on-line at www.powerwheels.com, or call 1-800-348-0751.

PROBLEMS AND SOLUTIONS

PROBLEM POSSIBLE CAUSE SOLUTION

Vehicle does not run Undercharged battery Charge the battery. A new battery should have been charged for

at least 18 hours before using the vehicle for the rst time. After

rst-time use, recharge the battery for at least 14 hours after each

use. Never charge the battery longer than 30 hours.

Check all connectors. Make sure the charger connector is plugged

into the battery, and that the charger is plugged into the wall.

Make sure power ow to the wall outlet is “ON”.

Charger is not working There is no sure way to tell if your charger is working unless you

have a volt meter. If you suspect there is a problem with your

charger, contact your local Power Wheels®authorized service

center. They can test your charger for you.

Tripped thermal fuse The built-in thermal fuse may “trip” and shut down operation of

the vehicle if the vehicle is overloaded or the driving conditions

too severe. Once a fuse has “tripped”, remove your foot from the

pedal and wait approximately 25 seconds before operating the

vehicle again. To avoid repeated automatic shutdowns, do not

overload the vehicle by exceeding the 130 lbs. (59 kg) maximum

weight capacity or by towing anything behind the vehicle. Do not

drive up hills or run into xed objects, which can cause the wheels

to stop spinning while power is still being supplied to the motors. If

a thermal fuse continually trips, contact your local Power Wheels®

authorized service center.

Loose wire or loose connectors Check all wires and connectors. Make sure the motor harness

connector is plugged into the battery, and that there are no loose

wires around the motors.

Dead battery If your battery is old or if you have not followed Battery Care

instructions, your battery may be dead. If you are unsure whether

or not the battery is dead, you can have it tested at your local

Power Wheels®authorized service center.

Electrical switch damage The electrical switches can become corroded due to exposure to

water or moisture, or can jam due to loose dirt, sand or gravel.

Contact your local Power Wheels®authorized service center for

diagnosis and repair.

Motor damage Contact your local Power Wheels®authorized service center for

diagnosis and repair.

20 P8814pr-0920

PROBLEM POSSIBLE CAUSE SOLUTION

Vehicle was running but

suddenly stopped

Loose wire or loose connectors Check all wires and connectors. Make sure the motor harness

connector is plugged into the battery, and that there are no loose

wires around the motors.

Tripped thermal fuse The built-in thermal fuse may "trip" and shut down operation of
