Arctic AG6E User manual

AG6E/AG8E/AG10E
Page 1 www.arcticsnowplows.com
Owner’s Manual
Electric Salt & Sand Spreader
Models AG6E/AG8E/AG10E
Warning:
Do not exceed GVWR or GAWR with spreader and load. Overloading could result
in an accident or damage.
Read this manual before installing or operating the spreader.

AG6E/AG8E/AG10E
Page 2 www.arcticsnowplows.com
Sander Warranty
ARCTIC salt/sanding equipment is guaranteed to be free from defects in material
or workmanship under normal use and service for 1 (one) year after the date of
purchase.
Arctic Equipment Manufacturing Corporation will replace or repair, at its election,
without charge, any part which becomes defective within the period of time
described above.
See specifications below what is not covered under warranty.
In no event shall Arctic Equipment Manufacturing Corporation be liable for claims
for loss of use or consequential damages.
This warranty is made only to the original purchaser. There is no other warranty
expressed, implied, or statutory.
All parts returned to us, transportation charges prepaid, must be accompanied
with a "Return Goods Authorization" number, obtained from the factory. In order
to reduce down-time, we will, on your request, send the parts required and you
will be billed under the usual terms. A credit will be issued to your account when
the parts, in our examination, prove to be defective.
Arctic Equipment Manufacturing Corporation reserves the right to change
specification without prior notice.
Specifics not considered under warranty
Certain types of damage can occur, which cannot be attributed to defects in
material and/or warranty, but rather as the owner's responsibility.
These conditions include, but are not limited to the following items. Damage
resulting from:
1. Lack of or dirty lubrication.
2. Using other than recommended grade and type of lubrication.
3. Accident, abuse or neglect.
4. Stripped keyways or splines on external shafts.
5. Running over recommended speeds.
6. Repairs by an unauthorized person.
7. Damage caused by improper mounting or conditions on units not mounted by
factory.
8. Improper maintenance or storage of equipment.

AG6E/AG8E/AG10E
Page 3 www.arcticsnowplows.com
Customer Responsibility
The loaded vehicle, including all after market accessories, the salt/sanding
equipment, passengers, and cargo, MUST NOT exceed the gross vehicle weight
ratings (GVWR), front gross axle weight rating (FGAWR) or rear gross axle
weight rating (RGAWR) specified on the Safety Compliance Certification Label
located in the driver’s side door opening. It is the operator’s responsibility to
verify that these ratings are not exceeded.
To determine the Gross Axle Weights for your vehicle, including all after market
accessories, the salt/sanding equipment, passengers, and cargo, take your
loaded vehicle to a scale. Place the front wheels of the vehicle on the scale to
get the Front Gross Axle Weights (FGAW). To get the Rear Gross Axle Weights
(RGAW), place the back wheels of the vehicle on the scale.
Disclaimer notice
Arctic Equipment Manufacturing Corporation (Arctic) does not assume liability for
damage to your motor vehicle resulting from the attachment or use of Arctic
salt/sanding equipment. The purchaser assumes all vehicle risk associated with
the attachment and operation of this salt/sanding equipment.
The added weight may impair the operation and control of your vehicle.
Additional equipment may be necessary before installing salt/sanding equipment.
Please consult your vehicle dealers prior to the purchase and installation of the
salt/sanding equipment.

AG6E/AG8E/AG10E
Page 4 www.arcticsnowplows.com
Safety and warnings
WARNING:
- Do not exceed the gross vehicle weight ratings (GVWR), front gross
axle weight rating (FGAWR) or rear gross axle weight rating (RGAWR) with
spreader and load. Overloading could result in an accident or
damage.(Refer to Material Density chart below)
Material Density
(lb per cubic yd)
Fine Salt –Dry 1400
Coarse Salt –Dry 1300
Coarse Sand –Dry 2800
Coarse Sand –Wet 3300
For Electric sander with the variable speed box:
-Never hook booster cables directly to the motor; this would void your
warranty.
-Unplug sander battery cables before boosting your truck.
Before attempting any procedure in this book, read and understand all the safety
information contained in this section. In addition, ensure all individuals working
with you are also familiar with these safety precautions.
For your safety, warning and information decals have been placed on this
product to remind the operator to take safety precautions. It is important that
these decals are in place and are legible before operation begins. New decals
can be obtained from Arctic Equipment Manufacturing or your local dealer.
Remember it is the owner’s responsibility for communicating information on the
safe use and proper maintenance of this equipment. The careful operator is the
best operator. Most accidents are caused by human error. Certain precautions
must be observed to prevent the possibility of injury to operator or bystanders
and/or damage to equipment.
- Driver to keep bystanders a minimum of 25 feet away from operating spreader.
-Servicing the sander without special tools and knowledge could result in
personal injury. See an authorized Arctic dealer for service.
- Before servicing the spreader, wait for conveyor or spinner to stop and then
lock out power.
- Do not climb into or ride on spreader.

AG6E/AG8E/AG10E
Page 5 www.arcticsnowplows.com
- Disconnect electric and/or hydraulic power and tag out if required before
servicing or performing maintenance.
-Do not allow hands, hair or clothing to get near any moving parts such as
spinner, chain etc.
-Do not wear neckties or loose clothing when working on the vehicle. These
things can catch on moving parts or cause an electrical short circuit that could
result in personal injury. Do not wear wrist watches, rings or other jewellery when
working on the vehicle or individual equipment
-Do not allow unauthorized person to operate this unit.
-Do not work on a vehicle without having a fully serviced fire extinguisher
available. (Dry chemical unit specified for gasoline, chemical or electrical fires).
-Do not smoke while working on the vehicle. Gasoline and battery acid vapours
are extremely flammable and explosive.
-Do not alter the sander, or any part without written approval of Arctic Equipment
Manufacturing Corporation.
-Do not use your hands to search for hydraulic fluid leaks; escaping fluid under
pressure can be invisible and can penetrate the skin and cause injury.
- Do not leave unused material in hopper. Material can freeze or solidify,
causing unit to not work properly. Empty and clean after each use.
-Inspect the sander periodically for defects. Parts that are loose, broken, missing
or plainly worn must be tightened or replaced immediately.
-Check the job site for terrain hazards, obstructions and people. Check
surrounding area for hazardous obstacles before operating this unit.
-Wear safety goggles when working on the vehicle to protect your eyes from
battery acid, gasoline, and dust or dirt from flying off of moving engine parts.
-Be aware of and avoid contact with hot surfaces such as engine, radiator, and
hoses.
-Wear safety glasses with side shields when striking metal against metal. Failure
to heed could result in injury to the eye(s) or other parts of the body.

AG6E/AG8E/AG10E
Page 6 www.arcticsnowplows.com
-Shut off the vehicle engine, place the transmission in neutral or park, turn the
ignition switch to the “off” position, firmly apply the parking brake of the vehicle
before removing / installing the sander.
- Be sure that the sander is properly attached before moving the vehicle.
-To remove the sander, the unit must be empty. Do not stand close to the sander
when it is being lifted. Keep a safe distance away.
Sander Specification
-3/4HP electric motor, 55 amp electric motor
-In cab variable speed controller or On/Off toggle switch
Variable Speed Controller for Electric Spreader is used for precise
spreading. See more information in Variable Speed Control Section.
ON/ OFF switch - When a switch handle is in OFF position, a switch handle
is not illuminated. If spreader in ON (motor is on) switch handle is illuminated
red. If switch handle is illuminated white in OFF position a solenoid (under
hood) is stuck and motor is running constantly. Disconnect power by
removing connectors that connect two red and black cables at the back of the
truck. See authorized Arctic Dealer.
-The motor and drive system is protected by a hinged hood
-Quiet electric-drive system
-Low-maintenance
-Stainless steel drive chain and hardened sprockets
Electric sander is equipped with an adjustable sand discharge chute. You can
vary the spread width by simply redirecting the sand to another part of the
spinner.

AG6E/AG8E/AG10E
Page 7 www.arcticsnowplows.com
Spreader Installation
The AG6E spreader is designed for installation in a 6'/8' pickup truck bed. The
AG8E is designed for installation in an 8’ pickup truck bed. The AG10E spreader
is designed for 10' dump truck or flat deck truck. Follow the steps below to install
your unit in your vehicle.
a) Slide spreader into position and secure with the ratchet straps into the cargo
tie downs of the truck (pictures # 3 and #4)
b) Bolt mounting angle bracket to spreader, then bolt it to the back of the truck
using ½" bolt. (Picture #2)
c) Install the sand chute using the required pivoting/fastening components.
(Picture #12)

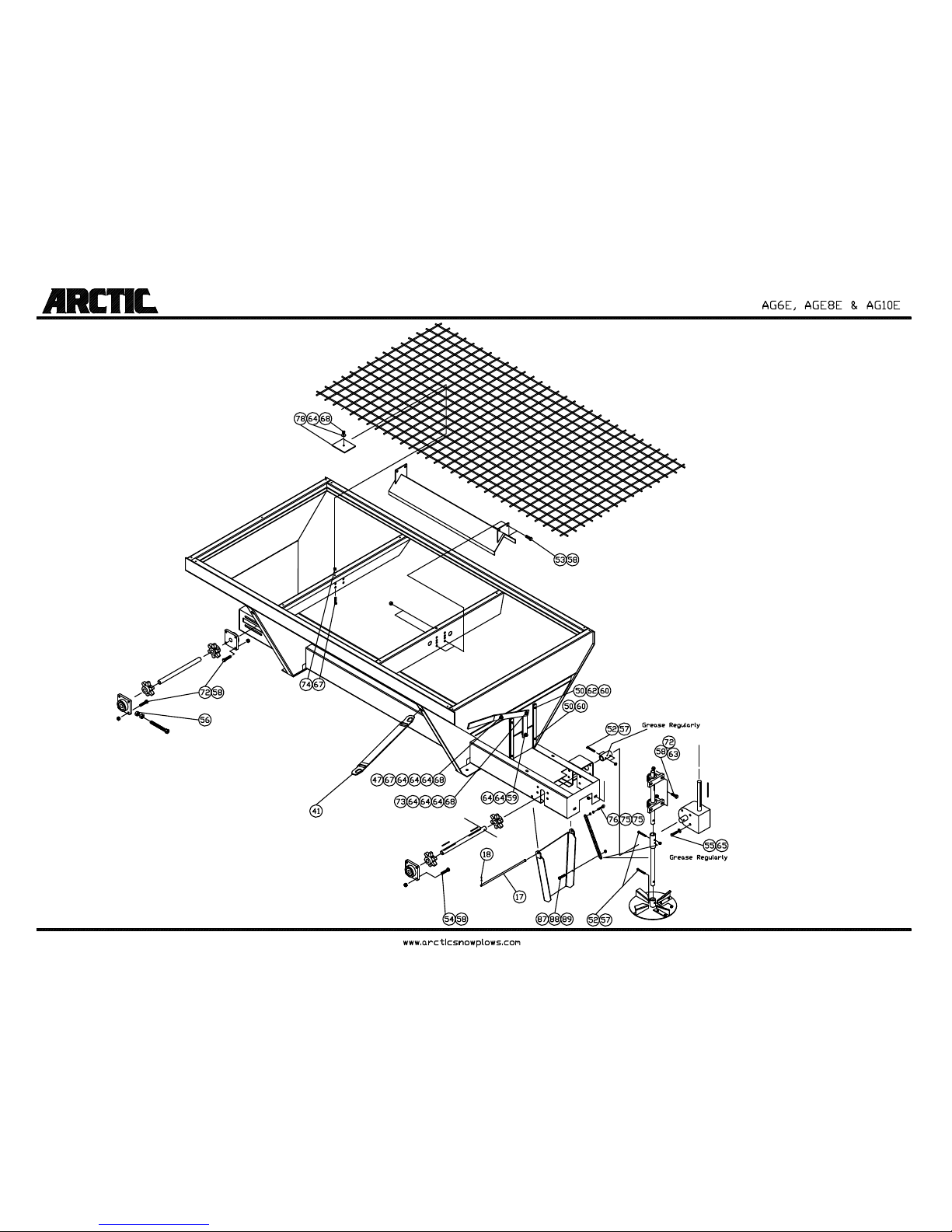

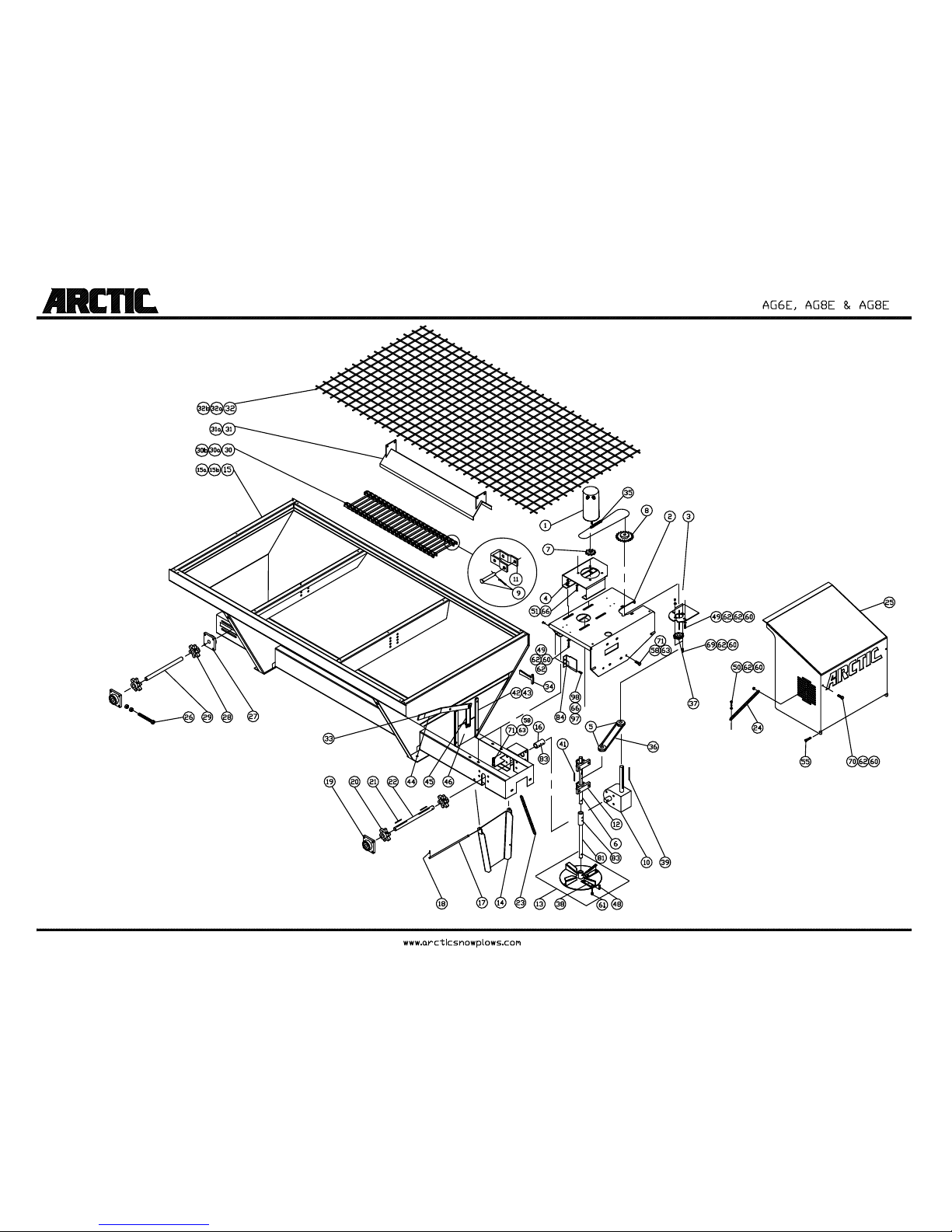

d) Assemble the spinner assembly (split shafts), as shown in the assembly
drawing in this manual, using the appropriate components. (Picture #5, 11 and
12)
e) You may change the spinner disc height. Using the hole in the spinner disc
hub as a guide, drill a hole through the shaft, for the mounting bolt. Cut off any
excess length from the shaft and install the spinner disc.

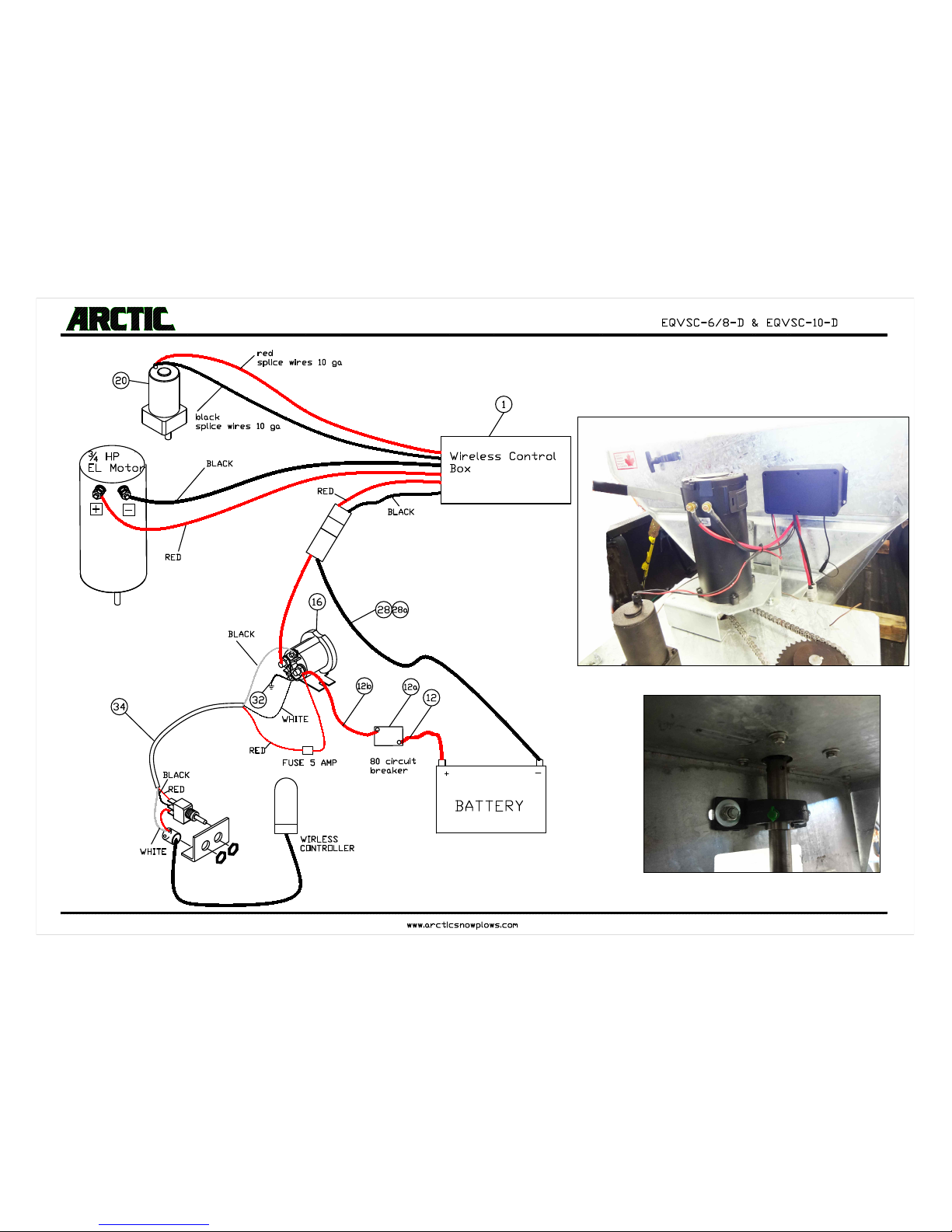

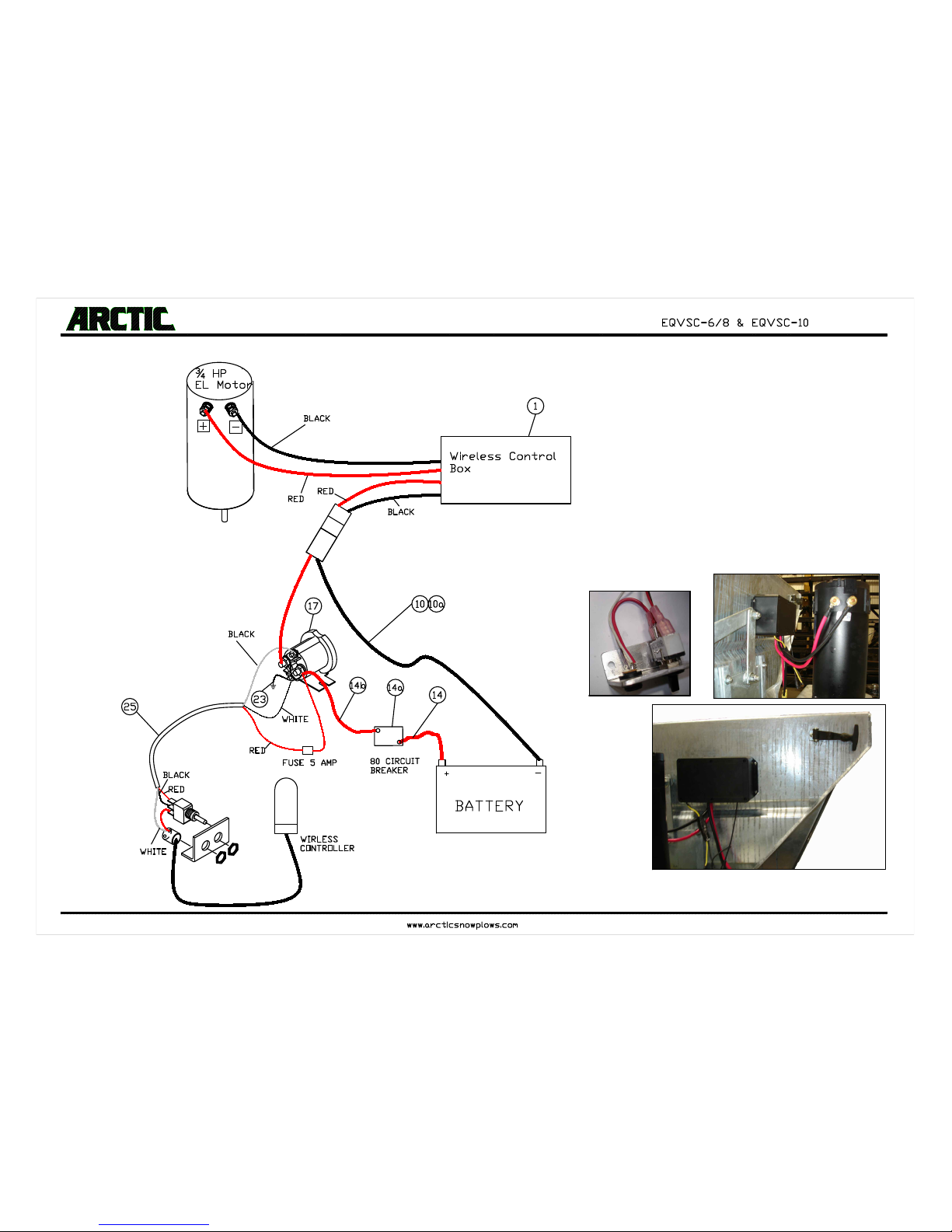

f) Connect all the cables as shown in the electric system diagram. Be sure to
grease all connections.
Maintenance
Daily Inspection and Lubrication
a) Check gearbox oil level. It should be filled to the oil level plug. (Picture#1)
b) Lubricate the following grease nipples:
1) 1 on conveyor idler shaft bearing (2 bearings) (picture #8)
2) 1 on drive shaft bearing (picture #7)
3) 1 on spinner shaft bearing (2 bearings if one hydraulic motor is used, 1
bearing if two hydraulic motors are used) (Picture #11)
4) 1 on each coupling split shaft and gear box coupling (pictures #5
and#6)

AG6E/AG8E/AG10E
Page 8 www.arcticsnowplows.com
Yearly Inspection
a) At the end of the operating season, the unit should be thoroughly cleaned
and lubricated. The conveyor chain (picture #9) should, ideally, be stored
in oil. These preventative measures should prevent premature rusting of
the unit. Grease bolts on the chain tighteners. (Picture #8)
b) At this time or before the start of the next season, it is wise to check all
drive components for appreciable wear. Any components which are
questionable should be replaced now. This short and simple check will
avoid down time during the operating season.
c) Change the gear box oil.
e) Replace the oil filter. (Note: If the unit is utilized year round, replace it
twice a year).
Before Operating
a) Grease all lubrication points.
b) Ensure that the conveyor chain is dragging for one foot on the bottom
return channel, of the spreader. (Do not over tighten the chain).
Lubricants
Speed Reducer Lubricant……………80W90 Gear lube

AG6E/AG8E/AG10E
Page 9 www.arcticsnowplows.com

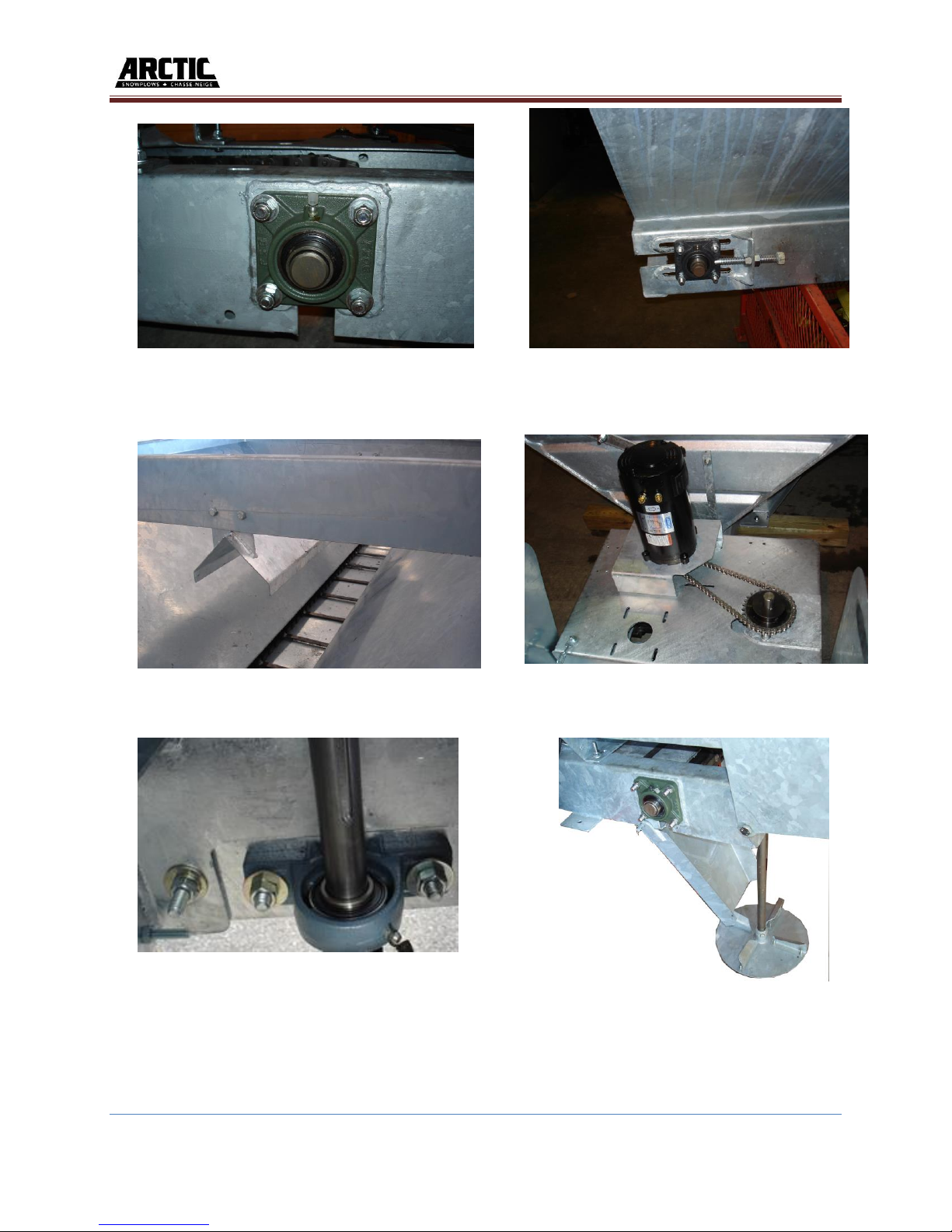

Picture #1 Picture #2
Picture #3 Picture #4
Picture #5 Picture #6

AG6E/AG8E/AG10E
Page 10 www.arcticsnowplows.com
Picture #7 Picture #8
Picture #9 Picture #10
Picture #11 Picture #12

AG6E/AG8E/AG10E
Page 11 www.arcticsnowplows.com
Troubleshooting of the Wireless Controller
It is important to know that the in-cab remote control and the controller on the spreader
communicate with RF signals. Therefore, they are in constant communication with one another.
This type of communication allows you to get instant info on your setting and it will also inform
you on any problems that could happen during the use of your spreader.
Never hook booster cables directly to the motor; this would void your warranty.
Unplug sander battery cables before boosting your truck.
Problems:
- When the screen on the remote shows ‘’O’’ it means that the system is in OVERLOAD
An overload of the system can caused by:
•Frozen material inside the hopper.
•Accumulation of material in front and under the spreader
•Bearing starting to seize
•Worn-out conveyor chain
•Accumulation of material between the floor of the spreader and the drive sprockets.
•Battery in bad condition
•Controller poorly installed
- When the ‘’O’’ is constantly rotating, this means, there is no communication (loss of
signal) between the remote control and the control box. The spreader will automatically
shut off.
By turning the main switch off and then turning it back on, the signal should come back.
If the signal doesn’t come back you can connect the remote directly to the black box by
using the appropriate connectors on the controller. This operation will reset the system.
If the problem persists here are some possibilities:
•Power is not going to the controller (black box)
•Check fuses ( 5 amp and 80 amp)/ Breaker engaged (if applicable)
•Bad connections
•Electrical noises or interferences
•Poorly installed controller
Programing:
If you install new controller or if there is the ‘’O’’ is constantly rotating, program the controller
following this instruction. On/Off switch must be in ON position. Hold AUX or SYNC button on
the controller before plugging in. Plug the controller in, “O” should stay on (that means the
controller is programed).

Wiring Diagram for Electric Sander with On/Off Switch
Warning:
If the sander (electric motor) is OFF, the switch handle is not illuminated.
If the sander in ON (motor is on) the switch handle is illuminated red.
If the switch handle is illuminated white, in OFF position, the solenoid
is stuck and the 3
4HP motor is running constantly. Disconnect power by
removing connectors that connect two cables red and black.
See authorized Arctic Dealer.
90031-01-A
90031-02-A

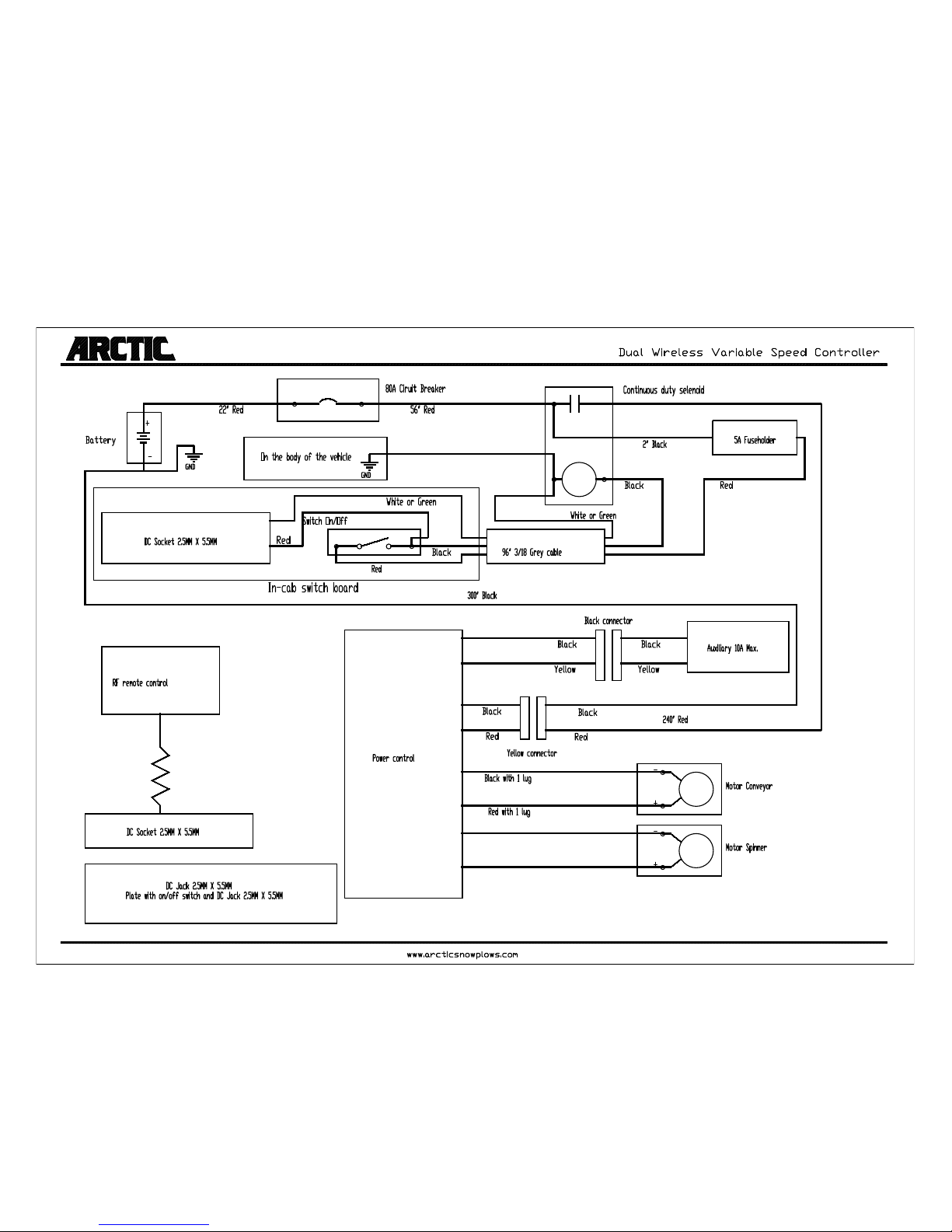

Wiring Diagram for Dual Wireless Variable Speed Control Box

AG6E/AG8E/AG10E
Page 12 www.arcticsnowplows.com
EQVSC-6/8-D & EQVSC-10-D Variable Speed Dual Electric Control Kit
Part #
Description
Quantity
1
90305-M
Dual Variable Speed Kit (include box and controller)
1
2
HH-00340-002
7/16-14 Lock nut
4
3
HH-00293-072
7/16-14 x 1.3/4 HHCS
4
4
HH-00020-081
1/8” x ¾” Cotter Pin
1
5
90040-N
Sander Ratchet Strap
4
6
HH-00293-028
5/16-18x1 HHCS
3
7
HH-00341-003
5/16 Flatwasher
3
8
HH-00340-017
5/16-18 Lock nut
3
9
HH-01081-054
3/8-16 x 2.1/2 Grade
2
10
HH-00340-001
3/8-16 Lock Nut
2
11
HH-00789-003-14
3/16 14" Chain
1
12
51335-22-M
Battery Cable 22”
1
12a
53608-01-N
Circuit Breaker 80 amp
12b
51335-56-M
Battery Cable 56”
13
HH-00972-090
1/2-20x1.1/2 HHCS
4
14
HH-00540-004
1/2-20 Lock Nut
4
15
HH-00455-007
#8x3/4 screw
2
16
90190-N
Solenoid
1
17
90306-B
Spinner Shaft (dual motor only)
1
18
HH-00013-073
#8-32x5/8 screw
4
19
HH-00340-019
#8-32 Hug Locknut
4
20
90307-N
Gear Motor
1
21
HH-00905-013
Spinner Bearing
2
22
HH-00017-024
1/4-20x1/4 set screw
2
23
90229-N
Salter Plate Light
1
24
53207-N
License Plate Plastic Nut
2
25
761232
Butt Connector
1
26
768222-048
Brown Wire 48”, 14 g
1
27
769977-03
1/4" x 3" Shrink Tube
1
28
90030-VSC
Power Cable, Cab Section (for EQVSC-10-D only)
1
28a
90030-VSC-6/8
Power Cable, Cab Section (for EQVSC-6/8-D only)
1
29
HH-00909-003
M6x20mm hex bolt
4
30
HH-00932-001
M6 Flat Washer
4
31
HH-00933-001
M6 Lock Washer
4
32
90308-A
4” Ground Wire
1
33
HH-00455-007
#8 Self tapping Screw
2
34
90309-A
Gray power wire c/w switch
1

Wiring Diagram for Wireless Variable Speed Control Box

AG6E/AG8E/AG10E
Page 13 www.arcticsnowplows.com
EQVSC-6/8 & EQVSC-10 Variable Speed Electric Control Kit
Part #
Description
Quantity
1
90304-M
Variable Speed Control Kit (include box and
controller)
1
2
HH-00020-081
1/8” x ¾” Cotter Pin
1
3
90040-N
Sander Ratchet Strap
4
4
HH-00293-028
5/16-18 x 1 HHCS
3
5
HH-00341-003
5/16 Flatwasher
3
6
HH-00340-017
5/16-18 Lock nut
3
7
HH-01081-054
3/8-16 x 2.1/2 Grade
2
8
HH-00340-001
3/8-16 Lock nut
2
9
HH-00789-003-14
3/16 14" Chain
1
10
90030-VSC
Power Cable, Cab Section (for EQVSC-10-D only)
1
10a
90030-VSC-6/8
Power Cable, Cab Section (for EQVSC-6/8-D only)
1
11
HH-00972-090
1/2-20 x 1.1/2 HHCS
4
12
HH-00540-004
1/2-20 Lock nut
4
13
HH-00455-007
#8x3/4 Screw
2
14
51335-22-M
Battery Cable 22”
1
14a
53608-01-N
Circuit breaker 80 Amp
14b
513335-56-M
Battery Cable 22”
15
HH-00013-073
#8-32 x 5/8” Screw
4
16
HH-00340-019
#8-32 Lock nut
4
17
90190-N
Solenoid continues Duty
1
18
90229-N
Light
1
19
53207-N
License Plate Plastic Nut
2
20
761232-M
Butt Connector
1
21
768222-048
Brown Wire 48” 14ga
1
22
769977-03
1/4" x 3" shrink tube
1
23
90308-A
4” Ground Wire
1
24
HH-00455-007
#8 Self tapping Screw
2
25
90309-A
Gray power wire c/w switch
1
