OPERATING INSTRUCTIONS
ORIX 70
CONTENTS
GENERAL INFORMATIONS
Introduction
pag. 3
General conditions of warranty
pag. 4
Laws to follow (for Italy only)
pag. 5
Warnings
pag. 6
Ionizing radiations
pag. 7
General protection against x-rays
pag. 7
Ambient and use conditions
pag. 7
Reference rules
pag. 8
Description of the x-ray equipment
pag. 9
Technical data ORIX-70
pag. 10
Technical data SELEMATIC
pag. 11
Fuse table SELEMATIC
pag. 11
Identification labels and their settings
pag. 12
X-ray tubehead
pag. 15
Digital x-ray control board SELEMATIC
pag. 15
USER’S MANUAL
Instructions for use - SELEMATIC
pag. 18
Programmed exposure times
pag. 21
Radiographic techniques: Bisector technique
pag. 22
Radiographic techniques: Long cone technique
pag. 24
Typical inconveniences of intra oral films
pag. 27
Storage of the film
pag. 29
Dark room
pag. 30
Ordinary and special maintenance
pag. 33
Cleaning and disinfection
pag. 33
Instructions for use –E-Arm
pag. 34
INSTALLATION MANUAL
Installation procedure
pag. 35
Packing (card box packing, American type)
pag. 36
Shipment and storage
pag. 36
Description of the equipment
pag. 37
Tools needed for installation
pag. 38
Mounting procedure
pag. 38
Electrical requirements
pag. 40
General diagram
pag. 41

Pag. 2
OPERATING INSTRUCTIONS
ORIX 70
Assembly x-ray generator and pantograph arm
pag. 45
Friction adjustment
pag. 47
Double jointed spring pantograph arm
pag. 48
Technical checkings
pag. 50
Possible troubles and their solutions
pag. 51
Spare parts
pag. 53
X-ray control electric drawing
pag. 54
General electric drawing
pag. 55

Pag. 3
OPERATING INSTRUCTIONS
ORIX 70
GENERAL INFORMATIONS
INTRODUCTION
The ORIX-70 x-ray medical equipment is designed for radiographic diagnosis in the dentistry field
ARDET Dental & Medical Devices s.r.l. declines all responsibilities for damages caused by an
improper use.
Read carefully the following instruction manual before using the equipment.
The equipment conforms with the safety codes in force.
The electrical security of the unit is granted only if it is connected to a regular grounding conductor
Any servicing should be carried out by ARDET’s Dental & Medical Devices s.r.l. qualified
personnel.
Disconnect the equipment, releasing the main switch, during maintenance service.
ARDET Dental & Medical Devices s.r.l. in order to continually develop its equipments reserves the
right to make changes without.
NO PART OF THIS MANUAL IS TO BE REPRODUCED, STORED IN A RETRIVAL
SYSTEM OR TRANSMITTED IN ANY FORM OR IN ANY MEANS, WITHOUT THE
PRIOR WRITTEN PERMISSION

Pag. 4
OPERATING INSTRUCTIONS
ORIX 70
GENERAL CONDITIONS OF WARRANTY
ARDET Dental & Medical Devices s.r.l. guarantees its dental equipments against possible defects
of production for a period of twenty-four (24) months from date of shipment and/or invoice
The x-ray tube installed follows the warranty conditions issued by the manufacturer.
During this period, in case of defects, the client must return back to ARDET Dental & Medical
Devices s.r.l. the material, adequately packed, at his own expense. ARDET Dental & Medical
Devices s.r.l. qualified personnel will check and replace the damaged parts.
All the forwarding of goods in guarantee charged to ARDET Dental & Medical Devices s.r.l. , if
they have not been previously agreed and confirmed in writing, will be returned to the sender.
Guarantee expires in case of:
•Accidental breakage
•Carelessness
•The electrical wiring does not conform with the standards in force
•Incorrect installation
•Incorrect use or observation of the conditions specified in the present manual
•Bad maintenance
•Use of no original components
•Modifications and/or repairs which have not been authorized or which have been
carried out by unqualified personnel
Any probable disputes do not allow customers to withhold payments and do not allow extension to
what previously agreed upon.
.
Our customers are recommended not to use parcel post, especially for the x-ray tube head. We will
not accept any parcel which will reach us damaged or in bad conditions.
Any controversies comes under the jurisdiction of the Court of Milan
.

Pag. 5
OPERATING INSTRUCTIONS
ORIX 70
LAWS TO FALLOW (FOR ITALY ONLY)
OGGETTO: POSSESSO E/O IMPIEGO DI GENERATORI DI RADIAZIONI IONIZZANTI
1) Inviare entro 10 giorni denuncia di detenzione dell’apparecchio ai sensi dell’art. 92 DPR
185/64 alla ASSL territorialmente competente e, nel caso di presenza di lavoratori dipendenti,
come specificato dall’art. 60 DPR 185/64 anche all’Ispettorato Provinciale del Lavoro. Alla
denuncia di detenzione dovrà essere allegata una planimetria in scala 1:50 dei locali nel quale
l’apparecchio è installato con l’indicazione della destinazione dei locali adiacenti e della
consistenza delle opere murarie unitamente alla relazione tecnica redatta da parte dell’E.Q.
(Esperto Qualificato) che contenga la descrizione dell’apparecchio e dei mezzi di
radioprotezione posti in atto.
2) Predisporre le misure necessarie per evitare che la popolazione sia esposta al rischio di
Radiazioni Ionizzanti superiori alle dosi massime ammissibili (art. 95 DPR 185/64).
3) Assicurare la sorveglianza fisica della protezione a mezzo di un E.Q. che ha il compito di
effettuare la delimitazione della zona controllata con l’applicazione dei relativi contrassegni;
l’esame preventivo e periodico del progetto d’impianto; il controllo periodico dell’efficacia dei
dispositivi tecnici di radioprotezione; la valutazione periodica delle esposizioni e delle dosi
individuali assorbite dagli eventuali lavoratori e il rilascio del benestare radioprotezionistico
che dovrà essere rinnovato con periodicità annuale (art. 70 e 72 DPR 185/64).
4) Pagare la Tassa Regionale annuale a mezzo C/C. intestato alla Tesoreria della Regione.
5) Denunciare entro 30 giorni dalla data di installazione l’impiego dell’apparecchio all’
I.N.A.I.L.
L’assicurazione I.N.A.I.L. per i Medici è obbligatoria per Legge e l’omissione o la tardata
presentazione della denuncia è punibile con ammende di importi elevati.

Pag. 6
OPERATING INSTRUCTIONS
ORIX 70
WARNINGS
Certain instructions are preceded by “WARNING” with a triangle at the side. Whenever this
symbol appears, carefully read the relevant paragraph before performing any operations
Type of protection against direct and indirect contacts: class II Degree of
protection against direct and indirect contacts: unit with applied part type B.
CAUTION!
Consult the technical documentation provided
Earth connection
~
Alternating currents
ON
OFF
Ionizing radiations
Source of radiation
X-ray control
Equipment which conforms with the EEC Directive 93/42 standards.

Pag. 7
OPERATING INSTRUCTIONS
ORIX 70
IONISING RADIATIONS
X-rays are harmful, if improperly used. Therefore, the instructions contained herein must be strictly
observed.
ARDET Dental & Medical Devices s.r.l. produces x-ray equipments which conform with the most
restrictive worldwide rules of radio protection in force.
Aim of an x-ray equipment is the emission of x-rays for medical diagnosis by means of a film or an
“Imaging” system.
In any case, independently from the safety of our equipments, we suggest you to protect yourself
and your patient from the spread radiations (secondary radiations).
GENERAL PROTECTION AGAINST X-RAYS
a) Control x-ray emission at a distance of at least 2 meters from the focal spot and the x-ray beam.
b) Reduce, as most as possible, the radiation level to which the patients and operating personnel
are exposed.
c) During x-ray emissions, only the operating personnel and the patient must be present.
d) In case it should be necessary to help patient to hold the film in position, the operating personnel
must use appropriate tools and wear anti radiation gloves and apron to protect hands and body.
In any case, the patient must always be protected with a lead apron 0,25 mm. min.
Operations which produce x-ray emission are preceded by symbol “Ionizing Radiation” as to
remember all the conditions to observe in compliance with the rules in force in your Country.
AMBIENT AND USE CONDITIONS
The room where the x-ray equipment is to be used should satisfy the following conditions:
1) Temperature between 10 and 40° C.
2) Relative humidity from 30 to 75%
3) Atmospheric pressure from 700 to 1060 hPa.
4) The electrical wiring must conform with CEI 64-8 (the regulations concerning the electrical
wiring to be used in surgery)

Pag. 8
OPERATING INSTRUCTIONS
ORIX 70
5) Concerning the protection against radiation, the room must conform with the regulations in
force in the country where the equipment is used.
6) Before leaving the surgery, turn the main switch to the OFF position.
CAUTION!
7) The equipment is not liquid-proof (traditional equipment)
8) The equipment is not suitable for use in presence of flammable anesthetic gas based on oxygen
and nitrogen protoxide
9) If an electric bistoury or other electrical equipments which do not conform with CEI EN
60601-1-2 specifications are used in surgeries or nearby, interferences or disturbances may
arise thus causing the x-ray equipment to malfunction. In this case, disconnect the x-ray
equipment before using any other instruments or device.
10) The ORIX-70 x-ray generator contains mineral oil, which is classified as a special by-product.
Therefore, when the generator is to be put out of service it should be sent back to the
manufacturer or given to a company authorized to dispose of mineral oil and the special by-
products.
REFERENCE RULES
The ORIX 70 dental x-ray equipments conform with the following rules:
CEI EN 60601-1 (2007) Third edition + Corr. IEC:2007+IS IEC:2008 –Medical electrical
equipment - Part 1: General requirements for basic safety and essential performance
CEI EN 60601-2-7 (1999)- Medical electrical equipment - Part 2: Particular requirements for the
safety of high-voltage generators of diagnostic X-ray generators
CEI EN 60601-1-2 (2007) Medical electrical equipment - Part 1: General requirements for basic
safety and essential performance - Collateral standard: Electromagnetic compatibility -
Requirements and tests
CEI EN 60601-1-3 (1998) Medical electrical equipment. Part 1: General requirements for safety. 3:
Collateral standard: General requirements for radiation protection in diagnostic x-ray equipment.
CEI EN 60601-2-28 (1998) Medical electrical equipment - Part 2: Particular requirements for the
safety of X-ray source assemblies and X-ray tube assemblies for medical diagnosis
Directive EMC 2004/108/CE Electromagnetic compatibility

Pag. 9
OPERATING INSTRUCTIONS
ORIX 70
DESCRIPTION OF THE X-RAY EQUIPMENT

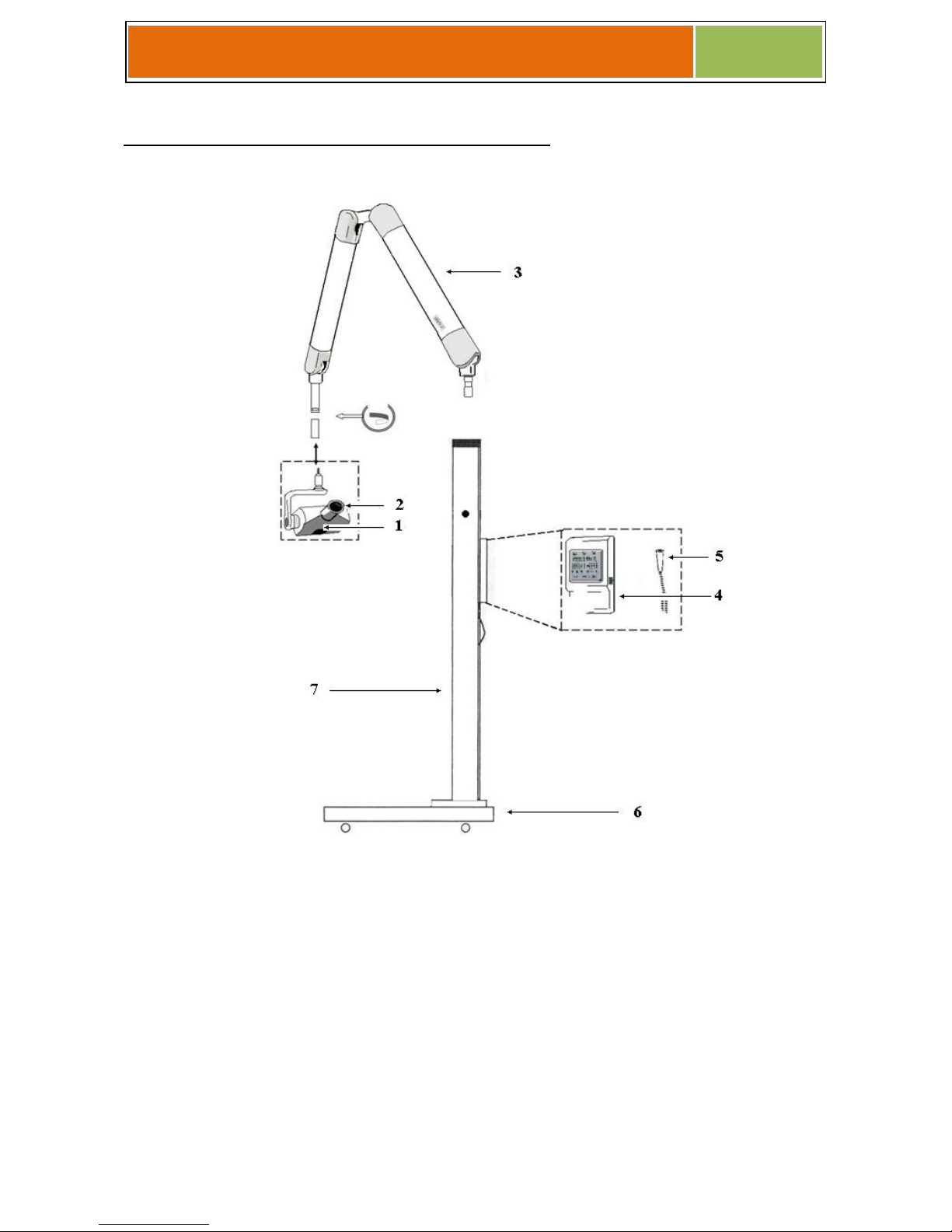

DESCRIPTION
1X-RAY GENERATOR (TUBE HEAD)
2CENTERING CONE FSD 20 CM.
3COUNTER BALANCED ARM
4X-RAY CONTROL
5REMOTE CONTROL
6BASE WITH WHEELS
7COLOUMN

Pag. 10
OPERATING INSTRUCTIONS
ORIX 70
TECHNICAL DATA ORIX-70
Main 230 VAC +/- 10% - 50 Hz.
Primary consumption 6 A. max at 230 VAC
Total consumption 1380 VA. - 230 VAC
Line impedance 0.8 Ohm
Rated high voltage 70 KVP
Power rating 0,414 KW - 230 VAC
Actual power rating 0,450 KW - 230 VAC
X-ray tube: type and manufacturer OCX 65 G grid type - CEI srl, Bologna
Anode Tungsten (W)
Anodic inclination 19° in relation to the reference axis
X-ray tube current 8mA.
Focal spot mm. 0,8 x 0,8 (I.E.C.)
Tolerance on the reference axis of focal spot position +/- 1°
Inherent filtration Equivalent to mm. 0,5 AL
Total filtration = or > at mm. 2,5 AL.
Limiting device cylindrical type
Irradiated field diam. mm. 55 (when it reaches the skin)
Internal protection in Pb. - 0,3 mm. equivalent.
Focus-Film distance mm. 200
Transformer insulation oil bath
Cooling ambient
Use x-ray equipment for continuous operating with intermittent load
Load (Duty cycle) 1 at 30
Radiation leakage < 28 mR/h. at 50 cm. distance
Technical factors for x-ray leakage 70 Kv. - 8 mA. - 1 cycle
Current reference - time factor 0,1 s x 8 mA. 0.8 mA/s.

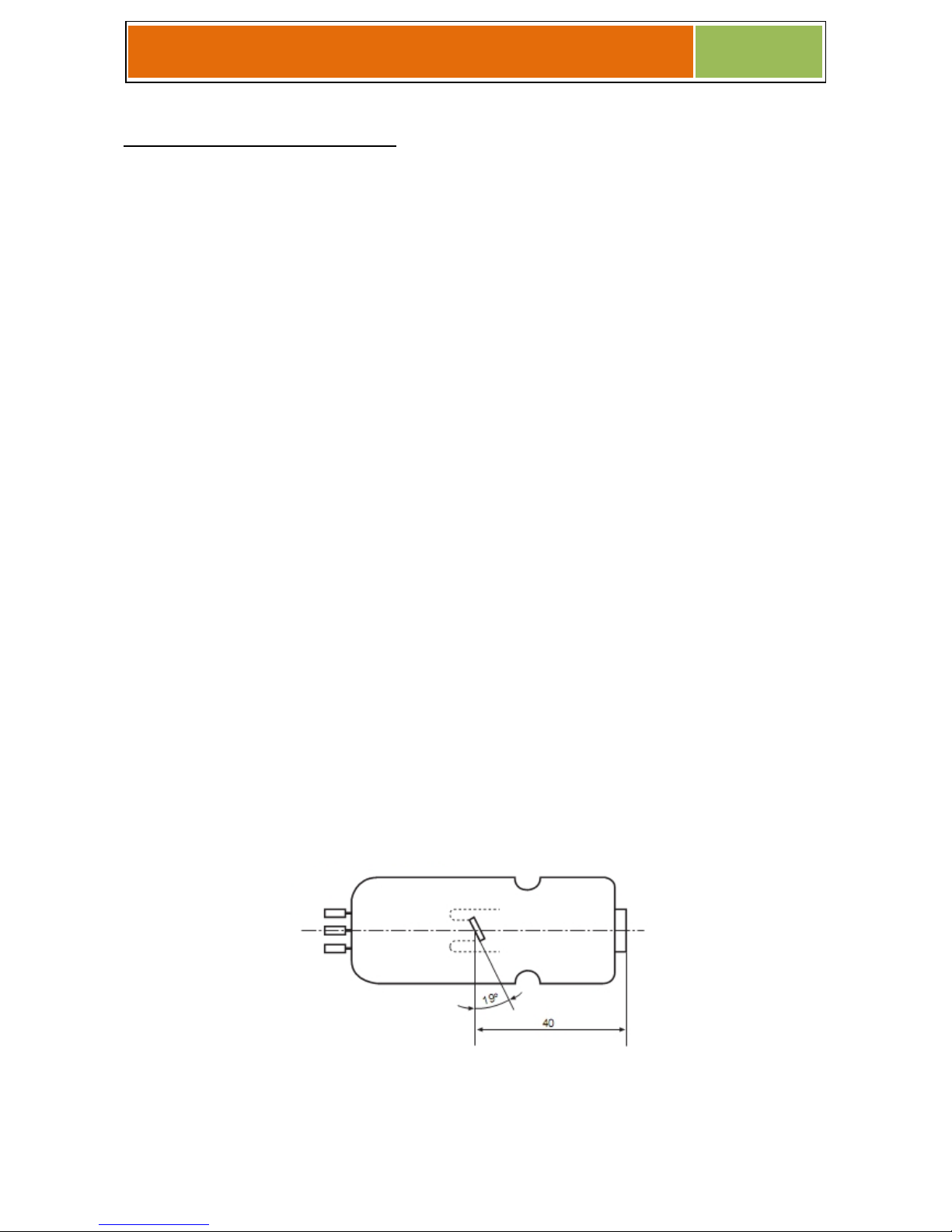

X-ray tube OCX 65 G
Datum line and anode inclination angle

Pag. 11
OPERATING INSTRUCTIONS
ORIX 70
TECHNICAL DATA SELEMATIC
Power
230 VAC
Frequency
50 Hz
Minimum selectable time
0.03 seconds
Maximum selectable time
1,32 seconds
Exposure switch
On “DEAD MAN”
RESET to the last exposure value
Automatic
Error signal
In the case of immediate or anticipated release of the
x-ray key
“Sleeping mode” – Duty cycle
1:30
Precision
+/- 1 digit
Calculation of exposure time
On reaching 60% of the cycle
The exposure time is calculated by measuring the
radiation time counting the number of cycles and
half-cycles where a significant quantity of radiation
is emitted. (CEI 60601-2-7).
FUSE TABLE SELEMATIC
ID
VALUE
PROTECTION
POSITION
FU1
T.6.3 A
230 VAC line
Power card
FU2
F.0.16 A
Primary transformer line
Power card
FU3
0,40 A
Secondary transformer timer
Power card
FU4
0,25A
Secondary transformer timer
Power card
FU5
¼ A
Pico fuse time
Power card
Fuse abbreviations
T. = delayed fuse
F. = quick fuse

Pag. 12
OPERATING INSTRUCTIONS
ORIX 70

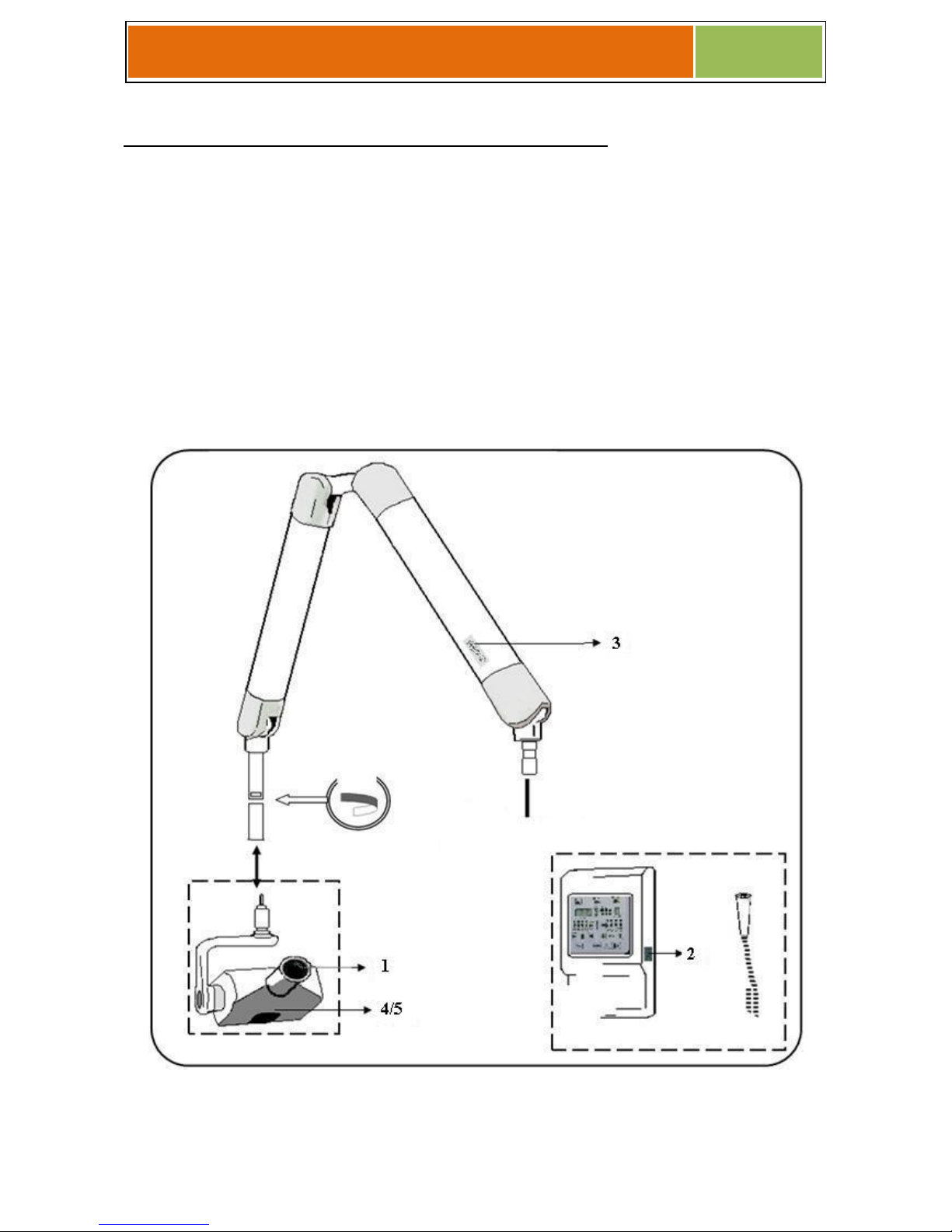

IDENTIFICATION LABES AND THEIR POSITIONS
1) Collimator: data are engraved on the collimator, indicating: identification number,
specifications, manufacturer name
2) X-ray control plate: located above the covering carter. It indicates: name of equipment, serial
number, manufacturer
3) Balanced spring arm plate (Pantograph arm): located in the back side of the holding hub of
the generator. It indicates: serial number, manufacturer
4) X-ray generator plate: located above the upper side of the ABS coverings of the generator. It
indicates: manufacturer, name of equipment, serial number, x-ray tube number, year of
manufacture.
5) Warning plate: located above the lower side of the ABS coverings of the generator, evidencing
the warning concerning the improper use of the equipment.

Pag. 13
OPERATING INSTRUCTIONS
ORIX 70

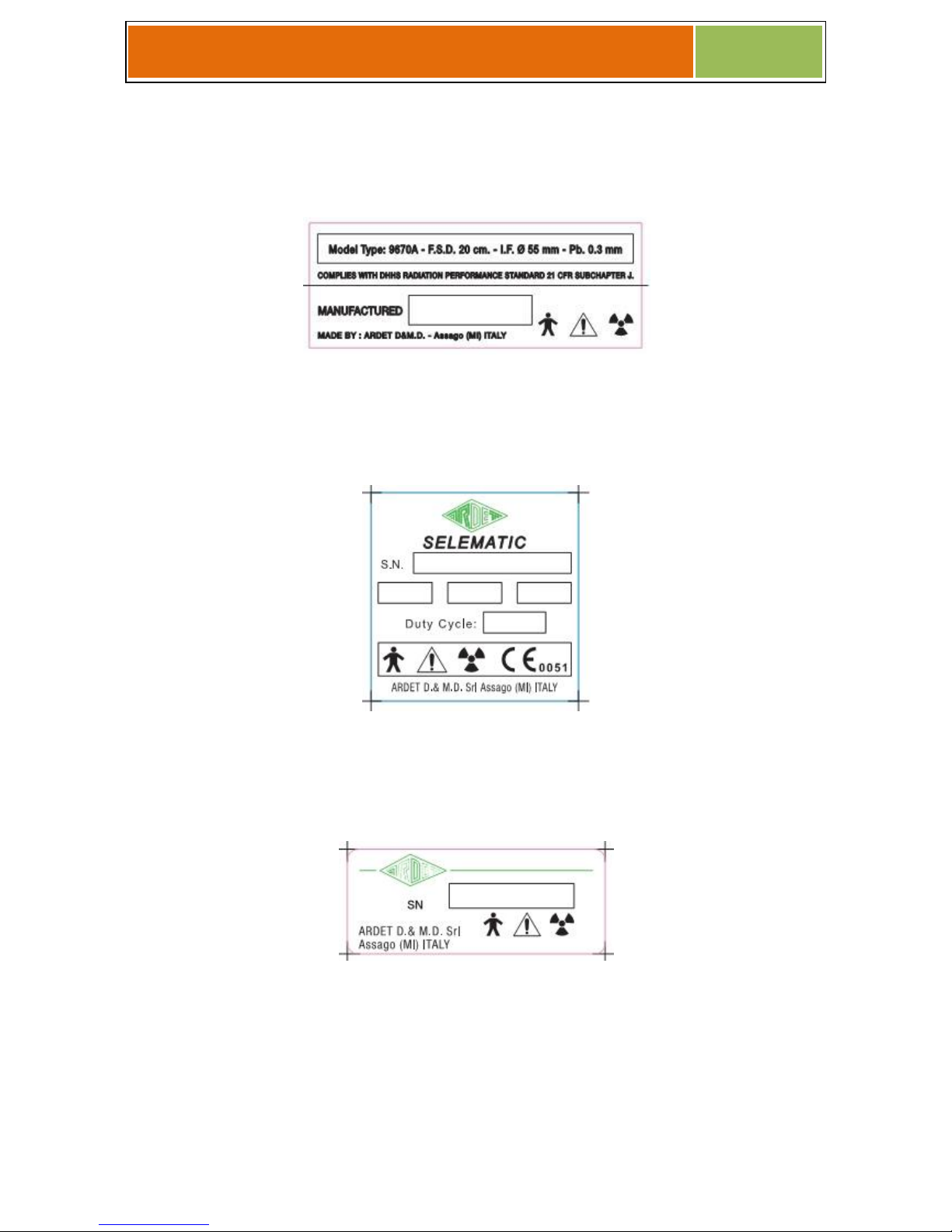

1
2
3

Pag. 14
OPERATING INSTRUCTIONS
ORIX 70
4/5

Pag. 15
OPERATING INSTRUCTIONS
ORIX 70
X-RAY TUBE HEAD
1) X-ray tube head
2) Collimator
3) Fork and support
4) Coaxial male connector
5) Coaxial female connector
6) Identification plate
7) Angular scale
DIGITAL X-RAY CONTROL BOARD SELEMATIC
X-ray control controlled by a microprocessor for the setting, management and activation of the
exposure times for dental x-ray systems.
CAUTION!
Carefully read the instructions for use in chapter “INSTRUCTIONS FOR USE ”
GENERAL INFORMATIONS
automatic exposure time selection according to the technical data selected, such as:
sensitivity of the film
type of patient

Pag. 16
OPERATING INSTRUCTIONS
ORIX 70
type of tooth
possibility to automatically adjust the exposure time programmed
pre-heatig time of the x-ray tube filament controlled by quartz digital system.
ZVS static switch for x-ray generator start
The static switch guarantees the opening and closing of the power circuit without transitory or
RFI disturbances.
Safety relay in case of a 1° fault of the static switch.
Safety circuit with time fuse and complete block of operation in case of 1° fault or anomalous
functioning of the microprocessor.
3-digit (green light) alphanumeric display to :
a) display of the pre-heating time set (maximum display time is 3 seconds) and following
b) display of the set exposure time (by default: Film sensitivity d/0,05 seconds - patient
medium - incisor/maxillary arcade)
1 digit alphanumeric display to display the film sensibility
IMPORTANT!
The display of the pre-heating time is displayed every time the main switch of the x-ray control is
switched on “ON”.
Switching on the x-ray control, the pre-heating time of the x-ray tube is displayed for approximately
500 ms and then the unit will set on the following factors:
1. X-ray generator nr. 1
2. Medium patient
3. Incisor
4. Last type of FILM memorized
Furthermore:
Acoustic and luminous warning signal both for the technical data set and the x-rays emitted.
“DEAD MAN” push button either fixed or remote (optional).
Ready to manage a maximum of 3 generators.
Suitable for use with radiovideographic digital systems (RVG)

Pag. 17
OPERATING INSTRUCTIONS
ORIX 70

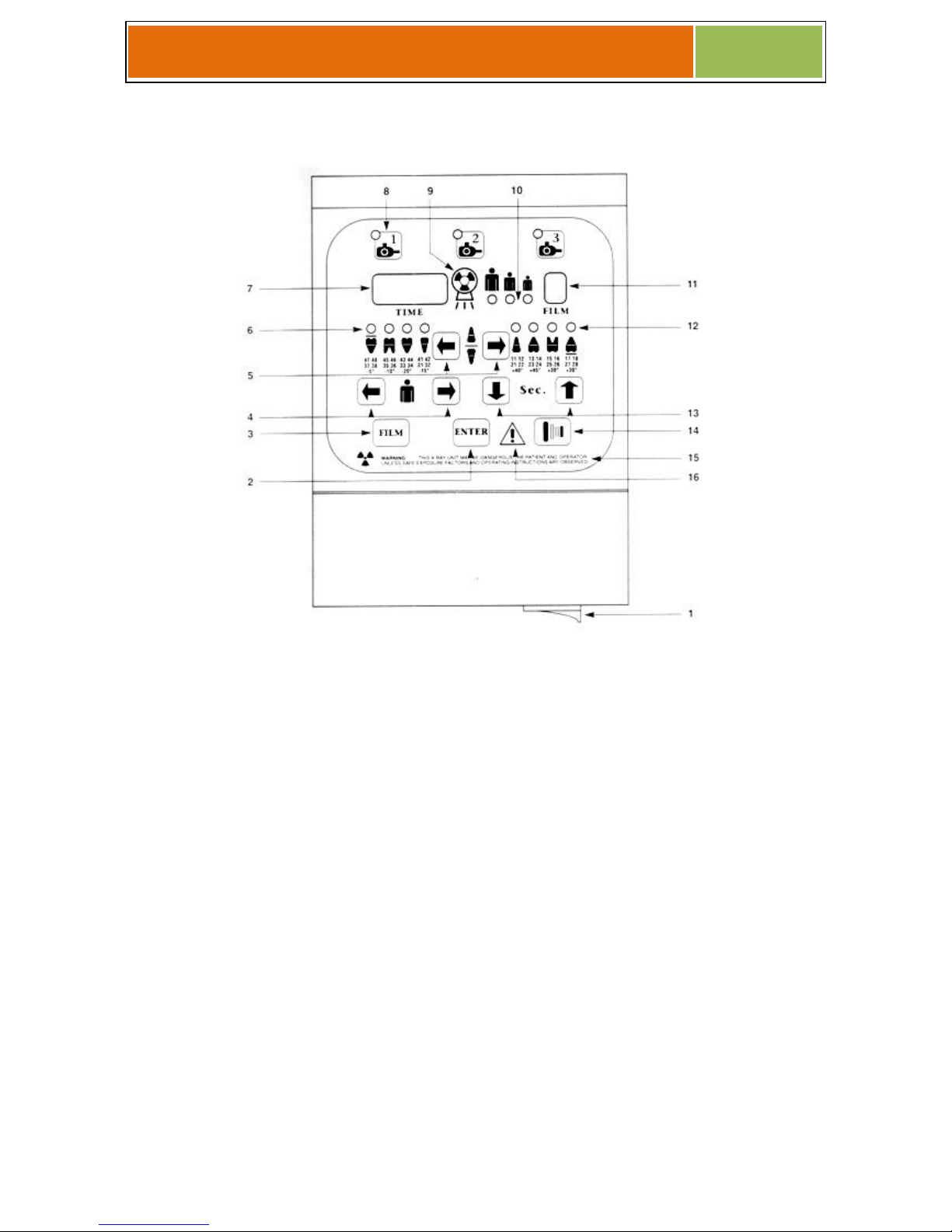

CONTROL PANEL
1. Bipolar ON/OFF main switch
2. Enter key - confirms the set technical data
3. Film sensitivity selection key
4. PATIENT selection key
5. TEETH selection key –each tooth is displayed with the relative international number
6. /12 Luminous display of the chosen tooth
7. 3 digit display showing pre-heating TIME / exposure TIME selected
8. selector key and luminous display of the selected GENERATOR
9. Symbol and luminous display for X-ray start
10. luminous display of the selected PATIENT
11. Display showing the sensitivity of the FILM used
13. Adjustment keys + and –for the automatically set exposure time
14. DEAD MAN x-ray key
15. WARNING signal
16. Warning symbol of dangerous x-rays.

Pag. 18
OPERATING INSTRUCTIONS
ORIX 70
USER’S MANUAL
INSTRUCTIONS FOR USE - SELEMATIC
1) Switch on the main switch (green light) placed on the bottom of the x-ray control (right side)
ref. n.1
2) Select the sensitivity of the radiographic film by pushing the button sequentially (ref. n. 3) until
the sensitivity of the film being used is visible (1/2/3/4/d)
0,05
d
Film sensitivity
Average
patient
Maxillary incisor
Exposure
ttime

Pag. 19
OPERATING INSTRUCTIONS
ORIX 70
CAUTION!
The SELEMATIC x-ray control is programmed by default on D film sensitivity which corresponds
to DIGITAL - Film D - 0,05 secs-patiente medium-incisor-maxillary arcade. When the main switch
is activated (green light - ref. n.7) the following data, memorised by the microprocessor, are
displayed on the symbols relative to patient and tooth
Changing the sensitivity of the film with the relative key (ref. n.3) the exposure time is
automatically modified whilst the other two technical factors relative to the size of the patient (red.
n. 10) and the tooth (ref. n. 12) remain the same. The exposure time values displayed are as follows:
MEDIUM PATIENT –MAXILLARY INCISOR
FILM
GROUP D (RVG)
0,05 s
S
GROUP 1
0,51 s
D
GROUP 2
0,35 s
E
GROUP 3
0,24 s
F
GROUP 4
0,14 s
a) Select the work station pushing the relative key (ref. n.8)
b) Select the type of tooth (ref. n. 6 for mandibular arcade and ref. n. 12 for maxillary arcade) using
the left and right arrows (ref. n. 5)
c) Select the type of patient (large/medium/small) using the left and right arrows (ref. n.4)
d) Press “ENTER” (ref. n. 2), automatically the LED of all the selected technical data
(patient/tooth/generator) will start to blink. This means that the microprocessor has confirmed
the chosen factors and therefore the x-ray control is ready to activate the x-ray generator.
e) press the x-ray key (ref. n. 14) and keep it pressed for the whole count-down time until the
display reaches zero. During this phase, the x-ray LED will lighten (ref. n.9) and a BEEPER will
give an acoustic warning for the whole time of radiation.
f) At the end of the exposure time (zero setting of the display and stop of the BEEPER) the x-ray
control goes into sleeping mode (pause) and will remain inoperative for a minimum time which
is 30 times the exposure time previously executed.
Example:
Exposure time 0.4 seconds
Pause time 12 seconds

Pag. 20
OPERATING INSTRUCTIONS
ORIX 70
The inactivity time is shown by the blinking of all the leds on the control panel. At the end of the
pause time, the microprocessor will reset the parameters of the last exposure which may be
maintained or modified according to the new x-ray which have to be taken.
CAUTION !
A the end of the duty cycle, all the technical data regarding the last x-ray remain selected
(generator/patient/tooth).
CAUTION !
In case that after an exposure the x-ray control is intentionally or accidentally disconnected by
means of the main switch (ref. n.1), on its re-start the memory of the microprocessor will reset the
default technical parameters.
CAUTION !
g) The accidental release of the 'DEAD MAN' key (ref. n. 14) during an exposure, immediately
arrest the x-ray control timer, automatically stopping the x-ray emission and on the display (ref.
n.7) the following error codes are displayed:
E01 when for the almost immediate release of the x-ray key the exposure time is equal or less
than the minimum time requested by the filament of the x-ray tube to reach its temperature
of emission.In this case no significant radiation has been emitted and therefore the x-ray will have
to be repeated. To reset the functions press “ENTER”.
E02 when releasing of the x-ray key the exposure time has been partially completed and, in any case, it
has exceeded the minimum time requested by the filament of the x-ray tube to reach its temperature
of emission. In this case a sufficient radiation has been emitted. Before taking a new x-ray develop
the x-ray already made in order to verify its quality. To re-start the x-ray control repeat the procedure
showed for error E01.
h) In compliance with the relative standards, linearity and repeatability are guaranteed from a
minimum time of 0,03 seconds (with manual adjustment) to a maximum time of 1,32 seconds
(with manual adjustment) if all the technical factors are correctly set.
