Area Imager IG610/BT User manual
Area Imager Bar Code Scanner
C O N F I G U R A T I O N G U I D E
ForIG610/BT,IG710/BT,LIBRAL‐7080i,MICAM‐9080imodels
Copyright@2013
Thismanualiscopyrighted,withallrightreserved.Underthecopyright
laws,thismanualmaynot,inwholeorinpart,becopied,photocopied,
reproduced,translatedorconvertedtoanyelectronicmediumormachine
readableformwithoutpriorwrittenconsentofmaker.
Note:Duetoproductimprovementprograms,specificationsandfeatures
aresubjecttochangewithoutpriornotice.
P/N: 0145-SIL0061 March 2013
Ver. 2
‐I‐
Table of Contents
Chapter1GeneralDescription..............................................1
Chapter2Introduction..........................................................2
Chapter3UserPreferences...................................................4
RETURN TO DEFAULT................................................................................4
PARAMETER SCANNING...........................................................................5
BEEPER TONE..............................................................................................6
BEEPER VOLUME........................................................................................7
BEEPER DURATION....................................................................................7
TRIGGER MODES........................................................................................8
POWER MODE..............................................................................................9
TIME DELAY TO LOW POWER MODE...................................................10
DECODE SESSION TIMEOUT.................................................................11
BEEP AFTER GOOD DECODE................................................................12
Chapter4ImagerPreferences.............................................13
SNAPSHOT MODE.....................................................................................15
DECODING AUTO EXPOSURE...............................................................16
DECODING ILLUMINATION......................................................................16
DECODE AIMING PATTERN....................................................................17
IMAGE CAPTURE AUTO EXPOSURE....................................................17
IMAGE CAPTURE ILLUMINATION..........................................................18
EXPOSURE TIME........................................................................................19
SNAPSHOT MODE TIMEOUT..................................................................20
SNAPSHOT AIMING PATTERN...............................................................20
‐II‐
IMAGE CROPPING.....................................................................................21
CROP TO PIXEL ADDRESSES................................................................22
IMAGE RESOLUTION................................................................................23
JPEG IMAGE OPTIONS.............................................................................24
JPEG QUALITY AND SIZE VALUE..........................................................24
IMAGE FILE FORMAT SELECTOR.........................................................25
BITS PER PIXEL..........................................................................................25
VIDEO VIEW FINDER.................................................................................26
TARGET VIDEO FRAME SIZE..................................................................26
VIDEO VIEW FINDER IMAGE SIZE.........................................................26
Chapter5SerialInterface...................................................27
SERIAL PARAMETER DEFAULTS..........................................................28
SERIAL HOST TYPES................................................................................29
BAUD RATE.................................................................................................30
PARITY..........................................................................................................31
STOP BIT SELECT......................................................................................32
DATA BITS....................................................................................................32
CHECK RECEIVE ERRORS......................................................................33
HARDWARE HANDSHAKING...................................................................34
SOFTWARE HANDSHAKING...................................................................36
HOST SERIAL RESPONSE TIME-OUT..................................................38
RTS LINE STATE........................................................................................39
BEEP ON <BEL>.........................................................................................39
INTERCHARACTER DELAY.....................................................................40
‐III‐
IGNORE UNKNOWN CHARACTERS......................................................41
ASCII CHARACTER SET FOR SERIAL HOSTS...................................42
Chapter6USBInterface......................................................47
USB HOST PARAMETERS.......................................................................48
NATIVE API (SNAPI) STATUS HANDSHAKING...................................50
USB COUNTRY KEYBOARD TYPES (COUNTRY CODES)...............50
USB KEYSTROKE DELAY........................................................................52
USB CAPS LOCK OVERRIDE..................................................................52
USB IGNORE UNKNOWN CHARACTERS.............................................53
EMULATE KEYPAD....................................................................................53
USB KEYBOARD FN 1 SUBSTITUTION.................................................54
FUNCTION KEY MAPPING.......................................................................54
SIMULATED CAPS LOCK..........................................................................55
CONVERT CASE.........................................................................................55
ASCII CHARACTER SET FOR USB........................................................56
Chapter7Symbologies.......................................................67
SYMBOLOGY PARAMETER DEFAULTS...............................................68
UPC/EAN.......................................................................................................73
CODE 128.....................................................................................................85
CODE 39.......................................................................................................87
CODE 93.......................................................................................................95
CODE 11.......................................................................................................97
INTERLEAVED 2 OF 5 (ITF)....................................................................100
DISCRETE 2 OF 5 (DTF).........................................................................104
‐IV‐
CODABAR (NW - 7)..................................................................................106
MSI...............................................................................................................109
POSTAL CODES.......................................................................................113
GS1 DATABAR..........................................................................................117
COMPOSITE..............................................................................................122
2D SYMBOLOGIES...................................................................................127
PDF417........................................................................................................127
MICROPDF417..........................................................................................127
DATA MATRIX...........................................................................................129
MAXICODE.................................................................................................129
QR CODE....................................................................................................130
REDUNDANCY LEVEL.............................................................................130
SECURITY LEVEL.....................................................................................132
INTERCHARACTER GAP SIZE..............................................................133
MACRO PDF FEATURES........................................................................134
Chapter8MiscellaneousScannerOptions........................138
TRANSMIT CODE ID CHARACTER......................................................140
PREFIX/SUFFIX VALUES........................................................................141
SCAN DATA TRANSMISSION FORMAT..............................................142
FN1 SUBSTITUTION VALUES................................................................143
TRANSMIT “NO READ” MESSAGE.......................................................144
Chapter9BluetoothConfiguration..................................145
SCANNER MODE SELECTION..............................................................145
OUT OF RANGE........................................................................................147
‐V‐
SLEEP MODE............................................................................................147
BATCH MODE............................................................................................148
FIRMWARE VERSION :...........................................................................149
APPENDIX A : STANDARD DEFAULT PARAMETERS.....................150
APPENDIX B : SYMBOL CODE IDENTIFIERS....................................159
APPENDIX C : ASCII CHARACTER SET..............................................166
APPENDIX D : NUMERIC BAR CODES................................................179
APPENDIX E : READABLE SYMBOLOGIES.......................................181
1
Chapter 1 General Description
Thank you for purchasing this barcode scanner with an advanced and versatile
decoder.The decoder works with variety of barcode types,reading devices, and
computer interfaces.It discriminates over twenty different symbologies automatically.
This menu provides an easy way to configure the decoding options and interface
selections by scan- ning bar codes listed in the menu.
FCC Approval
This device had been tested in accordance with the pro- cedures and in compliance with Part
15 Subpart B of FCC Rules. And keeps all requirments according ANSI C63.4 & FCC Part 15 B
Regulation and CISPR22 Class B.
CE Standards
The CE mark as shown here indicates this product had been tested in accordance with the
procedures given in European Council Directive 2004/108/EC and confirmed to comply with the
Europe Standard EN55022:2006:Class B, EN 55024:1998+A1:2001+A2:2003,IEC61000-3-
2:2006,IEC61000-3-3:1995+A1:2005,IEC61000-4-2:2001,IEC61000-4-:2006,IEC61000-
4-4:2004,IEC61000-4-5: 2006,IEC61000-4-6:2001,IEC61000-4-8:2001,IEC61000-4-11:2004.
LEGISLATION AND WEEE SYMBOL
This marking shown on the product or its literature, indicates that it should not be
disposed with other households wastes at the end of its working life.To prevent
possible harm to the environment or hu- man healthy from uncontrolled waste
disposal, please separate this from other types of wastes and recyle it responsibly to
promote the sustainable re- use of material resources.
Household users should contact either the retailer where they purchased this
product,or their local government office,for details of wher and how they can take
this item fore environm entally safe recycling.Business users should contact their
sup- plier and check the terms and conditions of the purchase.
2
Chapter 2 Introduction
This document provide an easy way to program the decoding options and
interface selections by scanning bar codes listed in this guide.
Important Notice
1. This document is in A5 size. Please check your printing setting before
printing it out.
2. When printing barcodes for programming, the use of a high-resolution
laser printer is strongly suggested for the best scan result.
3. The settings shall be updated periodically without prior notice. For the
latest version, please contact your authorized distributor.
Factory Default Setting
The factory default settings are shown with < > and bold in the following
sections. You can make your own settings by scan a series of selected
barcode patches in this manual to affect setup and programming of your
handheld 2D Image Reader.

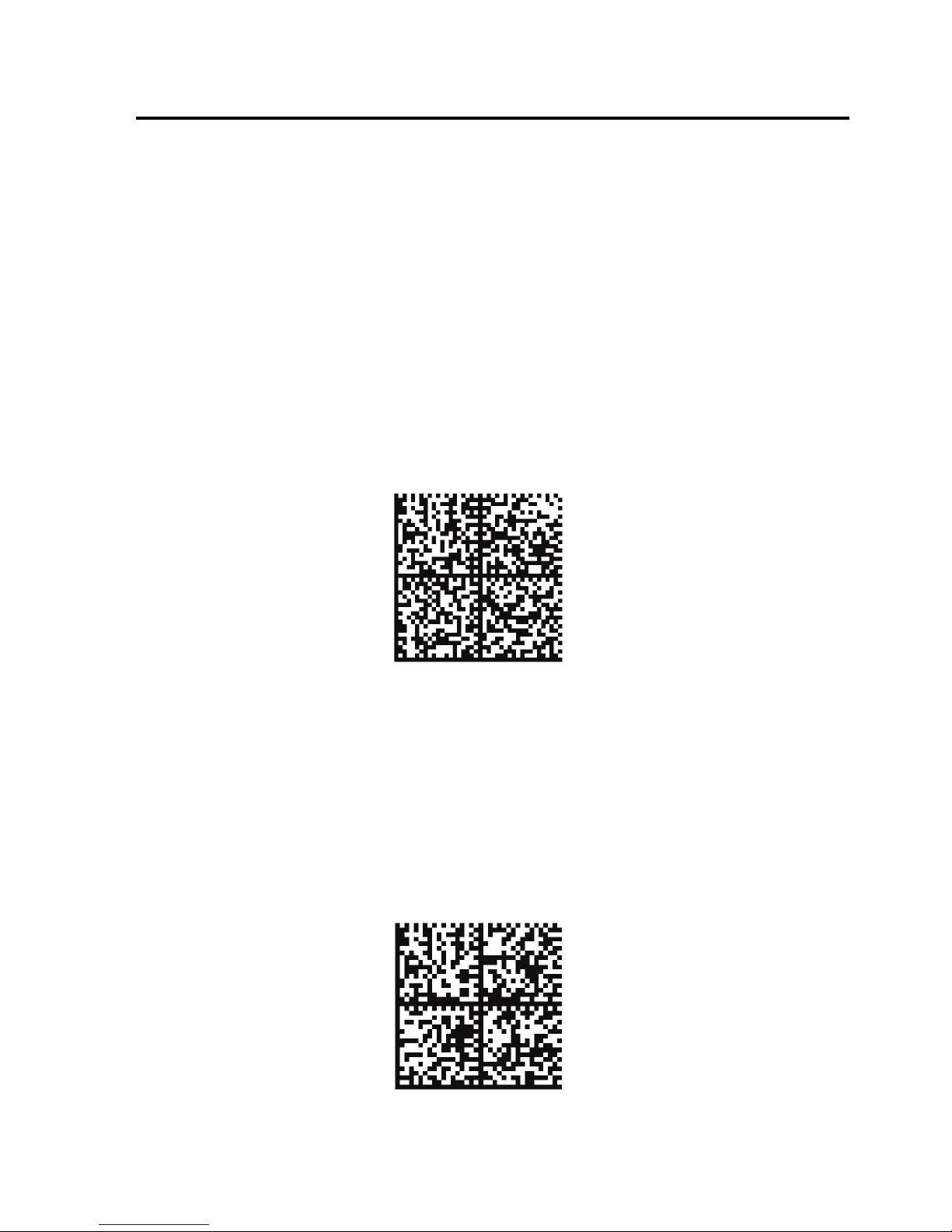

By scanning “Set All Defaults” Label, the settings will go back to the factory
default settings.
Settings and Programming

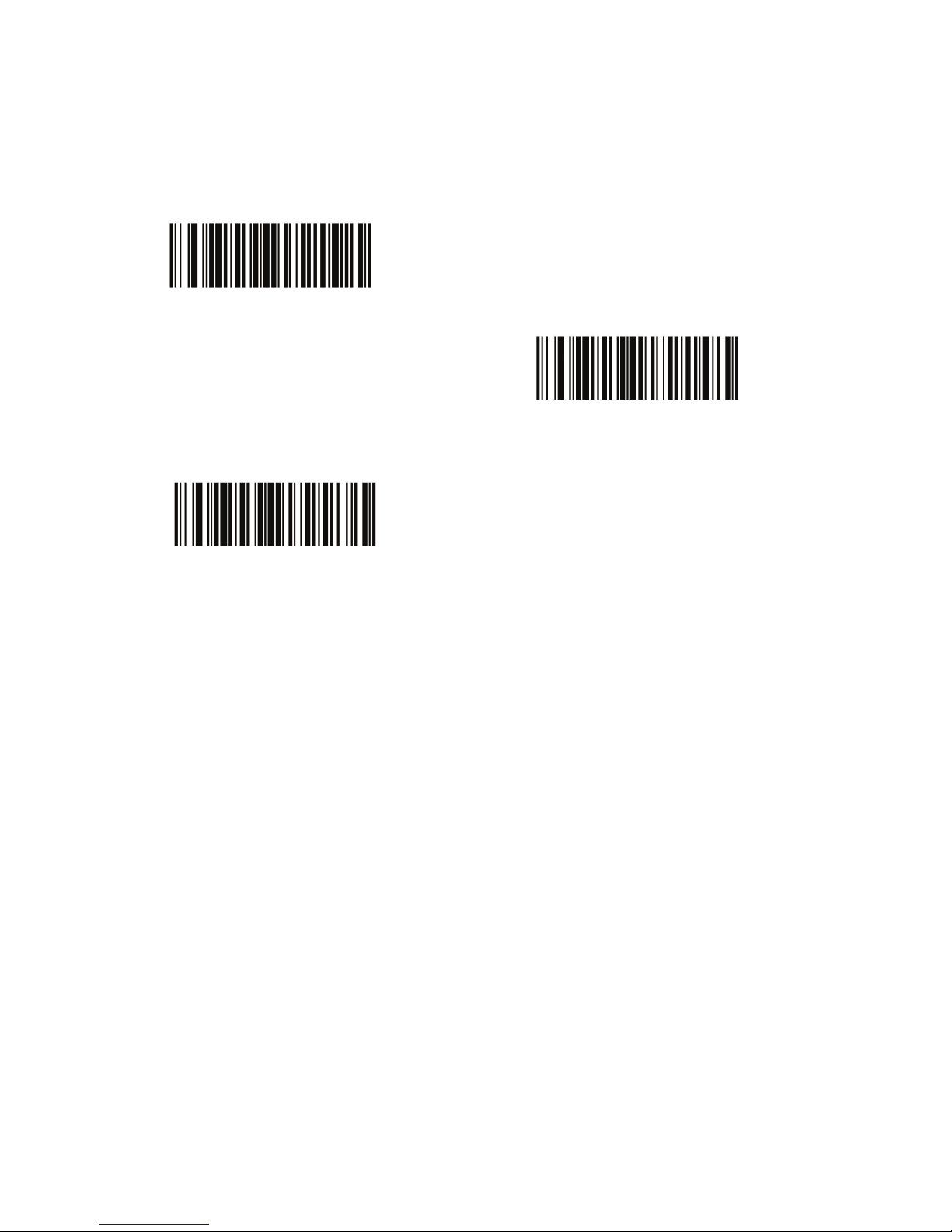

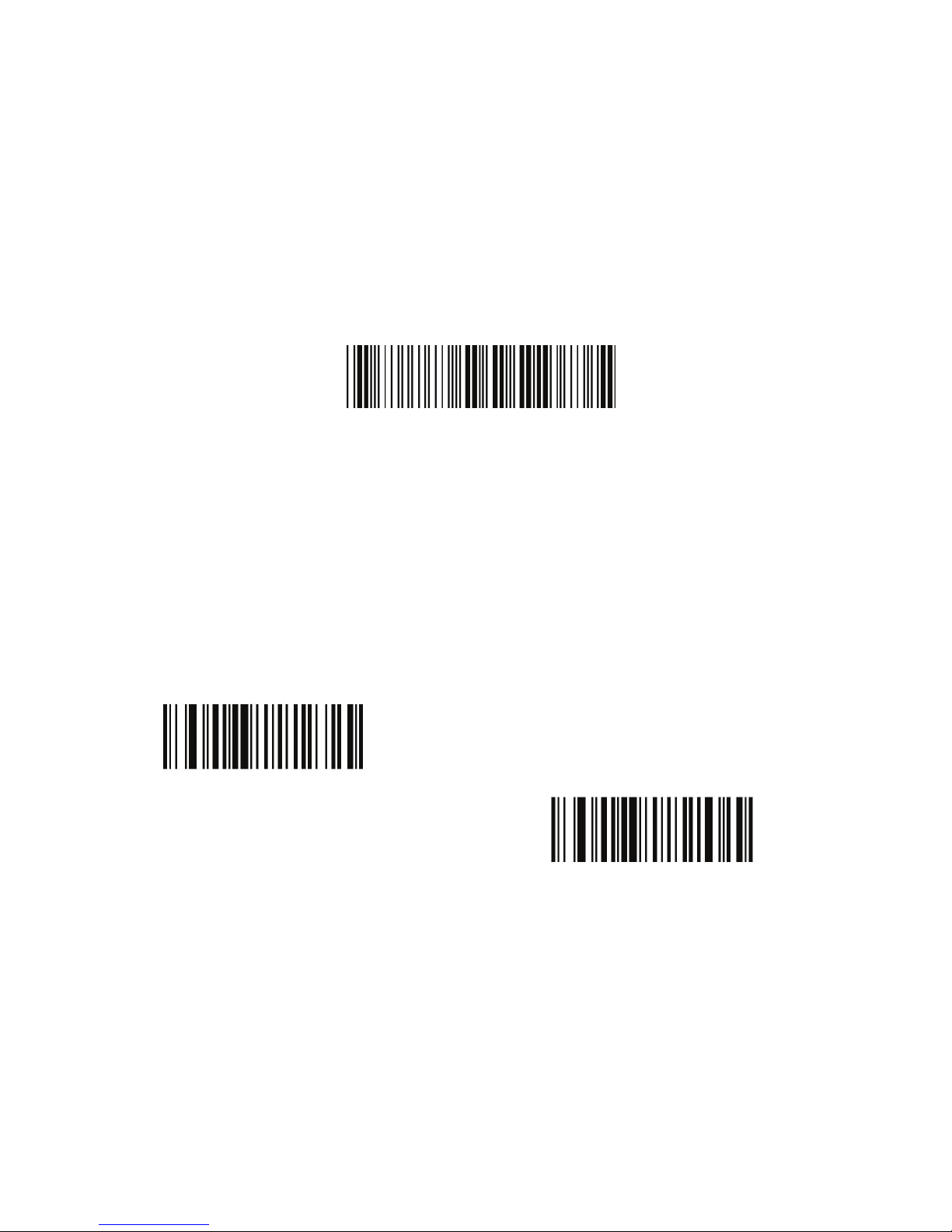

Scan a series of selected barcode patches in this manual to affect setup and
programming of your handheld 2D Image Reader. Decoding options and
interface protocols can be tailored to a specific application.
Setup parameters are stored in non-volatile memory in the scanner and are
retained even when power is off. Setup parameters change only when you
reset them.
You may need to hide adjacent code patches with your hand when doing
programming scanning.
3
Default Factory Device Settings
User Preferences
Parameter Default
Set Default Parameter All Defaults
Parameter Scanning Enable
Beeper Tone Medium
Beeper Volume High
Beeper Duration Long
Trigger Mode Handheld/Hands-free Scanner Level
Scan Module Presentation
Power Mode Handheld/Hands-free Scanner Low Power
Scan Module Low Power
Time Delay to Low Power Mode 1.0 Sec
Decode Session Timeout 9.9 Sec
Timeout Between Decodes, Same Symbol 0.4 Sec
Beep After Good Decode Enable
Presentation Mode Session Timeout 2 Seconds
4
Chapter 3 User Preferences
RETURN TO DEFAULT
1. For Desktop and Fixed mount default :
(LIBRA L-7080i and MICA M-9080i)
Youcanscanthisprogrammingcodetorestorethescanner’sparametersto
factorydefaultconfiguration.
Remark:thesedefaultsettingareassociatedtoconfigurationin
Chapter3toChapter8.
2. For Handheld models default :
(IG610, IG610BT, IG710 and IG710BT)
You can scan this programming code to restore the scanner’s parameters
to factory default configuration.
Remark:thesedefaultsettingareassociatedtoconfigurationin
Chapter3toChapter8.
5
3. For Bluetooth’s default:
(IG610BT and IG710BT)
Youcanscanthisprogrammingcodetorestorethebluetooth’s
parameterstofactorydefaultconfiguration.
Remark:thisdefaultsettingisassociatedtoconfigurationinChapter
9,noeffectforwiredmodels.
RestoretheBluetoothtoFactoryDefault
PARAMETER SCANNING
To disable decoding of parameter bar codes, including the Set All Defaults
parameter bar code, scan the Disable Parameter Scanning bar code below. To
enable decoding of parameter bar codes, scan Enable Parameter Scanning.
< Enable Parameter Scanning >
Disable Parameter Scanning
6
BEEPER TONE
To select a decode beep frequency (tone); scan the Low Frequency, Medium
Frequency, or High Frequency bar code.
Low Frequency
Medium Frequency
< High Frequency >
7
BEEPER VOLUME
To select a beeper volume, scan the Low Volume, Medium Volume, or High
Volume bar code.
Low Volume
Medium Volume
< High Volume >
BEEPER DURATION
To select the duration for the beeper, scan one of the following bar codes.
Short
Medium
< Long >
8
TRIGGER MODES
yLevel Mode - A trigger event activates decode processing, which
continues until the trigger event ends, a valid decode, or the
decode session time-out is reached. This scan mode is not
available for scan module.
yPresentation Mode - When the device detects an object in its field
of view it triggers and attempts to decode. The range of object
detection does not vary under normal lighting conditions. This
applies to decode mode only. In this mode the unit does not enter
its sleep state.
yHost Mode- A host command issues the triggering signal. The
device interprets a trigger pull as a level triggering option. This scan
mode is not available for scan module.
< Level Mode >
(Default for handheld scanners.)
< Presentation Mode >
(Default for Desktop and
Fixed mount scan
modules)
Host Mode
9
POWER MODE
This parameter determines whether or not power remains on after a decode
attempt. In low power mode, the decoder enters into a low power consumption
mode to preserve battery life after each decode attempt. In continuous power
mode, power remains on after each decode attempt.
Continuous On
< Low Power Mode >
10
TIME DELAY TO LOW POWER MODE
This parameter sets the time the decoder remains active after decoding. The
decoder wakes upon trigger pull or when the host attempts to communicate
with the decoder.
Note: 1. This parameter only applies when Power Mode is set to Low Power.
2. This setting is not available for scan module since it is always in
presentation mode and its power is continuous on.
< 1 Second >
5 Seconds
1 Minute
5 Minutes
15 Minutes
1 Hour
11
DECODE SESSION TIMEOUT
This parameter sets the maximum time decode processing continues during a
scan attempt. It is programmable in 0.1 second increments from 0.5 to 9.9
seconds. The default timeout is 9.9 seconds.
To set a Decode Session Timeout, scan the bar code below. Next, scan two
numeric bar codes from Appendix D, Numeric Barcodes that correspond to the
desired on time. Single digit numbers must have a leading zero. For example,
to set a Decode Session Timeout of 0.5 seconds, scan the bar code below, and
then scan the 0 and 5 bar codes. To correct an error or change the selection,
scan Cancel barcode.
Decode Session Timeout
Timeout Between Decodes, Same Symbol
This option is used in presentation mode to prevent multiple reads of a symbol
left in the Device’s field of view. The timeout begins when the symbol is
removed from the field of view. It is programmable in 0.1 second increments
from 0.0 to 9.9 seconds. The default interval is 0.4 seconds.
To select the timeout between decodes for the same symbol, scan the bar
code below, then scan two numeric bar codes from Appendix D, Numeric Bar
Codes that correspond to the desired interval, in 0.1 second increments.
Timeout Between Decodes, Same Symbol
