AREBOS AR-HE-MX-1200 User manual

User’s Manual –AREBOS Hand-held Mixer Stirrer
1
Hand-held Mixer Stirrer
AR-HE-MX-1200 / AR-HE-MX-1600
User’s Manual
Please follow all security measures in this user’s manual to ensure a secure use.

User’s Manual –AREBOS Hand-held Mixer Stirrer
2
Please read and save these instructions. Read through this user’s manual carefully before using
product. Protect yourself and others by observing all safety information, warnings and cautions.
Failure to comply with instructions could result in personal injury and/ or damage to product or
property. Please retain instructions for future reference.
Safety Instructions
General safety instructions for power tools
•Read all safety precautions and instructions. Failure to follow the safety precautions and
instructions may result in an electric shock, fire and/ or serious injury.
•Save all these safety precautions and instructions for future reference.
•The term „power tool“ in the safety instructions refers to your mains-operated (corded)
power tools or battery-operated (cordless) power tools.
Work area safety
•Keep your work area clean and well lit. Cluttered or dark areas invite accidents.
•Do not operate power tools in explosive environments, such as in the presence of flammable
liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
•Keep children and bystanders away while operating a power tool. Distractions can cause you
to lose control of the machine.
Read this manual thoroughly before using the mixer.
Wear ear protectors when using the mixer.
Wear safety goggles when using the mixer.
Wear a dust mask when using the mixer.
Double insulation (Class II). Do not require a ground prong.
Attention - Read the operating instructions!

User’s Manual –AREBOS Hand-held Mixer Stirrer
3
Electrical safety
•The mains plug of the power tool must match the electrical outlet. Never modify the plug in
any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified
plugs and matching electrical outlets will reduce the risk of electric shock.
•Avoid body contact with earthed (grounded) surfaces, such as pipes, heaters, cookers and
refrigerators. There is an increased risk of electric shock if your body is earthed (grounded).
•Do not expose power tools to rain or wet conditions. There is an increased risk of electric
shock if water penetrates your power tool.
•Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords
increase the risk of electric shock.
•When operating a power tool outdoors, only use extension cables which are suitable for
outdoor use. This will reduce the risk of electric shock.
•If it is unavoidable that you operate the power tool in a damp location, use a residual current
device (RCD). The use of a residual current device reduces the risk of electric shock.
Personal safety
•Stay alert, watch what you are doing and apply your common sense when operating a power
tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or
medication. A moment of inattention while operating power tools may result in serious
personal injury.
•Use personal protective equipment. Always wear eye protection.Protective equipment such
as dust mask, non-slip safety shoes, protective helmet, or hearing protection used for
appropriate conditions will reduce the risk of personal injury.
•Prevent unintentional starting. Ensure the switch is in the “off” position before connecting to
the power supply and/or battery pack, picking up or carrying the tool. Carrying a power tool
with your finger resting on the switch or energizing a power tool with the tool being switched
on can lead to accidents.
•Remove any adjusting key or wrench before switching on the power tool. A wrench or a key
left attached to a rotating part of the power tool may result in personal injury.
•Do not overreach. Keep proper footing and balance at all times. This enables better control of
the power tool in unexpected situations.
•Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves
away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
•If external dust extraction/collection devices are attached, make sure that they are
connected and used properly. The use of dust extraction/collection devices can reduce dust-
related hazards.
Use and care instructions for power tools
•Do not force the power tool. Use the correct power tool for your task. The correct power tool
will do the job better and more safely at the rate for which it was designed.
•Do not use the power tool if the switch is defective. Any power tool that cannot be controlled
with the switch is dangerous and must be repaired.
•Disconnect the plug from the power source and/or remove the battery pack before making
any adjustments, changing accessories, or storing the power tool. Such precautionary
measure prevents the power tool from being switched on accidentally.
•Store idle power tools out of the reach of children and do not allow persons who are
unfamiliar with the power tool or these instructions to operate the power tool. Power tools
are dangerous in the hands of untrained users.
•Maintain power tools with care. Check for misalignment or binding of moving parts, breakage

User’s Manual –AREBOS Hand-held Mixer Stirrer
4
of parts and any other condition that may affect the power tool’s operation. If damaged,
have the power tool repaired before use. Many accidents are caused by poorly maintained
power tools.
•Keep cutting elements sharp and clean. Properly maintained cutting elements with sharp
cutting edges are less likely to bind and are easier to control.
•Use the power tool, accessories and insertion tools, etc. in accordance with these
instructions, taking into account the working conditions and the work to be performed. Using
the power tool for applications which are different from those intended ones can lead to
dangerous situations.
Service
•Have your power tool serviced by a qualified repair person using only original replacement
parts. This will ensure that the safety of the power tool is well maintained.
Special safety instructions
•Safety instructions for mixing machines for building materials.
•Wear hearing protection when using a mixing machine for building materials. Exposure to
noise can cause hearing loss.
•Hold the machine by the insulated gripping surfaces when performing the operation, as the
machine may come into contact with hidden power lines or its own cord. The contact with a
“live” wire can cause metal parts to become “live” and thus result in an electrical shock.
•When using a mixing machine for building materials, always equipt it with a residual current
device (RCD) whose rated tripping current is no more than 10 mA, in order to avoid a hazard.
Additional safety instructions for mixing machines for building materials.
•Keep water away from any parts of the machine, otherwise it may cause an electrick shock to
the people in the work area.
•Before performing any adjustment, service or maintenance work, disconnect the power cord
of the machine from the electrical outlet. The electrical performance of your extension cable
must be at least as strong as that of the machine. Check that the mains voltage corresponds
with the value indicated on the nameplate of the machine.
Noise and dust emission
•An extremely high noise level can cause hearing damage. Therefore, suitable hearing
protection should be worn ― Especially when using the machine in enclosed rooms.
•Splinters can cause eye injuries. Therefore, always wear safety goggles or glasses with safety
glass.
•Always wear a helmet and safety shoes.
•Always wear proper, tight-fitting clothing.
•Always tie long hair together and remove the loose jewelry.
•Warning
The product is specially designed for stirring paint, lime water and concrete. When using a
mixing machine for building materials, you should always equipt it with a residual current
device (RCD) whose rated tripping current is no more than 10 mA, in order to avoid a hazard.
Safety instructions
•Caution:
In order to avoid accidents and to prevent the risk of fire or electric shock, and to minimize
the risk of injury as well, please observe the following safety instructions. Read these
instructions carefully.

User’s Manual –AREBOS Hand-held Mixer Stirrer
5
•Keep your work area clean. Cluttered areas always invite accidents.
•Do not expose the machine to rain. Never use it in a wet or damp environment. Also keep
the machine away from flammable liquids.
•Do not use the machine in the vicinity of children. Children and physically - or
mentallyimpaired persons should be supervised to ensure that they are kept at a safe
distance from the machine. Make sure that, under no circumstance should children get
access to the device or the power supply.
•Keep the machine safely and out of reach of children.
•Never carry the tool by its cord. Always keep the cable away from oil, solvents and sharp
edges to prevent any possible damage.
•Place the machine on a stable surface. Avoid abnormal postures when operating the
machine.
•Store the machine in a clean environment and check the power cord from time to time. If the
power cord is damaged, it should only be repaired by qualified service personnel. A damaged
power cord should always be replaced immediately in any case.
•Unplug the machine from the electrical outlet before removing the mixing paddle. Always
verify that the machine is switched off before plugging it into the outlet.
•Working with this mixer requires high concentration and unimpaired attention. Always check
whether the machine runs normally. Never operate the machine when you are tired.
•Check for signs of damage before each use of the mixer. Verify the working condition of the
machine to ensure an unimpaired operation. Check all parts of the machine and make sure
that they are all firmly connected. If any damage is found, it should only be eliminated by
qualified service personnel. Have the ON/OFF switch replaced if any problems in connection
with this component are found, unless otherwise the manual gives other more instructions
explicitly.
•Use only original spare parts.
•Make sure that the mixing paddle is attached to the output pivot securely. A firm connection
between the output pivot and the mixing paddle prevents accidents.
•When using the machine, hold it firmly with both hands. Under no circumstances should the
machine be operated with only one hand!
•Wear safety goggles to avoid eye injury caused by splashing liquid.
•Only use a flawless and undamaged machine.
•Never put down the machine while the mixing paddle is still rotating.
•Hold the machine straight during operation and do not pull it from the mixing container
immediately after the machine is switched off, otherwise your clothing could get dirty by the
splashing liquid.

User’s Manual –AREBOS Hand-held Mixer Stirrer
6

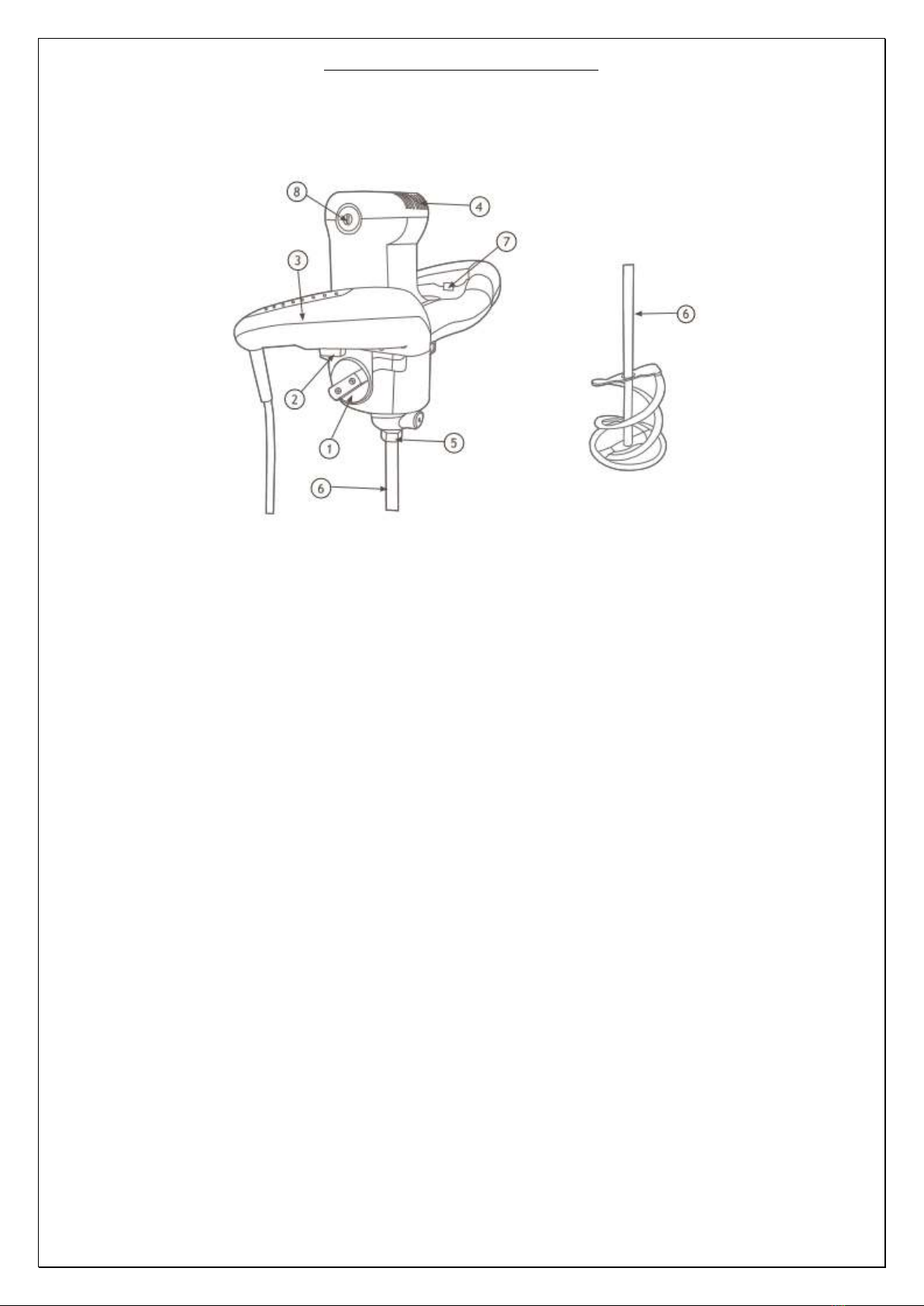

Description of the Machine
1. Gear selection switch
2. ON/OFF switch
3. Lock button for ON/OFF switch
4. Air slots
5. Pivot with M14 female thread
6. Mixing paddle
7. Adjusting dial
8. Brush holder
Product Description
Intended use
•The product is specially designed for mixing paint, lime water and concrete. Make sure that
the mixing paddle is attached to the output pivot securely. A firm connection between the
output pivot and the mixing paddle prevents accidents. When using the tool, hold it firmly
with both hands. Under no circumstances should the tool be operated with only one hand.
Never put down the tool while the mixing paddle is still rotating.
Improper use
•Any application with this product not listed in the “Intended use”is deemed to be a case of
misuse. This product must not be used for the following purposes:
-To use the tool as a drill.
-To polish, grind, sharpen or engrave with special adapters.
-As a drive for other devices.
•Risk of injury! Use of other or non-original components with the machine will void the
warranty.

User’s Manual –AREBOS Hand-held Mixer Stirrer
7
Residual risk
•Even when the product is used properly, certain residual risks cannot be ruled out.
•Potential risks may be derived from the specific type and construction of the machine as
follows:
-Contact with the rotating chuck (crush injury)
-Reaching into the rotating mixing paddle (cutting injury)
-Hearing impairment, if no hearing protection is used.
-Electric shock when touching to the non-insulated electrical components.
•If the instructions stated in this manual are not observed, other residual risks may arise due
to improper use.
Use
Check before commissioning
•Inspections to be perfomed before commissioning.
•Before each work session or after every 4 hours of operation at most, the following
inspections must be carried out prior to the commissioning of the machine. Detailed
guidelines can be found in the section of “MAINTENANCE”. If any fault is detected, the
HMRW cannot be used until it has been repaired.
•Check the hand-held mixer thoroughly for signs of damage. Make sure that all parts are
present and firmly fixed. Pay special attention to the mixing paddle and check whether it is
properly attached to the output pivot.
•If the mains cord of this machine is damaged, it must be replaced with a special connecting
cable which is available from the manufacturer or its service centre.
Operating instructions
•Before operating or servicing this hand-held mixer, YOU SHOULD READ and UNDERSTAND
the manual thoroughly.
Start-up and use
•Improper use of the machine may cause damage to the unit. Therefore, please observe the
following instructions:
-Use only tools with a diameter as specified before.
-Load the tool properly in such a way that the speed does not drop sharply or that the
machine would not come to a standstill.
-Verify that the information indicated on the nameplate corresponds with the actual
voltage of the power supply. This machine is designed for a mains voltage of 230 V.

User’s Manual –AREBOS Hand-held Mixer Stirrer
8
Attaching the mixing paddle
•Screw the mixing paddle with its M14×2 end as far as possible into the output pivot of the
machine and tighten securely with a wrench (22 mm).
Switching ON/OFF
•Always hold the machine with both hands during operation. Press and hold the ON/OFF
switch (2) to initiate the mixing process. With the switch (2) in its “ON” position, press the
lock button for ON/OFF switch (3). Now the switch (2) remains locked in its “ON” position. To
stop the machine, press and release ON/OFF switch (2).

User’s Manual –AREBOS Hand-held Mixer Stirrer
9

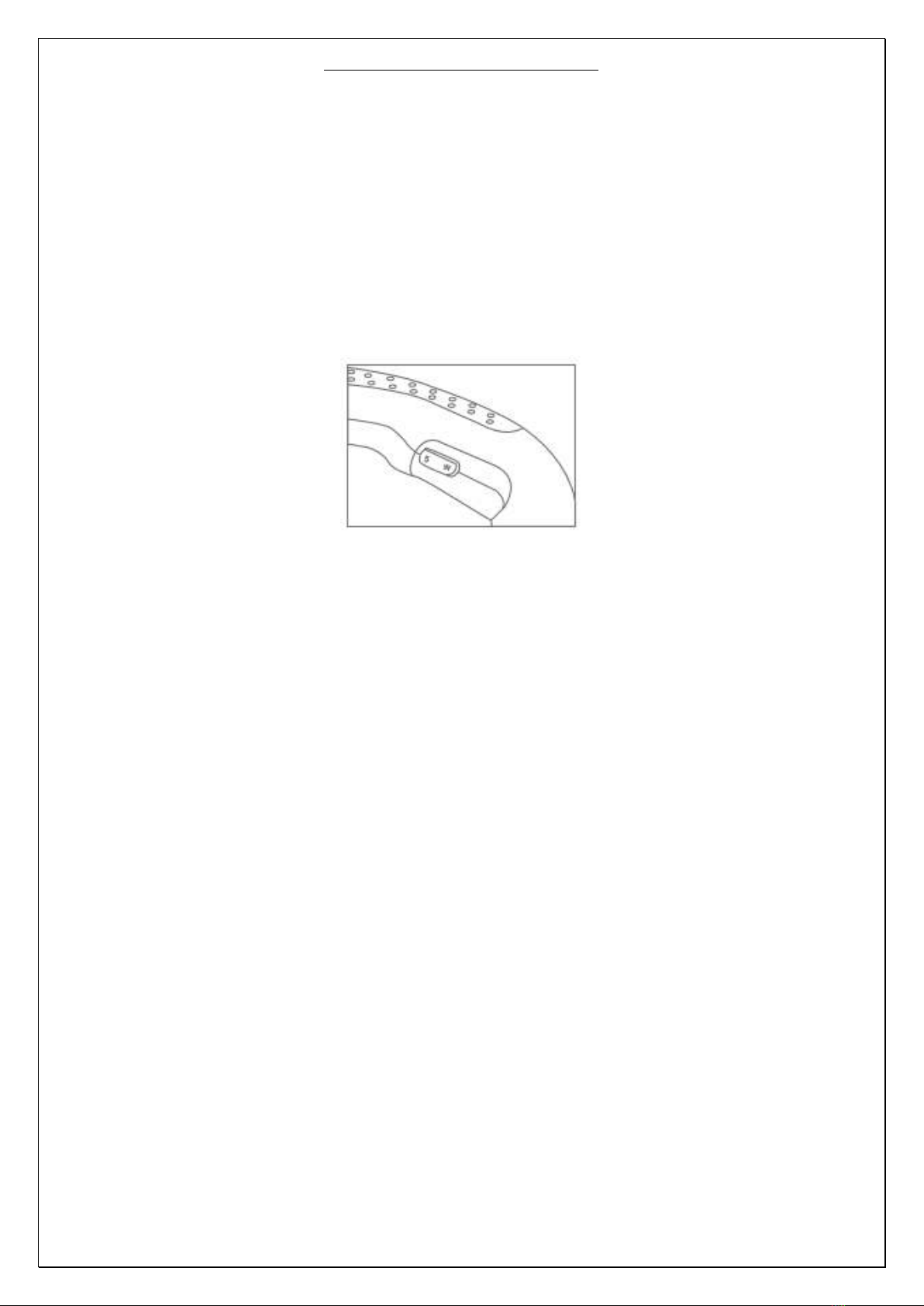

Operation
•This hand-held mixer is fitted with a two-speed transmission which allows you to select the
gear as required. The first gear is slow, the second gear is faster. To select your desired gear,
turn the gear selection switch (1) by 180°. In addition, with the help of the adjusting dial (7),
the speed of the machine can be adjusted in either of the two gears.
•Always reduce the speed when placing the mixing paddle into the mixture, or when
removing. Once the mixing paddle (6) is completely removed from the mixture, increase the
speed again and allow the motor to cool down sufficiently. During the mixing process, slowly
steer the machine in circular motion inside the mixing container. This should be done
continuously until the whole mixture has been mixed evenly.
Removing the mixing paddle (STIRRER)
•Place the wrench (22 mm) onto the hexagonal piece that is located on the M 14x2 end of the
mixing paddle (stirrer), then unscrew the paddle from the pivot by turning it counter-
clockwise.
•When the mixing process is finished, clean the mixing paddle (6) thoroughly to avoid the
accumulation of dirt and residue.
•Note: The numbers in parentheses refer to the diagram in the section of “Description of the
Machine”.
Storage
•The machine must be stored in a dry place, where there is no risk of exposure to extreme
temperatures.
Cleaning and Maintenance
•Unplug the machine from the electrical outlet before performing any maintenance or repair
work. Thoroughly clean the machine. Dirt, oil stains and other materials adhered to the unit
should be removed regularly.
•The connection between the output pivot and the mixing paddle should be checked
regularly. Make sure that the screws are tightened securely. The panel should be free from
any defects or damage. Regularly check that the power cord is intact.
•The insulating layer must not have any fractures. After about 100 hours of operation, the
carbon brush should be checked and be replaced with a new one if necessary.
•Note: Leave all maintenance work to a professional. The HMRW is designed for many years
of trouble-free operation. However, it is very important that some simple and regular
maintenance work listed in this section should be carried out. Use only original Timbertech
spare parts, the use of other unauthorized parts will void the warranty. Moreover, before
performing the related maintenance work, make sure that the machine is disconnected from
the power supply.

User’s Manual –AREBOS Hand-held Mixer Stirrer
10
Routine Maintenance
Approx. every 100
hours
Approx. every 200
hours
Motor brushes
Check
√
Change when
necessary
Transmission greese
Check/replace
√
•This hand-held mixer is equipped with self-deactivating carbon brushes. The machine will
switch off automatically when the brushes are worn down to a certain level. Refer to the
instructions for replacement as shown below.
Replacing the carbon brushes of the motor
•Loosen the two brush holders (8) on the sides of the motor housing using a screwdriver.
•Remove the worn-out brushes and replace them with new ones.
•Tighten the brush holders (8), ensuring that the brushes are fixed securely. Also, keep the air
slots (4) free of dirt and residue so that the machine can cool down sufficiently.
•Note: The numbers in parentheses refer to the diagram in the section of „Description of the
Machine“.
Technical Specifications
Model no.
HMRW01
HMRW02
HMRW03
HMRW04
HMRW05
Rated voltage
230 V
230 V
230 V
230 V
230 V
Frequency
50 Hz
50 Hz
50 Hz
50 Hz
50 Hz
Total weight of machine (kg)
5,8
6,0
5,7
6,0
6,0
Total weight of machine without
paddle (kg)
4,6
4,6
4,6
4,6
4,6
Height of machine (mm)
875
875
875
875
875
Power (W)
1200
1600
875
875
875
Idle speed in 1st gear
180-380 min-1
Idle Speed in 2nd gear
300-650 min-1
Tool size
M 14
Max. diameter of mixing paddle
(mm)
100
160
90
120
140
Sound pressure level (dBA)
94
Sound power level (dBA)
105
Suitable for stirring
Plaster/cement/mortar/tile adhesive/ flush-mounting
material
Typical Hand-Arm-Vibration
ah=4,09 m/s², K=1,5 m/s² ah with the description of the
procedure „mixture of lime water“
Measured values determined according to EN 60 745-2-1 and EN 60745-1.
Warning:
•The vibration emission value during the actual use of the machine can differ from the one
stated in this instruction manual or the one indicated by the manufacturer. This can be
caused by the following factors which you should pay attention to before or during use:
-Is the machine used properly?
-Is the type of the material that is to be processed correct?

User’s Manual –AREBOS Hand-held Mixer Stirrer
11
-Is the machine in good working order?
-If necessary, attach an optional anti-vibration handle and make sure that the handle is
fixed securely to the machine.
•If you feel uncomfortable or notice skin discoloration on your hands during the use of the
machine, stop working immediately. Take sufficient work breaks. Failure to have sufficient
work breaks may result in the hand-arm vibration syndrome.
•There should be an estimation of the extent of exposure in relation to the type of work or the
use of the machine and also appropriate work breaks should be arranged.
•In this way, the extent of exposure can be considerably reduced over the entire work time.
Minimize the risk caused by the exposure to vibration. Maintain this machine according to
the instructions stated in this manual. If the machine is frequently used, please contact your
dealer and get some anti-vibration accessories (e.g. handles). Avoid the use of this machine
at a temperature of 10 °C or lower. Create a work schedule in order to minimize your
exposure to vibration. A certain amount of noise generated by this machine cannot be
avoided. Therefore, you should only carry out the noise-intensive work during specific
periods of time. Maintain quiet periods and limit the duration of your work to the minimum
as necessary. To ensure the personal safety for you and for the bystanders as well, suitable
hearing protection should be worn.
Disposal Instruction
Disposal of the packaging
•Please make reference to the guidelines and standards for appropriate disposal of the packaging
valid in your region. In part, the package may consist of plastic bags - watch this respect, with
special care to ensure that this is not out of the reach of children. There is a risk of suffocation!
Disposal of waste equipment
•Equipment must be disposed of in accordance with the rules and regulations of the local waste
disposal.
Meaning of the "dustbin"
Protect our environment; electrical appliances do not belong in household waste.
Use the provided for the disposal of electrical equipment collection points and
enter your electrical and electronic equipment that you no longer use. They help
ensure that the potential effects of incorrect disposal on the environment and
human health to be avoided. So, do your part to recycle, recycling and other
forms of recovery of waste electrical and electronic equipment. Information on
where the devices are disposed of, please contact your local authorities or local
Governments.
Canbolat Vertriebs GmbH • Gneisenaustraße 10-11 • 97074 Würzburg

User’s Manual –AREBOS Hand-held Mixer Stirrer
12
EU Declaration of Conformity
We,
Canbolat Vertriebs GmbH, Gneisenaustraße 10-11, 97074 Würzburg, Germany,
Hereby declare that the product named below, seen its design and construction as well as according
to our sales, has been complied with the relevant and basic health and safety EU-requirements.
Name of the product: AREBOS Hand-held Mixer Stirrer
Model Nr.: AR-HE-MX-1200 / AR-HE-MX-1600
Art. Nr.: 4260551580017 / 4260551580000
If the product has any modification not allowed by us, this declaration loses its validity.
Guidelines/regulations:
Machinery Directive: 2006/42/EC
EC Directive of Electromagnetic Compatibility (EMC) 2014/30/EU
Restriction on Hazardous Substances in Electrical and Electronic Equipment (RoHS) test in
accordance with Directive 2002/95/EC and 2011/65/E
Standards:
EN 55014-1:2006/+A1:2009/+A2:2011
EN 55014-2:1997/+A1:2001/+A2:2008
EN 61000-3-2:2014
EN 61000-3-3:2013
EN 60745-1:2009+A11:2010
EN 60745-2-1:2010
EN ISO 12100:2010
EK9-BE-87:2014
EK9-BE-88:2014
Date/Manufacturer Signature/Location: Würzburg, 02.10.2018
Identification of the signatory:
Korhan Canbolat, head of the company
Authorised representative for the technical documentation:
Korhan Canbolat
Office address:
Canbolat Vertriebs GmbH
Gneisenaustraße 10-11
D-97074 Würzburg
Return address can be found in the imprint: https://www.arebos.de/impressum/
VAT identification number: DE 263752326
Court of the Commercial Register is Würzburg, HRB 10082
WEEE Reg.-No. DE 61617071
