AREBOS AR-HE-SA/G/S Product information sheet

Original User Manual –AREBOS Sand Filter System
1
Sand Filter System
AR-HE-SA/G/S
Please follow all security measures in this user´s manual to ensure a secure use.
Thank you for trusting in AREBOS.

Original User Manual –AREBOS Sand Filter System
2
Table of Contents
1. Safety Instructions.................................................3
1.1 Explanation of the symbols................................................................3
1.2 General Safety Instructions ...............................................................4
1.3 Safety Instructions for electrical devices ...........................................4
1.4 Functional principle of the sand filtration system..............................5
2. Environmentally friendly disposal ..........................5
3.1 Disposal and packaging......................................................................5
3.2 Disposal of old equipment.................................................................5
3. Instruction before Installation................................6
2.1 Placement..........................................................................................6
2.2 Further notes.....................................................................................6
4. Technical Data .......................................................7

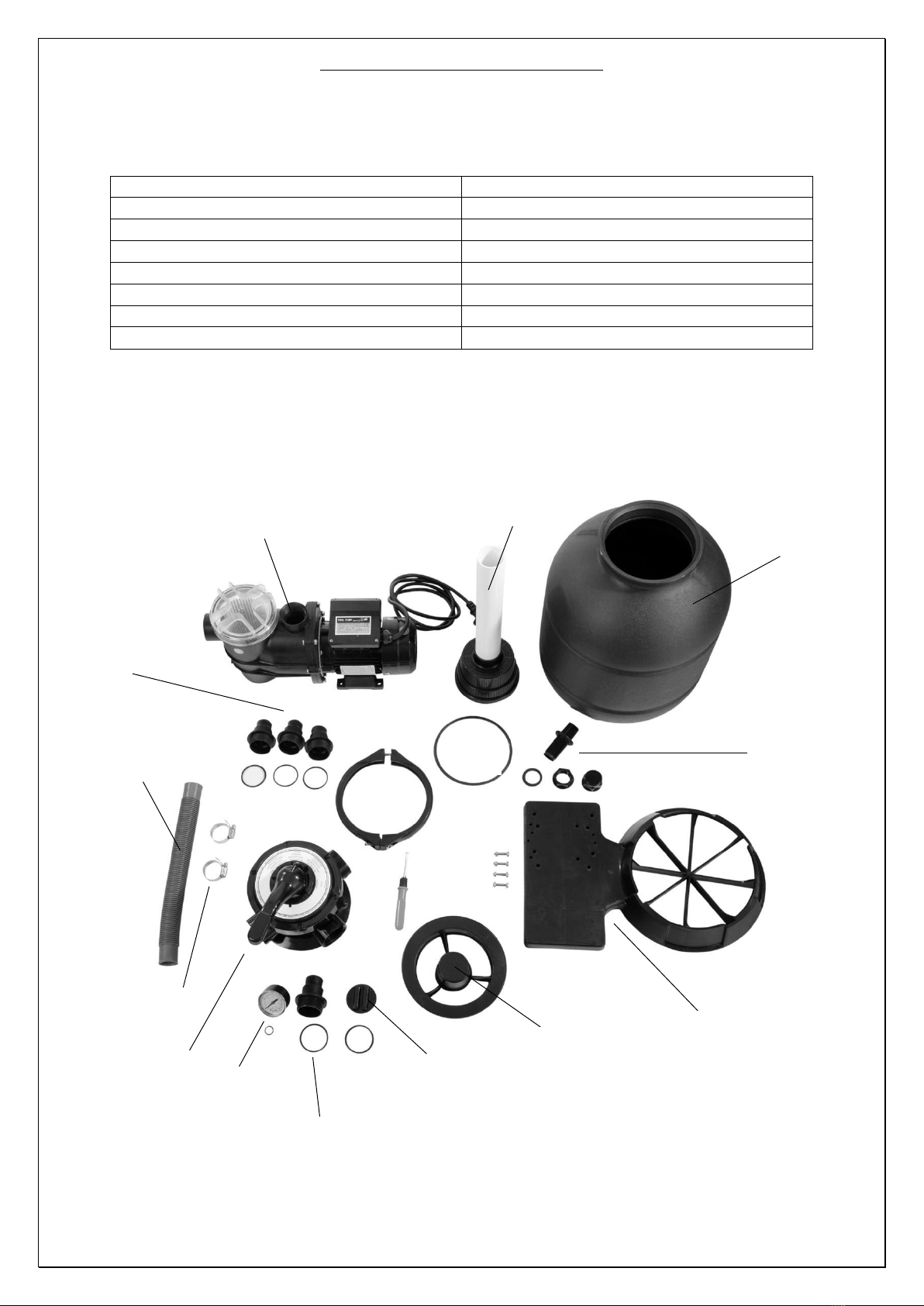

5. Content of Delivery................................................7
6. Assembly...............................................................8
7. Filter Function .....................................................15
7.1 Connection of the Filter System ......................................................15
7.2 Warnings .........................................................................................17
8. Use......................................................................17
8.1 Before use .......................................................................................17
8.2 Priming ............................................................................................17
8.3 During use .......................................................................................18
8.4 Functions.........................................................................................18
9. Troubleshooting ..................................................18
10. Maintenance .....................................................19
10.1 Cleaning.........................................................................................19
10.2 Warnings .......................................................................................19
10.3 To be checked regularly.................................................................20
11. Revocation/Return ............................................20
EU Declaration of Conformity ..................................21

Original User Manual –AREBOS Sand Filter System
3
Thank you for purchasing our product. Please read the operating instructions carefully before using
the product for the first time. If you give the product to a third party, this manual must be handed
over with it. Keep the instruction manual for future reference. The drawings in this manual may
not match the physical objects. Please refer to the physical objects.
1. Safety Instructions
1.1 Explanation of the symbols
This product must not be disposed of with household waste!
By means of a CE marking, it can be recognized that a product
complies with the legal requirements of European legal standards
and therefore may be traded within the European Community.
Protective insulated housing (protection class II)!
Restriction of the use of certain hazardous substances in the area of
heavy metals, brominated flame retardants and plasticisers to
protect human health and the environment
This product has been tested and certified by TÜV Rheinland.
The symbol "GS" stands for tested safety. Products marked with this
symbol comply with the requirements of the German Product Safety
Act (ProdSG).
Warning of electrical voltage!
Warning! Read the safety instructions carefully. Failure to follow the
safety precautions could result in serious injury or damage. Keep the
operating instructions in a safe place.

Original User Manual –AREBOS Sand Filter System
4
1.2 General Safety Instructions
•The sand filter can be used with a temperature > than 0°C and < than 40°C. You should never
operate the filter outside of these temperatures, otherwise damage may occur.
•Ensure that the filter is installed correctly.
•You should read this manual carefully before installation to avoid damage to the product or
injury.
•Safety is only guaranteed if the product has been installed properly.
•Do not let children touch the product.
•Escaping fumes or chemicals can weaken the pool. Corrosion can cause filters and other
equipment to fail, resulting in serious injury or property damage. Do not store chemicals for the
pool near the equipment.
•Replacement of parts should only be performed by qualified personnel.
•The products mentioned in this manual are specifically designed to pre-filter and divert water in
pools and fun.
•They are designed to operate with clean water at a temperature not exceeding 40 degrees
Celsius.
•Installation should be carried out in accordance with the safety instructions for pools, in
particular the HD 384.7.702 standard, and the specific instructions for each installation.
•The mandatory accident prevention regulations should be carefully followed.
•Modifications to the pump require the prior consent of the manufacturer. Original spare parts
and accessories authorized by the manufacturer guarantee a high level of safety. The
manufacturer of the pump accepts no liability for damage and injury caused by unauthorized
spare parts and accessories.
•During operation some parts of the pump are under dangerous electrical voltage. Work on each
pump or on the equipment connected to it may only be carried out after it has been
disconnected from the mains supply and the starting device has been disconnected.
•The user should ensure that assembly and maintenance work is carried out by qualified,
authorized personnel and that these persons have first read the maintenance and installation
instructions carefully.
•Under no circumstances should the limits given in the technical table be exceeded.
•If the power cord is damaged, it must be replaced by the manufacturer or its service
representative or a similarly qualified person to avoid any risk.
•The pump must not be used when there are people in the water.
•The pump must be supplied via a residual current circuit breaker with a rated residual current of
no more than 30 mA.
•Children should be closely supervised to prevent them from playing with the pump.
•This appliance is not intended for use by persons (including children) with reduced physical,
mental or cognitive abilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for their
safety.
•Children should be supervised to ensure that they do not play with the appliance.
•The pump must be protected from running dry.
1.3 Safety Instructions for electrical devices
•The electrical installation must be carried out by a certified electrician.
•Each pump requires a circuit breaker to disconnect the pump from the power supply. The open
contact gap of the circuit breaker must be at least 3mm. The pump must be supplied by an
isolating transformer or a residual current circuit breaker with a rated residual current of no
more than 30 mA.

Original User Manual –AREBOS Sand Filter System
5
•Check the nameplate of the pump for the following:
•voltage, current consumption and cycle.
•The power cable, including the ground cable, must be of 245 IEC 66 quality for models. For
models with an input power of less than 1 kW, the quality must be 245 IEC57. All installations
must comply with local regulations in accordance with the requirements of IEC 364-7-702.
•Check that the information on the nameplate corresponds to the power supply. Consult an
electrician to ensure that the wiring is in accordance with local regulations. Each motor requires
either a fused circuit breaker or a circuit breaker. The single-phase motor has a built-in thermal
overload switch.
1.4 Functional principle of the sand filtration system
The water flowing in from the piping system is automatically directed upwards onto the filter bed by
the multi-way valve. While the water is pumped through the filter sand, dirt and deposits are
collected and filtered out by the filter bed. The filtered water is led from the bottom of the filter tank
through the multi-way valve and back through the piping system.
2. Environmentally friendly disposal
Warning Danger of suffocation! Packaging material is dangerous for children. Never let children play
with packaging material.
2.1 Disposal and packaging
•The packaging of your unit consists of materials that are necessary to guarantee effective
protection during transport. These materials are fully recyclable and therefore reduce the
environmental impact. Dispose of the packaging in a bin for recyclable materials.
2.2 Disposal of old equipment
•Old appliances must be disposed of in accordance with the guidelines and regulations of the
local waste disposal authority. Check with your local administration for the address of the
nearest recycling centre and deliver your appliance there.
The symbol of the crossed-out dustbin on a Waste electrical or electronic
equipment indicates that it must not be disposed of with household waste at
the end of its life. Collection points for waste electrical and electronic
equipment are available free of charge in your area. You can obtain the
addresses from your city or local government. You can find out about other
return options created by us on our website www.arebos.de.
The separate collection of Waste electrical or electronic equipment is intended
to enable the reuse, recycling or other forms of recovery of Waste electrical or
electronic equipment and to avoid the negative consequences of disposal on the
environment and human health.
