Arec CW-210 User manual

AREC Inc.© All Rights Reserved 2017. l www.arec.com
All information contained in this document is Proprietary
CW-210
Wireless Full HD Network Camera
User Manual English

CW-210 User Manual
Preface
This manual introduces the function installation and operation of the Wireless Full HD Network camera.
Prior to installation and usage, please read the manual thoroughly.
1. Warning
(1) This product can be only used in specied range in order to avoid any damage or danger;
(2) Don’t expose the camera to rain or moisture place
(3) Don’t remove the cover to reduce the risk of electric shock. Refer servicing to qualied personnel.
(4) Never operate the camera under unqualied temperature , humidity and power supply;
(5) Please use the soft cloth to clean the camera. Use neuter cleanser if bad smeared .Don’t use the
strong or cleanser avoiding scufng.
2. Electric Safety
Installation and operation must accord with electric safety standard.
3. Caution to transport
Avoid stress,vibration and soakage in transport,storage and installation.
4. Polarity of power supply
This product uses DC 5V power supply, power plug Micro USB interface as shown below.
5. Careful of installation
(1) This series item must put on the smooth desk or platform,and it can not be installed slant ways.
(2) Don’t apply in corrosive liquid,gas or solid environment to avoid the cover which is made up of
organic material.
(3) This product has a heating device inside, please keep ventilated.
(4) Never power on before installation is completed.
6. Don’t disassemble discretionarily.
We are not responsible for any unauthorized modication or dismantling.
7. Attention
Electromagnetic led under certain rate may affect camera image!
Pic1. Power plug

CW-210 User Manual
Table of Contents
Preface
Chapter 1 Quick Installation Instructions
1.1 Camera interface and button description
1.2 Power on
1.3 Video output
Chapter 2 Product overview
2.1 Product introduction
2.1.1 Dimension
2.1.2 Accessory
2.2 Main features
2.2.1 Camera performance
2.2.2 Technical specication
Chapter 3 Product Connection
3.1 Direct connection
3.2 Internet connection mode
Chapter 4 Overview of the Web Interface
4.1 Preview
4.2 Playback
4.3 Conguration
4.3.1 Local congure
4.3.2 Audio congure
4.3.3 Video congure
4.3.3.1 Video Encode
4.3.3.2 Stream Publish
4.3.3.3 Video Parameters
4.3.3.4 Video OSD
4.3.3.5 OSD Font Size
4.3.3.6 Video Out
4.3.4 Network Congure
4.3.4.1 Network port
4.3.4.2 Ethernet parameters
4.3.4.3 WLAN
4.3.4.4 DNS
4.3.4.5 GB28181
4.3.5 System Congure
4.3.5.1 System Attribute
4.3.5.2 System Time
4.3.5.3 User Set
4.3.5.4 Release Upgrade
4.3.5.5 Restore factory defaults
4.3.5.6 Reboot
4.4 Logout
Chapter 5 Camera Maintenance and Troubleshooting
5.1 Camera Maintenance
5.2 Troubleshooting
02
04
04
05
05
06
06
06
06
07
07
08
10
10
12
13
14
15
16
17
18
19
20
21
22
26
27
27
28
29
30
31
32
33
34
35
36
38
39
39
39
39
40
40
40

CW-210 User Manual
4
www.arec.com
Chapter 1. Quick Installation Instructions
1.1 Camera interface and button description
Five control buttons :
Up: Zoom out (wide angle) Down: Zoom in (narrow angle)
Left: Focus+ (long shot) Right: Focus- (close-up)
Middle: Back to the initial state (zoom back out, auto focus)
Pic 1.1 Product interface
1 2 3 4 5 6 7 8 9 10 11
12 13
15 14
1Lens 6Battery tray 11 LAN interface
2Power indicator 7Power interface:
DC 5V charging interface. 12 Bluetooth pairing button: built-in bluetooth.
3Audio interface:
built-in microphone 8WiFi Antenna: embedded WiFi module. 13 Bluetooth pairing indicator
4Power switch 9SD card slot:support 64G
SD card storage. 14 Bluetooth voice and mic voice switch button
5Power supply indicator 10 Reset button:press 5
seconds to reset 15 Five control buttons: Zoom / Focus settings.

CW-210 User Manual
5
www.arec.com
1.2 Power on
1.3 Video output
This product will output video through the network, including wireless and wired networks.
(1) Wired network output: Connect this product and your computer through network cable, then open the
browser, enter the camera IP address (factory default 192.168.11.202) in the address bar, then to the
login page and input a user name and password (factory default are both “admin”). Finally enter the
preview page,and the image comes out. (Note: If you forget your user name, password, IP address,
Reset button: Long press Reset button for 5s. You can manually restore the factory default settings.)
a. Cable connection: Connect the network cable to the device LAN interface (pic1.1 No 11.).
b. Sign in to webpages: Open the browser, enter 192.168.11.202 (factory default) in the address bar,
then to the login page. The device facilitates the users control PTZ cameras, record the video,
playback, conguration, etc.
(2) Wireless network output:
a. Wireless network conguration: Wired network login, First, congure the wireless network in the
network conguration, check the network port enable, WiFi hotspot search, and connect hotspot.
b. Sign in to webpages: Open the browser, enter 192.168.11.202 (factory default) in the address bar,
then to the login page. Click “No plug-in is installed, please download and install.”, follow the
prompts to install successfully. Log in with default username admin and password admin, then
entering the preview page.
Step 1 : Connected to DC5V power adapter, and power interface (Micro USB) is shown as pic1.1 No 7.
Power supply indicator pic1.1 No 5 (green) is on.
Note: The power indicator light (green) below the lens is off (pic1.1 No 2.).
Step 2 : Turn on the power switch, as pic1.1 No 4 (Power switch), and the indicator belows the lens lights
green. Camera module will stretches. When the module nish stretches, the self-testing is
nished. The device is in normal working status. Connect the network wire to LAN interface
(pic1.1 No11.), and the indicator light of LAN interface flashes yellow, indicating the connection is
normal.

CW-210 User Manual
6
www.arec.com
Chapter 2. Product Overview
2.1 Product introduction
2.1.1 Dimension
2.1.2 Accessory
When you unpack, please check the package containing the following items listed below :
Table2.1 Accessories
Pic2.1 Camera dimension
148 65
75
85
28
181
Item
Accessory
Power adapter 1pcs
Antenna 1pcs
Quick Installation Guide 1pcs

CW-210 User Manual
7
www.arec.com
2.2 Main features
2.2.1 Camera performance
Product advantages:
Product features:
The camera offers perfect functions, superior performance and versatile interfaces. The features include
advanced ISP processing algorithms to provide vivid images with a strong sense of depth, high resolution
and fantastic color rendition. It supports H.264/H.265 encoding which makes motion video fluent and
clear even with less than ideal bandwidth conditions. Product works stable and reliable, and it is easy to
use, installation and maintenance.
A compact and stand-alone design: The camera embedded, bluetooth, microphone, SD card, WiFi
module and ve control button, to achieve the integration of the camera, audio and control functions.
Wide-angle lens without distortion: The camera uses 65° wide-angle, no distortion and auto focus
lens. Optical zoom to 10 times, and support 10 times digital zoom.
Internal SD card storage: Provide auto loop recording when power on. Time division packing
download.
Wireless WiFi: Embedded WiFi module, support wireless router, bridging, AP, etc.
Built-in microphone: Built-in high-sensitivity digital audio microphone, no external audio equipment
required. Omnidirectional and multi-angle orientation can be set. The distance of microphone is
greater than 3 meters, with automatic gain and automatic noise reduction function.
Built-in bluetooth voice: Built-in bluetooth module, can be paired to external bluetooth microphone,
to achieve bluetooth voice transmission.
Leading Auto focus technology: Leading auto focus algorithm makes lens a fast,accurate and stable
auto-focusing.
Low noise and High SNR: Low Noise CMOS effectively ensure high SNR of camera video. Advanced
2D/3D noise reduction technology is also used to further reduce the noise,while ensuring image
sharpness.
Multiple Video compression: Support H.265 / H.264 video compression; Support compression of
resolution up to 1920x1080 with frame up to 60 fps.
Multiple network protocol: Support ONVIF, RTSP, RTMP protocols and RTMP push mode, easy to link
streaming media server (Wowza, FMS).
Audio: Support 16000 sampling frequency. Support AAC, MP3 encode type.
A variety of applications: Education, Lecture capture, Webcasting, Videoconferencing, Training,
Medicine, Emergency systems, etc.

CW-210 User Manual
8
www.arec.com
2.2.2 Technical specication
Camera Parameter
Sensor 1/2.8 inch high quality HD CMOS sensor
Effective Pixels 2.07 million 16 : 9
Video Format 1080P30/25, 1080I60/50, 720P60/50
Optical Zoom 10x Optical Zoom f=4.7~47mm
View Angle 6.43°(narrow)~65°(wide)
Aperture F1.6~F3.0
Digital Zoom X10
Minimum Illumination 0.5Lux(F1.8, AGC ON)
DNR 2D&3D DNR
White Balance Auto / Manual / One Push / 3000K / 3500K / 4000K / 4500K / 5000K /
5500K / 6000K / 6500K / 7000K
Exposure Auto / Manual / Shutter priority / Aperture priority / Brightness priority
Focus Auto / Manual
Iris Auto / Manual
Electronic Shutter Auto / Manual
BLC ON / OFF
WDR OFF/ Dynamic level adjustment
Video Adjustment Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma
curve
SNR >55dB
Input/Output Interface
Video Interfaces LAN \ WiFi
Image Code Stream Dual stream output
Video Compression Format H.265, H.264
Audio Input Built-in microphone, with digital, omnidirectional, multi-angle orientation
can be set.

CW-210 User Manual
9
www.arec.com
Bluetooth Pairing Built-in bluetooth, can be paired to external bluetooth microphone, to
achieve bluetooth voice transmission.
IP Interface 100M IP port(100BASE-TX), WiFi
Network Protocol RTSP, RTMP, ONVIF, GB / T28181
5 button Zoom in / out, focus + / - , back to home (zoom back out, auto focus)
Power Interface Micro USB interface (DC5V)
Other Parameter
Power Adapter and Battery
Specications (self-buy) Output DC5V/1A
Battery-powered Time Standard (cell capacity: 5000mAh; rated capacity: 3300mAh)≥3 hours
Larger (cell capacity: 10050mAh; rated capacity: 6400mAh)≥6 hours
Working Voltage 5V
Working Current 1A(Max)
Consumption 5W(Max)
Store Temperature -10°C~+60°C
Store Humidity 20%~95%
Working Temperature -10°C~+50°C
Working Humidity 20%~80%
Dimension
(width*height*depth) 148mm X 65mm X 113mm(No antenna and tray included)
Weight 760g
Working Environment Indoor
Remote Operation (IP) Remote Upgrade, Reboot and Reset
Accessory Quick installation guide, Antenna

CW-210 User Manual
10
www.arec.com
Chapter 3. Product Connection
You can connect your camera to a PC or notebook with standard network cable and enter the
management site via your Internet browser or connect your camera to a router or any DHCP server. See
below for details.
3.1 Direct connection
To access the camera for the rst time, connect the camera and computer by network connecting cable.
The computer must have the network segment where the camera IP address belong to. The device will not
be accessible if without the segment. I.E. The camera default IP address is 192.168.11.202, then segment
11 must be added in the computer. Specic steps are as below:
(a) Click “Open Network and Sharing Center”.

CW-210 User Manual
11
www.arec.com
(b) Click the Properties button in Local Area Connection window and click the Internet Protocol
Conguration (TCP/IPv4) option.
(c) Type IP : 192.168.11.1XX in “Use the following IP address:” eld (Figure 1). Enter the static IP
address of your CW-210: 192.168.11.202 in your browser's URL bar (Figure 2). The management
login page displays.
(Enter account ID and password admin/admin for the rst time.)

CW-210 User Manual
12
www.arec.com
3.2 Internet connection mode
IP is assigned by a router or any DHCP server. To log in to the administration web, please connect the CW-
21 and your PC / Notebook to a router or a DHCP server. Follow below steps:
(a) Run the “Device Search Tool” utility, and click [ ] button.
(b) The tool should nd the CW-210 and show detailed information. Double click on the founded
camera.
(c) An access window will pop-up and ask for user name and password.(Enter account ID and
password admin/admin for the rst time.)
Note: Please do not put the power and network cable in places where can be easily touched to prevent video quality lowered by
unstable signal transmission due to poor contact of cables.
Note: To log in to the administration web by DHCP, please follow the Direct Connection mode to log in rst and make the relevant
settings. See “4.3.4 Network congure” for more details.

CW-210 User Manual
13
www.arec.com
Chapter 4. Overview of the Web Interface
Web client: Input the IP address 192.168.11.202 of the device in the address eld of browser and click
Enter button to enter into Web Client login page.
Download / Install Plug in : When first using IE browser to access the web conferencing camera,the
login page will appear “Playback plug-in is not installed,please download and install!”. Click on this
message,download and install “MRWebXinstall.exe”, according to information prompts.
Language selection : In login interface, the upper right corner shows "Chinese | English", click to select the
web interface language.
Note: Web access supported browsers: IE, 360 browser and other regular browser.
(1) Login in as administrator:
The default user name and password are both “admin”.
After log in successfully, enter Administrator webpages. Users can enter preview, playback,
conguration and logout pages.
(2) Login in as normal user:
The default user name and password are both “user1” or “user2”.
After log in successfully, enter Administrator webpages. Users can enter preview, playback and logout
pages.
Note: Normal user does not have permission to conguration page.
Input the username and password after plug in installed. You can choose to log in as administrator or
login in as normal user:

CW-210 User Manual
14
www.arec.com
Menu Description
Preview Can control PTZ cameras, zoom, focus, snapshot, audio, fullscreen, local recording, SD
card recording, preset settings, etc.
Playback Can playback the video and picture les that are stored in local PC or SD card.
Conguration
Including Local configuration, audio configuration, video configuration, network
conguration, system conguration, and so on.
Note: The normal user login does not have conguration rights.
Logout Log out of the management interface.

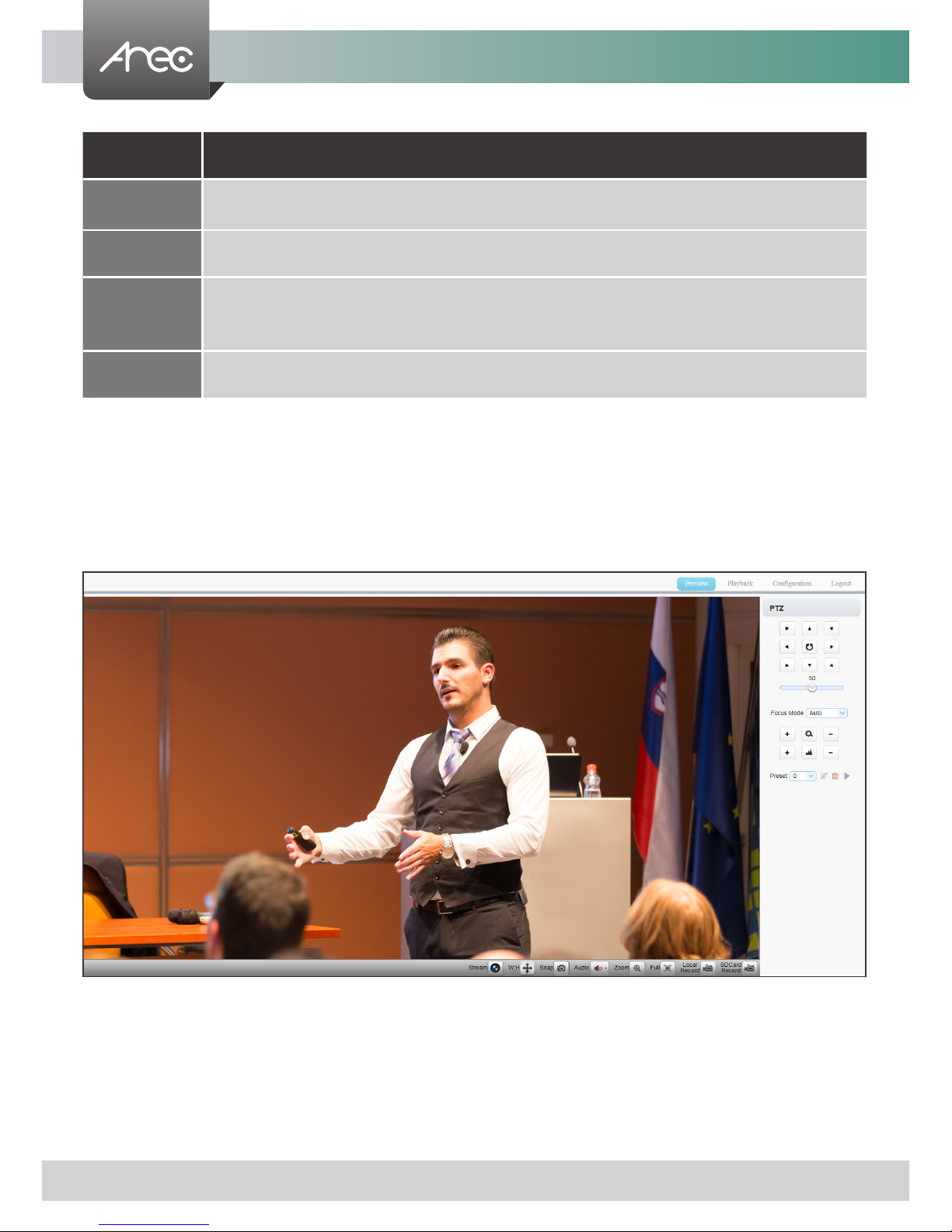

4.1 Preview
After log in successfully, enter Administrator webpages. By default, the page shows Preview interface. The
device facilitate the users control PTZ cameras, zoom, focus, snapshot, audio, fullscreen, local recording,
SD card recording ,preset settings, etc.

CW-210 User Manual
15
www.arec.com
4.2 Playback
(1) Playback the recording le
Firstly record, snapshot and save the file when previewing.
Click “Playback” to enter the page of video les and picture
les playback.
(a) Select the storage path for the search: Local PC or SD
Card
(b) Select “Video Files”. (Can not choose if the storage path
is SD Card.)
(c) Set date range of the search, click the “search” to search
for a recording le.
(d) Click “Play” to playback the video le.
(2) Playback the picture le
Firstly record, snapshot and save the file when previewing.
Click “Playback” to enter the page of recording file and
picture le playback.
(a) Select the storage path for the search: Local PC or SD
Card
(b) Select “Picture Files”. (Can not choose if the storage
path is SD Card.)
(c) Set date range of the search, click the “search” to search
for a recording le.
(d) Click “Play” to playback the picture le.
Local video / picture le default storage directory C:\
MyIPCam\

CW-210 User Manual
16
www.arec.com
4.3 Conguration
Click Conguration to enter into the device parameters setting page.
Major options: Local congure, Audio congure, Video congure, Network congure and System congure.
The detailed description refer to below sheet.
Menu Explanation
Local congure Including video stream preview mode, video packaging time, video le packaging
type settings etc.
Audio congure Including audio compressing format, sampling frequency, sampling
precision,compressing code rate settings etc.
Video congure Including video encoding, video parameters, character-overlapping,character size,
video output setting etc.
Network congure Including basic parameters, Ethernet, DNS, wireless network setting etc.
System congure Including equipment property, system time, user management, version update,
Reset, Reboot device settings etc.

CW-210 User Manual
17
www.arec.com
Video Stream Preview Mode: User can choose real-time priority or fluency priority: The delay will be small
when under real time priority mode and fluency will be good when under fluency priority mode. Setting
based on the user need(Default value: real time normal (2). real time best (1), real time normal (2), fluency
normal (3), fluency good (4) and fluency best (5) optional).
Video Packaging Time(Minutes): Set recording video packaging time (default is 10, range from 1~120
minutes).
Video File Packaging Type: Set recording video le packaging type(default TS. TS, MP4 optional).
Videos/Pictures Storage Directory: Set videos/pictures storage directory(default C:\MyIPCam\).
Click the Save button to make settings effective.
4.3.1 Local congure

CW-210 User Manual
18
www.arec.com
Switch: Choose to enable the audio or not.
Encode Type: Set audio compressing format and the device will reboot automatically after change (default
MP3, AAC optional)
Sample Rate: Set sampling frequency and the device will reboot automatically after change (default
16000).
Sample Bit: Set sampling precision (default 16 bits).
Bit rate: Set audio compressing bit rate (default 64kbps, 32, 48, 64, 96, 128 optional).
Click “Save” button and the settings become effective when noting “Open audio or change another
parameters need to restart.”, restart the device to make settings effective.
4.3.2 Audio congure

CW-210 User Manual
19
www.arec.com
4.3.3 Video congure
Major options: Video Encode, Stream Publish, RTP Multicast Video Parameters, Video OSD, OSD Font Size
and Video Out. The detailed description refer to below sheet.
Set Option Explanation
Video Encode Set video output format of Main stream and Secondary stream.
Stream Publish Can turn on or off the Main / Sub stream and make the relevant settings.
RTP Multicast Can turn on or off the RTP Multicast of Main / Sub stream and make the relevant
settings.
Video Parameters Adjust the focus, exposure, color, image, noise reduction, style and other
parameters set.
Video OSD Select whether to display the date and time, title, and adjust the font color and
position.
OSD Font Size Modify the Main / Sub stream font size.
Video Out Select the video output format.

CW-210 User Manual
20
www.arec.com
1. Code stream: It will call different code stream when setting different video output format. (Main stream
and Secondary stream)
2. Compressed Format: Set video compressing format and the device will reboot automatically. (Main/
Second code stream default H.264, H.265 optional.)
3. Prole: Set H.264 / H.265 encode format and the device will reboot automatically. (H.264 encode format
default HP, H.265 encode format default BP, BP, MP, HP optional).
4. Image Size: Set resolution, then device will restart automatically. (Main stream default 1920*1080,
1920*1080, 1280*720, 640*480 optional. Secondary stream default640*360, 640*360, 320*240,
640*480, 320*180, 1280*720 optional).
5. Rate control: Set rate control mode and the device will restart automatically. (Main / Sub stream default
variable bit rate, xed rate is for option).
4.3.3.1 Video encode
