Owner’s manual
Dear Customer,
Quality has always been our driving force and founding
Argon Audio is a natural extension of this philosophy.
We have 20 years’ experience in creating and specifying
high quality products, manufacturing them and selling them
on to end users with Value-for-Money as the primary aim.
And Argon Audio is a brand fully compliant with these
values.
Design, features and quality standards are all specified in
Denmark and manufacturing takes place in the Far East,
where quality vendors are highly competitive - and as a
result supply outstanding Value-for-Money products
– to the delight of both ourselves and our customers!
Introduction
Thank you for choosing Argon Audio TT-2 Turntable, we
hope it will bring you many years of enjoyment.
Please read this manual fully before unpacking and
installing the product.
Maintenance and cleaning
Your record player requires little or no regular maintenance.
Remove dust with a slightly moistened antistatic cloth.
Never use a dry cloth because this will create static
electricity which attracts more dust! Antistatic cleaning fluids
are available at specialist stores but must be applied
sparingly to avoid damage to rubber parts. It is
recommended to fit the needle cover before cleaning or
maintenance is carried out to avoid damage.
If the player is not used over a long period of time the drive
belt can be removed to prevent unequal stretching.
Always disconnect the record player from the mains power
supply as a precaution before maintenance!
Useful tips
The record player should be positioned on a low-resonance
surface such as wood or multiple layer ply board to avoid
structural vibrations disturbing replay.
Environmental information
Argon TT2 complies with international directives on the
Restriction of Hazardous Substances (RoHS) in electrical
and electronic equipment and the disposal of Waste.
Electrical and Electronic Equipment (WEEE) - the crossed
bin symbol indicates compliance and that the products must
be appropriately recycled or processed in accordance with
these directives.
Safety instructions
Please store this instruction manual for future reference.
Do not use this product near water or moisture. Place the
unit on a solid surface. Do not block any ventilation
openings. Do not put it in a closed bookcase or a cabinet
that may keep air from flowing through its ventilation
openings. Do not install near any heat sources, such as
radiators, heat registers, stoves or other appliances that
produce heat. Protect the power cord from being walked on
or pinched, particularly at plugs and the point where they
exit from the product. Servicing is required when the
product has been damaged. Do not attempt to service this
product yourself. Opening or removing covers may expose
you to dangerous voltages or other hazards.

www.argonaudio.com 3
TT-2
Please contact the manufacturer to be referred to an
authorized service center near you. To prevent risk of fire or
electric shock, avoid over loading wall outlets, extension
cords, or integral convenience receptacles. Do not let
objects or liquids enter the product. Use proper power
sources. Plug the product into a proper power source, as
described in the operating instructions or as marked on the
product.

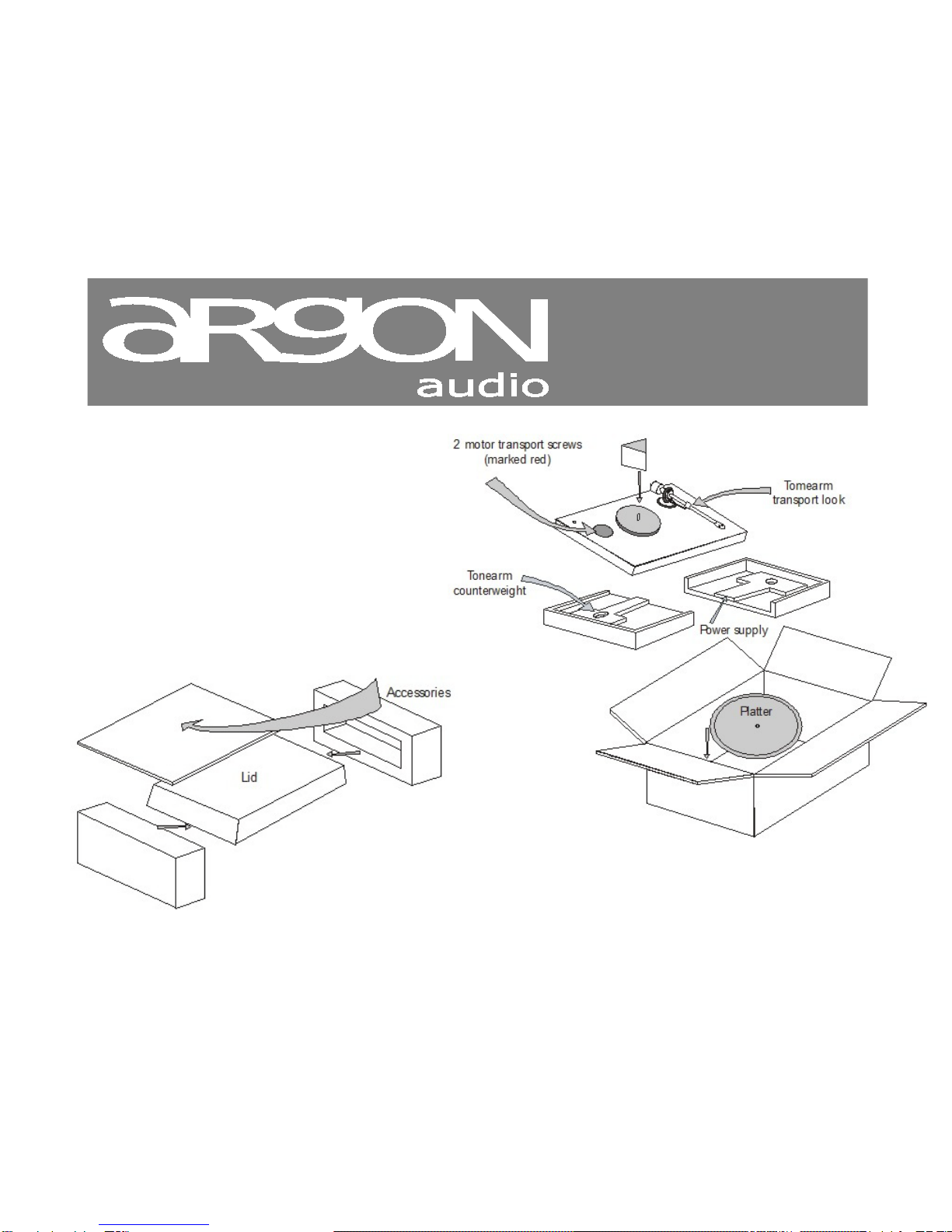

Unpacking
We have during production and packing carefully checked
and inspected this Turntable.
After unpacking please check for any damage from
transport.
We recommend that you keep the original carton box and
packing material for any future shipping.

www.argonaudio.com 4
TT-2
Controls, features and connections

www.argonaudio.com 5
TT-2

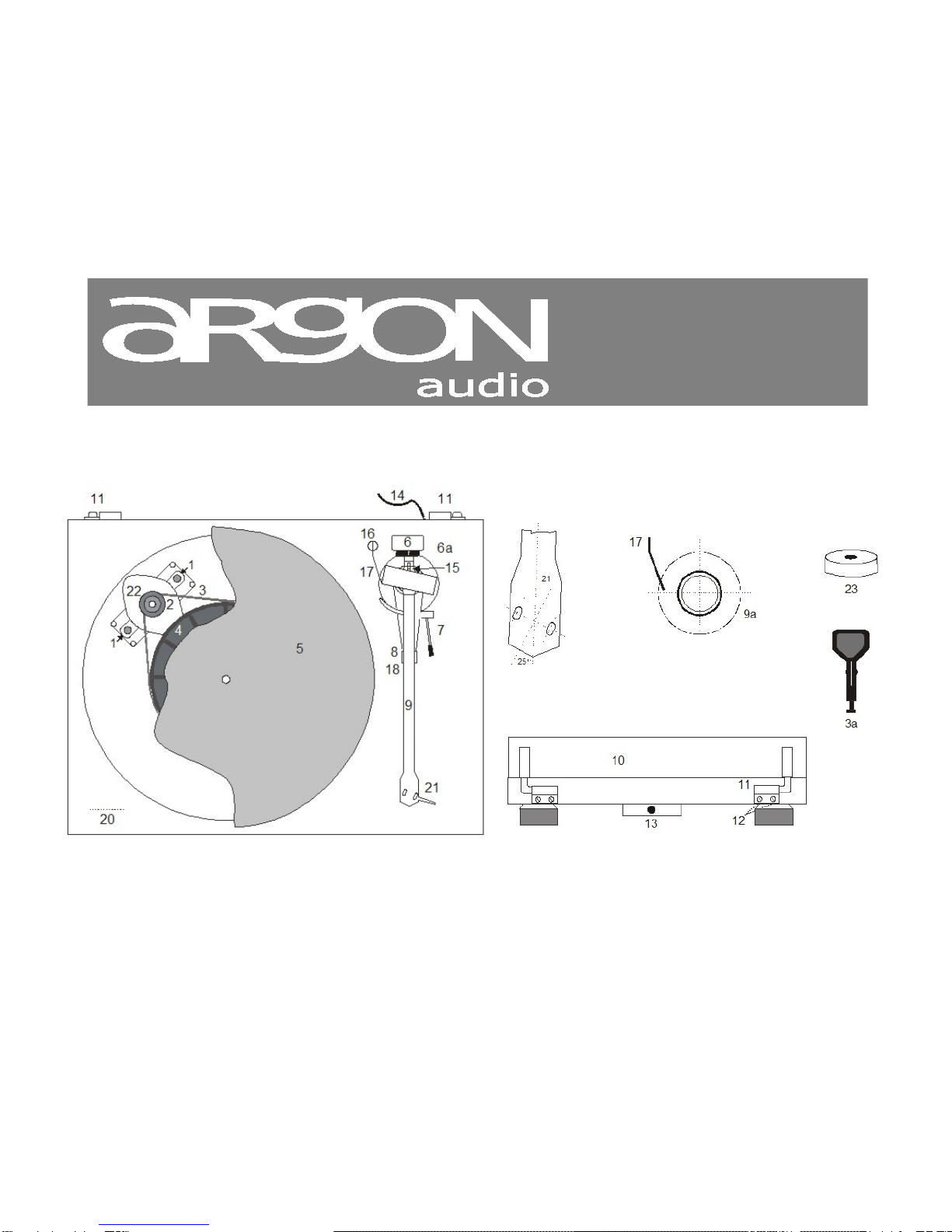

Controls, features and connections
1 Motor transportation screw (marked red)
2 Stepped drive pulley
3 Drive belt * - 3a Hook *
4 Hub
5 Platter with felt mat *
6 Tonearm counterweight * - 6a Downforce scale
7 Tonearm lift lever
8/18 Tonearm rest and removable transport lock
9 Tonearm tube - 9a Tonearm base
10 Lid *
11 Lid hinges
12 Hinge fasteners
13 Power supply socket
14 Signal output cable
15 Anti-skating weight adjustment scale
16 Anti-skating weight *
17 Anti-skating weight support hoop
20 Power switch
21 Headshell with finger lift and fitted
Ortofon OM 5E cartridge
22 Motor
23 Single adapter *
Power supply (not shown) *

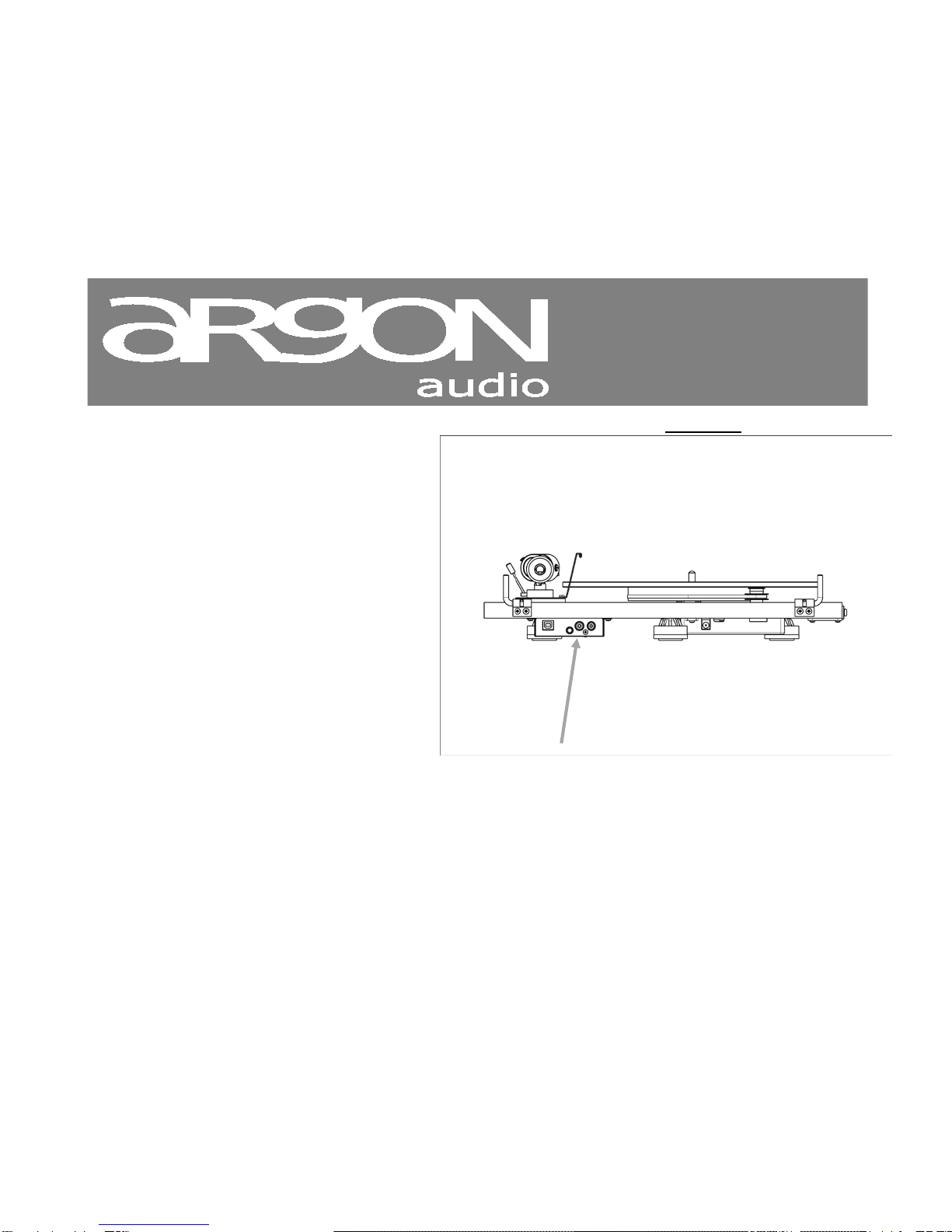

Connections especially for USB version
Compared to the non-USB version, the USB version has
connectors on the back.
The RCA cable and the ground cable has to connected to
the turntable. Whereas on the Non-USB version the RCA
cable is mounted on the turntable.
USB connection is also on the back of the USB version.

www.argonaudio.com 6
TT-2
Setup and usage
In order to achieve maximum performance and reliability with this record player you should study these instructions for use
carefully.
The Argon Audio TT2 record player is supplied with a factory fitted and adjusted cartridge.
** The following instructions for adjusting the cartridge are provided in case the cartridge is replaced by a different model at a later
date.
During assembly and adjustment of the deck, small parts could be lost if not carefully placed in a suitable receptacle.
Before starting assembly make yourself acquainted with the parts listed above and correspondingly numbered in the technical
drawings above. Separately packed items are marked with an asterisk *.
Set-up
Make sure the surface you wish to use the turntable on is level (use a spirit level) before placing the turntable on it.
Remove the two red transport screws (1) which secure the motor (22) during transportation.
Fit the drive belt (3) around the hub (4) and the smaller diameter part of the motor pulley (2). Avoid getting sweat or grease on the
belt as these will deteriorate the performance and reduce the belt's lifespan. Use absorbent kitchen paper to remove any oil or
grease from the outer edge of the hub and the belt. Fit the platter (5) and felt mat over the spindle of the hub (4).
Store the two motor transport screws (1) in the original packaging so they are available for any future transportation.
Cartridge down force adjustment
The counterweight (6) supplied is suitable for cartridges weighing between 3,5 - 5,5g. An alternative counterweight for cartridges
weighing between 6 - 9g is available as an accessory part. Adjust the down force prior to installing the anti-skating weight.
Gently push and turn the counterweight (6) onto the arm tube stub. Lower the arm lift and position the cartridge in the space between
arm rest and platter. Carefully rotate the counterweight (6) until the arm tube balances out. The arm should return to the balanced
position if it is moved up or down. This adjustment must be done carefully. Do not forget to remove the cartridge protection cap if
fitted.
Once the arm is correctly balanced return it to the rest. Hold the counterweight (6) without moving it, and gently revolve the down
force scale ring (6a) until the zero is in line with the anti-skating prong (15). Check whether the arm still balances out.
Rotate the counterweight counter clockwise (seen from the front) to adjust the down force according to the cartridge
manufacturer's recommendations.

www.argonaudio.com 7
TT-2
One mark on the scale represents 1 mN (= 0,1g / 0,1 Pond) of downforce.
The recommended downforce for the factory fitted cartridge is 17,5mN
Anti-skating force adjustment
The anti-skating force must be adjusted according to the mass of the cartridge as follows:
Downforce Groove in the stub (15)
10 - 15mN 1st from bearing rings
15 - 20mN 2nd " " "
20mN and bigger 3rd
" " "
Slip the loop of the anti-skating weight's thread over the third groove of the stub to set the correct anti-skating force for the factory-
fitted cartridge. Feed the thread through the loop of the wire support (17).
Connection to the amplifier
The Argon Audio TT2 has a captive tonearm signal lead (14) for connection to the amplifier. Use the Phono input (sometimes labelled
gram, disc or RIAA) on your amplifier. Make sure that the phono input offers correct matching and amplification for the type of cartridge
used. Line inputs (such as CD, Tuner, Tape or Video) are not suitable.
Take care to connect the left and right channels correctly. The right channel is usually marked red, the left channel black or white.
Check the manual supplied with your amplifier for relevant information. The earthing wire of the tonearm lead should be connected
to the earth terminal on your amplifier (if provided).
If your amplifier does not have an input suitable for phono cartridges you will require a separate phono amplifier stage for MM or
MC cartridges such as the PRO-JECT PHONO BOX, the NAD RIAA AMP or the CAMBRIDGE RIAA AMP, which is then connected
between the record player and a free line level input of the amplifier.
NOTICE. Argon Audio TT2 USB version has build in RIAA AMP
The recommended load resistance for the factory fitted cartridge is: 47kohms/MM-input

www.argonaudio.com 8
TT-2
Mains power connection
The turntable is supplied with a power supply suitable for your country's mains supply. Check the label before connecting to
ensure compliance with the mains rating in your house.
Connect the low voltage plug from the power supply to the socket (13) on the rear of the record player before connecting the power
supply to the mains.
Fitting the lid
Fit the lid (dust cover 10) carefully over the hinge prongs and adjust the screws (12) until the lid stays open where you want it to
without being too stiff to open or close.
Switching on and off
Pressing the power switch (20) alternately starts or stops the motor.
Changing replay speed
To play records at 45 r.p.m. first remove the platter (5). Using the accessory tool provided (3a), hook the belt (3) over the larger
diameter part of the motor pulley (2). Refit the platter. To revert to 33,33 r.p.m. repeat the proceedings using the smaller step on
the pulley.
Fitting and connecting the cartridge
** All cartridges with half inch mounting holes can be fitted. Leaving the needle's protection cover on, fit the cartridge to the
headshell using the screws supplied with the cartridge by passing one screw through each slot in the headshell (21). Do not
tighten the nuts yet.
Connect the tonearm wires to the cartridge pins as follows:
white left channel positive (L+)
red right channel pos. (R+)
green right channel return (R -)
blue left channel return (L -)
The full sound quality of the Argon Audio TT2 can only be achieved if the cartridge is correctly adjusted.
If you are not well acquainted with the adjustment of cartridges you are advised to call upon the willing help of your Argon Audio
dealer to accomplish this task for you.

www.argonaudio.com 9
TT-2
Adjusting the azimut
** The cartridge needle must be vertical in the record groove in order to trace the groove wall
modulations correctly.
A small screw at the bearing end of the arm allows incorrect azimut to be corrected if your
needle is not mounted exactly perpendicular to the cartridge body (which is often the case).
Slacken off the screw just enough to be able to revolve the arm tube without applying force.
Note! Do not remove the screw completely!
With the aid of a good magnifying glass adjust the needle until it is vertical in the groove (i.e. perpendicular to the record's
surface). Ideally this should correspond to the top surface of the cartridge body being parallel to the record surface. When you are
satisfied that the needle is vertical retighten the screw carefully.
Under no circumstances should the arm tube be adjusted with the needle still in the record groove! Irreparable damage may be
caused to the cantilever suspension! The arm must be lifted to make each adjustment and lowered afterwards to check it.

www.argonaudio.com 10
TT-2
Technical specifications Argon Audio TT2
Nominal speeds
33,33/45,11 r.p.m..
Speed variance ±0,8 %
Wow and flutter ±0,12 %
Signal to noise -65dB
Downforce range 10 - 30mN
Effective tonearm length
8,6 " ( 218,5mm)
Overhang 18,5mm
Power consumption
2W
Outboard power supply 16V/500mA AC, suitable for your country's mains supply
Dimensions (W x H x D) 415 x 118 x 320mm, dust cover open 415 x 365 x 405mm
Weight
USB Version specific 5,5kg
Build in RIAA AMP
Technical specifications ORTOFON OM 5E
Frequency response
20Hz - 20kHz
Recommended load resistance
47kohms
Channel balance <2dB Amplifier connection MM -input
Channel separation >22dB Recommended tracking force 17,5mN
Output voltage 4mV Weight 5g

www.argonaudio.com 11
TT-2
Troubleshoot - Potential incorrect use and fault conditions
Argon Audio turntables are manufactured to the highest standards and undergo strict quality controls before leaving the factory.
Faults that may possibly occur are not necessarily due to material or production faults but can sometimes be caused by incorrect
use or unfortunate circumstances. Therefore the following list of common fault symptoms is included.
The platter doesn't turn although the unit is switched on:
•The unit is not connected to the mains power supply.
•No mains at the socket.
•Drive belt is not fitted or has slipped off.
No signal through one or other channel or both channels:
No signal contact from the cartridge to the internal tonearm wiring or from that to the arm lead or from that to the phono box or
between that and the amplifier. This could be due to a faulty plug, broken wire or solder joint or simply loose plug/socket
connection.
•Phono input not selected at amplifier.
•Amplifier not switched on.
•Amplifier or speakers defective or muted.
•No connection to the loudspeakers.
Strong hum on phono input:
•No earth connection from cartridge or arm or arm cable to amplifier, or earth loop.
Distorted or inconsistent sound from one or both channels:
•Record player is connected to wrong input of amplifier, or MM/MC switch incorrectly set.
•Needle or cantilever damaged.
•Wrong r.p.m., drive belt overstretched or dirty, platter bearing without oil, dirty or damaged.
