ARIBEX Nomad Pro 2 User manual

OperatOr Manual
Manufactured by
Handheld X-ray System
for Intraoral Radiographic Imaging
®PRO 2

DO NOT OPERATE THIS DEVICE UNTIL YOU HAVE READ THIS MANUAL and reviewed the
accompanying materials.
Disclaimer: NOMAD®Pro 2 is sold with the understanding that the user assumes
sole responsibility for radiation safety (as well as any state, provincial, or local regulatory compliance)
and that Aribex, Inc., its agents or representatives, do not accept responsibility for:
a) injury or danger to personnel from X-ray exposure,
b) image over/under exposure due to poor operating techniques or procedures,
c) equipment not properly serviced or maintained in accordance with instructions
contained in this publication, and
d) equipment which has been damaged, modified, or tampered with in any way.
Aribex and NOMAD are registered trademarks within the United States and other countries.
NOMAD Dental, NOMAD Pro, NOMAD Pro 2, PORTA-X, and the ARIBEX and NOMAD
logos are trademarks of Aribex, Inc. worldwide. U.S. patents issued: 7,224,769 and
7,496,178. United States and international patents pending. All other brand and product
names are trademarks or registered trademarks of their respective companies.

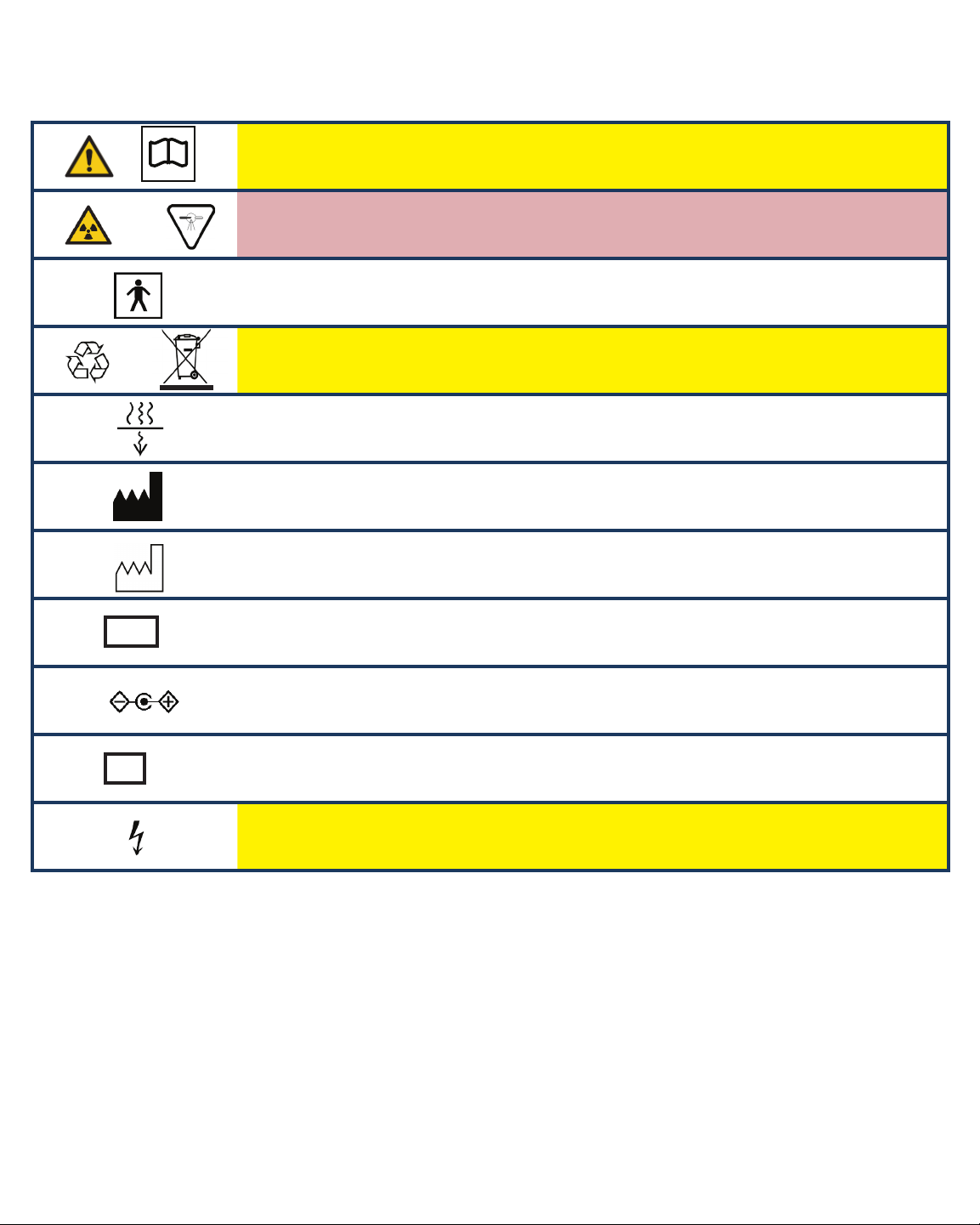

The symbols used in this publication or used to mark the equipment have the
following meanings:
REF
SN
Attention, consult accompanying documents
Ionizing Radiation
Type BF Equipment (providing a degree of protection against electric
shock, pertaining particularly to allowable leakage currents)
Instructions for handling product at end of life
Reference to a radiation filter or a value of filtration
Manufacturer of the device
Date of device manufacture
Model number or corresponding name
Power supply positive/negative orientation
Unique serial number for the device
Dangerous voltage, Electrical Shock Hazard
i

Table of Contents
1.0 Getting Started 6
1.1 Intended Use 6
1.2 Unpack, Check, and Register NOMAD Pro 2 System 6
1.3 Charging the Handsets 7
2.0 Safety Precautions 8
2.1 Radiation Safety 8
2.2 Usage and Duty Cycle 11
2.3 Cleaning 11
2.4 Security, Storage, and Transportation 12
3.0 Setup and Power Check 13
3.1 The Backscatter Shield 13
3.2 Attaching a Charged Handset 13
3.3 Checking for Power 14
3.4 Optional Checks 14
4.0 Operation 15
4.1 Powering Up 15
4.2 Ensuring Battery Charge Is Adequate 15
4.3 Lock / Unlock the X-ray 16
4.4 Ensuring the Right Exposure Time Is Set 16
4.5 Ready the Device 17
4.6 Initiating and Completing an X-ray Exposure 18
4.7 Power Off 18
4.8 Exposure Techniques 19
4.9 Settings Menu 20
4.10 Technique Factor Settings and Adjustments 22
5.0 Handset Replacement and Care 23
6.0 NOMAD Pro 2 Care and Upkeep 24
6.1 Alarms and Alerts 24
6.2 Troubleshooting 28
6.3 Repair and Maintenance 30
7.0 Technical Description 32
7.1 Basic Technical Specifications 32
7.2 Wiring Diagram 33
7.3 X-ray Tube Specifications and Characteristics 34
7.4 EMC Data 37
7.5 Optional Calibration Checks 40

Thank you for choosing the Aribex®NOMAD Pro 2 as your X-ray solution!
At Aribex we value your business and we would like to hear from you because your
feedback and suggestions are important to us. If you have comments, please email
us: [email protected].
NOMAD®Pro 2 Features:
• Performance – Battery power source delivers dependable high voltage (60kV, true DC)
and direct current (2.5mA).
• Consistent Emission Radiation – High-frequency, constant-potential X-ray generator
provides high quality images, with a lower radiation dosage to the patient than
standard AC X-ray systems.
• Radiation Protection – Operator shielded from source and backscatter radiation.
• Simple Operation – By selecting patient size, receptor type and tooth type, the factory
preset exposure time is digitally displayed on the user-friendly control panel along with
indicators for machine and battery status.
• Lightweight and Ergonomic – Design provides complete flexibility and convenience,
enabling exposures without moving the patient to the X-ray source.
• Exposure Safety Feature – Cannot emit X-rays with insufficient voltage (low battery).
• Engineered for Compatibility – Works with film, digital, and phosphor plate imaging
systems.
• Infrared Communication – IR technology used to facilitate reliable communication
between device head, battery handset, and charging cradle.
• Authorized Service – Complete support and maintenance from Aribex and through
our authorized distributors.
• X-ray Locking Feature – Enables the safe training, demonstration, and storage of
the device without undue concern related to unintended or unauthorized radiation
emission.
• Two Product Color Options – Black body with gray accents, in addition to traditional
color scheme, offers a variety of choices for complementing office décor.

6
NOMAD Pro 2
1.0 Getting Started
1.1 Intended Use
The NOMAD Pro 2 X-ray System is designed to be used for both adult and
pediatric patients by trained dentists and dental professionals for producing
diagnostic dental X-ray images.
1.2 Unpack, Check, and Register NOMAD Pro 2 System
 Unwrap individual components from the protective plastic and check for
any noticeable signs of damage. The standard package system includes the
following items:
• NOMAD Pro 2 Device
• 2 Handsets (AP-0158 for gray,
AP-0159 for black)
• Charging Cradle (AP-0160 for
gray, AP-0161 for black) and the
AC/DC Power Supply (CP-0062)
• Certificate of Conformance,
Getting Started Guide,
Warranty/Registration Card,
and NOMAD Pro 2 Operator
Training CD
 Preliminary Checks:
Item Check
Device Labels Verify that the serialized device label is in place (located on
lower side of unit).
Other Labels Verify that the serial number on the warranty/registration
card matches the device serial number on the device and
the device serial number on the carrying case. Verify that
the handsets’ label (located on the top of each handset)
and the charging cradle label (located on the bottom of the
charging cradle) are all in place.
Collimator Cone and
Backscatter Shield
These two items provide operator protection and should be
inspected for shipping damage.
Trigger Switch Should freely move in and out when depressed and
released.
Device Housing Should be free of cracks or fractures.

7
OperatOr Manual
 Complete the product warranty/registration card and mail it with proper
postage to Aribex today. Completing the card fulfills a condition of warranty
coverage (see the inside back cover of this manual) and enables you to
receive valuable product news and updates.
1.3 Charging the Handsets
NOTE: The handsets (batteries) are partially charged at the factory and
normally need not be charged prior to initial use of the NOMAD Pro 2.
However, if the system has been in long-term storage prior to initial use,
handsets must first be fully charged before attempting to take X-rays.
It is recommended to fully recharge handsets every three months while in
long-term storage to ensure that no low battery becomes damaged.
 Use only the supplied AC/DC power supply (CP-0062). Unwrap the
power cord of the power supply and connect it to the charging cradle, then
to an AC electrical outlet (110/120V or 220/240V, dictated by the country/
region). The single green circle on the charging indicator will illuminate
green if there is adequate power to the charging cradle. If the green circle
does not illuminate, the charging cradle is not receiving adequate power
and may need to be sent to an Aribex authorized service center for repairs.
Position the charging cradle away from the normal patient environment. A
plug adapter may be needed to accommodate the local AC configuration.
 Invert one of the handsets and carefully slide it onto the charging cradle
(do not force the handset onto the charging cradle or damage may result).
Expect charge time to be less than three hours. The handset, charging
cradle, and AC power supply may become warm to the touch while
charging.
 When the handset is first slid onto the charging cradle, the first bar will
illuminate green for approximately two seconds to indicate that the cradle
and handset are communicating. If the first bar first illuminates green, but
then all of the bars illuminate red, the charging cradle and/or handset will
need to be sent to an Aribex authorized service center for repairs. Authorized
service will also be required if no illumination occurs upon sliding the handset
onto the charging cradle.
 After illuminating green, the first bar will begin flashing to indicate that
charging has begun. When the first bar turns solid green, the handset is 1/3
charged, and the second bar will begin flashing green. When the second bar
turns solid green, the handset is 2/3 charged, and the third bar will begin
flashing green. Once the third bar turns solid green, the handset is fully
charged. The handset may be left on the charging cradle after reaching a
full charge without damaging the batteries.

8
NOMAD Pro 2
2.0 Safety Precautions
2.1 Radiation Safety
This X-ray unit may be dangerous to patient and operator unless safe
exposure factors, operating instructions, and maintenance schedules are
observed.
• Operators must follow all applicable
regulatory guidelines and in-house
radiation protection programs in regard
to patients and operators who are
pregnant or expect to become pregnant.
• Operators must be fully acquainted
with industry safety recommendations,
established maximum permissible doses,
and local jurisdiction requirements for use.
• Optimal operator radiation back-
scatter protection exists when the following
measures are taken:
a) the backscatter shield is positioned at
the outer end of the collimator cone,
b) the backscatter shield is close to the
patient,
c) the patient tilts his or her head when
needed to accommodate exposures (see
Section 4.8), and
d) the operator remains within the
significant zone of occupancy immediately
behind the device shield.
• Do not enable the NOMAD Pro 2
until patient and operator are positioned
and ready for the exposure, preventing
interruption and inadvertent exposure of
anyone to X-rays.
• Do not attempt an exposure if
anyone other than the patient is in the
direct beam. If others are assisting, then
they should wear protective covering as
required by local jurisdictions.
• When selecting and using Position Indicating Devices (PIDs), preference
should be given to models that allow the backscatter shield to remain at the
outer end of the collimator cone for maximum operator protection.

9
OperatOr Manual
• An exposure can be terminated for any reason by prematurely releasing
the depressed trigger (for more information, see Section 4.0, Operation).
• As shown in graphic representations, maximum protection (green area)
from backscatter radiation (red area) exists when the NOMAD Pro 2 is
positioned near the patient, is perpendicular to the operator (with the
patient’s head tilted if needed), and the backscatter shield is fully
extended toward the patient and parallel to the operator.
• Operation outside the protection zone (or with a diminished protection
zone) requires proper precautions such as the use of a lead apron
and thyroid collar, according to requirements of local jurisdictions.
• Do not operate if the backscatter shield or collimator cone is broken!
In implementing a radiation protection program, consult all applicable
regulations governing radiation protection and the use of X-ray
equipment, and ensure full compliance with any such regulations.
Proper
Positioning
MaxiuMuM
prOtectiOn
Device held
back
Shield slid back Non-
perpendicular
MiniMized prOtectiOn

10
NOMAD Pro 2
Comparative Data for Whole Body Exposure (Annual)
50mSv Occupational Dose Limit1
5mSv Occupational Dose Limit Requiring Dosimetry1
3.65mSv Average Natural Background Radiation2
2.19mSv Average Occupational Radiation Exposure for Flight Crews3
1.00mSv General Public Dose Limit1
0.20-0.70mSv Range of Exposure for Dental Personnel Using Conventional X-rays2
0.30mSv Average Exposure Using NOMAD with D-Speed Film4
0.12mSv Average Exposure Using NOMAD with F-Speed Film or Digital Sensor4
1) Standards for Protection against Radiation, 10 CFR 20 (US Federal Standards), 1994 (see also NCRP Report No.
116 and Suggested State Regulations for Control of Radiation D.1201)
2) NCRP Report No. 145 (National Council on Radiation Protection and Measurements), p7-9
3) “Estimated Cosmic Radiation Doses for Flight Personnel,” Feng YJ et al, Space Medicine and Medical Engineer-
ing, 15(4) 2002, p265-9
4) Normalized average assumes 7,200 exposures per year, and the average length of exposure for D-speed =
0.50 seconds, F-speed = 0.25 seconds, digital sensor = 0.20 seconds
Comparative Data for Hand and Extremity Exposure (Annual)
500mSv Occupational Dose Limit1
50mSv Occupational Dose Limit Requiring Dosimetry1
0.43mSv Average Exposure Using NOMAD with D-Speed Film2
0.22mSv Average Exposure Using NOMAD with F-Speed Film or Digital Sensor2
1) Standards for Protection against Radiation, 10
CFR 20 (US Federal Standards), 1994 see also
NCRP Report No. 116 and Suggested State Regula-
tions for Control of Radiation D.1201)
2) “Radiation Exposure with the NOMAD Portable
X-ray System,” Goren AD et al, Dentomaxillofa-
cial Radiology, 37 (2008), S.109-12; normalized
average (includes leakage and backscatter radia-
tion) assumes 7,200 exposures per year, and the
average length of exposure for D-speed = 0.50
seconds, F-speed = 0.25 seconds, digital sensor =
0.20 seconds
X-ray Source
Focal Spot
Fixed Beam
Limiting Device
Backscatter
Radiation
Shielding
Primary
Protective
Shielding
Protective Shielding

11
OperatOr Manual
2.2 Usage and Duty Cycle
As a safety feature, the NOMAD Pro 2 will not emit X-rays with insufficient
voltage (low battery).
The NOMAD Pro 2 is also designed to avoid damage from overheating. The
minimum duty cycle rating for maximum exposure (the relationship between
duration and frequency of exposures taken during a rolling 60 second period)
is 1:60. This duty cycle is programmed into your NOMAD Pro 2. The following
table shows examples of optimal use:
Exposure Duration 0.09 sec 0.20 sec 0.40 sec 1.00 sec
Hypothetical Time
Between Exposures 6 seconds 12 seconds 24 seconds 60 seconds
Exposures Per Minute >10 >8 >2 1
Do not operate the NOMAD Pro 2, the handset, charging cradle, or
AC power supply if equipment was subjected to moisture (wetting,
immersing, or soaking). Return to Aribex for service.
• Do not open the housings. Doing so will void the warranty. There
are no user serviceable parts inside the NOMAD Pro 2, handset,
charging cradle, or AC power supply.
• The NOMAD Pro 2 should not be used in environments where flammable
cleaning agents are present.
• Locate the charging cradle away from the normal patient environment.
2.3 Cleaning
 Routinely use a non-acetone based disinfectant wipe (according to
chemical manufacturer’s recommendations) to disinfect the exterior surfaces
of the NOMAD Pro 2 and the handset in between use on each patient.
 Leave the handset connected to the NOMAD Pro 2 and wipe down all
surfaces of the device.
 Unplug the charging cradle before cleaning.
NOTE: The NOMAD Pro 2, the handsets, the charging cradle, and the AC
power supply are not designed to be subjected to any kind of sterilization
procedure.
Do not spray disinfectant or cleaners directly on the NOMAD Pro 2,
handsets, charging cradle, or AC power supply. The connecting areas are
open to ingress and damage to your device may result.

12
NOMAD Pro 2
2.4 Security, Storage, and Transportation
• Do not store the NOMAD Pro 2, handsets, charging cradle, or AC power supply
in extreme conditions: below –20°C (–4°F) or above +60°C (+140°F), or
beyond 95% relative humidity (non-condensing). The optimal storage
location is cool, dry, and away from direct sunlight.
• Aribex recommends that the NOMAD Pro 2 (like all electronic equipment)
be allowed to acclimate before use when switching between temperature
extremes (i.e., cold storage area to a warm use area or hot storage area
to a cool use area).
• When finished for the day with the NOMAD Pro 2, detach the handset.
• The X-RAY LOCK and UNLOCK (Section 4.3) serves as the device security
key to prevent unauthorized use. In addition, it is recommended that the
device be locked away when not in use. For a further level of security,
securely store handsets in a separate location.
• Take steps to ensure the NOMAD Pro 2 will not be knocked to the
ground when not in use. Lay it on its top, side or in the accessory table-
top stand (AC-0005). Power will automatically shut off after a period of
inactivity (approximately three minutes).
• Do not store or carry handsets so that metal objects can contact exposed
battery contact springs.
• Some battery charge may be lost during extended inactivity (leading to
fewer exposures between handset charging cyles).
• The NOMAD Pro 2 should not be operated if it has been dropped
or if performance degrades; it should be returned to Aribex for an
evaluation.
• When finished for the day with the NOMAD Pro 2, detach the handset.
• For long-term storage, it is recommended to fully recharge the handsets
every three months.

13
OperatOr Manual
3.0 Setup and Power Check
3.1 The Backscatter Shield
In addition to the radiation shielded cone, the backscatter shield provides
additional protection to the operator and features an adjustable position to
permit exposures made at various angles.
 Ideally, the shield should remain fully extended to the outer edge of the
cone, as close to the patient as possible during each image taken (see 2.1,
Radiation Safety).
 You may find that the backscatter shield needs to be adjusted to
accommodate position indicating devices or angled exposures. If adjust-
ments are needed, gently glide the shield up or down along the cone using
equal pressure to maintain a perpendicular alignment and to avoid binding.
 To keep the shield securely on the cone, a cap is permanently attached
at the outer cone end. Do not attempt to remove this cap or to remove the
backscatter shield. Attempting to do so will result in damage to your device
and void the warranty.
3.2 Attaching a Charged Handset
 With the NOMAD Pro 2 placed bottom up on a secure surface, properly
orient and carefully slide the charged handsets onto the base of the NOMAD
Pro 2 (a properly oriented handset should click into place with firm pressure).
 The clicking sound ensures the locking mechanism has secured the
NOMAD Pro 2 to the handset. To verify this lock, apply slight pressure in the
release direction.
There are electric currents present at the handset terminals. Protect the
handset from damage; do not probe with fingers or conductive objects.

14
NOMAD Pro 2
3.3 Checking for Power
 After locking a handset in place press the Power ( ) button.
 The operation control display panel will activate with a “battery power
level” icon in the upper right corner. Five bars is an indication of a fully
charged handset.
 If the battery charge is too low, the NOMAD Pro 2 will not emit an X-ray
and the RECHARGE HANDSET alarm will display. (The RECHARGE
HANDSET alarm may also display if the handset is not fully engaged.)
 When a battery is depleted to the single bar level ( ), it is recommended
the handset be recharged.
 Replace a low charge handset with the secondary handset (which
should be charged in advance).
3.4 Optional Checks
The NOMAD Pro 2 is factory calibrated and tested prior to release (see your
Certificate of Conformance). Each time the device power is turned on, it
automatically runs a self-diagnostic to ensure proper function. However, the
optional checks listed below may be performed periodically as desired.
Some locations may require initial and periodic checks as a condition of use.
The NOMAD Pro 2 has an X-ray disable feature that allows the X-rays to
be disabled for training purposes. Test firing this X-ray unit may otherwise
be dangerous to the testing technician or bystanders. See Section 4.3 for
more information.
• Power On/Off: Attach a fully charged
handset to the NOMAD Pro 2 device. Press
the Power ( )button and verify the Power
On and Power Off states.
• Increase/Decrease Exposure Time:
With the device on, select the patient size,
the image receptor type, and the tooth type.
The exposure time corresponding to the
selections will display on-screen. Press the
Increase ( ) and the Decrease ( ) buttons,
and verify that the exposure time changes
appropriately.
• Triggering: With the device on and an
exposure time selected, press and release the
trigger once. This will ready the device, and
the display will indicate the X-ray READY state. To end the X-ray READY
state, press any push button on the user interface panel or wait approximately
15 seconds for the timeout.
PRO 2
0.12 sec
60 kV 2.5 ma

15
OperatOr Manual
• Automatic Shutdown: With the device on, allow approximately three
minutes of inactivity to pass for the system to automatically turn off or
shut down.
• X-ray Disable: With the device on, press and hold down the Select
() button and while continuing to hold, press the Patient ( )
button. The device shifts into a X-RAYS LOCKED state and the buttons
can be released. Repeat the process to unlock the X-ray.
The NOMAD Pro 2 should not be operated if it has been dropped or if
performance degrades; it should be returned to Aribex for an evaluation.
See Section 6.1, Alarms and Alerts, for more information.
4.0 Operation
4.1 Powering Up
Press and release Power ( ) button to
turn on NOMAD Pro 2. An audible double tone
and an active display panel indicate the device
has power.
Settings are redisplayed according to what was
last displayed or saved when the device was
turned off (unless the device was disconnected
from a charged handset for more than one minute).
4.2 Ensuring Battery Charge Is Adequate
Charged
At the completion of each day or when the
battery indicator reaches one bar, recharge the
handset. (It is recommended that you keep one
handset fully charged at all times to ensure
continuous operation.)
Low

16
NOMAD Pro 2
4.3 Lock / Unlock the X-ray
The X-ray lock and unlock functionality can be
toggled to prevent unauthorized use when the
NOMAD Pro 2 is idle or stored.
LOCK / UNLOCK is activated by pressing and
holding down the Select ( ) button and then
pressing the Patient ( ) button. The device
shifts into a X-RAYS LOCKED state and the
buttons can be released. Repeat the process to
“unlock” the x-ray device.
For security and training purposes, the operator
may easily toggle between these settings as
needed by repeating the key selection.
NOTE: If the Select ( ) button is held down
for longer than 3 seconds before the Patient
( ) button is pressed, the Menu mode will
activate; if the Select ( ) button is pressed
and released before the Patient ( ) button
can be pressed, the Save menu is displayed.
4.4 Ensuring the Right Exposure Time Is Set
When power is turned off, the most recent
setting for the exposure time is stored in the
memory and redisplays when power is turned
back on. However, if the battery is replaced, the
display is reset to the default value.
To change exposure settings press each of the
button options to toggle through the choices:
1) the Patient Size (adult or child),
2) the Image Receptor (film, phosphor plate,
or sensor), and
3) the Tooth Group (Anterior, Posterior, or
Bitewing).
60 kV 2.5mA
0.12 sec
Patient
Receptor
Tooth
X-RAYS LOCKED

17
OperatOr Manual
Examples from factory default settings:
Child, Sensor, and Incisor = 0.09sec OR
Adult, Film, and Molar = 0.38sec
When necessary, use the Increase or Decrease
buttons to adjust the time in 0.01 second
increments. Adjusted exposure settings may be
saved, replacing factory settings (see Section
4.10, Technique Factor Settings and Adjustments).
4.5 Ready the Device
To prevent accidental radiation exposure, properly
position patient and operator before readying
the NOMAD Pro 2.
Press and release the trigger once to ready
the device. The device will briefly display an
ENABLING X-RAYS message before indicating
READY.
NOTE: As a safety precaution, if the trigger is
held longer than one second or pulled a second
time while still in the ENABLING X-RAYS state,
the device will not transition to the READY
state. (This is to prevent an accidental activation
of the device by unintended triggering.)
The illuminated green LED, the message READY
on the display panel, and a double tone
alert confirm that NOMAD Pro 2 is prepared
to fire x-rays. The READY state continues until
either an exposure is initiated or timeout occurs
after 15 seconds of inactivity (accompanied by a
double tone and the return to the settings
mode).
While the device is in the READY state, any
changes to the settings (pressing any user interface
panel button) will end the state.
Increase
Decrease
green

18
NOMAD Pro 2
4.6 Initiating and Completing an X-ray Exposure
To begin the exposure, press and hold the
trigger. The READY message is replaced with
X-RAY ON, the green LED is replaced with a
yellow LED, and there is an alert tone for
the duration of the exposure.
To ensure complete exposure, keep the trigger
depressed until the audible tone is complete,
the yellow LED is off, and X-RAY COMPLETE
message briefly displays.
NOTE: An exposure can be terminated for any
reason by prematurely releasing the depressed
trigger.
4.7 Power Off
Press and release the Power ( ) button to
turn NOMAD Pro 2 off.
The NOMAD Pro 2 also automatically shuts off
after approximately three minutes of inactivity.
The NOMAD Pro 2 display darkens, accompanied
by a tone to indicate shutdown.
yellow

19
OperatOr Manual
4.8 Exposure Techniques
As an intraoral dental X-ray system, the
NOMAD Pro 2 can be easily positioned.
This high degree of flexibility easily
makes possible exposures while the
patient is reclined, lying completely on
their back, or sitting upright. Ensure the
patient is protected by using a radiation
shielding drape.
 When taking images, operators
may hold the NOMAD Pro 2 by having
both hands on the handset grip, or, for
increased stability and patient safety, by
placing one on the grip and the other on
the underside of the housing (but not on
the collimator cone).
 Position the NOMAD Pro 2 relative
to the imaging system to minimize
cone-cutting. (If your practice uses film
holding kits or aiming devices, check
compatibility in advance.)
 Exposure times increase proportionally
when the imaging angles vary away
from 90° (or perpendicular) to the film
or sensor. To maintain low patient X-ray
doses and to keep the operator within
the protection zone, have the head of
the patient slightly tilted, and/or raise or
lower the chin as needed. (See Section
2.1, Radiation Safety.)
 When the device must be angled and the operator cannot be completely
within the protection zone, ensure operator protection through the use of
proper safety measures, such as the use of a lead apron. (See Section 2.1,
Radiation Safety.)
 Avoid touching the patient with the cone or backscatter shield; disposable
plastic coverings can be used to prevent cross-contamination.
 Determine what NOMAD Pro 2 exposure time settings deliver optimal
results for the type of imaging (digital or film-based) that is used on a regular basis.
NOTE: Both digital imaging sensors and film speeds can vary somewhat in
their characteristics and could require different exposure settings to meet
density preference. (See Section 4.9, Settings Menu for more information.)

20
NOMAD Pro 2
4.9 Settings Menu
The NOMAD Pro 2 menus allow the operator to customize settings according
to individual preferences. To access the Main Menu, press and hold down
the Select ( ) button for three seconds. When the Main Menu appears,
the operator can access the desired menu item(s) by pressing the Increase
( ) and Decrease ( ) buttons to scroll up or down. When the desired
menu item is highlighted, press the Select ( ) button to access the menu
item.
Within the menu items there are options (such as YES and NO) which are
selected using either the Increase ( ) or Decrease ( ) buttons. Once
a selection is made, pressing the Select ( ) button confirms the choice.
To exit the Main Menu, highlight EXIT at the bottom of the list and then
press the Select ( ) button, or power the device off and then on.
Menu Item Options
SYSTEM INFO
When system information is selected from the
settings menu, the device software version information
will be displayed on-screen. Pressing the Select
() button will return the operator to the
settings menu.
AUDIBLE SOUND
The volume may also be adjusted by the operator.
The range is from one (softest), up to five (loudest).
The Increase () or Decrease ( ) buttons
are used to adjust the volume, and the system
emits a tone as each volume is selected so the
operator can determine the choice. Once the
desired volume is determined, pressing the Select
() button saves the volume setting.
