Ariens 90102800 User manual

Owner's Manual
427490 Rev. 1 03.18.09
Printed in USA
REAR TINE TILLER
Models
90102800 17" REAR TINE TILLER
%.',)3(

18
2
100
101 102
19
31
17
16
11
15
21
27
18
20
11
10
12
6
14 13
42
handle_assy_101
REAR TINE TILLER - MODEL NUMBER 90102800 (MFG. ID. NO. 96096000100)
HANDLE ASSEMBLY

19
2 165787 21546171 Grip, Handle
6 425577 21546735 Console Control
10 8206H 21546825 Handle, Grip
11 4497H 21546739 Retainer Spring
12 81328 21546824 Bolt, Shoulder
13 187497 21546247 Handle, Shift
14 109313X 21546044 Grommet, Rubber
15 138400 21546092 Rod, Shift
16 72110608 21546764 Bolt 3/8-16 x 1 Gr. 5
17 109229X 21546042 Lock, Handle
18 73680600 21546785 Nut, Hex, Crownlock 3/8-16
19 19131611 21546285 Washer 13/32 x 1 x 11 Ga.
20 109228X 21546041 Lever, Lock, Handle
21 193129 21546306 Handle, Assemble
27 73900400 21546788 Nut, Hex Flange 1/4-20 unc
31 150696 21546120 Bolt, Pivot
42 416358 21546675 Screw
100 193133 21546307 Lever
101 188555 21546265 Pin, Pivot
102 12000059 21546059 Retaining Ring
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
REAR TINE TILLER - MODEL NUMBER 90102800 (MFG. ID. NO. 96096000100)
HANDLE ASSEMBLY
ITEM MFG. ARIENS
NO. NO. PART NO. DESCRIPTION

20




  

 
  

























MAINFRAME?LEFT?



REAR TINE TILLER - MODEL NUMBER 90102800 (MFG. ID. NO. 96096000100)
MAINFRAME, LEFT SIDE

21
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
3 73220600 21546776 Nut, Hex 3/8-16
4 170127 21546184 Shield, Inner Belt Guard
5 164329 21546166 Pin, Shift Lever
6 162756 21546161 Lever, Shift
7 72110404 21546760 Bolt 1/4-20 unc x 1/2 Gr. 5
8 161530 21546158 Plate, Shift Indicator
9 86777 21546830 Screw, Tap Hex Head
10 9484R 21546839 Clip, Cable
12 73510400 21546779 Nut, Keps Hex 1/4-20 unc
13 23230506 21546545 Screw Set 5/16-18 x 3/8 Patch
14 110652X 21546049 Spacer, Split .327 x .42 x 2.09
15 19111116 21546279 Washer 11/32 x 11/16 x 16 Ga.
16 145102 21546111 Sheave, Transmission
19 12000028 21546052 Ring, Retainer
21 156117 21546135 Spacer, Split .327 x .42 x 1.220
22 74770508 21546813 Bolt, Hex Head 5/16-24 unf x 1/2
23 102190X 21546015 Tire
183122X428 21546222 Rim
795R 21546823 Tire Valve
24 126875X 21546078 Rivet, Drilled
25 4497H 21546739 Retainer Spring
26 165501X422 21546168 Guard, Belt
27 132801 21546085 Belt, V
28 104679X 21546022 Pulley, Idler
29 12000032 21546054 Ring, Klip
30 159229 21546143 Bracket, Idler
31 102384X 21546019 Bolt, Hex 5/16-16 x 12
32 102141X 21546012 Shaft, Idler Arm
33 74760616 21546811 Bolt, Hex 3/8-16 x 1
34 102383X 21546018 Counterweight, LH
36 102331X 21546016 Bracket, Reinforcement, LH
37 130812 21546079 Sheave, Engine
38 74760544 21546809 Bolt, Fin Hex 5/16-18 x 2-3/4
39 140062 21546099 Cap, Plunger
40 170488 21546185 Screw Hex Wsh Hd #8-18 x 1/2
44 73800500 21546786 Locknut, Washer Insert 5/16-18
65 73970500 21546796 Nut, Hex, Flangelock
66 19131312 21546283 Washer 13/32 x 13/16 x 12 Ga.
67 74760524 21546807 Bolt, Hex Head, Gr. 25/16-18 x 1-1/2
68 73510600 21546781 Nut Keps Hex 3/8-16 unc
REAR TINE TILLER - MODEL NUMBER 90102800 (MFG. ID. NO. 96096000100)
MAINFRAME, LEFT SIDE
ITEM MFG. ARIENS
NO. NO. PART NO. DESCRIPTION

22
5
6
7
44
11
12 13
15
2
2
10
3
1
4
2
mainframe_right_Subaru_1
REAR TINE TILLER - MODEL NUMBER 90102800 (MFG. ID. NO. 96096000100)
MAINFRAME, RIGHT SIDE

23
1 185190 21546231 Bumper
2 73970500 21546796 Nut, Hex, Flangelock
3 19111116 21546279 Washer 11/32 x 11/16 x 16 Ga.
4 74760512 21546804 Bolt, Hex Head 5/16-18 x 3/4
5 102332X 21546017 Bracket, Reinforcement
6 74760528 21546808 Bolt, Fin Hex 5/16-18 unc x 1-3/4
7 102173X 21546014 Counter Weight, RH
10 74760524 21546807 Bolt, Hex Head, Gr. 25/16-18 x 1-1/2
11 4497H 21546739 Retainer Spring
12 126875X 21546078 Rivet, Drilled
13 102190X 21546015 Tire
183122X428 21546222 Rim
795R 21546823 Tire Valve
15 - - - - - - - - - - - - Engine, EX17ODT1030
44 73510600 21546781 Nut Keps Hex 3/8-16 unc
REAR TINE TILLER - MODEL NUMBER 90102800 (MFG. ID. NO. 96096000100)
MAINFRAME, RIGHT SIDE
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
ITEM MFG. ARIENS
NO. NO. PART NO. DESCRIPTION

24
12
1315
16
14
57 9
9
8
518
23
22
21
19
18
55
56
55
54
3
2
29
31
7
6
5
4
11
10
30
28
18 3233
34
18
48
60
24
44
18
42 43
41
49
40
39
37
38
37
50
36
20
25
27
35
25 24
44
51 58
53
52
53
transmission_7
REAR TINE TILLER - MODEL NUMBER 90102800 (MFG. ID. NO. 96096000100)
TRANSMISSION

25
1 188240 21546259 Transmission Assembly (Includes Key Nos. 2-52)
2 188220 21546257 Gearcase, LH w/Bearing (Includes Key No. 4)
3 161963 21546160 Gasket, Gearcase
4 5020J 21546744 Bearing, Needle
5 1370H 21546088 Washer, Thrust 5/8 x 1.10 x 1/32
6 161520 21546150 Pinion, Input
7 161518 21546149 Shaft, Input
8 4895H 21546740 Bearing, Needle
9 154467 21546130 Washer, Seal
10 7392M 21546792 Ball, Steel
11 100371K 21546000 Spring, Shift, Fork
12 106160X 21546033 O-Ring
13 142145 21546105 Arm, Shift
14 8353J 21546826 Fork, Shift
15 12000039 21546057 Ring, Klip
16 161516 21546148 Shaft, Shift
18 4358J 21546737 Washer
19 12000040 21546058 Ring, Klip
20 102114X 21546008 Gear, Assembly, Reverse Idler (Includes Key Nos.
21 and 22)
21 102115X 21546009 Gear, Reverse Idler
22 6803J 21546753 Bearing, Needle
23 161527 21546155 Shaft, Reverse Idler
24 STD551143 21546843 Washer, Lock 7/16
25 STD541143 21546842 Nut, Hex 7/16-20
27 143009 21546108 Bearing, Shaft, Ground Drive LH
28 106390X 21546036 Spacer 0.765 x 1.125 x 1.23
29 102134X 21546011 Chain #35-50 Pitch
30 150737 21546121 Ground Shaft Assembly
31 143008 21546107 Bearing, Shaft, Ground Drive RH
32 106388X 21546035 Spacer 0.70 x 1.00 x 1.150
33 102121X 21546010 Sprocket and Gear Assembly
34 102112X 21546007 Shaft, Reduction (2nd)
35 102101X 21546006 Screw, Whiz, Lock 5/16-18 x 3-1/2
36 161524 21546152 Sprocket Assembly w/Bearing (Includes Key Nos.
37 and 38)
37 100413K 21546005 Bearing, Needle
38 161525 21546153 Sprocket, Tine
39 161526 21546154 Gear, Cluster, Red 1st & 2nd
40 105346X 21546026 Gear, Reverse
41 161523 21546151 Shaft, Reduction (1st)
42 4220R 21546687 Washer, Thrust
43 106146X 21546031 Spacer 1.01 x 1.75 x 0.760
44 155236 21546133 Seal Asm. Oil
48 188235 21546258 Gearcase, RH w/Bearing (Includes Key No. 8)
49 132688 21546084 Shaft, Tine
50 106147X 21546032 Chain, Roller #50-50 Pitch
51 17720408 21546210 Screw 1/4-20 x 1/2
52 73220500 21546775 Nut, Hex 5/16-18
53 165140 21546167 Bearing Kit, Tine Shaft
54 161528 21546156 Gear, DRT Idler w/Bearing (Includes Key No. 55)
55 3400R 21546551 Bearing, Needle
56 161529 21546157 Gear, DRT Idler
57 165889 21546173 Spacer, Split .52 x .64 x 1.04
58 179520 21546215 Screw 1/4-20 x .875
60 183226 21546223 Fitting Grease
- - 6066J 21546749 Grease, Plastilube #1
REAR TINE TILLER - MODEL NUMBER 90102800 (MFG. ID. NO. 96096000100)
TRANSMISSION
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
ITEM MFG. ARIENS
NO. NO. PART NO. DESCRIPTION

26
2
31
29
29
15
1
38
13
14
14
24
23
26
27
22
21
20
19
38
16
38
25
33
32
16
3
4
4
3
77
8
9
5
23
23
28
24
18
65
6
5
30
5
tine_shield_17_in_1
REAR TINE TILLER - MODEL NUMBER 90102800 (MFG. ID. NO. 96096000100)

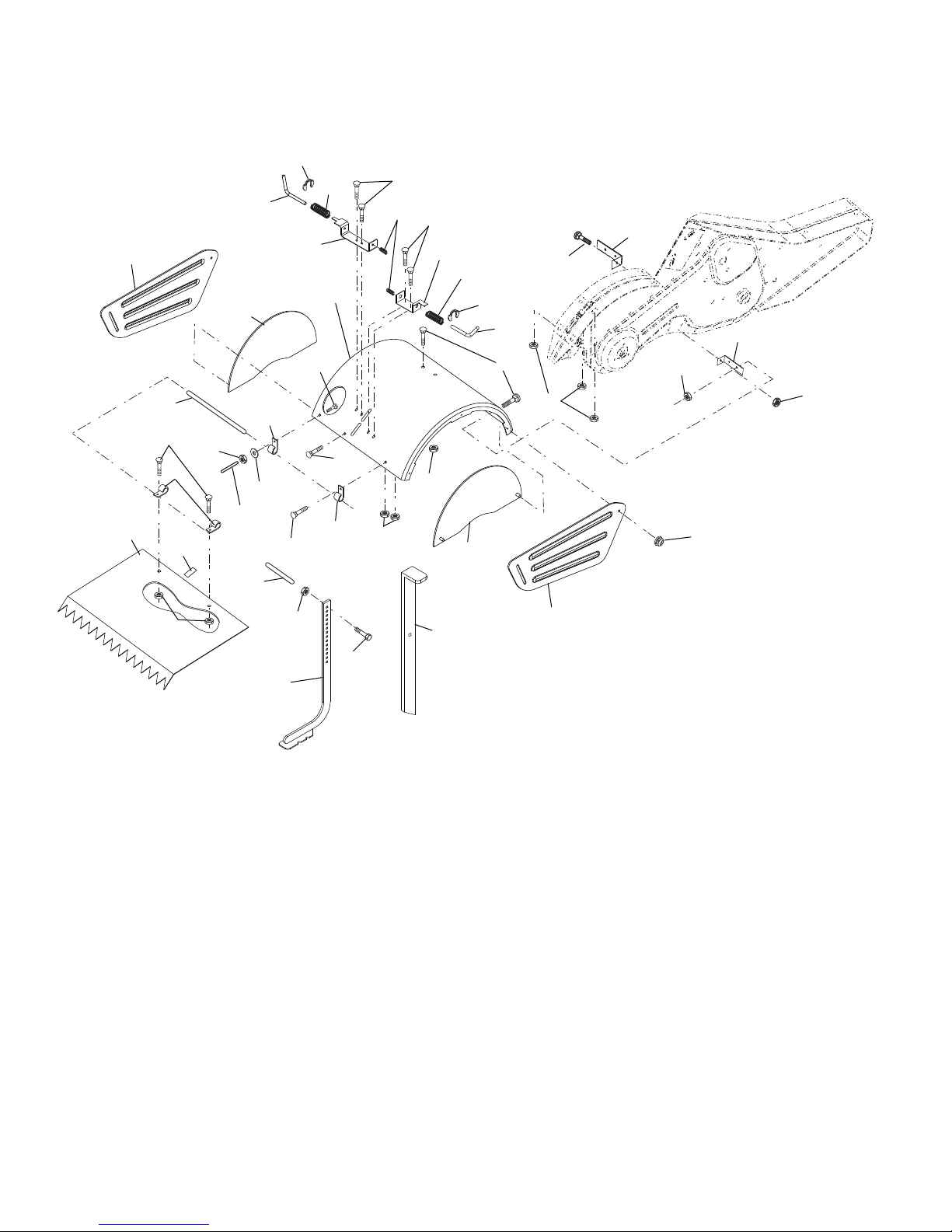

TINE SHIELD

27
1 73900500 21546789 Nut, Lock Hex Flange 5/16-18 unc
2 161415X422 21546147 Shield, Side, Outer L. H.
3 8393J 21546828 Pin, Stake, Depth
4 12000035 21546055 Ring, Klip
5 180847 21546218 Bolt, Carriage, Gr. 5 5/16-18 x 3/4
6 8394J 21546829 Spring
7 8392J 21546827 Bracket, Latch
8 109230X 21546043 Spring, Depth Stake
9 188862X422 21546271 Shield, Tine
13 72110510 21546763 Bolt, Carriage 5/16-18 x 1-1/4
14 124343X 21546075 Bracket, Shield Tine
15 161414X422 21546146 Shield, Side, Outer RH
16 73900400 21546788 Nut, Hex Flange 1/4-20 unc
18 72040410 21546758 Bolt, Carriage 1/4-20 x 1-1/4 Gr. 5
19 102701X 21546021 Grip
20 73220600 21546776 Nut, Hex 3/8-16
21 102156X 21546013 Stake, Depth
22 74930632 21546819 Bolt, Hex 3/8-16 x 2
23 4440J 21546738 Hinge
24 72140404 21546769 Bolt, Carriage 1/4-20 x 1/2
25 6712J 21546752 Cap, Vinyl
26 109227X 21546040 Pad, Idler
27 102695X422 21546020 Shield, Leveling
28 120588X 21546062 Pin, Hinge
29 197761X422 21546455 Shield, Side
30 73970500 21546796 Nut, Hex, Flangelock
31 163498X613 21546163 Stake, Drag
32 73220400 21546774 Nut, Fin, Hex 1/4-20 unc
33 10040400 21546001 Washer, Lock 1/4
38 73510500 21546780 Nut, Keps 5/16-18 unc
REAR TINE TILLER - MODEL NUMBER 90102800 (MFG. ID. NO. 96096000100)
TINE SHIELD
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
ITEM MFG. ARIENS
NO. NO. PART NO. DESCRIPTION

28
REAR TINE TILLER - MODEL NUMBER 90102800 (MFG. ID. NO. 96096000100)

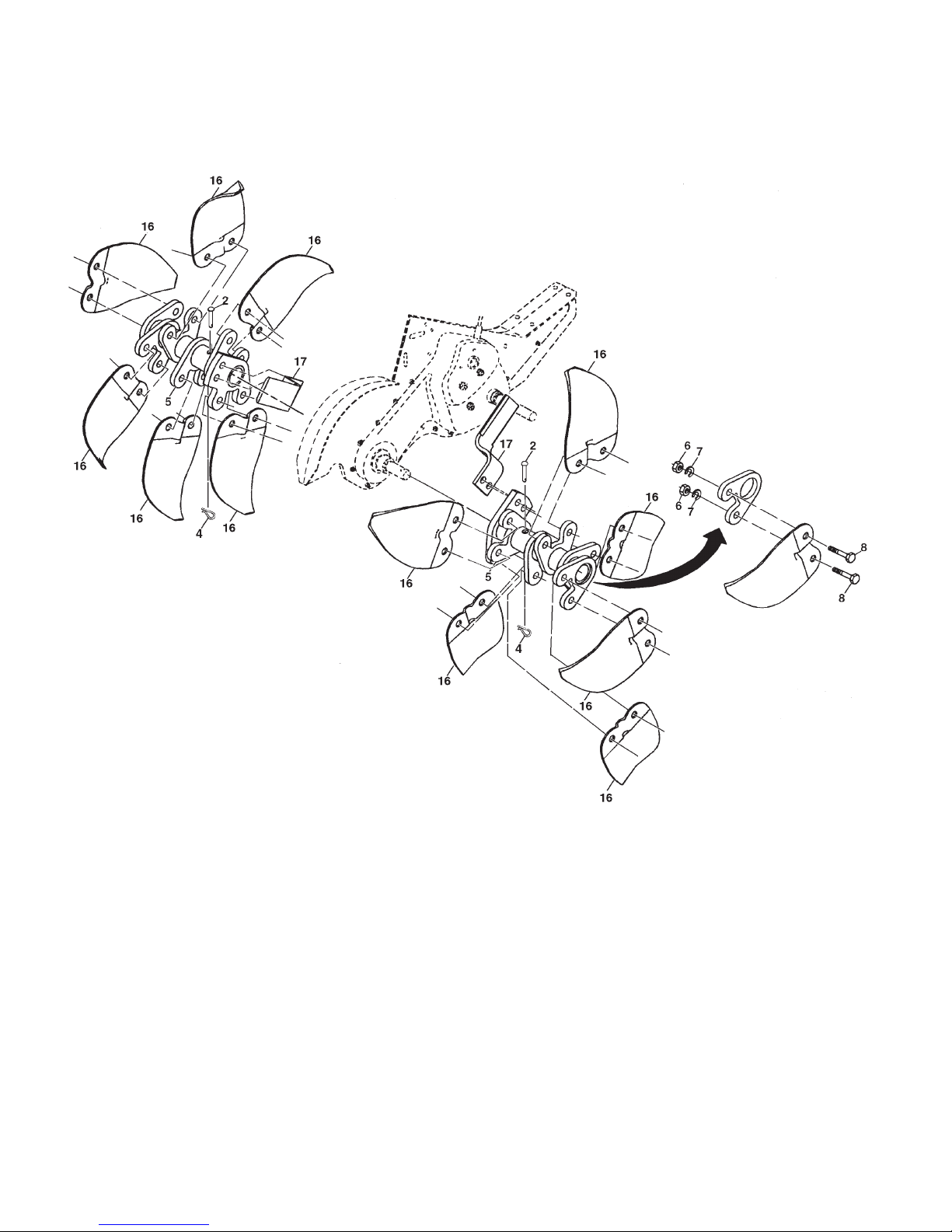

TINE ASSEMBLY

29
2 132673 21546083 Pin, Shear
4 3146R 21546548 Retainer, Spring
5 188845 21546270 Tine Assembly
6 73610600 21546783 Nut, Hex 3/8-24
7 10040600 21546003 Washer, Lock 3/8
8 74610616 21546802 Bolt, Hex 3/8-24 x 1
16 163499 21546164 Tine, Spade
17 163500 21546165 Tine, Cleaning
REAR TINE TILLER - MODEL NUMBER 90102800 (MFG. ID. NO. 96096000100)
TINE ASSEMBLY
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
ITEM MFG. ARIENS
NO. NO. PART NO. DESCRIPTION

30
16
7
8
18
9
6
3
210
15
4
17
REAR TINE TILLER - MODEL NUMBER 90102800 (MFG. ID. NO. 96096000100)
DECALS

31
2 423701 21546713 Decal, Subaru Tine Shield
3 423700 21546712 Decal, Belt Guard
4 401384 21546573 Decal, Tine Shield Forward
6 110614X 21546048 Decal, Hand Placement
7 166202 21546174 Decal, Shift Indicator
8 422816 21546695 Decal, Flag
9 176782 21546209 Decal, Warning, DRT
10 401383 21546572 Decal, Tine Shield DRT REV
15 423830 21546720 Decal, Ethonal
16 424120 21546728 Decal, Warning Spark Arrester
17 423703 21546715 Decal, Top Dual
18 423704 21546716 Decal, Side
- - 427490 Manual, Owner’s (Eng/Fr)
- - 426046 Manual, Owner’s (Spanish)
REAR TINE TILLER - MODEL NUMBER 90102800 (MFG. ID. NO. 96096000100)
DECALS
ITEM MFG. ARIENS
NO. NO. PART NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
