Aritech 2000 Series User manual

2000 SERIES SENSORS
Revision 3.1 : June 1997
INSTALLATION GUIDE
Downloaded from: http://www.guardianalarms.net

2000 SERIES SENSORS INSTALLATION GUIDE Revision 3.1 June 1997
CONTENTSCONTENTS
1. INTRODUCTION 1
1.1 SCOPE 1
1.2 2000 SERIES PRODUCTS OVERVIEW 2
2. INSTALLATION 3
2.1 GENERAL 3
2.2 AUTOMATIC FIRE SENSORS 3
2.2.1 Where To Place Automatic Fire Sensors 3
2.2.2 Mounting Bases & Wiring Diagrams 4
2.2.3 Addressing 7
2.2.4 Technical Data 7
2.2.5 7-Segment Indication 8
2.2.6 Diagnostics and Sensitivity Test Modes 9
2.2.7 Testing, Maintenance and Cleaning 10
2.3 MANUAL CALL POINT (MCP) DM2000 DM2010 DM2020 12
2.4 ISOLATOR IU2016 14
2.5 FIRE MONITORING CONTROLLERS 16
2.5.1 Zone Monitoring Unit IU2051 16
2.5.2 Indicating Circuit Controller IU2080 19
2.6 INPUT / OUTPUT UNITS 27
3. LOOP LOAD CALCULATIONS 30
3.1 GENERAL 30
3.2 CALCULATION PROCEDURE 30
3.2.1 Standby Current 31
3.2.2 Alarm Current 31
3.2.3 Loop Resistance 32

2000 SERIES SENSORS INSTALLATION GUIDE Revision 3.1 June 1997

2000 SERIES SENSORS INSTALLATION GUIDE Revision 3.1 June 1997
1. INTRODUCTION
1.1 SCOPE
This document is a guide for the installation of the Aritech 2000 Series Range of Analogue
Addressable Fire Monitors and Aritech 2000 Series Monitoring Controllers and Input / Output
Units.
Other manuals are:
Product Code
FP2000 Series Reference Guide LKFP2503
FP2000 Series Network Configuration Guide LKFP2303
FP2000 Series End User Instruction Manual LKFP2403

2000 SERIES SENSORS INSTALLATION GUIDE Revision 3.1 June 1997
1.2 2000 SERIES PRODUCTS OVERVIEW
Product Part Number Base
Temperature Monitors:
Single LED without remote LED driver DT2053 DB2001(U)
Single LED, 7-segment display, remote LED driver DT2073 DB2002(U)
Two LED with remote output DT2063 DB2002(U)
Ionisation Smoke Monitors:
Single LED without remote LED driver DI2052 DB2001(U)
Single LED, 7-segment display, remote LED driver DI2072 DB2002(U)
Two LED with remote output DI2062 DB2002(U)
Optical Smoke Monitors:
Single LED without remote LED driver DP2051 DB2001(U)
Single LED, 7-segment display, remote LED driver DP2071 DB2002(U)
Two LED with remote output DP2061 DB2002(U)
Manual Call Points:
Manual Call Point DM2000 —
Manual Call Point : IP66 DM2010 —
Manual Call Point : yellow for gas release DM2020 —
Isolator:
Isolator IU2016 DB2003
Fire Monitoring Controllers:
Zone Monitoring Unit IU2051 —
Indicating Circuit Controller IU2080 —
Input / Output Units:
4 Inputs / 4 Outputs IO2034 —
2 Inputs / 2 Outputs IO2032 —
2 Inputs / 1 Output IO2031 —
4 Inputs IO2014 —
Optional Housing for I/O units
(123mm (W) x 173mm (L) x 50mm (H)) IOBOX —
Table 1: Aritech 2000 Series Products

2000 SERIES SENSORS INSTALLATION GUIDE Revision 3.1 June 1997
2. INSTALLATION
2.1 GENERAL
The FP2000 Series Analogue Addressable Fire Panels can address up to 128 Aritech
devices on a two-wire ring circuit (loop) using digital communication.
The following paragraphs will describe the connection and addressing of Aritech devices
in a fire protection system.
2.2 AUTOMATIC FIRE SENSORS
2.2.1 Where To Place Automatic Fire Sensors
SITING AND SPACING DETECTORS
Please consult local regulations and follow Fire Brigade requirements.
The following apply for flat, horizontal ceilings:
SMOKE
DETECTORS HEAT DETECTORS
Max. area coverage 100m250m2
Max. horizontal distance between any point in
the area and the nearest detector 6m 5m
Max. ceiling height (general limits) 12m 6m
Note that these values change if:
•appliance is in small corridors
•there are obstructions
•appliance is in the apex of a pitched roof

2000 SERIES SENSORS INSTALLATION GUIDE Revision 3.1 June 1997
SUITABLE LOCATIONS FOR SMOKE & HEAT DETECTORS
General rule : ION :Flaming Fire
OPTICAL :Smouldering Fire
HEAT :Full Combustion Fire
LOCATION ION OP
THEAT REMARKS
Corridor / Walkway # Air current may exist
Elevator Shaft / Duct # Air current is present
General Office / Day Room #
Hotel Foyer #
Dining Room #
Theatre Stages / Audience
Hall #
Warehouse # Not if diesel fork lifts
are used
School #
Clinic / Nursery Room #
Laboratory #
Studio / Recording Room # Possibility of flaming
fire
Factory #
Church / Chapel #
Cargo Handling Area # Presence of air current
& dust
Spirit Fuel Store # Fast, clean burning fire
Library Room #
Central Heating Room #
Dryer Room #
Kitchen # Avoid locations over
ovens
Smoky Atmosphere #
Closed Parking Area #(1) # (1) : delayed or double
knock
2.2.2 Mounting Bases & Wiring Diagrams
All connectors on the base are numbered and have the following function:
1:(+) remote LED
2:(-) remote LED
5:(+) line in and out
6:(-) line in and out
Earth : to continue ground shield

2000 SERIES SENSORS INSTALLATION GUIDE Revision 3.1 June 1997
There are 4 different Mounting Bases available for the 2000 Series Sensors:
DB2001 :sensor base without remote LED connectors (Ø 10 cm)
DB2001U :sensor base without remote LED connectors (Ø 15 cm)
DB2002 :sensor base with remote LED connectors (Ø 10 cm)
DB2002U :sensor base with remote LED connectors (Ø 15 cm)
When sensors with remote LED drivers are being installed (for example DT2073,
DI2072, DP2071), the DB2002 or DB2002U should be used.
Please refer to Figure 1for Class A, and Figure 2for Class B (no return) wiring.
It is not necessary to observe polarity on terminals 5 and 6 as the fire monitors are not
polarity sensitive, but when the remote LED driver is being used, polarity must be
observed !
To install a detector head, insert the head and rotate it clockwise until it is properly
aligned and "sets" into the base (Figure 3). Then rotate it an additional 15º to lock it in
place.
Each 2000 Series Universal Mounting Base is equipped with a moulded locking
mechanism to prevent unauthorised removal of the sensor head (Figure 4). If you want
detectors to be locked into the base, remove tab before inserting into the base. To
remove the sensor head, insert a small screwdriver into the slot on the side of the base
and press in while simultaneously turning the sensor head counter clockwise (Figure 5).
The different Aritech Mounting Bases are designed so that the fire sensors will not
operate in the Isolator Mounting Base DB2003 and vice versa. The 2000 Series Range
of Fire Sensors will also not fit the base of another Aritech Range of Sensors.
A ground shield is strongly recommended, but not required. The shield must be
connected to the earth ground at one point only, preferably via an earth stud in the fire
control panel.
Address tags are available to write the address of the detector on. The address tag
should be positioned before the base is mounted.
Figure 1: Class A Wiring

2000 SERIES SENSORS INSTALLATION GUIDE Revision 3.1 June 1997
Figure 2: Class B Wiring
Figure 3Figure 4Figure 5

2000 SERIES SENSORS INSTALLATION GUIDE Revision 3.1 June 1997
2.2.3 Addressing

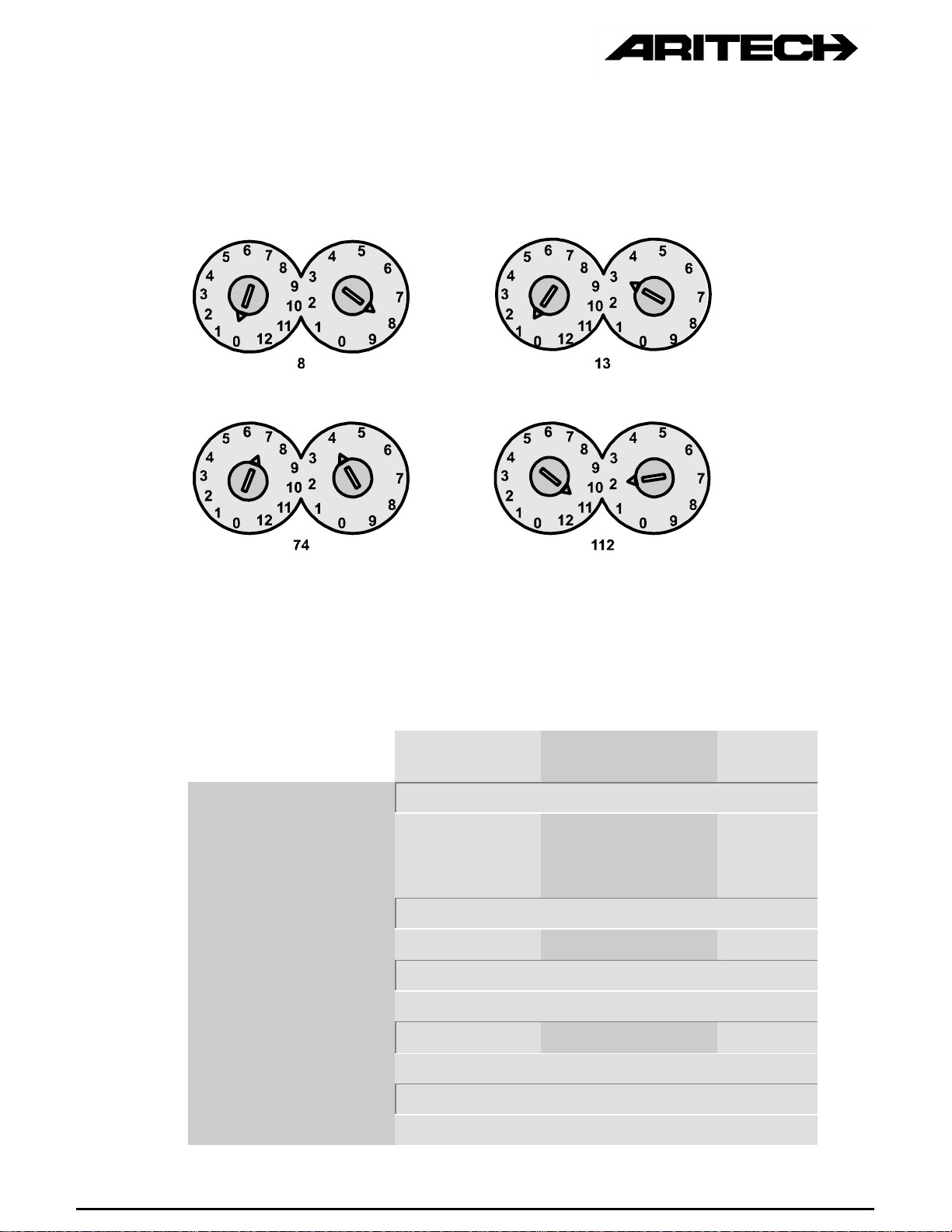

To install a detector address (see Figure 6), use a screw driver to adjust the two rotary
switches on the back of the sensor. Set the left rotary switch (0 through 12) for the 10's
and 100's digit and the right rotary switch for the 0 through 9 digit.
Figure 6: Address Setting for 2000 Series Fire Sensors
2.2.4 Technical Data
2000
IONISATION 2000 OPTICAL 2000 HEAT
Operating Voltage 17 - 28 V DC
Current Consumption :
quiescent @ 24V LED = 2mA < 150 µA
7-Segment = 2mA
Remote Indicator max. 4Ma
Max. Air Flow 10 m/s  
Relative Humidity 0 - 95% no condensation
IP - Rating IP43
Ionisation Source 0.9 µCi Am 241  
Operating Temperature -20 to +70ºC (no icing)
Storage Temperature -30 to +85ºC
Dimensions H = 5 cm Ø =10 cm

2000 SERIES SENSORS INSTALLATION GUIDE Revision 3.1 June 1997
2.2.5 7-Segment Indication
The 207X models have a 7-segment display. The information displayed depends on the
panel the sensors are connected to.
When the 2000 Series Sensors are being installed with the Aritech FP2000 Fire Panel,
the following indications are available:

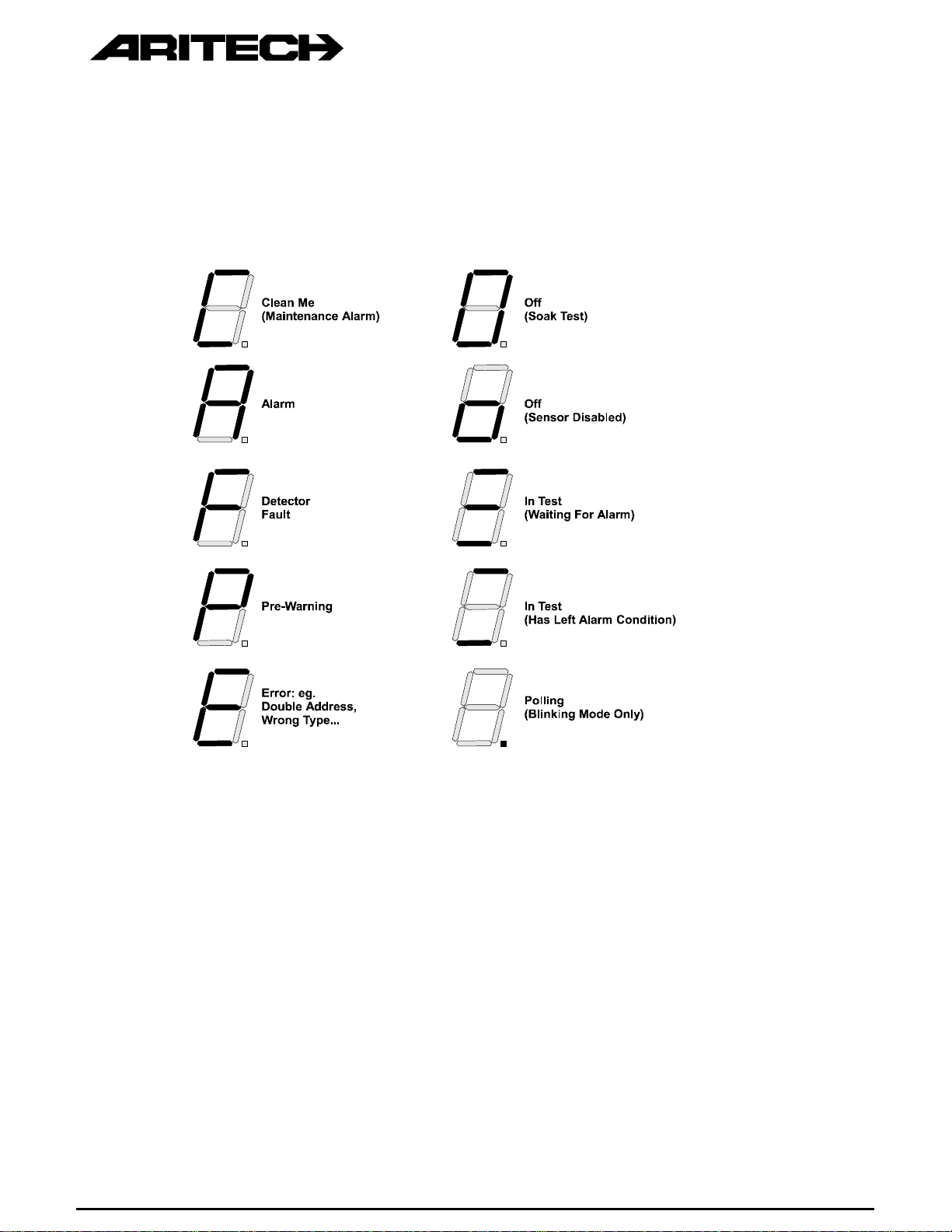

Figure 7: Indications on 7-Segment Display

2000 SERIES SENSORS INSTALLATION GUIDE Revision 3.1 June 1997
Notes: (Combined with FP2000)
•At the fire panel this information can be programmed to be always available (On) or
only when the sensor is being polled (Blinking).
•When the complete zone is disabled, nothing will appear on the 7-segment display of
the disabled devices.
•The maximum number of 7-segment displays active at the same moment can be
programmed at the panel (in ‘On’ mode).
•The test conditions mentioned above are tests initiated at the panel and not from the
sensor itself (see paragraph 2.2.6).
2.2.6 Diagnostics and Sensitivity Test Modes
Diagnostic and sensitivity test modes are available on the 2000 Series Detectors. The
2000 Series Smoke Detectors provide obscuration or temperature information to the Fire
Panel. Obscuration or temperature is determined by the number of counts received at
the Fire Panel when a 2000 Series Detector is polled.
The DP2071, DI2072 and DT2073 models have a seven segment display that allows
sensitivity, diagnostic and address data to be displayed at the detector head. Holding a
magnet near the integral reed switch (Figure 8) will initiate the diagnostic routine at the
Fire Panel.
Figure 8: Initiating the Diagnostic Routine
The following sequence will be displayed on the sensor :
First, the address of the sensor will be displayed (e.g. 35), followed by the real-time
value (e.g. 56), which is displayed twice.

2000 SERIES SENSORS INSTALLATION GUIDE Revision 3.1 June 1997
Figure 9: Sequences Displayed on 7-Segment Display
2.2.7 Testing, Maintenance and Cleaning
All 2000 Series Smoke Detectors are shipped with a plastic dust cover for use in areas
where construction is on-going. Smoke Detectors will not work with the dust cover in
place. Remove the dust cover when installation is completed, prior to testing.
All Smoke Detectors should be tested in place at least annually or according to local
regulations, to ensure smoke entry into the sensing chamber and alarm response. If
canned smoke (test aerosol) is used, carefully follow the manufacturer's directions to
avoid damage to the detector.
Test Heat Sensors by using a hot air gun (Figure 10A). Aim at heat sensor from 15 to
25cm away. Be careful not to melt the plastic.
The sensing chamber of the 2000 Series Photo-electric Detector unsnaps for easy field
cleaning and service (Figure 10B). Whenever the diagnostics indicates that cleaning is
necessary, remove the photoelectric detector cap, snap off and throw away the optical
block chamber (Figure 10C). Then blow off the optical block base and snap a new
optical block chamber back in place, replace the cap and verify sensitivity.
For 2000 Series Ionisation Detectors, remove the detector cover and clean the sensing
chamber and chamber screen whenever diagnostics indicate cleaning is necessary
(Figure 10D). Use a vacuum and/or filtered compressed air to remove dirt from the
chamber's interior. After cleaning, replace the chamber screen and detector cover and
verify sensitivity. If sensitivity remains out of limits, replace the sensor and return the
removed one to the manufacturer for cleaning and re-calibration.
Ionisation Sensors contain a radioactive source and should not be opened any further
than to clean as per above.

2000 SERIES SENSORS INSTALLATION GUIDE Revision 3.1 June 1997
Figure 10 : Testing, Maintenance and Cleaning
B
C
A
D

2000 SERIES SENSORS INSTALLATION GUIDE Revision 3.1 June 1997
2.3 MANUAL CALL POINT (MCP) DM2000  DM2010  DM2020
INSTALLATION

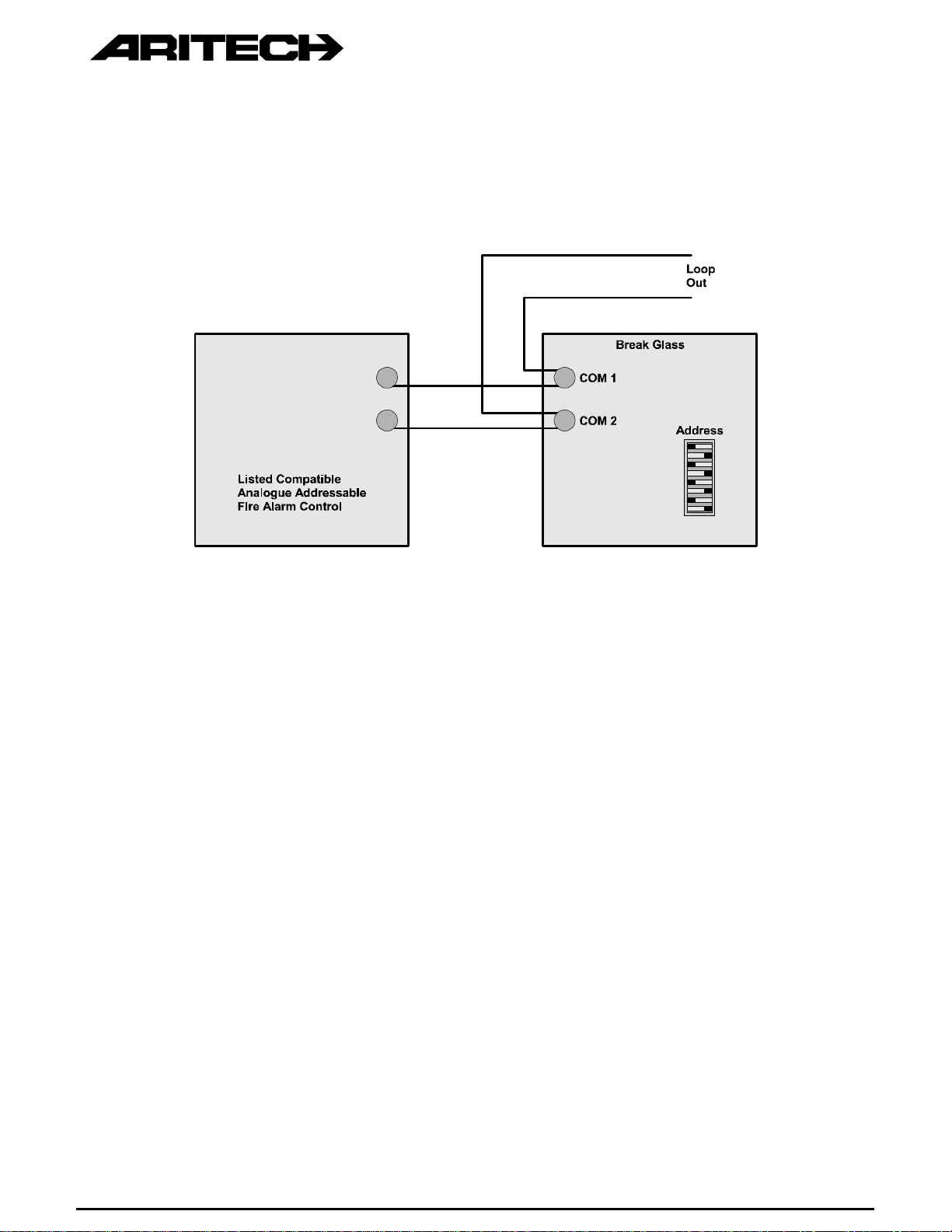

Figure 11 : Wiring Diagram for DM20X0

2000 SERIES SENSORS INSTALLATION GUIDE Revision 3.1 June 1997
ADDRESSING
Addressing is by means of a DIL-switch on the rear side of the MCP: ON = 0; OFF = 1
Address Switch Address Switch Address Switch Address Switch
12345678 12345678 12345678 12345678
1 00000001 33 00110011 65 01100101 97 10010111
2 00000010 34 00110100 66 01100110 98 10011000
3 00000011 35 00110101 67 01100111 99 10011001
4 00000100 36 00110110 68 01101000 100 10100000
5 00000101 37 00110111 69 01101001 101 10100001
6 00000110 38 00111000 70 01110000 102 10100010
7 00000111 39 00111001 71 01110001 103 10100011
8 00001000 40 01000000 72 01110010 104 10100100
9 00001001 41 01000001 73 01110011 105 10100101
10 00010000 42 01000010 74 01110100 106 10100110
11 00010001 43 01000011 75 01110101 107 10100111
12 00010010 44 01000100 76 01110110 108 10101000
13 00010011 45 01000101 77 01110111 109 10101001
14 00010100 46 01000110 78 01111000 110 10110000
15 00010101 47 01000111 79 01111001 111 10110001
16 00010110 48 01001000 80 10000000 112 10110010
17 00010111 49 01001001 81 10000001 113 10110011
18 00011000 50 01010000 82 10000010 114 10110100
19 00011001 51 01010001 83 10000011 115 10110101
20 00100000 52 01010010 84 10000100 116 10110110
21 00100001 53 01010011 85 10000101 117 10110111
22 00100010 54 01010100 86 10000110 118 10111000
23 00100011 55 01010101 87 10000111 119 10111001
24 00100100 56 01010110 88 10001000 120 11000000
25 00100101 57 01010111 89 10001001 121 11000001
26 00100110 58 01011000 90 10010000 122 11000010
27 00100111 59 01011001 91 10010001 123 11000011
28 00101000 60 01100000 92 10010010 124 11000100
29 00101001 61 01100001 93 10010011 125 11000101
30 00110000 62 01100010 94 10010100 126 11000110
31 00110001 63 01100011 95 10010101 127 11000111
32 00110010 64 01100100 96 10010110 128 11001000

2000 SERIES SENSORS INSTALLATION GUIDE Revision 3.1 June 1997
2.4 ISOLATOR IU2016
GENERAL
An isolator is a “device” which prevents a loop going down completely when a short circuit in
that loop occurs. When isolators are used, only the devices between two isolators will go down.
The IU2016 can be placed in the loop and is completely transparent for the protocol (in normal
condition). No address setting is required.
High-end fire panels, like FP2000, have built-in isolators per loop. This means that no isolators
have to be placed at the beginning and end of the loop.
INDICATORS
The yellow LED will start blinking when the isolator goes active i.e. when one side is isolated.
The short-circuit will always be located between two active isolators or between one active
isolator and the panel
INSTALLATION
The Isolator is fitted into the Isolator Mounting Base DB2003.
There are four single terminals, namely:
1. (+) IN : Line in
2. (+) OUT :Line out
3. (-) :Common negative
4. Single terminal :This terminal is intended as a through connection point for cable
shields or for an earth connection.

2000 SERIES SENSORS INSTALLATION GUIDE Revision 3.1 June 1997
Isolators are - unlike the other 2000 Series devices - polarity sensitive. The connection must be
as follows:
Figure 12 : Class A Loop with Isolator IU2016
Note :According to the EN54-directive, isolators should be placed at least every 32 devices.
The use of isolators per zone is recommended.
Please consult local regulations and follow Fire Brigade requirements.
TECHNICAL DATA:
Operating Voltage...........................................17 - 38 V
Non - isolated current......................................<205 µA
Isolated current...............................................<420 µA
Line resistance non-isolated...........................< 1 Ohm
Line resistance isolated ..................................> 33 K ohm
Switching times non-isolated to isolated.........< 5 ms
Switching time isolated to non-isolated...........< 3.1 s once fault is removed
Operating temperature....................................-20 to + 70 ºC (non condensing)
Storage temperature.......................................-30 to + 85 ºC
Relative humidity.............................................0 - 95 %

2000 SERIES SENSORS INSTALLATION GUIDE Revision 3.1 June 1997
2.5 FIRE MONITORING CONTROLLERS
2.5.1 Zone Monitoring Unit IU2051
GENERAL DESCRIPTION
The IU2051 can be used to connect conventional detectors, fire beams, etc. on the
analogue loop. It is important to note that the total current load of the conventional loop
must not exceed 3.5 mA. This is typically 30 detectors.
The PCB has to be put in a housing, according to environmental conditions.
INDICATORS
Yellow LED :Indicates an open circuit or short on the two-wire
conventional loop.
Ind +/- connectors :An extra LED can be connected to indicate a Fire Alarm
condition on the conventional loop.
ADDRESS SETTING
Please refer to paragraph 2.2.3.
TECHNICAL DATA
Operating voltage: ......................................20-28V at the communication loop terminals
Total standby current:.................................<7.5mA, 4.5mA typical (no conventional
detectors connected) at the communication
loop terminals
Maximum alarm current: .............................< 60 mA at communication loop
Maximum no. of conventional detectors: ....30. Do not exceed 3.5 mA + EOL load current
Maximum capacitance:...............................1 µF
Maximum line length:..................................not to exceed 2km or not greater than
100 Ohms
End-of-Line resistor value:..........................10 k ± 5%, 1/4 W
Supply Voltage conventional loop:..............17 - 25 V DC
Zone impedances @ 24V: Short circuit:.....< 120 Ohms
Fire: .................120 - 1 K
Quiescent: .......1K - 26 K
Open circuit: ....> 26 K
