INSTRUCTIONS FOR USE
NEA 1000, 2000, 4000, 6000
Battery Charger
04.NE.00_4GB February 2015

Design Policy and Copyright
® and ™ are trademarks belonging to the ArjoHuntleigh group of companies.
© ArjoHuntleigh AB 2015.
As our policy is one of continuous improvement, we reserve the right to modify designs
without prior notice.The content of this publication may not be copied either whole or in
part without the consent of ArjoHuntleigh AB.
WARNING
To avoid injury, always read this Instruction for Use and accompanying
documents before using the product.
Mandatory to read the Instructions for Use

3
Foreword ...................................................................................4
Intended Use .............................................................................5
Safety Instructions ....................................................................6
Preparations ..............................................................................7
Installation of Charger ...............................................................7
Charging the Battery .................................................................8
Cleaning Instructions ................................................................9
Care and Preventive Maintenance ............................................9
Troubleshooting ......................................................................10
Technical Specifications .........................................................11
Labels .....................................................................................13
Electromagnetic Compatibility .................................................14
Parts and Accessories ............................................................17
ArjoHuntleigh Addresses ............................................Last Page
Contents

4
Foreword
Thank you for purchasing ArjoHuntleigh
Equipment
Your Battery Charger is a part of a series of quality
products designed especially for hospitals, nursing
homes and other health care use.
Please contact us if you have any questions about the
operation or maintenance of your ArjoHuntleigh
equipment.
Please read this Instructions for Use
thoroughly!
Please read this Instructions for Use (IFU) in its entirety
before using your Battery Charger. Information in this
IFU is crucial to the proper operation and maintenance
of the equipment, will help protect your product, and
make sure that the equipment performs to your
satisfaction. Some of the information in this IFU is
important for your safety and must be read and
understood to help prevent possible injury.
Unauthorized modifications on any ArjoHuntleigh
equipment may affect its safety. ArjoHuntleigh will not
be held responsible for any accidents, incidents or lack
of performance that occur as a result of any
unauthorized modification to its products.
Service and Support
A service routine has to be done on your Battery
Charger by ArjoHuntleigh authorised service personnel
to ensure the safety and operating procedures of your
product. See section Care and Preventive Maintenance
on page 9.
If you require further information, please contact
ArjoHuntleigh for comprehensive support and service
programs to maximize the long–term safety, reliability
and value of the product.
Contact ArjoHuntleigh for replacement parts. The
contact information is found on the last page of this
IFU.
Definitions in this IFU
Means:
Safety warning. Failure to understand and obey this
warning may result in injury to you or to others.
Means:
Failure to follow these instructions may cause damage
to all or parts of the system or equipment.
Means:
This is important information for the correct use of this
system or equipment.
Means:
The name and address of the manufacturer.
WARNING
CAUTION
NOTE

5
Intended Use
This equipment must be used in line with its
intended use and in accordance with these
safety instructions. Anyone using this
equipment must also have read and
understood the instructions in this
Instructions for Use (IFU).
If there is anything you are not sure about,
contact your ArjoHuntleigh representative.
This charger is intended for charging ArjoHuntleigh
battery NEA 0100 only, in accordance with the in-
structions outlined in the Instructions for Use (IFU).
All other use must be avoided.
Installation & Service Requirements
The expected life of the Battery Charger NEAXXXX–
XX, is unless otherwise is stated ten (10) years, if
subject to preventive maintenance being carried out in
accordance with the instruction for Care and Preventive
Maintenance found in the Instructions for Use (IFU).
Assembly of parts must be mounted according to the
instructions in the Instructions for Use (IFU).

6
Safety Instructions
WARNING
Do NOT cover the charger due to fire
hazard.
WARNING
To avoid fire, make sure the charger is
installed and used in a well ventilated area.
WARNING
To avoid fire and electric shock, make sure
the charger is installed and used in a dry
and dust free environment.
WARNING
To avoid bodily injury, do NOT crush,
puncture, open, dismantle or otherwise
mechanically interfere with the battery.
• Should the battery casing crack and
cause contents to come in contact with
skin or clothing, rinse immediately with
plenty of water.
• If contents come in contact with the eyes,
rinse immediately with plenty of water
and seek medical attention.
Inhalation of the contents can cause
respiratory irritation. Provide fresh air and
medical attention.
WARNING
To avoid explosion or fire, never use the
equipment in oxygen rich environment, in
presence of heat source or flammable
anaesthetic gases.
Battery and Charger Safety Practices
• Be careful not to drop the battery.
• Contact the appropriate local authority for advice
when disposing of batteries.
• Check label on the charger and battery.
WARNING
To avoid electric shock, make sure that the
equipment is connected to:
• Continuously powered supply mains with
protective earth.
• Separate fuse and ground fault circuit
interrupter (GFCI)
• A mains disconnection device
• Equipotential bonding point
All installations must be in accordance with
local codes and regulations.
WARNING
To avoid strangulation, make sure to never
leave children unattended near the
equipment.
WARNING
To avoid bodily injury, keep the Battery
Charger in a safe place and disconnected
when not in use.
The exposure to low voltage, in the Battery
Charger connector, can be potentially
hazardous to children and sensitive
persons.

7
Preparations
Actions Before the First Use (8 Steps)
1 Visually inspect the Battery Charger for transport
damage.
2 The package should be recycled according to
local regulations.
3 Read the IFU.
4 Unpack the Battery Charger.
5 Charge the battery until the indicator LED turns
green.
6 Prepare an area that is dry, with good ventilation
and out of direct sunlight for storage of the
Battery Charger.
7 Choose a designated area where the IFU should
be kept, accessible at all times.
8 Make sure to have a rescue plan ready in case of a
patient emergency.
Actions Before Every Use (2 Steps)
1 Carry out a thorough inspection for damage.
2 If any part is missing or damaged – do NOT use
the product!
NOTE
If you have any questions, please contact your
local ArjoHuntleigh representative for support
and service. The contact information
(ArjoHuntleigh addresses) is listed at the end
of this IFU.
Installation of Charger
Installation
• Keep the Battery Charger away from main access
areas.
• The Battery Charger is designed for dry
surroundings and may not be installed in
bathrooms or any other wet areas (IP2X).
• Mount the battery holder to a suitable wall with
two screws. (See Fig. 1) For screw specifications,
see Technical Specifications on page 11.
• Check label on battery and charger
• Plug in the Battery Charger to a standard power
(AC) outlet.
• The Battery Charger is not allowed to be used in
a patient environment.
Fig. 1

8
General
• The charger converts mains voltage to low DC voltage.
• The charger must only be used for ArjoHuntleigh battery
type NEA 0100.
• The charger is ready for use as soon as it is plugged in.
• Disconnect the mains by unplugging the charger.
• A green indicator LED indicates the charger is ready for
charging, there is no On/Off button on the charger.
Charging Intervals
• To prolong life of batteries, charge at regular intervals.
• If the ArjoHuntleigh product is used frequently, it is
recommended to use two batteries, one in operation and one
being charged

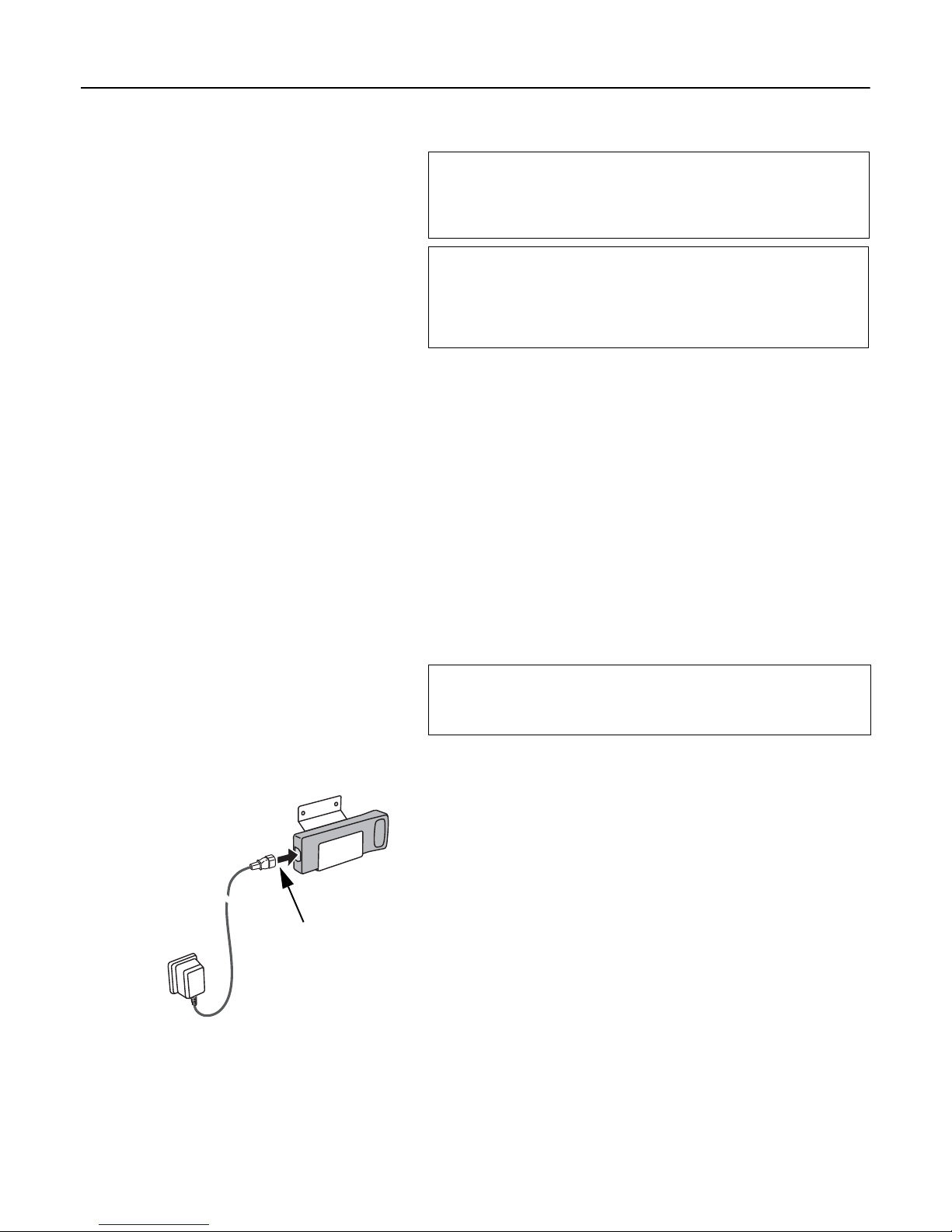

Charging Procedure (6 Steps)
1 Plug in the charger in a power outlet.(See Fig. 1)
2 The charger indicator LED turns green when there is no
battery connected.
3 Attach the battery to the charger
4 Plug the charger connector into the battery.
5 The charger indicator LED will stay orange during
charging.
6 Once the battery is charged the LED will turn green.
Charging the battery can take up to 14 hours depending on the
battery status (e.g. if the battery is charged for the first time or after
a longer storage period).
WARNING
Do NOT charge the battery in a sealed
compartment due to fire hazard.
CAUTION
To avoid breaking the charger when unplugging the
battery connector: Grip the plug and don’t pull the
cord.
NOTE
The battery can be left in the charger unit even if it is
fully charged without being overcharged.
Fig. 1
Charger
connector
Charging the Battery

9
Accessories for Cleaning the ArjoHuntleigh Battery Charger
• Dry cloths or dry disposable towels
Always Follow these 2 Steps for Proper Cleaning
1 Disconnect the Battery Charger from the mains and unplug the battery.
2 Wipe the Battery Charger and its cable from visible residue using a dry cloth or a dry disposable towel.
Cleaning Instructions
Care and Preventive Maintenance
The Battery Charger is subject to wear and tear, and the following maintenance instructions must be performed when
specified to make sure that the equipment remains within its original manufacturing specification.
Preventive Maintenance Schedule
WARNING
To avoid malfunction resulting in injury, make sure to conduct regular inspections and follow
the recommended maintenance schedule. In some cases due to heavy use of the product and
exposure to aggressive environment more frequent inspections should be carried out. Local
regulations and standards may be more stringent than the recommended maintenance
schedule.
CAREGIVER OBLIGATIONS Action/Check Every WEEK
Visually check all exposed parts X
Visually check battery and charger X
WARNING
To avoid injury to both patient and the caregiver, never modify the equipment or use
incompatible parts.

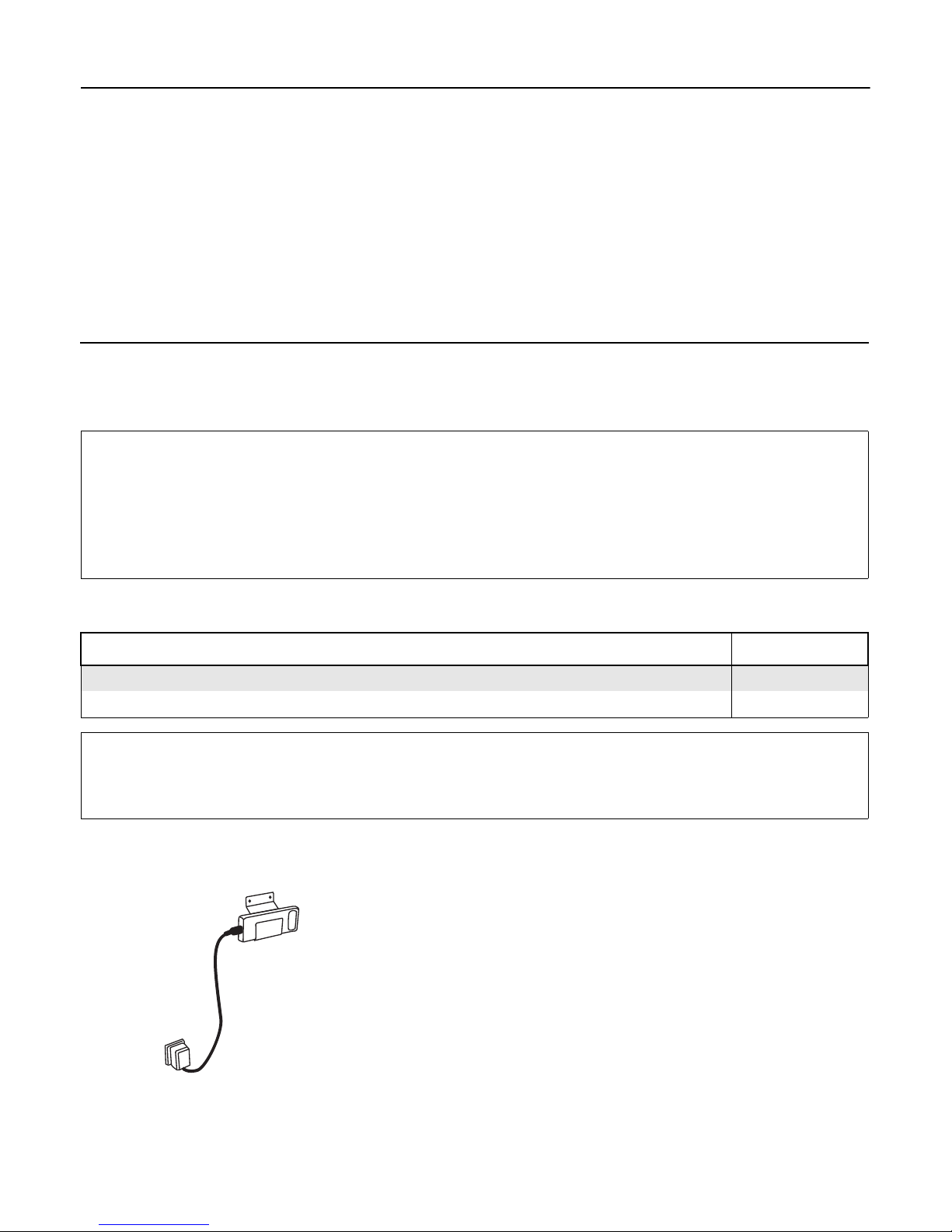

Visually Check Battery and Charger
Visually check the condition of the Battery Charger, its cable and
the battery. Withdraw and replace immediately if damaged.
Fig. 1

10
Problem Action
The charge indicator LED does not light up. • There is no electricity coming from the AC outlet.
• The charger is broken.
The charger and/or power supply cord is broken. Order a new charger. NEVER open the charger to repair
it.
Troubleshooting
WARNING
To avoid injury and/or unsafe product, the maintenance activities must be carried out at the
correct frequency by qualified personnel using correct tools, parts and knowledge of
procedure. Qualified personnel must have documented training in maintenance of this
device.
QUALIFIED PERSONNEL Action/Check Every YEAR
Check battery and Battery Charger X
Check all vital parts for damage X
NOTE
All Caregiver Obligations are to be checked when performing the Qualified Personnel Service.

11
Technical Specifications
General
The charger model (Type....) NEA1000–EU, NEA2000–GB, NEA4000–US,
NEA6000–AU
Mains Supply 100–240 V ~ 50–60 Hz
Power consumption max: 25 VA
Output voltage, charge current 33 Vdc
Normal charge current 250 mA for 14 h, then 60 mA
Protection class: IP2X product must be used in a dry
environment.
Insulation class: II
Pollution degree 2
Battery weight 1.4 kg (3.08 lbs)
Battery charger weight 0.15 kg (0.33 lbs)
Flammability standard UL94V–1
Ambient temperature +10 °C to +40 °C (50 °F to 104 °F) Operation
-30 °C to +50 °C (-22 °F to +122 °F) Transport,
Storage
Relative humidity 30–75% Operation
10–80% Transport, Storage
Atmospheric pressure 800–1060 hPa Operation
500–1060 hPa Transport, Storage
Power Cord Supply Not allowed to be replaced
Screw for mounting the holder Nrd=90 N (Resistance tensile)
Vrd=250 N (Resistance shear)
Mains Disconnection Device
Mains disconnection device must be visible and accessible at all times
Disconnect mains by unplugging the charger from outlet.

12
WARNING
To avoid injury, always follow the allowed combinations listed in this IFU. No other
combinations are allowed.
Allowed Battery Combination
ArjoHuntleigh Battery
NEA 0100, 24 V
ArjoHuntleigh Lift with NEA 0100, 24 V Product ID
Carendo BIB
Carino BOC
Maxi Twin KTB
Maxi Twin Compact KTC
Carevo NST
Disposal of the Charger
The device is marked with the WEEE symbol to indicate that it is electronic equipment covered by
the Directive 2012/19/EU on waste electrical and electronic equipment. In European countries the
crossed out wheeled–bin WEEE symbol reminds you that all the electrical and electronic products,
batteries and accumulators must be taken to separate collection at end of their working life. This
requirement applies in the European Union. Do not dispose these products as unsorted municipal
waste. You can return your device and accessories to ArjoHuntleigh or you can contact your local
authorities for advice on disposal.

13
Labels
Label Explanation
Symbol Explanation
Data Label States technical performance and
requirements. For example
classified safety standard and input
voltage.
Label on
Package
States the serial number,
manufacturer address together
with information about
recommended operation
conditions.
NEA X000–
XX
The article number of the Battery
Charger.
NEA1000–EU (Europe)
NEA2000–GB (Great Britain)
NEA4000–US (USA),
NEA6000–AU (Australia)
Battery No.
(Number)
NEA 0100, 24 V
100–240 V ~
50–60 Hz
Voltage and AC frequency
25 VA Power consumption max
IP2X Protection class: The product must
be used in a dry location only.
Separate electrical and electronic
components for recycling in
accordance with the European
Directive 2012/19/EU (WEEE)
Insulation Class II
Read the IFU before use
CE marking in accordance with the
Medical Devices Directive 93/42/
EEC. Refer to Notified Body: BSI
The equipment has been EMC–
tested and fulfils all requirements
according to IEC 60601–1–2.
Electric safety according to EN
60601–1.
Classified by Underwrites
Laboratories Inc. with respect to
electrical shocks, fire and
mechanical, hazards and other
specified hazards only in
accordance with the Approvals and
List of Standards.
4ML5 Certificate control number for UL
Data label on the charger

14
Medical electrical equipment needs special precautions regarding EMC (Electromagnetic compatibility) and needs to
be used according to the EMC information below.
Portable and mobile RF communications equipment can affect the Battery Charger.
WARNING
Stacking or placing other electrical equipment next to this device is not recommended, it can
interfere with the equipment’s operation and safety. Portable and mobile radio frequency (RF)
communications equipment can interfere with this equipment operation and safety.
WARNING
The equipment may cause radio interference or may disrupt the operation of nearby
equipment. It may be necessary to take action, such as reorienting, relocating the equipment
or shielding the location.
Guidance and Manufacturer’s Declaration – Electromagnetic Emissions
The Battery Charger is intended for use in the electromagnetic environment specified below. The customer or the
user of the Battery Charger should assure that it is used in such an environment.
Emissions Test Compliance Electromagnetic Environment – Guidance
RF emissions
CISPR 11
Class B The Battery Charger uses RF energy only for its internal
function. Therefore, its RF emissions are very low and are not
likely to cause any interference in nearby electronic equipment.
RF emissions
CISPR 11
Class B The Battery Charger is suitable for use in all establishments,
including domestic establishments and those directly connected
to the public low voltage power supply network that supplies
buildings used for domestic purposes.
Harmonic emission
IEC 61000–3–2
Complies
Voltage fluctuations/flicker
emission
IEC 61000–3–3
Complies
Electromagnetic Compatibility

15
Guidance and Manufacturer’s Declaration – Electromagnetic Immunity
The Battery Charger is intended for use in the electromagnetic environment specified below. The customer or the
user of the Battery Charger should assure that it is used in such an environment.
Immunity Test IEC 60601 Test
Level Compliance Level Electromagnetic Environment – Guidance
Electrostatic discharge
(ESD)
IEC 61000–4–2
± 6 kV contact
± 8 kV air
± 6 kV contact
± 8 kV air
Floors should be wood, concrete or
ceramic tile. If floors are covered
with synthetic material, the relative
humidity should be at least 30%.
Electrical fast
transient/burs
IEC 61000–4–4
± 2 kV for power
supply lines
± 1 kV for input/
output lines
± 2 kV for power supply lines
input/output lines not
applicable
Mains power quality should be that
of a typical commercial or hospital
environment.
Surge
IEC 61000–4–5
± 1 kV line(s) to
line(s)
± 2 kV line(s) to
earth
± 1 kV line(s) to line(s)
± 2 kV line(s) to earth
Mains power quality should be that
of a typical commercial or hospital
environment.
Voltage dips, short
interruptions and
voltage variations on
power supply input
lines
IEC 61000–4–11
<5% UT
(>95% dip in UT)
for 0.5 cycle
40% UT
(60% dip in UT)
for 5 cycles
70% UT
(30% dip in UT)
for 25 cycles
<5% UT
(>95% dip in UT)
for 5 s
<5% UT
(>95% dip in UT)
for 0.5 cycle
40% UT
(60% dip in UT)
for 5 cycles
70% UT
(30% dip in UT)
for 25 cycles
<5% UT
(>95% dip in UT)
for 5s
Mains power quality should be that
of a typical commercial or hospital
environment.
Power frequency
(50/60 Hz) Magnetic
field IEC 61000–4–8
3 A/m 3 A/m Power frequency magnetic fields
should be at levels characteristic of
a typical location in a typical
commercial or hospital
environment.
NOTE UTis the a.c. mains voltage prior to application of the test level

16
Guidance and Manufacturer’s Declaration – Electromagnetic Immunity
The Battery Charger is intended for use in the electromagnetic environment specified below. The customer or the
user of the Battery Charger should assure that it is used in such an environment.
Immunity test IEC 60601
test level Compliance level Electromagnetic environment – guidance
Conducted RF
IEC 61000–4–6
3 Vrms
150 kHz to
80 MHz
3 Vrms Portable and mobile RF communications equipment
should be used no closer to any part of the Battery
Charger, including cables, than the recommended
separation distance calculated from the equation
applicable to the frequency of the transmitter.
Recommended separation distance
d=0.35√P
d=1.2√P 80 MHz to 800 MHz
d=2.3√P 800 MHz to 2.5 GHz
Where P is the maximum output power rating of the
transmitters in watts (W) according to the transmitter
manufacturer and d is the recommended separation
distance in metres (m).
Field strengths from fixed RF transmitters, as
determined by an electromagnetic site survey, a
should be less than the compliance level in each
frequency range. b
Interference may occur in the vicinity of equipment
marked with the following symbol:
Radiated RF
IEC 61000–4–3
3 V/m
80 MHz to
2.5 GHz
3 V/m
a) Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and land
mobile radios, amateur radio, AM and FM radio broadcast cannot be predicted theoretically with accuracy. To
assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be
considered. If the measured filed strengths in the location in which the Battery Charger is used exceeds the
applicable RF compliance level above, the Battery Charger should be observed to verify normal operation. If
abnormal performance is observed, additional measures may be necessary.
b) Over the frequency range 150 kHz to 80 MHz, field strengths should be less than 1V/m.

17
Battery Charger
NEAX000-XX Extra battery NEA 0100, 24 V Battery holder 8350891-031
Parts and Accessories

18
Intentionally left blank

AUSTRALIA
ArjoHuntleigh Pty Ltd
78, Forsyth Street
O’Connor
AU-6163 Western Australia
Tel: [phone]
Free: [phone]
Fax: + 61 89337 9077
BELGIQUE / BELGIË
ArjoHuntleigh NV/SA
Evenbroekveld 16
BE-9420 ERPE-MERE
Tél/Tel: [phone]
Fax: [phone]
E-mail: [email protected]
BRASIL
Maquet do Brasil
Equipamentos Médicos Ltda
Rua Tenente Alberto Spicciati, 200
Barra Funda, 01140-130
SÃO PAULO, SP - BRASIL
Fone: [phone]
Fax: [phone]
CANADA
ArjoHuntleigh
90 Matheson Boulevard West
Suite 300
CA-MISSISSAUGA, ON, L5R 3R3
Tel/Tél: [phone]
Free: [phone] Institutional
Free: [phone] Home Care
Fax: [phone]
E-mail: [email protected]
ČESKÁ REPUBLIKA
ArjoHuntleigh s.r.o.
Hlinky 118
CZ-603 00 BRNO
Tel: [phone]
Fax: [phone]
DANMARK
ArjoHuntleigh A/S
Vassingerødvej 52
DK-3540 LYNGE
Tel: [phone]
Fax: [phone]
E-mail:
[e-mail]
DEUTSCHLAND
ArjoHuntleigh GmbH
Peter-Sander-Strasse 10
DE-55252 MAINZ-KASTEL
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
ESPAÑA
ArjoHuntleigh Ibérica S.L.
Ctra. de Rubí, 88 1ª planta - A1
08173 Sant Cugat del Vallés
ES- BARCELONA 08173
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
FRANCE
ArjoHuntleigh SAS
2 Avenue Alcide de Gasperi
CS 70133
FR-59436 RONCQ CEDEX
Tél: [phone]
Fax: [phone]
E-mail: [email protected]
HONG KONG
ArjoHuntleigh (Hong Kong) Ltd
1510-17, 15/F, Tower 2
Kowloon Commerce Centre
51 Kwai Cheong Road
Kwai Chung
HONG KONG
Tel: [phone]
Fax: [phone]
INTERNATIONAL
ArjoHuntleigh International Ltd
ArjoHuntleigh House
Houghton Hall Park
Houghton Regis
UK-DUNSTABLE LU5 5XF
Tel: [phone]
Fax: [phone]
E-mail:
[email protected]
ITALIA
ArjoHuntleigh S.p.A.
Via di Tor Vergata 432
IT-00133 ROMA
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
NEDERLAND
ArjoHuntleigh Nederland BV
Biezenwei 21
4004 MB TIEL
Postbus 6116
4000 HC TIEL
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
NEW ZEALAND
ArjoHuntleigh Ltd
41 Vestey Drive
Mount Wellington
NZ-AUCKLAND 1060
Tel: [phone]
Free Call: 0800 000 151
Fax: [phone]
E-mail: [email protected]
NORGE
ArjoHuntleigh Norway AS
Olaf Helsets vei 5
N-0694 OSLO
Tel: [phone]
Faks: [phone]
E-mail:
no.kundese[email protected]
ÖSTERREICH
ArjoHuntleigh GmbH
Dörrstrasse 85
AT-6020 INNSBRUCK
Tel: [phone]
Fax: [phone]
POLSKA
ArjoHuntleigh Polska Sp. z o.o.
ul. Ks Piotra Wawrzyniaka 2
PL-62-052 KOMORNIKI (Poznan)
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
PORTUGAL
ArjoHuntleigh em Portugal
MAQUET Portugal, Lda. (Distribudor Exclusivo)
Rua Poeta Bocage n.º 2 - 2G
PT-1600-233 Lisboa
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
SUISSE / SCHWEIZ
ArjoHuntleigh AG
Fabrikstrasse 8
Postfach
CH-4614 HÄGENDORF
Tél/Tel: [phone]
Fax: [phone]
SUOMI
Oy Vestek AB
Martinkuja 4
FI-02270 ESPOO
Puh: [phone]
E-mail: [email protected]
SVERIGE
ARJO Scandinavia AB
Hans Michelsensgatan 10
SE-211 20 MALMÖ
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
UNITED KINGDOM
ArjoHuntleigh UK
ArjoHuntleigh House
Houghton Hall Park
Houghton Regis
UK-DUNSTABLE LU5 5XF
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
USA
ArjoHuntleigh Inc.
2349 W Lake Street Suite 250
US-Addison, IL 60101
Tel: [phone]
Free: [phone] Institutional
Free: [phone] Home Care
Fax: [phone]
E-mail: [email protected]
www.arjohuntleigh.com
Rev 14: 05/2014
ArjoHuntleigh Addresses

GETINGE GROUP is a leading global provider of products and systems that contribute to
quality enhancement and cost eciency within healthcare and life sciences. We operate
under the three brands of ArjoHuntleigh, GETINGE and MAQUET. ArjoHuntleigh focuses
on patient mobility and wound management solutions. GETINGE provides solutions for
infection control within healthcare and contamination prevention within life sciences.
MAQUET specializes in solutions, therapies and products for surgical interventions and
intensive care.
www.ArjoHuntleigh.com
ArjoHuntleigh AB
Hans Michelsensgatan 10
211 20 Malmö
SXFEFO
