ARJO HUNTLEIGH NDA8200 User manual

001-24257-EN rev. 2 • February 2014
Wall Mounted Battery Charger
Instructions for Use

2
Table of Contents
001-24257-EN rev. 2
General Information .................................................................................................................................3
Foreword ...........................................................................................................................................3
Service and Support .........................................................................................................................3
Manufacturer Information ..................................................................................................................3
Definitions Used in this Manual .........................................................................................................3
Intended Use .....................................................................................................................................3
Operational Life .................................................................................................................................3
Product Identification ........................................................................................................................3
Safety Instructions ...................................................................................................................................4
Battery and Battery Charger Safety Practices ..................................................................................4
Installation Instructions ...........................................................................................................................5
Preparation .......................................................................................................................................5
Installation .........................................................................................................................................5
How to Use the Charger ..........................................................................................................................5
Charging your Battery .......................................................................................................................5
Troubleshooting .......................................................................................................................................6
Technical Specifications .........................................................................................................................6
Technical Data ..................................................................................................................................6
Dimensions ....................................................................................................................................6
Design Policy and Copyright
® and ™ are trademarks belonging to the ArjoHuntleigh group of companies.
© ArjoHuntleigh 2014.
As our policy is one of continuous improvement, we reserve the right to modify designs
without prior notice.
The content of this publication may not be copied either whole or in part without the
consent of ArjoHuntleigh.
Table of Contents

General Information
3
001-24257-EN rev. 2
Thank you for purchasing the Wall Mounted
Battery Charger.
Your charger is part of a series of quality
products made for hospitals, nursing homes
and other health care uses.
Our goal is to serve your needs and provide
you with the best products available. We also
offer trainings that will bring your staff
maximum benefit from every ArjoHuntleigh
product.
Please contact us if you have any questions
about usage or maintenance of your
ArjoHuntleigh product.
Foreword
Please read this manual in its entirety before using
your charger. The information in this manual is
crucial for the proper usage and maintenance of
the charger. It will help to protect your product and
make sure it performs to your satisfaction. This
manual must be read and understood as it
contains safety related topics that may help you to
prevent injuries.
Modifications to any ArjoHuntleigh product may
affect its safety. ArjoHuntleigh will not be held
responsible for any incidents that occur as a result
of any unauthorized modification to its products.
Service and Support
For more information, contact your ArjoHuntleigh
agent which can offer support to maximize the
long-term reliability, safety and value of the
product. Contact your local agent for product
replacement. This product does not require
maintenance, and have no parts that can be
replaced.
You can get additional copies of this manual from
your local agent. When ordering, include the
Instructions for Use product number (see front
page) and product part number.
Manufacturer Information
This product is manufactured by:
ArjoHuntleigh AB
Hans Michelsensgatan 10
211 20 Malmö,
SWEDEN
: [phone]
: [phone]
: www.ArjoHuntleigh.com
Definitions Used in this Manual
Means: Failure to understand and follow these
instructions may result in injury to yourself and
others.
Means: Failure to follow these instructions may
cause damage to the product.
Means: This is important information regarding
the correct use of the equipment.
Intended Use
The charger is intended for charging
ArjoHuntleigh batteries according to instructions
herein. All other uses must be avoided.
The charger is for indoor use only, under normal
conditions (0 °C to 40 °C [32 °F to 104°F], 90 %
RH max).
Operational Life
The charger has been made and tested for a life
span of ten (10) years based on a usage rate of
two (2) complete recharge (8 hours) per day. The
life span corresponds to the safe operating time
period before the product replacement. Aging of
the unit and frequency of use are factors that have
an impact on the product’s life span.
Product Identification
The unit's identification number (specification,
model, serial number) appears on a silver label
attached to the charger (see Fig. 4).
WARNING: Use only this product with
ArjoHuntleigh designated parts to avoid any
lack of performance or injuries.
WARNING:
CAUTION:
NOTE:
General Information

Safety Instructions
4
001-24257-EN rev. 2
General

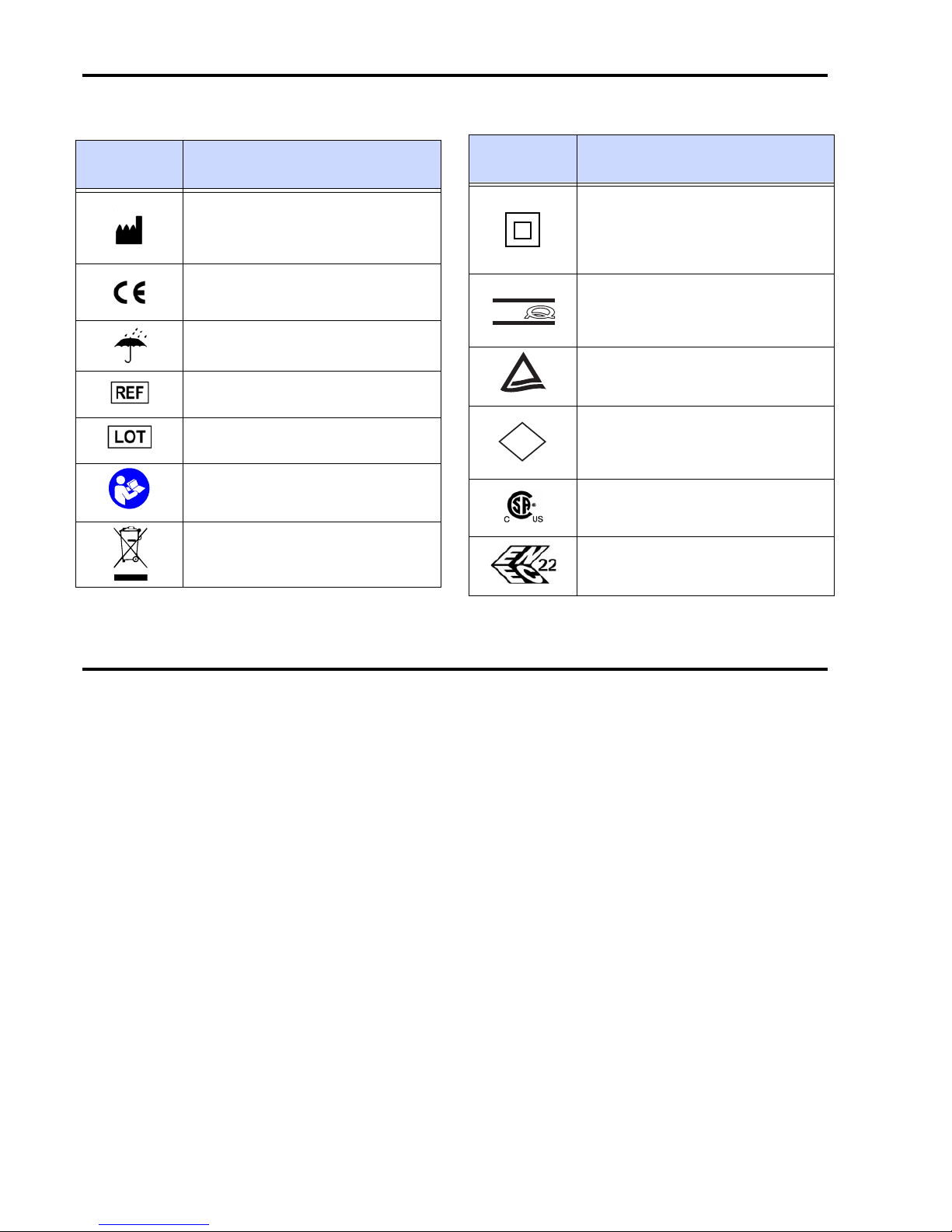

Symbols Key to Symbols
This symbol points out the
manufacturer’s name and address.
May also point out manufactiring
date.
This symbol means that the
product complies with the medical
device directive 93/42/EEC.
This symbol means that the
product must be kept dry.
This symbol points out the
manufacturer’s catalogue number.
This symbol points out the
manufacturer’s lot number.
This symbol means that you must
refer to the Instructions for Use.
“Separate collection” for all
batteries and accumulators as per
the WEEE Directive.
Class II electrical equipment.
This term refers to electrical
equipment in which protection
against electric shock does not rely
on basic insulation only.
This symbol means that the
product is certified by the
Slovenian Institute of Quality and
Metrology.
This symbol means that the
product is certified by TUV
Rheinland.
This symbol means that the
product complies with Product
Safety Appliance and Material
Standards.
This symbol means that the
product has been approved by the
Canadian Standards Association.
This symbol means that the
product complies with European
Norms Electrical Certification.
General
Symbols Key to Symbols
SI
E
P S
Safety Instructions
Battery and Battery Charger
Safety Practices
• The charger must be placed in a low traffic area
to prevent it from being hit.
• When plugging / unplugging the charger’s
power cord, grip the plug itself. Do not pull on the
cord.
• Attach any loose power cord to prevent cable
wear and to avoid strangulation.
• Install the charger away from heat sources or
direct sunlight.
• The charger has been made for dry
surroundings. It must not be installed in
bathrooms, or other humid areas.
• Only use the charger in well ventilated areas.
• The charger must not be covered or exposed to
dust or water. The metal contacts must be kept
clean.
• The charger is for use only with ArjoHuntleigh
24V lead-acid battery type, as supplied with the
lift.
• The battery pack may remain connected to the
charger unit when it is fully charged without
damage.
• Do not short-circuit the battery pack.
• Do not crush, puncture, open, dismantle or
otherwise mechanically interfere with the
batteries.
• The power socket must be easily accessible. If
a faulty condition occurs, switch off the power by
removing the plug from the wall socket.
• Do not store battery packs at a temperature
higher than 40 °C (104 °F). Should the battery
pack casing crack and cause contents to come
in contact with skin or clothing, rinse
immediately with water. If content comes in
contact with eyes, rinse immediately with plenty
of water and seek medical attention.
• The “Pb” symbol appears next to the recycling
and trash bin symbols on the battery pack label.
This means that the battery contains lead and
that it must not be disposed of, but recycled.
General Information
Symbols Used

Installation Instructions
5
001-24257-EN rev. 2
Preparation
• Mount the charger on a suitable wall close to an
electrical outlet.
• Check if wall plugs or anchors are needed. No
hardware is supplied with the kit.
• Use anchors, plugs and screws (4) able to bear
the weight of the charger with a battery in it.
Each anchor point must resist to a pull force of
110 N (25 lb). Holes in mounting plate are 5 mm
(3/16 in) diameter.

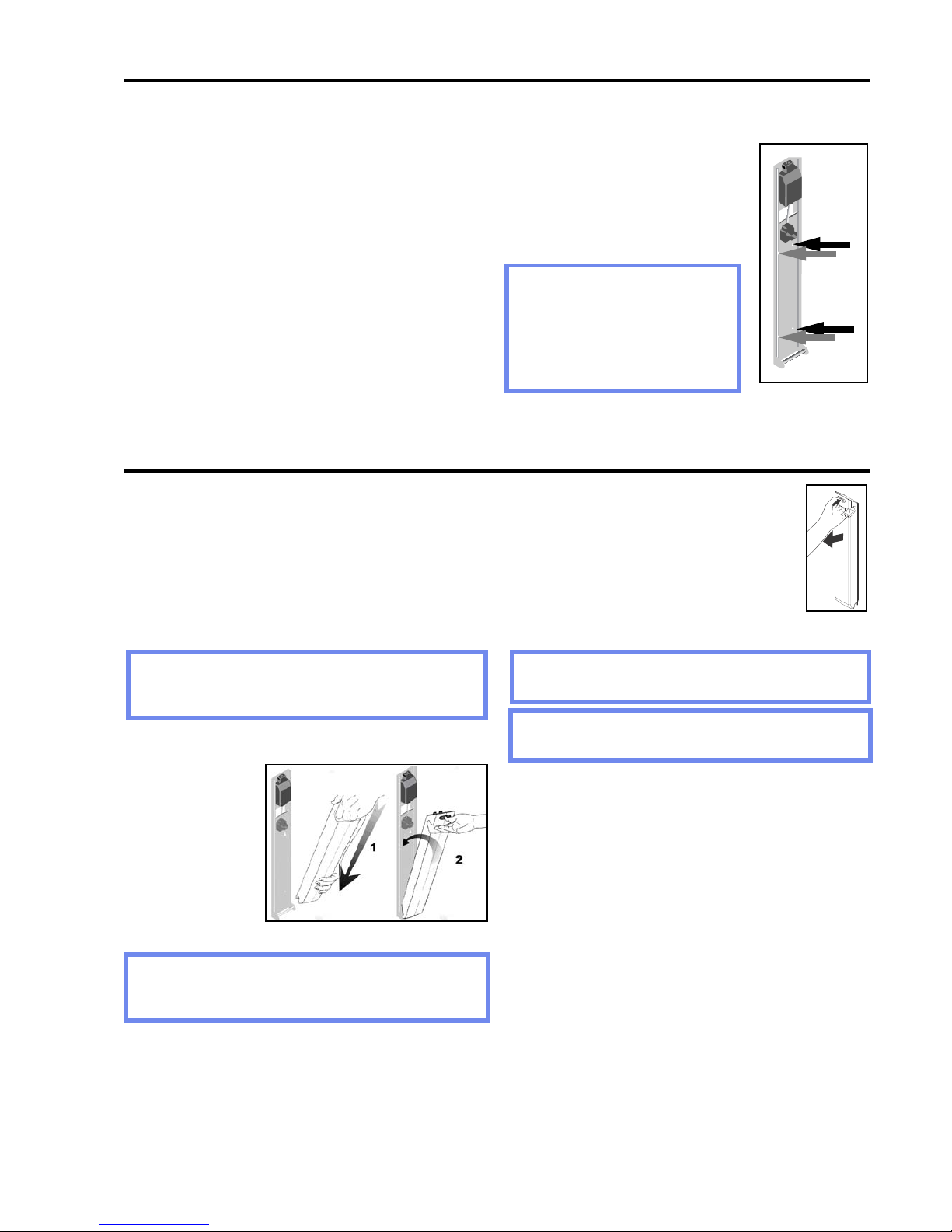

Installation
1) Use the charger mounting plate, as a template,
to mark the four screw’s location on the wall.
Make sure the charger is held straight.
2) Drill holes (at markings) into the wall. Fit wall
plugs into the wall if needed.
3) Hold charger to wall, fit and
tighten screws, see Fig. 1.
4) Plug the charger using the
power cord supplied with the
kit.
5) Attach loose power cord.
WARNING: Precaution shall
be taken, especially in home
care environment, to prevent
strangulation risks by routing
cables properly avoiding
loops.
Fig. 1
How to Use the Charger
Battery Pack
Battery life is variable (2-3 years) and mainly
depends on proper charging practices.
Recharge the batteries on a regular basis to
prolong their life span. Avoid the batteries from
reaching a low charge state.
Remove the battery pack from the lift when it is not
used for a long period.
Charging your Battery
1) Insert the
battery pack
into the
charger unit
and push it in
firmly (see
Fig. 2).
2) Connect the charger into an AC outlet using the
proper power cord.
3) The charger’s LED turns amber during charging.
The battery pack is ready for use when the LED
turns green. A depleted battery pack can take up
to eight hours to reach full charge state.
4) When the batteries are fully charged,
remove the pack from the charger.
To do so, press the red button and
pull the battery pack towards you
(see Fig. 3). The LED remains green
to show that the charger is powered.
NOTE: Batteries must be charged for at least
8 hours prior to the initial use in order to
reach optimal life time.
WARNING : Hold the battery pack firmly to
ensure it does not drop. Dropping can cause
damages resulting in personal injuries.
Fig. 2
NOTE: It is recommended to unplug the
charger when it is not being used.
CAUTION: Refer to your local regulation for
recycling and disposal of battery packs.
Fig. 3
Installation Instructions

Troubleshooting
6
001-24257-EN rev. 2
Technical Specifications
Technical Data
Dimensions
Fig. 4
PRODUCT INFORMATION Wall Mounted Battery Charger
Charger model NDA8200
Total weight of charger 2 kg
Compatible with battery type and part number ArjoHuntleigh 24V lead-acid batteries part numbers:
NDA0100-03, NDA0100-20 and NDA0200-20
Input voltage and frequency 100-240 VAC, 50-60 Hz
Power consumption 50 W (full load), ≤0.75 W (standby)
Output voltage and charger current 24-29 VDC, 1 A max., 24 VA
Degree of protection IP40
Insulation class Class II
Operating temperature / humidity range 0 °C to 40 °C (32 °F to 104 °F), 90 % RH max
Storage temperature / humidity range -40 °C to 70 °C (-40 °F to 158 °F), 10 % RH to 95 % RH
This ArjoHuntleigh product meets the requirements of the Low Voltage
Directive 2006/95/EC, the regulations of the EMC Directive 2004/108/EC.
The Wall Mounted Battery Charger conforms to EN60601-1:2007,
EN60335-1:2010, EN60601-1-2:2007, EN55014-1:2007.
WARNING: This equipment is not suitable for use in the presence of
flammable anesthetic mixture with air or oxygen, or with nitrous oxide.
RECYCLING
Package Cardboard recyclable
Charger Separated and recycled, according to the European Directive
2002/96/EC (WEEE).
715mm
28 1/8"
100mm
3 15/16"
60mm
2 3/8"
305mm 12"
46mm
1 13/16"
45mm
1 3/4"
PRODUCT
IDENTIFICATION
LABEL
CHARGER STATUS
INDICATOR (LED)
Troubleshooting
The charger’s LED does not light up:
• Check if the power cord is plugged into the wall
outlet and into the charger.
• Check if there is power in the wall outlet.
If the LED still not lit, contact your ArjoHuntleigh
agent to replace the charger.

AUSTRALIA
ArjoHuntleigh Pty Ltd
78, Forsyth street
O’Connor
AU-6163 Western Australia
Tel: [phone]
Free: [phone]
Fax: + 61 89337 9077
BELGIQUE / BELGIË
ArjoHuntleigh NV/SA
Evenbroekveld 16
BE-9420 ERPE-MERE
Tél/Tel: [phone]
Fax: [phone]
E-mail: [email protected]
BRASIL
Maquet do Brasil Equipamentos Médicos Ltda
Rua Tenente Alberto Spicciati, 200
Barra Funda, 01140-130
SÃO PAULO, SP - BRASIL
Fone: [phone]
Fax: [phone]
CANADA
ArjoHuntleigh
90 Matheson Boulevard West
Suite 300
CA-MISSISSAUGA, ON, L5R 3R3
Tel/Tél: [phone]
Free: [phone] Institutional
Free: [phone] Home Care
Fax: [phone]
E-mail: [email protected]
ESKÁ REPUBLIKA
ArjoHuntleigh s.r.o.
Hlinky 118
CZ-603 00 BRNO
Tel: [phone]
Fax: [phone]
DANMARK
ArjoHuntleigh A/S
Vassingerødvej 52
DK-3540 LYNGE
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
DEUTSCHLAND
ArjoHuntleigh GmbH
Peter-Sander-Strasse 10
DE-55252 MAINZ-KASTEL
Tel: [phone]
Fax: [phone]
E-mail: [email protected]

C. Psimitis Co Ltd
Dimitriou Andr. 59
GR-16121 KAISARIANI ATTIKIS
: 21 0724 36 68
: 21 0721 55 53
ESPAÑA
ArjoHuntleigh Ibérica S.L.
Ctra. de Rubí, 88 1ª planta - A1
08173 Sant Cugat del Vallés
ES- BARCELONA 08173
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
FRANCE
ArjoHuntleigh SAS
2 Avenue Alcide de Gasperi
CS 70133
FR-59436 RONCQ CEDEX
Tél: [phone]
Fax: [phone]
E-mail : [email protected]
HONG KONG
ArjoHuntleigh (Hong Kong) Ltd
1510-17, 15/F, Tower 2
Kowloon Commerce Centre
51 Kwai Cheong Road
Kwai Chung
HONG KONG
Tel: [phone]
Fax: [phone]
INTERNATIONAL
ArjoHuntleigh International Ltd.
ArjoHuntleigh House
Houghton Hall Park
Houghton Regis
UK-DUNSTABLE LU5 5XF
Tel: [phone]
Fax: [phone]
E-mail:
[email protected]
ITALIA
ArjoHuntleigh S.p.A.
Via di Tor Vergata 432
IT-00133 ROMA
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
NEDERLAND
ArjoHuntleigh Nederland BV
Biezenwei 21
4004 MB TIEL
Postbus 6116
4000 HC TIEL
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
NEW ZEALAND
ArjoHuntleigh Ltd
41 Vestey Drive
Mount Wellington
NZ-AUCKLAND 1060
Tel: [phone]
Free Call: 0800 000 151
Fax: [phone]
E-mail: [email protected]
NORGE
ArjoHuntleigh Norway AS
Olaf Helsets vei 5
NO-0694 OSLO
Tel: [phone]
Faks: [phone]
E-mail: [email protected]
ÖSTERREICH
ArjoHuntleigh GmbH
Dörrstrasse 85
AT-6020 INNSBRUCK
Tel: [phone]
Fax: [phone]
POLSKA
ArjoHuntleigh Polska Sp. z o.o.
ul. Ks Piotra Wawrzyniaka 2
PL-62-052 KOMORNIKI (Poznan)
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
PORTUGAL
ArjoHuntleigh em Portugal:
MAQUET Portugal, Lda. (Distribudor Exclusivo)
Rua Poeta Bocage n.º 2 - 2G
PT-1600-233 Lisboa
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
SUISSE / SCHWEIZ
ArjoHuntleigh AG
Fabrikstrasse 8
Postfach
CH-4614 HÄGENDORF
Tél/Tel: [phone]
Fax: [phone]
SUOMI
Oy Vestek AB
Martinkuja 4
FI-02270 ESPOO
Puh: [phone]
E-mail: [email protected]
SVERIGE
ARJO Scandinavia AB
Verkstadsvägen 5
Box 61
SE-241 21 ESLÖV
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
UNITED KINGDOM
ArjoHuntleigh UK
ArjoHuntleigh House
Houghton Hall Park
Houghton Regis
UK-DUNSTABLE LU5 5XF
Tel: [phone]
Fax: [phone]
E-mail:
[email protected]
USA
ArjoHuntleigh Inc.
2349 W Lake Street Suite 250
US-Addison, IL 60101
Tel: [phone]
Free: [phone] Institutional
Free: [phone] Home Care
Fax: [phone]
E-mail: [email protected]
www.arjohuntleigh.com

GETINGE GROUP is a leading global provider of products and systems that
contribute to quality enhancement and cost efficiency within healthcare and life
sciences. We operate under the three brands of ArjoHuntleigh, GETINGE and
MAQUET. ArjoHuntleigh focuses on patient mobility and wound management
solutions. GETINGE provides solutions for infection control within healthcare and
contamination prevention within life sciences. MAQUET specializes in solutions,
therapies and products for surgical interventions and intensive care.
www.ArjoHuntleigh.com
ArjoHuntleigh AB
Hans Michelsensgatan 10
211 20 Malmö
SWEDEN
