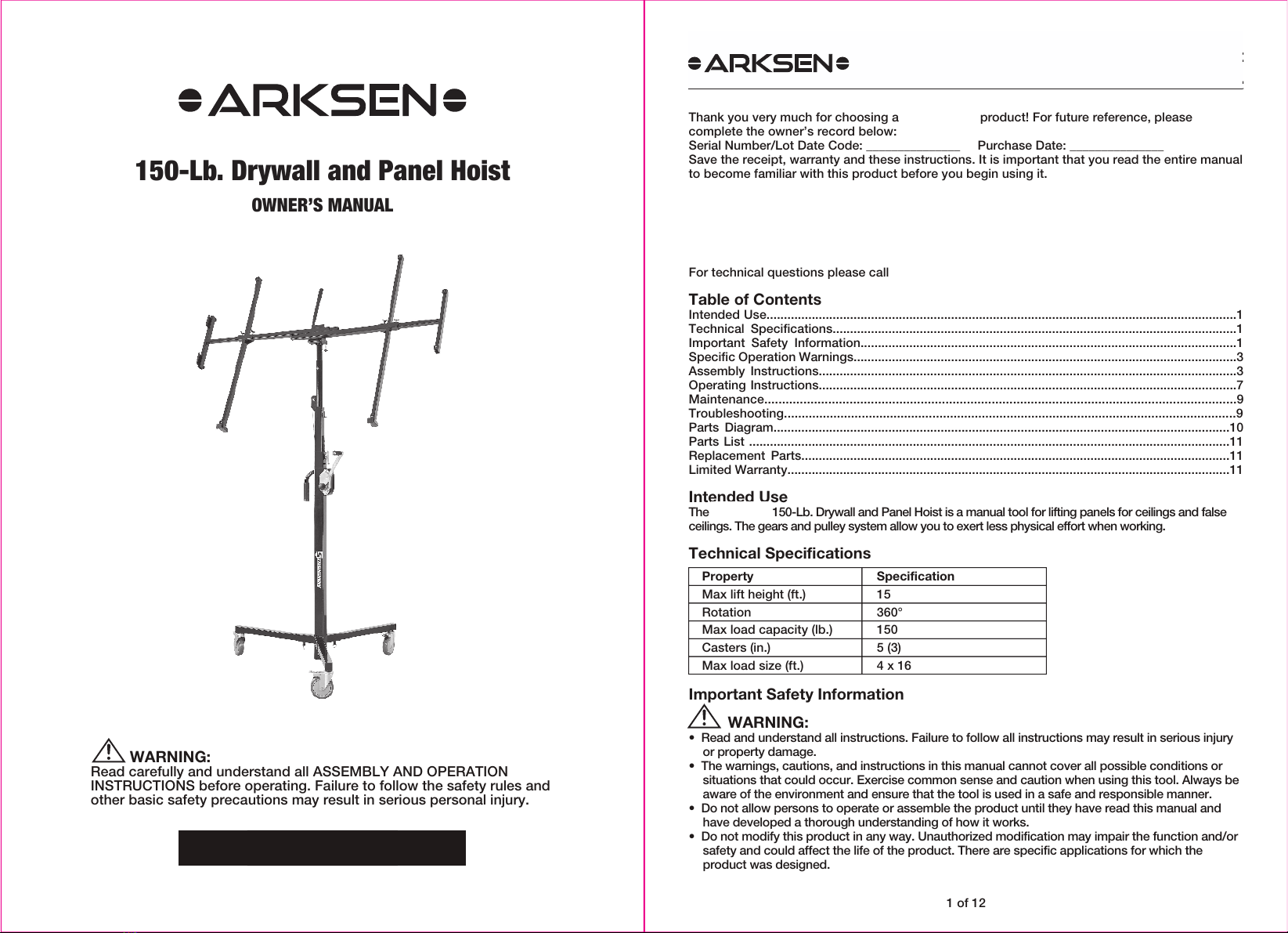

ARKSEN 018-HO-18040 User manual

Thank you very much for choosing a Strongway™ product! For future reference, please
complete the owner’s record below:
Serial Number/Lot Date Code: _______________ Purchase Date: _______________
Save the receipt, warranty and these instructions. It is important that you read the entire manual
to become familiar with this product before you begin using it.
This hoist is designed for certain applications only. Northern Tool and Equipment is not responsible for
issues arising from modification or improper use of this product such as an application for which it was
not designed. We strongly recommend that this product not be modified and/or used for any application
other than that for which it was designed.
For technical questions please call 1-800-222-5381.
Table of Contents
Intended Use.......................................................................................................................................1
Technical Specifications....................................................................................................................1
Important Safety Information............................................................................................................1
Specific Operation Warnings..............................................................................................................3
Assembly Instructions........................................................................................................................3
Operating Instructions........................................................................................................................7
Maintenance.....................................................................................................................................9
Troubleshooting................................................................................................................................9
Parts Diagram...................................................................................................................................10
Parts List ..........................................................................................................................................11
Replacement Parts...........................................................................................................................11
Limited Warranty...............................................................................................................................11
Intended Use
The Strongway 150-Lb. Drywall and Panel Hoist is a manual tool for lifting panels for ceilings and false
ceilings. The gears and pulley system allow you to exert less physical effort when working.
Technical Specifications
Important Safety Information
WARNING:
• Read and understand all instructions. Failure to follow all instructions may result in serious injury
or property damage.
• The warnings, cautions, and instructions in this manual cannot cover all possible conditions or
situations that could occur. Exercise common sense and caution when using this tool. Always be
aware of the environment and ensure that the tool is used in a safe and responsible manner.
• Do not allow persons to operate or assemble the product until they have read this manual and
have developed a thorough understanding of how it works.
• Do not modify this product in any way. Unauthorized modification may impair the function and/or
safety and could affect the life of the product. There are specific applications for which the
product was designed.
150-Lb. Drywall and Panel Hoist
OWNER’S MANUAL
150-Lb. Drywall and Panel Hoist
OWNER’S MANUAL
Item# 57395
1 of 12
WARNING:
Read carefully and understand all ASSEMBLY AND OPERATION
INSTRUCTIONS before operating. Failure to follow the safety rules and
other basic safety precautions may result in serious personal injury.
Property
Max lift height (ft.)
Rotation
Max load capacity (lb.)
Casters (in.)
Max load size (ft.)
Specification
15
360°
150
5 (3)
4 x 16
Item# 018-HO-18040
150-Lb. Drywall and Panel Hoist
OWNER’S MANUAL
Arksen
[phone]
Arksen

150-Lb. Drywall and Panel Hoist
OWNER’S MANUAL
150-Lb. Drywall and Panel Hois
OWNER’S MANUAL

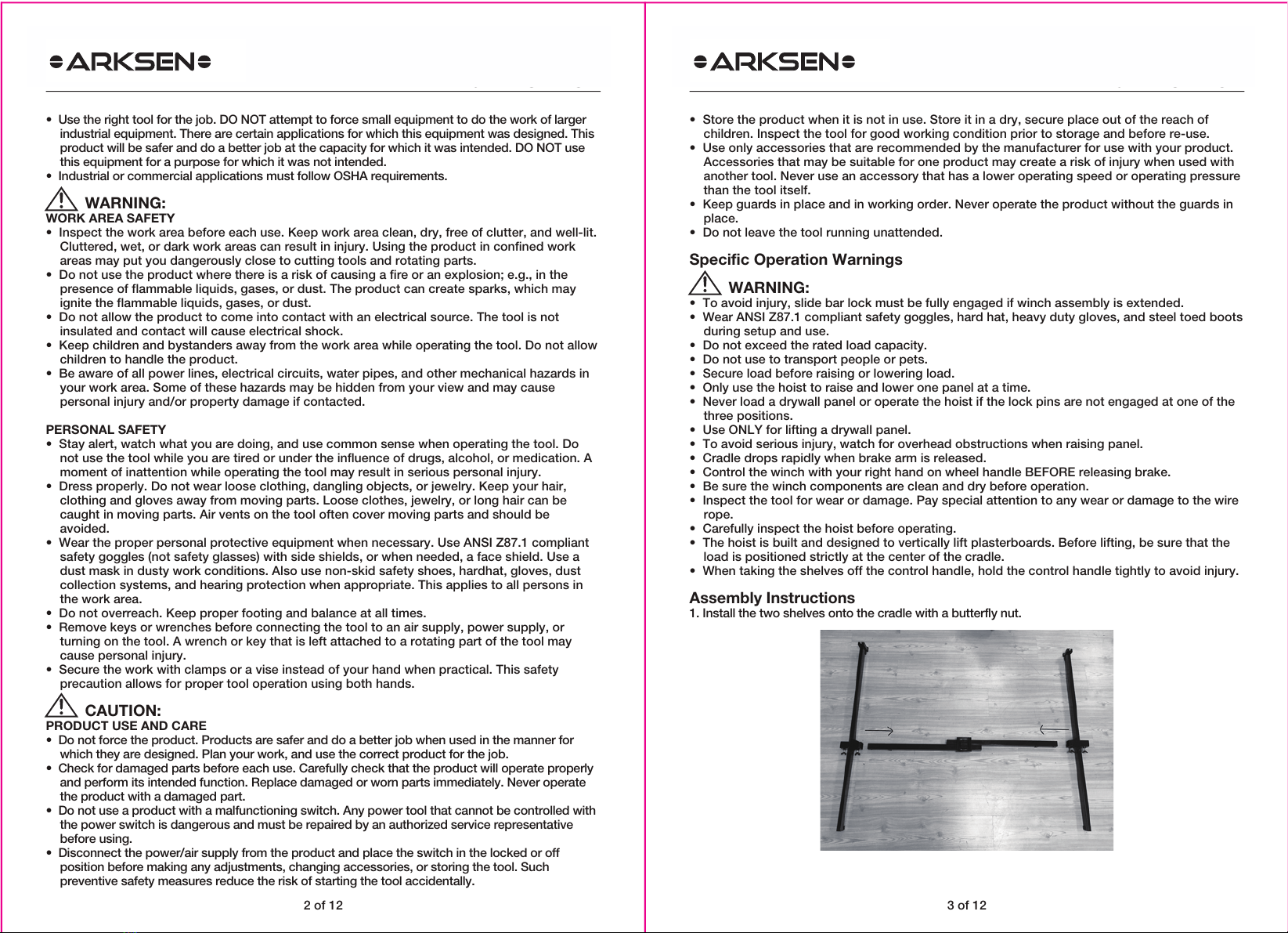

• Use the right tool for the job. DO NOT attempt to force small equipment to do the work of larger
industrial equipment. There are certain applications for which this equipment was designed. This
product will be safer and do a better job at the capacity for which it was intended. DO NOT use
this equipment for a purpose for which it was not intended.
• Industrial or commercial applications must follow OSHA requirements.
WARNING:
WORK AREA SAFETY
• Inspect the work area before each use. Keep work area clean, dry, free of clutter, and well-lit.
Cluttered, wet, or dark work areas can result in injury. Using the product in confined work
areas may put you dangerously close to cutting tools and rotating parts.
• Do not use the product where there is a risk of causing a fire or an explosion; e.g., in the
presence of flammable liquids, gases, or dust. The product can create sparks, which may
ignite the flammable liquids, gases, or dust.
• Do not allow the product to come into contact with an electrical source. The tool is not
insulated and contact will cause electrical shock.
• Keep children and bystanders away from the work area while operating the tool. Do not allow
children to handle the product.
• Be aware of all power lines, electrical circuits, water pipes, and other mechanical hazards in
your work area. Some of these hazards may be hidden from your view and may cause
personal injury and/or property damage if contacted.
PERSONAL SAFETY
• Stay alert, watch what you are doing, and use common sense when operating the tool. Do
not use the tool while you are tired or under the influence of drugs, alcohol, or medication. A
moment of inattention while operating the tool may result in serious personal injury.
• Dress properly. Do not wear loose clothing, dangling objects, or jewelry. Keep your hair,
clothing and gloves away from moving parts. Loose clothes, jewelry, or long hair can be
caught in moving parts. Air vents on the tool often cover moving parts and should be
avoided.
• Wear the proper personal protective equipment when necessary. Use ANSI Z87.1 compliant
safety goggles (not safety glasses) with side shields, or when needed, a face shield. Use a
dust mask in dusty work conditions. Also use non-skid safety shoes, hardhat, gloves, dust
collection systems, and hearing protection when appropriate. This applies to all persons in
the work area.
• Do not overreach. Keep proper footing and balance at all times.
• Remove keys or wrenches before connecting the tool to an air supply, power supply, or
turning on the tool. A wrench or key that is left attached to a rotating part of the tool may
cause personal injury.
• Secure the work with clamps or a vise instead of your hand when practical. This safety
precaution allows for proper tool operation using both hands.
CAUTION:
PRODUCT USE AND CARE
• Do not force the product. Products are safer and do a better job when used in the manner for
which they are designed. Plan your work, and use the correct product for the job.
• Check for damaged parts before each use. Carefully check that the product will operate properly
and perform its intended function. Replace damaged or worn parts immediately. Never operate
the product with a damaged part.
• Do not use a product with a malfunctioning switch. Any power tool that cannot be controlled with
the power switch is dangerous and must be repaired by an authorized service representative
before using.
• Disconnect the power/air supply from the product and place the switch in the locked or off
position before making any adjustments, changing accessories, or storing the tool. Such
preventive safety measures reduce the risk of starting the tool accidentally.
• Store the product when it is not in use. Store it in a dry, secure place out of the reach of
children. Inspect the tool for good working condition prior to storage and before re-use.
• Use only accessories that are recommended by the manufacturer for use with your product.
Accessories that may be suitable for one product may create a risk of injury when used with
another tool. Never use an accessory that has a lower operating speed or operating pressure
than the tool itself.
• Keep guards in place and in working order. Never operate the product without the guards in
place.
• Do not leave the tool running unattended.
Specific Operation Warnings
WARNING:
• To avoid injury, slide bar lock must be fully engaged if winch assembly is extended.
• Wear ANSI Z87.1 compliant safety goggles, hard hat, heavy duty gloves, and steel toed boots
during setup and use.
• Do not exceed the rated load capacity.
• Do not use to transport people or pets.
• Secure load before raising or lowering load.
• Only use the hoist to raise and lower one panel at a time.
• Never load a drywall panel or operate the hoist if the lock pins are not engaged at one of the
three positions.
• Use ONLY for lifting a drywall panel.
• To avoid serious injury, watch for overhead obstructions when raising panel.
• Cradle drops rapidly when brake arm is released.
• Control the winch with your right hand on wheel handle BEFORE releasing brake.
• Be sure the winch components are clean and dry before operation.
• Inspect the tool for wear or damage. Pay special attention to any wear or damage to the wire
rope.
• Carefully inspect the hoist before operating.
• The hoist is built and designed to vertically lift plasterboards. Before lifting, be sure that the
load is positioned strictly at the center of the cradle.
• When taking the shelves off the control handle, hold the control handle tightly to avoid injury.
Assembly Instructions
1. Install the two shelves onto the cradle with a butterfly nut.
2 of 12 3 of 12
150-Lb. Drywall and Panel Hoist
OWNER’S MANUAL
150-Lb. Drywall and Panel Hoist
OWNER’S MANUAL

2. Install the two side shelves onto the shelves with a butterfly nut.
3. Insert the legs into the leg housing of the central column.
4. Pull the anchor when inserting the leg and release it. Make sure it fits into the hole of the
leg.Also make sure that the legs do not slip from the housing when pulled.
5. Place the rack into the central column.
6. When the rack is inserted into the central column completely, it should look like this:
7. Place the control handle into the rack and attach with a butterfly nut.
150-Lb. Drywall and Panel Hoist
OWNER’S MANUAL
4 of 12 5 of 12
150-Lb. Drywall and Panel Hoist
OWNER’S MANUAL
150-Lb. Drywall and Panel Hoist
OWNER’S MANUAL
150-Lb. Drywall and Panel Hoist
OWNER’S MANUAL
150-Lb. Drywall and Panel Hoist
OWNER’S MANUAL
150-Lb. Drywall and Panel Hoist
OWNER’S MANUAL

!
!
!
The hooks are backwards

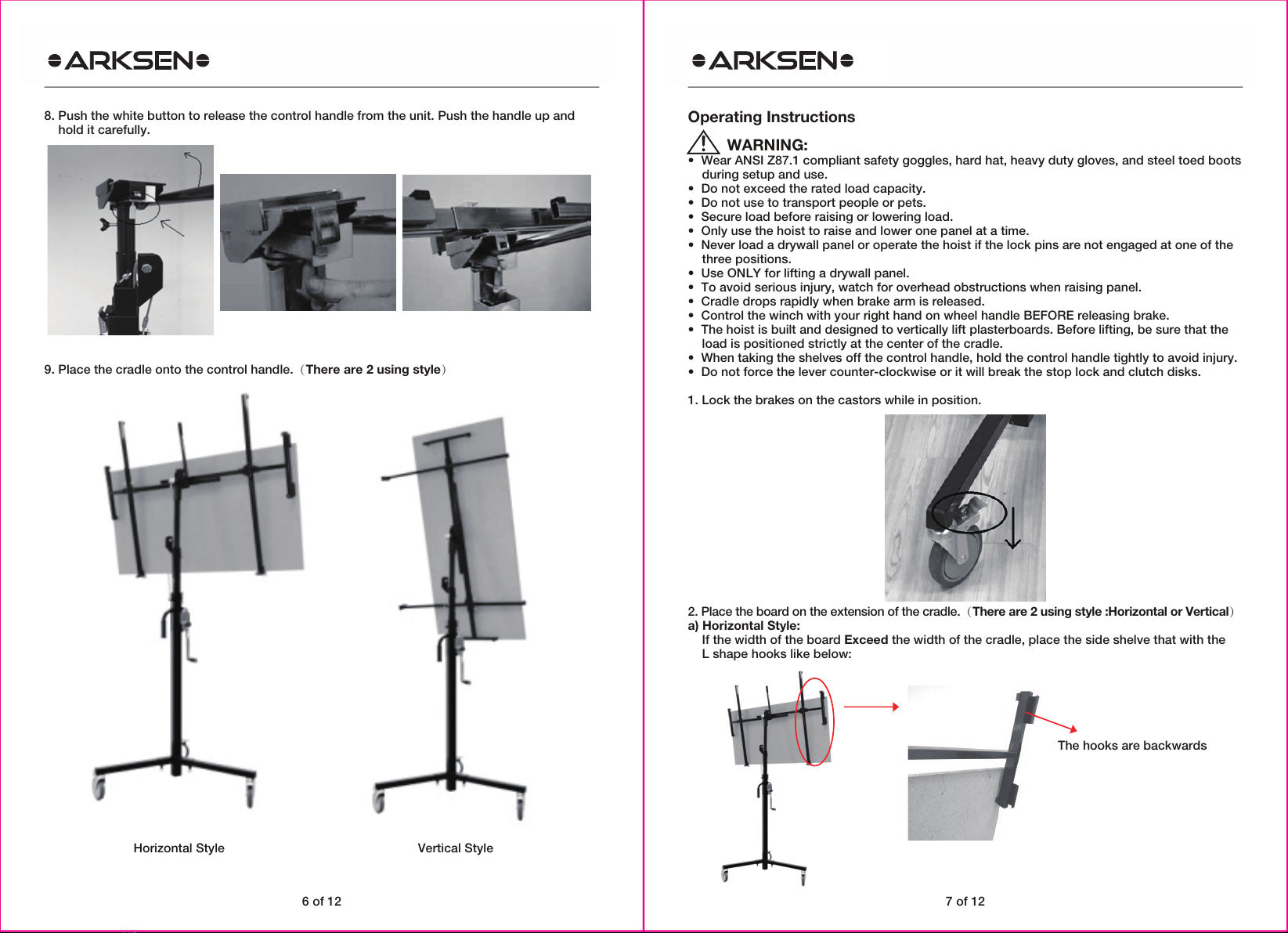

8. Push the white button to release the control handle from the unit. Push the handle up and
hold it carefully.
9. Place the cradle onto the control handle.（There are 2 using style）
Operating Instructions
WARNING:
• Wear ANSI Z87.1 compliant safety goggles, hard hat, heavy duty gloves, and steel toed boots
during setup and use.
• Do not exceed the rated load capacity.
• Do not use to transport people or pets.
• Secure load before raising or lowering load.
• Only use the hoist to raise and lower one panel at a time.
• Never load a drywall panel or operate the hoist if the lock pins are not engaged at one of the
three positions.
• Use ONLY for lifting a drywall panel.
• To avoid serious injury, watch for overhead obstructions when raising panel.
• Cradle drops rapidly when brake arm is released.
• Control the winch with your right hand on wheel handle BEFORE releasing brake.
• The hoist is built and designed to vertically lift plasterboards. Before lifting, be sure that the
load is positioned strictly at the center of the cradle.
• When taking the shelves off the control handle, hold the control handle tightly to avoid injury.
• Do not force the lever counter-clockwise or it will break the stop lock and clutch disks.
1. Lock the brakes on the castors while in position.
2. Place the board on the extension of the cradle.（There are 2 using style :Horizontal or Vertical）
a) Horizontal Style:
If the width of the board Exceed the width of the cradle, place the side shelve that with the
L shape hooks like below:
Horizontal Style Vertical Style
150-Lb. Drywall and Panel Hoist
OWNER’S MANUAL
6 of 12 7 of 12
150-Lb. Drywall and Panel Hoist
OWNER’S MANUAL
150-Lb. Drywall and Panel Hoist
OWNER’S MANUAL
150-Lb. Drywall and Panel Hoist
OWNER’S MANUAL
150-Lb. Drywall and Panel Hoist
OWNER’S MANUAL
150-Lb. Drywall and Panel Hoist
OWNER’S MANUAL

b) Vertical Style:
Place the side shelve that with the L shape hook in the bottom to hold the board.
Like below:
3. Push the white button to release
the control handle from the unit.
5. To raise the cradle by turning the rotating crank, turn the handle clockwise, keeping the other
hand firmly on the handlebars. Lift up to the desired height with the desired direction. Now
the board can be attached to the ceiling.
Maintenance Interval
Daily before and after
operatingWhen not in use
Maintenance Point
Clean the machine completely, in particular the sliding parts
and the gear-pulley assembly.
Failure
The drywall won’t move.
The cradle won’t fall.
Possible Cause
The castors are locked by brake.
The locking device is open like the
image below.
Corrective Action
Release the brake on castors.
Check the locking device and
lock as shown here.
The cradle won’t move.
The control handle is locked
as shown here.
Release the control handle.
!
!
!
The hooks are forward
!
4. Pull the control handle down to the horizontal position.
8 of 12 9 of 12
Maintenance
Maintain the product by adopting a program of conscientious repair and maintenance in
accordance with the following recommended procedures. It is recommended that the general
condition of any tool be examined before it is used. Keep your tool in good repair. Keep handles
dry, clean, and free from oil and grease. The following chart is based on a normal operation
schedule.
Troubleshooting
Use the table below to troubleshoot problems before contacting service personnel or your local
dealer. If the problem continues after troubleshooting, call your local dealer for assistance.
150-Lb. Drywall and Panel Hoist
OWNER’S MANUAL
150-Lb. Drywall and Panel Hoist
OWNER’S MANUAL
150-Lb. Drywall and Panel Hoist
OWNER’S MANUAL
150-Lb. Drywall and Panel Hoist
OWNER’S MANUAL

Parts List
Replacement Parts
• For replacement parts and technical questions, please call Customer Service at
1-800-222-5381.
• Not all product components are available for replacement. The illustrations provided are a
convenient reference to the location and position of parts in the assembly sequence.
• When ordering parts, the following information will be required: item description, item model
number, item serial number/item lot date code, and the replacement part reference number.
• The distributor reserves the rights to make design changes and or improvements to product
lines and manuals without notice.
Limited Warranty
Northern Tool and Equipment Company, Inc. ("We'' or ''Us'') warrants to the original purchaser
only (''You'' or ''Your'') that the Ironton product purchased will be free from material defects in
both materials and workmanship, normal wear and tear excepted, for a period of 90 days from
date of purchase. The foregoing warranty is valid only if the installation and use of the product
is strictly in accordance with product instructions. There are no other warranties, express or
implied, including the warranty of merchantability or fitness for a particular purpose. If the
product does not comply with this limited warranty, Your sole and exclusive remedy is that We
will, at our sole option and within a commercially reasonable time, either replace the product or
product component without charge to You or refund the purchase price (less shipping). This
limited warranty is not transferable.
10 of 12 11 of 12
Part No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
Description
Hex head screw 12 x 20
Castor with brake
Leg cap
Castor without brake
Rotating crank
Lever
Lever cap
Leg
Leg housing
Box
Clutch plate
Clutch claw
Bush
The middle of gear wheel
The upper of gear wheel
Handle
Control handle
Anchor
Shelf
Cradle
Q’ty
3
1
3
2
1
1
1
3
3
1
2
1
1
1
1
1
1
3
2
1
Part No.
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
Description
Ball bearing 34 x 11 x 10
Metal rope 4
Pulley
Side shelf
Rubber support kit
Plastic support kit
Extension third stage
Extension second stage
Extension first stage
Rack
Upper shaft with gear wheel
Middle shaft with gear wheel
Bushing
Shaft
Elastic pin 4x 20
Adjust parts
Hex head screw 6 x 10
Central column
Adjust locking device
Butterfly nut
Q’ty
1
1
1
2
6
2
1
1
1
1
1
1
2
1
1
1
2
1
1
5
Parts Diagram
150-Lb. Drywall and Panel Hoist
OWNER’S MANUAL
150-Lb. Drywall and Panel Hoist
OWNER’S MANUAL
150-Lb. Drywall and Panel Hoist
OWNER’S MANUAL
150-Lb. Drywall and Panel Hoist
OWNER’S MANUAL
[phone]

Limitations on the Warranty
This limited warranty does not cover: (a) normal wear and tear; (b) damage through abuse,
neglect, misuse, or as a result of any accident or in any other manner; (c) damage from
misapplication, overloading, or improper installation; (d) improper maintenance and repair; and
(e) product alteration in any manner by anyone other than Us, with the sole exception of
alterations made pursuant to product instructions and in a workmanlike manner.
Obligations of Purchaser
You must retain Your product purchase receipt to verify date of purchase and that You are the
original purchaser. To make a warranty claim, contact Us at 1-800-222-5381, identify the
product by make and model number, and follow the claim instructions that will be provided. The
product and the purchase receipt must be provided to Us in order to process Your warranty
claim. Any returned product that is replaced or refunded by Us becomes our property. You will
be responsible for return shipping costs or costs related to Your return visit to a retail store.
Remedy Limits
Product replacement or a refund of the purchase price is Your sole remedy under this limited
warranty or any other warranty related to the product. We shall not be liable for: service or labor
charges or damage to Your property incurred in removing or replacing the product; any
damages, including, without limitation, damages to tangible personal property or personal
injury, related to Your improper use, installation, or maintenance of the product or product
component; or any indirect, incidental or consequential damages of any kind for any reason.
Assumption of Risk
You acknowledge and agree that any use of the product for any purpose other than the
specified use(s) stated in the product instructions is at Your own risk.
Governing Law
This limited warranty gives You specific legal rights, and You also may have other rights which
vary from state to state. Some states do not allow limitations or exclusions on implied warran-
ties or incidental or consequential damages, so the above limitations may not apply to You.
This limited warranty is governed by the laws of the State of Minnesota, without regard to rules
pertaining to conflicts of law. The state courts located in Dakota County, Minnesota shall have
exclusive jurisdiction for any disputes relating to this warranty.
Distributed by
Northern Tool and Equipment Company, Inc.
Burnsville, Minnesota 55306
NorthernTool.com
Made in China
12 of 12
150-Lb. Drywall and Panel Hoist
OWNER’S MANUAL
150-Lb. Drywall and Panel Hoist
OWNER’S MANUAL
[phone]
