ARKSEN 014-HG-14141 User manual

Model# 014-HG-14141
OPERATOR’S MANUAL
ELECTRIC PRESSURE WASHER WITH HOSE REEL
3000 PSI | 1.76 GPM | 14.5 AMP
!CAUTION! Do not use this advice before reading the instructions.
CONTACT INFO
www.arksenusa.com
[phone]

2
Contents
Product Description Purpose --------------------------------------------------------------
General Safety --------------------------------------------------------------------------------
Additional Safety Instruction ------------------------------------------------------------------
Risk of Electrocution --------------------------------------------------------------------------
Precautions ------------------------------------------------------------------------------------
Identication of Parts --------------------------------------------------------------------------
Technical Data ------------------------------------------------------------------------------------
First time instructions --------------------------------------------------------------------------
Safety Devices ------------------------------------------------------------------------------------
Thermal Sensor -----------------------------------------------------------------------------------
Operation instructions --------------------------------------------------------------------------
Connection of garden hose --------------------------------------------------------------------------
Mounting of high pressure hose -----------------------------------------------------------------------
Water connection ----------------------------------------------------------------------------------
Start/stop of the machine --------------------------------------------------------------------------
Install indicator diagram --------------------------------------------------------------------------
After use instructions --------------------------------------------------------------------------
Maintenance, cleaner and repair ---------------------------------------------------------
Cleaning of inlet lter --------------------------------------------------------------------------
Cleaning of air vents -----------------------------------------------------------------------------
Quick Connecting nozzles ------------------------------------------------------------------
Troubleshooting ----------------------------------------------------------------------------------
03
03
03
03
03
04
04
05
05
05
05
05
05
05
05
06
07
07
07
07
07
08

3
Product Description Purpose
Electric power washer is intended for residential use to
clean vehicles, machines, buildings, facades, etc. Keep this
appliance away from heat, direct sunlight, moisture and rain,
ice and sharp edges.
General Safety
!WARNING: High-pressure washers must not be used by
children or untrained persons.
!WARNING: Do not point the trigger nozzle at anyone or at
any part of the body
!WARNING: The appliance has been designed for use with
most cleaning agents
!WARNING: Power cords on drums should always be
completely unwound to prevent the code from overheating
• Do not allow anybody that has not been trained to use
a pressure washer to operate the machine without rst
reading the instruction manual.
• Before starting your machine, carefully check for defects. If
you nd any, do not start your machine and contact Arksen
Customer Service.
• Hold the trigger gun rmly in your hands.
• Wear protective gloves and clothing during use
• Read all the instructions before using the product.
• To reduce the risk of injury, close supervision is necessary
when a product is used near children.
• Do not operate the product when fatigued or under the
inuence of medication, alcohol or drugs.
• Keep operating area clear of all persons.
• Do not overreach or stand on unstable support
• Do not abuse the cord. Never use the cord for carrying,
pulling or unplugging the pressure washer. Keep cord away
from heat, oil, sharp edges or moving parts. Damaged or
entangled cords increase the risk of electric shock.
• Keep good footing and balance at all times
Additional Safety Instruction
• Do not modify or cover the spray wand or the spray
nozzles in any way
• Electric power washer is designed to be used with cold
or lukewarm water; higher temperatures can damage the
pump
• Before servicing, cleaning, or removing any parts, shut o
the power & relieve water pressure
• Do not use water that is gritty, dirty, or contains any
chemical products, as these could impair operation and
shorten the life of the machine
• It is not recommended to use an extension cord with this
pressure washer. Using an extension cord may cause a drop
in line voltage resulting in loss of power and overheating.
Risk of Electrocution
• Inspect cord before using
• Do not use if power cord is damaged
• Keep all connection dry & o the ground
• Do not touch plug with wet hands
• Keep cord away from heat and sharp edges
• Do not spray electrical apparatus & wiring
Precautions
• Work area should have adequate drainage to reduce the
possibility of a fall or electric shock due to wet surfaces.
• Wear ANSI-approved safety goggles during set up and
use.
• Only feed cold, clean water through this tool. Pressure
washer detergent may be used in the soap dispenser only.
Do not use caustic materials, solvents, ammable materials,
or detergents not designed for pressure washers. Use of
any such material can cause injury, or damage this tool or
personal property.
• Prior to starting the Pressure Washer in cold weather,
check all of the parts of the unit to make sure ice have
not formed. Do not store the unit anywhere that the
temperature will fall near 32° F (0° C).

4

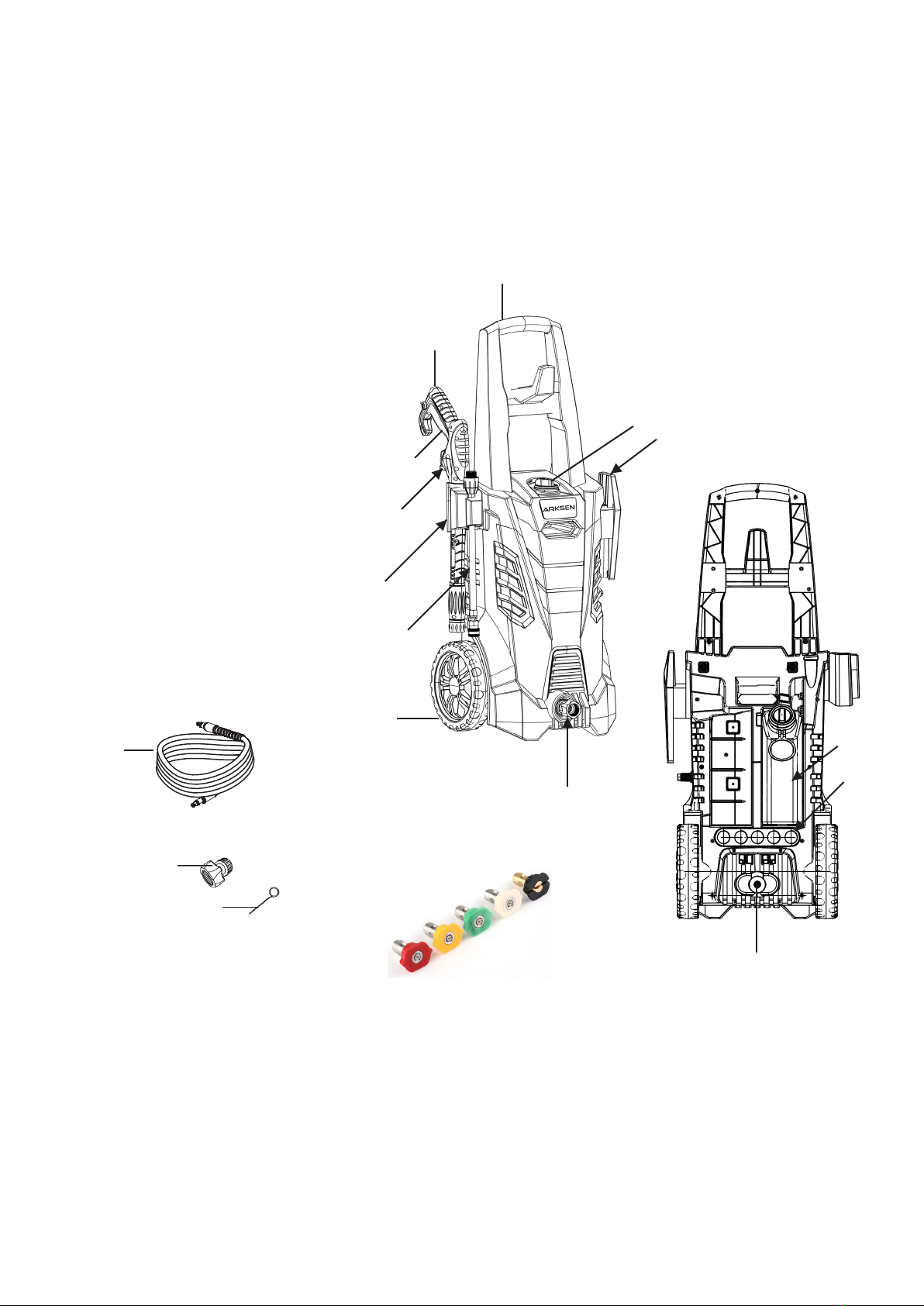

Identication of Parts
Read the owner’s manual and safety instructions carefully before operating the electric pressure washer. Compare the
illustration below to the electric pressure washer in order to familiarize yourself with the location of the various controls and
adjustments. Save this manual for future reference.
1. Trigger
2. Trigger gun
3. High-pressure hose
4. Spray wand
5. Water inlet
6. Transportation handle
7. Onboard storage for Quick-Connect nozzles
8. On/O switch
9. High-pressure hose connection
10. Cord holder
11. Trigger gun holder
12. Removable detergent tank
13. Wheels
14. Garden hose adaptor (female coupler)
15. Needle clean out tool
16. 0º Quick-Connect nozzle (Red)
17. 15º Quick-Connect nozzle (yellow)
18. 25º Quick-Connect nozzle (green)
19. 40º Quick-Connect nozzle (white)
20. Soap Quick-Connect nozzle (black)
Technical Data
Rated Voltage
Motor
Max. Water Inlet Temperature
Max. Water Inlet Pressure
Max. Rated Flow
Rated Pressure
Max. Pressure
Hose Length
120 V ~ 60 Hz
14.5 amp (1800 W)
104ºF/40ºC
0.7 MPa
1.76 GPM
2200 PSI
3000 PSI
20 ft (6 m)
14
15
16 17
18
19
20
3
1
4
13
11
9
5
9
7
2
6
810
12

5
First time instructions
This section will explain in details how to make high pressure
washer ready for use.
SAFETY DEVICES
The unloader valve can reduce pressure if it exceeds pre-set
values.
Locking device on trigger gun (see illustration at the
beginning of this manual): The trigger gun features a locking
device. When the knob is activated, the trigger gun cannot be
operated.
THERMAL SENSOR
A thermal sensor protects the motor against overloading. The
machine will restart after a few minutes when the thermal
sensor has cooled.
Operation instructions

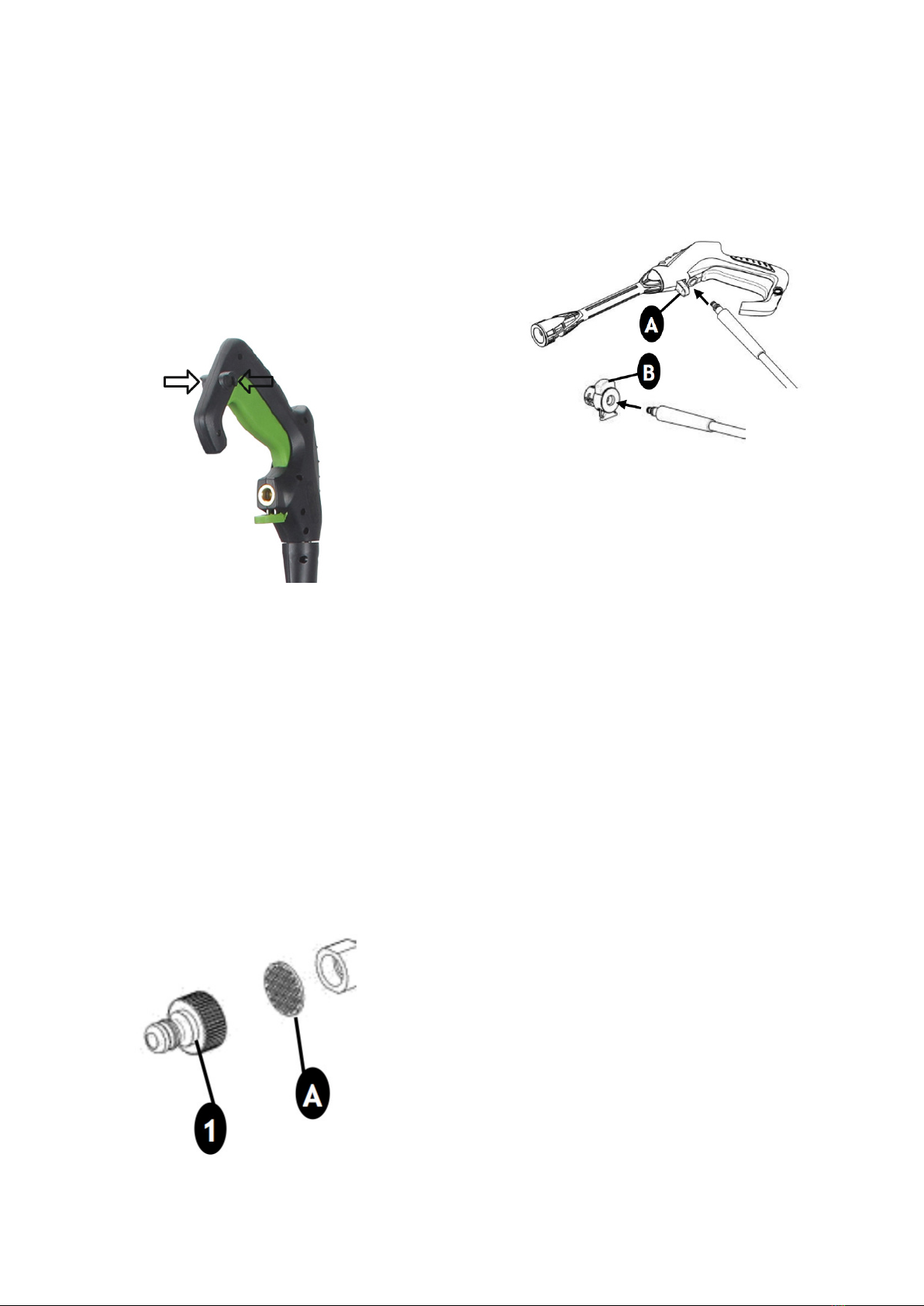

Connection of garden hose
Screw the water inlet coupling (3) tight on to the water inlet
Note: The inlet lter (A) must always be tted in the water
inlet pipe to lter out sand, lime stone and other impurities as
these will damage the pump valves.
Caution: Failure to t the lter will invalidate the guarantee.
Connect the garden hose with a standard quick coupling
Mounting of high pressure hose
Attach the high pressure hose to the trigger gun and
machine.
Detach the high pressure hose by pressing the pawl (A) or
button (B)
Water connection
Connecting the water supply pipe
Follow your water supplier’s instructions . For connection
information, see the data plate/technical specications
Use a reinforced hose (not supplied) with a standard
connection (ext. diameter: 16mm/int. 12mm, maximum
length: 25m).
!IMPORTANT! Only use water without any impurities. If
there is a risk of sand particles in the inlet water (i.e. from your
own well), an additional lter should be mounted.
Let the water run through the water hose before connecting
it to the machine to prevent sand and dirt from penetrating
the machine. Note: Check that the lter is tted in the water
inlet pipe and that it is not clogged up.
Connect the water hose to the water supply by means of
the quick connector (inlet water, max. Pressure: 10 bar, max.
Temperature: 60°C).
Turn on the water.
Start/stop of the machine
The trigger gun (1) and lance is aected by a thrust during
operation - therefore always hold it rmly with both hands.
IMPORTANT: Point the nozzle at the ground.
Check that the machine is in upright position. NOTE: Do not
place the machine in high grass!
Release the trigger lock .
Activate the trigger of the trigger gun (1) and let the water
run until all air has escaped from the water hose.
Press the Start/stop switch (7).
Push lock Push unlock

6
Activate the trigger of the trigger gun (1). Always adjust the
distance and thus the pressure of the nozzle to the surface,
which is to be cleaned.
Do not cover the machine during operation or use it in a
room without adequate ventilation!
NOTE: If the machine is left or not used for 5 minutes, it must
be switched o on the start/stop switch (7) “O”:
Press the start/stop switch (7)“O”. Disconnect the electrical
plug (12) from the socket.
Shut o the water supply and activate the trigger of the
trigger gun (1) to relieve the machine of pressure.
Lock the trigger gun (1)
When releasing the trigger of the trigger gun (1), the machine
automatically stops. The machine will start again when you
re- activate the trigger gun (1)
Install indicator diagram
1. Check the Inlet Strainer for any blockage, including
packaging debris. Remove any plastic plugs from the water
inlet/outlet.
2. Attach the Gun/Extension Nozzle holder to the side of the
body.
3 Attach the Cable Holder to the side of the body
4. Attach the Handle to the front of the body with the two
included Screws.
5. Insert the High Pressure hose onto the Pressure Hose
Outlet on the back of the body.
• Insert it rmly into the body
• Press the tab toward the hose to secure it in place
6. Pull the tab at the base of the Spray Gun away from the
port. To secure the High Pressure Hose:
• Insert it rmly into the Spray Gun
• Press the tab towards the hose to secure it in place
Page 8  Item 69488
  

 For additional information regarding
the parts listed in the following pages,
refer to Parts Lists and Assembly Diagrams on page 16.
Some of the following assembly steps may have been performed at the factory.
1. Check the Inlet Strainer for any blockage, including
packaging debris. Remove any plastic plugs from the water
inlet/outlet.
2. Attach the Gun/Extension Nozzle holder to the side of the
body.
3. Attach the Handle to the front of the Body with the
four included Screws.
4. Thread the High Pressure Hose onto the Pressure
Hose Outlet on the back of the body.
5. Pull the tab at the base of the Spray Gun away from
the port. To secure the High Pressure Hose:
a. Insert it firmly into the Spray Gun, and
b. press the tab towards the hose to secure it in place.



7
After use instructions
The machine should be stored in a frost-free room!
Pump, hose and accessories should always be emptied of
water prior to storing as follows:
Stop the machine (press the start/stop switch“O” and detach
water hose, high pressure hose and nozzle
Restart the machine and activate the trigger of the trigger
gun Let the machine run until no more water runs through
the trigger gun Stop the machine, unplug and wind up hose
and cable.
Place trigger gun, lance, nozzles and other accessories in the
holders of the machine. The hook can be used for storage
of the hose and cord 5, All accessories can be stored in the
washer after using.
!WARNING: Never start up a frozen machine. Frost
damages are not covered by the guarantee!
Environmental protection
Old appliances contain valuable materials that can be
recycled. Please arrange for the proper recycling of old
appliances. Please dispose your old appliances using
appropriate collection systems.
Maintenance, cleaner and repair
!WARNING! Always disconnect the electrical plug from the
socket prior to maintenance or cleaning.
To ensure a long and problem free working life, please take
the following advice: Wash out water hose, high pressure
hose, spray lance and accessories before mounting.
Clean the connectors of dust and sand. Rinse the detergent
spraying attachment after use.
Clean the nozzles.
Any repair should always be made in an authorized workshop
with original spare parts.
Cleaning of inlet lter
Clean the water inlet lter regularly once a month or more
frequently according to use. Carefully loosen the lter with
a screwdriver and clean it . Check that it is intact before re-
mounting it.
The inlet lter must always be tted inside the water inlet
pipe to lter out sand, limestone and other impurities, as they
will damage the pump valves.
CAUTION: Failure to t the lter will invalidate the warranty
Cleaning of air vents
The machine should be kept clean so as to let cooling air pass
freely through the machine vents.
6.3 Greasing of couplings
To ensure an easy connection and that o- rings do not dry up;
the couplings should be greased regularly.
Quick Connecting nozzles
• The 0º intense-jet nozzle (red) is an extremely
powerful nozzle that delivers a high-pressure, pencil point
jet stream. It is used to cut heavy dirt deposits
in a small, concentrated area. It is ideal for dissolving
stubborn substances, like tar and grease spots on
concrete, or for removing caked mud from equipment.
Use this nozzle to clean hard-to-reach areas including
the facades of 2-story buildings or the undersides of
lawn mowers and tractors.
NOTE: Care should be used when choosing the
right nozzle to avoid permanently gouging wood or
damaging fragile surfaces.
•Use the 15º fan-tip nozzle (yellow) for intense cleaning
jobs on hard surfaces. Applications include stripping
paint, removing oil stains, grease, heavy mildew stains,
and rust from steel. This nozzle should only be used in
areas that can withstand the high-pressure from this
nozzle.
•Use the 25º fan-tip nozzle (green) to clean home siding,
brick patios, wood decks, driveways, or sidewalks.
When using this nozzle, test a small area rst to avoid
surface damage.
• Use the 40º wide-spray tip nozzle (white) to clean items
such as cars, trucks, boats, patio furniture, or lawn
equipment.
• Use the Soap nozzle (black) for low-pressure detergent
application to clean equipment, remove mildew and
oxidation stains from houses, clean bricks or degrease
grimy surfaces.
NOTE: When using detergent, make sure that the
correct Soap nozzle (black) is installed. All of the other
colored nozzles will not work for detergent application.
6. Start at the top of the area to be rinsed and work down,
making sure to overlap the strokes.
!IMPORTANT! NEVER USE:
• Bleach, chlorine products, and other corrosive chemicals
• Liquids containing solvents
(e.g. paint thinners, gasoline,oils)
• Tri-sodium phosphate products

8
Problems Possible Cause Possible Solution
Machine starts, but
no water comes out
• Pump/hoses or accessories frozen.
• No water supply.
• Water inlet lter blocked.
• Nozzle blocked.
• Wait for pump/hoses or accessories to thaw.
• Connect inlet water.
• Clean the water inlet lter.
• Clean the nozzle.
Machine often starts
and stops by itself
• Pump/spray gun is leaking.
• Trigger mechanism is broken.
• Please call Arksen customer service
Machine pulsating • Air in inlet hose.
• Inadequate supply of mains
water.
• Nozzle partially blocked.
• Water lter blocked.
• Hose kinked.
• Allow machine to run by holding the trigger until
regular working pressure resumes.
• Check that the water supply corresponds to the
specications required.
• !WARNING! Avoid using long, thin hoses
(minimum 1/2 in. diameter).
• Clean the nozzle.
• Clean the water inlet lter.
• Straighten out the hose to remove any kinks/blockages
Fuse blows • Fuse too small. • Install a fuse with a higher amp rating than the
amp consumption of the machine. Try the unit
without an extension cord.
Machine stops • Fuse has blown.
• Incorrect mains voltage.
• Thermal sensor activated.
• Nozzle partially blocked.
• Replace fuse. Switch o other machines using
the same circuit.
• Check that the mains voltage corresponds to
specication on the model tag.
• Leave the washer for 5 minutes to cool down.
• Clean the nozzle.
Fluctuating pressure • Pump sucking air.
• Valves dirty, worn out, or stuck.
• Pump seals worn out.
• Check the hoses and connections are airtight.
• Clean or replace valves/seals.
• Please call the Arksen customer
Machine refuses
to start
• Power failure/machine not
plugged into a working receptacle.
• Defective socket.
• Fuse has blown.
• Defective extension cord
• Check to make sure machine is plugged into
a working outlet.
• Check the power cord and reset the GFCI.
Try a dierent outlet.
• Replace fuse. Switch o any other machines
that are using the same circuit.
• Try the unit without an extension cord.
Troubleshooting
• Disconnect the unit from the electrical power supply before carrying out maintenance on the machine or when
checking that its parts are in proper working order.
• To avoid unnecessary hassles, consult the following table before contacting customer service with any
mechanical issues.
