Armytek Dobermann Pro XHP35 HI User manual

Specifications
Thank you for choosing the products of Armytek Optoelectronics Inc., Canada.
Please read this manual carefully before using the flashlight.
USER MANUAL
THE MOST TECHNICALLY ADVANCED
Warnings
Care and Storage
Service and Warranty
Specifications are subject to change without notice.
Armytek Optoelectronics Inc.
Web: www.armytek.com Email: [email protected]
Address: 13-85 West Wilmot St, Richmond Hill, Ontario, L4B 1K7, Canada * Light output for flashlights with Warm light are about 7% less, beam distances are about 3% less.
** It is allowed to use only protected Li-Ion batteries.
Model
Dobermann Pro XHP35 HI
Dobermann Pro XP-L HI
LED
Cree XHP35 High Intensity
Cree XP-L High Intensity
Optics
Smooth Reflector
Brightness stabilization type
FULL (constant light)
Light output, LED / OTF lumens*
1700 / 1400
1200 / 1000
Peak beam intensity, candelas
39000
36250
Hotspot / spill
5° / 4 0°
Beam distance*
395 meters
381 meters
Modes, light output (OTF
lumens*) and runtimes
(measured with 18650 Li-Ion
3400mAh until the light output
drops to 10% of the initial
value)
Turbo2
1400 lm / 1h
1000 lm / 1.3h
Turbo1
800 lm / 1.7h
670 lm / 1.8h
Main3
350 lm / 4h
370 lm / 3.5h
Main2
150 lm / 10.5h
170 lm / 8.5h
Main1
30 lm / 50h
28 lm / 36h
Firefly2
1.7 lm / 40d
1.7 lm / 18d
Firefly1
0.15 lm / 200d
0.35 lm / 100d
Strobe2
15Hz / 1400 lm / 2h
15Hz / 1000 lm / 2.7h
Strobe1
15Hz / 150 lm / 22h
15Hz / 170 lm / 17h
Power source
1x18650 Li-Ion / 2x18350 Li-ion** / 2xRCR123 Li-ion** / 2xCR123A
Size and weight (without batteries)
Length 140mm, body diameter 25.4mm, head diameter 34mm, weight 115g
Dobermann
Armytek Optoelectronics Inc. is a Canadian manufacturer that produces powerful and reliable flashlights designed especially for your
needs. The components made in the USA and Japan. .10 years no-hassle warranty
§Amazing brightness lumens and focused narrow light at the distance up to meters for precise aiming.1700LED 390
§Compact and light-weight flashlight with good price for comfortable mounting on weapon.
§The highest standard of durability — stands up the recoil of 12 gauge shotgun, no-break operation after falling from the height and
even at the 50 m depth.
§Perfectly selected brightness modes and easy operation for comfortable use.
§Marvelous light characteristics at available price for those who need a simple and reliable underbarrel flashlight.
§Compatibility with the accessories for hunting — remote switches and mounts.
§Record runtimes: 1.5 hour at maximal mode and up to 200 days at minimal mode.
Do not disassemble the flashlight except for unscrewing the thread ring gage and replacing the rubber button. There are no
other parts in the flashlight that can be replaced by the user.
1. Always follow the instructions from this manual and recommendations on battery usage.
2. Apply only the recommended power sources.
3. Do not reverse battery polarity.
4. Do not use different power sources together, i.e. old ones with new ones, charged with
discharged. Do not use different types of batteries combined as the element with less
capacity can be damaged.
5. Do not modify or recast the flashlight and its components as it will deprive you of the
warranty.
6. Do not allow water or any other liquid to leak into the flashlight.
7. Do not aim a switched-on flashlight at people's or animals' eyes – it can cause temporary
blindness.
8. Do not allow children to use the flashlight without your assistance.
It is recommended to clean the threads and O-rings off dirt and old grease once or twice per year. Remember that reliable protection
from water and dust cannot be provided by worn out sealing. The fouling as well as lack of lubricant cause fast wear-out of threads and
sealing rings. To clean the threads do the following:
1. Unscrew the tailcap and remove the sealing ring carefully with a toothpick (do not use sharp metal things as they can damage the ring).
2. Wipe the sealing ring thoroughly with a soft cloth (or tissue). Do not use solvents. If the sealing ring is worn out or damaged
replace it by a new one.
3. Clean the metal threads with a brush using ethanol. Be careful not to allow the applied liquid to get inside the flashlight or tailcap as
it can cause fails in functionality of the flashlight.
After cleaning lubricate the thread and the sealing ring with polyalphaolefin-based silica grease, e.g. Nyogel 760G.The application of
automotive and other improper grease can cause swelling and damage of the sealing rings.
In case of active operation and exploitation in dusty environments, it is recommended to perform cleaning and lubricating of the parts
as often as required.
Armytek provides free warranty repair for 10 years from the date of purchase.
Warranty doesn't cover damage caused by:
1. Improper usage.
2. Attempts to modify or repair the flashlight by nonqualified specialists.
3. Longtime application in chlorinated or polluted water, or other liquids (other than water).
4. High temperatures and chemicals' exposure (including the exposure of liquid from defected batteries).
5. Usage of low-quality batteries.
The producer will not be liable for any harm done to the user if it was caused by
improper use of the product.
In case the rubber button is damaged, it should be replaced. You can also replace the switch with
the spring in the same way. Replacement order:
1. Unscrew the tailcap.
2. Unscrew the first washer inside it to take out the switch. To do so you should use needle-
nose pliers (round-nose pliers or another tool, the most suitable will be expansion pliers).
Use the tool as it is shown at the picture. To replace the rubber button unscrew the second
washer under the switch.
3. Replace the rubber button and assemble the parts in inverse sequence.

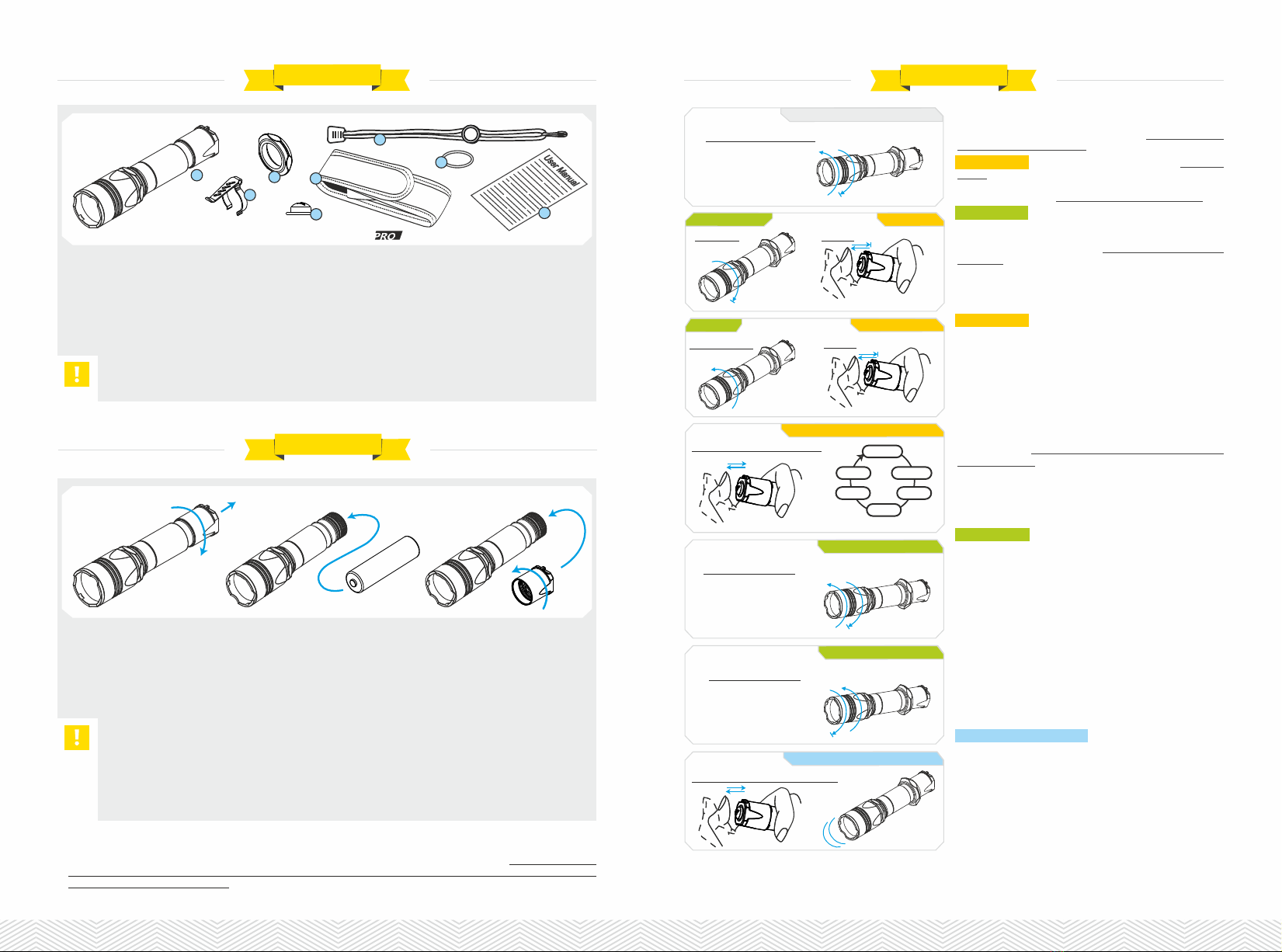

Set description
Items included in the package:
1 - Flashlight
2 - Clip
3 - Rubber grip
4 - Lanyard
5 - Holster
6 - Spare rubber button
7 - 2 spare O-rings
8 - User manual
Dobermann
Initial Service
To set/replace batteries:
1. Unscrew the tailcap.
2. Place the batteries with the positive contact (+) facing the head of the flashlight.
3. Adjust the tailcap and tighten it as far as it can go.
ьYour flashlight can inconsiderably differ from the pictures in the manual.
ьThe producer reserves the right to change the package at his own discretion without modifying this manual.
ьWe DO NOT RECOMMEND to use low-quality CR123A batteries, because they can explode. Turbo mode needs
rechargeable 18650 Li-Ion batteries without PCB (unprotected) or with PCB which guarantees 7A discharge current
for stable work.
ьWe DO NOT RECOMMEND to leave power sources inside the flashlight for a long storage period, as batteries can leak for various reasons
and damage the inner parts of the flashlight. If you want to keep your flashlight in a stand-by state with batteries in then use new and high-
quality batteries and store the flashlight in acceptable for batteries operational temperature and revise the batteries' state at least once a
month. If you have noticed any signs of batteries' defects then withdraw them from the flashlight and utilize. It is also recommended to
replace discharged batteries with new ones before the storage as the chance of leakage is higher with discharged batteries.
Active temperature control. The flashlight can quickly heat up in Turbo mode. When the temperature becomes +60°C – the
brightness decreases by small steps. After cooling-down (provided that battery voltage is sufficient) the brightness increases to the
Turbo mode again. This stepping goes cyclically to maintain the user's safety and the flashlight's functionality. In conditions of good
air-cooling the flashlight delivers light without stepping down even in Turbo mode. There are no preset timers for stepping, but real-
time active temperature measurements.
Operation
Momentary on – any mode switched on by half-pressing of the
button (no click!) and active till the button is released. It is suitable
for giving signals by short button pressings. Click the button to
switch the light on permanently.
Hunting settings – comfortable modes for hunting. It’s set by
default. Turbo mode (when the head is tightened up) and
Additional modes with constant light (changed by click with the
head unscrewed to 1/8). Remote switch can be used in Turbo.
Tactical settings – made for Special forces and Airsoft. Constant
light (when the head is tightened up) and Strobe mode (when the
head is unscrewed to 1/8). There are 2 Strobe modes and 2
Constant light modes for selection. Remote switch can be used in
ANY mode.
How to change the settings from one to another – unscrew and
tighten up the head of the flashlight at least 10 times (while
rotation you will change the modes). The pause must be <1 sec.
Hunting settings:
Turbo. Tighten the head of the flashlight if it is unscrewed. First full
click of the button turns the light on. Second full click turns it off.
Additional modes (2 Firefly + 3 Main + Strobe (if enabled)). If the
head of the flashlight is tightened up, unscrew it for 1/8 of a circle.
Full click of the button turns the light on at the last used Additional
mode.
Cycling through Additional modes. To switch the mode turn the
flashlight off and on (by full click or half-pressing). The modes
switch cyclically: Firefly1 – Firefly2 – Main1 – Main2 – Main3 –
Strobe (if enabled).
How to add/ remove Strobe in Additional modes. Switch on the
flashlight by half-pressing of the button at least 20 times. Last
switch should be clicked completely. The flashlight blinks,
confirming the action.
Tactical settings:
Constant light. Tighten the head of the flashlight if it is unscrewed.
First full click of the button turns constant light on. Second full
click turns it off. Also you can switch it on by half-pressing of the
button (no click).
Change Constant modes. The head is tightened up: unscrew it for
1/8 and tighten up again – Turbo and Main2 will switch cyclically.
Strobe. If the head is tightened up, unscrew it for 1/8 of a circle.
First full click of the button turns Strobe on. Second full click turns
it off. Also you can switch it on by half-pressing of the button (no
click).
Change Strobe modes. The head is unscrewed: tighten up and
unscrew it for 1/8 again – Strobe1 and Strobe2 will switch
cyclically.
How to set Turbo1 and Turbo2. Switch on the flashlight by quick
half-pressing of the button at least 15 times. Last switch should be
clicked completely. The flashlight blinks once (confirming the
selection of Turbo1) or 2 times (confirming the selection of
Turbo2).
Lock-out function. Unscrew the tailcap to 1/4 for the protection
from accidental switching on.
Automemorizing. After switching off the last used Mode is
memorized for quick 1-click access at next switching on.
x15
Change Hunting/Tactical settings
Unscrew & Tighten up x10
1/2
Additional modes
Click x1
Unscrew to 1/8
Turbo
гд
Main2
Strobe2
гд
Strobe1
Click x1
Tighten up
Turbo
Change Constant modes
Unscrew & Tighten up
Constant light
Strobe
Change Strobe modes
Tighten up & Unscrew
How to change Turbo1 & Turbo2
Half Press (no click) x15 & Click x1
Half Press & Release (no click)
1/2
Cycling through Additional modes
Firefly1
Firefly2
Main1
Main2
Strobe
Main3
* if enabled
*
Low Battery Indication. If the brightness is <25% from the nominal value, the LED flashes 2 times ONCE (after 30sec from switching
on). If you are not sure if it flashed or not switch the flashlight off and on: in case the battery is low flashes will repeat. Light output
decreases to Firefly mode at critical level.
x2
2
3
4
5
6
7
8
1
x10
1. 2. 3.
