AromaTech Air stream single User manual

Think Scent
Air Stream Duo Manual
Essential Oil Nebulizing Diffuser
SET ENT

IMPORTANT
Please comply with the following for safety reasons.
Do not modify or disassemble the scent machine without first consulting
AromaTech.
In case of product failure please contact us.
Do not use the power cord if it is damaged, kinked or cut. It's a fire hazard.
To avoid electrical shock, do not touch the power adaptor or the machine while
plugged into the electrical socket during a thunderstorm or lightning.
Do not dismantle or try to repair the machine while it is plugged into the electrical
outlet or in operation.

DISCOVER THE POWER OF SCENTING! ..........................................................3
FEATURES .............................................................................................................. 3
TECHNOLOGY .......................................................................................................4
SPECIFICATIONS ....................................................................................................5
DIAGRAM OF PARTS ............................................................................................6
ACCESSORIES ........................................................................................................6
WHERE TO PLACE THE DIFFUSER .....................................................................7
INSTALLATION INSTRUCTIONS ........................................................................8
HVAC INSTALLATION .........................................................................................10
TIMER SETTINGS...................................................................................................15
INTENSITY AND CONSUMPTION......................................................................18
AROMA OIL CONSUMPTION.............................................................................19
MAINTENANCE....................................................................................................20
TROUBLESHOOTING..........................................................................................21
CAUTIONS.............................................................................................................22
FAQs ......................................................................................................................24
CONTENTS

3
DISCOVER THE POWER OF SCENTING!
Scent is a fantastic way to express yourself, reduce stress, enhance happiness, give your
memory a boost, increase your energy, sleep better, and uncover a host of other benefits.
The Air Stream Duo will change what you think about scent and enable a multitude of
ways to use scenting in your home or business. Simply add your favorite AromaTech
scents and transform your space to whatever you want it to be. The Air Stream Duo
allows you to easily tailor your scent experience to your preferences and your space. With
unique cold-air diffusion technology, this diffuser scents your environment subtly and
consistently while preserving the quality of your 100% Essential or Aroma Oils.
FEATURES
• Scents 15,000 sq.ft. of space
• Heat-free cold-air diffusion technology that subtly disperses essential oils into the air
• Connects to HVAC / AC system
• Adjustable fragrance intensity levels with an internal digital timer
• Programmable timer for operating hours
• Quiet and energy efficient
• Eco-friendly and made from recycled aluminum
• 1 Diffuser Connects to two 4 liter oil drums
• No water or heat required
• Nanoparticles leave no residue

TECHNOLOGY
The Air Stream Duo uses nebulization (cold-air diffusion) to diffuse our aroma oil blends.
This is a process that breaks down the oils into a very fine, dry mist. Nebulization preserves
the intention and integrity behind our oils while maximizing their olfactive and therapeutic
powers, without diluting in water, solvent, or using heat.
This patented nebulizing technology, combined with our commercial fragrance oil
blends, produces nanoparticles that suspend in the air for several hours creating a clean
and consistent ambient scent, without chemical undertones.
Commercial fragrance diffusers help to create an emotional connection with consumers
by creating lasting impressions, memories, and multi-sensory responses. At the same
time they increase energy, inspire brand loyalty, improve sales, mask unpleasant odors,
reduce dust, pet dander allergens, and other airborne allergens from non-living matter.
Cold-air diffusers support healthy indoor air quality while providing ambience and
well-being for you, your employees, and clientele.
Diffusing helps to reduce dust, pet dander allergens, and other airborne allergens from
non-living matter (e.g. dust mite matter allergens). While AromaTech’s 100% all natural
diffuser blends bring nature’s goodness into your space by supporting harmony and
balance.
Using only AromaTech essential and aroma oil blends will guarantee the best
performance of your diffuser. No mixing or diluting with water, carrier oils or alcohol is
required. Simply fill the bottle with what nature created and enjoy!
4

SPECIFICATIONS
[ Model
[ Dimensions
[ Machine N.W.
[ Voltage
[ Technology
[ Power
[ Coverage
[ Bottle capacity
[Materials
[ Accessories
]
]
]
]
]
]
]
]
]
]
Air Stream Duo
305 x 150 x 150 mm / 12"w x 6"h x 6"d
10lbs without oil
Input: AC100V-240V 50/60Hz
Output: DC12V 2A
Cable length: 100cm / 3.3ft
Cold Air Diffusion Technology
110-240 volt power source
1500 sq.m / 15,000 sq.ft
2 x 4 liter drums
Machine: iron, acrylic
Bottle: aluminum
Connecting tube: PU
Power adapter, Manual, PU tube, HVAC Adaptor, Silencer, Nails,
Screws, Wall bracket, PTFE tape, Hose Guide for HVAC
connection.
5

ACCESSORIES
LCD monitor
Controls
Handle
Mounting bracket
Diffuser
DIAGRAM OF PARTS
2 Air Tubes Manual PTFE tape Silencer
Check and make sure the packaging is complete when you first open it, if parts are
missing, please contact us.
2 HVAC
adaptors
Screws 2 Handles 2 Mounting
Brackets
Power
adaptor
2 Oil
drums
6
Front Panel of Air Pump
SET ENT Air outlet
Air pump switch
DC connector
Air Intake
Back Panel of Air Pump

WHERE TO PLACE THE DIFFUSER
Applications: aromatherapy, ambient scenting and odor control in home or business.
Location: The Air Stream line is designed to scent spaces from 1,000 square feet and up. By
discretely connecting to your ventilation system, this HVAC scent machine covers medium
to large size spaces such as hotel lobbies, guest corridors, retail floor, gyms, conference
rooms, homes and much more.
Scenting Coverage: Air Stream Duo can be adjusted to scent an area ranging from 1000
sq.ft. to 15,000 sq.ft. (100 to 1500 sq.m)
Scent Intensity: Adjust your scenting experience and hours of operation through the
internal touch LCD timer.
Device Location: The most important element of your scenting experience is to properly
position the device in the room, to ensure optimal performance and control.
Below are our suggestions
• Choose a location where the aroma oil molecules can use the natural airflow in a room.
This is particularly important with air-conditioned spaces. The best location for the
Air Stream Duo is where there is a lot of airflow.
• If you are not sure of the direction of the airflow, simply turn on the Air Stream Single and
using a flashlight, point it at the scent output and watch where the scent travels.
Alternatively, light a match and blow it out immediately. The direction of the scent or
smoke will tell you which way the fragrance will travel.
7

INSTALLATION INSTRUCTIONS
Air Stream Duo directly connects to your HVAC/AC system, please follow the below
instructions.
Parts and Tools Required
You will require the following tools to wall mount or connect the Air Stream Duo to
your HVAC.
1. A level to ensure the wall mount bracket is exactly vertical.
2. A hammer for the dry wall anchors.
3. A Phillips screwdriver to match the screws provided, or any other screwdriver that
matches the screws, to attach to the anchors you have selected.

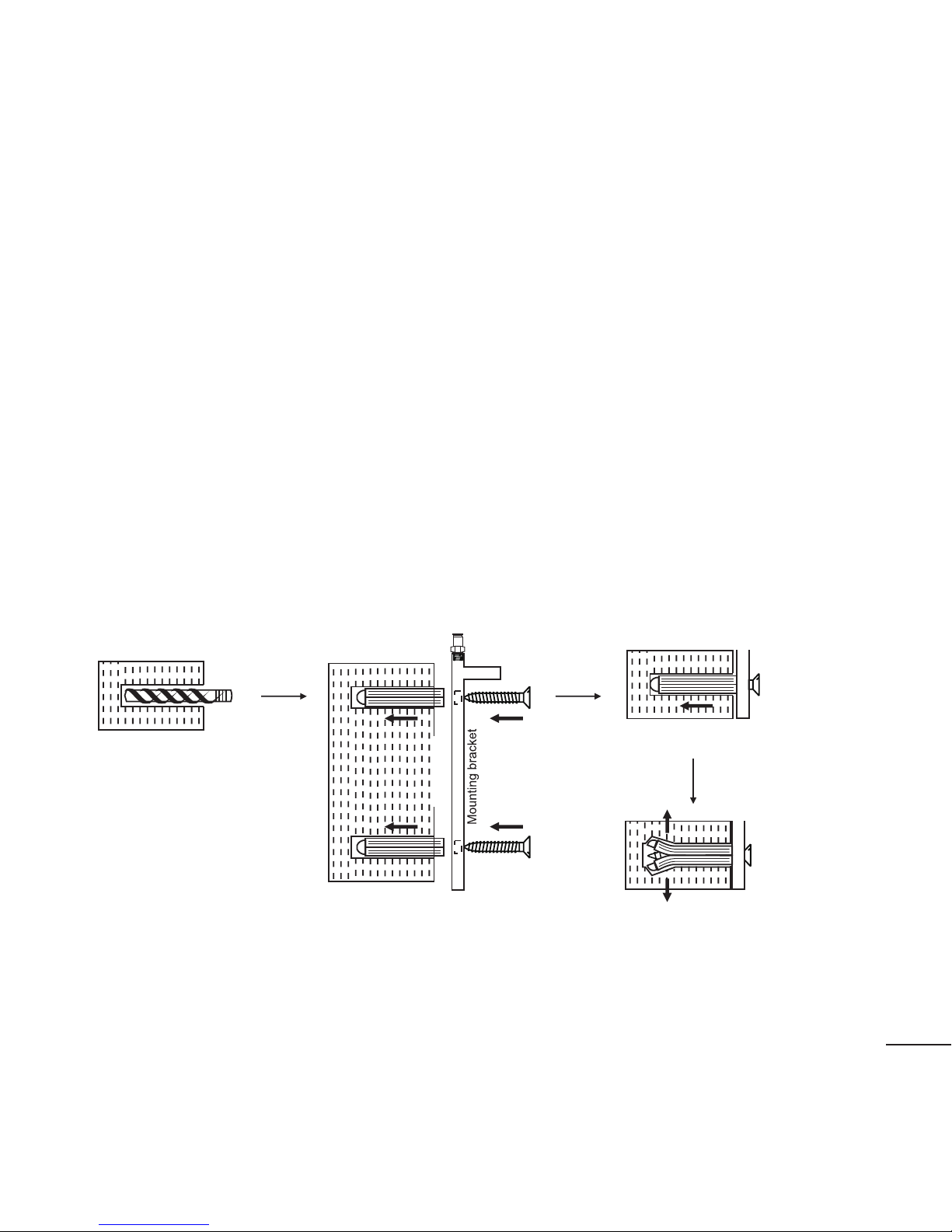

1. Using drill bit, make a hole in the drywall the size of the plug.
2. Insert the drywall plug. If needed, tap lightly with a hammer to fully insert the plug.
3. Screw the bracket to the wall, aligning with drywall plugs.
Mounting Wall Bracket
(Step 1) (Step 2)
(Step 3)
(Step 4)
8

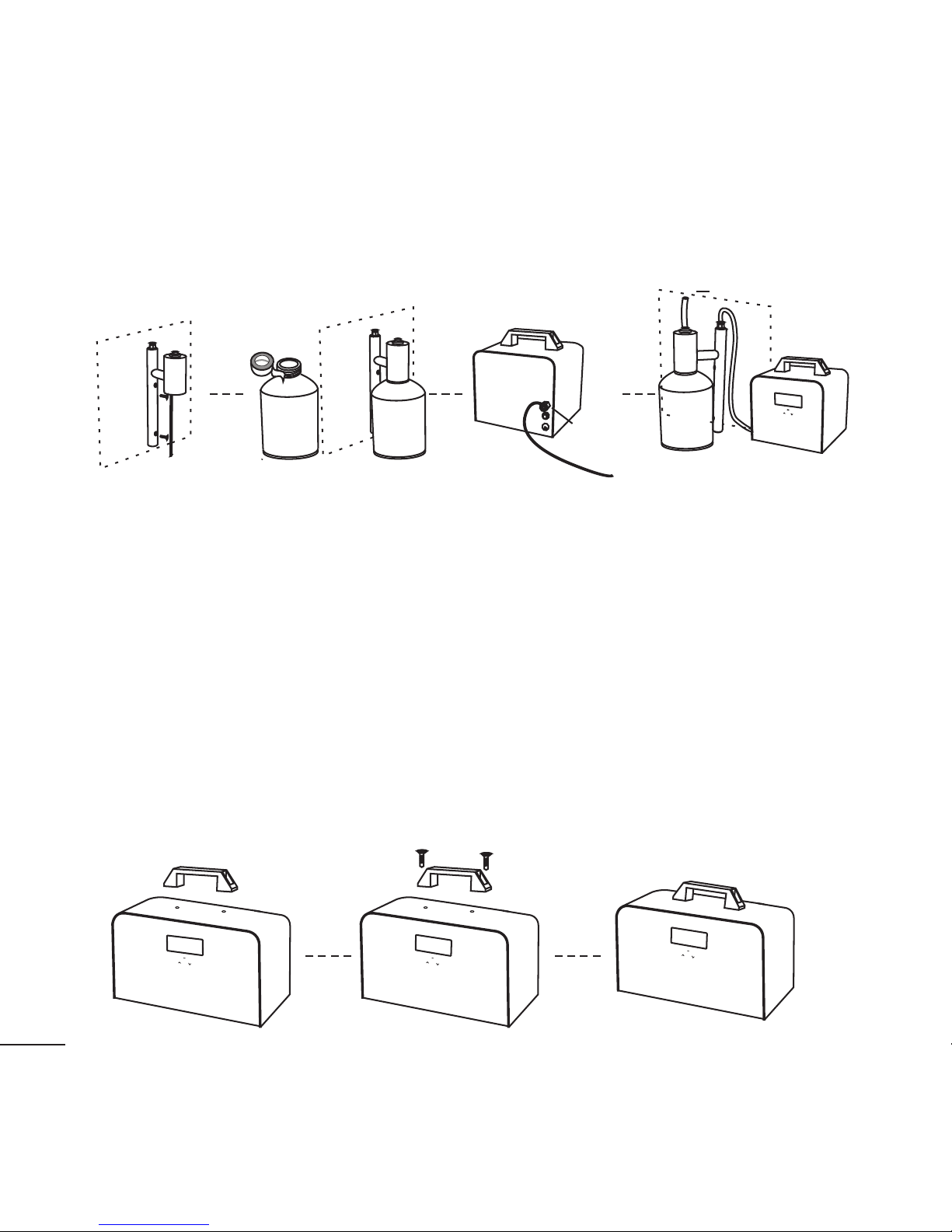

Wall Mount Installation:
Handle installation:
1. Use the screws to fasten the bracket to the wall.
2. Wrap the neck of the bottle with PTFE tape to seal it and screw the bottle to the diffuser.
3. Connect the air tube to the pump's air outlet.
4. Connect the other end of the air tube to the adaptor on the bracket.
5. Take an HVAC adaptor and screw it to the top of the diffuser.
6. Connect a separate 6 - 12 inch air tube to the diffuser top.
7. Connect the air tube from the top of the diffuser into the air duct by drilling a 6mm
opening past the filters. Make sure the tube is pointing with the direction of the air flow,
not against it.
8. Connect with power supply, turn on the air pump switch.
9
SET
ENT
SET
ENT
SET
ENT
Air outlet
hole
HVAC connection
SET
ENT

10
HVAC INSTALLATION
HVAC Pre-installation Checklist
Please complete this checklist before installing the scent diffuser
1. Plan the area to be scented.
2. Locate the Air Handling Unit or duct that serves the area to be scented.
3. Make sure the Air Handling Unit does not use an open gas flame.
4. Locate and mark the optimal position for the Scent Point.
(See Figure A page 13)
5. Locate and mark the exact location for placement of the scent diffuser.
(See Figure A page 13)
6. Confirm the distance between the Scent Point and the proposed scent diffuser
location. (Air tube should be max.3 feet. Avoid dips and coils or lows in the air tube.
The Scent Point should ALWAYS be higher than the scent diffuser.)
7. Locate and install 110V or 220V AC power outlet close to the diffuser installation
location. Avoid placing the power outlet directly under the scent diffuser.
Scent Diffuser Positioning
It is important to locate an insertion point where the scent output will be smoothly drawn
into and mixed with the airflow. This usually means those parts of the AHU where the
static pressure is negative.
Ideal locations:
• In front of the supply fan with injection through the wall of the AHU. Position
immediately before the fan and after the coils if possible, or in the mixed air chamber.
• Behind the blower with the entire scent diffuser mounted inside the AHU in the mixed
air chamber.
• Outside the AHU in the Supply Air duct.

11
Air Tube Connection on Air Duct
CORRECT CORRECT
INCORRECT
Tube has a pocket, this part
will fill up with oil.
pocket
Best practice when installing in an AHU is to place the hose guide after the heating and
cooling coils. If this is not possible, the scent output can pass over hot water, steam,
chilled water, and DX coils.
Open gas flames should absolutely be avoided. If installation must be over gas
heated coils or open gas flames, contact AromaTech Technical Support.

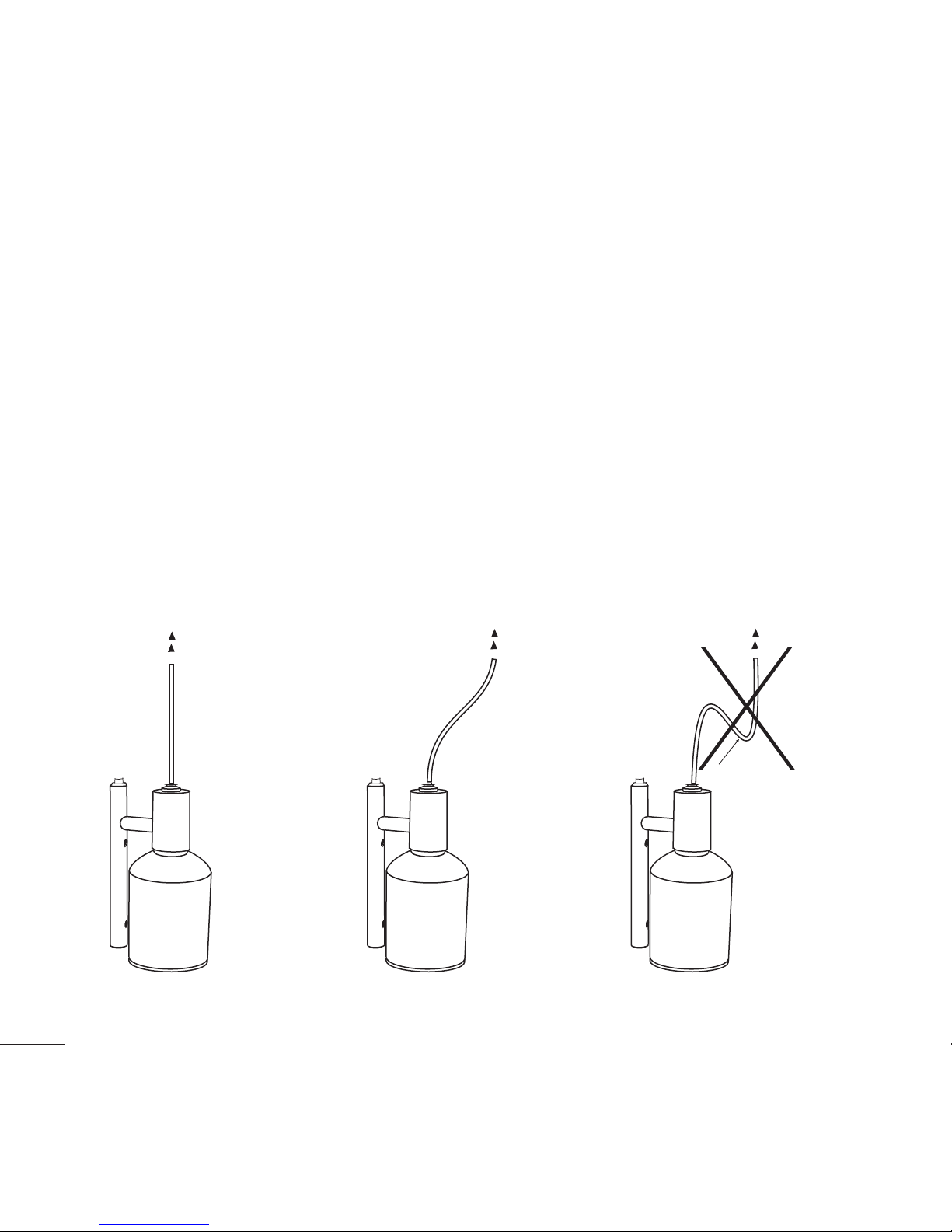

The best location for the Scent Machine is below the Scent Point. The air tube should run
upward as short a distance as possible, and NEVER MORE THAN 3 FEET. If an upward air
tube run is not possible, care should be taken to support the hose to prevent sagging or
any low spots. This is to avoid any possibility of condensation and liquid collection which
will block the scent output. Give the air tube an upward slant along its run
(See image below)

12
Connecting the Diffuser to HVAC.
Refer to the Air Stream Duo HVAC Connection Diagram FIG A.
The Air Stream Duo is a versatile and powerful commercial HVAC system scent diffuser.
Diffusing the scent via HVAC will allow you to cover multiple rooms and zones. To scent the
right zones, check with your HVAC provider or Mechanical Engineer to determine which
HVAC unit to connect to.
The Air Stream Duo can cover 15,000 sq.ft. of space.
1. You need to choose the air handler you want to connect to. If you have multiple air
handlers, select the one that will cover the area you wish to be scented. Consult your
HVAC supplier if needed.
2. With a metal drill bit designed to drill through sheet metal, drill a 7/8-inch hole in the air
duct directly after the blower. Make sure you are tapping into the supply side of your
duct, not the return side.
3. IMPORTANT: Never install before the coils or filters as the filters will dilute the scent
and you will not get the same result.
4. Once the 7/8-inch hole is made, insert the hose guide. The hole on the end of the hose
guide should be pointing with the air flow not against it. This allows the scent to travel
in the same direction as the air flow.
5. Secure the hose guide by screwing it to the duct.
6. Screw the supplied HVAC adaptor into the hose guide.
7. Take a second HVAC adaptor and screw it into the Air Stream Duo.
8. Either wall mount the Air Stream Duo to the duct, the wall or place on a shelf directly
under the Scent Point connection. It’s important to keep the Air Stream Duo as close as
possible to the scent point. MAX. AIR TUBE LENGTH SHOULD BE 3 FEET.
9. Cut supplied air tube to the correct length to go from the Air Stream diffuser.
The distance between the Air Stream diffuser and air tube should be as short as possible.
MAX. 3 FEET. Do not leave any slack. Coiling or excess air tube will create air
pockets and buildup of scent inside the tube.
10. Connect the AirStream Duo to the 110V-240V plug and set the timer.

13
Connecting the Diffuser to HVAC.
Refer to the Air Stream Duo HVAC Connection Diagram FIG A.
The Air Stream Duo is a versatile and powerful commercial HVAC system scent diffuser.
Diffusing the scent via HVAC will allow you to cover multiple rooms and zones. To scent the
right zones, check with your HVAC provider or Mechanical Engineer to determine which
HVAC unit to connect to.
The Air Stream Duo can cover 15,000 sq.ft. of space.
1. You need to choose the air handler you want to connect to. If you have multiple air
handlers, select the one that will cover the area you wish to be scented. Consult your
HVAC supplier if needed.
2. With a metal drill bit designed to drill through sheet metal, drill a 7/8-inch hole in the air
duct directly after the blower. Make sure you are tapping into the supply side of your
duct, not the return side.
3. IMPORTANT: Never install before the coils or filters as the filters will dilute the scent
and you will not get the same result.
4. Once the 7/8-inch hole is made, insert the hose guide. The hole on the end of the hose
guide should be pointing with the air flow not against it. This allows the scent to travel
in the same direction as the air flow.
5. Secure the hose guide by screwing it to the duct.
6. Screw the supplied HVAC adaptor into the hose guide.
7. Take a second HVAC adaptor and screw it into the Air Stream Duo.
8. Either wall mount the Air Stream Duo to the duct, the wall or place on a shelf directly
under the Scent Point connection. It’s important to keep the Air Stream Duo as close as
possible to the scent point. MAX. AIR TUBE LENGTH SHOULD BE 3 FEET.
9. Cut supplied air tube to the correct length to go from the Air Stream diffuser.
The distance between the Air Stream diffuser and air tube should be as short as possible.
MAX. 3 FEET. Do not leave any slack. Coiling or excess air tube will create air
pockets and buildup of scent inside the tube.
10. Connect the AirStream Duo to the 110V-240V plug and set the timer.
Air flow
Scented air flow
Ceiling
Interior space
Scent
Point
Drill hole
in duct
Air Duct to rooms
Air tube
Max length 5m
IMPORTANT: Do not drill through a coil, or before the filters.
Max length 3 ft. Ideal (12” - 15 “).
Air tube must always be straight.
Air Stream Duo HVAC Connection Diagram (Figure A)
SET ENT
Diffuser

Warning:
After installation, please keep the machine vertical. Tilting or placing it flat may cause an oil
overflow. If the Air Stream Duo is tilted, the oil will over flow inside and may potentially
damage the machine.
14
INCORRECT CORRECT
SET ENT
SET
ENT

Local time setting
Press SET button for 3 seconds until you hear a beep to enter
local time setting menu. Press or button to choose the
correct day. Then press ENT button to move to local time
setting. Press or button to change the number. Press ENT
button to move to another position. Press SET to confirm
(Figure 1).
Power ON
Connect the 12V adaptor to the outlet and turn ON the power switch. Local time and
scent intensity level will appear.
Screen Lock and Unlock
The LCD screen will automatically lock itself after 10 seconds if not used. Press SET and
hold for 5 seconds to unlock the display.
TIMER SETTINGS
local time
work icon
Intensity level
Mon-Sun 7-day timer
(Figure 1)
15

Setting Hours of Operation
There are 5 working periods available to set the hours of operation (Figure 2).
Touch SET button to set working period 1 (ON 1 & OFF 1).
Press or button to adjust the ON time hours, then press ENT to move to the next
position.
Press or button to adjust the ON time minutes, then press ENT to move to the next
position.
Press or button to adjust the OFF hours, then press ENT to move to the next position.
Press or button to adjust the OFF minutes, then press ENT to move to the next position.
Now select the Day(s) of the Week for this working period. Use the or button to turn
ON (Figure 3) or OFF (Figure 4) the day for this time period. Press ENT to move to the next
day. When you have your day(s) selected press SET to move to Time Period 2.
For multiple start and stop times, repeat the above for time periods 2 through 5 as
desired. Please note that if you only want one start and stop time per day, you can touch
SET several times until the display shows the current time of day.

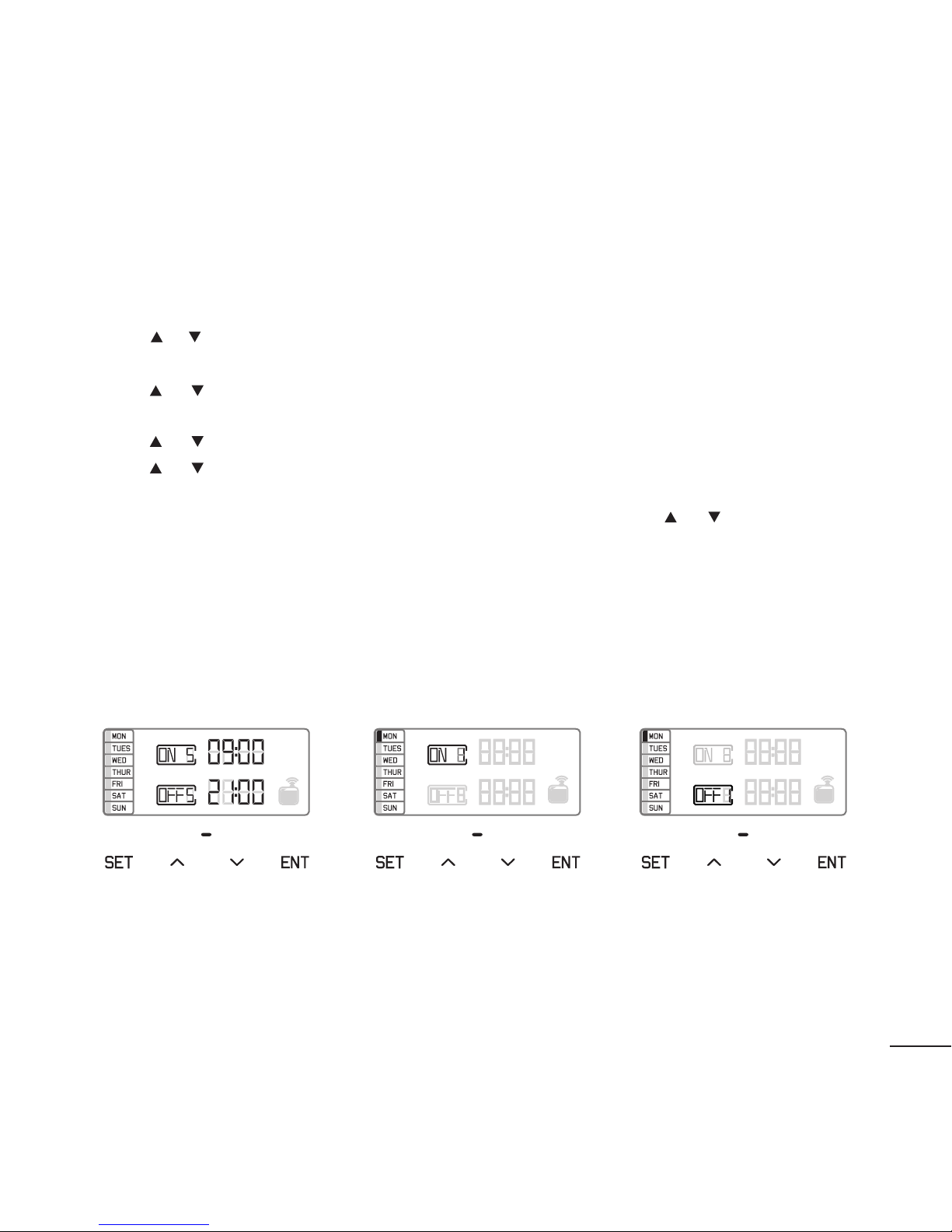

(Figure 2) (Figure 3) (Figure 4)
16

Setting Scent Intensity
You are now ready to start scenting. Remember, the Air Stream Duo is a high
performance adjustable device capable of scenting spaces from 1,000 to 15,000 sq.ft.
Once the fragrance is in the device, basic operation is simply adjusting the scent level to
match the room size, conditions, and your taste. There are 1-20 grades of intensity.
Using the UP button and DOWN button to control the scent intensity.
Start at minimum and watch the scent spread throughout your space. If needed, adjust
the buttons to increase or decrease the intensity accordingly.
This is a unique and powerful performance feature of the Air Stream Duo. Once you have
chosen the right setting, you should only have to adjust slightly with the different fragrances.
(Figure 5)
Available
working period
MON
TUES
WED
THUR
FRI
SAT
SUN
(The first working period is set to factory default setting, 07:00 ON and 21:00 OFF.
The rest are set to 00:00)
17

Using the UP or DOWN button allows you to control the intensity of the fragrance
output.
INTENSITY AND CONSUMPTION
Intensity level and Time Cycle
G1
G2
G3
G4
G5
G6
G7
G8
G9
G10
G11
G12
G13
G14
G15
G16
G17
G18
G19
G20
15s
15s
20s
20s
25s
30s
30s
30s
30s
30s
33s
40s
50s
60s
75s
80s
85s
120s
150s
300s
300s
150s
120s
85s
80s
75s
60s
50s
40s
33s
30s
30s
30s
30s
30s
25s
20s
20s
15s
15s
18

Note: 1. Above data is based on using AromaTech aroma oil.
2. Using another type of oil may affect the consumption rate.

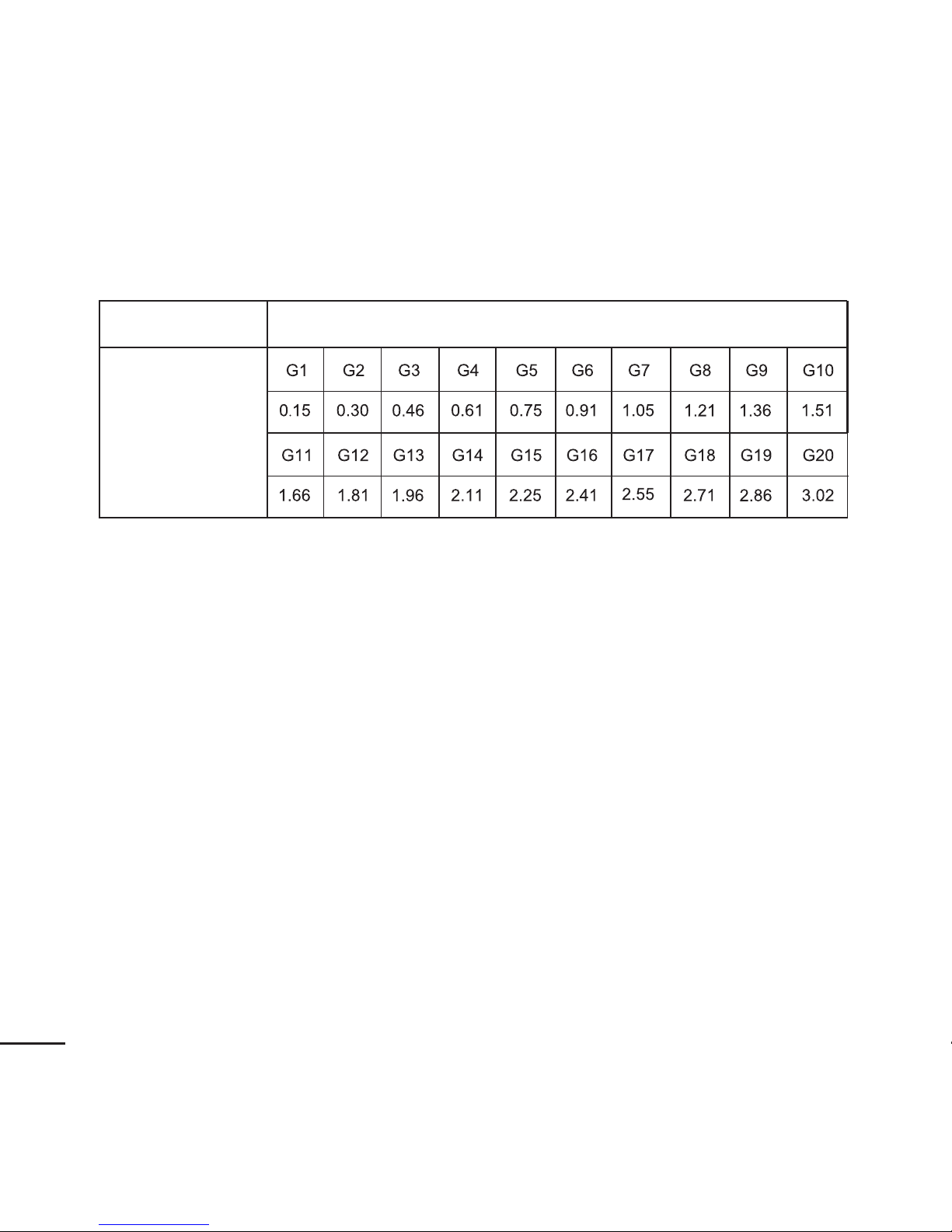

AROMA OIL CONSUMPTION
Air Stream Single
Consumption(ml/h)
Recommended Intensity Settings.
The grading system starts from 1 being the lowest and ends with 20 being the highest.
Short but frequent bursts are recommended. Using the lower settings will allow for a
subtler scenting experience without being over powering. Intensity setting is personal and
depends on multiple factors, such as air flow, the location of the scent machine and how
subtle or strong you want the scent to be. Use your discretion and start at Grade 1 and
work your way up if needed.
To test if the intensity is too strong or too light, leave the scented area for at least
5 minutes and re-enter after getting some fresh air. Only then will you be able to tell if the
intensity grade needs to be adjusted up or down.
Please note that the human nose gets used to a fragrance after 30 minutes of exposure. If
at any point during the diffusion process you don't smell the scent any more simply leave
the scented area and re-enter after getting some fresh air.
19
