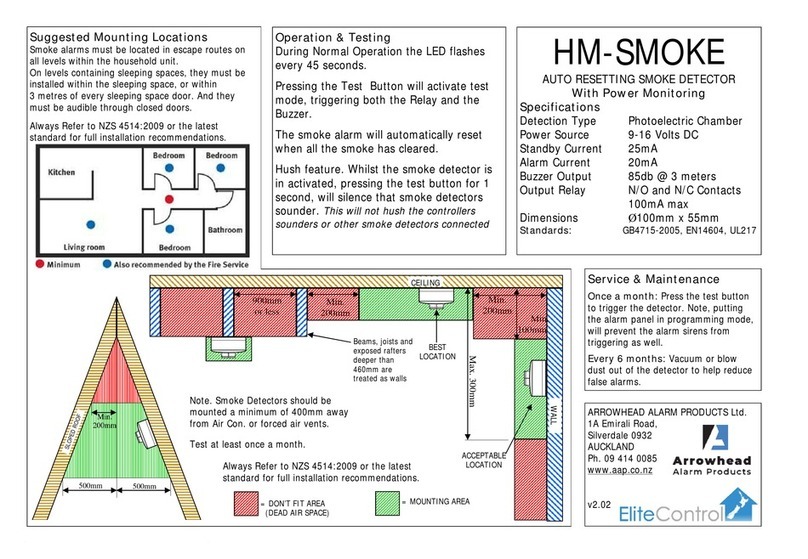

Arrowhead Alarm Products HM-SMOKE User manual

Service&Maintenance
Once a month: Press the test button
to trigger thedetector.Note,putting
the alarm panel in programmingmode,
will prevent the alarm sirensfrom
triggeringaswell.
Every 6months: Vacuum or blow
dust out of the detector to helpreduce
falsealarms.
500mm 500mm
SLOPED ROOF
Min.
200mm
Operation&Testing
DuringNormal OperationtheLEDflashes
every 45 seconds.
Pressing theTest Buttonwill activate test
mode,triggering boththeRelayand the
Buzzer.
Thesmokealarm willautomatically reset
when allthesmokehascleared.
Hush feature. Whilstthesmokedetectoris
in activated, pressing thetest buttonfor1
second,willsilence that smokedetectors
sounder. Thiswill not hush thecontrollers
soundersorother smokedetectorsconnected
ARROWHEADALARM PRODUCTS Ltd.
344bRosedale Rd,
Albany,
Auckland.
Ph.09 414 0085
Fax.[phone]
www.aap.co.nz
v2.01
HM-SMOKE
AUTO RESETTING SMOKEDETECTOR
With Power Monitoring
Specifications
Detection TypePhotoelectric Chamber
Power Source9-16 Volts DC
Standby Current25mA
Alarm Current20mA
Buzzer Output85db @3meters
OutputRelayN/O andN/CContacts
100mA max
DimensionsØ100mm x55mm
Standards:GB4715-2005,EN14604,UL217
SuggestedMounting Locations
Smoke alarmsmust be locatedin escape routeson
all levelswithin the householdunit.
On levelscontainingsleepingspaces, they must be
installedwithin the sleepingspace,or within
3 metresof every sleepingspace door.Andthey
must be audible through closeddoors.
AlwaysRefer to NZS 4514:2009 or the latest
standardfor full installationrecommendations.
=MOUNTING AREA
=DON’T FITAREA
(DEAD AIR SPACE)
Max. 300mm
CEILING
WALL
BEST
LOCATION
ACCEPTABLE
LOCATION
Note.Smoke Detectorsshouldbe
mounteda minimum of 400mm away
from Air Con.or forcedair vents.
Test at leastonce a month.
Min.
100mm
Min.
200mm
900mm
orless
Beams,joistsand
exposed rafters
deeper than
460mm are
treated as walls
Min.
200mm
AlwaysRefer to NZS 4514:2009 or the latest
standardfor full installationrecommendations.

PanelProgramming(ESL, Elite S &S-Lite only)
You will needto tell the panel what zone the smoke detector isconnectedto.
In Program mode press <PROGRAM><123> <ENTER> then put in the zone(1-8)
that the smoke ison <1-8><ENTER> now turn Onoption <5> <ENTER>.
With thisfeature turnedOn,when the smoke detector istriggeredthe Alarm willactivate
even if the system isdisarmed.Also thesirenswill pulse On andOff makinga different
soundto a normal burglary alarm.The user will have to clear the alarm with their normal
alarm code.
i.e. P 123 E 8E5E (zone 8 isnow a 24 Hour Fire zone)
+12V
-0V
C
Z 1-8
Power Term.
Zone Term.
Alarm Panel
Termination
2K2 EOL
Orange Not
Required
Silicon Filled
Connection Crimps
+12V
-0V
C
Z1-8
+12V
-0V
C
Z1-8
Wire Colour Connection
Red +9 to 16 VDC
Black -0 VDC
White Common
Orange Normally Closed
Yellow Normally Open
=
=
=
=
=
Multiple Detectorsin Parallel Connection(usingN/O Contacts)
+12V
-0V
C
Z1-8
Multiple Detectorsin SeriesConnection (usingN/CContacts) Daisy-chain wiring
Multiple Detectorsin SeriesConnection (usingN/CContacts) Individual wiring
2K2 EOL Fittedin last Detector
2K2 EOL
2K2 EOL
ConnectionDiagram
EOL
EOL
EOL
Power Monitored Contracts
If thePowersupplydropped off,
theAlarmcontacts will Activate.
Note.
Do notInstall photo electric smoke
detectors,untilallconstructionhas
been completed.
