Art 2004 User manual

ART2004
User’s Manual
Beijing ART Technology Development Co., Ltd.

BeijingARTTechnologyDevelopmentCo.,Ltd. V6.12
BUY ONLINE at art-control.com/englishs or CALL+86-10-62991792-609(CN) 2
Contents
Contents................................................................................................................................................................................2
Chapter 1 Overview..............................................................................................................................................................3
Chapter 2 Components Layout Diagram and a Brief Description .......................................................................................4
2.1 The Main Component Layout Diagram ..................................................................................................................4
2.2 The Function Description for the Main Component ...............................................................................................4
2.2.1 Signal Input and Output Connectors ............................................................................................................4
2.2.2 Potentiometer ...............................................................................................................................................4
2.2.3 Board Base Address Selection .....................................................................................................................5
2.2.4 Jumper..........................................................................................................................................................7
Chapter 3 Address Assignment..............................................................................................................................................8
3.1 Address Assignment Table of the Board .................................................................................................................8
3.2 Address Assignment Table Introduction..................................................................................................................8
Chapter4 Notes, Calibration and Warranty Policy...............................................................................................................9
4.1 The Connection of the Output Signal......................................................................................................................9
4.2 Zero-point and Gain Calibration .............................................................................................................................9
4.3 Note.......................................................................................................................................................................10
4.4 Warranty Policy.....................................................................................................................................................10
Products Rapid Installation and Self-check ........................................................................................................................11
Rapid Installation ........................................................................................................................................................11
Self-check ...................................................................................................................................................................11
Delete Wrong Installation ...........................................................................................................................................11

BeijingARTTechnologyDevelopmentCo.,Ltd. V6.12
BUY ONLINE at art-control.com/englishs or CALL+86-10-62991792-609(CN) 3
Chapter 1 Overview
ART2004 is a card based on PC104+ bus, can be connected to the computer's PC104 interface to constitute the
laboratory, product quality inspection center and other areas of data acquisition, waveform analysis and processing
system. And also can constitute industrial process monitoring system. Its main applications are:
■Electronic Product Quality Testing
■Signal acquisition
■Process Control
■Servo Control
Unpacking Checklist
Check the shipping carton for any damage. If the shipping carton and contents are damaged, notify the local dealer or
sales for a replacement. Retain the shipping carton and packing material for inspection by the dealer.
Check for the following items in the package. If there are any missing items, contact your local dealer or sales.
¾ART2004 Data Acquisition Board
¾ART Disk
a) user’s manual (pdf)
b) drive
c) catalog
¾Warranty Card
DAArbitrary Waveform Output Function
¾Converter Type: ADC7625
¾Output Range: 0~5V, 0~10V, ±5V, ±10V (jumper select)
¾Resolution: 12-bit
¾Number of Channels: 8
¾Set-up Time: 10μs
¾Accuracy: 0.1% of FSR
¾Non-linear Error: ±1LSB (max)
¾Output-error (Full-scale): ±1LSB
¾Operating Temperature Range: 0℃~ +50℃
¾Storage Temperature Range: -20℃~ +70℃
¾Dimension: 96mm (L) * 90mm (W)

BeijingARTTechnologyDevelopmentCo.,Ltd. V6.12
Chapter 2 Components Layout Diagram and a Brief Description
2.1 The Main Component Layout Diagram
The following is the ART2004 component location diagram, the switch and jumper settings are the factory standard
settings. Set as follows: board base address = 280H, the analog output range is ±5V.
2.2 The Function Description for the Main Component
2.2.1 Signal Input and Output Connectors
XS1: analog signal output connector
XS1: 10-pin definition
Pin No. Name Pin No. Name
1 VOUT0 6 VOUT5
2 VOUT1 7 VOUT6
3 VOUT2 8 VOUT7
4 VOUT3 9 AGND
5 VOUT4 10 AGND
2.2.2 Potentiometer
RP1: DA0 analog output voltage gain adjustment
RP2: DA1 analog output voltage gain adjustment
RP3: DA2 analog output voltage gain adjustment
BUY ONLINE at art-control.com/englishs or CALL+86-10-62991792-609(CN) 4

BeijingARTTechnologyDevelopmentCo.,Ltd. V6.12
RP4: DA3 analog output voltage gain adjustment
RP5: DA0, DA1, DA2, DA3 analog output zero-point adjustment
RP6: DA4 analog output voltage gain adjustment
RP7: DA5 analog output voltage gain adjustment
RP8: DA6 analog output voltage gain adjustment
RP9: DA7 analog output voltage gain adjustment
RP10: DA4, DA5, DA6, DA7 analog output zero-point adjustment
2.2.3 Board Base Address Selection
SW: board base address DIP switches. Board base address can be set, which occupy the base address of the date of
4consecutive I/O addresses. Switch No. 1, 2, 3, 4, 5, 6, 7, 8 correspond to address bits A2, A3, A4, A5, A6, A7, A8, A9.
Board base address selection switch SW shown as following:
The figure is the default address: 280H. "ON" means the Low effective, “OFF” means the High effective.
Common base address
Adr SW Adr SW
200H
BUY ONLINE at art-control.com/englishs or CALL+86-10-62991792-609(CN) 5
ON
1
A7 A8 A9
2345678
A3 A4 A5 A6A2
210H
ON
1
A7 A8 A9
2345678
A3 A4 A5 A6A2
220H
ON
1
A7 A8 A9
2345678
A3 A4 A5 A6A2
230H
ON
1
A7 A8 A9
2345678
A3 A4 A5 A6A2
240H
ON
1
A7 A8 A9
2345678
A3 A4 A5 A6A2
250H
ON
1
A7 A8 A9
2345678
A3 A4 A5 A6A2
260H
ON
1
A7 A8 A9
2345678
A3 A4 A5 A6A2
270H
ON
1
A7 A8 A9
2345678
A3 A4 A5 A6A2
280H
ON
1
A7 A8 A9
2345678
A3 A4 A5 A6A2
ON
1
A7 A8 A9
234
290H
5678
A3 A4 A5 A6A2

BeijingARTTechnologyDevelopmentCo.,Ltd. V6.12
2A0H
ON
1
A7 A8 A9
2345678
A3 A4 A5 A6A2
2B0H
ON
1
A7 A8 A9
2345678
A3 A4 A5 A6A2
2C0H
ON
1
A7 A8 A9
2345678
A3 A4 A5 A6A2
2D0H
ON
1
A7 A8 A9
2345678
A3 A4 A5 A6A2
2E0H
ON
1
A7 A8 A9
2345678
A3 A4 A5 A6A2
2F0H
ON
1
A7 A8 A9
2345678
A3 A4 A5 A6A2
300H
ON
1
A7 A8 A9
2345678
A3 A4 A5 A6A2
310H
ON
1
A7 A8 A9
2345678
A3 A4 A5 A6A2
320H
ON
1
A7 A8 A9
2345678
A3 A4 A5 A6A2
330H
ON
1
A7 A8 A9
2345678
A3 A4 A5 A6A2
340H
ON
1
A7 A8 A9
2345678
A3 A4 A5 A6A2
350H
ON
1
A7 A8 A9
2345678
A3 A4 A5 A6A2
360H
ON
1
A7 A8 A9
2345678
A3 A4 A5 A6A2
370H
ON
1
A7 A8 A9
2345678
A3 A4 A5 A6A2
380H
ON
1
A7 A8 A9
2345678
A3 A4 A5 A6A2
390H
ON
1
A7 A8 A9
2345678
A3 A4 A5 A6A2
3A0H
ON
1
A7 A8 A9
2345678
A3 A4 A5 A6A2
3B0H
ON
1
A7 A8 A9
2345678
A3 A4 A5 A6A2
3C0H
ON
1
A7 A8 A9
2345678
A3 A4 A5 A6A2
3D0H
ON
1
A7 A8 A9
2345678
A3 A4 A5 A6A2
3E0H
ON
1
A7 A8 A9
2345678
A3 A4 A5 A6A2
3F0H
ON
1
A7 A8 A9
2345678
A3 A4 A5 A6A2
BUY ONLINE at art-control.com/englishs or CALL+86-10-62991792-609(CN) 6

BeijingARTTechnologyDevelopmentCo.,Ltd. V6.12
2.2.4 Jumper

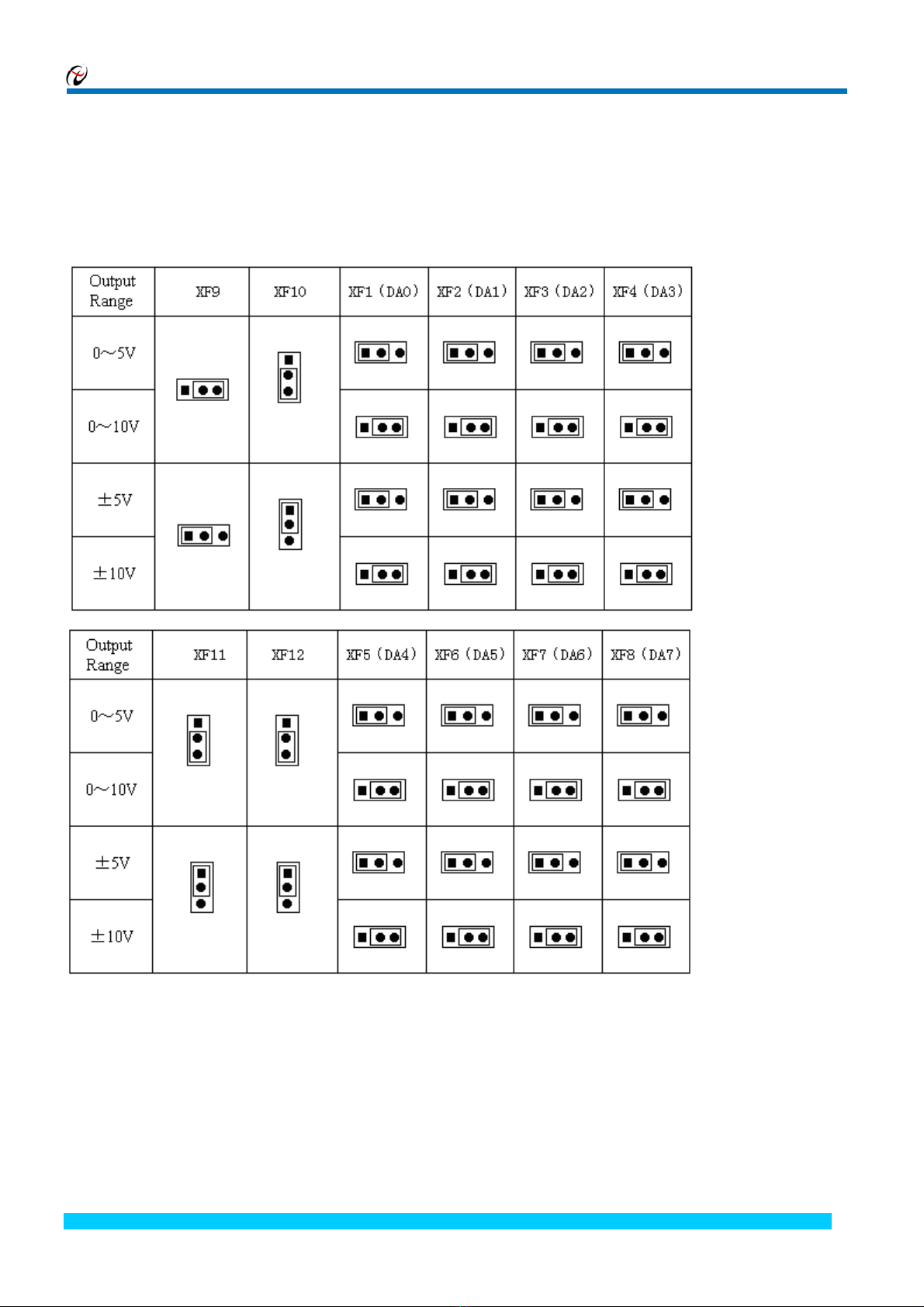

XF1~XF12: analog output range selection
XF1-XF12 can be selected by the jumper. The black box represents the 1-pin, the middle black dot represents 2-pin, the
rest is the 3-pin.
BUY ONLINE at art-control.com/englishs or CALL+86-10-62991792-609(CN) 7

BeijingARTTechnologyDevelopmentCo.,Ltd. V6.12
BUY ONLINE at art-control.com/englishs or CALL+86-10-62991792-609(CN) 8
Chapter 3 Address Assignment
3.1 Address Assignment Table of the Board
Address Assignment Table (both read and write are eight bus operation)
Address Write 读
Base Address+0 DA channel Start 0-ch, 1-ch, 2-ch and 3-ch DA to convert
Base Address +1 DA data low 8-bit Invalid
Base Address +2 DA data high 4-bit Invalid
Base Address +3 Invalid Start 4-ch, 5-ch, 6-ch and 7-ch DA to convert
3.2 Address Assignment Table Introduction
◆Write the D/A channels, read and start 0-ch, 1-ch, 2-ch and 3-ch DA to convert (board base address
+0)
Write the DA channels: D0 and D1 select channels, D2~ D7 bits are not valid.
Read Operation: start 0 to 3 channels DA to convert.
D1 D0 DA channel
0 0 0
0 1 1
1 0 2
1 1 3
◆D/A data register (base address +1, +2)
Write base address +1, +2, and write the low 8-bit and the high 4-bit of the DA data to the base adress.
D/A Converter Data Register
Data Bit D7 D6 D5 D4 D3 D2 D1 D0
Low 8-bit DA7 DA6 DA5 DA4 DA3 DA2 DA1 DA0
Data Bit D7 D6 D5 D4 D3 D2 D1 D0
High 4-bit NC NC NC NC DA11 DA10 DA9 DA8
DA0~DA11 are DA data. NC: Invalid
◆Read and start 4-ch, 5-ch, 6-ch and 7-ch DA to convert (base address +3 )
Read Operation: start 4-ch, 5-ch, 6-ch and 7-ch DA to convert.
D0 and D1 select channels, D2~ D7 bits are not valid.
D1 D0 DA channel
0 0 4
0 1 5
1 0 6
1 1 7

BeijingARTTechnologyDevelopmentCo.,Ltd. V6.12
Chapter4 Notes, Calibration and Warranty Policy
4.1 The Connection of the Output Signal
When output voltage, one side of the load connects with the voltage output port (VOUTx), the other side connects with
the analog ground (AGND), the max current that provided to the load is10mA, the voltage output does not require an
external power supply.
VOUTx (VOUT0 ~ VOUT7) are the voltage output port of the XS1, 8-channel DA analog output.
Voltage Measurement Schematic:
4.2 Zero-point and Gain Calibration
For calibration, we need a digital multimeter that the precision is more than 41/2. First adjust the zero-point, then adjust
the gain, each time we change the range, the zero-point and gain should be re-adjusted.
The relations of the potentiometer, the zero-point and the gain
Channel No. Zero-point Gain
DA0 RP1
DA1 RP2
DA2 RP3
DA3
RP5
RP4
DA4 RP6
DA5 RP7
DA6 RP8
DA7
RP10
RP9
Calibration Method
1) Set the range, connect the load, and power-on to warm up for 5 minutes.
2) Adjust the zero-point: make DA output 0V, adjust the zero-point potentiometer, make the output voltage is 0.00mV.
3) Adjust the gain, output the data that corresponding to the full-scale, and adjust the potentiometer so that the output
voltage reaches the full-scale -1LSB output value.
BUY ONLINE at art-control.com/englishs or CALL+86-10-62991792-609(CN) 9

BeijingARTTechnologyDevelopmentCo.,Ltd. V6.12
BUY ONLINE at art-control.com/englishs or CALL+86-10-62991792-609(CN) 10
Note: because the DA0~DA3 and the DA4~DA7 share the one zero-point potentiometer, so adjust the one channel to 0,
the other channels are close to 0.
4.3 Note
Set the jumpers correctly.
Analog output signal and analog ground connect with the card, and isolate with the bus logic ground.
Can not hot-plug the card
4.4 Warranty Policy
Thank you for choosing ART. To understand your rights and enjoy all the after-sales services we offer, please read the
following carefully.
1. Before using ART’s products please read the user manual and follow the instructions exactly. When sending in
damaged products for repair, please attach an RMA application form which can be downloaded from:
www.art-control.com.
2. All ART products come with a limited two-year warranty:
¾The warranty period starts on the day the product is shipped from ART’s factory
¾For products containing storage devices (hard drives, flash cards, etc.), please back up your data before sending
them for repair. ART is not responsible for any loss of data.
¾Please ensure the use of properly licensed software with our systems. ART does not condone the use of pirated
software and will not service systems using such software. ART will not be held legally responsible for products
shipped with unlicensed software installed by the user.
3. Our repair service is not covered by ART's guarantee in the following situations:
¾Damage caused by not following instructions in the User's Manual.
¾Damage caused by carelessness on the user's part during product transportation.
¾Damage caused by unsuitable storage environments (i.e. high temperatures, high humidity, or volatile chemicals).
¾Damage from improper repair by unauthorized ART technicians.
¾Products with altered and/or damaged serial numbers are not entitled to our service.
4. Customers are responsible for shipping costs to transport damaged products to our company or sales office.
5. To ensure the speed and quality of product repair, please download an RMA application form from our company
website.

BeijingARTTechnologyDevelopmentCo.,Ltd. V6.12
BUY ONLINE at art-control.com/englishs or CALL+86-10-62991792-609(CN) 11
Products Rapid Installation and Self-check
Rapid Installation
Product-driven procedure is the operating system adaptive installation mode. After inserting the disc, you can select the
appropriate board type on the pop-up interface, click the button【driver installation】; or select CD-ROM drive in
Resource Explorer, locate the product catalog and enter into the APP folder, and implement Setup.exe file. After the
installation, pop-up CD-ROM, shut off your computer, insert the PCI card. If it is a USB product, it can be directly
inserted into the device. When the system prompts that it finds a new hardware, you do not specify a drive path, the
operating system can automatically look up it from the system directory, and then you can complete the installation.
Self-check
At this moment, there should be installation information of the installed device in the Device Manager (when the device
does not work, you can check this item.). Open "Start -> Programs -> ART Demonstration Monitoring and Control
System -> Corresponding Board -> Advanced Testing Presentation System", the program is a standard testing procedure.
Based on the specification of Pin definition, connect the signal acquisition data and test whether AD is normal or not.
Connect the input pins to the corresponding output pins and use the testing procedure to test whether the switch is
normal or not.
Delete Wrong Installation
When you select the wrong drive, or viruses lead to driver error, you can carry out the following operations: In Resource
Explorer, open CD-ROM drive, run Others-> SUPPORT-> PCI.bat procedures, and delete the hardware information that
relevant to our boards, and then carry out the process of section I all over again, we can complete the new installation.
