ArtFox Solar Eye K24 User manual

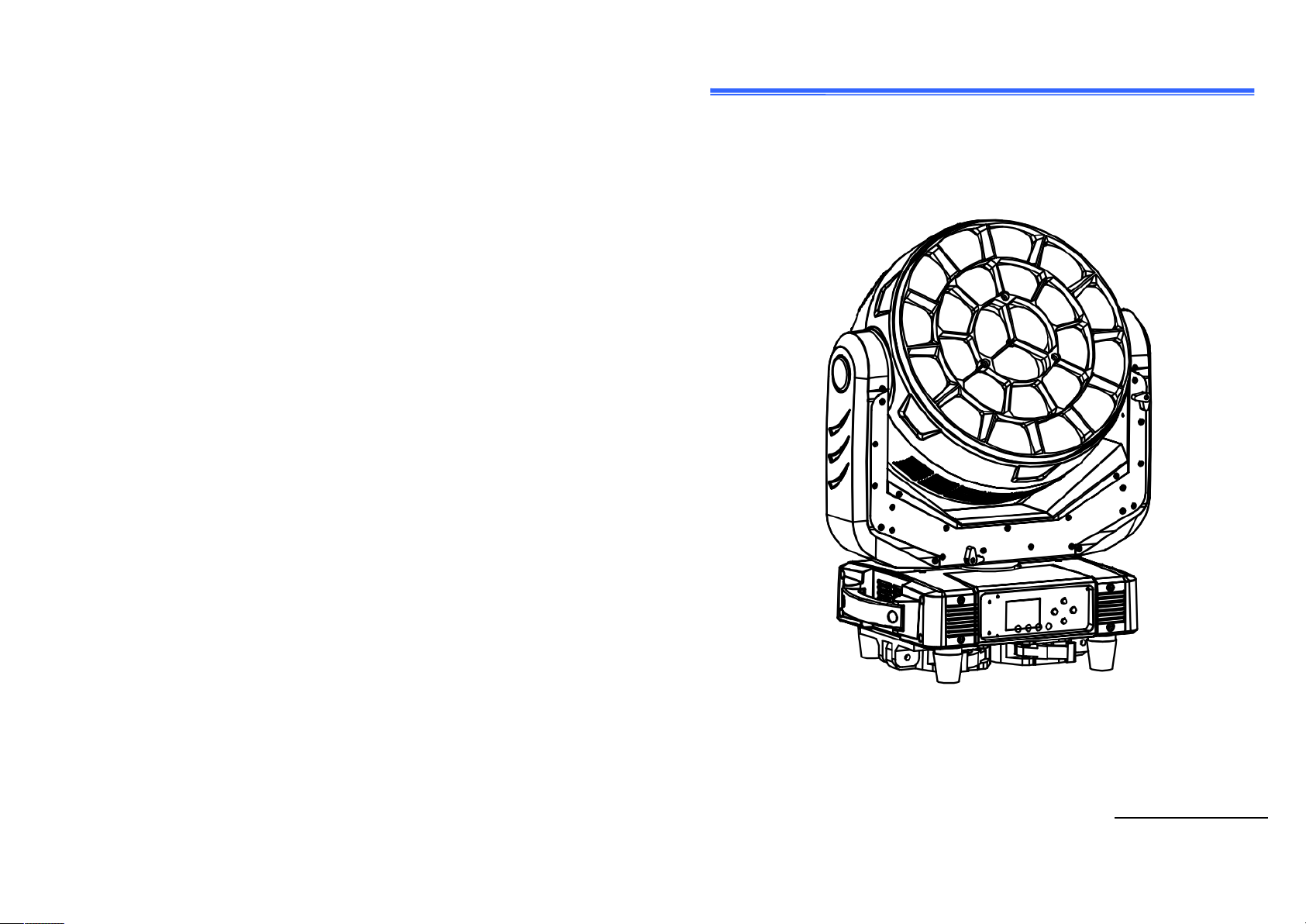

Solar Eye K24
24x60w RGBW LEDs, Beam Wash Kaleido 3-in-1
User manual
P le a se rea d t he ins t r u ct ion s ca refu ll y before us

2
TABLE OF CONTENTS
1. S af ety I nst r uctions ......................................................................................1 - 3
2. Technical Specifications ......................................................................................... 5
3. How To Control The Unit ..................................................................................... 6-9
4. DMX Channel List...................................................................................10 -30
5. Shape..................................................................................................................30-31
7. Trouble shooting.............................................................................................32
8..Fixture Cleaning.............................................................................................33
statement
The product has well capability and intact packing when leave
factory. All of the user should comply with warning item and manual, any
misuse cause of the damages are not included in our guarantee, and
also can not be responsible for any malfunction & problem owing to
ignore the manual.
31
8. Fixture Cleaning
The cleaning of internal and external optical lenses and/or mirrors must be carried
out periodically to optimize light output. Cleaning frequency depends on the
environment in which the fixture operates: damp, smoky or particularly dirty
surrounding can cause greater accumulation of dirt on the unit’s optics.
Clean with soft cloth using normal glass cleaning fluid.
Always dry the parts carefully.
Clean the external optics at least every 20 days. Clean the internal optics at least 
every 30/60 days.

30
F ollo w ing a r e a few c o mm on p r oble m s th a t m a y occu r d uring ope r a tion . He r e a r e
s o m e s ug g es tion s fo r eas y tr ou b leshooting :
A. The un it does no t work , no li ght a n d t he f a n d o es no t w o r k
1. Ch eck th e c on nect ion of p owe r a nd m a in fu s e .
2. M eas ure th e m a ins volt a g e on th e m a i n co nn e ct o r .
3. Ch eck th e pow er on LED .
B. N o t responding t o D MX c on t ro ll er
1. D M X LED s h ou ld b e on. If no t, che ck D M X co n nectors, ca b l es to s ee if link
p r ope r ly .
2. If th e D M X LE D i s on a nd no r espons e t o th e c h a nn el, che ck th e a dd r ess
s etti ng s a nd D M X p ol a r ity .
3. If y ou h a ve i nter m ittent D M X s ig n a l p r oble m s , che ck th e p ins on c onn ecto r s or on
PCB of th e u nit or the p r ev iou s on e.
4. Tr y to us e a no th er D M X co ntroller .
5. Ch eck if th e D M X ca b le s r un ne a r or run a lon g s id e t o h ig h volta g e c a b les th a t
m a y c a us e d a m a g e or in terfer ence to D M X inter face circui t.
C . One of the cha nn el s is no t w o r k ing w el l
1. Th e s tep p er moto r m ig h t b e dam a g ed or the c a b le c on nect ed to th e PCB is
b r oken.
2. Th e m oto r ’ s d r ive IC on th e PCB m ig h t b e o ut of co ndition.
7. Trouble shooting
3
1. S af ety I nst r uctions
Please keep this User Guide for future consultation. If you sell the unit to another
user, be sure that they also receive this instruction booklet.
 Unpack and check carefully there is no transportation damage before using
the unit.
 Before operating, ensure that the voltage and frequency of power
supply match the power requirements of the unit.
 It’s important to ground the yellow/green conductor to earth in order
to avoid electric shock.
 The unit is for indoor use only. Use only in a dry location.
 The unit must be installed in a location with adequate ventilation, at
least 50cm from adjacent surfaces. Be sure that no ventilation slots are
blocked.
 Disconnect main power before replacement or servicing.
 Make sure there are no flammable materials close to the unit while operating as
it is fire hazard.
 Use safety cable when fixes this unit. DO NOT handle the unit by taking its head
only, but always by taking its base.
 Maximum ambient temperature is Ta: 40 .℃ DO NOT operate it where the
temperature is higher than this Unit surface temperature may reach up to 85 .℃
DO NOT touch the housing bare-hand during its operation. Turn off the power
and allow about 15 minutes for the unit to cool down before replacing or serving.
 the event of serious operating problem, stop using the unit immediately.Never
try to repair the unit by yourself. Repairs carried out by unskilled people can
lead to damage or malfunction. Please contact the nearest authorized
technical assistance center. Always use the same type spare parts.

4
 DO NOT touch any wire during operation as high voltage might be causing
electric shock.
Warning:
 To prevent or reduce the risk of electrical shock or fire, do not expose the unit to
rain or moisture.
 DO NOT open the unit within five minutes after switching off.
 The housing, the lenses, or the ultraviolet filter must be replaced
if they are visibly damaged.
Caution:
There are no user serviceable parts inside the unit. DO NOT open the housing
or attempt any repairs yourself. In the unlikely event your unit may require
service, please contact your nearest dealer.
Installation:
The unit should be mounted via its screw holes on the bracket. Always ensure that
the unit is firmly fixed to avoid vibration and slipping while operating.
And make sure that the structure to which you are attaching the unit is secure
and is able to support a weight of 10 times of the unit’s weight. Also always use a
safety cable that can hold 12 times of the weight of the unit when installing the
fixture.
The equipment must be fixed by professionals. And it must be fixed at a place
where is out of the touch of people.
29

28
CH-33 Reset Reset within 5s 251-255
CH-34 R1 LED dimming Red1 LED dimming 0-250
CH-35 G1 LED dimming Green1 LED dimming 0-250
CH-36 B1 LED dimming Blue1 LED dimming 0-250
CH-37 W1 LED dimming White1 LED dimming 0-250
CH-38 ....... ......... ......
CH-126 R24 LED
dimming
Red24 LED dimming 0-250
CH-127 G24 LED
dimming
Green24 LED dimming 0-250
CH-128 B24 LED
dimming
Blue24 LED dimming 0-250
CH-129 W24 LED
dimming
White24 LED dimming 0-250
6. Shape
5
2. Technical Specifications
Light Sources: 24*60W 4IN1 RGBW LED
Average life span> 50000 hours
Beam Angle:3.5°- 45°
Glass light guide + PMMA high quality optical lens
Power Consumption: 1500W
Power factor PF≥0.98
Power Voltage: AC 100-240V, 50/60Hz
Net Weight: 25 kgs
Dimension: 354mm×444mm×477mm
Working temperature: -10℃～45℃
Control
DMX Channel:21/25/33/129 Channels
Control Modes: DMX512/mater-Slave/Auto Run/Music
Pan/Tilt
Pan : 540° ,accuracy 2.11°/step, fine-tuning accuracy: 0.008°;
Tilt : 270°,accuracy 0.86°/step, fine-tuning accuracy: 0.0034°;
Using magnetic coded reset system
Construction
Display:2.4-inch TFT color display;Chinese and English languages can be
switched,180° reversible TFT Display
Data In/Out socket: 3-pin & 5-pin XLR sockets
Power Socket: Power Con in/out
Protection Rating: IP20

6
Electronic control technology:
Menu or console control lamp reset;
0-100% dimming;
Constant current drive mode;
Temperature sensor detection, intelligent adjustment of light source power;
Lamp information query;
Intelligent fan speed control
Features
Full optical domain dimming, 65536-level dimming accuracy; fast strobe
1~25Hz;
Single point control of lamp beads;
Combine the three-in-one effect of dyeing, beam and bee eye;
Preset 44 kinds of color macro function; preset 121 kinds of effect macro
function
3. How To Control The Unit
Display:
27
CH-23
Dynamic pattern Mixed color dynamic pattern 2 184--186
........(3numbers 1 pattern) ..........
Mixed color dynamic pattern 18 232--234
Mixed color dynamic pattern 19 235--255
CH-24
Pattern
translation (with
23 channels)
Select dynamic pattern scene 0--255
CH-25 Dynamic pattern
speed (with 17
channels)
No 0--9
Forward, from fast to slow 10--132
Go backward, from slow to fast 133--255
CH-26 Pattern effect
fade
Pattern effect fade 0--255
CH-27 Background total
dimming
Background total dimming from
0 - 100%
0--255
CH-28 Background
strobe
Background strobe 0--255
CH-29 Back color Red dark to bright linear dimming 0-255
CH-30 Back color Green dark to bright linear dimming 0-255
CH-31 Back color Blue dark to bright linear dimming 0-255
CH-32 Back color White dark to bright linear dimming 0-255
NO 0-250

26
CH-21 Macro color
....(10 numbers 1 macro color) ....
Macro color 24 240--249
Macro color 25 250--255
CH-22 Static pattern
No 0--6
Monochrome pattern 1 7--13
Monochrome pattern 2 14--20
.........(7 numbers 1 pattern) .....
Monochrome pattern 26 182--188
Mixed color pattern 1 189-195
Mixed color pattern 2 196--202
....(7 numbers 1 pattern) ....
Mixed color pattern 8 245--251
Mixed color pattern 9 252--255
CH-23 Dynamic pattern
NO 0--9
Monochrome dynamic pattern 1 10--12
Monochrome dynamic pattern 2 13--15
......(3 numbers 1 pattern) .....
Monochrome pattern 57 178--180
Mixed color dynamic pattern 1 181--183
7
MENU To select the programming functions
DOWN To go backward in the selected functions
uP To go forward in the selected functions
ENTER To confirm the selected functions
Set DMX Address Code
1 Press "Menu" to "Set DMX Address",and press"ENTER" keys to enter
into
2 Show "Set DMX Address DMX Address:001",Press the "UP and DOWN"
keys to amended
3 Press "ENTER"keys to save and Exit,Press the"MENU"Keys does not
save and Exit
Menu
1.Pan
Degree
1) 540 °, 2)360° X-axis running angle selection
2.Mic
Sense
001 - 100 Sound sensitivity adjustment
3.Pan Invert 1.NO 2.YES X axis forward a
nd reverse
settings
4.Tilt Invert 1.NO 2.YES Y
axis forward and reverse
settings
5.No Signal 1.Black Out 2.Hold
Set the state when the machine
has no signal input
6.Fan Set 1.Auto 2.Low 3.High Set fan speed
7. ArtNet
Set
ArtNet Enable:1.ON
2.OFF
2.Universe:0--255
3.IP model:A.2.X.X.X
B.10.X.X.X

8
Menu
7.ArtNet
Set
C.Customer
4.Customer
IP:192.168.000.001
5.SubNetMask:255.00
0.000.000
8.Default Yes Reset
No
9.Adjust
Pass Word：up+down+up+down
Pan:0 - 255
Change the value of
Pan/Tilt/Focus/Rotation to
correct the angle;
Change the value of R/G/B/W
to adjust the white balance
Tilt:0 - 255
Focus:0 - 255
Rotation:0 - 255
Red:0 - 255
Green:0 - 255
Blue:0 - 255
White:0 - 255
Address Setting from 001 - 512
Model
DMX512
Set control mode
Auto
Sound
Manual
1.Pan(X):0--255
Manual
2.Tilt（Y）:0--255
3.Focus:0--255
4.Rotation:0--255
5.Red：0--255
25
CH-20
Color
temperature
R100%,G0%,B DOWM 116---135
R100%,G UP,B UP 136---155
R DOWM,G DOWM, B 100% 156---175
R100%,G100%,B100%,W100% 176---195
2800K 196---200
3200K 201---205
4000K 206---210
4500K 211---215
5000K 216---220
5500K 221---225
5600K 226--230
6500K 231--235
7000K 236--240
8000K 241--245
CH-21 Macro color
No 0--9
Macro color 1 10--19
Macro color 2 20--29

24
CH-11 Red dimming Red dimming 0-255
CH-12 Red trim Red trim 0-255
CH-13 Green dimming Green dimming 0-255
CH-14 Green trim Green trim 0-255
CH-15 Blue dimming Blue dimming 0-255
CH-16 Blue trim Blue trim 0-255
CH-17 White dimming White dimming 0-255
CH-18 White trim White trim 0-255
CH-19
Dimming Mode
Mode -1 0 --- 49
Mode -2 50 --- 99
Mode -3 100---149
Mode -4 150---255
CH-20 Color
temperature
No 0 ---15
R100%,G UP,B0% 16---35
R DOWM,G100%,B0% 36---55
R0%,G100%,B UP 56---75
R0%,G DOWM,B100% 76---95
R UP,G0%,B100% 96---115
9
Model
Manual
6.Greed：0--255
Manual
7.Blue：0--255
8.White：0--255
9.Strobe：0-255
Master/Alon
e
1.Master Master/Alone
2.Alone
Channel
1.21 CH 1.21 CH
Select channel mode
2.25 CH 2.25 CH
3.33 CH 3.33 CH
4. 129 CH 4.129 CH
5.106 CH 5. 106 CH
Display Display 1.YES 2.NO
Display font forward and
reverse settings
Language English or Chinese Choose a language
Reset YES or NO Reset
Information
1. CH Value Show all channel information
2.Temp ____℃
Display LED board
temperature
3.Soft V1.0
4.IP 002.050.164.014
5.Mask 255.000.000.000

10
4.DMX Channel List
Model 1 - CH21
Channel Display Function Value
CH-1 Red Red dimming 0 --- 255
CH-2 Red adjustment Red adjustment 0 --- 255
CH-3 Green Green dimming 0 --- 255
CH-4 Green adjustment Green adjustment 0 --- 255
CH-5 Blue Blue dimming 0 --- 255
CH-6 Blue adjustment Blue dimming 0 --- 255
CH-7 White White dimming 0 --- 255
CH-8 White adjustment White adjustment 0 --- 255
CH-9 Color temperature
No 0--15
R100%,G UP,B0% 16--35
R DOWM,G100%,B0% 36--55
R0%,G100%,B UP 56--75
R0%,G DOWM,B100% 76--95
R UP,G0%,B100% 96--115
23
Model 4 - CH 129
Channel Display Function Value
CH-1 Pan Pan control 0 --- 255
CH-2 Pan adjustment Pan Fine tuning control 0 --- 255
CH-3 Tilt Tilt control 0 --- 255
CH-4 Tilt adjustment Tilt Fine tuning control 0 --- 255
CH-5 XY speed Speed from fast to slow 0 --- 255
CH-6 Zoom Angle from small to large 0 --- 255
CH-7 Lens rotation
0~60° 0-155
Clockwise infinite rotation from
fast to slow
156-205
Counterclockwise rotation from
slow to fast
206-255
CH-8 Dimmer dark to bright linear dimming 0 --- 255
CH-9 Dimming
fine-tuning
Dimming fine-tuning control 0--255
CH-10 Strobe
Turn on the light 0---3
Synchro strobe speed
From slow to fast (1HZ-25HZ)
4---203
Random strobe 204--255

22
Mixed color dynamic pattern 19 235--255
CH-24
Pattern
translation (with
23 channels)
Select dynamic pattern scene 0--255
CH-25 Dynamic
pattern speed
(with 17
channels)
No 0--9
Forward, from fast to slow 10--132
Go backward, from slow to fast 133--255
CH-26 Pattern effect
fade
Pattern effect fade 0--255
CH-27 Background
total dimming
Background total dimming from 0
- 100%
0--255
CH-28 Background
strobe
Background strobe 0--255
CH-29 Back color Red dark to bright linear dimming 0-255
CH-30 Back color
Green
dark to bright linear dimming 0-255
CH-31 Back color Blue dark to bright linear dimming 0-255
CH-32 Back color
White
dark to bright linear dimming 0-255
CH-33 Reset
NO 0-250
Reset within 5s 251-255
11
CH-9 Color temperature
R100%,G0%,B DOWM 116--135
R100%,G UP,B UP 136--155
R DOWM,G DOWM, B 100% 156--175
R100%G100%B100%W100% 176--195
2800K 196--200
3200K 201--205
4000K 206--210
4500K 211--215
5000K 216--220
5600K 221--225
6500K 226--230
7000K 231--235
7500K 236--240
8000K 241--255
CH-10 Macro color
No 0--9
Macro color 1 10--19
Macro color 2 20--29
...... ......

12
CH-10 Macro color
Macro color 24 240--249
Macro color 25 250--255
CH-11 Dimmer dark to bright linear dimming 0 --- 255
CH-12 Dimmer adjust Dimmer adjustment control 0 --- 255
CH-13 Strobe
Turn on the light 0---3
Synchro strobe speed
slow to fast (1HZ-25HZ) 4---203
Random strobe 204--255
CH-14 Pan Pan control 0 --- 255
CH-15 Pan adjustment Pan adjustment control 0 --- 255
CH-16 Tilt Tilt control 0 --- 255
CH-17 Tilt adjustment Tilt adjustment control 0 --- 255
CH-18 Zoom Zoom 0-255
CH-19 Lens rotation
0~60° 0-155
Clockwise infinite rotation 156-205
Counterclockwise rotation 206-255
CH-20 Dimming Mode
Mode -1 0 --- 49
Mode -2 50 --- 99
Mode -3 100---149
21
CH-22 Static pattern
No 0--6
Monochrome pattern 1 7--13
Monochrome pattern 2 14--20
.........(7 numbers 1 pattern) .....
Monochrome pattern 26 182--188
Mixed color pattern 1 189-195
Mixed color pattern 2 196--202
....(7 numbers 1 pattern) ....
Mixed color pattern 8 245--251
Mixed color pattern 9 252--255
CH-23 Dynamic
pattern
NO 0--9
Monochrome dynamic pattern 1 10--12
Monochrome dynamic pattern 2 13--15
......(3 numbers 1 pattern) .....
Monochrome pattern 57 178--180
Mixed color dynamic pattern 1 181--183
Mixed color dynamic pattern 2 184--186
........(3numbers 1 pattern) ..........
Mixed color dynamic pattern 18 232--234

20
CH-20
Color
temperature
R DOWM,G DOWM, B 100% 156---175
R100%,G100%,B100%,W100% 176---195
2800K 196---200
3200K 201---205
4000K 206---210
4500K 211---215
5000K 216---220
5500K 221---225
5600K 226--230
6500K 231--235
7000K 236--240
8000K 241--245
CH-21 Macro color
No 0--9
Macro color 1 10--19
Macro color 2 20--29
....(10 numbers 1 macro color) ....
Macro color 24 240--249
Macro color 25 250--255
13
Mode -4 150---255
CH-21 Reset
NO 0-250
Reset within 5s 251---255
Model 2 - CH25
Channel Display Function Value
CH-1 Pan Pan control 0 --- 255
CH-2 Pan adjustment Pan Fine tuning control 0 --- 255
CH-3 Tilt Tilt control 0 --- 255
CH-4 Tilt adjustment Tilt Fine tuning control 0 --- 255
CH-5 XY speed Speed from fast to slow 0 --- 255
CH-6 Zoom Angle from small to large 0 --- 255
CH-7 Lens rotation
0~60° 0-155
Clockwise infinite rotation from
fast to slow
156-205
Counterclockwise rotation from
slow to fast
206-255
CH-8 Dimmer dark to bright linear dimming 0 --- 255
CH-9 Strobe Turn on the light 0---3

14
CH-9 Strobe
Synchro strobe speed
From slow to fast (1HZ-25HZ)
4---203
Random strobe 204--255
CH-10 R dimming dark to bright linear dimming 0-255
CH-11 G dimming dark to bright linear dimming 0-255
CH-12 B dimming dark to bright linear dimming 0-255
CH-13 W dimming dark to bright linear dimming 0-255
CH-14 Color
temperature
No 0 ---15
R100%,G UP,B0% 16---35
R DOWM,G100%,B0% 36---55
R0%,G100%,B UP 56---75
R0%,G DOWM,B100% 76---95
R UP,G0%,B100% 96---115
R100%,G0%,B DOWM 116---135
R100%,G UP,B UP 136---155
R DOWM,G DOWM, B 100% 156---175
19
CH-14 Green trim Green trim 0-255
CH-15 Blue dimming Blue dimming 0-255
CH-16 Blue trim Blue trim 0-255
CH-17 White dimming White dimming 0-255
CH-18 White trim White trim 0-255
CH-19
Dimming Mode
Mode -1 0 --- 49
Mode -2 50 --- 99
Mode -3 100---149
Mode -4 150---255
CH-20 Color
temperature
No 0 ---15
R100%,G UP,B0% 16---35
R DOWM,G100%,B0% 36---55
R0%,G100%,B UP 56---75
R0%,G DOWM,B100% 76---95
R UP,G0%,B100% 96---115
R100%,G0%,B DOWM 116---135
R100%,G UP,B UP 136---155

18
CH-3 Tilt Tilt control 0 --- 255
CH-4 Tilt adjustment Tilt Fine tuning control 0 --- 255
CH-5 XY speed Speed from fast to slow 0 --- 255
CH-6 Zoom Angle from small to large 0 --- 255
CH-7 Lens rotation
0~60° 0-155
Clockwise infinite rotation from
fast to slow
156-205
Counterclockwise rotation from
slow to fast
206-255
CH-8 Dimmer dark to bright linear dimming 0 --- 255
CH-9 Dimming
fine-tuning
Dimming fine-tuning control 0--255
CH-10 Strobe
Turn on the light 0---3
Synchro strobe speed
From slow to fast (1HZ-25HZ)
4---203
Random strobe 204--255
CH-11 Red dimming Red dimming 0-255
CH-12 Red trim Red trim 0-255
CH-13 Green dimming Green dimming 0-255
15
CH-14 Color
temperature
R100%,G100%,B100%,W100% 176---195
2800K 196---200
3200K 201---205
4000K 206---210
4500K 211---215
5000K 216---220
5500K 221---225
5600K 226--230
6500K 231--235
7000K 236--240
8000K 241--245
CH-15 Macro color
No 0--9
Macro color 1 10--19
Macro color 2 20--29
....(10 numbers 1 macro color) ....
Macro color 24 240--249
Macro color 25 250--255
CH-16 Static pattern
No 0--9
Monochrome pattern 1 10--12

16
CH-16 Static pattern
Monochrome pattern 2 13--15
.........(3 numbers 1 pattern) .....
Monochrome pattern 67 208--210
Mixed color pattern 1 211--213
Mixed color pattern 2 214--216
....(3 numbers 1 pattern) ....
Mixed color pattern 14 250--252
Mixed color pattern 15 253--255
CH-17 Dynamic
pattern
NO 0--9
Monochrome dynamic pattern 1 10--14
Monochrome dynamic pattern 2 15--19
......(5 numbers 1 pattern) .....
Monochrome pattern 30 155--159
Mixed color dynamic pattern 1 160--164
Mixed color dynamic pattern 2 165--169
........(5 numbers 1 pattern) ..........
Mixed color dynamic pattern 13 220--224
Mixed color dynamic pattern 14 225--255
Dynamic
pattern speed
Forward, from fast to slow（with
17CH）
0--127
17
CH-18 Reverse, from slow to fast(with
17CH)
128--255
CH-19 Dynamic
pattern speed
(with 17
channels)
No 0--9
Forward, from fast to slow 10--132
Go backward, from slow to fast 133--255
CH-20 Back color R dark to bright linear dimming 0-255
CH-21 Back color G dark to bright linear dimming 0-255
CH-22 Back color B dark to bright linear dimming 0-255
CH-23 Back color W dark to bright linear dimming 0-255
CH-20 Dimming Mode
Mode -1 0 --- 49
Mode -2 50 --- 99
Mode -3 100---149
Mode -4 150---255
CH-25 Reset
NO 0-250
Reset within 5s 251-255
Model 3 - CH33
Channel Display Function Value
CH-1 Pan Pan control 0 --- 255
CH-2 Pan adjustment Pan Fine tuning control 0 --- 255
