ARTHUR HOLM DynamicTalkH AHDTHS User manual
User Guide
Danish craftmanship
Mediterranean soul
Technology Serving Design
DynamicTalkH
Universal motorised horizontal lift system for gooseneck
microphones
2
WELCOME
Thank you for purchasing an ARTHUR HOLM product.
Please, read this installation and operating instructions carefully and keep
them in a safe place for future reference.
We remain at your entire disposal if you have any suggestions.
Henrik Holm
General Manager
3
ABOUT US
The Company
Arthur Holm has its origins in the Danish furniture designer Jorgen Alex
Jensen, who was active during the sixties and the seventies. His design
inspiration and his concept of ergonomics have been continued by his
family, who is the design force behind Arthur Holm product range. The
result of combining Scandinavian design tradition with Mediterranean
creativity, exibility and emotion is a wide product range built on more
than 25 years of craftsmanship.
Arthur Holm offers a professional product range where tomorrow’s
technology is shaped into valued materials with design exibility and
customisation, specially created to enhance communication in reception,
collaboration, conference and meeting areas.
The art of customisation
Arthur Holm offers a range of ingenious products whose designs are based
on quality materials and the latest technology. Products which endow
meeting and conference rooms with silent, ergonomic, innovative and
aesthetic solutions that integrate into the furniture, hang from the walls as
works of art or are used as interactive points of information.
The world of Arthur Holm
Arthur Holm offers a selection of unique, elegant, versatile, exible and
ergonomic products that are being used in meeting and conference
rooms, reception areas, huddle rooms, control rooms, auditoriums and
public zones of leading companies throughout the world.
The numbers speak for themselves! We currently own 33 product patents,
have presence in over 45 countries with products and solutions inmore
than 25,000 installations.
It will be our pleasure to work with you, designing your unique and
personalised environment. Our broadcast electronic engineers will
provide the latest technology while our design team will offer you the most
exclusive appearance.
Our team puts its heart, passion and pride in all our designs.
4
TABLE OF CONTENTS
REGULATIONS AND SECURITY 5
SAFETY INSTRUCTIONS 5
SYSTEM DESCRIPTION 8
INSTALLATION INSTRUCTIONS 11
POWER AND CONTROLS 12
CONTROLS 14
DYNAMICTALK HANDLING 16
AHnet PROTOCOLS 17
AHlink 19
INFORMATION ON DISPOSAL 23
WARRANTY TERMS AND CONDITIONS 24
5
SAFETY INSTRUCTIONS
Plugs
• Do not dismantle any part of the unit power connector.
• Disconnect the power plug from the AC outlet when the unit is not
going to be used for an indenite period of time.
Power and extensions cords
• Use the appropriate power cord with the correct plug type.
• Do not overload wall outlets or power cords.
• Make sure the total ampere passed through a extension cord does not
exceed the maximum allowed by the cable used.
• Do not place anything on the power cord.
• Do not locate this product where a person may walk or trip over the
cord.
REGULATIONS AND SECURITY
ATTENTION: Do not disassemble or modify the device in any way.
This symbol warns of the presence of dangerous un-insulated
voltages inside some of the components, of sufcient magnitude
to expose people to risk of electronic shock.
This symbol draws attention to important use and maintenance
instructions in the manual that accompanies the unit.
This symbol indicates that the equipment conforms to the norms
established by the European Community.
This symbol indicates D.C. current.
6
Wiring connected to hazardous voltage requires installation by
qualied personnel or the use of ready-made exible cables.
For your security, your equipment must be connected to an elec-
trical outlet with grounding connection protection.
Since the plug is used to disconnect the device, the operating
electrical outlet must be in an easily accessible place.
Environment
• Install the equipment on an elevated, at surface.
• Cannot be installed at a height greater than two meters.
• Install the equipment in a ventilated area.
• Avoid exposing the equipment to:
∙Rain or water
∙Excessive heat, cold or humidity
∙Area exposed to direct sunlight
∙Dirty areas
∙Equipment generating strong magnetic elds
• Avoid placing open containers of liquid, near the equipment.
• Keep a minimum distance of 30 mm in order to have good ventilation.
• Never place above the device any sources of ames such as lighted
candles, etc.
• If you are using the device in extreme weather conditions and/or
tropical climates, the equipment should be installed in a room which
ensures a reasonable level of temperature and humidity.

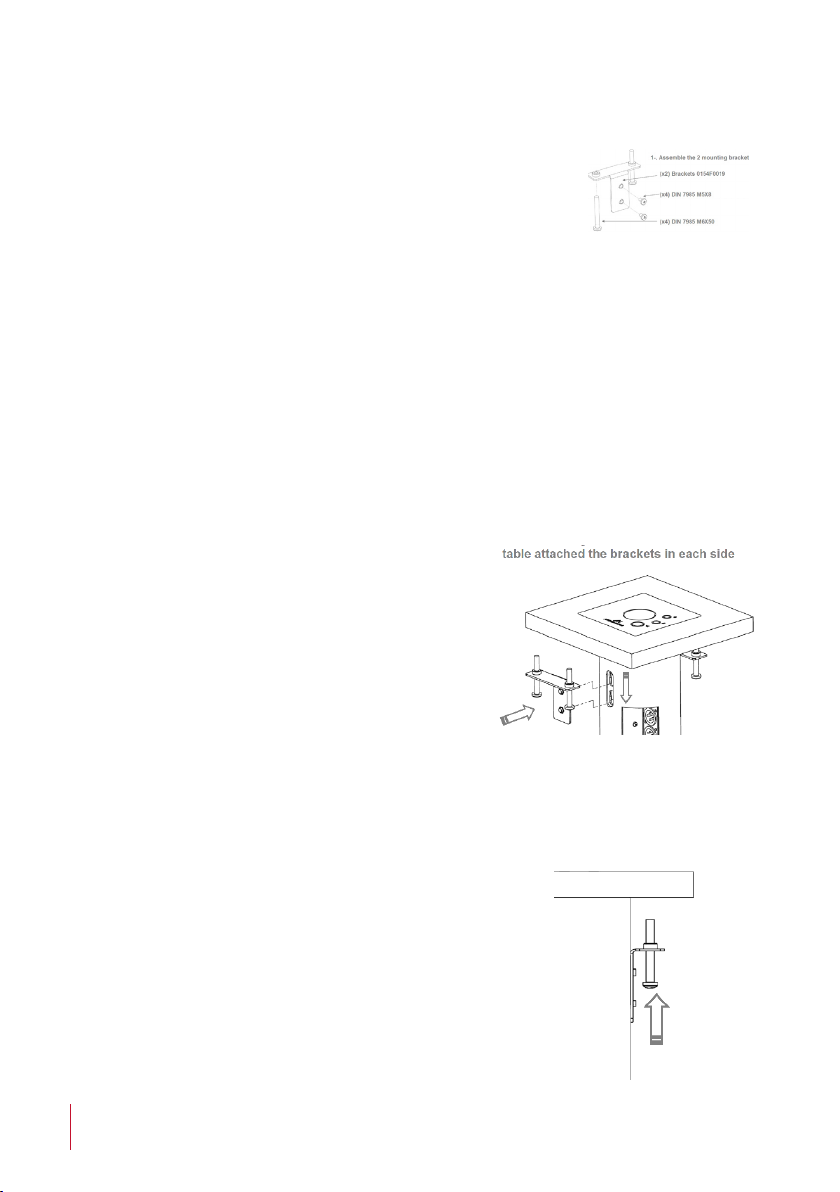

• To prevent damage, the equipment must be rmly anchored to the
surface, as shown in the installation instructions.
SAFETY INSTRUCTIONS
7
SYSTEM DESCRIPTION
General
DynamicTalkH allows the microphone to be bended while returning
automatically to its original, concealled horizontal position.
DynamicTalkH is a horizontal lift for gooseneck microphones specially
developed to optimise table space. It ensures comfort and space
enough for legs. Silent, remotely controllable and elegant, DynamicTalkH
is reliable and simple to install. Veneering is also available to match
surface nish of the table.
The microphone can be bended while returning automatically to its
original horizontal position. DynamicTalkH not only cleverly conceals the
microphone within the desk, but also provides an interior light that goes
from red to green to indicate its status. Microphones are stored safely,
improving the exibility of meeting spaces and leaving tables free for
other purposes.
DynamicTalkH has 2 different working modes (PA and Conference) and
can be remotely controlled and diagnosed through the AHnet protocol
(RS-422).
Highlights
• Adapts to 40 cm length microphones
• Low space required underneath the table
• Dynamic LED to indicate microphone’s status
Box Contents
Before the installation of your retractable unit, please check the
contents of the shipping box, it must contain the following items:
• DynamicTalk
• Power cord
• Power supply 100-240Vac, 50-60Hz. Output 12V
• User Manual
CAUTION: Never use this equipment on horizontal position
8
SYSTEM DESCRIPTION
Available Models
MODEL DESCRIPTION
AHDTHS Horizontal retractable system for gooseneck microphones with a
maximum length of 400 mm (microphone not included).
Options
AHDTHS
UI
Underneath installation
MCTH (Min.5 units)
Matte cover plate
9
INSTALLATION INSTRUCTIONS
Unit movement controls
On the upper cover plate, there are three buttons to control the
functions and to external control other devices (GPO)
Unit movement controls
On the upper cover plate, there are three buttons to control the
functions and to external control other devices (GPO)
Unit movement controls
On the upper cover plate, there are three buttons to control the
functions and to external control other devices (GPO)
10

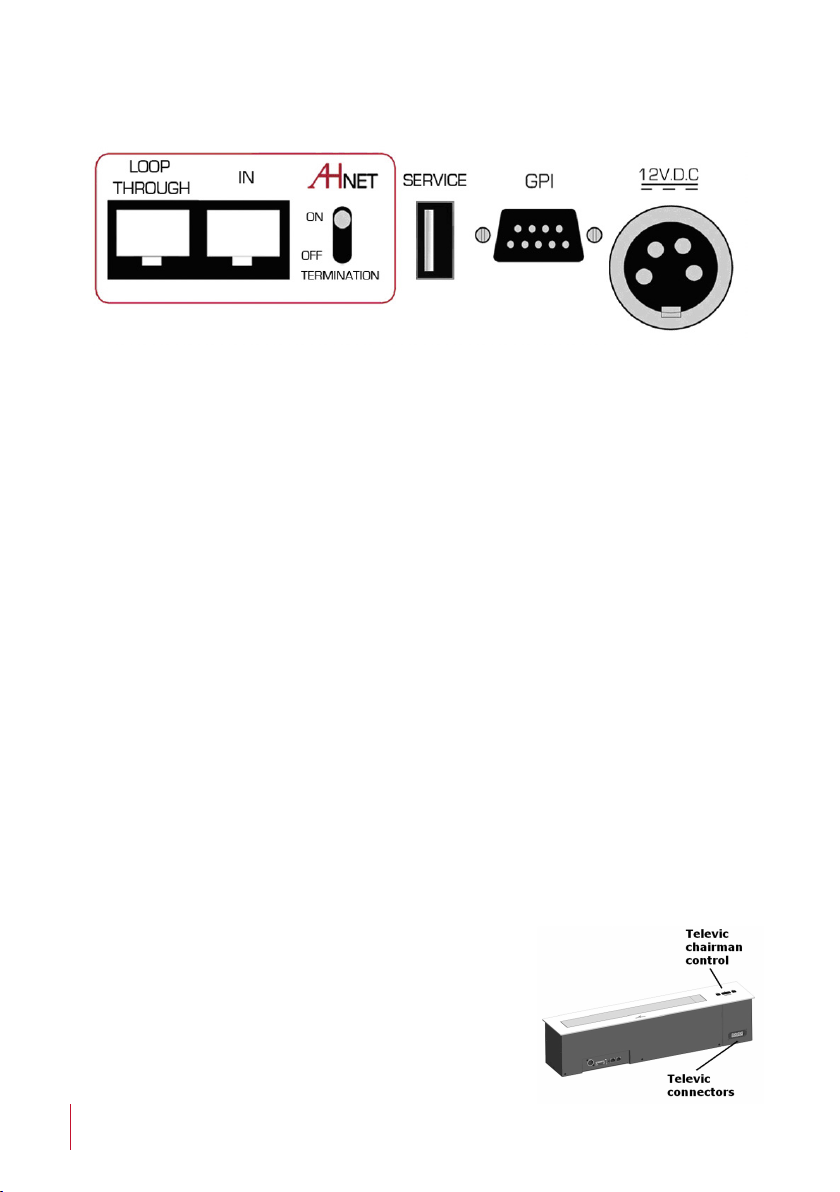

INPUT CONNECTIONS
12V D.C.: Power supply input connector. XLR-4 connector.
- 1,2: Ground
- 3,4: 12Vdc
GPI: Unit external contact close control. SubD9 female.
1. GPI1 +
2. GPI1 –
3. GPI2 +
4. GPI2 –
5. GPI3 –
6. GPI3 +
7. N.C.
8. +12Vdc (600mA max.)
9. Ground:
- Use GPI1 (1:12Vdc, 2:Ground) to activate the green LEDs
- Use GPI2 (3:12Vdc, 4: Ground) to switch off the LEDs
- Use GPI3 (6:12Vdc, 5: Ground) to activate the red LEDs
Termination: Activate (ON) the termination. Only on the last unit of the RS422
bus.
AHnet: RJ45 CAT6 connector for addressable RS422 control. There is a loop through
connector to use as signal RS422 output. Up to 30 units can be connected on the
same RS422 bus.
Service: Used for rmware upgrade.
On cover plate, there is the chairman Televic
microphone control. Below the equipment,
there is the Televic interface connectors
11

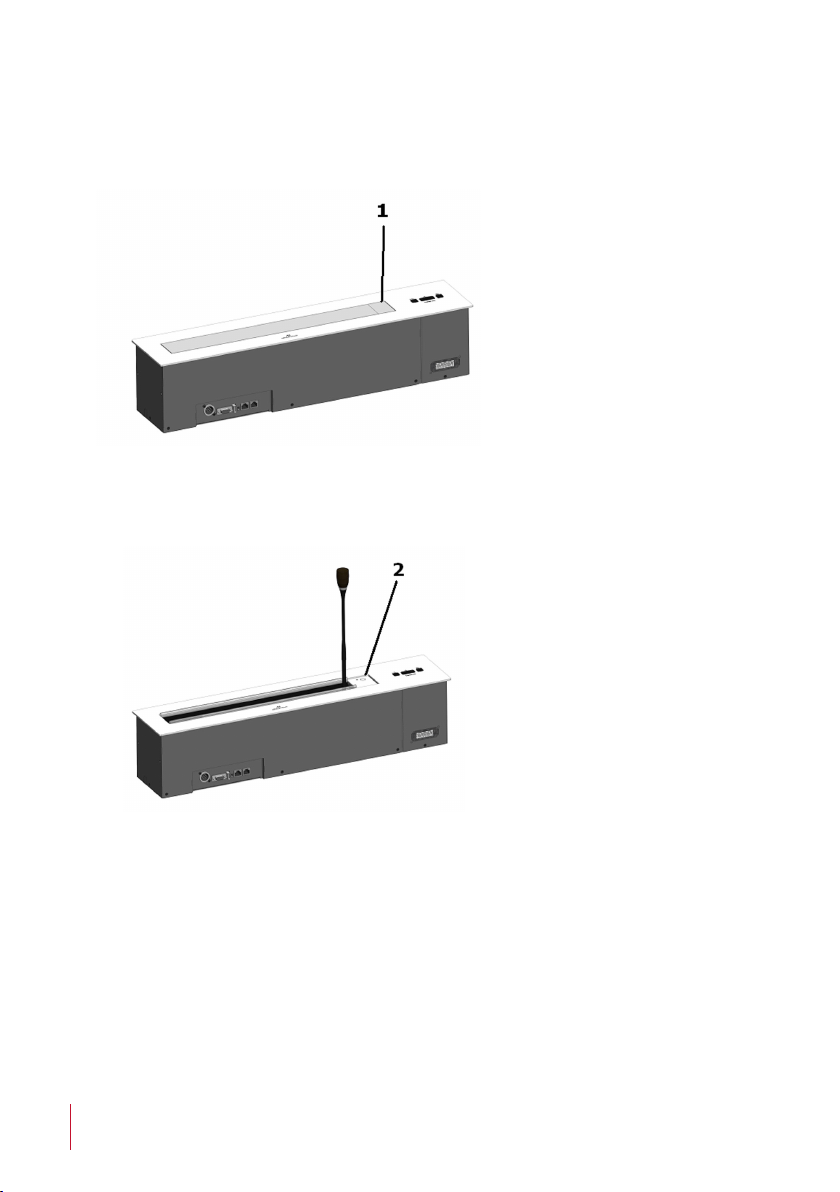

CONTROLS
Push button 1, to open the microphone.
Push button 2 to close the microphone.
12
AHNET PROTOCOL
Communications protocol
COMMUNICATION RS422
CONNECTION RJ45
WIRING CAT-6

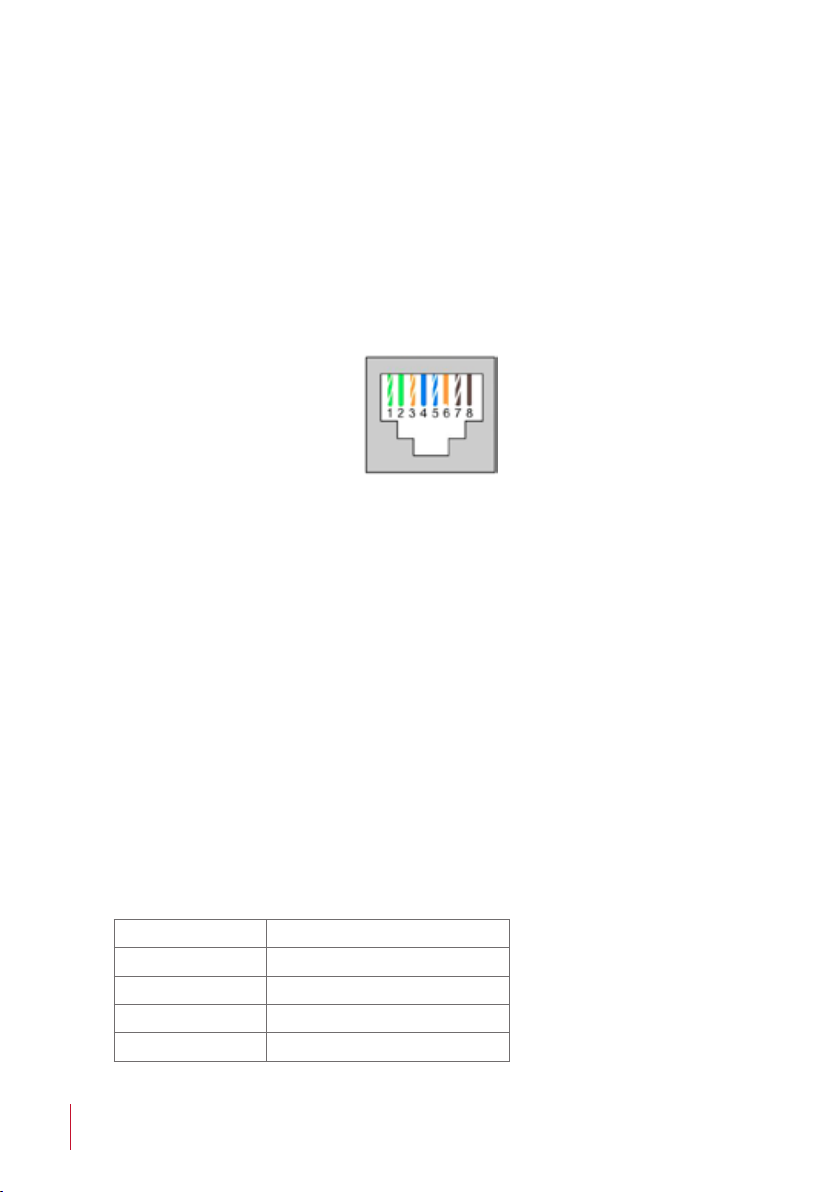

Wiring Diagram
1. Data TX +
2. Data TX –
3. Data RX +
4. NC
5. NC
6 .Data RX
7. NC
8. NC
Connection
PINS 1 & 2 The units respond
PINS 3 & 6 The units receive instructions
Protocol to control the unit by addressable RS422 bus.
You can connect up to 30 devices on the same RS422 bus.
You can use an AH Interface Ethernet, to control the RS422 bus.
The units should have a set address and the address must start by 1.
Maximum cable length between ends, 500 m/1640 ft.
AHnet protocol
Using 5 bytes communication:
BYTE 0 START BYTE
BYTE 1 ADDRESS BYTE
BYTE 2 COMMAND BYTE
BYTE 3 VALUE 1
BYTE 4 VALUE 2
RJ-45
Speed and conguration
BAUD RATE 38400
DATA BITS 8
PARITY NONE
STOP BITS 1
13
AHNET PROTOCOL
Commands
COMMAND DESCRIPTION RESPONSE
FA XX 01 01 00 GO UP FB XX 01 01 00
FA XX 01 00 00 GO DOWN FB XX 01 00 00
FA XX 02 00 00 SWITCH OFF LEDs FB XX 02 00 00
FA XX 02 01 00 ACTIVATE GREEN LEDs FB XX 02 01 00
FA XX 02 02 00 ACTIVATE RED LEDs FB XX 02 02 00
FA XX 14 00 00 INQUIRY CONTROL BYTE FB XX 14 CB1 CB2
XX Number of the DynamicTalk address. Up to 30 units can be
connected for each RS422 BUS
CB1 Response in 8 bits of the device status
CB2 Not implemented
CB1
BITE 0 TOP POSITION
BITE 1 DOWN POSITION
BITE 2
BITE 3
BITE 4
BITE 5
BITE 6
BITE 7 (1) FAILURE IN THE SYSTEM
To send an order to all the devices, you must use the address:
F7 Hex. (Byte1)
In this case, the units do not respond
Use shielded (FTP) RJ45 cables for RS422 BUS.
14
INFORMATION ON DISPOSAL FOR USERS OF WASTE ELECTRICAL &
ELECTRONIC EQUIPMENT
This symbol on the products and/or accompanying
documents means that used electrical and electronic
products should not be mixed with general household
waste.
For proper treatment, recovery and recycling, please
take these products to the designated collection
points, where they will be accepted on a free
of charge basis. Alternatively in some countries,
you may be able to return your products to your
local retailer upon the purchase of an equivalent
new product.
Disposing of this product correctly will help save valuable resources
and prevent any potential negative effects on human health and the
environment, which could otherwise arise from inappropriate waste
handling. Please contact your local authority for further details of your
nearest designated collection point.
Penalties may be applicable for incorrect disposal of this waste, in
accordance with national legislation.
For business users in the European Union
If you wish to discard electrical and electronic equipment, please contact
your dealer or supplier for further information.
Information on disposal in countries outside the European Union
This symbol is only valid in the European Union. If you wish to discard this
product, please contact your local authorities or dealer and ask for the
correct method of disposal.
15
WARRANTY TERMS AND CONDITIONS
Albiral Display Solutions warrants this product against manufacturing
defects and workmanship for a period of two (2) years from the date of
purchase, subject to the conditions below.
1. Electrical, electronic boards, accessories and power supply are
warranted against manufacturing defects and workmanship for a
period of two (2) years from the date of purchase
2. Labour costs: Albiral Display Solutions covers the labour costs to
replace any defective parts during the validity of this warranty.
3. Transport costs:
5.1. In the case that a manufacturing defect occurs within 90 days
after the purchase date, both freight and insurance costs will be
paid by Albiral Display Solutions.
Although Albiral Display Solutions S.L. pays for freight and
insurance costs, Albiral Displays Solutions will not be responsible
for any damages caused by the transportation of the goods
if the customer does not inform in writing when receiving the
goods.
5.2. After 90 days of the purchase date, the beneciary of the
warranty will pay both freight and insurance costs.
Albiral Display Solutions S.L. will not be responsible for any
damages caused by transportation, when this one is paid by
the customer.
4. This warranty does not cover the labour costs of handling, diagnose,
removal, replacement, reinstall and/or program any product.
5. This warranty does not apply if the fault has been caused by misuse,
improper handling, electrical or mechanical abuse, abnormal
operation conditions, non-authorised modications, and inadequate
transportion or as a result of atmospheric phenomenons.
16
WARRANTY TERMS AND CONDITIONS
6. The warranty is not valid if people other than authorised Service
Centre have handled the product and if the product has been
manipulated or warranty seals are removed or manipulated.
7. The beneciary of the warranty will have to return the product with
the original packaging to warranty there are no damages during
transportation.
8. The warranty is not valid if the beneciary of the warranty does not
include a RMA form and a copy of the purchasing invoice.
Please note that laws vary from country to country, and the same
provisions of this warranty may not apply to you.
If you have any doubts concerning the terms of this warranty, please
contact:
+34 938 502 376
Copyright ©
Nov. 2020. All rights reserved
Albiral Display Solutions SL.
Registered trademarks: Albiral, Arthur Holm
Patents
MU17180ES00
MU17301ES00
MU17322ES00
MU17413ES00
MU17445ES00
MU17854ES00
MU17868DEPC
MU17868RUPC
P24821DEEP
P24821ESEP
P24821GBEP
P24821USPC
P27178DEEP
P27178EPDV01
P27178EPPC
P27178ESEP
Fàtima 25, Sant Hipòlit de Voltregà
08512 Barcelona – Spain
tel: +34 93 850 23 76 / 23 83
fax: +34 93 850 25 50 / 23 72
web: www.arthurholm.com
e-mail: [email protected]
This manual can be modied without previous notice. ENG – October 2020
P27178ITEP
P27178RUPC
P27178USPC
P27284DEEP
P27284EPPC
P27284ESEP
P27284GBEP
P27284RUPC
P27284USPC
P27715ESEP
P28089DEEP
P28089ESEP
P28089ITEP
P28089USPC
P28090EP00
P31160ESES
P31160PCES
2011130.15
Table of contents
Other ARTHUR HOLM Lifting System manuals
