Machine ModelCD-17 Coiling bowlsOwners Manual
P/N 6-119923ARev. 1.1Date 15 Jul 2014




Artos Engineering Company
21605 Gateway Court
Brookfield, WI 53045
Phone [phone] Fax [phone]
www.artosnet.com
[email protected]


2

WARNING
NEVERREACHINTOTHECOILINGBOWLWHILEITISTURNING.INJURYMAYRESULT


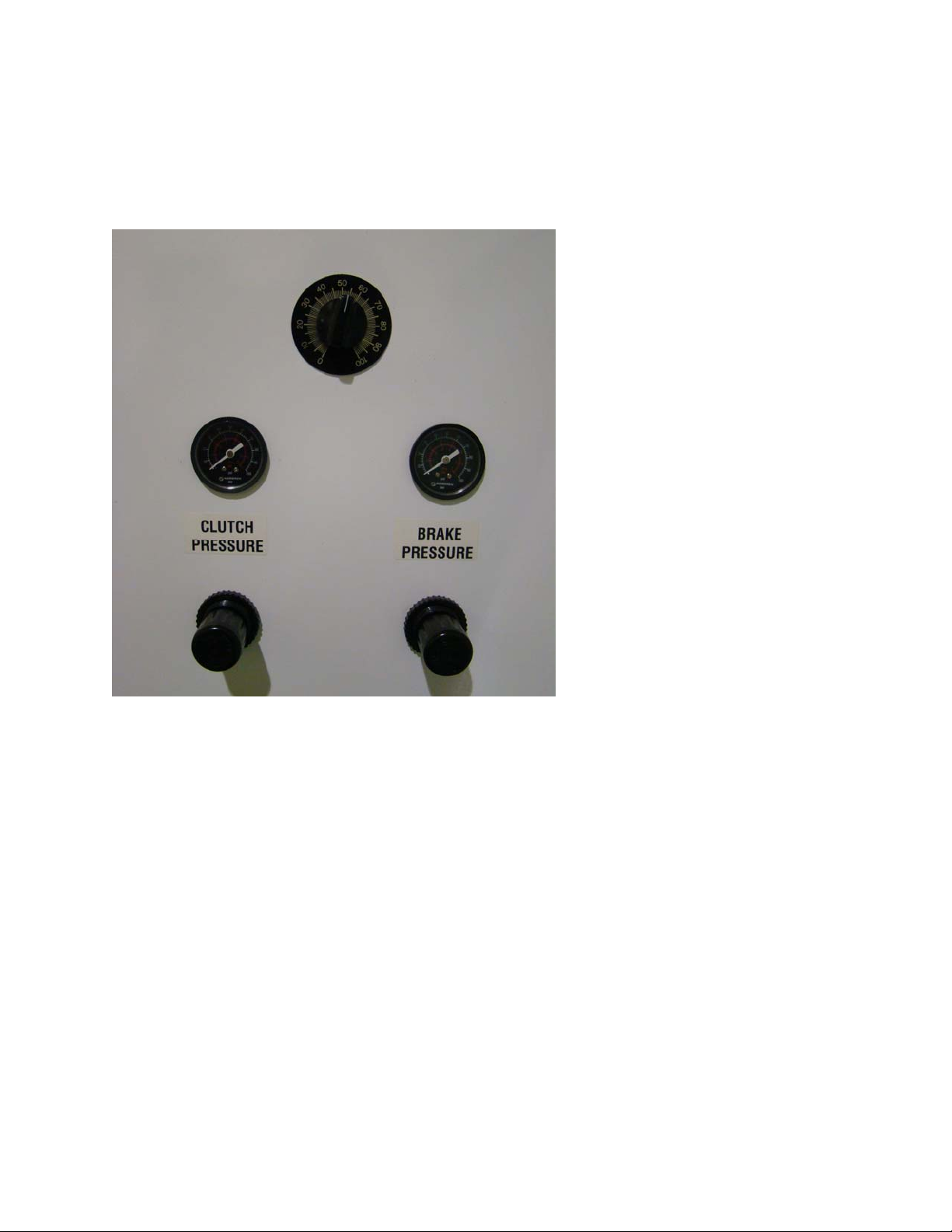

CD‐17Operatorcontrols


Thedial0‐100controlsthewindingrateofthebowls.ThefasterthewireisfedintheCS327machine
thehigherthisnumberneedstobe.
TheClutchpressurecontrolshowtightlythebowlisheldtotherotatingdrivemechanism.Youwantto
adjustthisvaluesothatthebowlisabletorotateandcollectthewire,butatthesametimeifthewire
stopsfeedingthebowlwillstopalso.Inadditionifanoperatorputstheirhandinitwhileitisstill
rotatingitwillstopeasily.Ifthebowlkeepsrotatingwhenthewirestopsfeeding,thewireinthebowl
willbepulledoutandtwisted.Itworksbesttostartwithalowvaluelike20PSIandincreaseituntilyou
noticethatthebowlproperlycominguptospeedforthewiretofeedin.Theitemthataffectsthis
settingistheweightofthewireinthebowl.Whenyouhaveacoilthatisveryheavytheclutchpressure
shouldbereduced.
TheBrakepressurecontrolshowfastthebowlcomestoastop.Ifthisvalueissettoohighthebowlwill
stopandthewireinthebowlwillkeepspinningthuscausingatangle.Theitemthataffectsthissetting
istheweightofthewireinthebowl.Whenyouhaveacoilthatisveryheavythebrakepressurewill
havetobeincreased.


3

CD‐17Coilingbowls
Thefollowingsizecoilingbowlsizesareavailable.
14368918inchbowl
14369024inchbowl
14369130inchbowl

WARNING:Whenusing14368918inchbowls,guardpartnumber146080mustbe
installedunderthebowls.Injurycanresultifthebeltisnotcoveredwiththisguard.
146080

WARNING:Whenusing14369024inchbowlsor14369130inchbowls,guardpart
number146079mustbeinstalledunderthebowls.Injurycanresultifthebeltisnot
coveredwiththisguard.
146079


4

Changingbetweencoilingbowls.

1. Removethe3screwsfromthetopofeachofthebowls.Thenliftthebowlsoff.
2. Removethesheetmetalbeltcover.
3. Loosenthebelttensioner.
4. Thebowlspindlescanbemountedin3locations.Thereare4screwsthatholdeachonein
place.Movethespindletothedesiredlocation.
a. Theinsidelocation(bowlsclosesttogether)isforthe18”bowls.
b. Themiddlelocationisforthe24”bowls.
c. Theoutsidelocation(bowlsfurthestapart)isforthe30”bowls.
5. Tensionthebelt.
6. Forthe18”bowlinstallsheetmetalcover146079.Forthe24or30”bowlinstallsheetmetal
cover146080.
7. Setthebowlsinpostionandinstallthe3screwsinthetopofeachbowl.
8. ReplacetheguidetubeifneededForthe18”bowluse146081.For24and30”bowluse
143763.146081is5incheslongerthan143763.
9. Adjusttheguidetubesothatthetubeproperlyalignswiththebowl.


Beltcover
