NBG Home SMRTLite DS18979 User manual

Item # 312 199 115
Model # DS18979
USE AND CARE GUIDE
SMART LED TAPE LIGHT
Questions, problems, missing parts? Before returning to the store,
call Design Solutions International Customer Service Mon-Fri 9:30 am to 3:00 pm EST
1-800-388-6141 ext. 216
For customer service support and the fastest response, please email us at
[email protected]
www.SMRTLite.com
TM
MR
+
w
c
c
w
+
w
c
c
w
+
w
c
c
w
+
w
c
c
w
w
c
+
c
w
w
c
+
c
w
w
c
+
c
w
w
c
+
c
w

Table of Contents
Safety Information
DANGER: Danger of eye damage! Never look directly at
the LED chips of this LED tape light.
WARNING: Risk of electric shock. Mount the adapter
at a height greater than 30 cm / 11.8 in. from the ground
surface.
CAUTION: Do not submerge any part of this unit. Do
not cut the LED tape light.
IMPORTANT: Main power voltage and fuse must meet
the technical data specifications. Before starting work,
ensure that the main cable is not live. Switch off the fuse.
NOTICE: LED flexible lighting strip rating : 24VDC 1A.
CAUTION: CONSULT A QUALIFIED ELECTRICIAN IF
YOU HAVE ANY ELECTRICAL QUESTIONS. If you have any
non-electrical questions about this fixture, please call
our Customer Service Team at 1-800-388-6141 ext.
216. Please reference your SKU (312 199 115) or UPC
(802513189797).
Table of Contents ........................................................... 2
Safety Information ......................................................... 2
Warranty ......................................................................... 3
Three (3) Year Warranty ............................................................. 3
What is Covered ........................................................................ 3
What is Not Covered .................................................................. 3
Pre-Installation ...............................................................4
Planning Installation ..................................................................4
Tools Required ........................................................................... 4
Hardware Included .................................................................... 4
Package Contents ..................................................................... 5
Installation ...................................................................... 6
Operation ........................................................................ 10
SMRTLite APP How to ...................................................11
Care and Cleaning ......................................................... 14
Troubleshooting ............................................................. 14
FCC Statement ...............................................................14
Service Parts .................................................................. 15
Model .........................................................................................15
2
Always keep the user manual within reach while installing this LED
tape light. Please read and understand the user manual to ensure
proper installation and use. Always pay attention to the technical
data shown on the product. We reserve the right to make technical
changes.
□Fitting and maintenance work may only be carried out by a
professional or an electrician in accordance with local safety
regulations.
□All electrical connections must have good contact in order for
this product to have a long, useful life.
□The LED chips of this LED tape light can not be replaced.
□This LED tape light includes a linkable connector. Only link a
maximum of four LED tape lights. Do not link multiple strips
together.
□Please only use the LED driver which has been provided with
this LED tape light.
□Never use the unit in a room where there is a danger of
explosion or in the vicinity of ammable liquids or gases.
□Do not bend, crush or pull the cable. Protect from sharp edges,
oil and heat.
□Do not touch the LED tape light or electrical connector directly
with hands.
□For indoor use only.
□Ensure the connectors and endcap are securely fastened
before operating the strip.
□Ensure the connectors are securely fastened before operating
the tape.
□Do not use the LED tape light on a timer, wall switch with
dimming functions, or with an extension cord. Using the LED
tape light with any of these voids the warranty and results in
the LED tape light not functioning properly.

Warranty
THREE (3) YEAR WARRANTY
WHAT IS COVERED
The manufacturer warrants this fixture to be free from defects in materials and workmanship for a period of three (3) years from date of
purchase. This warranty applies only to the original consumer purchaser and only to products used in normal use and service. If this product
is found to be defective, the manufacturer’s only obligation, and your exclusive remedy, is the repair or replacement of the product at the
manufacturer’s discretion, provided that the product has not been damaged through misuse, abuse, accident, modifications, alteration,
neglect, or mishandling. This warranty shall not apply to any product that is found to have been improperly installed, set-up, or used in any
way not in accordance with the instructions supplied with the product. This warranty shall not apply to a failure of the product as a result of
an accident, misuse, abuse, negligence, alteration, faulty installation, or any other failure not relating to faulty material or workmanship. This
warranty shall not apply to the finish on any portion of the product, such as surface and/or weathering, as this is considered normal wear and
tear.
WHAT IS NOT COVERED
The manufacturer does not warrant and specifically disclaims any warranty, whether expressed or implied, of fitness for a particular purpose,
other than the warranty contained herein. The manufacturer specifically disclaims any liability and shall not be liable for any consequential or
incidental loss or damage, including but not limited to any labor/expense costs involved in the replacement or repair of said product.
Contact the Customer Service Team at 1-800-388-6141 ext. 216 Eastern Time, Mon-Fri 9:30 am to 3:00 pm EST. For customer service support
and the fastest response, please email us at [e-mail].
3

Pre-Installation
IMPORTANT: Inspect the LED tape light for any cuts,
abrasions, or exposed copper that may have occurred
during shipping. If there is a defect in the wire, do not
attempt installation. Please call the Customer Service
Team at 1-800-388-6141 ext. 216. For customer service
support and the fastest response, please email us at
[email protected].
NOTE: Hardware not shown to actual size.
NOTE: The Smart LED tape light must be installed within
range of your home’s Wi-Fi in order to communicate
properly with the SMRTLite app. Verification before
installation is recommended.
PLANNING INSTALLATION
Read all instructions before installing.
To avoid damaging this product, place it on a soft, non-abrasive surface, such as carpet or cardboard.
Phillips
Screwdriver
Brush
Pencil
Measuring
tape
TOOLS REQUIRED (NOT INCLUDED)
HARDWARE INCLUDED
AA BB CC
4
Part Description Quantity
AA Screw 18
BB Clip 8
CC Wire clip 2

Pre-Installation (continued)

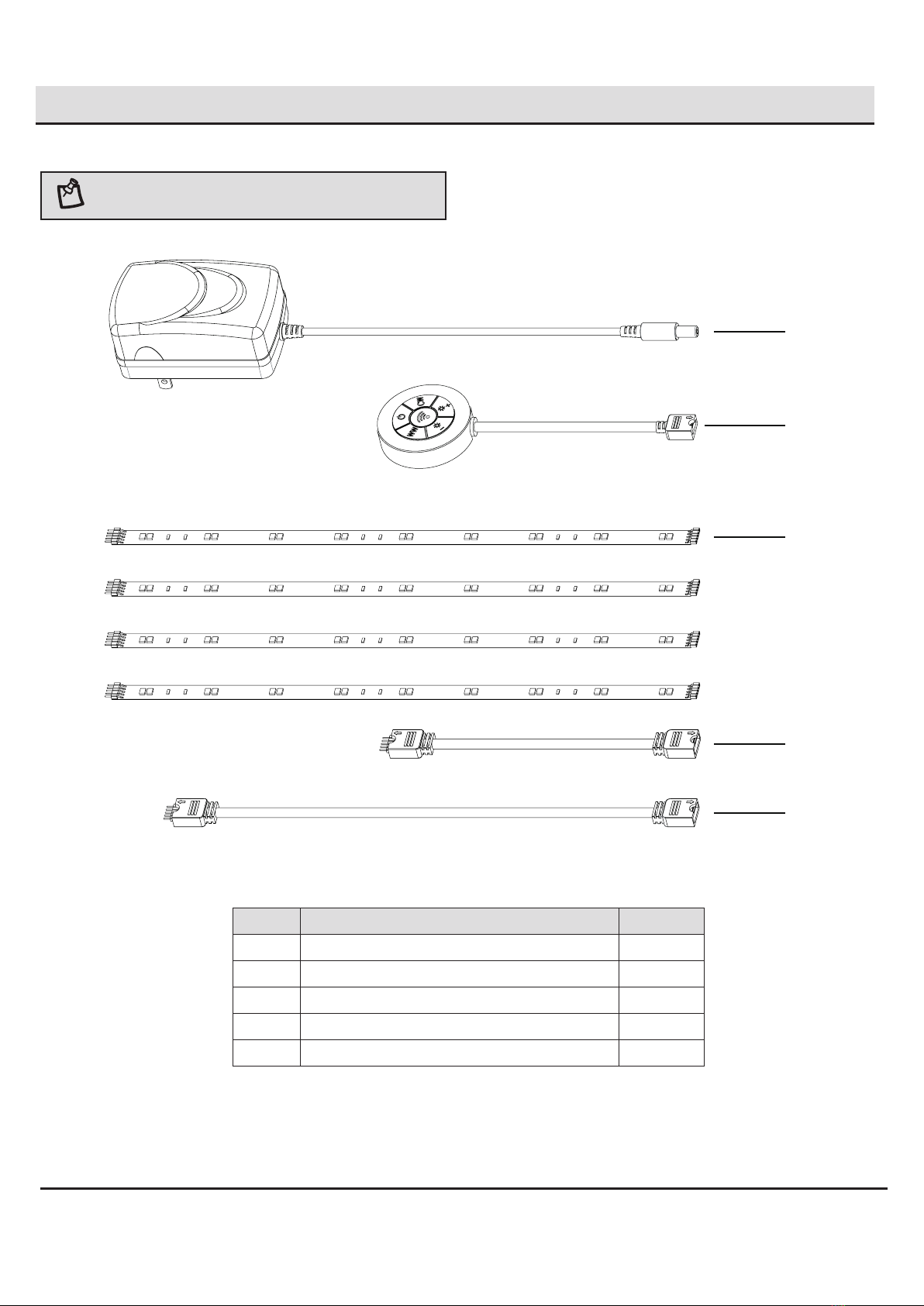

PACKAGE CONTENTS
A
B
C
D
E
5
Part Description Quantity
A Adapter 1
B In-line remote control with connector 1
C 12” LED tape light 4
D Connector wire (3.9”) 2
E Connector wire (39”) 2
+
w
c
c
w
+
w
c
c
w
+
w
c
c
w
+
w
c
c
w
+
w
c
c
w
+
w
c
c
w
+
w
c
c
w
+
w
c
c
w
NOTE: Hardware not shown to actual size.

Installation
6
□What is the best layout conguration for your installation?
□How will you run and conceal the wires to your LED tape
light?
□Temporarily mounting the LED tape light using painter’s
tape allows you to experiment with tape light positioning
before permanent installation.
1 Things to consider before installing
2 Preparing the assembly location

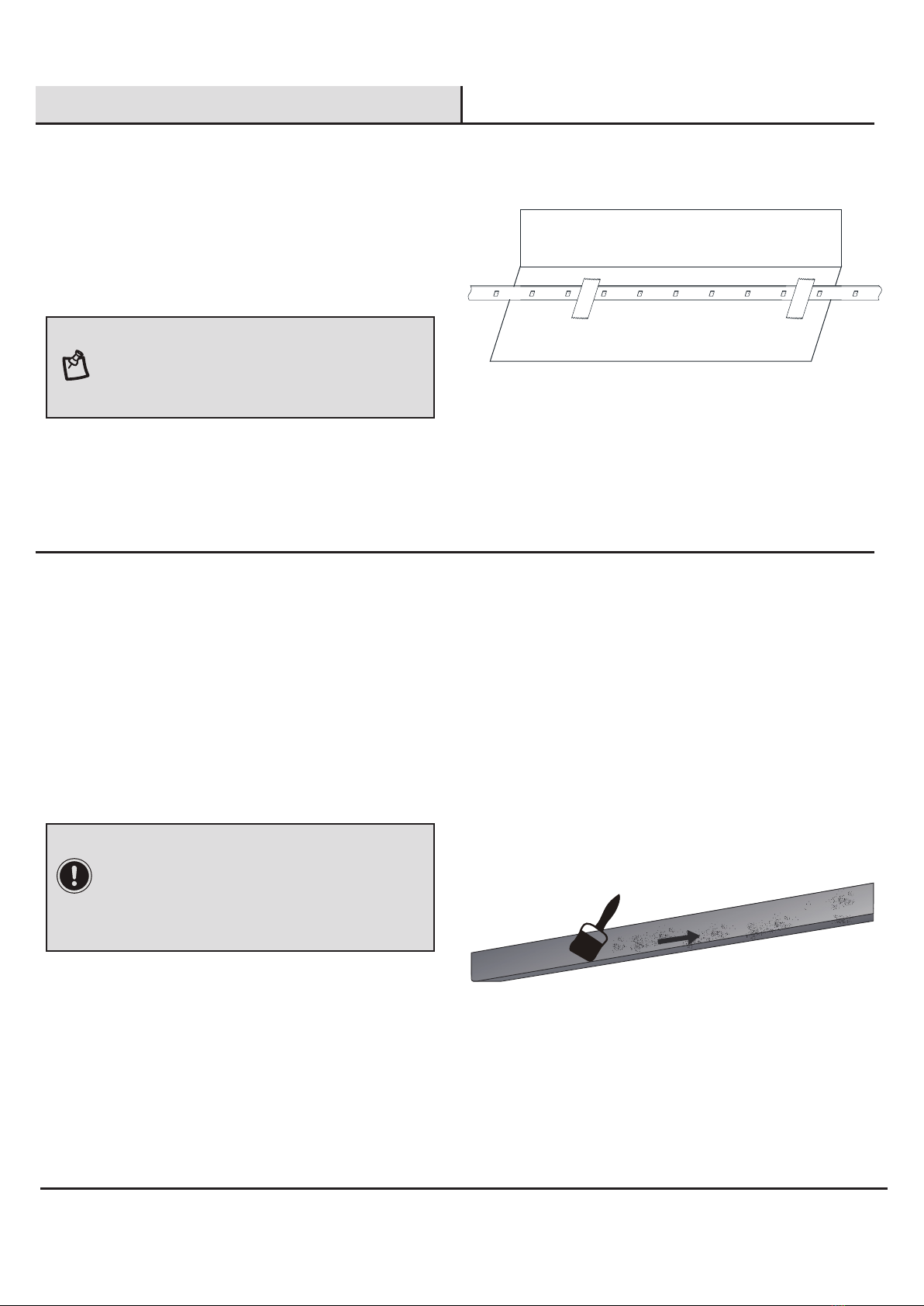

NOTE: Using painter’s tape or masking tape,
temporarily place the LED light strip into your desired
mounting position. Power on the LEDs to make sure
you are achieving the desired lighting effect before
removing the 3M paper backing for final installation.
□Remove any surface dust from the area where you will be applying the LED tape light. A brush (not included) is recommended to
remove any surface dust.
□Power the LED tape light and temporarily hold or tape into position with painter’s tape or masking tape - do not remove the 3M
paper backing.
□Adjust the lighting to various angles and positions to get the desired level of illumination and lighting appearance. If the LEDs create
undesirable light spots on walls, or reections, reposition the tape light strip farther away from surfaces or try a different mounting
angle.
□Once you have determined your nal mounting position, clean the surface to ensure the 3M self-adhesive backing will adhere
properly.
IMPORTANT: Before removing the 3M paper
backing, it is important to test the LED strip in the
space you intend to light. Once the 3M paper backing
is removed and the lighting is fully installed, you
cannot reposition or move the LED tape light to another
location. The tape may not stick securely.

NOTE: Connect connector to connector by aligning at the arrows on the connectors.
Installation (continued)
7
3 Connecting LED tape light and adaptor

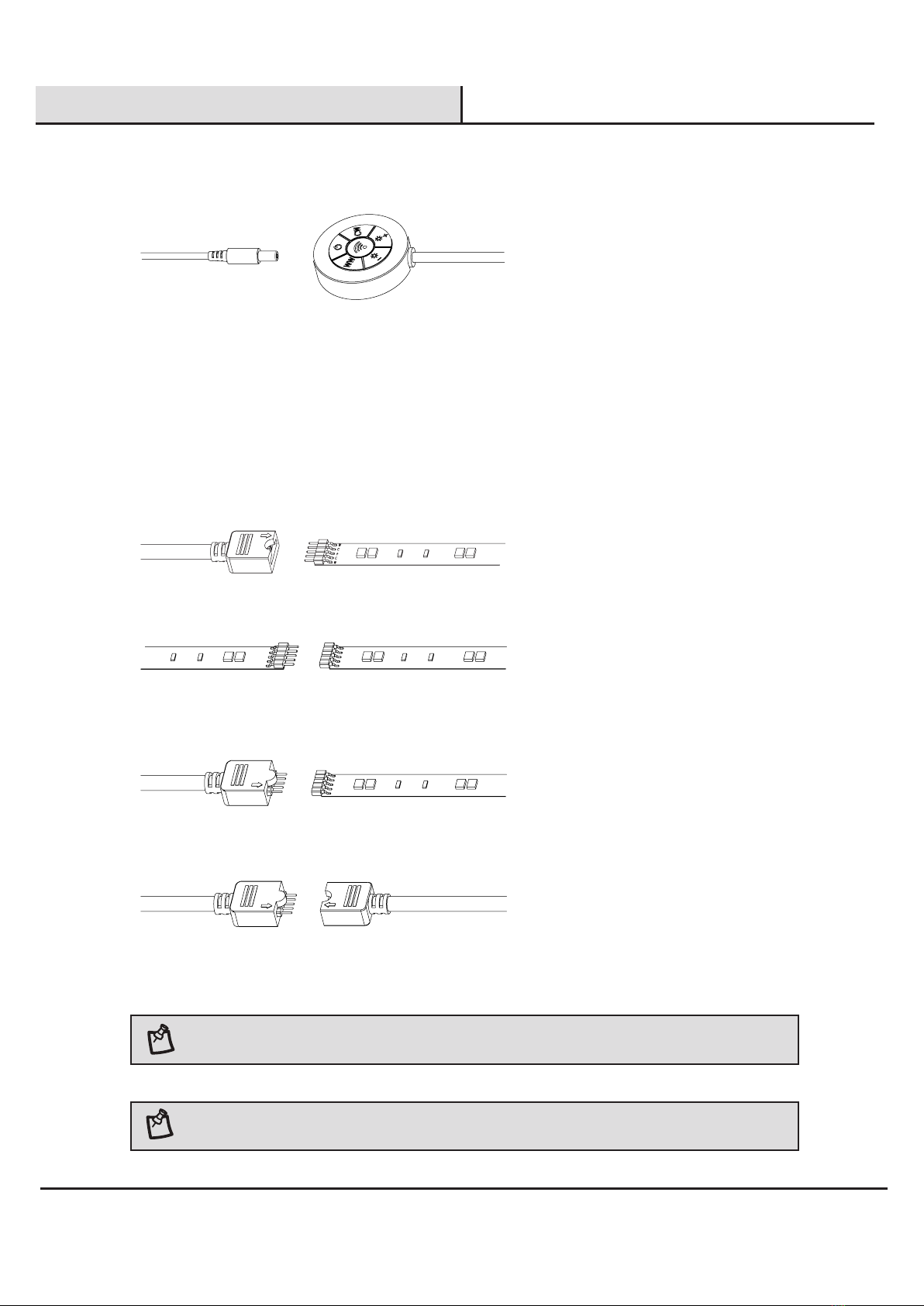

□Insert the plug from the adaptor (A) into the outlet on the side of the in-line remote control.
□Use the four conguration options below to connect up to four LED tape lights.
• Connect the connector from the in-line remote (B) to the LED tape light (C).
• Connect LED tape light (C) to the LED tape light (C) (up to 4 max)
• Connect the LED tape light (C) to a connector (D) or (E)
• Connect connector (D) to connector (E)
Connect LED tape to connector
Connect LED tape to LED tape
Connect the connector to the LED tape light
Connect connector to connector
w
c
+
c
w
w
c
+
c
w
w
c
+
c
w
NOTE: You can link together a maximum of 4 x 12” strips using the same adapter for a total of 48”.

Installation (continued)
8

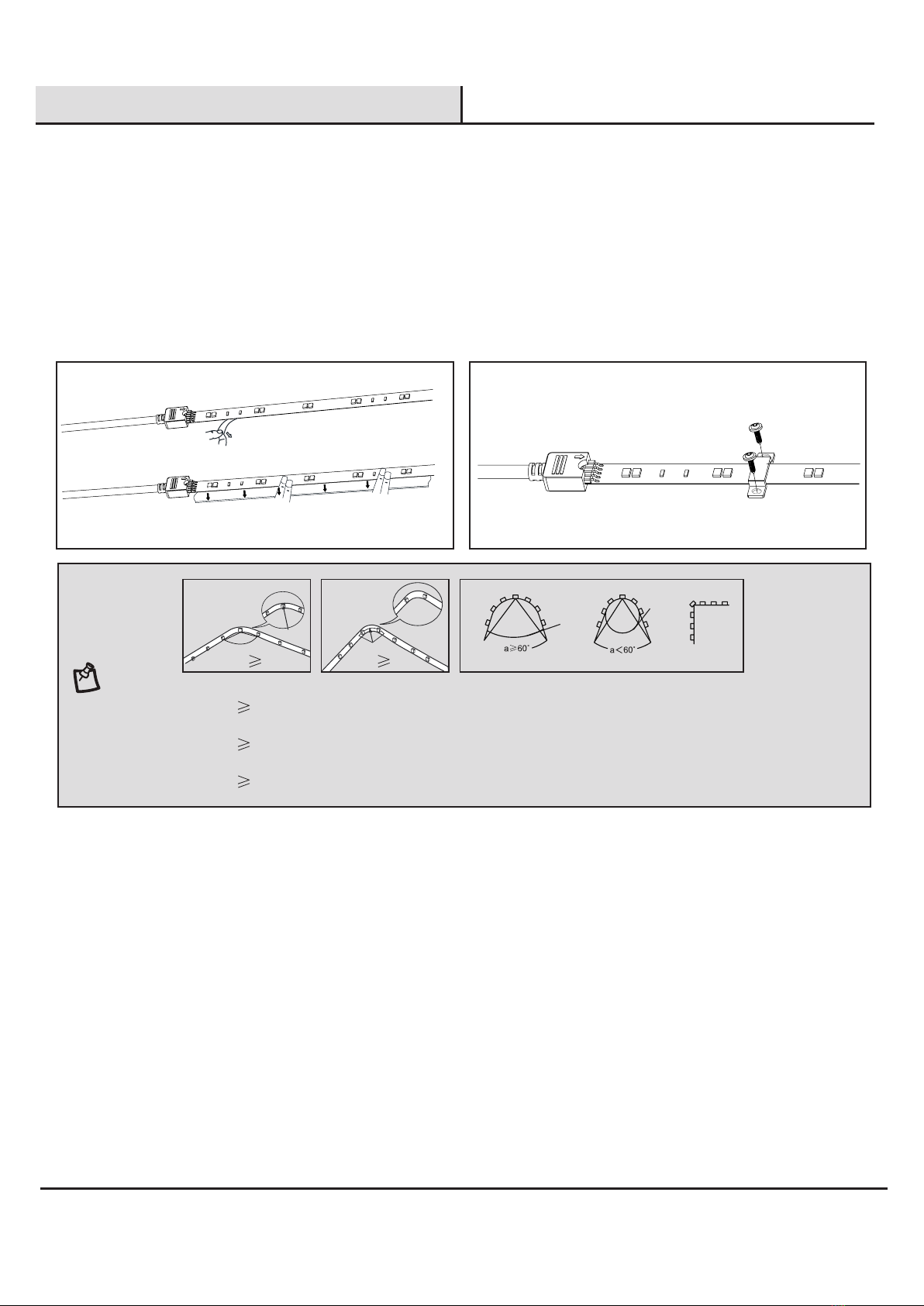

□There are 2 methods for installing your LED tape light:
• 4A Tape method: Working from one end to the other, remove the 3M paper backing and press into place. Press between the
LEDs to help ensure secure contact with the mounting surface. Avoid pressing on the individual LEDs as this could damage the
LED solder connections.
• 4B Clip and screw method: Place the LED tape light in the desired position. Use the clips and screws to secure the LED tape
light as shown. Clips should be placed in open areas of the strip. Do not cover the LED tape lights.
4 Installing the LED tape light
4A 4B
+
w
c
c
w
+
w
c
c
w
+
w
c
c
w
NOTE:
a. Use an angle greater or equal to 90 degrees when there is an LED chip on the corner while placing the strip in a concave
position. (Angle 90º)
b. Use an angle greater or equal to 60 degrees when there is no LED chip on the corner while placing the strip in a concave
position. (Angle 60º)
c. Use an angle greater or equal to 60 degrees when there is an LED chip on the corner while placing the strip in a convex
position. (Angle 60º) In the convex position the angle should not reach 90 degrees. See above diagram.
a. b. c.
LED Chip
Angle 90º Correct lncorrect lncorrectAngle 60º

Installation (continued)
9
□There are two installation options to choose from:
• 5A: Remove the protective tape from the adhesive back of the in-line remote careful. Then place the in-line remote control into
position and press to ensure a proper adhesion to the surface.
• 5B: Use the two wire clips to install the in-line remote into desired location.
□Connect the adapter to a power outlet.
5 Installing the in-line remote
6 Connecting to a power supply
Adapter
In-line remote
LED tape light
5A 5B
+
w
c
c
w
+
w
c
c
w
+
w
c
c
w
+
w
c
c
w
w
c
+
c
w
w
c
+
c
w
w
c
+
c
w
w
c
+
c
w

Operation
10
1 Operating the LED tape light
Configuration
ON/OFF
Increase warm white brightness
Increase cool white brightness
Decreased brightness
Increased brightness

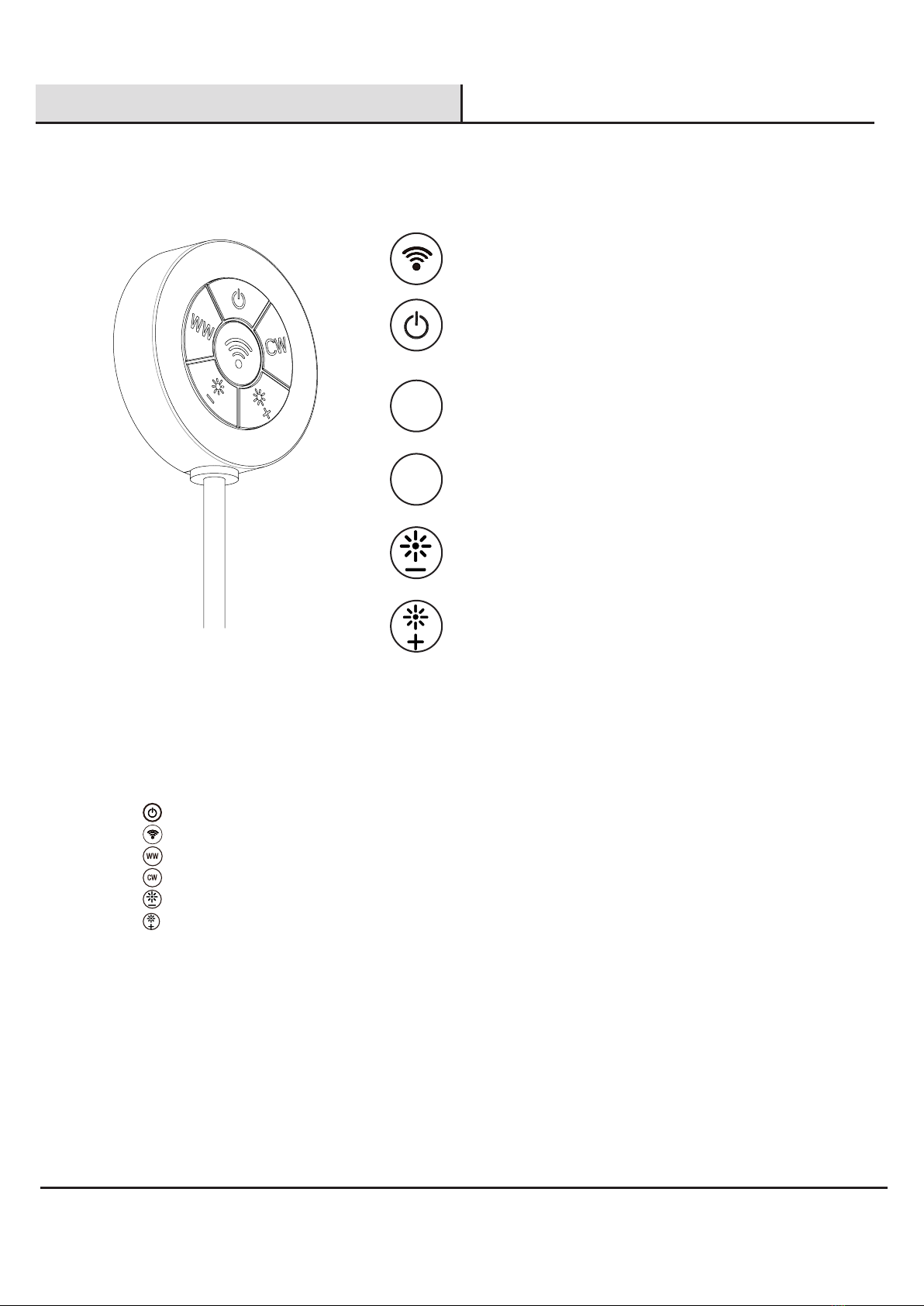

Operating the remote control:
There are two options for you to choose from:
A: Using the in-line remote:
1. Click on/off button: To turn LED tape light on/off.
2. Configuration button resets smart control access.
3. Increase warm white brightness
4. Increase cool white brightness
5. Decreased brightness
6. Increased brightness
B: Using your smart device:
1. Control from the SMRTLite App (see page 11 for download instructions) , Amazon Alexa or Google
Home
NOTE: Unit is not compatible with all wall dimmer switches. Dimming must be accomplished through
SMRTLite App only.
WW
CW

SMRTLite APP How To
11

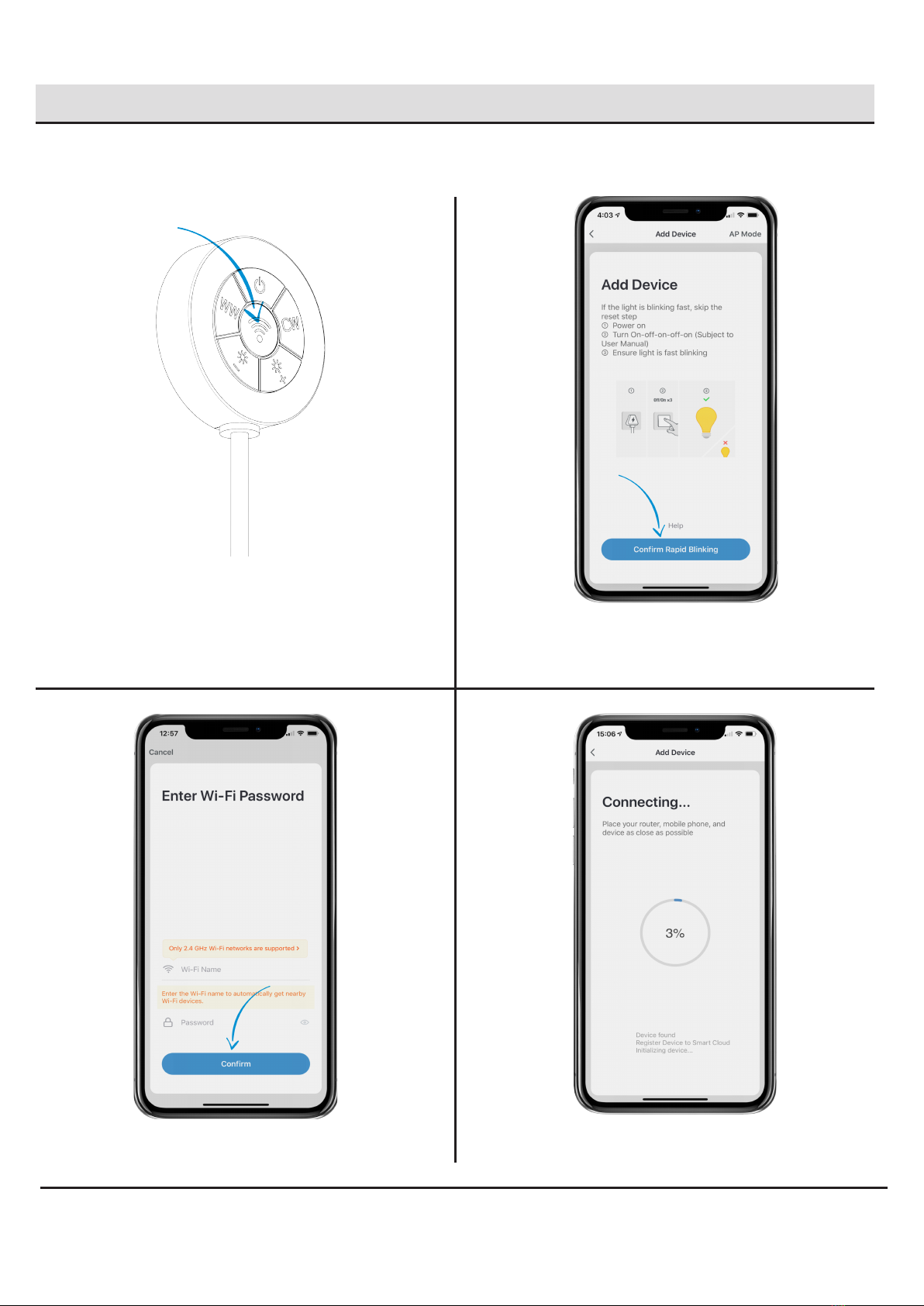

1 Download or open the SMRTLite App
□Turn on the SMRTLite lamp while ensuring that your phone is connected to a secure 2.4GHz WiFi network. 5GHz networks are not
supported.
□Download and Open the app by searching for SMRTLite in the Apple App Store or Google Play Store or by visiting one of the URLs
below:
□Tap the “Register” button if you are setting up the app for the rst time or select “Login” to sign in with your existing account.
NOTE: System requirement: iOS 9.0 or higher and Android 4.4 or higher.
http://ios.smrtlite.com http://android.smrtlite.com
1. Press “Add Device” button or tap the
“+” sign
2. Select “Light Strip”
2 SMRTLite Network Conguration

SMRTLite APP How To (continued)
12
2 SMRTLite Network Conguration (continued)
4. Press “Conrm Rapid Blinking”
3. Press and hold the “conguration” button
on the in-line remote of the LED Strip for
3 seconds. Once the light ashes once,
release the button and wait until the LED
Strip begins to ash rapidly.
5. Select WiFi Network and enter network
password then tap “Conrm”.
6. You will see “Connecting.” The light xture will
stop blinking as the connection progresses.

SMRTLite APP How To (continued)
13
7. Once connection is successful, you can
edit name and assign to a room then tap
“Done”.
NOTE: For tutorials on additional features including
sharing your lighting device with family members and
how to control your LED lamp via Amazon Alexa, Google
Assistant or Apple Siri please visit SMRTLite.com.
2 SMRTLite Network Conguration (continued)

Care and Cleaning
FCC Statement
Troubleshooting
14
□Do not use any cleaners with chemicals, solvents, or harsh abrasives. Use only a dry, soft cloth to dust or wipe carefully.
□To clean the xture, disconnect power by turning off the circuit breaker or by removing the fuse at the fuse box. Use a dry or
slightly dampened, clean cloth to wipe the exterior surface of the xture.
Design Solutions International Inc.
Model: XXXXXX
Address: 5101 NW 21st Ave, Suite 520, Fort Lauderdale, FL 33309
Telephone: [phone]
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.
CAUTION: Any changes or modications not expressly approved by the party responsible for compliance could void the user’s authority
to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio / TV technician for help.
Contains FCC ID: 2ANDL-WR3
Wi-Fi: 2.4GHz IEEE802.11b/g/n
Problem Possible Cause Solution
The LED lights will not light. The LED is burned out. Discontinue the use of the Smart LED Strip.
The power is off. Ensure the power supply is turned on.
The power cord is not plugged in. Ensure the power cord is plugged into the outlet.
The connector has faulty connections. Check the connectors connections.
The circuit breaker is turned off. Ensure the circuit breaker is in the “ON” position.
The fuse blows or the circuit breaker
trips when the light is turned on.
There are crossed wires or the power
wire is grounding out.
Discontinue use of the Smart LED Strip.
Unplug the unit from the wall.
Check the wire connections. Contact a qualied electrician
or call the Customer Care Service Team at 1-800-388-
6141 ext. 216. For customer service support and the
fastest response, please email us at CustomerSupport@
DSILighting.com.

Service Parts
15
MODEL: DS18979
Part Description
AA Screw
BB Clip
CC Wire clip
AAdapter
BIn-line remote control and connector connected as
one set
C12” LED tape
DConnector wire (3.9”)
EConnector wire (39”)
AA BB CC
A
B
C
C
C
+
w
c
c
w
+
w
c
c
w
+
w
c
c
w
+
w
c
c
w
+
w
c
c
w
+
w
c
c
w
+
w
c
c
w
+
w
c
c
w

Questions, problems, missing parts? Before returning to the store,
call Design Solutions International Customer Service
Mon-Fri 9:30 am to 3:00 pm EST
1-800-388-6141 ext. 216
For customer service support and the fastest response, please email us at
[email protected]
www.SMRTLite.com
Retain this manual for future use.
TM
MR

Artículo núm. 312 199 115
Modelo DS18979
GUÍA DE USO Y MANTENIMIENTO
LÁMPARA INTELIGENTE EMPOTRADA QUE CAMBIA DE COLOR
+
w
c
c
w
+
w
c
c
w
+
w
c
c
w
+
w
c
c
w
w
c
+
c
w
w
c
+
c
w
w
c
+
c
w
w
c
+
c
w
¿Tiene alguna pregunta o algún problema? ¿Le faltan piezas? Antes de volver a la
tienda, llame al Servicio de atención al cliente de Design Solutions International, de
lunes a viernes, de 9.30 a 15 h EST
1-800-388-6141 ext. 216
Para obtener ayuda de nuestro Servicio de atención al cliente y la respuesta más
rápida, envíenos un correo electrónico a
[email protected]
www.SMRTLite.com
TM
MR

Tabla de contenidos
Información de seguridad
2
Tenga siempre a mano el manual del usuario mientras instala esta
tira de LED. Lea y comprenda el manual del usuario para asegurar
una instalación y uso correctos. Siempre preste atención a los datos
técnicos indicados en el producto. Nos reservamos el derecho de
realizar modicaciones técnicas.
□Los trabajos de montaje y mantenimiento solo podrán ser
realizados por un electricista o profesional calicado de
acuerdo con las normas de seguridad locales.
□Para que este producto tenga una larga vida útil, todas las
conexiones eléctricas deben hacer buen contacto.
□The LED chips of this LED tape light can not be replaced.
□This LED tape light includes a linkable connector. Only link a
maximum of four LED tape lights. Do not link multiple strips
together.
□Please only use the LED driver which has been provided with
this LED tape light.
□Nunca utilice la unidad en una habitación donde exista peligro
de explosión ni cerca de líquidos o gases inamables.
□No doble, aplaste ni tire del cable. Manténgalo alejado de
bordes alados, aceite y calor.
□Do not touch the LED tape light or electrical connector directly
with hands.
□For indoor use only.
□Asegúrese de que los conectores y el tapón estén rmemente
jados antes de utilizar la tira.
□Do not use the LED tape light on a timer, wall switch with
dimming functions, or with an extension cord. Using the LED
tape light with any of these voids the warranty and results in
the LED tape light not functioning properly.
Tabla de contenidos........................................................2
Información de seguridad.............................................. 2
Garantía........................................................................... 3
Garantía de tres (3) años............................................................ 3
¿Qué cubre?............................................................................... 3
¿Qué no cubre?...........................................................................3
Preinstalación..................................................................4
Planicación de la instalación.................................................... 4
Herramientas necesarias............................................................4
Tornillería incluida...................................................................... 4
Contenidos del paquete.............................................................. 5
Instalación....................................................................... 6
Funcionamiento.............................................................. 10
Cómo utilizar la aplicación SMRTLite...........................11
Mantenimiento y limpieza.............................................. 14
Solución de problemas...................................................14
Declaración de cumplimiento de la FCC (Comisión
Federal de Comunicaciones)......................................... 14
Piezas de repuesto......................................................... 15
Modelo........................................................................................ 15
PELIGRO: Danger of eye damage! Never look directly
at the LED chips of this LED tape light.
ADVERTENCIA: Riesgo de descargas eléctricas.
Instale el adaptador a una altura de más de 30 cm/11,8
pulgadas de la superficie del suelo.
CAUTION: Do not submerge any part of this unit. Do
not cut the LED tape light.
IMPORTANTE: La tensión de la alimentación principal
y el fusible deben cumplir con las especificaciones de los
datos técnicos. Antes de comenzar a trabajar, asegúrese
de que el cable principal no tiene tensión. Desconecte el
fusible.
AVISO: Potencia de la tira de iluminación LED flexible: 24 V CC 1A.
PRECAUCIÓN: CONSULTE A UN ELECTRICISTA
CALIFICADO SI TIENE ALGUNA PREGUNTA SOBRE
ELECTRICIDAD. Si tiene alguna pregunta sobre esta la
tira de LED que no esté relacionada con la electricidad,
llame al teléfono del equipo del Servicio de atención al
cliente: 1-800-388-6141 ext. 216. Proporcione el código
SKU (312 199 115) o UPC (802513189797).

3
Garantía
GARANTÍA DE TRES (3) AÑOS
¿QUÉ CUBRE?
El fabricante garantiza que esta la tira de LED no presentará defectos de material ni de mano de obra durante un período de tres (3) años a
partir de la fecha de compra. Esta garantía se aplica solo al comprador original y únicamente a los productos que se utilicen en condiciones
normales y reciban un mantenimiento adecuado. Si este producto resulta defectuoso, la única obligación del fabricante, y la única solución,
es reparar o sustituir el producto a discreción del fabricante, siempre que el producto no se haya dañado por uso indebido, abuso, accidente,
modificaciones, alteración, negligencia o mal manejo. Esta garantía no se aplicará a ningún producto que se haya instalado, configurado
o utilizado de forma incorrecta sin haber seguido las instrucciones que incluye el producto. Esta garantía no se aplicará a ningún fallo
del producto ocasionado por accidentes, mal uso, abuso, negligencia, alteración, instalación defectuosa o cualquier otro fallo que no esté
relacionado con el material defectuoso ni la mano de obra. Esta garantía no se aplicará al acabado de ninguna parte del producto, como la
superficie y/o partes erosionadas, ya que se considera uso y desgaste normal.
¿QUÉ NO CUBRE?
El fabricante no otorga y renuncia expresamente a cualquier garantía, ya sea explícita o implícita, de idoneidad para un fin determinado,
distinta de la garantía que incluye este producto. El fabricante renuncia expresamente a cualquier responsabilidad y no se hará responsable
de ninguna pérdida ni daño consiguientes o imprevistos, incluidos pero sin limitarse a, los costes de mano de obra o los gastos derivados de
la sustitución o la reparación de dicho producto.
Póngase en contacto con el equipo del Servicio de atención al cliente llamando al 1-800-388-6141, ext. 216, hora del este, de lunes a viernes,
de 9.30 a 15 h EST. Para obtener ayuda de nuestro Servicio de atención al cliente y la respuesta más rápida, envíenos un correo electrónico a
[email protected].

AA BB CC
4
Preinstalación
IMPORTANTE: Retirar la tira de LED de la superficie
de montaje podría producir lesiones, así como daños en la
tira de LED y/o en la superficie de montaje. Para reducir la
probabilidad de lesiones o daños, lleve a cabo el montaje
únicamente en una superficie cuya estructura sea sólida.
Llame al 1-800-388-6141, ext. 216, para contactar con el
equipo del Servicio de atención al cliente. Para obtener
ayuda de nuestro Servicio de atención al cliente y la
respuesta más rápida, envíenos un correo electrónico a
[email protected].
OBSERVACIÓN: La tornillería no se muestra en
tamaño real.
OBSERVACIÓN: The Smart LED tape light must be
installed within range of your home’s Wi-Fi in order
to communicate properly with the SMRTLite app.
Verification before installation is recommended.
PLANIFICACIÓN DE LA INSTALACIÓN
Lea las instrucciones antes de comenzar la instalación.
Para evitar dañar este producto, colóquelo sobre una supercie suave, no abrasiva, como una alfombra o un cartón.
Destornillador
de estrella
Brocha
Lápiz
Cinta métrica
HERRAMIENTAS NECESARIAS (NO INCLUIDAS)
TORNILLERÍA INCLUIDA
Pieza Descripción Cantidad
AA Tornillo 18
BB Enganche 8
CC Wire clip 2
