Aseko ASIN AQUA Home VS User manual

ASIN AQUA®Home VS
CUTTING EDGE TECHNOLOGY
FOR CRYSTAL CLEAR AND HEALTHY POOL WATER
2021
EN
USER MANUAL
INTEGRATED
VS PUMP
CONTROL
www.asekopool.com

EN
2
General safety information
This user manual contain basic information that should be observed during assembly, start-up,
operation, and maintenance. Therefore, this user manual must be read by installers and operators
prior to assembly and start/up, and must be accessible to every user of this unit. Additionally,
all further safety information in this document absolutely must be observed. Read and follow all
instructions. In order to minimize the danger of injury, do not allow children to use this product.
Hazards from non-compliance with safety information. Non-compliance with safety information
can result in hazards to persons, the environment, and the equipment. Non-compliance with safety
information will result in a forfeit of any potential right to damage compensation.
Insufficient personnel qualification
Hazards in the event of insuciently qualified personnel, potential consequence: Injury, heavy material
damage.
• The system operator must ensure compliance with the required qualification level.
• Any and all work may only be performed by correspondingly qualified personnel.
• Access to the system must be prevented for insuciently qualified persons, e.g. via access codes
and passwords.
Potential overdosing of chemical agents
Despite ASIN Aqua® comprehensive safety functions, it is possible that a probe failure and other errors
could lead to an overdosing of chemical agents. Potential consequence: Injury, heavy material damage.
• Design your installation such that uncontrolled dosage is not possible in the event of a probe failure
or other errors, and/or such that uncontrolled dosage is recognized and halted before damage is
incurred.
• Uncontrolled overdose of chemicals can cause harm to health and property. Even though the device
contains a number of security elements can not be ruled out that in case of failure of the measuring
probes, or the whole device may result in overdose of chemical agents. Install the equipment so
that uncontrolled overdose of chemicals was not possible and that uncontrolled overdose has been
detected in time before causing any harm. It is necessary to use chemicals in such quantities that an
overdose will not cause dangerous concentration of chemical agents. Do not use chemicals in too
large packages or with too high concentration.
Gaseous chlorine produced from dosing in standing water if dosing
outputs are not closed via the filter pump
If the flow switch is stuck or experiences another error, there is a risk of dosing into standing water.
Poisonous chlorine gas can be yielded when sodium hypochlorite and pH minus come together.
Non compliance with informational text
There is a great deal of informational text indicating hazards and their avoidance. Not observing informational
text may lead to hazards. Potential consequence: gravest degree of injury, heavy material damage.
• Read all informational text carefully.
• Cancel the process if you are unable to exclude all potential hazards.

EN 3
Use of new functions
Because of the continued development, a ASIN Aqua® unit may contain functions, which are not
completely described in this version of the user manual. The use of such new or extended functions
without a profound and secure understanding by the operator may result in malfunctions and severe
problems. Potential consequence: Injury, heavy material damage.
• Make sure to get a profound and secure understanding of a function
and relevant boundary conditions, before you start to use it.
• Check for an updated version of the user manual or additional
documentation available for the relevant functions.
• Make use of the integrated help function of the ASIN Aqua® to get
detailed information on functions and their parameter settings.
• In case it should not be possible to get a profound and secure understanding of a
function based on the available documentation, do not use this function.
Overdosing if pH value is wrong
If disinfection is enabled before the pH value is stable in the ideal range of 7.0 to 7.4, then it may lead
to heavy overdosing of chlorine or bromine. Potential consequence: Injury, heavy material damage.
• Do not start disinfection with chlorine until the pH value is
stable in the ideal range between 7.0 and 7.4.
Conditions before using
Make sure you have a newest and updated version of the user manual and other documentation for
all functions of the unit. Use and read the integrated help features. In case of not understanding the
information about certain features of the unit, do not use these features.
Handling chemicals for pool water treatment
The chemicals used with the ASIN Aqua must be handled in a safe manner to prevent damage or personal
harm. Aseko recommends you always use personal protective safety equipment when handling the pH
and chlorine agents. Refer to the Materials Safety Data Sheet (MSDS).
WARNING: Never mix the pH agent with the chlorine agent. When carrying out maintenance on
the clear plastic tubes or valves always rinse with clean water to prevent mixing of the pH and chlorine
agents.

EN
4
What do you receive in your box
PE Tube 1/4” (6.35 mm)
transparent 15m #12008
Flowmeter with filter
#12106
Peristaltic pumps #12093
Probe housing 2 pcs
#13013
Dowels
and screws
Water valves 2 pcs #12006
Wrench socket for
probes #13046
Device
ASIN AQUA Home
Injection valve 4 pcs #12005 Suction tube weight 4 pcs #12023
Water thermometer with
housing #13192
NEW
CLF probe
#12052
or Redox probe Long Life
# 12016
pH probe Long Life
# 12012

EN 5
CHLORPURE #12059
20 l volume for pools
5 l volume for whirlpools
CHLORPURE #12075
External touch display
#12048
Pressure-type level sensor
#12086
Air thermometer
#13192
Inserting DN50 plug
1/4” threaded #12134
Photometer
# 13076
pH 7.00 Buer #12065 Redox
Buer #12063
Available optional accessories
Coagulation mixer
#30001
Package 10 kg
BALANCER #13039 MAGNESIUM #13039
ALGICID #12156
ALGICID #12157
pH MINUS #12130
pH MINUS #12131
pH PLUS #12120 FLOC+C #12139
FLOC+C #12138
Bottle 1 kg
SUPER CHLOR # 13120
ASEKO original chemical solution

EN
6
ASIN AQUA Home
Congratulations to purchase Smart pool management system
ASINAQUAHome.
With ASIN AQUA Home you are getting the top-class high precision pool
water management system. By combination of traditional, for years
approved, disinfection technology, precise measuring, by FREE Chlorine
Membrane Probe, with digital intelligence and connection to ASEKO Web
Services becomes the ASIN AQUA Home the best solution for Your pool.
Chlorine disinfection with precise pH management, boosted by dosing of
Algaecide and Flocculating aid assure the crystal-clear water of your pool by
use of the lowest necessary amount of chemical aids. User friendly Smart
control functions of ASIN AQUA Home will make your pool fully automatic
and the pool maintenance become just fun. Online connection to ASEKO
Web Services system and smart application iPool Live will give you the pool
status overview from where ever you are connected to internet.
Pool water treatment
Well-balanced combination of all treatment aids will provide
cleanand crystal clear water
Chlorine control and dosing
Highly eective disinfection treatment of pool water for public and private
pools. Extraordinary precise measuring of chlorine content in the pool
water by ASEKO CLF - free chlorine probe combined with the system digital
intelligence is able to control the preset disinfection level by usage of
minimum necessary chemical aids.
pH control and dosing
ASIN AQUA Home is adjustable to dose pH MINUS or pH PLUS. Treatment
for stabilizing of pool water acidity at the optimum level. Precise measuring
by pH probe combined with the system digital intelligence controls the
preset pH level of the circulating pool water in all pool operation modes and
variable environment conditions.
Algaecide daily dosing
Dosing of preset daily eective portion of biocide (based on the pool
volume) that protects your pool against algae, fungi, moulds and bacteria.
Flocculant+Coagulant time continuous dosing
Eect of bright and crystal clear water managed by slow continuous dosing
of flocculation and coagulation aids that improves the capability of filtering
even the smallest invisible water impurities that are in standard conditions
able to pass through the filter.
MAX POOL VOLUME
250m3

EN 7
Pool management functions
Filtration Time Control
Daily, automatic start of the filtering for individually preset periods.
Water Level - Refilling
Water level can be monitored by optional level sensor. System can be
individually programmed to control up to four dierent water levels at
your pool and switch the water refilling or waste water draining on/o (this
requires an optional Besgo valve for automatic backwashing).
Filter Backwashing
The system can control the filter backwashing time interval (this requires an
optional Besgo valve for automatic backwashing).
Smart Heating Control
The system is equipped by intelligent control of preset water temperature.
It can switch and control the heating (electrical heating, gas heating, heat
exchanger) by logic of integrated smart heating functions. The system must
be equipped by optional air thermometer.
Freeze Protection
Unless you want to drain the pool for the winter season, this function can
ensure protection of the pool water against freezing. The system must be
equipped by optional air thermometer.
Control by External touch display
Some functions of ASIN AQUA Home can be monitored and controled by
external touch display. System must be equipped by optional External
touch display.

EN

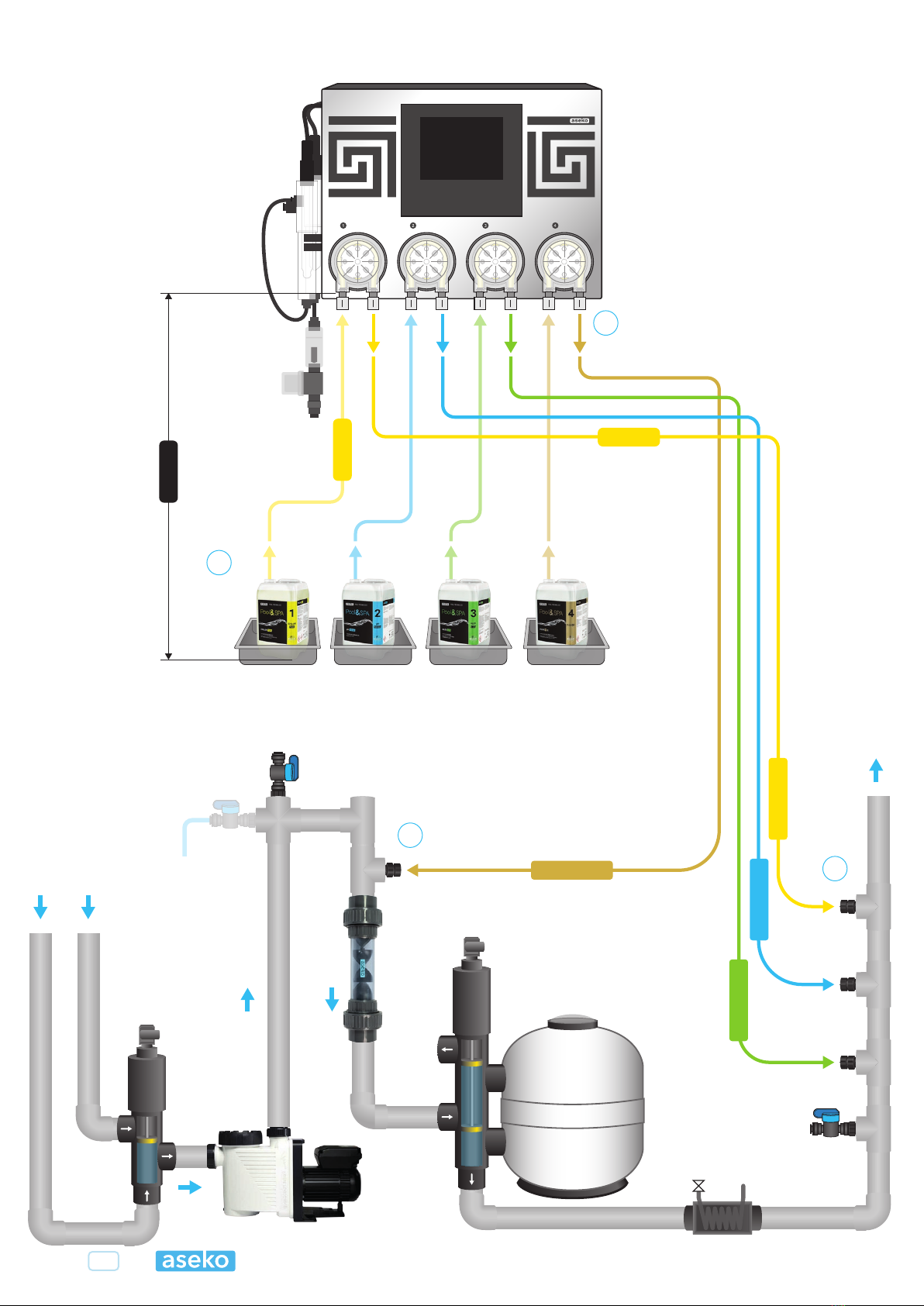

8
max 8 m
CHLORINE pH ALGICID FLOCC
40 °C
max.
5 °C
min.
40 cm
40cm 40 cm
40 cm
150 cm
18,5 cm 18,5 cm
CHLORINE pH ALGICID FLOCC
max 2 m
CHLORINE pH ALGICID FLOCC
Wall bracket
ASIN AQUA Home Installation
ASIN AQUA Home is to be wall-mounted in a dry and dust-free environment
with temperatures ranging from +5 °C to +40 °C.
Install the mounting rail to attach ASIN AQUA Home to the wall. Choose the
location so that there is a free space of at least 40 cm in all directions and
the height above the floor is not higher than 150 cm. Drill three holes in the
wall at a distance of 18.5 cm. Use screws supplied with ASIN AQUA Home for
attachment.
RECOMMENDATION:
ASIN AQUA Home must be installed in a way that in the event of a chemical
leak from the pumps or tubes, the equipment will not be damaged or chemi-
cals will not spill onto the floor. Use drip trays.
Do not install any other devices under ASIN AQUA Home.
WARNING: The location temperature should permanently be in the range
from +5°C to +40 °C.
Direct sunlight, high humidity and dust may lead to damage to
ASINAQUAHome.
• Before installing, ensure that pool water is chemically clean and free
of dirt.
• The maximum distance of injection valves from peristaltic pumps of
ASINAQUAHome must not be greater than 8 m.
• Vertical distance between ASIN AQUA Home and the bottom of
containers must not exceed 2 m.

EN 9

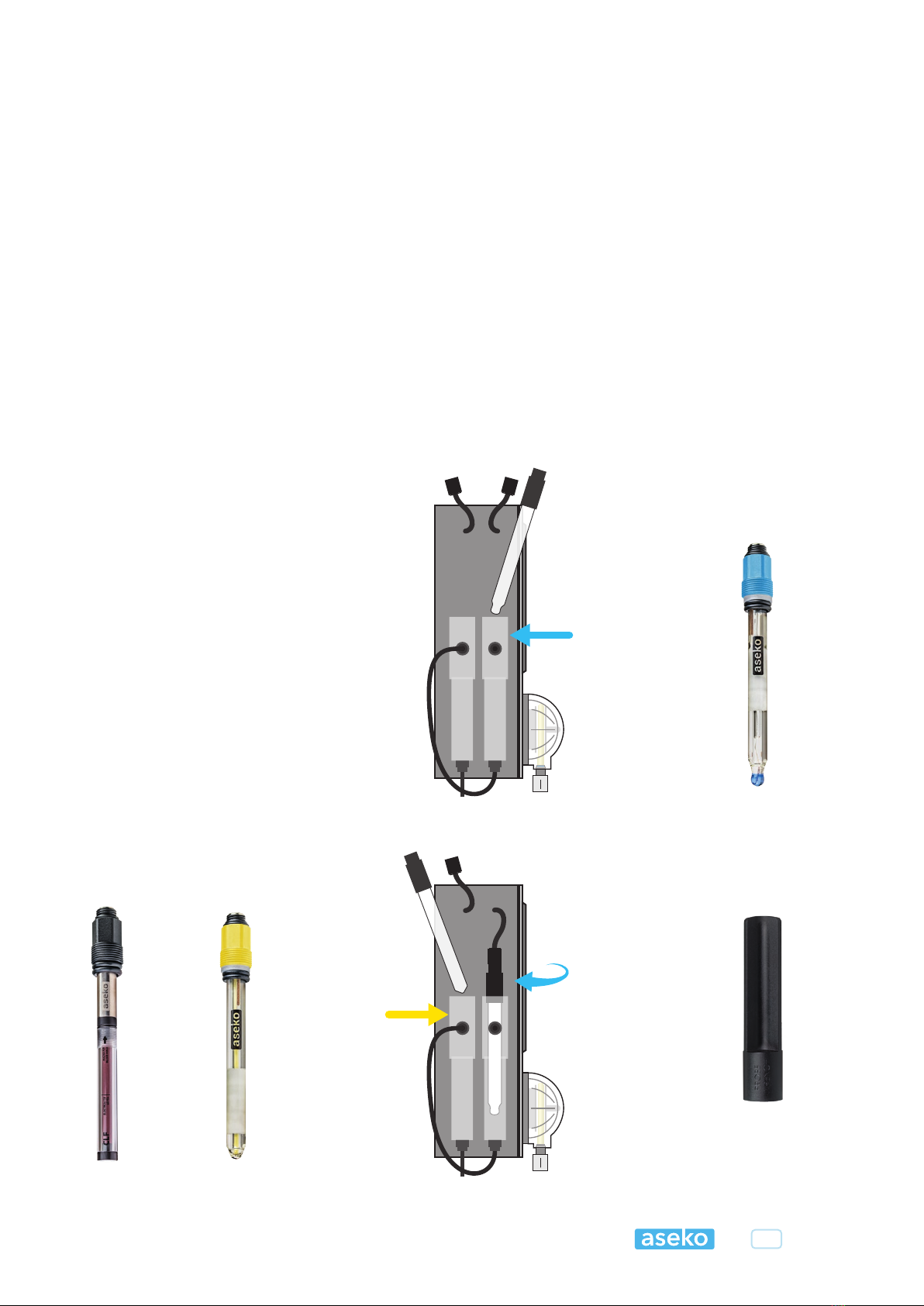

Installing the Probes
1. Carefully insert the pH, CLF or REDOX probe into the housing.
2. Hand tighten or use the attached plastic wrench socket for probes.
3. Connect the connector and lock it by tightening a connector ring.
After probes have been inserted, slightly tightened and connectors have
been connected, ASINAQUAHome is ready for connection to the water
system of your pool.
WARNING: Only hand tighten the probes or use the attached plastic wrench
socket for probes. Do not use pliers or steel wrench.
CLF or Redox
probe housing
#12013
pH probe
housing #12013
CLF probe
# 12052
Redox probe
Long Life
#12016
Wrench socket for
probes #13046
pH Long Life probe
#12012

CHLORINE pH ALGICID FLOCC
FROM SKIMMER FROM BOTTOM
TO POOL
MEASURED
WATER
DRAINAGE
MEASURED
WATER
SUPPLY
INLET
OUTPUT
1
2
3
4

CS 11
CHLORINE pH ALGICID FLOCC
FROM SKIMMER FROM BOTTOM
TO POOL

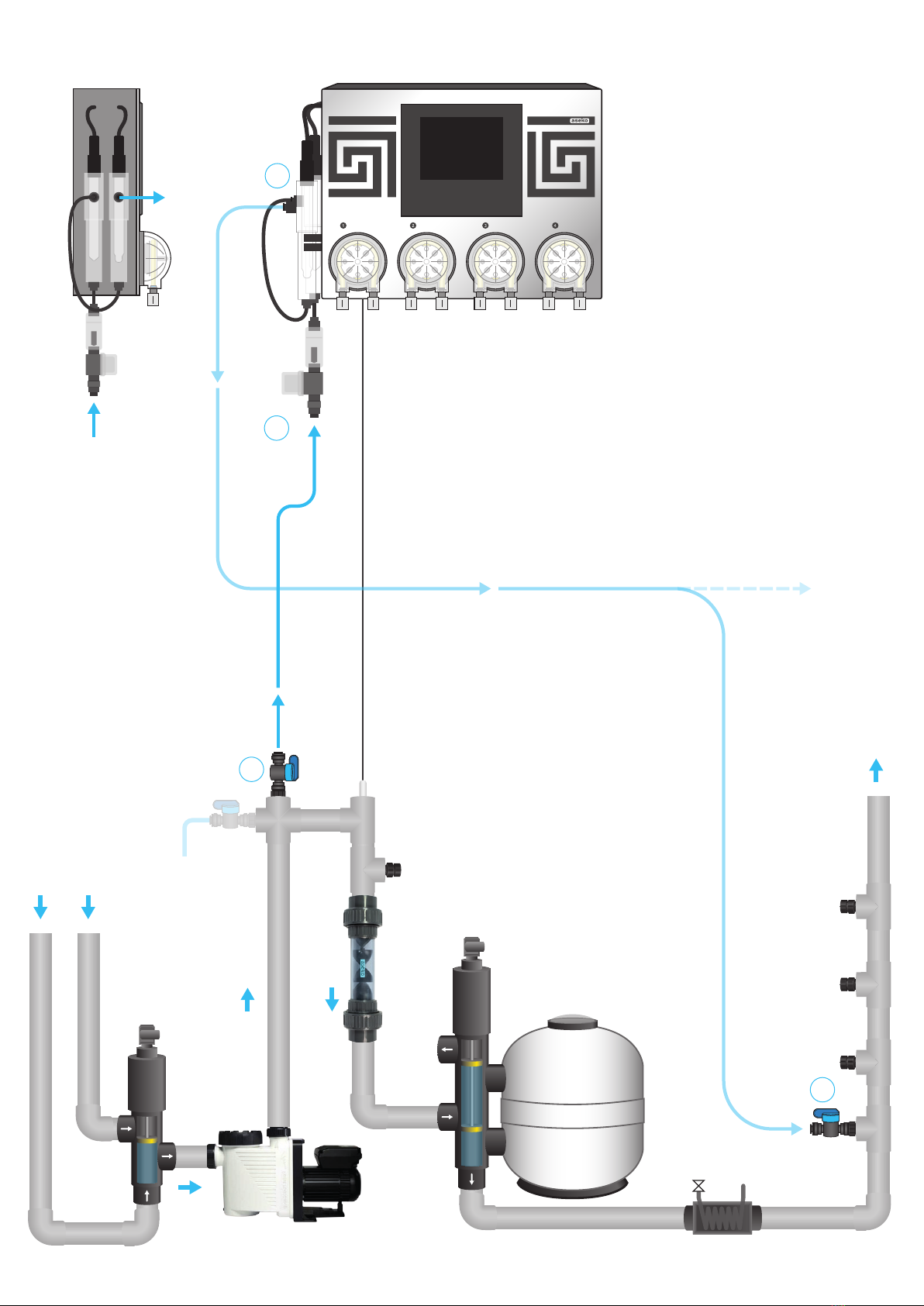

Pool Water Connection
The pool water to be measured must be brought to the ASIN AQUA probes.
We place the shut-off valve in the plug D = 50 with thread G1 / 4 “# 12134,
glued to the T-piece. Tighten by hand only. Do not use pliers or other
tools.
Connect the MEASURED WATER SUPPLY to the pipe behind the pump,
in front of the filter and the coagulation mixer.
Connect the MEASURED WATER DRAINAGE to the pipe behind the filter
and heating or into the overflow tank or skimmer.
Use to connect the measured water to your ASIN AQUA PE tube 1/4 “(6.35
mm) #12008, which is part of the delivery.
The measured water is easily connected to your ASIN AQUA using the
Speedfit push-in fitting.
CONNECTION Push the connecting pipe into the Speedfit fitting
and then pull on the hose to secure.
DISCONNECT push and hold the Speedfit round collet
and pull out the connecting pipe.
INLET of the measured water to the ASIN AQUA Connect to the Speedfit
fitting on the inlet filter.
OUTPUT of the measured water from ASIN AQUA connect to the Speedfit
fitting on the probe well.
Once connected, your ASIN AQUA is ready to measure disinfectant content
and pH value in your pool.
WARNING
To ensure that the joints are tight, cut the PE tube at an angle of 90 °. Usespe-
cial pliers # 13325 to cut plastic tubes. The cut must be clean andsmooth. Do
not use ordinary scissors or knives!
1
3
2
4
Water valve fitting
Plug with
D = 50 with
thread 1/4“
T-joint
Water valve
fitting
G1/4” thread
CONNECTION
LOCKING
DISCONNECTION
Pull out
PE tube 1/4 “(6.35 mm)
90°
PE tube 1/4 “(6.35 mm)

CS
12
1
2
3
4
CHLORINE pH ALGICID FLOCC
TO POOL
FROM SKIMMER FROM BOTTOM
Max 8 m
CHLOR PURE
pH MINUS
ALGICID
FLOC+C
Max 8 m
Max 2 m

CS 13
Pool Chemicals
Connection
Screw the injection valves into the plug D = 50 with thread G1 / 4 “# 12134,
glued to the T-piece. Tighten by hand only. Do not use pliers or other
tools.
Connect the FLOC+C INJECTION VALVE to the pipe before the coagulation
mixer and before the filter.
Connect the ALGICIDE, pH, and CHLOR PURE INJECTION VALVE to the
pipe behind the filter and behind the drainage of the measured water. Con-
nect injection valves in this order to prevent scale formation.
To connect reagents from cans to the ASIN AQUA and from the ASIN AQUA
to the injection valve use PE Tube 1/4 “(6.35 mm) # 12008, whichis part of
the delivery.
CANISTER CONNECTION Drill 6.35 mm and 1 mm diameter holes in the
canister cap. Pass the pipe through the cap so that it reaches to the bottom
of the canister. Place the suction basket at the end of the pipe.
PUMP CONNECTION connect the suction of the pump on the left to the
canister connect the pump discharge on the right to the injection valve.
INJECTION VALVE CONNECTION Pass the pipe through the nut, thread
the pipe onto the injection valve and tighten the nut firmly by hand.
1
2
3
4
5
WARNING
To ensure that the joints are tight, cut the PE tube at an angle of 90 °. Usespe-
cial pliers # 13325 to cut plastic tubes. The cut must be clean andsmooth. Do
not use ordinary scissors or knives!
WARNING
NEVER CONNECT pH minus reagent to disinfection pump or disinfectant
to pH pump! In the case of a cross-connection, after ten doses ASIN AQUA
displays an error message. Repair the piping installation and then you can
continue to operate your ASIN AQUA.
CHLORINE pH ALGICID FLOCC
TO POOL
FROM SKIMMER FROM BOTTOM
Max 8 m
CHLOR PURE
pH MINUS
ALGICID
FLOC+C
Max 8 m
Max 2 m
Ø 1 mm Ø 6,35 mm
5
4
3
Plug with
D = 50 with
thread 1/4“
T-joint

EN
14
(
+
)
(
+
)
GND +12V B A
1
2
3
L
L
Bazénová roleta
Hladinoměr
Teploměr vzduch
Teploměr voda
Průtokoměr
Externí display
Topení
Bez funkce
COM
Speed 0
Speed 1
Speed 2
Speed 3
STOP
LOW
MEDIUM
HIGH
230 V
relé
max 1A
ZDROJ NAPÁJENÍ
230 V ~ 50 Hz
Bezpotencionální
relé
Řízení
variabilního
čerpadla
Vstupy
Roleta
24 2522211
Sepnuto – zavřená
Rozepnuto – otevřená
2 23873 4 5 6 9 10
Besgo 3 W
Dnová výpust
30 31
Besgo 5 W
Praní filtru
Solenoid
dopuštění
32 33 34 3526 27 28 29
131211 14
13 14 11 12
COM
0123
36 37 38 39 40
Flow T water T out Level Cover Timer Bottom B.wash FillingHeating
VS pump
RS 485 Display
230 V ~ 50 Hz
T800mA
T125mA
NLNL
POWER SUPPLY
230 V ~ 50 Hz
Roller shutter
position
POTENTIALFREE RELAY!
Without
function
Heating relay
Solenoid valve
filling
Besgo valve 5W
Filter backwash
Besgo valve 3W
OFF Bottom
ON Overflow
Water level
sensor
Air
thermometer
Water
thermometer
Flow meter
External display
Connected – cover close
Disconnected – cover open
RELAY 230 V, MAX 1 A
SENSOR INPUT 4  20 mA
POTENTIALFREE RELAY
Max 1 A, Max 230 V
VS PUMP CONTROL
External
Display
ROLLER SHUTTER
POSITION
Speed 3 HIGH
Speed 2 MEDIUM
Speed 1 LOW
Speed 0 STOP
COM
Accessories Connection

EN 15
VS pump connection
GND
STOP
N1
N2
N3
SPECK TYP A
COM
0
1
2
3
VS pump
COM
Speed 0
Speed 1
Speed 2
Speed 3
24 252221 23
+5V
N1
N2
N3
OVERDRIVE
PENTAIR
COM
0
1
2
3
VS pump
COM
Speed 0
Speed 1
Speed 2
Speed 3
24 252221 23
TYP B
C
DI4
DI1
DI2
DI3
HAYWARD KS Evo VS TYP A
COM
0
1
2
3
VS pump
COM
Speed 0
Speed 1
Speed 2
Speed 3
24 252221 23
C
DI1
DI2
DI3
DI4
HAYWARD (older type) TYP C
COM
0
1
2
3
VS pump
COM
Speed 0
Speed 1
Speed 2
Speed 3
24 252221 23
GND
SPEED 1
SPEED 2
SPEED 3
NOT CONNECTED
UWE EO PM TYP A
COM
0
1
2
3
VS pump
COM
Speed 0
Speed 1
Speed 2
Speed 3
2422 2321
GND
STOP
N1
N2
N3
INVERTER POOL PUMP TYP A
COM
0
1
2
3
VS pump
COM
Speed 0
Speed 1
Speed 2
Speed 3
24 252221 23
C
DI4
DI1
DI2
DI3
HAYWARD KS Evo VS TYP A
COM
0
1
2
3
VS pump
COM
Speed 0
Speed 1
Speed 2
Speed 3
24 252221 23
C
DI1
DI2
DI3
DI4
HAYWARD (older type) TYP C
COM
0
1
2
3
VS pump
COM
Speed 0
Speed 1
Speed 2
Speed 3
24 252221 23
3
6
7
8
11
DAB E.SWIM - E.PRO TYP B
COM
0
1
2
3
VS pump
COM
Speed 0
Speed 1
Speed 2
Speed 3
24 252221 23
TYP A
TYP B
TYP C
TYP A
COM S1 S2 S3 STOP
n1 ON OFF OFF OFF
n2 OFF ON OFF OFF
n3 OFF OFF ON OFF
SOFF OFF OFF ON
TYP B
COM S1 S2 S3 S4
n1 ON OFF OFF OFF
n2 OFF ON OFF OFF
n3 OFF OFF ON OFF
SOFF OFF OFF ON
TYP C
COM S1 S2 S3 STOP
n1 ON OFF OFF OFF
n2 OFF ON OFF OFF
n3 OFF OFF ON OFF
SON ON ON OFF
Speed
Relay status
WARNING
Always check the connection according to the current user manual of your pump
manufacturer.

EN
16
RCD
Proudový
chránič
30 mA
Max 1,4 kW
230 v~
230 V / 50 Hz
CHLORINE pH ALGICID FLOCC
Residual
current
device,
30 mA
230 V / 50 Hz
Max. 1,4 kW
230 V~
Power Supply
Connection to the mains:
1. Leave the mains switch in the o position.
2. Connect the filtering device to the ASIN AQUA Home switched socket
outlet (filtration power supply - max. 1.4 kW / 230 VAC).
3. Connect the 230 V / 50 Hz mains cable to ASIN AQUA Home (on the right
side). The mains socket outlet must be protected by a residual current
device (RCD).
4. Change the mains switch over to the on position.
After Device has been switched on, the display will come on and the ASIN
AQUA Home starting screen will appear.
Disconnection from the mains:
1. Change the mains switch over to the o position.
2. Disconnect the ASIN AQUA Home mains cable from the 230 V / 50 Hz
socket outlet.
3. Disconnect the filtering unit mains cable from ASIN AQUA Home.
WARNING: If Device is used in the manner dierent from that specified by
the manufacturer, protection provided by Device may get damaged.
Power supply 230 V / 50 Hz
Power consumption 24 VA
Power consumption (including filter pump) 1449 VA
Maximum input power of connected
filtration
1.4 kW / 230 VAC
Fuse T800 mA; T160 mA; T6,3 A
Over-voltage category II
Ingress protection IP30
Operating temperature +5 to +40°C
Weight 6.7 kg
Installation wall mounted
Relay output contacts 230 V / 1,4 kW
Discharge of dosing pumps 60 ml / min / max. 1bar
Measured water pressure max. 1 bar
(must not be vacuum)
Dimensions 430 x 330 x 160 mm
Installation must be
protected by a residual
current device (RCD).

EN 17
Installation Test
WARNING: Any obstacles, bubbles or leaks in the connecting tube will
prevent ASIN AQUA Home from correct operating. The clear plastic tube
allows you to monitor flow of liquid to the injecting valves.
Before commencing the operation, test ASIN AQUA Home installation. Most
problems result from incorrectly performed installation.
Test
In the “Test of Outputs” menu, gradually start all the pumps and while they
are running, check tightness of all the PE tube connections. Check the
injecting valves for blockage and air bubbles in the PE tube.
Press to TURN ON (GREEN) and press again to TURN OFF.
DO NOT FORGET! Provide the testing run and stop of all accessories
connected to ASIN AQUA Home. At this step just test, do not dose the
aids or provide the initial dose of chemicals!
CHLORINE pH ALGICID FLOCC
1.
2.
3.
Check tightness of all the
connections.
Liquid must reach spraying and
subsequently the tube.
If bubbles occur here, the
pump draws air in. Repair the
connection - disconnect the
tube, cut the end carefully in
90° angle and plug it back.
Monitor level in the
transparent plastic tube.

EN
18
Touch screen description
Main Screen
The basic screen display measured, required values and status information.
E.g. click on the Chlorine tab to enter the setting of the required chlorine
value in pool water.
Required Value.
ON - filtering follows
adjusted period.
NONSTOP 24 h – filtering
in operation for 24 hours
uninterruptedly.
Enter settings.ON indicates the
current status of filtration.
The timer allows to set the control
mode and adjust filtering periods.
Manual control allows to:
switch filtration on/off
independently to preset filtering
periods.
start filter washing independently
to adjusted washing time.
Measured Value.
The chlorine pump status – ON.

EN 19
Settings
Movement through Menu
Value Settings
Movement in menu to the previous page.
Indicator of the current page and the total
number of pages.
Movement in menu to the next page.
ON - function is
switched on
OFF - function is
switched o
Back to the main screen. Displays help/manual for
the particular screen.
Back to the previous
screen.
Reduces the value. Increases the value.

EN
20
Configuration
Date and Time
To ensure the correct function of timers, set the current date and time.
Pool Volume
To ensure the correct function of ASIN AQUA Home, enter the correct
volume of your. Calculate your pool volume in m3:
Length (L) times width (W) times depth (D) is volume (V) - (L×W×D=V).
Enter the value using + and - buttons.
WARNING: The pool volume has eect on the maximum safe dose, enter
the correct value.
Filtration Timer
Filtration can be set to NONSTOP operation for 24 hours or to one, maximum
to two time periods.
Variable Pump Control
ASIN AQUA Home allows to control the SPECK or PENTAIR variable output
circulating pumps. The pump runs at speed 2 in filtering periods, besides
the preset filtering (when the standard pump is o) it runs at speed 1 (or
can stay switched o according to your choice). In case of backwashing, the
pump is running at speed 3.
Individual speeds 1, 2, 3 are adjusted directly on the pump according to the
respective pump manual.
Automatic Filter Washing
Considering that the ASIN AQUA Home technology is in particular based
on the high eciency of filtering and removing even the finest impurities,
itis necessary to wash the filter on a regular basis. The automatic
washing function ensures the filter washing on a regular basis in the
preselected intervals.
To enable this function, it is necessary to use the automatic 5-way
BESGO valve. Its moving is enabled by the relay switching on. When the relay
switches on, the BESGO valve is enabled and moved to the required position
by the action of pressure water or air. See the BESGO manual.
